Automating Route 53 DNS Updates with Terraform When ALBs Are Reprovisioned

intro

Overview

YouTube Tutorial

https://youtu.be/b0jNG1SJpC0

This guide shows how to automate the DNS update process in AWS Route 53 whenever a new Application Load Balancer (ALB) is created or replaced in a Kubernetes environment. It builds on the previous tutorial about securing web applications on Kubernetes with TLS using AWS Load Balancer Controller and Traefik.

When an ALB is deleted and recreated — such as during a cluster upgrade — the DNS record previously pointing to the old ALB becomes outdated. Manually updating this in Route 53 can be error-prone and repetitive. This guide demonstrates how to eliminate that manual step by automating it with Terraform.

Previous tutorial video

Securing Web Apps on Kubernetes with TLS Using AWS Load Balancer Controller and Traefik

GitHub Repository

The complete source code and scripts are available on GitHub:

https://github.com/nsalexamy/secure-web-app-on-k8s-with-tls

github repo

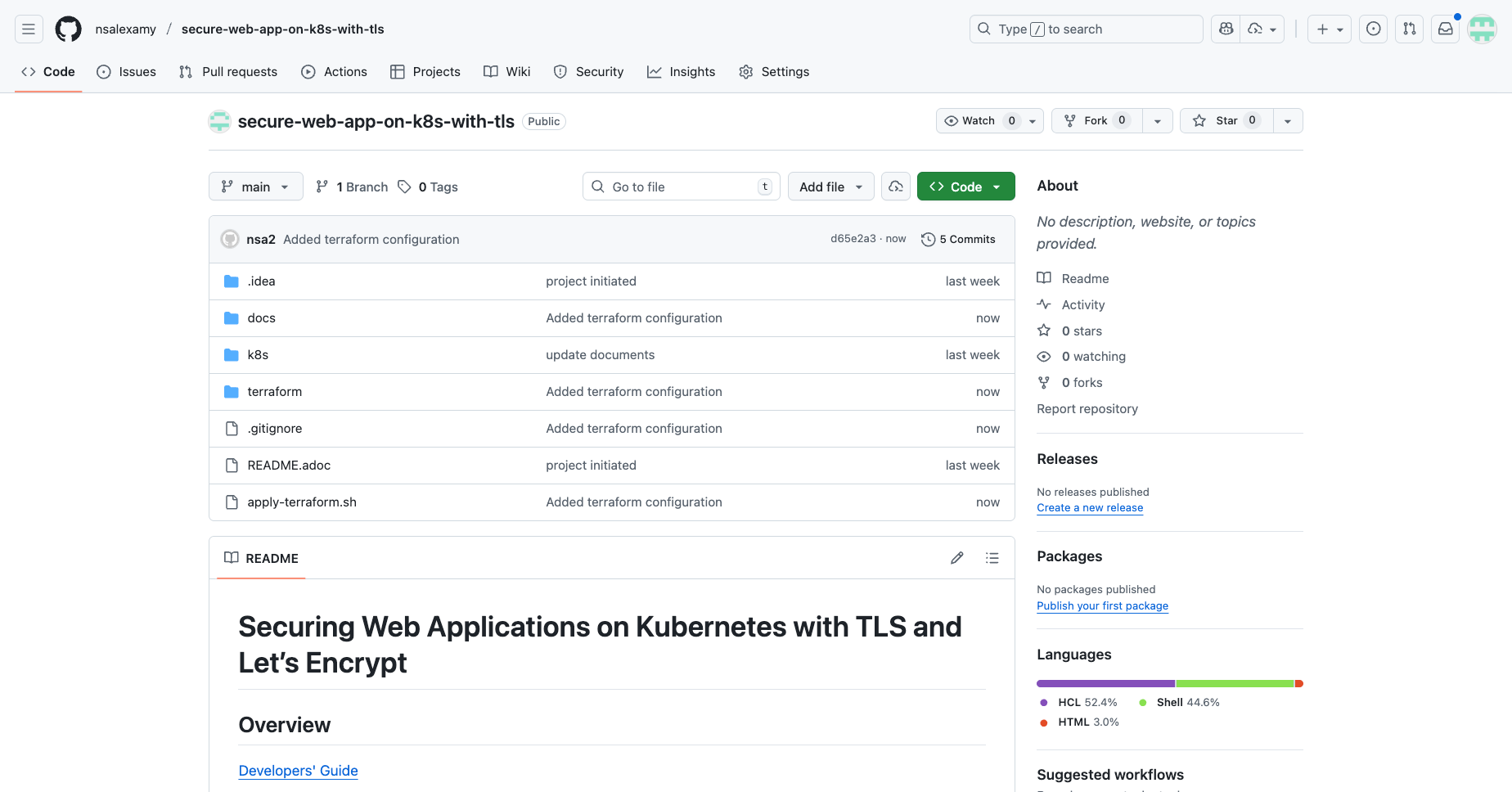

Figure 1. GitHub Repository

Script: apply-terraform.sh

This Bash script automates the following:

  • Waits for the ALB to become active using the AWS CLI.

  • Retrieves the correct Hosted Zone ID from Route 53.

  • Initializes Terraform.

  • Checks if a DNS record already exists.

    • If it exists, imports it into the Terraform state.

    • If not, Terraform will create a new one.

  • Applies the Terraform configuration.

apply-terraform.sh - wait for ALB active
#!/bin/bash

CWD=$(pwd)
TERRAFORM_DIR=$CWD/terraform

wait_for_alb_active() {
  # use aws cli to wait for alb to be active
  local alb_name="$1"
  local timeout_seconds="${2:-600}"     # default: 600 seconds
  local interval_seconds="${3:-5}"      # default: 5 seconds
  local max_retries=$((timeout_seconds / interval_seconds))
  echo "Waiting for ALB $alb_name to become active..."
  for ((i=1; i<=max_retries; i++)); do
    alb_state=$(aws elbv2 describe-load-balancers --names "$alb_name" --query 'LoadBalancers[0].State.Code' --output text 2>/dev/null || true)
    if [[ "$alb_state" == "active" ]]; then
      echo "ALB $alb_name is active."
      return 0
    fi
    sleep "$interval_seconds"
  done

  echo "Timed out waiting for ALB $alb_name to become active." >&2
  return 1
}

The code snippet below shows how to call the wait_for_alb_active function within the apply-terraform.sh script.

apply-terraform.sh - call wait_for_alb_active
ALB_NAME="traefik-alb"

if ! wait_for_alb_active "$ALB_NAME"; then
  echo "Exiting due to timeout"
  exit 1
fi
apply-terraform.sh - terraform init and import existing dns record if exists
cd $TERRAFORM_DIR

DNS_NAME=${DNS_NAME:-"servicefoundry.org"}

HOSTED_ZONE_ID=$(aws route53 list-hosted-zones-by-name --dns-name $DNS_NAME | yq '.HostedZones[0].Id' | awk -F'/' '{print $NF}')

# check if HOSTED_ZONE_ID is 'null'
if [ "$HOSTED_ZONE_ID" == "null" ] || [ -z "$HOSTED_ZONE_ID" ]; then
  echo "Hosted Zone ID for $DNS_NAME not found."
  echo "Please create a hosted zone for $DNS_NAME in Route 53 before applying this Terraform configuration."

  exit 1
else
  echo "Found Hosted Zone ID: $HOSTED_ZONE_ID for $DNS_NAME"
  echo "Using existing hosted zone."

  terraform init

  # check if the DNS record exists
  RECORD_SETS=$(aws route53 list-resource-record-sets \
                  --hosted-zone-id $HOSTED_ZONE_ID \
                  --output yaml \
                  --query "ResourceRecordSets[?Name == '${DNS_NAME}.' && Type == 'A']")

  if [ "$RECORD_SETS" == "[]" ]; then
    echo "DNS record for $DNS_NAME not found in hosted zone $HOSTED_ZONE_ID. It will be created."
  else
    echo "DNS record for $DNS_NAME found in hosted zone $HOSTED_ZONE_ID. Importing into Terraform state."

    DNS_ALIAS="${HOSTED_ZONE_ID}_${DNS_NAME}_A"

    echo "terraform import aws_route53_record.a_alias $DNS_ALIAS"
    terraform import module.alias_for_traefik.aws_route53_record.a_alias $DNS_ALIAS
  fi

  terraform apply --auto-approve
fi

cd $CWD

Key Highlights:

  • The wait_for_alb_active() function polls AWS until the ALB is in an “active” state.

  • Terraform is only applied once the ALB is verified to be ready.

  • DNS records are safely imported or created to reflect the current ALB.

Terraform Configuration

The Terraform configuration is organized as follows:

terraform directory structure
$ tree terraform
terraform
├── main.tf
└── modules
    └── route53-alias-for-k8s-lb
        ├── main.tf
        └── variables.tf

main.tf

main.tf sets up the AWS and Kubernetes providers and invokes the Route 53 alias module.

/terraform/main.tf
provider "aws" {
  region = "ca-central-1"
}

provider "kubernetes" {
  config_path = "~/.kube/config"
  # or host/token/cluster_ca_certificate if running in CI
}

module "alias_for_traefik" {
  source           = "./modules/route53-alias-for-k8s-lb"
  zone_name        = "servicefoundry.org"
  record_name      = "@"                     # root apex; use "app" for app.servicefoundry.org
  k8s_namespace    = "traefik"
  k8s_ingress_name = "traefik-alb"
  create_aaaa      = false
}

modules/route53-alias-for-k8s-lb/main.tf

modules/route53-alias-for-k8s-lb/main.tf dynamically locates the correct ALB using AWS tags and creates a Route 53 A record alias pointing to the ALB.

/terraform/modules/route53-alias-for-k8s-lb/main.tf
terraform {
  required_version = ">= 1.5.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = ">= 6.19.0"
    }
    kubernetes = {
      source  = "hashicorp/kubernetes"
      version = ">= 2.30.0"
    }
    external = {
      source  = "hashicorp/external"
      version = ">= 2.3"
    }
    null = {
      source  = "hashicorp/null"
      version = ">= 3.2"
    }
  }
}

############################
# Discover the AWS LB by controller tag (robust + gives us zone_id)
############################
# The AWS Load Balancer Controller tags LBs with:
#   servicefoundry.org/service-name = "<namespace>/<ingress-name>"
data "aws_lb" "this" {
  # Tag filter works well with controller-managed LBs
  tags = {
    "servicefoundry.org/service-name" = "${var.k8s_namespace}/${var.k8s_ingress_name}"
  }

}

############################
# Route53
############################
data "aws_route53_zone" "this" {
  name         = var.zone_name
  private_zone = false
}

locals {
  fqdn = var.record_name == "@" ? var.zone_name : "${var.record_name}.${var.zone_name}"
}

# A record → ALB/NLB Alias
resource "aws_route53_record" "a_alias" {
  zone_id = data.aws_route53_zone.this.zone_id
  name    = local.fqdn
  type    = "A"

  alias {
    name                   = data.aws_lb.this.dns_name
    zone_id                = data.aws_lb.this.zone_id
    evaluate_target_health = true
  }
}

############################
# Outputs
############################
output "lb_dns_name" {
  value       = data.aws_lb.this.dns_name
  description = "Discovered Load Balancer DNS name."
}


output "record_fqdn" {
  value       = local.fqdn
  description = "The fully-qualified DNS name created in Route53."
}

modules/route53-alias-for-k8s-lb/variables.tf

variables.tf defines all the required input values, such as the domain name, record name, namespace, and ingress name.

/terraform/modules/route53-alias-for-k8s-lb/variables.tf
############################
# Variables
############################
variable "zone_name" {
  description = "Hosted zone name (e.g., servicefoundry.org). No trailing dot."
  type        = string
}

variable "record_name" {
  description = "Record label (e.g., '@', 'app', 'traefik')."
  type        = string
  default     = "@"
}

variable "k8s_namespace" {
  description = "Namespace of the Kubernetes Service (exposed by LB Controller)."
  type        = string
}

variable "k8s_ingress_name" {
  description = "Name of the Kubernetes Service."
  type        = string
}

variable "create_aaaa" {
  description = "Also create AAAA (IPv6) alias to the same LB."
  type        = bool
  default     = true
}

Kubernetes Ingress Configuration

To support the automation, your ALB Ingress should:

  • Use the alb ingress class.

  • Set AWS Load Balancer Controller annotations to:

  • Define the ALB name

  • Provide certificate ARN

  • Configure tags used by Terraform to discover the ALB

Make sure the tag servicefoundry.org/service-name matches the expected format so Terraform can find the right load balancer.

k8s/alb-traefik/ingress-traefik-alb.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: traefik-alb
  namespace: traefik
  annotations:
    alb.ingress.kubernetes.io/load-balancer-name: traefik-alb
    alb.ingress.kubernetes.io/scheme: internet-facing
    alb.ingress.kubernetes.io/tags: "servicefoundry.org/service-name=traefik/traefik-alb,servicefoundry.org/provider=service-foundry"
    alb.ingress.kubernetes.io/target-type: instance     # or "ip"
    alb.ingress.kubernetes.io/healthcheck-path: /ping
    alb.ingress.kubernetes.io/healthcheck-port: '31080'
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}]'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:aws-region:aws-account-id:certificate/certificate-arn
spec:
  ingressClassName: alb
  ## rules are omitted for brevity

Automation Flow

  1. Deploy the ALB Ingress resource:

$ kubectl apply -f k8s/alb-traefik/ingress-traefik-alb.yaml

  1. Run the automation script:

$ ./apply-terraform.sh

  1. Terraform will either:

    • Import the existing DNS record and update it

    • Or create a new DNS record pointing to the new ALB

Verify DNS Changes

You can verify the updated DNS using:

$ dig +short servicefoundry.org

Make sure the IP address or CNAME matches the newly created ALB.

Conclusion

intro

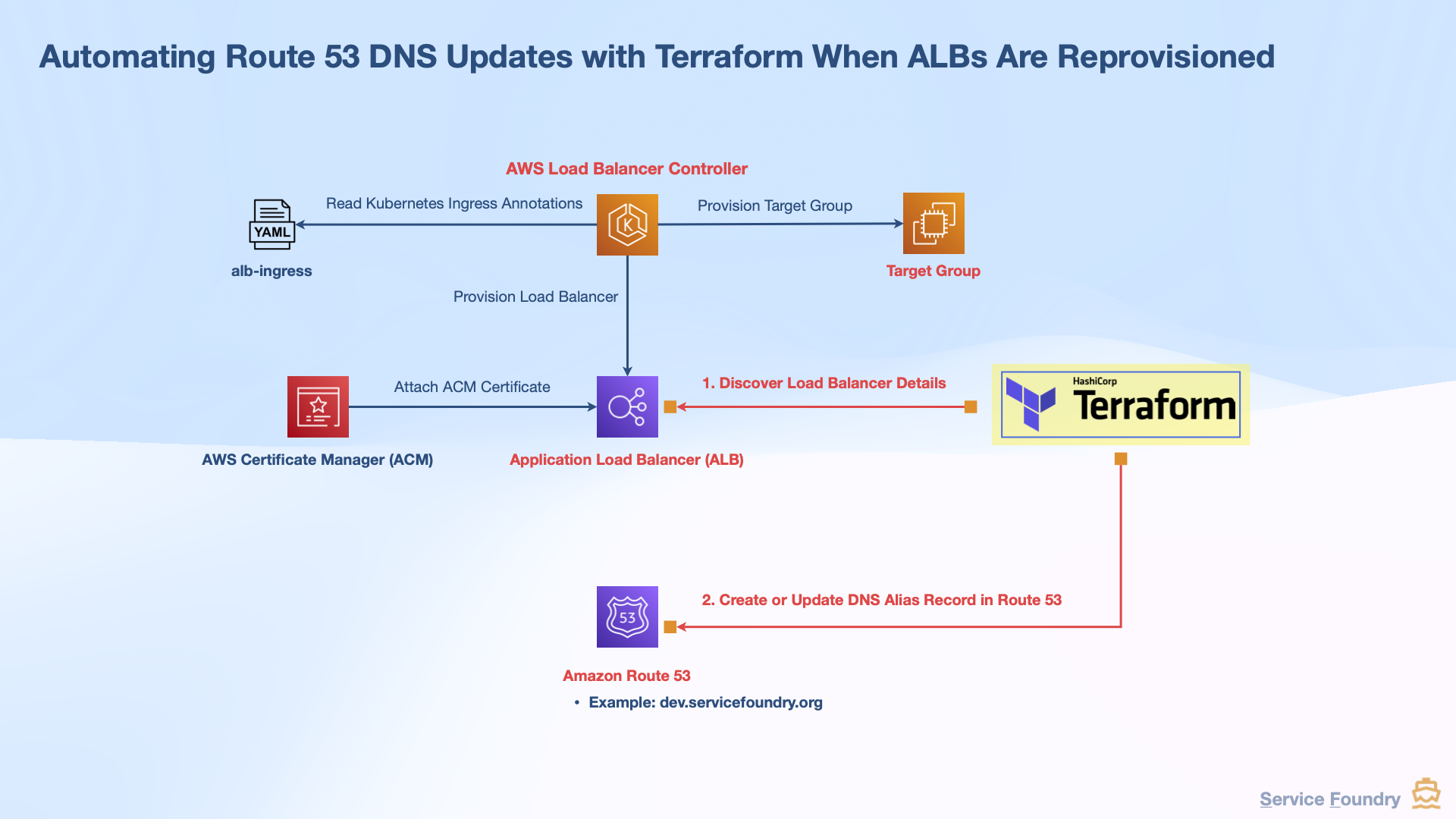

Figure 2. Utilizing Terraform to Automate Route 53 DNS Updates

By integrating Terraform into your DNS management workflow, you eliminate manual Route 53 updates when ALBs are reprovisioned. This ensures your domain always points to the right infrastructure and reduces human error during cluster updates or rollouts.

This approach not only simplifies maintenance but also ensures high availability and reliability in production environments.
