Hostname based Gateway API Service using Traefik, ALB, and Route 53

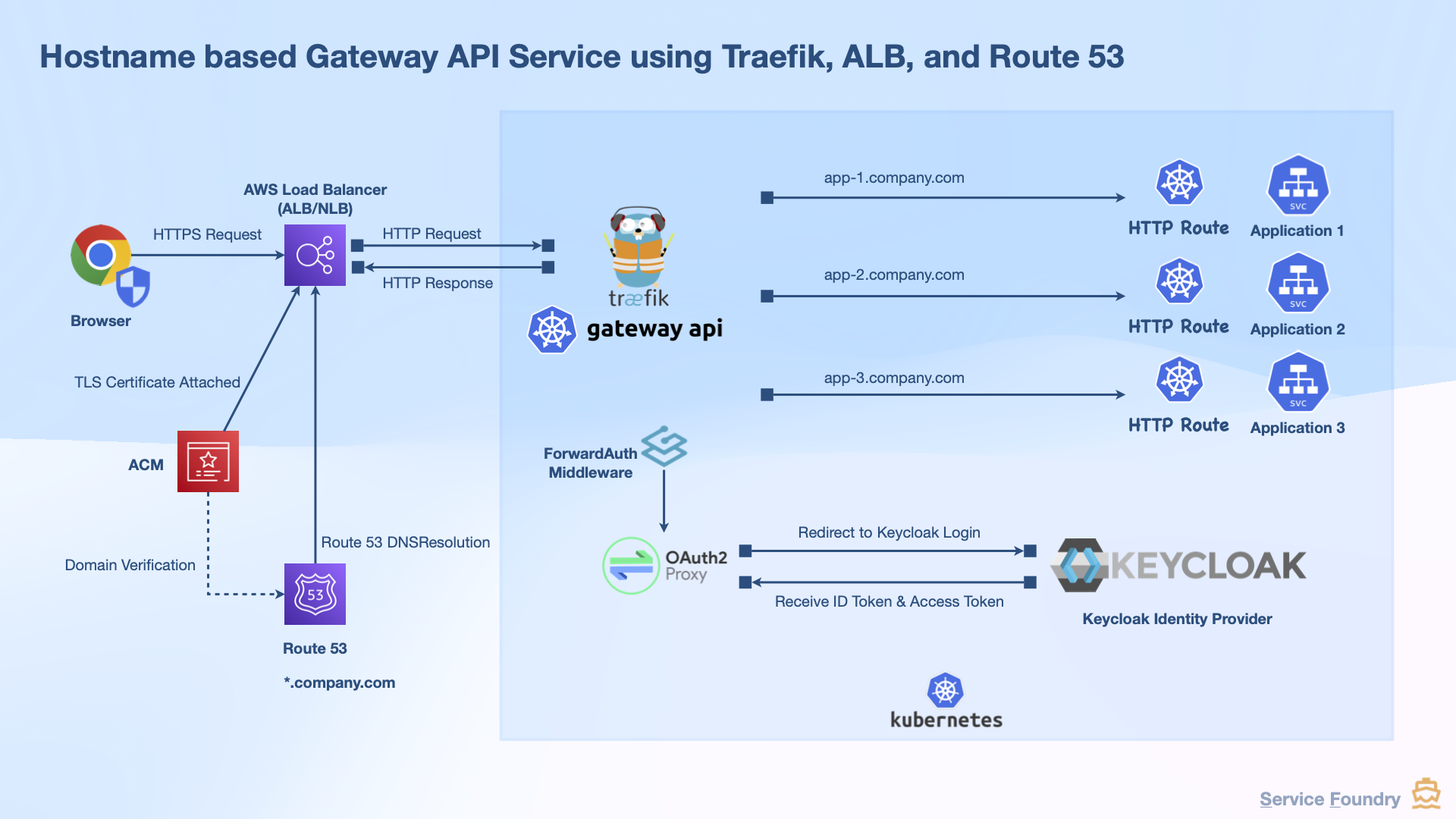

intro

Introduction

YouTube Tutorial

https://youtu.be/qjaFVdAZ1xk

📘 Web version

https://nsalexamy.github.io/service-foundry/pages/documents/blog/edge-service/

In the modern Kubernetes ecosystem, exposing services to the internet securely and efficiently is a critical requirement. The traditional Ingress API has served us well, but the newer Gateway API offers a more expressive, extensible, and role-oriented standard for service networking.

In this article, we will build a production-grade Edge Service layer using Traefik as our Gateway, an AWS Application Load Balancer (ALB) for TLS termination, and Route 53 for DNS management. We will explore how to transition from Traefik’s custom IngressRoute CRD to the Kubernetes-standard HTTPRoute, empowering developers to manage their own routing configurations independently.

What We Build

By the end of this guide, we will have a fully functional Edge Service extending our Kubernetes cluster to the internet. We will expose the following secure endpoints:

  • Platform Services:

  • argocd.servicefoundry.org (ArgoCD - GitOps)

  • argo-rollouts.servicefoundry.org (Argo Rollouts - Progressive Delivery)

  • grafana.servicefoundry.org (Monitoring Dashboard)

  • Authentication Services:

  • keycloak.servicefoundry.org (Identity Provider)

  • oauth2-proxy.servicefoundry.org (SSO Proxy)

  • Application Services:

  • sfapp.servicefoundry.org (Demo Application)

This setup ensures that all public traffic is encrypted via AWS ACM, load-balanced by ALB, and routed intelligently by Traefik to the correct services within the cluster.

Key Concepts

Edge Service & Gateway API

An Edge Service acts as the entry point for all external traffic entering your cluster. It handles concerns like TLS termination, routing, rate limiting, and authentication.

The Gateway API is the next generation of Kubernetes service networking. Unlike the monolithic Ingress resource, it splits responsibilities into three distinct personas:

  • Infrastructure Provider: Manages the GatewayClass (defines the controller, e.g., Traefik).

  • Cluster Operator: Manages the Gateway (instantiates the load balancer).

  • Application Developer: Manages HTTPRoute (defines routing rules for specific apps).

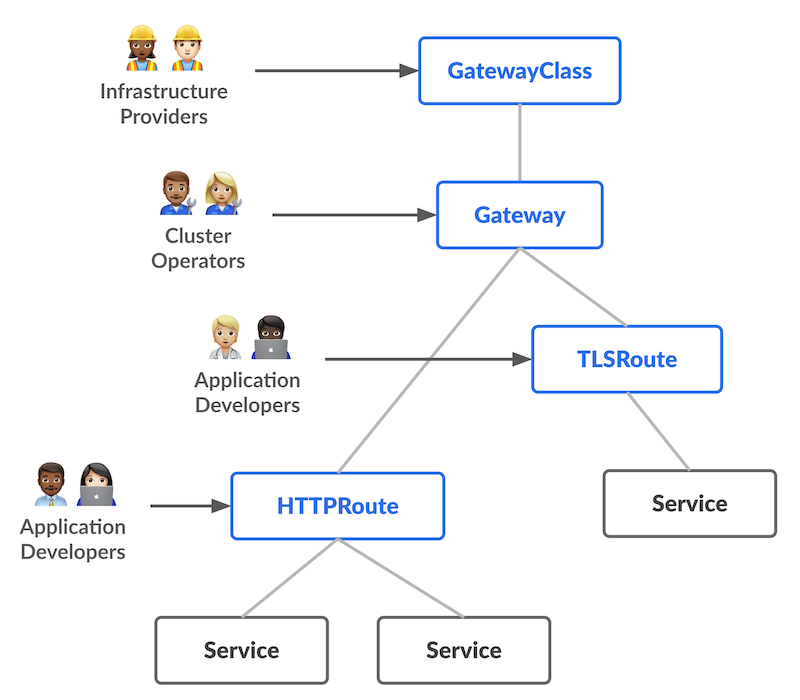

k8s gateway api
Figure 1. Personas of Kubernetes Gateway API

Traefik IngressRoute vs. Kubernetes HTTPRoute

Traefik offers two main ways to configure routing:

  1. IngressRoute: Traefik’s custom Custom Resource Definition (CRD). It’s mature and feature-rich, supporting advanced Traefik-specific middleware directly.

  2. HTTPRoute: The Kubernetes Gateway API standard. It provides a vendor-agnostic way to define routing logic, making your configuration more portable and consistent with the broader ecosystem.

Our team is adopting HTTPRoute to align with Kubernetes standards while still leveraging Traefik’s power via ExtensionRefs.

Architecture

Our architecture leverages managed AWS services for reliability and Kubernetes resources for flexibility.

Components

  1. Route 53: Manages the DNS records (*.servicefoundry.org), pointing them to our AWS Load Balancer.

  2. AWS Certificate Manager (ACM): Provisions and manages the wildcard SSL/TLS certificate for our domain.

  3. AWS Load Balancer Controller (ALBC): An operator in the cluster that automatically provisions an AWS ALB based on our Ingress configuration.

  4. Traefik Proxy: Runs as a Deployment in the cluster, acting as the Gateway to route traffic to pods.

Traffic Flow

The following diagram illustrates how a user request reaches an application pod:

Route 53 (DNS)
  └──> AWS Application Load Balancer (ALB) [TLS Termination]
         └──> Traefik Service (NodePort)
                └──> Traefik Pods (Gateway)
                       ├──> HTTPRoute (argocd)
                       ├──> HTTPRoute (keycloak)
                       └──> HTTPRoute (sfapp)

  1. DNS Resolution: The client resolves argocd.servicefoundry.org to the ALB’s IP address.

  2. TLS Termination: The ALB receives the HTTPS request, decrypts it using the ACM certificate, and forwards it as HTTP to the Kubernetes cluster.

  3. Ingress: The traffic hits the Traefik Service (exposed via NodePort).

  4. Routing: Traefik analyzes the Host header and path, matches it against an HTTPRoute or IngressRoute, and proxies the request to the destination Service/Pod.

DNS Configuration

We use an Alias Record in Route 53 pointing to the ALB’s DNS name. This ensures that if the ALB’s underlying IPs change, DNS remains valid.

  • Record Name: *.servicefoundry.org

  • Type: A (Alias)

  • Target: traefik-alb-dns-name (Managed by Terraform/ALBC)

AWS Load Balancer Controller

We use the AWS Load Balancer Controller to bridge our Kubernetes Ingress resources with AWS infrastructure. Instead of manually creating an ALB, we define an Ingress resource in Kubernetes, and the controller provisions the ALB for us.

For a deep dive into setting up the ALBC, refer to our previous guide:

Resource Map

When the controller provisions an ALB for Traefik, it creates a listener and target groups mapping to Traefik’s NodePorts.

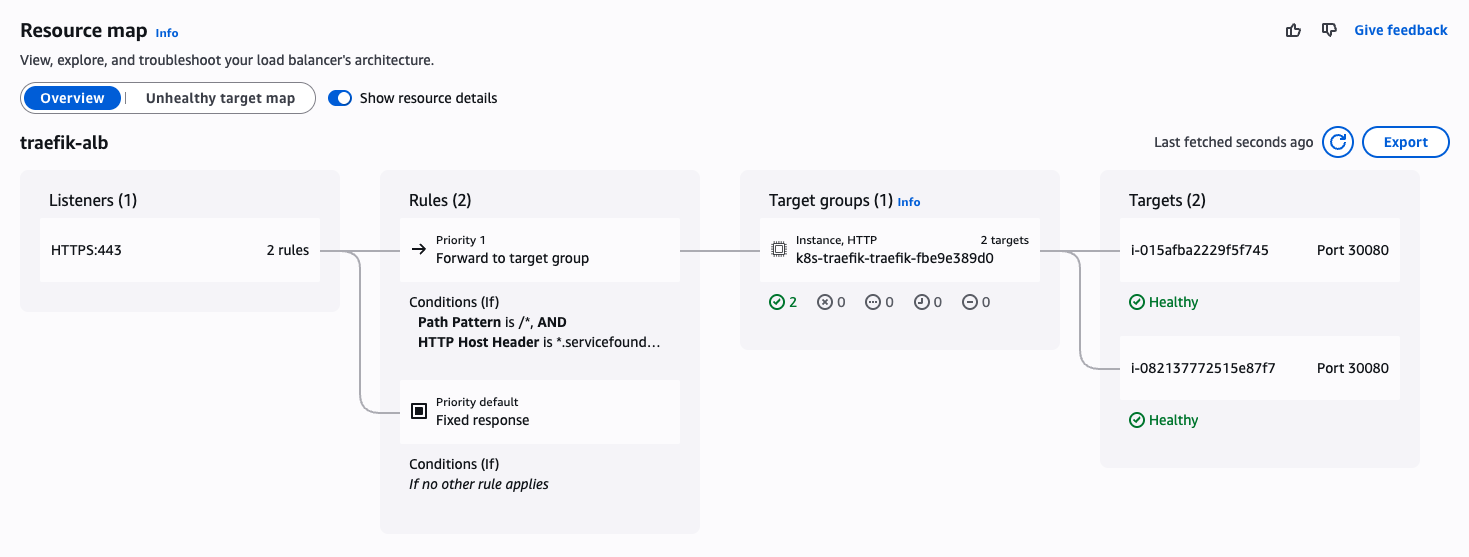

aws load balancer resource map
Figure 2. AWS Load Balancer Resource Map (traefik-alb)

The diagram above shows the relationship:

  • ALB Listener (443): Binds to the ACM certificate.

  • Target Group: Forwards traffic to the EC2 instances on Traefik’s NodePort (e.g., 30080 for web traffic).

Installing Traefik with Gateway API

To use the Gateway API, we must configure Traefik to enable the kubernetesGateway provider and define the Gateway listener settings.

Below is our custom-values.yaml for the Traefik Helm chart (or ArgoCD Application):

custom-values.yaml
ingressRoute:
  dashboard:
    enabled: true # Expose Traefik dashboard
  healthcheck:
    enabled: true # Enable healthcheck endpoints

experimental:
  kubernetesGateway:
    enabled: true # <1> Enable experimental Gateway API features
providers:
  kubernetesGateway:
    enabled: true # <1> Enable the Gateway API provider
gateway:
  listeners:
    web:
      port: 80
      namespacePolicy: # <2> Allow routes from all namespaces
        from: All

resources: # <3> Resource limits for stability
  limits:
    cpu: 500m
    memory: 1024Mi
  requests:
    cpu: 200m
    memory: 512Mi

env:
  - name: USER
    value: "traefik"

service:
  type: NodePort # <4> Expose Traefik via NodePort for ALB Target Group
1 Gateway API Support: Must be explicitly enabled in both experimental and providers sections.
2 Namespace Policy: By default, Gateways might restrict routes to the same namespace. We use from: All so developers in any namespace (e.g., argocd, keycloak) can attach their HTTPRoutes to this central Gateway.
3 Resource Management: Defining requests and limits is a production best practice.
4 Service Type: We use NodePort so the AWS Application Load Balancer can route traffic to these specific ports on the worker nodes.

After installation, verify the Gateway resources:

$ kubectl -n traefik get gatewayclass,gateway

NAME                                             CONTROLLER                      ACCEPTED   AGE
gatewayclass.gateway.networking.k8s.io/traefik   traefik.io/gateway-controller   True       3h15m

NAME                                                CLASS     ADDRESS   PROGRAMMED   AGE
gateway.gateway.networking.k8s.io/traefik-gateway   traefik             True       3h15m

Exposing Services: The Evolution

We will compare exposing the Argo Rollouts Dashboard using the traditional IngressRoute and the modern HTTPRoute.

Option 1: using IngressRoute (Traefik Native)

IngressRoute is Traefik’s native CRD. It is powerful and allows direct reference to Middleware.

argo-rollouts-ingressroute.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: argo-rollouts-ingressroute
  namespace: argo-rollouts
spec:
  entryPoints:
    - web
    - websecure

  routes:
    # 1. Dashboard UI Route
    - match: Host(`argo-rollouts.servicefoundry.org`) && PathPrefix(`/rollouts`)
      kind: Rule
      services:
        - name: argo-rollouts-dashboard # <1> Target Service
          port: 3100
      middlewares:
        - name: argo-rollouts-forward-auth # <2> SSO Middleware

    # 2. API Route (No Auth for API calls for demonstration, or same Auth)
    - match: Host(`argo-rollouts.servicefoundry.org`) && PathPrefix(`/api`)
      kind: Rule
      services:
        - name: argo-rollouts-dashboard
          port: 3100
      middlewares:
        - name: argo-rollouts-forward-auth

    # 3. Root Redirect
    - match: Host(`argo-rollouts.servicefoundry.org`) && Path(`/`)
      kind: Rule
      services:
        - name: argo-rollouts-dashboard
          port: 3100
      middlewares:
        - name: argo-rollouts-redirect # <3> Redirect Middleware
1 Service Backend: Points to the argo-rollouts-dashboard Kubernetes Service on port 3100.
2 Middleware: Uses forward-auth to delegate authentication to OAuth2 Proxy (Keycloak).
3 Redirect: Automatically redirects users from / to /rollouts.

Option 2: using HTTPRoute (Gateway API Standard)

HTTPRoute is the Kubernetes standard. It achieves the same goal but uses a vendor-agnostic structure. Traefik-specific features (Middlewares) are attached via filters.

argo-rollouts-httproute.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: argo-rollouts-httproute
  namespace: argo-rollouts
spec:
  parentRefs: # <1> Bind to the Gateway
    - name: traefik-gateway
      namespace: traefik
  hostnames: # <2> Define Domain
    - argo-rollouts.servicefoundry.org
  rules:
    # Rule 1: Dashboard UI
    - matches:
      - path:
          type: PathPrefix
          value: /rollouts
      filters: # <3> Attach Middleware
        - type: ExtensionRef
          extensionRef:
            group: traefik.io
            kind: Middleware
            name: argo-rollouts-forward-auth
      backendRefs:
        - name: argo-rollouts-dashboard
          port: 3100

    # Rule 2: API
    - matches:
      - path:
          type: PathPrefix
          value: /api
      filters:
        - type: ExtensionRef
          extensionRef:
            group: traefik.io
            kind: Middleware
            name: argo-rollouts-forward-auth
      backendRefs:
        - name: argo-rollouts-dashboard
          port: 3100

    # Rule 3: Root Redirect
    - matches:
      - path:
          type: PathPrefix
          value: /
      filters:
        - type: ExtensionRef
          extensionRef:
            group: traefik.io
            kind: Middleware
            name: argo-rollouts-redirect
      backendRefs:
        - name: argo-rollouts-dashboard
          port: 3100
1 ParentRefs: Explicitly links this route to the traefik-gateway in the traefik namespace. This is permitted because we set namespacePolicy: from: All in the Gateway config.
2 Hostnames: Limits this route to traffic matching the specific domain.
3 ExtensionRef: The standard way to plug in vendor-specific functionality. Here, we reference the Traefik Middleware CRD exactly as we did in IngressRoute.

Now the Argo Rollouts Dashboard is accessible at argo-rollouts.servicefoundry.org.

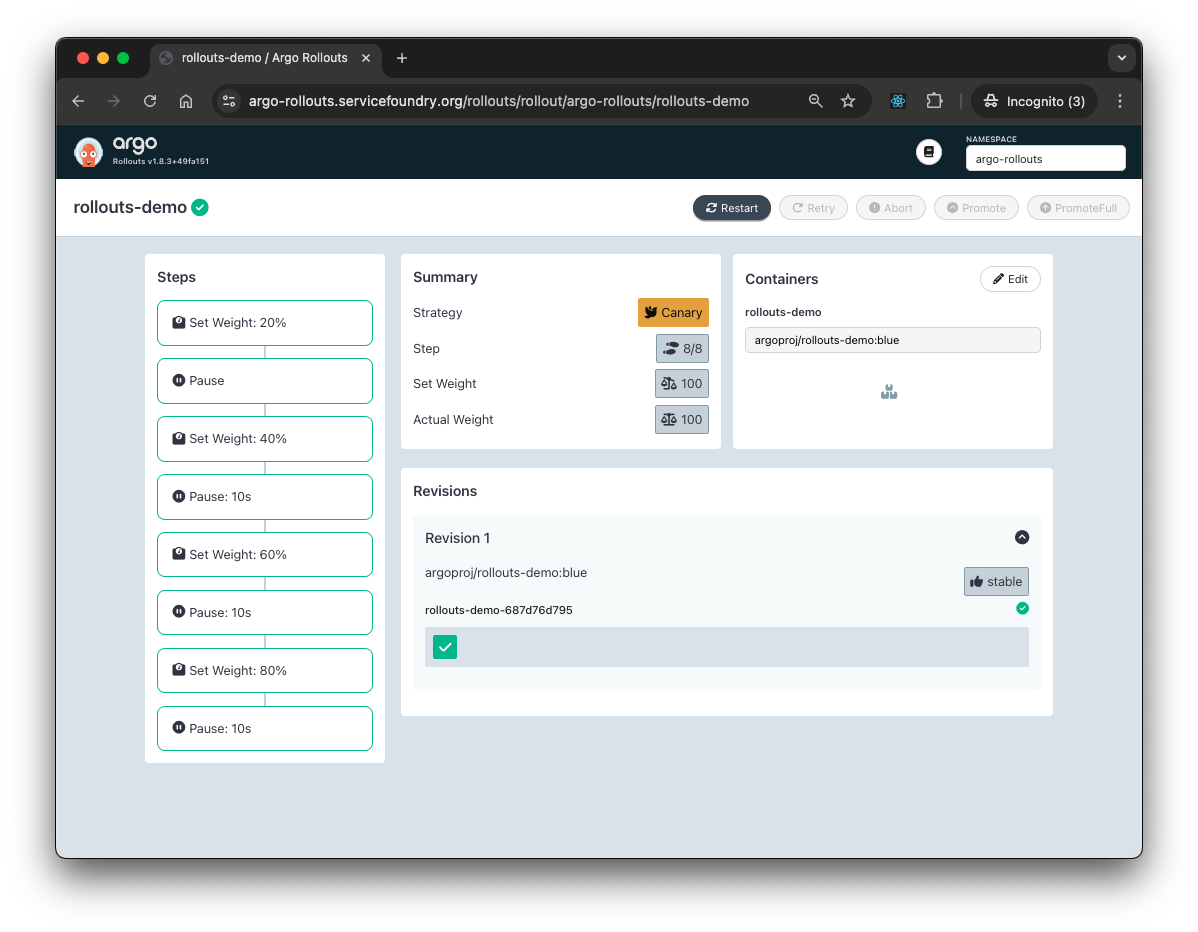

edge argo rollouts
Figure 3. Argo Rollouts Dashboard

Summary

We have successfully built a robust Edge Service layer.

  1. Architecture: We leveraged AWS ALB for TLS termination and Traefik for flexible routing.

  2. Standards: We migrated from proprietary IngressRoute to the standardized HTTPRoute, future-proofing our specification.

  3. Security: We secured our endpoints with SSO using forward-auth middleware attached directly to our routes.

By adopting Gateway API, our platform provides a self-service model where developers can manage their routing requirements using standard Kubernetes resources.
