Traefik & OAuth2 Proxy - Using OAuth2 Proxy as Authentication Middleware

On this page

Introduction
Prerequisites
Keycloak Configuration
Installing OAuth2 Proxy as Middleware
Setting Up Traefik ForwardAuth Middleware
Protecting Jaeger & Prometheus with Middleware
OAuth2 Proxy Ingress Configuration
DNS Setup
Testing the Setup
Conclusion

Introduction

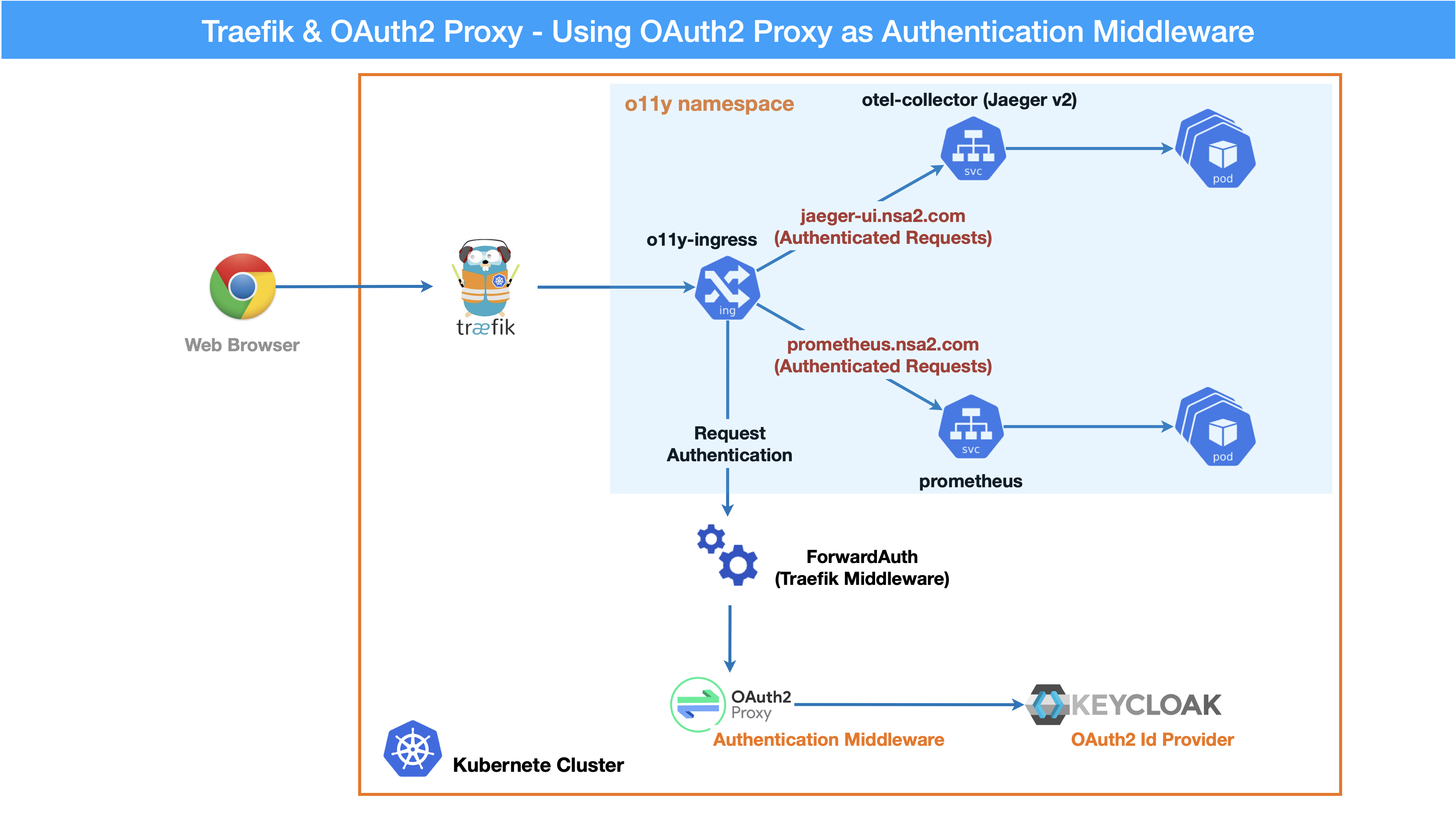

In the previous article, we set up Traefik, Jaeger, and Prometheus in a Kubernetes cluster. This document extends that setup by introducing OAuth2 Proxy as an authentication middleware to secure access to Jaeger and Prometheus using Keycloak as the identity provider.

All requests to Jaeger and Prometheus will be intercepted by OAuth2 Proxy, which will redirect users to Keycloak for authentication. After successful login, users will be redirected back to their original destination.

Prerequisites

Ensure the following components are already deployed in your Kubernetes cluster:

Traefik
Jaeger v2
Prometheus
Oauth2 Proxy
Keycloak

Refer to the previous guide for more information.

Keycloak Configuration

Use the following settings in your Keycloak realm:

Realm: nsa2-realm
Client ID: nsa2-o11y
Client Secret: get from the Keycloak console
Redirect URL: http://oauth2-proxy.nsa2.com/oauth2/callback
Valid Redirect URL: http://oauth2-proxy.nsa2.com/*
Valid Post Logout URL: http://oauth2-proxy.nsa2.com/*
Test User: devops / password

The redirect URL corresponds to the Ingress we will create for OAuth2 Proxy.

Installing OAuth2 Proxy as Middleware

To use OAuth2 Proxy purely as an authentication middleware (not as a reverse proxy), we need a custom Helm values file.

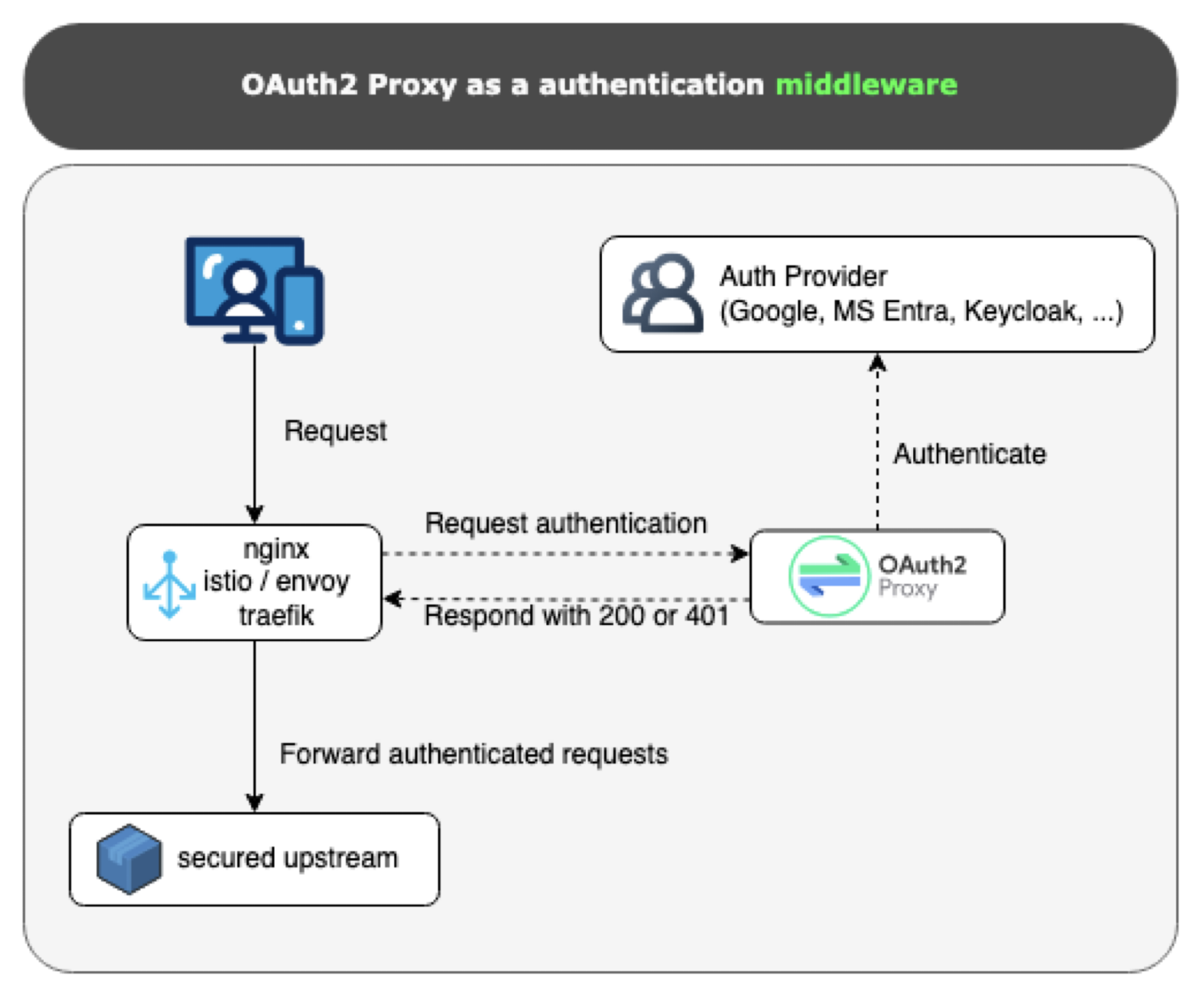

Figure 1. Oauth2 Proxy Architecture

custom-values.yaml

config:
  (1)
  existingSecret: oauth2-secret

  configFile: |
    provider = "oidc"
    (2)
    oidc_issuer_url = "http://a6b2741cba2ee4f44bf1ac70a70e8373-1472323501.ca-west-1.elb.amazonaws.com/realms/nsa2-realm"
    email_domains = ["*"]
    cookie_secure = false
    # we don't want to proxy anything so pick a non-existent directory
    (3)
    upstreams = ["static://200"]
    (4)
    redirect_url = "http://oauth2-proxy.nsa2.com/oauth2/callback"
    scope = "openid email profile"
    pass_access_token = true
    pass_authorization_header = true
    pass_user_headers = true
    set_authorization_header = true
    cookie_domains = ".nsa2.com"
    cookie_name = "_oauth2_proxy"
    cookie_refresh = "2m"
    cookie_expire = "24h"
    (5)
    whitelist_domains = [".nsa2.com"]
    # return authenticated user to nginx
    set_xauthrequest = true

# 94
extraArgs:
  - --cookie-secure=false
  - --skip-provider-button
  - --ssl-insecure-skip-verify
  - --reverse-proxy     (6)

1	existingSecret: oauth2-secret contains the client-id, client-secret, and cookie-secret.
2	oidc_issuer_url: nsa2-realm URL
3	upstreams: "static://200" to avoid proxying any requests.
4	redirect_url: Redirect URL for OAuth2 Proxy.
5	whitelist_domains: Whitelist domains.
6	reverse-proxy: Enable reverse proxy mode.

Following properties are related for redirecting the user back to the original request:

--reverse-proxy
--set-xauthrequest
--upstreams: "static://200"
whitelist_domains: [".nsa2.com"]

Without the properties above, the OAuth2 Proxy will not redirect the user back to the original request.

Install OAuth2 Proxy with Helm

$ helm upgrade --install oauth2-proxy \
  oauth2-proxy/oauth2-proxy --version "7.12.6" \
  -f oauth2-proxy/custom-values.yaml --namespace o11y --create-namespace

Setting Up Traefik ForwardAuth Middleware

Traefik’s ForwardAuth middleware allows external services to handle authentication. We’ll configure it to use OAuth2 Proxy.

For more information on Forward Auth Middleware, see Traefik Forward Auth Middleware.

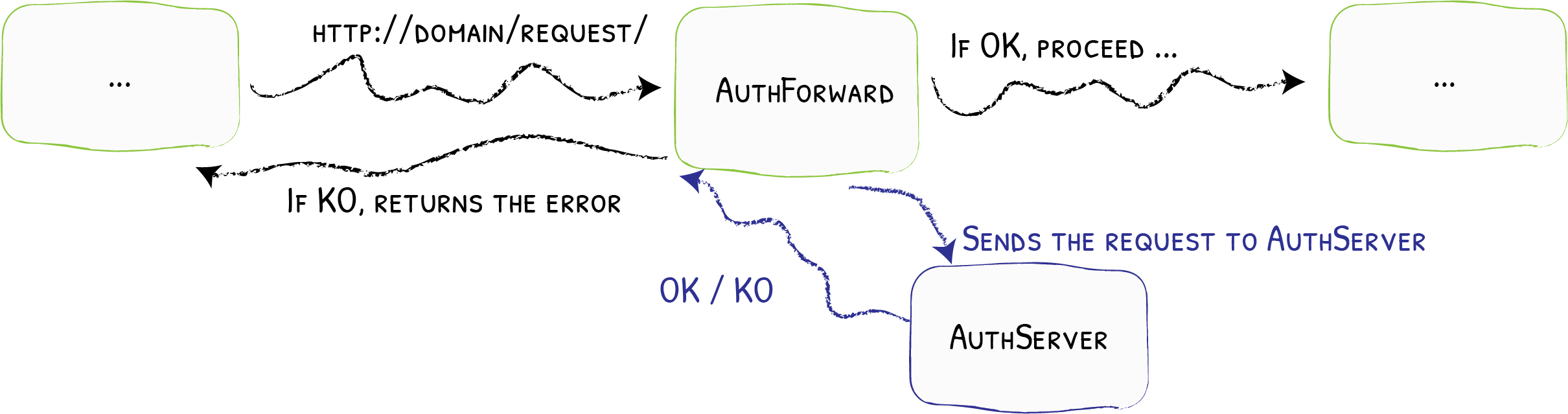

Figure 2. Forward Auth Middleware Architecture

The ForwardAuth middleware delegates authentication to an external service. If the service answers with a 2XX code, access is granted, and the original request is performed. Otherwise, the response from the authentication server is returned.

Create a file named forward-auth-middleware.yaml with the following content:

forward-auth-middleware.yaml

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: forward-auth
  namespace: o11y
spec:
  forwardAuth:
    address: http://oauth2-proxy.o11y.svc.cluster.local/oauth2/
    trustForwardHeader: true
    authResponseHeaders:
      - "X-Auth-Request-User"
      - "X-Auth-Request-Email"
      - "Authorization"

Apply the Forward Auth Middleware:

$ kubectl apply -f forward-auth-middleware.yaml

# Example output

middleware.traefik.io/forward-auth created

Protecting Jaeger & Prometheus with Middleware

To protect Jaeger and Prometheus with OAuth2 Proxy, we need to add the Forward Auth Middleware to the Ingress.

o11y-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: o11y-ingress
  namespace: o11y
  annotations:
    (1)
    kubernetes.io/ingress.class: traefik
    (2)
    traefik.ingress.kubernetes.io/router.middlewares: "o11y-forward-auth@kubernetescrd"

spec:
  rules:
    - host: jaeger-ui.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: otel-collector
                port:
                  name: jaeger
    - host: prometheus.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: prometheus
                port:
                  name: web

1	Ingress class for Traefik. When the value is set to `traefik` or empty, Traefik will handle the Ingress.
2	Middleware for the Ingress. The Forward Auth Middleware is added to the Ingress. The middleware name is like '{namespace}-{middleware-name}@kubernetescrd'.

Apply the Ingress:

$ kubectl apply -f o11y-ingress.yaml

OAuth2 Proxy Ingress Configuration

To access the OAuth2 Proxy, we need to create an Ingress for OAuth2 Proxy.

oauth2-proxy-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: oauth2-proxy-ingress
  namespace: o11y
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  rules:
    - host: oauth2-proxy.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: oauth2-proxy
                port:
                  name: http

Apply the Ingress:

$ kubectl apply -f oauth2-proxy-ingress.yaml

The ForwardAuth middleware is not applied to the OAuth2 Proxy itself.

DNS Setup

Add the following entries to your /etc/hosts file for local testing:

/etc/hosts

40.176.3.88       jaeger-ui.nsa2.com
40.176.3.88       prometheus.nsa2.com
40.176.3.88       oauth2-proxy.nsa2.com

Replace 40.176.3.88 with your Traefik LoadBalancer’s external IP.

For production, you might need to set up a DNS server to resolve the hostnames.

Testing the Setup

Open an Incognito window or delete the cookies in your browser.
Visit http://jaeger-ui.nsa2.com
You will be redirected to the Keycloak login page.
Login with:
- Username: devops
- Password: password
After successful login, you will be redirected to the Jaeger UI.

Open a browser and navigate to http://jaeger-ui.nsa2.com. You will be redirected to the Keycloak login page.

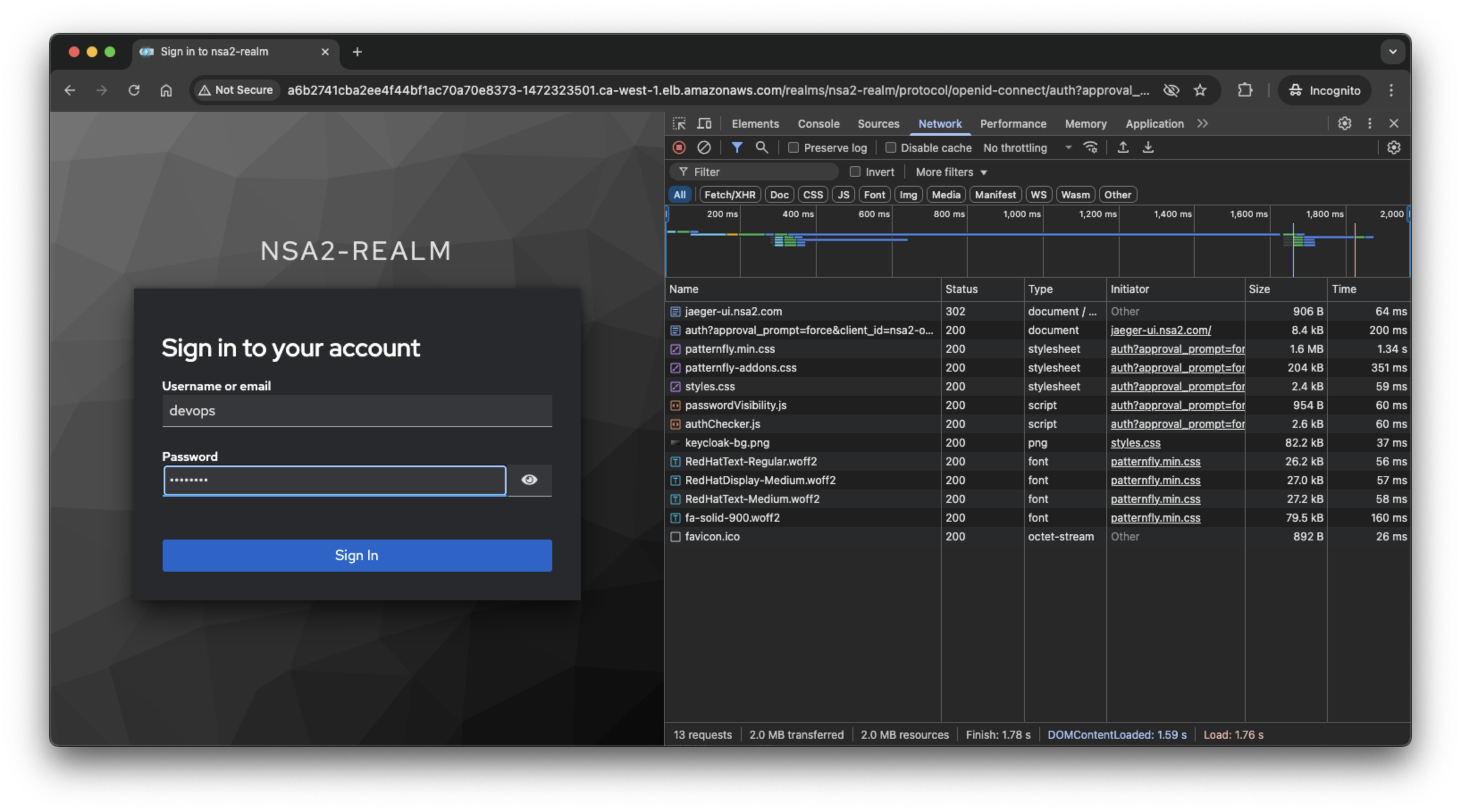

Figure 3. Keycloak Login for OAuth2 Proxy

Use the Keycloak user devops with the password password to login.

Once authenticated, you will be redirected to the Jaeger UI.

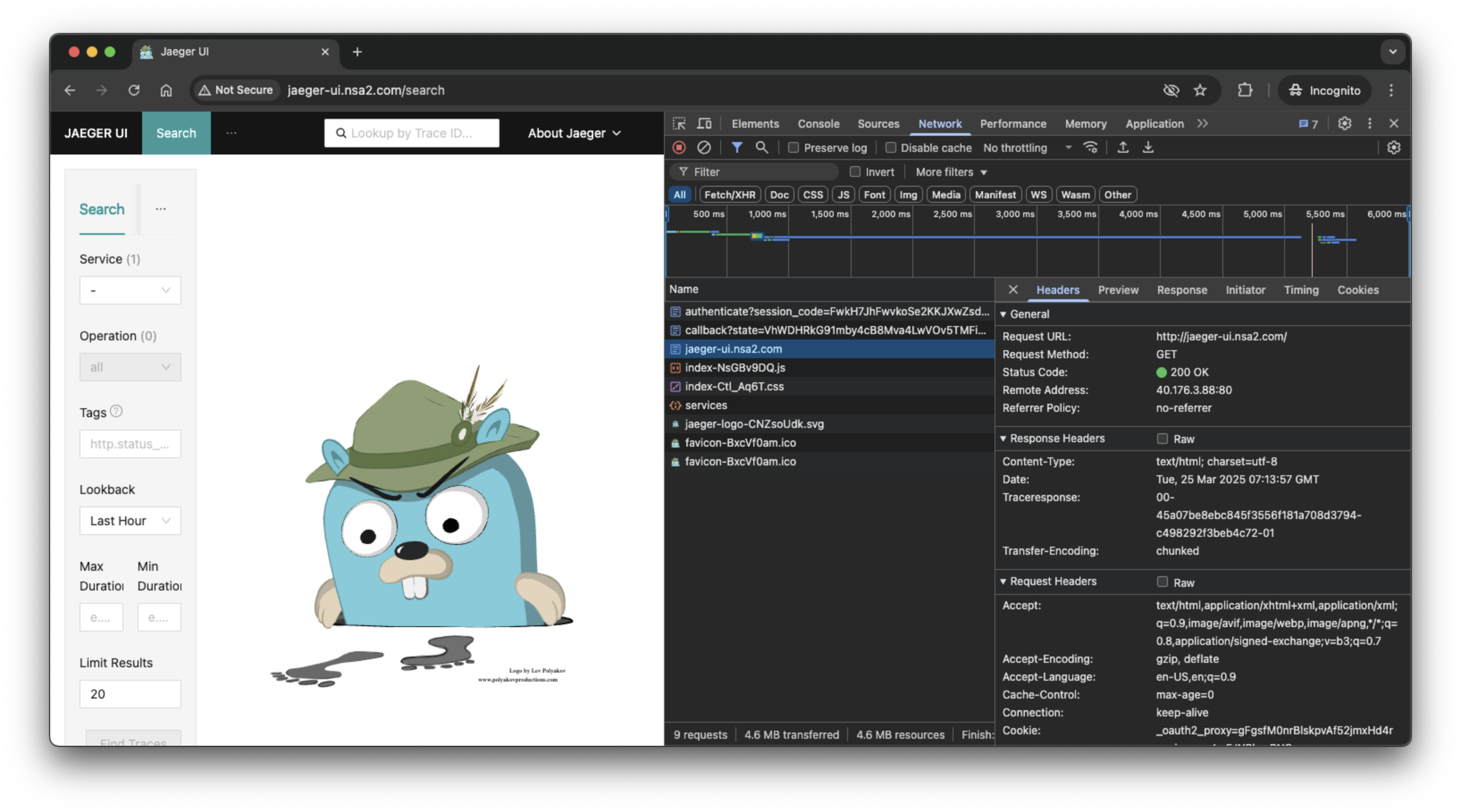

Figure 4. Jaeger UI

From the Developer Tools, you can check the network requests to see the authentication process.

Conclusion

In this guide, we secured Jaeger and Prometheus using OAuth2 Proxy as an authentication middleware and Traefik’s ForwardAuth feature. This is a flexible and modular way to enforce authentication in a Kubernetes environment using industry-standard tools like Keycloak and OAuth2 Proxy.
