Securing Web Applications with SSO Using Traefik, OAuth2 Proxy, and Keycloak – A Jaeger Example

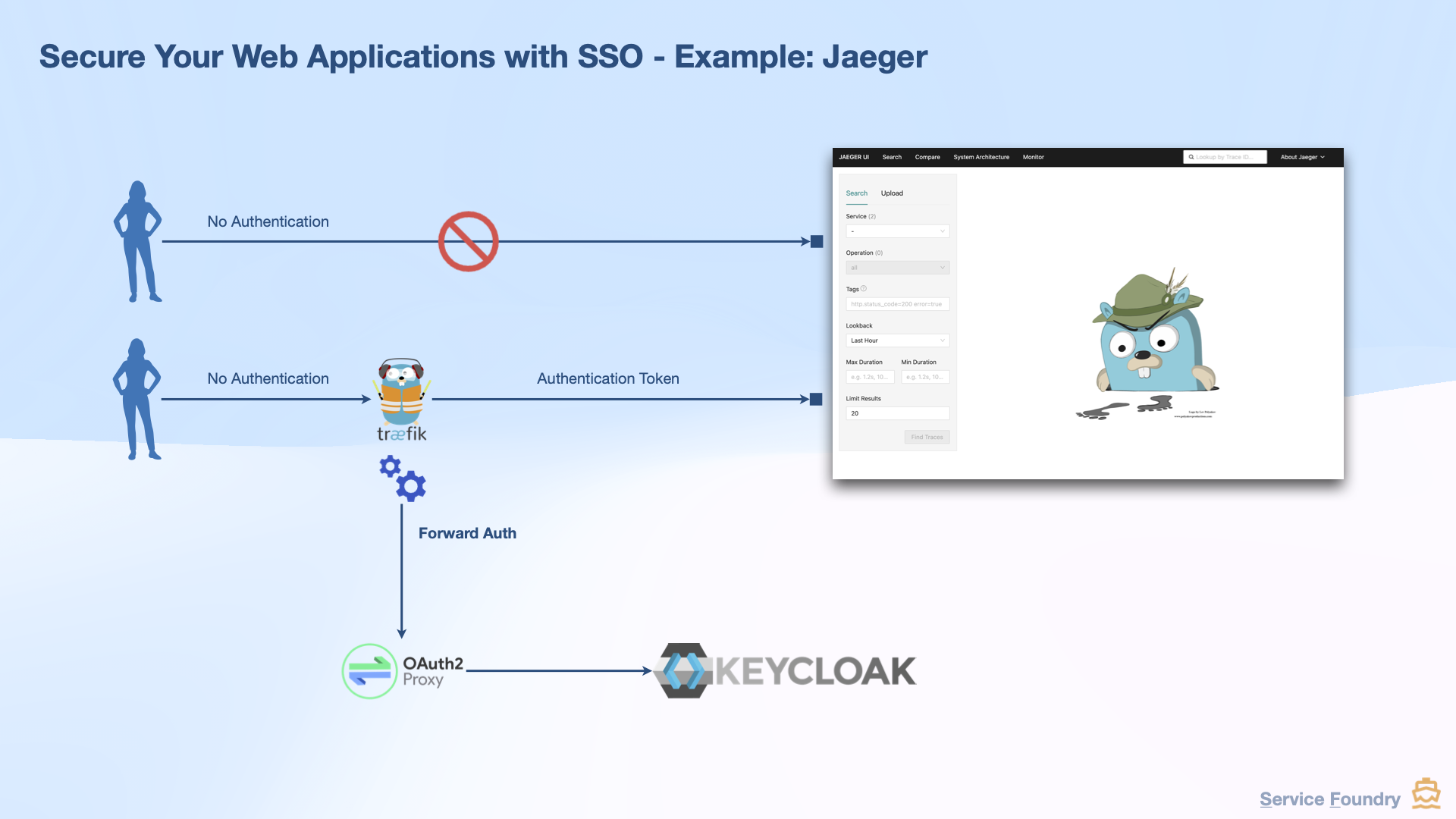

sso overview

Introduction

This guide demonstrates how to secure a web application with Single Sign-On (SSO) using the Service Foundry Console. As a real-world example, we will walk through securing the Jaeger UI.

You can follow along with the full walkthrough in the accompanying video, which demonstrates how the Service Foundry Console automates and simplifies the entire SSO setup process.

We will cover:

  • Configuring Traefik Ingress to delegate authentication via OAuth2 Proxy

  • Integrating OAuth2 Proxy with Keycloak as the identity provider

  • Setting up redirect URIs in Keycloak for SSO authentication

Prerequisites

Before you begin, ensure the following components are installed in your Kubernetes cluster: • Traefik Ingress Controller • OAuth2 Proxy • Keycloak

Traefik Ingress Controller

Using IngressRoute CRD

Traefik provides a custom resource called IngressRoute to define application-level routing within Kubernetes.

The example below shows an IngressRoute definition for the Jaeger Collector service, secured by OAuth2 Proxy:

traefik-ingress-route-jaeger.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: o11y-sso-ingress-route
  namespace: o11y
spec:
  entryPoints:
    - web
  routes:

    - match: Host(`jaeger.nsa2.com`)
      kind: Rule
      services:
        - name: jaeger-collector
          port: jaeger
      middlewares:
        - name: cors-headers
        - name: forward-auth

Note that the middlewares section includes a forward-auth middleware, which enables OAuth2-based SSO authentication.

ForwardAuth Middleware CRD by Traefik

According to Traefik’s official documentation:

https://doc.traefik.io/traefik/reference/routing-configuration/http/middlewares/forwardauth/

Here’s an example configuration of the forward-auth middleware using OAuth2 Proxy:

forward-auth-middleware.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: forward-auth
  namespace: o11y
spec:
  forwardAuth:
    address: http://oauth2-proxy.service-foundry.svc.cluster.local/oauth2/
    trustForwardHeader: true
    authResponseHeaders:
      - "X-Auth-Request-User"
      - "X-Auth-Request-Email"
      - "Authorization"

The address field points to the OAuth2 Proxy service, while authResponseHeaders specifies which headers to forward after successful authentication.

Configuring Headers Middleware for CORS

To allow cross-origin requests, you can define a middleware for CORS headers:

cors-headers-middleware.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: cors-headers
  namespace: o11y # replace with actual namespace, e.g., traefik or default
spec:
  headers:
    accessControlAllowMethods:
      - "GET"
      - "OPTIONS"
      - "PUT"
      - "POST"
      - "DELETE"
      - "PATCH"
      - "HEAD"
    accessControlAllowHeaders:
      - Origin
      - Content-Type
      - Authorization
      - Accept
      - User-Agent
      - Cache-Control
      - X-Requested-With
      - Access-Control-Allow-Origin
      - Access-Control-Allow-Headers
      - traceparent
    accessControlAllowOriginList:

      - "http://jaeger.nsa2.com"

    accessControlMaxAge: 100
    accessControlAllowCredentials: true
    addVaryHeader: true

For more details on headers middleware: https://doc.traefik.io/traefik/reference/routing-configuration/http/middlewares/headers/

Setting Up OAuth2 Proxy with Keycloak

To configure OAuth2 Proxy with Keycloak, we use a Helm chart with a custom values file like this:

custom-values.yaml
config:
  existingSecret: oauth2-proxy-secret

  configFile: |
    provider = "keycloak-oidc"
    email_domains = ["*"]
    cookie_secure = false
    upstreams = ["static://200"]
    redirect_url = "http://oauth2-proxy.nsa2.com/oauth2/callback"
    scope = "openid email profile"
    cookie_domains = ".nsa2.com"
    cookie_name = "_oauth2_proxy"
    cookie_refresh = "2m"
    cookie_expire = "24h"
    whitelist_domains = [".nsa2.com"]
    set_xauthrequest = true

# 94
extraArgs:
  - --cookie-secure=false
  - --skip-provider-button
  - --ssl-insecure-skip-verify
  - --reverse-proxy


# 97
envFrom:
  - configMapRef:
      name: oauth2-proxy-config

This configuration relies on two additional Kubernetes resources:

  • oauth2-proxy-secret: Contains the client ID and client secret

  • oauth2-proxy-config: Defines environment variables like the issuer URL

Creating oauth2-proxy-secret

The secret should include the following keys:

  • client-id: Your OAuth2 Proxy client ID

  • client-secret: Your client secret

  • cookie-secret: A random base64-encoded string for cookie encryption

Creating oauth2-proxy-config

This config map sets the following required environment variable:

  • OAUTH2_PROXY_OIDC_ISSUER_URL: The issuer URL from your Keycloak realm

Refer to the official OAuth2 Proxy documentation for additional environment variables: https://oauth2-proxy.github.io/oauth2-proxy/configuration/overview#environment-variables

Register Redirect URIs in Keycloak

To complete the setup, you need to register the redirect URI in your Keycloak client configuration. This should exactly match the redirect_url value in your OAuth2 Proxy configuration.

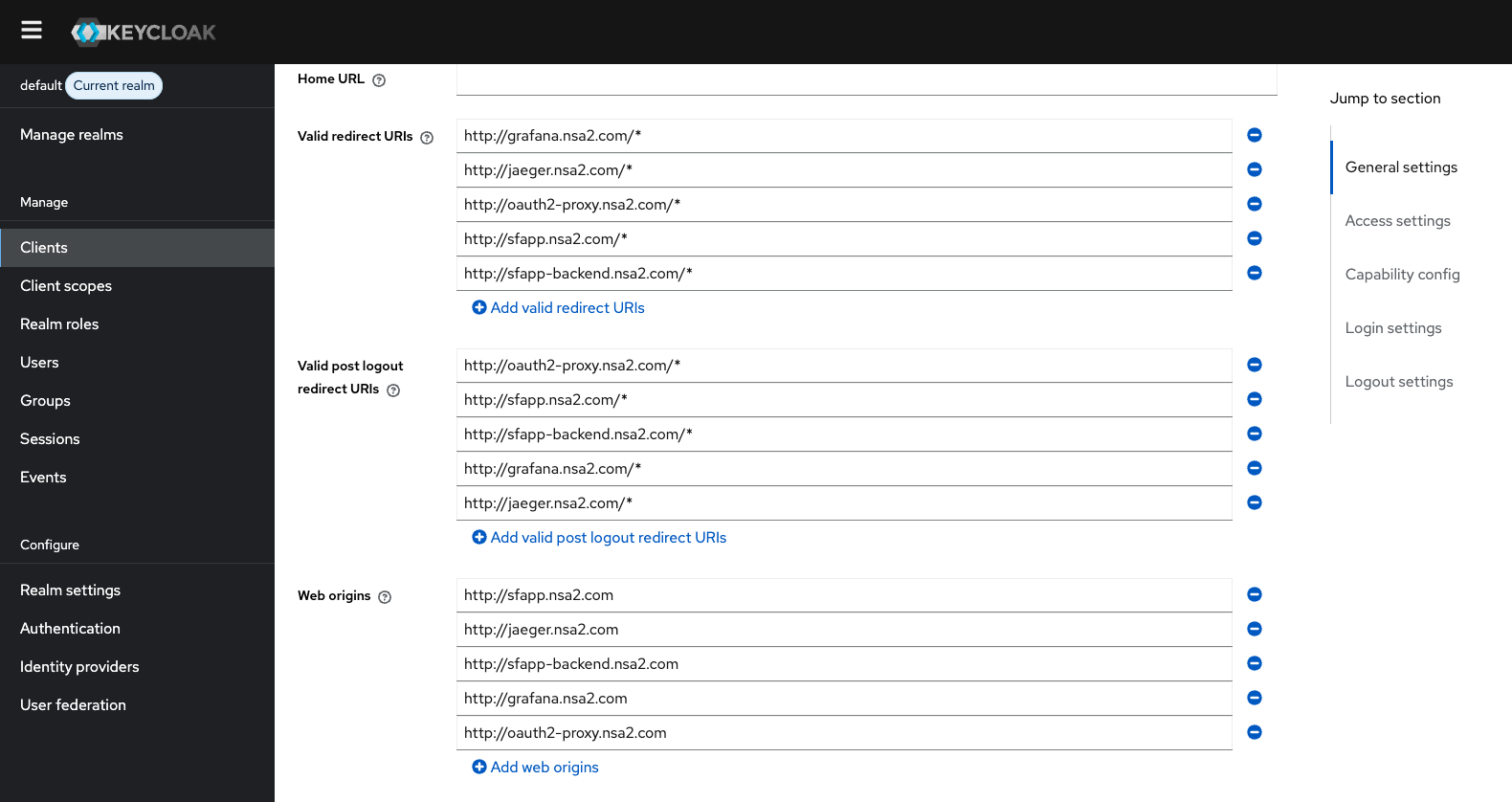

kc redirect url
Figure 1. In Keycloak Admin Console

The redirect URI should match the redirect_url specified in the OAuth2 Proxy configuration.

Manage Everything with GitOps

All of the Kubernetes manifests shown in this guide can be managed declaratively using a GitOps workflow with Service Foundry Console.

Related YouTube videos:

Conclusion

In this guide, we demonstrated how to secure a web application using SSO with Traefik, OAuth2 Proxy, and Keycloak—automated and managed via Service Foundry Console. This approach provides a streamlined, secure, and repeatable way to authenticate users across web-based UIs in your Kubernetes environments.
