Enabling OpenSearch OIDC Authentication for Single Sign-On

opensearch sso

Introduction

After successfully integrating Single Sign-On (SSO) with Jaeger, Prometheus, and Grafana using Keycloak, the next step is OpenSearch and OpenSearch Dashboards. This guide walks you through setting up OpenID Connect authentication for OpenSearch, configuring role mappings, and securing access using Keycloak as your Identity Provider (IdP).

Overview of the Integration

  • OpenSearch Authentication: OpenID Connect (OIDC) with Keycloak

  • Security Hardening: TLS certificates via cert-manager

  • Role-Based Access Control: Keycloak client roles mapped to OpenSearch backend roles

  • Ingress Management: Traefik Ingress Controller

Downloading OpenSearch Security Configuration Files

This setup requires downloading configuration files from the OpenSearch container deployed via the OpenSearch Helm chart.

  • Container Path: /usr/share/opensearch/config/opensearch-security/

Security files to download:

  • action_groups.yml

  • config.yml

  • internal_users.yml

  • roles.yml

  • roles_mapping.yml

  • tenants.yml

Create directories to store the original and modified files:

# Directory for downloading config files
$ mkdir -p config_download/opensearch-security

# Directory for modified config files
$ mkdir -p config/opensearch-security

Download the configuration files from the OpenSearch container:

download all files in the config/opensearch-security directory
$ echo "action_groups.yml  allowlist.yml  audit.yml  config.yml  internal_users.yml  nodes_dn.yml  opensearch.yml.example  roles.yml  roles_mapping.yml  tenants.yml  whitelist.yml" \
    | xargs -n1 \
    | xargs -I {} kubectl -n o11y cp opensearch-cluster-master-0:config/opensearch-security/{} config_download/opensearch-security/{}

OpenSearch Configuration

SSL Configuration

Ensure TLS is properly configured for OpenSearch. Refer to the following guides:

Modifying OpenSearch Security Configurations

Among the downloaded files, we need to modify:

  • config.yml

  • roles_mapping.yml

config.yml (Authentication Configuration)

config/opensearch-security/config.yml
_meta:
  type: "config"
  config_version: 2

config:
  dynamic:
    authc:
      #(1)
      openid_auth_domain:
        http_enabled: true
        transport_enabled: true
        order: 0
        http_authenticator:
          type: openid
          challenge: false
          config:
            subject_key: preferred_username
            roles_key: os_roles
            openid_connect_url: http://af5851e89c6c2454f9b9a0adb8fb17ca-2098848636.ca-west-1.elb.amazonaws.com/realms/nsa2-realm/.well-known/openid-configuration
            client_id: nsa2-o11y
            client_secret: gZ343TCd0kBehqTOkGZFkbL4WvXoa3Ss
            scope: "openid profile email"
        authentication_backend:
          type: noop

      #(2)
      basic_internal_auth_domain:
        description: "Authenticate via HTTP Basic against internal users database"
        http_enabled: true
        transport_enabled: true
        order: 4
        http_authenticator:
          type: basic
          challenge: true
        authentication_backend:
          type: intern
1 OpenID Connect Authentication: Configures OpenID Connect authentication using Keycloak.
2 Basic Authentication: Configures fallback authentication using internal users.
Name Description

openid_connect_url

The URL of your IdP where the Security plugin can find the OpenID Connect metadata/configuration settings. This URL differs between IdPs. Required when using OpenID Connect as your backend.

jwt_header

The HTTP header that stores the token. Typically the Authorization header with the Bearer schema: Authorization: Bearer <token>. Optional. Default is Authorization.

jwt_url_parameter

If the token is not transmitted in the HTTP header, but as an URL parameter, define the name of the parameter here. Optional.

subject_key

The key in the JSON payload that stores the user’s name. If not defined, the subject registered claim is used. Most IdP providers use the preferred_username claim. Optional.

roles_key

The key in the JSON payload that stores the user’s roles. The value of this key must be a comma-separated list of roles. Required only if you want to use roles in the JWT.

For full details on the OpenID authentication configuration, see

roles_mapping.yml (Role Mapping Configuration)

config/opensearch-security/roles_mapping.yml
---
# In this file users, backendroles and hosts can be mapped to Security roles.
# Permissions for OpenSearch roles are configured in roles.yml

_meta:
  type: "rolesmapping"
  config_version: 2

# Define your roles mapping here

#(1)
all_access:
  reserved: false
  backend_roles:
  - "admin"
  - "os_admin"  # From Keycloak
  description: "Maps admin to all_access"

#(2)
own_index:
  reserved: false
  users:
  - "*"
  description: "Allow full access to an index named like the username"

logstash:
  reserved: false
  backend_roles:
  - "logstash"

#(3)
kibana_user:
  reserved: false
  backend_roles:
  - "kibanauser"
  - "os_kibanauser"  # from Keycloak
  description: "Maps kibanauser to kibana_user"

#(4)
readall:
  reserved: false
  backend_roles:
  - "readall"
  - "os_readall"  # from Keycloak

manage_snapshots:
  reserved: false
  backend_roles:
  - "snapshotrestore"

kibana_server:
  reserved: true
  users:
  - "kibanaserver"
1 all_access: Grants full access to all indices and cluster operations.
2 own_index: Grants users full access to their own index.
3 kibana_user: Grants access to Kibana Dashboards.
4 readall: Grants read-only access to all indices.

In Keycloak, the roles (os_admin, os_readall, os_kibanauser) are created as client roles.

internal_users.yml (Password Management)

No changes are required for internal_users.yml.

config/opensearch-security/internal_users.yml
_meta:
  type: "internalusers"
  config_version: 2
admin:
  hash: "$2y$12$jltE4Y74EV.LfvEu3OaYu.p5qdqn27e9Dmma4diRFq4YCS.UHjzwu"
  reserved: true
  backend_roles:
    - "admin"
  description: "Demo admin user"
anomalyadmin:
  hash: "$2y$12$TRwAAJgnNo67w3rVUz4FIeLx9Dy/llB79zf9I15CKJ9vkM4ZzAd3."
  reserved: false
  opendistro_security_roles:
    - "anomaly_full_access"
  description: "Demo anomaly admin user, using internal role"

However, if you want to create a new admin password, you can generate a password hash:

$ kubectl -n o11y exec -it opensearch-cluster-master-0 \
    -- bash -c "/usr/share/opensearch/plugins/opensearch-security/tools/hash.sh -p 'mypassword'"

Creating an OpenSearch Security Config Secret

After modifying the security config files, create a Kubernetes secret:

$ kubectl -n o11y create secret generic opensearch-security-config \
  --from-file=config/opensearch-security/config.yml \
  --from-file=config/opensearch-security/internal_users.yml \
  --from-file=config/opensearch-security/roles.yml \
  --from-file=config/opensearch-security/roles_mapping.yml \
  --from-file=config/opensearch-security/action_groups.yml \
  --from-file=config/opensearch-security/tenants.yml \
  --dry-run=client -o yaml | \
  yq eval 'del(.metadata.creationTimestamp)' \
  > opensearch-security-config-secret.yaml

Apply the secret:

$ kubectl apply -f opensearch-security-config-secret.yaml

Updating OpenSearch Helm Values

In your custom values.yaml,update the configuration to mount the new secret:

opensearch/custom-opensearch-values.yaml
extraEnvs:
  - name: OPENSEARCH_INITIAL_ADMIN_PASSWORD
    value: "your-password"
  #(1)
  - name: DISABLE_INSTALL_DEMO_CONFIG
    value: "true"

#(2)
securityConfig:
  config:
    securityConfigSecret: opensearch-security-config
1 DISABLE_INSTALL_DEMO_CONFIG=true: Ensures that your custom security config is applied instead of demo settings.
2 The name of the secret that contains the OpenSearch security config files. All the files saved in the opensearch-security-config security will be mounted at the directory of '/usr/share/opensearch/config/opensearch-security/'

Keycloak Configuration for OpenSearch

Role Key Issues

Keycloak returns roles as a list, while OpenSearch expects a comma-separated string.

Example:

Keycloak ID Token:
  "realm_access": {
    "roles": [
      "grafana-admin"
      "os_admin"
    ]
  },
OpenSearch expects:
  "os_roles": "grafana-admin,os_admin"

Since Keycloak cannot directly transform a list into a string, we configure a client role mapper.

Backend Roles for OpenSearch

The roles below will be used in Keycloak for OpenSearch Roles

  • os_admin

  • os_readall

  • os_kibanauser

kc client roles
Figure 1. Client Roles of nsa2-o11y

Creating a Client Role Mapper

Navigate Client scopes and select your client scope that is used for your Oauth2 client. And then select Mappers tab and click on 'Add mapper' > 'From predefined mappers'

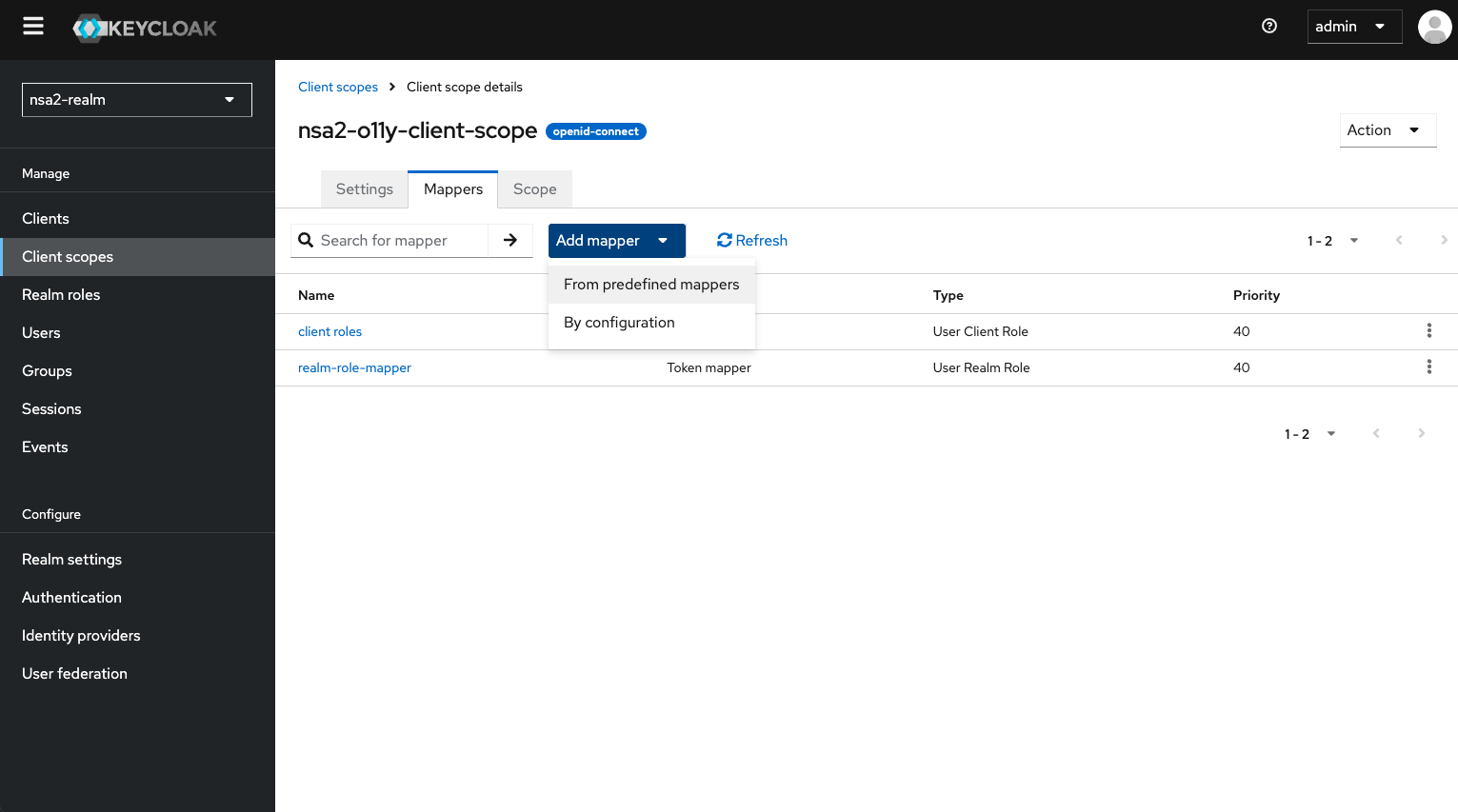

kc add mapper
Figure 2. Add mapper

Type 'roles' in the search box and select 'Client Roles' mapper.

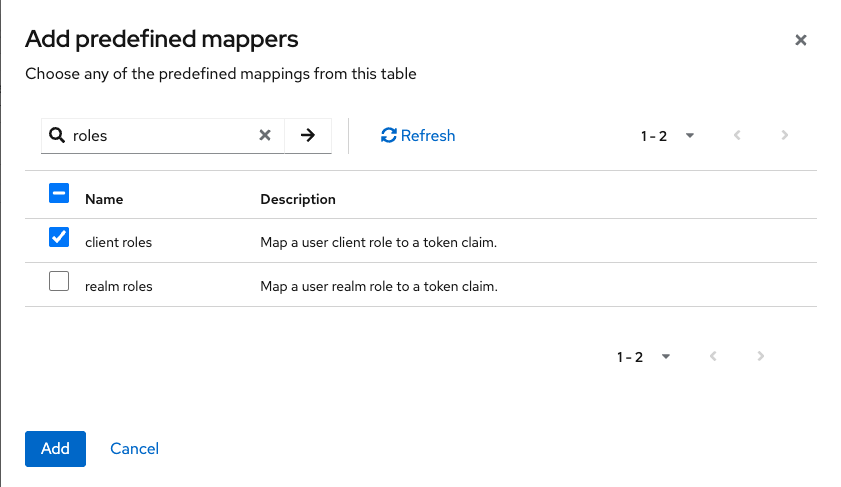

kc add mapper dialog
Figure 3. Add predefined mappers - Client Roles

Fill in the fields below:

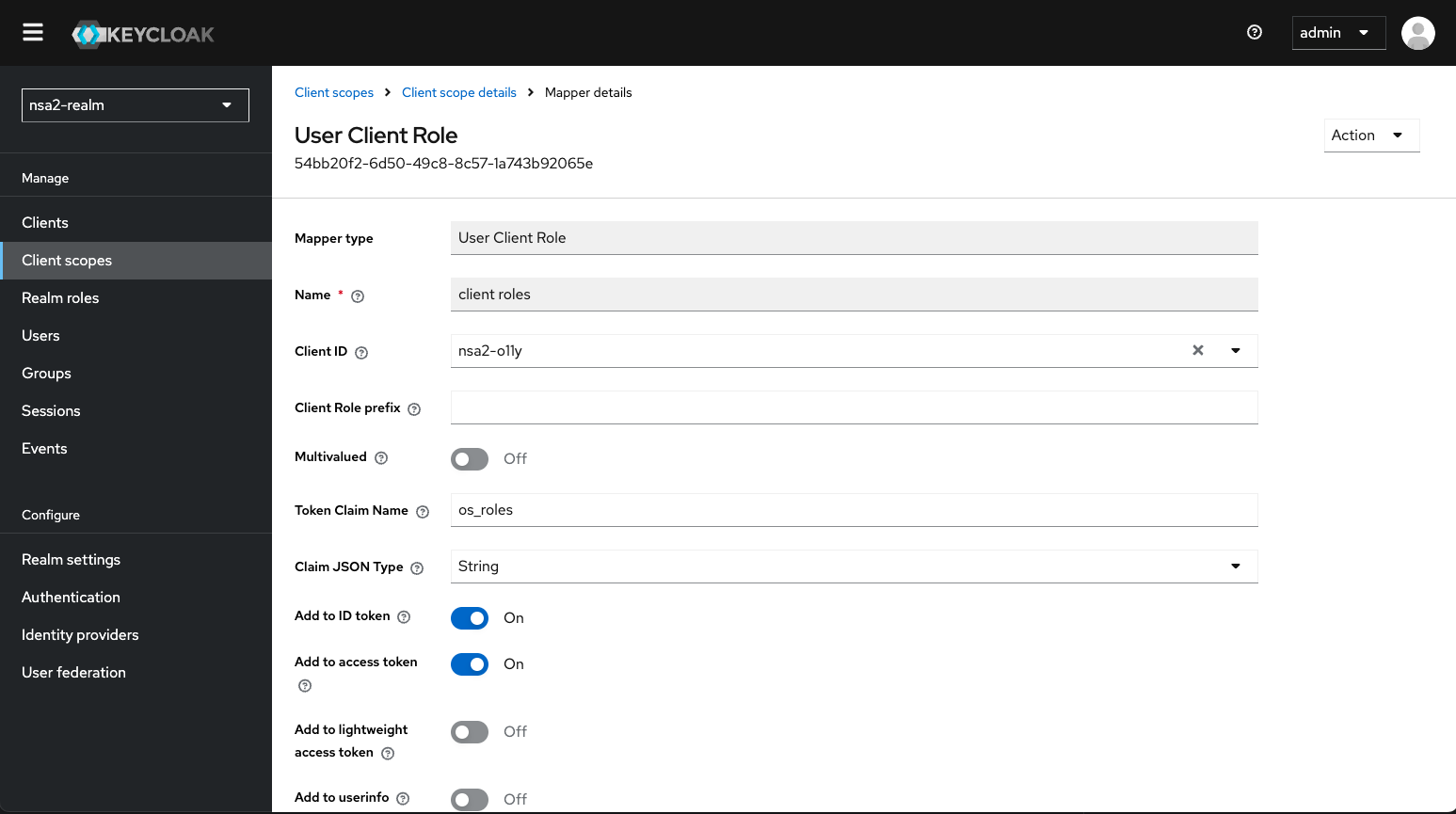

kc user client role
Figure 4. User Client Role Form

Configure the fields below:

  • Multivalued : Off

  • Token Claim Name: os_roles

  • Claim JSON Type: String

  • Add to ID token: On

And then click on 'Save' button

Now the os_roles field will be added to both ID tokens and access tokens.

Assigning Client Roles to Users

  1. Navigate to Users → select a user.

  2. Go to the Role Mappings tab.

  3. Assign the appropriate client roles (os_admin, os_readall, os_kibanauser).

Navigate to Users and select the user that you want to assign the client role. And then select 'Role Mappings' tab.

To assign the client role, click on 'Assign Role' button and select the client role that you want to assign.

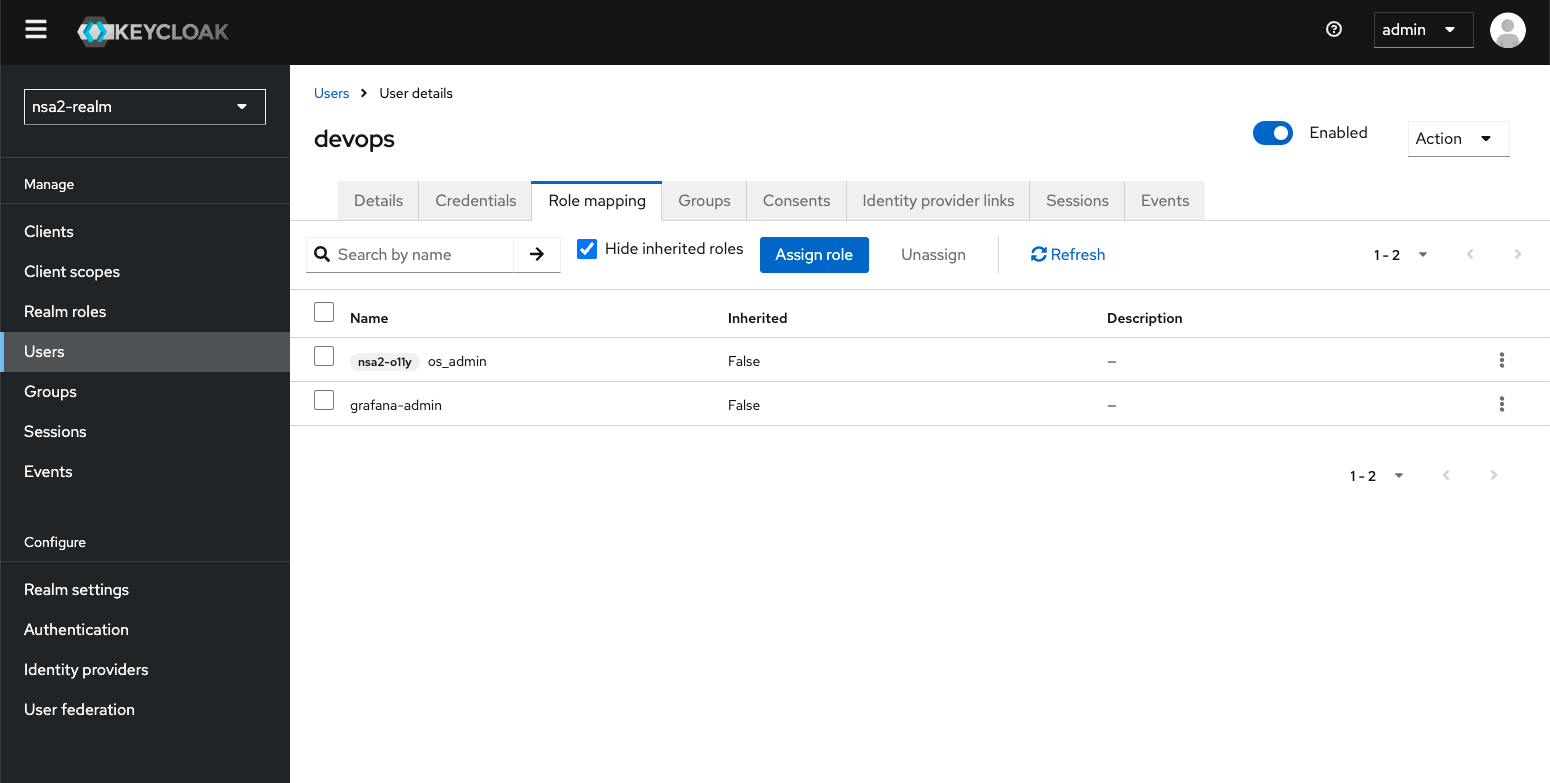

kc assign roles to user
Figure 5. Assign a client role to user

Traefik Ingress Configuration

Example o11y-sso-ingress.yaml:

o11y-sso-ingress.yaml
# using EJS templating. using ingress variable
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: o11y-sso-ingress
  namespace: o11y
  annotations:
    kubernetes.io/ingress.class: traefik
    traefik.ingress.kubernetes.io/router.middlewares: "o11y-forward-auth@kubernetescrd"
spec:
  ingressClassName: traefik
  rules:

    - host: jaeger.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: jaeger-collector
                port:
                  name: jaeger

    - host: prometheus.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: prometheus
                port:
                  name: web

    - host: grafana.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: grafana
                port:
                  name: service

    #(1)
    - host: os-dashboards.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: opensearch-dashboards
                port:
                  name: http
1 The host name for OpenSearch Dashboards. You can use the same host name as OpenSearch or a different one.

Sign In OpenSearch with devops user

Ensure your DNS is properly configured for http://os-dashboards.nsa2.com.

Navigate to http://os-dashboards.nsa2.com

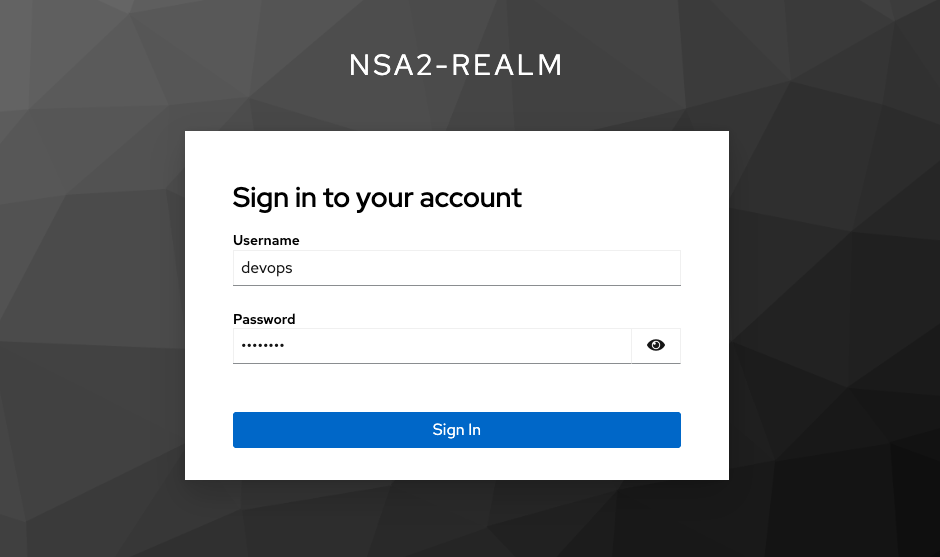

kc login
Figure 6. Sign In OpenSearch Dashboards with devops account

Sign in with:

  • username: devops

  • password: password

Now you can see the OpenSearch Dashboards. To check the roles, click on the user icon on the top right corner and select 'View roles and identities'

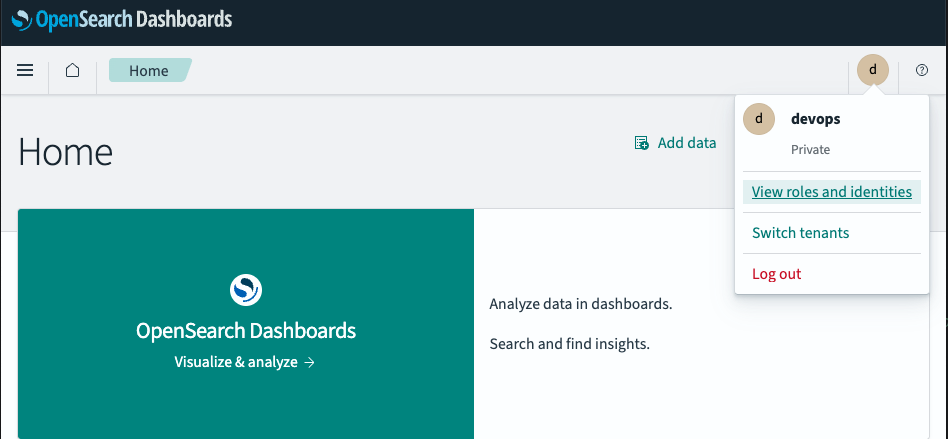

os view roles
Figure 7. View roles and identities

Then you can see the roles that are assigned to the user mapped by roles_mapping.yml file.

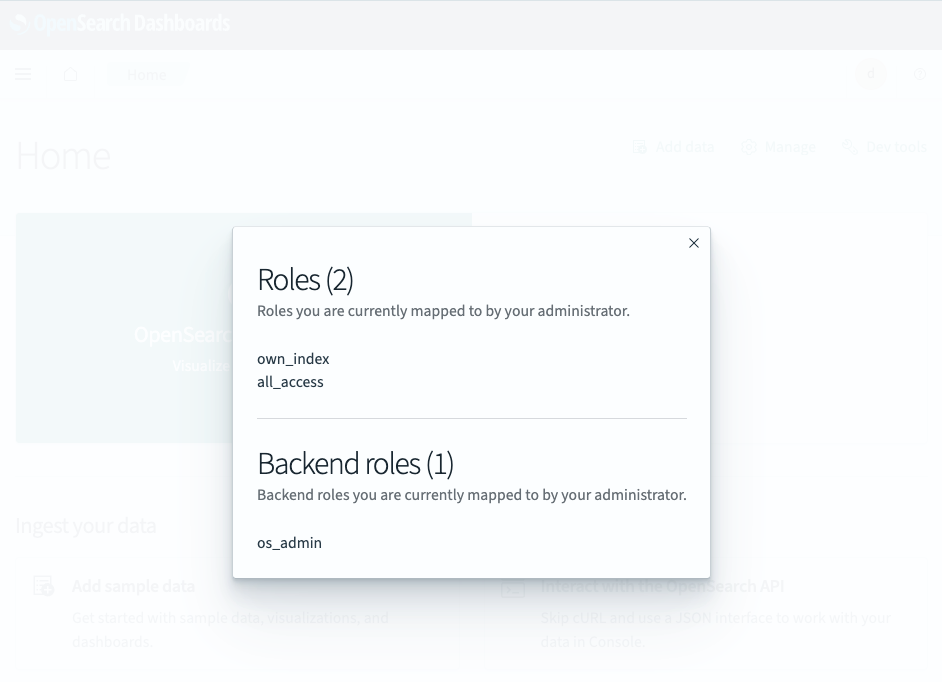

os roles mapped
Figure 8. Roles assigned to the user

Conclusion

In this guide, we configured OpenSearch and OpenSearch Dashboards to authenticate via Keycloak using OpenID Connect. We also set up client roles in Keycloak, created role mappings in OpenSearch, and secured the environment with TLS.
