Keycloak and Spring Boot OAuth 2.0 and OpenID Connect (OIDC) Authentication

Introduction

Keycloak is an open-source identity and access management (IAM) server that provides Single Sign-On (SSO) for web applications and RESTful web services. It supports OAuth 2.0 and OpenID Connect (OIDC) for authentication and authorization.

This tutorial demonstrates how to integrate Keycloak for OAuth 2.0 and OpenID Connect (OIDC) authentication in a Spring Boot application.

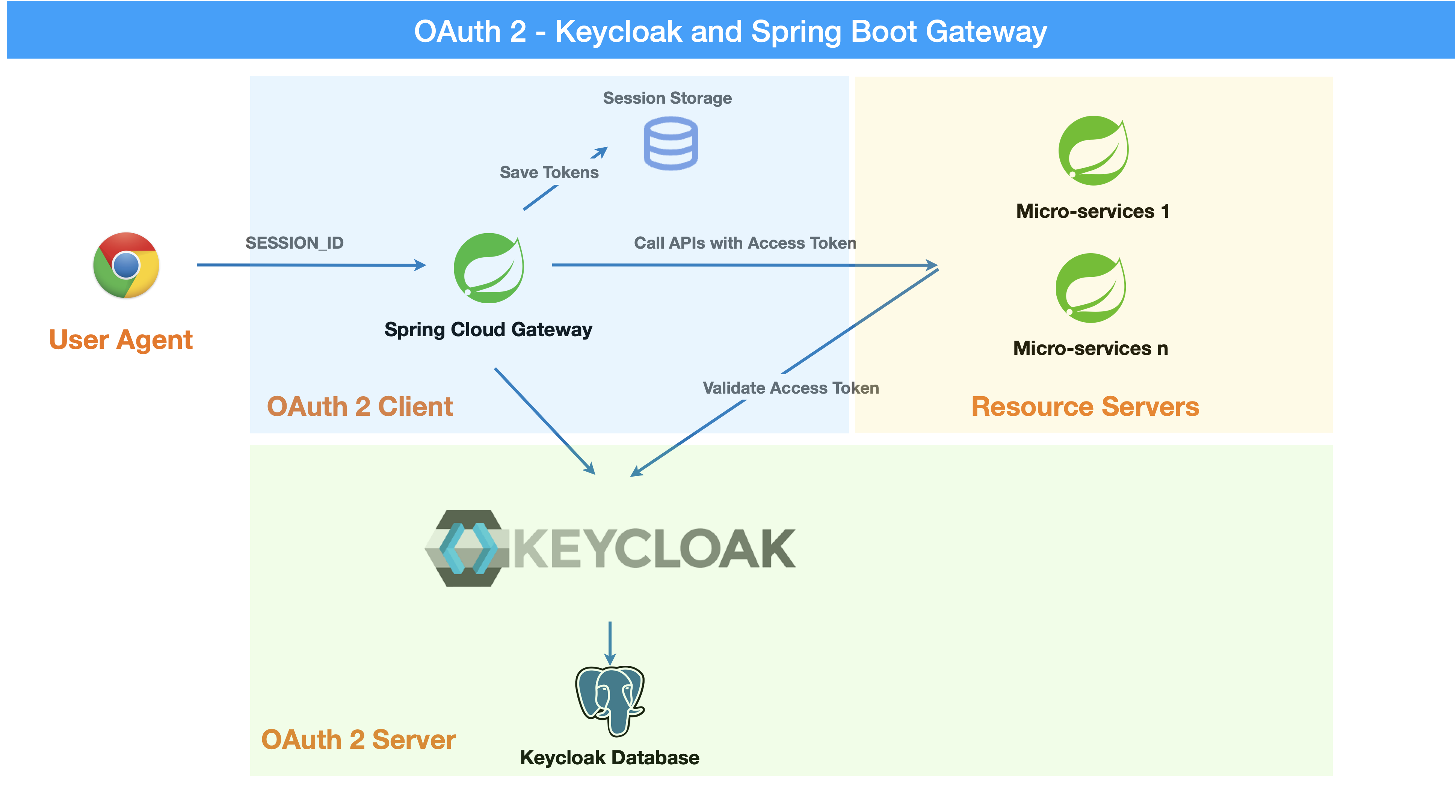

Project Overview

This project is composed of the following modules:

keycloak-server: A Keycloak server running in a Docker container.
spring-gateway: A Spring Boot application acting as an OAuth 2.0 Client.
spring-resource-server: A Spring Boot application acting as an OAuth 2.0 Resource Server.
react-app: A React application acting as an OAuth 2.0 Client(TBD)

Hostname Configuration (/etc/hosts)

127.0.0.1	auth.nsa2.com
127.0.0.1	gateway.nsa2.com
127.0.0.1	resource.nsa2.com

Services and Ports

auth.nsa2.com:9000 - Keycloak Server
gateway.nsa2.com:8080 - Spring Gateway
resource.nsa2.com:8082 - Spring Resource Server

Replacing Spring Authorization Server with Keycloako

Previously, this project used the Spring Authorization Server, but it has now been replaced with Keycloak.

For a previous implementation using Spring Authorization Server, refer to:

Spring Cloud Gateway with Authorization Server using Database

Keycloak vs Spring Authorization Server

Key Differences

Deployment:
- Keycloak: Standalone server
- Spring Authorization Server: Embedded in Spring Boot applications
Features:
- Keycloak: SSO, Identity Brokering, Social Login, User Federation, Admin Console
- Spring Authorization Server: Basic OAuth 2.0 and OIDC support
Use Cases:
- Keycloak: Complex IAM solutions
- Spring Authorization Server: Simple authentication scenarios

Setting Up Keycloak

Running Keycloak in Docker

keycloak-server/docker-compose.yaml

networks:
  keycloak:
    driver: bridge

volumes:
  pg_data:
    driver: local

services:
  keycloak-postgresql:
    image: postgres:16.8
    volumes:
      - pg_data:/var/lib/postgresql/data
    environment:
      POSTGRES_DB: keycloak
      POSTGRES_USER: keycloak
      POSTGRES_PASSWORD: password
      POSTGRES_HOST_AUTH_METHOD: trust
    ports:
      - 5432:5432
    networks:
      - keycloak

  keycloak:
    (1)
    image: bitnami/keycloak:26.1.4-debian-12-r0
    # image: keycloak/keycloak:26.1 # docker hub
    # https://www.keycloak.org/getting-started/getting-started-docker
    # image: quay.io/keycloak/keycloak:26.1.4
    environment:
      KC_BOOTSTRAP_ADMIN_USERNAME: admin
      KC_BOOTSTRAP_ADMIN_PASSWORD: changeit
      KC_SPI_ADMIN_REALM: master
      KEYCLOAK_HTTP_RELATIVE_PATH: /

      DB_VENDOR: POSTGRES
      DB_ADDR: keycloak-postgresql
      DB_DATABASE: keycloak
      DB_USER: keycloak
      DB_PASSWORD: password
    ports:
      - 9000:8080
    networks:
      - keycloak

1	For Keycloak Docker Image, there are multiple options available: `bitnami/keycloak:26.1.4-debian-12-r0` - Bitnami Keycloak Docker Image `keycloak/keycloak:26.1` - Official Keycloak Docker Image `quay.io/keycloak/keycloak:26.1.4` - Quay.io Keycloak Docker Image

I have chosen the Bitnami Keycloak Docker Image as I am planning to use the Bitnami Keycloak Helm Chart to deploy Keycloak on Kubernetes in the next tutorial.

To start the Keycloak server, run the following command:

$ cd keycloak-server
$ docker-compose up

Accessing the Keycloak Admin Console

Open a browser and go to http://auth.nsa2.com:9000
Login with:
- Username: admin
- Password: changeit

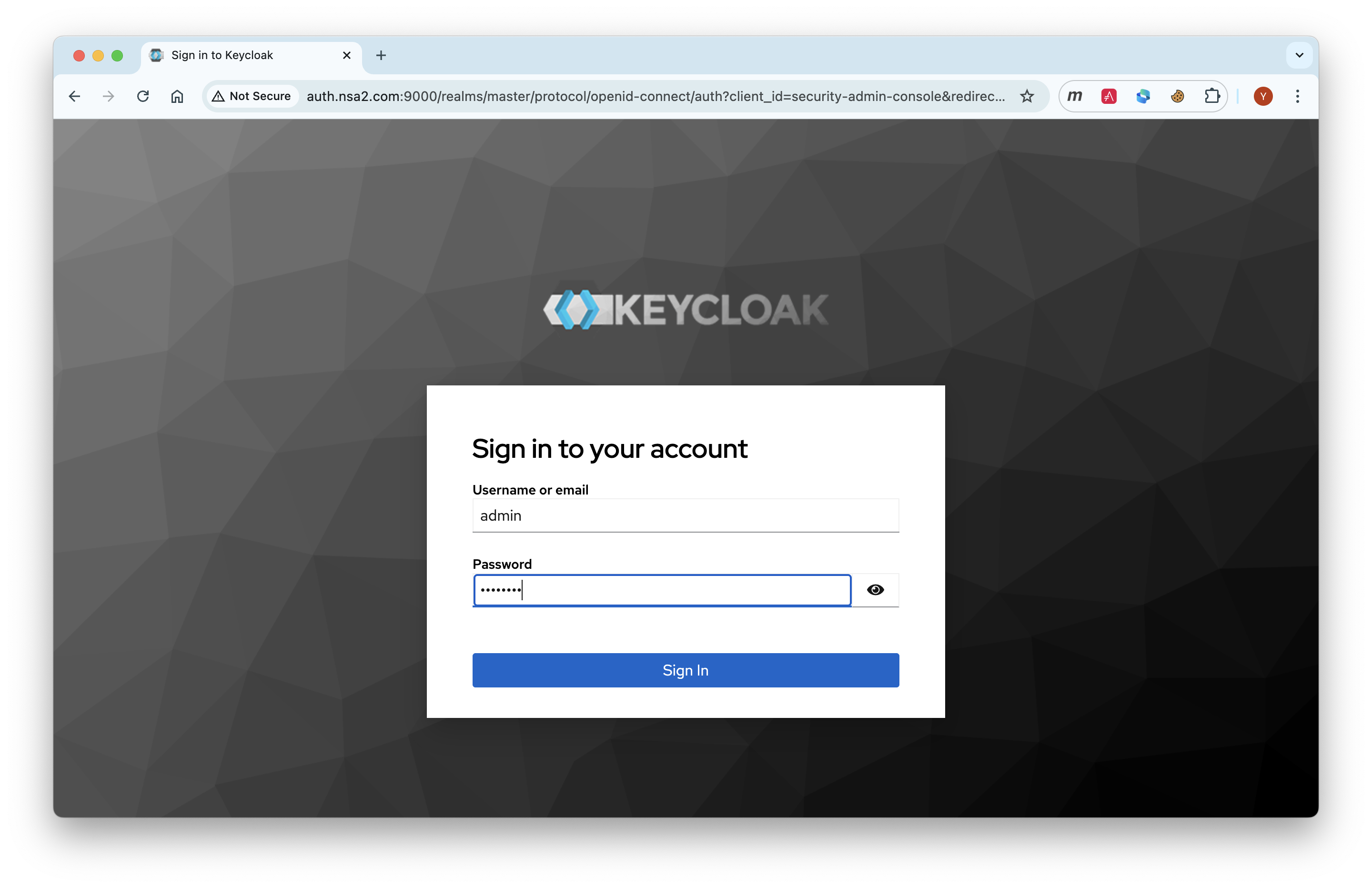

Figure 1. Keycloak Admin Console - Login

Configuring Keycloak

Creating a New Realm

The first step is to create a new realm in Keycloak. A realm is a container for a set of users, credentials, roles, and groups. It is used to manage a set of users and applications. It is like a tenant in a multi-tenant application.

Open the Keycloak Admin Console.

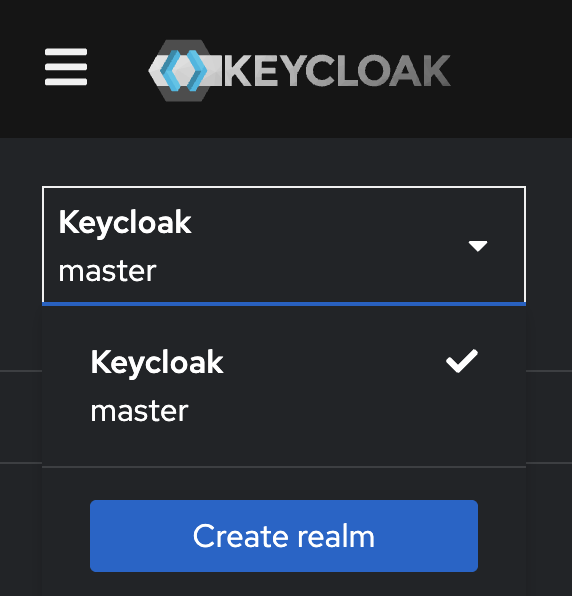

Figure 2. Click on the Create button to create a new realm.

Click Create Realm and name it nsa2-realm.

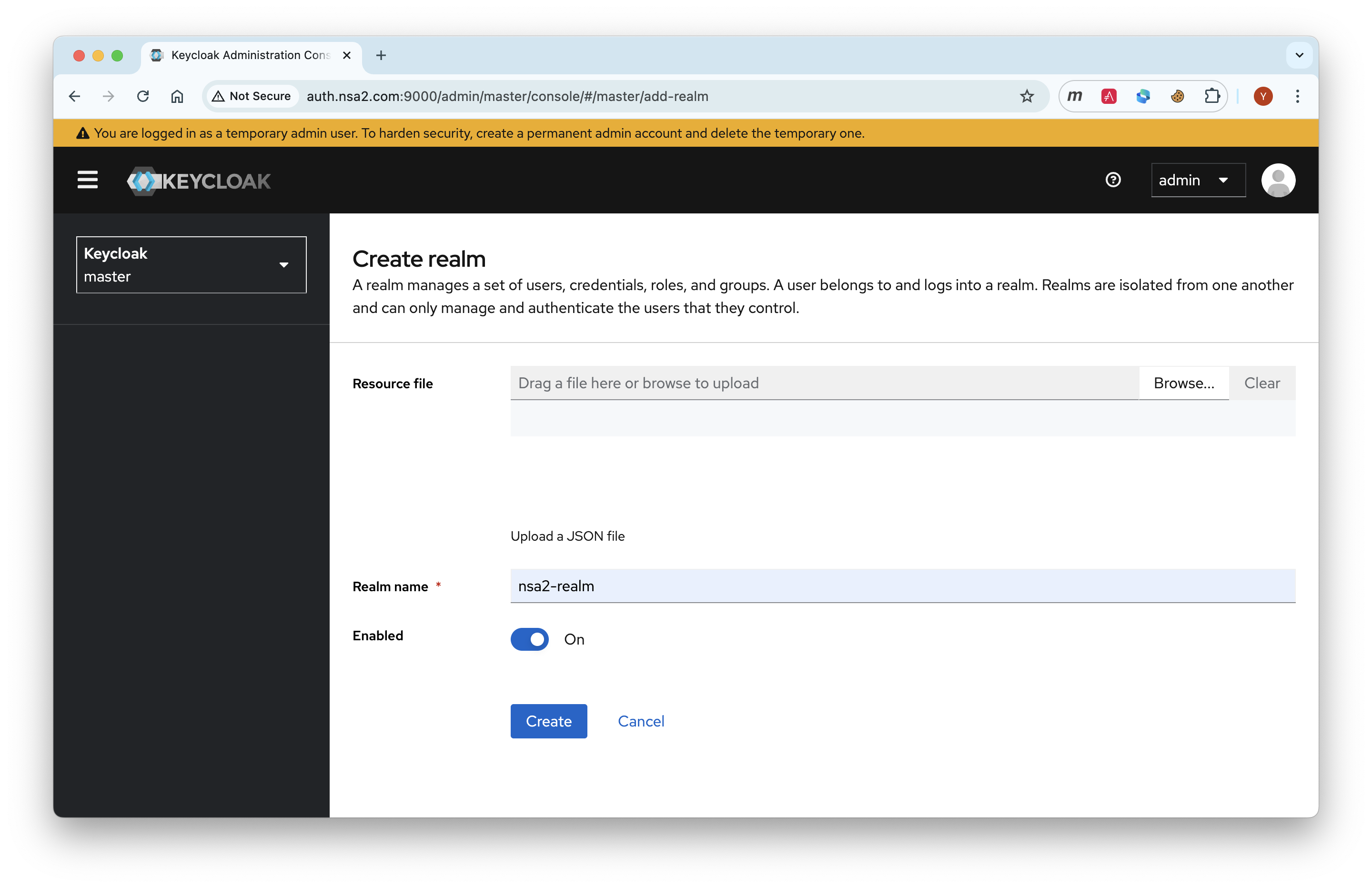

Figure 3. Keycloak Admin Console - Create Realm

The realm information endpoint:

http://auth.nsa2.com:9000/realms/nsa2-realm

Creating a Client

The next step is to create a new client in Keycloak. A client is an application that wants to use Keycloak for authentication and authorization. It can be a web application, a mobile application, or a service.

I am going to use the BFF (Backend For Frontend) pattern in this tutorial. The BFF is a server-side component that is used to aggregate and transform data from multiple services into a single API for the front-end application. Spring Cloud Gateway acts as the BFF in this tutorial.

Click on the Clients tab in the Keycloak Admin Console and then click on the Create button to create a new client.

There are 3 steps to create a new client:

General Settings
- Cleint Type: Select OpendID Connect as the client type.
- Client ID: Set the client ID to nsa2-gateway.
- Name: Set the name to NSA2 Gateway.
- Description: Set the description to NSA2 Gateway Client.
- Always display UI: Set to Off for now.
Capability config
- Client authenticator: Set to On.
- Authorization: Set to On.
- Authentication flow: Check 'Standard flow', 'Direct access grants', 'Service accounts roles'.
Login Settings
- Root URL: (blank)
- Home URL: (blank)
- Valid Redirect URIs: http://gateway.nsa2.com:8080/*
- Valid post logout redirect URIs: http://gateway.nsa2.com:8080/*
- Web Origins: http://gateway.nsa2.com:8080

Client Secret

To get the client secret, click on the Credentials tab and then click on the Regenerate Secret button to generate a new client secret.

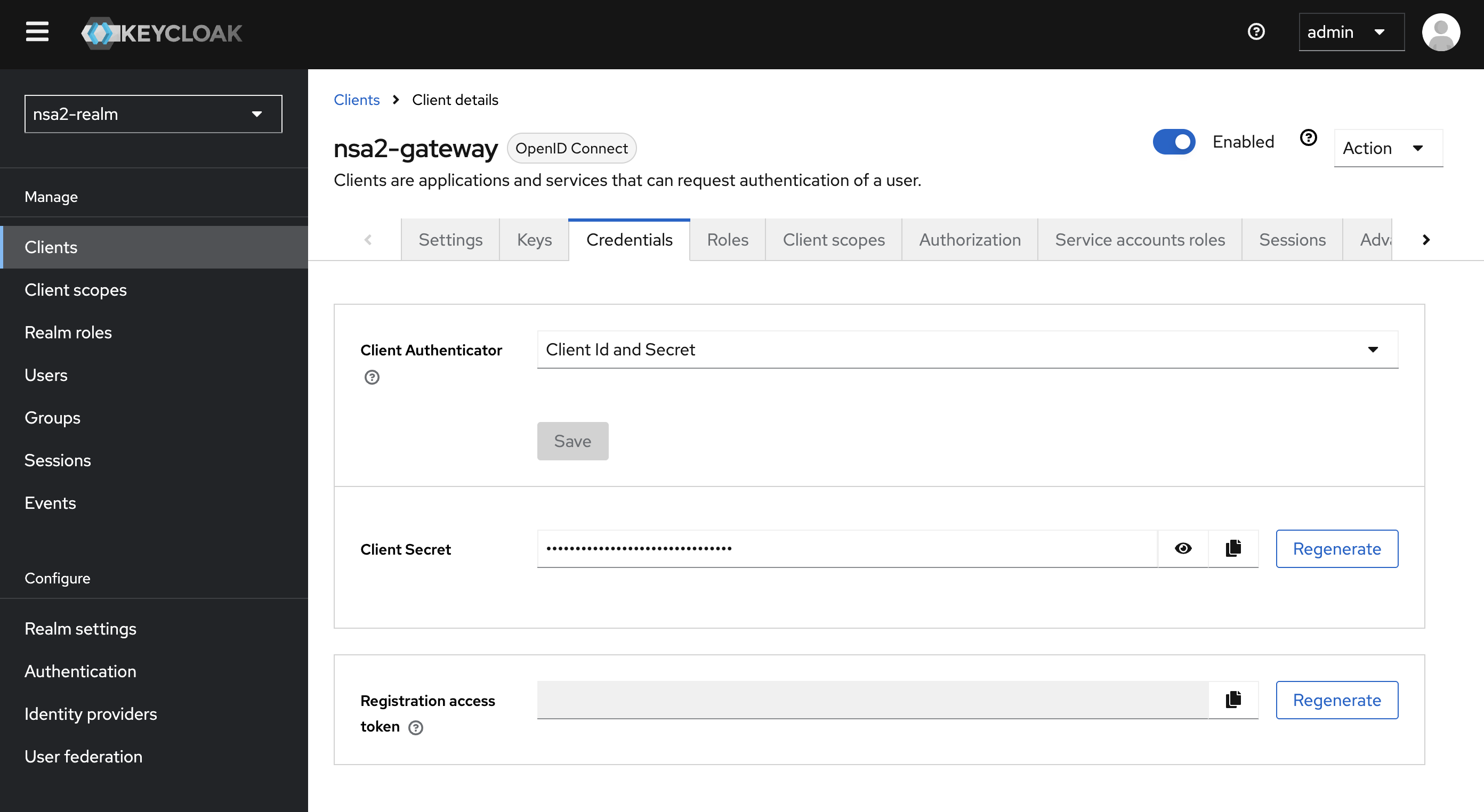

Figure 4. Keycloak Admin Console - Client Credentials

Use the client ID and client secret to configure the OAuth 2.0 client in the Spring Boot application.

Creating Roles

The next step is to create roles in Keycloak. A role is a set of permissions that can be assigned to users or groups. It is used to manage access control in the application.

Click on the Roles tab in the Keycloak Admin Console and then click on the Create role button to create a new role.

Roles:

'ROLE_NSA2_ADMIN' - Admin role
'ROLE_NSA2_USER' - User role

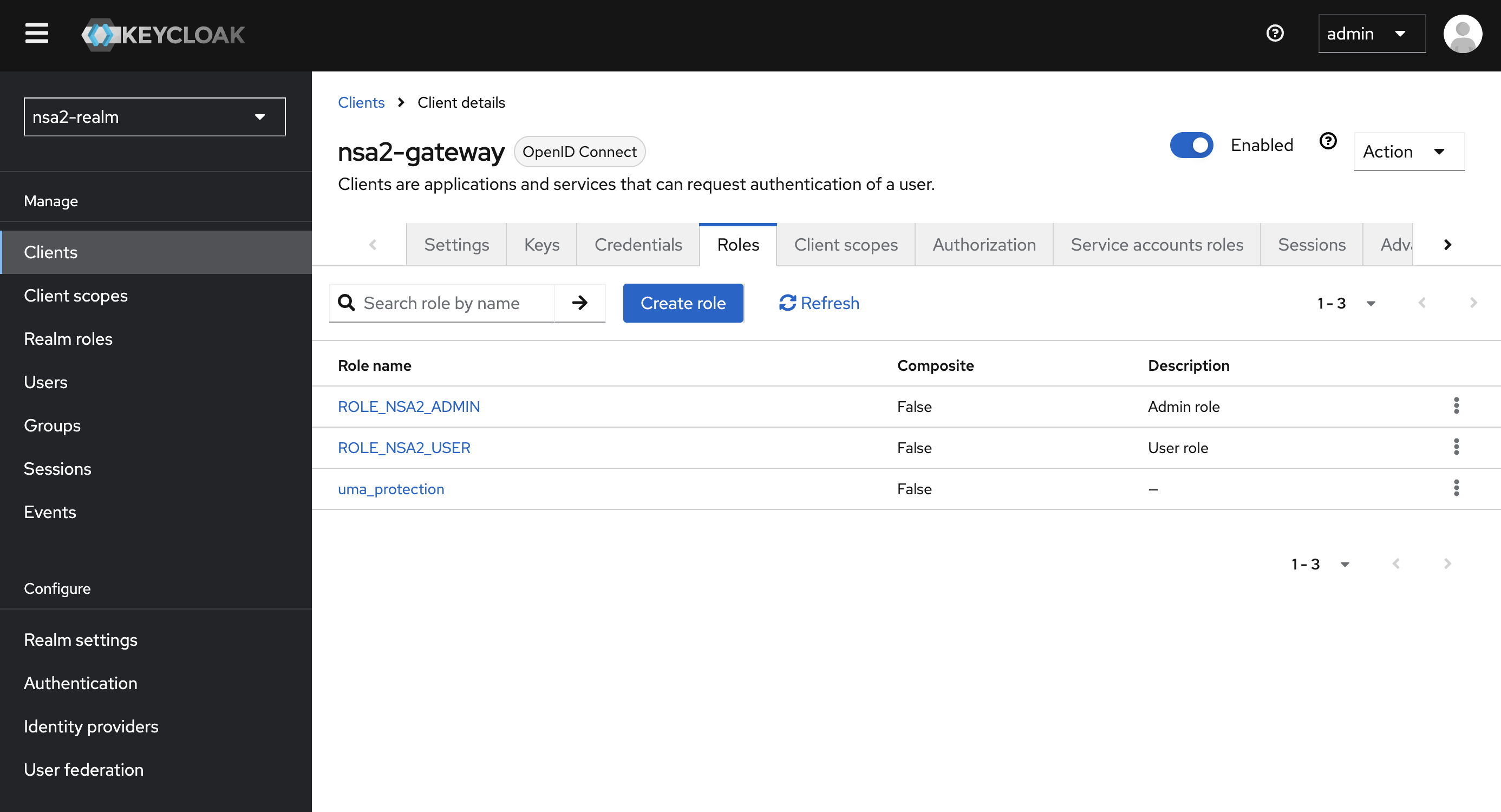

Figure 5. Keycloak Admin Console - Create Role

Create Groups

The next step is to create groups in Keycloak. A group is a collection of users. It is used to manage a set of users with similar roles or permissions.

Click on the Groups tab in the Keycloak Admin Console and then click on the Create group button to create a new group.

Groups:

'nsa2-admins' - Admins group
'nsa2-users' - Users group

Creating Users

The next step is to create users in Keycloak. A user is an entity that can be authenticated and authorized to access the application.

Click on the Users tab in the Keycloak Admin Console and then click on the Create new user button to create a new user.

Users:

'nsa2admin' user with the 'ROLE_NSA2_ADMIN' role and 'nsa2-admins' group.
'nsa2user' user with the 'ROLE_NSA2_USER' role and 'nsa2-users' group.

Fill in the following information to create a new user:

Required user actions: None
Email verified: set to On
Username: nsa2admin
Email: user’s email
First name: user’s first name
Last name: user’s last name

Set Password

To set the password for the user, click on the Credentials tab and then set the password for the user.

Password: user’s password
Password Confirmation: user’s password
Temporary: false

Assigning Roles to User

To assign a role to the user, click on the Role Mappings tab and then assign the role to the user. Click on the Assign Role button to assign the role to the user.

Assigning Groups to User

To assign a group to the user, click on the Groups tab and then assign the group to the user. Click on the Join Group button to assign the group to the user.

Now we have created a new realm, a new client, roles, groups, and users in Keycloak. We can use these entities for OAuth 2.0 and OpenID Connect (OIDC) authentication in the Spring Boot application.

Implementing Spring Gateway

I will create a new Spring Boot application acting as an OAuth 2.0 client using the Spring Gateway with the Spring Boot version 3.4.3.

Dependencies

Lombok
Spring Web
OAuth2 Client
Cloud Bootstrap
Gateway

build.gradle.kts

Here is the build.gradle.kts file for the Spring Gateway application:

build.gradle.kts

plugins {
    java
    id("org.springframework.boot") version "3.4.3"
    id("io.spring.dependency-management") version "1.1.7"
}

group = "com.nsalexamy.example"
version = "0.0.1-SNAPSHOT"

java {
    toolchain {
        languageVersion = JavaLanguageVersion.of(21)
    }
}

configurations {
    compileOnly {
        extendsFrom(configurations.annotationProcessor.get())
    }
}

repositories {
    mavenCentral()
}

extra["springCloudVersion"] = "2024.0.0"

dependencies {
    implementation("org.springframework.boot:spring-boot-starter-oauth2-client")
    implementation("org.springframework.boot:spring-boot-starter-web")
    implementation("org.springframework.cloud:spring-cloud-starter-gateway-mvc")

    implementation("org.aspectj:aspectjweaver")

    compileOnly("org.projectlombok:lombok")
    annotationProcessor("org.projectlombok:lombok")

    testImplementation("org.springframework.boot:spring-boot-starter-test")
    testImplementation("org.springframework.security:spring-security-test")
    testRuntimeOnly("org.junit.platform:junit-platform-launcher")
}

dependencyManagement {
    imports {
        mavenBom("org.springframework.cloud:spring-cloud-dependencies:${property("springCloudVersion")}")
    }
}

tasks.withType<Test> {
    useJUnitPlatform()
}

Application Configuration - application.yml

application.yaml

spring.application.name: spring-gateway

# virtual threads
spring.threads.virtual.enabled: true (1)
# banner-mode: off
server:
  main.banner-mode: off
  tomcat.threads.max: 10
  servlet.session.cookie:
    http-only: true
  servlet:
    context-path: /

(2)
spring.security.oauth2.client:
  registration:
    nsa2-gateway:
      provider: keycloak
      client-id: nsa2-gateway
      client-secret: 1YWFzABOmhL6Hb5VYWSo36bk0URILDdf (3)
      authorization-grant-type: authorization_code
      scope: openid,profile,email
      redirect-uri: ${NSA2_OAUTH_REDIRECT_URI:{baseUrl}/login/oauth2/code/nsa2-gateway}
      client-name: "NSA2 Keycloak"
      client-authentication-method: client_secret_basic
  provider:
    keycloak:
      issuer-uri: ${NSA2_OAUTH_ISSUER_URI:http://auth.nsa2.com:9000/realms/nsa2-realm} (4)
      user-name-attribute: preferred_username

1	Enable virtual threads for Spring Boot 3.4.3.
2	OAuth 2.0 client configuration for Keycloak.
3	Client secret for the OAuth 2.0 client. Replace it with the actual client secret generated in Keycloak.
4	Issuer URI for Keycloak. Replace it with the actual issuer URI provided by Keycloak.

Security Configuration - SecurityConfig.java

Here is the SecurityConfig.java file for the Spring Gateway application:

SecurityConfig.java

@Configuration
@EnableAspectJAutoProxy
public class SecurityConfig {

    (1)
    @Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
        http
                .authorizeHttpRequests(auth ->
                        auth
                            .requestMatchers("/actuator/**").permitAll()
                            .anyRequest().authenticated()
                )
                .oauth2Login(Customizer.withDefaults())  // Enables OAuth2 login
                .oauth2Client(Customizer.withDefaults()) // Enables OAuth2 client
                .csrf(csrf -> csrf.disable())  // Disable CSRF for APIs
                .cors(cors -> cors.configurationSource(corsConfigurationSource())); // Enable CORS

        return http.build();
    }

    (2)
    @Bean
    public CorsConfigurationSource corsConfigurationSource() {
        CorsConfiguration config = new CorsConfiguration();
        config.setAllowCredentials(true);
        config.setAllowedOrigins(List.of(
                "http://auth.nsa2.com:9000",  // Keycloak
                "http://gateway.nsa2.com:8080" // Spring Cloud Gateway
        ));
        config.setAllowedHeaders(List.of("*"));
        config.setAllowedMethods(List.of("GET", "POST", "PUT", "DELETE", "OPTIONS"));

        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", config);
        return source;
    }
}

1	Security filter chain configuration for OAuth 2.0 and OpenID Connect (OIDC) authentication.
2	CORS configuration for Keycloak and Spring Cloud Gateway.

Endpoints - UserController.java

UserController.java provides two endpoints:

/user/username - Get the username of the authenticated user.
/user/profile - Get the profile information of the authenticated user.

These are secure endpoints that require the user to be authenticated. The request will be redirected to the Keycloak login page if the user is not authenticated.

Here is the UserController.java file for the Spring Gateway application:

UserController.java

@RestController
@RequestMapping("/user")
@Slf4j
public class UserController {

    (1)
    @GetMapping("/username")
    public Map<String, String> username(Authentication authentication) {
        String username = authentication.getName();
        log.info("username: {}",username);
        return Map.of("username", username);
    }

    (2)
    @GetMapping("/profile")
    public Map<String, Object> idToken(@AuthenticationPrincipal OidcUser oidcUser) {
        log.info("oidcUser: {}", oidcUser);
        log.info("id token: {}", oidcUser.getIdToken().getTokenValue());

        if(oidcUser == null) {
            return Map.of("error", "No id_token found", "id_token", null);

        } else {
            return oidcUser.getClaims();
        }
    }
}

1	Get the username of the authenticated user.
2	Get the profile information of the authenticated user.

Running Spring Gateway

To run the Spring Gateway application, run the following command:

$ cd spring-gateway
$ ./gradlew bootRun

Accessing Spring Gateway Secure Endpoints

Open a web browser and go to the following URL:

http://gateway.nsa2.com:8080/user/username

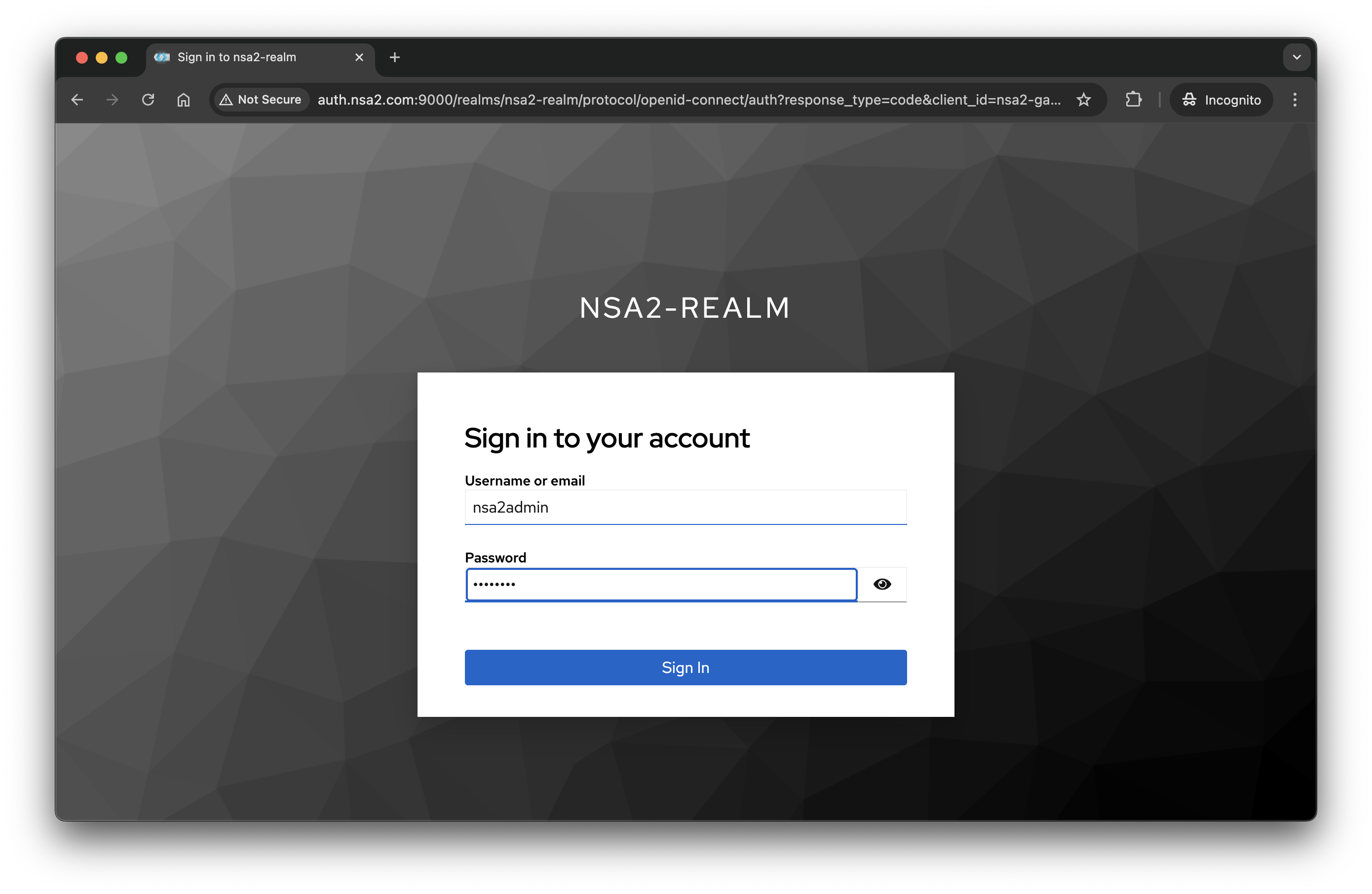

Figure 6. Keycloak Login Page

You will be redirected to the Keycloak login page. Login with the following credentials:

Username: nsa2admin
Password: password

After successful authentication, you will be redirected to the /user/username endpoint, which will display the username of the authenticated user.

Output of /user/username

{
  "username": "nsa2admin"
}

Once you are authenticated, you can access the /user/profile endpoint to get the profile information of the authenticated user.

Output of /user/profile

{
  "at_hash": "L8xCaoLgmQLo7vU1ox3VhQ",
  "sub": "e6ce3b9e-902a-42db-af8b-f94282f7cf3b",
  "email_verified": true,
  "iss": "http://auth.nsa2.com:9000/realms/nsa2-realm",
  "typ": "ID",
  "preferred_username": "nsa2admin",
  "given_name": "Nsa2Admin",
  "nonce": "wOvSXLTx8xE0cP-tPB7F4TlekUDg4Gtz5g3y44G_EGM",
  "sid": "ebc263bb-0be6-4ed6-a87e-bb316823dddc",
  "aud": [
    "nsa2-gateway"
  ],
  "acr": "1",
  "azp": "nsa2-gateway",
  "auth_time": "2025-03-16T23:50:08Z",
  "name": "Nsa2Admin Doe",
  "exp": "2025-03-16T23:55:08Z",
  "family_name": "Doe",
  "iat": "2025-03-16T23:50:08Z",
  "email": "nsa2admin@nsa2.com",
  "jti": "8bb63bf6-5ffb-496e-ac30-4c2b09b9aad0"
}

Now we have successfully implemented OAuth 2.0 and OpenID Connect (OIDC) authentication in the Spring Gateway application using Keycloak.

Implementing Spring Resource Server

In this section, we will create a new Spring Boot application acting as an OAuth 2.0 resource server using the Spring Resource Server with the Spring Boot version 3.4.3. All secure endpoints in the Spring Resource Server require JWT token authentication provided by the Spring Gateway. As the OAuth 2.0 client, the Spring Gateway will provide the JWT token to the Spring Resource Server.

Spring Gateway Configuration for Routing

Let’s add configuration below to the application.yml file of Spring Gateway to pass the JWT token to the Spring Resource Server.

application.yml - Spring Gateway

spring:
  cloud:
    gateway:
      mvc:
        enabled: true

        routes:
          - id: resource-server
            uri: ${RESOURCE_SERVER_URI:http://resource.nsa2.com:8082}   (1)
            predicates:
              - Path=/resource/**   (2)
            filters:
              - StripPrefix=1    (3)
              - TokenRelay=  (4)

1	URI of the Spring Resource Server.
2	Path predicate for the Spring Resource Server.
3	StripPrefix filter to remove the `/resource` prefix from the request path.
4	TokenRelay filter to pass the JWT token to the Spring Resource Server.

build.gradle.kts

Here is the build.gradle.kts file for the Spring Resource Server application:

build.gradle.kts - dependencies

dependencies {
    implementation("org.springframework.boot:spring-boot-starter-oauth2-resource-server")
    implementation("org.springframework.boot:spring-boot-starter-web")
    implementation("org.springframework.boot:spring-boot-starter-actuator")
    compileOnly("org.projectlombok:lombok")
    annotationProcessor("org.projectlombok:lombok")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
    testRuntimeOnly("org.junit.platform:junit-platform-launcher")
}

Application Configuration - application.yml

application.yml

server:
  port: 8082    (1)

spring.application.name: spring-resource-server

spring.threads.virtual.enabled: true

spring:
  security:
    oauth2:
      resourceserver:
        jwt:
          issuer-uri: ${NSA2_JWT_ISSUER_URI:http://http://auth.nsa2.com:9000/realms/nsa2-realm} (2)

1	Port of the Spring Resource Server.
2	Issuer URI for the JWT token. Replace it with the actual issuer URI provided by Keycloak.

Make sure that the Spring Resource Server is running on the resource.nsa2.com:8082 hostname.

JWT Token - Payload

The roles configured in Keycloak are included in the JWT token payload. The JWT token payload contains the following information:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
{
  "exp": 1742183867,
  "iat": 1742183567,
  "auth_time": 1742183567,
  "jti": "4d637fbc-08aa-4fa5-8354-25547f61a27e",
  "iss": "http://auth.nsa2.com:9000/realms/nsa2-realm",
  "aud": "account",
  "sub": "ea1c0590-2144-41b4-9cdc-557198fc540d",
  "typ": "Bearer",
  "azp": "nsa2-gateway",
  "sid": "43b5a310-5d24-472e-85e0-cba279ba4a2f",
  "acr": "1",
  "allowed-origins": [
    "http://gateway.nsa2.com:8080"
  ],
  "realm_access": {
    "roles": [
      "offline_access",
      "uma_authorization",
      "default-roles-nsa2-realm"
    ]
  },
  "resource_access": {
    "account": {
      "roles": [
        "manage-account",
        "manage-account-links",
        "view-profile"
      ]
    },
    "nsa2-gateway": {
      "roles": [
        "ROLE_NSA2_USER"    (1)
      ]
    }
  },
  "scope": "openid profile email",
  "email_verified": true,
  "name": "Nsa2 User Doe",
  "preferred_username": "nsa2user",
  "given_name": "Nsa2 User",
  "family_name": "Doe",
  "email": "nsa2user@nsa2.com"
}

1	Roles assigned to the user in the resource_access.nsa2-gateway.roles section.

We are going to use the 'ROLE_NAS2_USER' and 'ROLE_NSA2_ADMIN' roles in the Spring Resource Server in the form of @PreAuthorize annotations.

@PreAuthorize("hasRole('ROLE_NSA2_USER')")
@PreAuthorize("hasRole('ROLE_NSA2_ADMIN')")

For more information on JwtAuthenticationConverter, refer to the following link:

Spring Security Reference - JwtAuthenticationConverter

CustomJwtGrantedAuthoritiesConverter.java

CustomJwtGrantedAuthoritiesConverter.java is a custom implementation of JwtGrantedAuthoritiesConverter that converts the roles in the JWT token payload to authorities.

For nsa2admin user, the role 'ROLE_NSA2_ADMIN' is assigned in Keycloak Admin Console.
For nsa2user user, the role 'ROLE_NSA2_USER' is assigned in Keycloak Admin Console.

These roles are assigned to the user in the JWT token payload when the user is authenticated.

CustomJwtGrantedAuthoritiesConverter.java

@Slf4j
public class CustomJwtGrantedAuthoritiesConverter implements Converter<Jwt, Collection<GrantedAuthority>> {
    private static final String RESOURCE_ACCESS = "resource_access";
    private static final String CLIENT_ID = "nsa2-gateway"; // Your Keycloak client ID
    private static final String ROLES = "roles";

    private final JwtGrantedAuthoritiesConverter defaultGrantedAuthoritiesConverter = new JwtGrantedAuthoritiesConverter();


    @Override
    public <U> Converter<Jwt, U> andThen(Converter<? super Collection<GrantedAuthority>, ? extends U> after) {
        return Converter.super.andThen(after);
    }
    @Override
    public Collection<GrantedAuthority> convert(Jwt source) {
        Collection<GrantedAuthority> authorities = defaultGrantedAuthoritiesConverter.convert(source);
        log.info("authorities : {}", authorities);

        var roles = source.getClaimAsStringList("roles");
        log.info("roles: {}", roles);


        Map<String, Object> resourceAccess = source.getClaimAsMap(RESOURCE_ACCESS);

        (1)
        if (resourceAccess != null && resourceAccess.containsKey(CLIENT_ID)) {
            Map<String, Object> clientAccess = (Map<String, Object>) resourceAccess.get(CLIENT_ID);
            if (clientAccess.containsKey(ROLES)) {
                List<String> clientRoles = (List<String>) clientAccess.get(ROLES);
                authorities = Stream.concat(
                        authorities.stream(),
                        clientRoles.stream().map(role -> role.startsWith("ROLE_") ? role : "ROLE_" + role).map(SimpleGrantedAuthority::new)
                ).collect(Collectors.toList());
            }
        }

        log.info("authorities : {}", authorities);

        return authorities;
    }

}

1	Convert the roles in the JWT token payload to authorities. The roles are prefixed with 'ROLE_'.

Security Configuration - SecurityConfig.java

The CustomJwtGrantedAuthoritiesConverter is configured in the SecurityConfig.java file.

Here is the SecurityConfig.java file for the Spring Resource Server application:

SecurityConfig.java

@Configuration(proxyBeanMethods = false)
@EnableWebSecurity
@EnableMethodSecurity(prePostEnabled = true) (1)
public class SecurityConfig {

    (2)
    private final String jwkSetUri = "http://auth.nsa2.com:9000/realms/nsa2-realm/protocol/openid-connect/certs";

    @Bean
    public SecurityFilterChain securityFilterChain(
            HttpSecurity http,
            JwtAuthenticationConverter nsa2AuthenticationConverter) throws Exception {

        http
                .authorizeHttpRequests(auth -> auth
                        .requestMatchers("/actuator/**").permitAll()
                        .anyRequest().authenticated()
                )
                .oauth2ResourceServer(oauth2 -> oauth2
                        .jwt(jwt -> jwt
                                .jwtAuthenticationConverter(nsa2AuthenticationConverter) (3)
                                .jwkSetUri(jwkSetUri)   (4)
                        )
                );

        return http.build();
    }

    @Bean
    public JwtAuthenticationConverter nsa2AuthenticationConverter() {
        var converter = new JwtAuthenticationConverter();
        converter.setJwtGrantedAuthoritiesConverter(new CustomJwtGrantedAuthoritiesConverter());
        return converter;
    }
}

1	Enable method-level security with `@PreAuthorize` annotations.
2	JWK set URI for the JWT token.
3	Custom JwtAuthenticationConverter for converting the roles in the JWT token payload to authorities.
4	JWK set URI for the JWT token.

Endpoints - SecureController.java

SecureController.java provides the following secure endpoints:

/secure/hello - Hello endpoint that requires the 'ROLE_NSA2_USER' or 'ROLE_NSA2_ADMIN' role.
/secure/admin/hello - Admin Hello endpoint that requires the 'ROLE_NSA2_ADMIN' role.
/secure/access_token - Access Token endpoint that displays the access token information. This is for debugging purposes only. Do not expose this endpoint in production because it exposes sensitive information.

secureController.java

@RestController
@Slf4j
@RequestMapping("/secure")
public class SecureController {
    @PreAuthorize("hasAnyRole('NSA2_USER', 'NSA2_ADMIN')")  (1)
    @GetMapping("/hello")
    public Message hello(Principal principal, JwtAuthenticationToken jwtToken) {
        log.info("principal: {}", principal);
        log.info("name: {}", jwtToken.getName());
        log.info("principal class: {}", principal.getClass());
        log.info("jwtToken class: {}", jwtToken.getClass());
        log.info("authorities: {}", jwtToken.getAuthorities());
        return new Message("ResourceServer - Hello, " + principal.getName());
    }

    @PreAuthorize("hasRole('NSA2_ADMIN')")  (2)
    @GetMapping("/admin/hello")
    public Message adminHello(Principal principal) {
        return new Message("ResourceServer - Admin Hello, " + principal.getName());
    }

    @GetMapping("/access_token")
    public AccessToken accessToken(JwtAuthenticationToken jwtToken) {

        Map<String, Object> tokenAttributes = jwtToken.getTokenAttributes();
        log.info("principal class: {}", jwtToken.getPrincipal().getClass());

        if(jwtToken.getPrincipal() instanceof DefaultOidcUser oidcUser) {
            log.info("oidcUser: {}", oidcUser);
        } else {
            log.info("is not instance of DefaultOidcUser");
        }

        var authorities = jwtToken.getAuthorities();
        log.info("authorities: {}", authorities);
        return new AccessToken(jwtToken.getName(), jwtToken.getToken().getTokenValue(), authorities.toString(),
                tokenAttributes.containsKey("scope") ? tokenAttributes.get("scope").toString() : "");
    }
}

1	Secure endpoint that requires the 'ROLE_NSA2_USER' or 'ROLE_NSA2_ADMIN' role.
2	Secure endpoint that requires the 'ROLE_NSA2_ADMIN' role. When the 'nsa2user' user accesses this endpoint, an 'Access Denied' error will be returned.

Running Spring Resource Server

To run the Spring Resource Server application, run the following command:

$ cd spring-resource-server
$ ./gradlew bootRun

Access Secure Endpoints

To access endpoints in the Spring Resource Server, you need to get the JWT token from the Spring Gateway and pass it to the Spring Resource Server. As Spring Gateway is acting as the OAuth 2.0 client and Backend for frontend(BFF), it will manage the JWT token and pass it to the Spring Resource Server.

Open a web browser and go to the following URL:

/secure/hello

Either the 'nsa2admin' or 'nsa2user' user can access the /secure/hello endpoint. The 'nsa2admin' user has the 'ROLE_NSA2_ADMIN' role, and the 'nsa2user' user has the 'ROLE_NSA2_USER' role. And the output will be as follows:

{
  "message": "ResourceServer - Hello, nsa2admin"
}

/secure/admin/hello

Only the 'nsa2admin' user can access the /secure/admin/hello endpoint. The 'nsa2user' user will get an 'Access Denied' error when trying to access this endpoint.

The output will be as follows:

{
  "message": "ResourceServer - Admin Hello, nsa2admin"
}

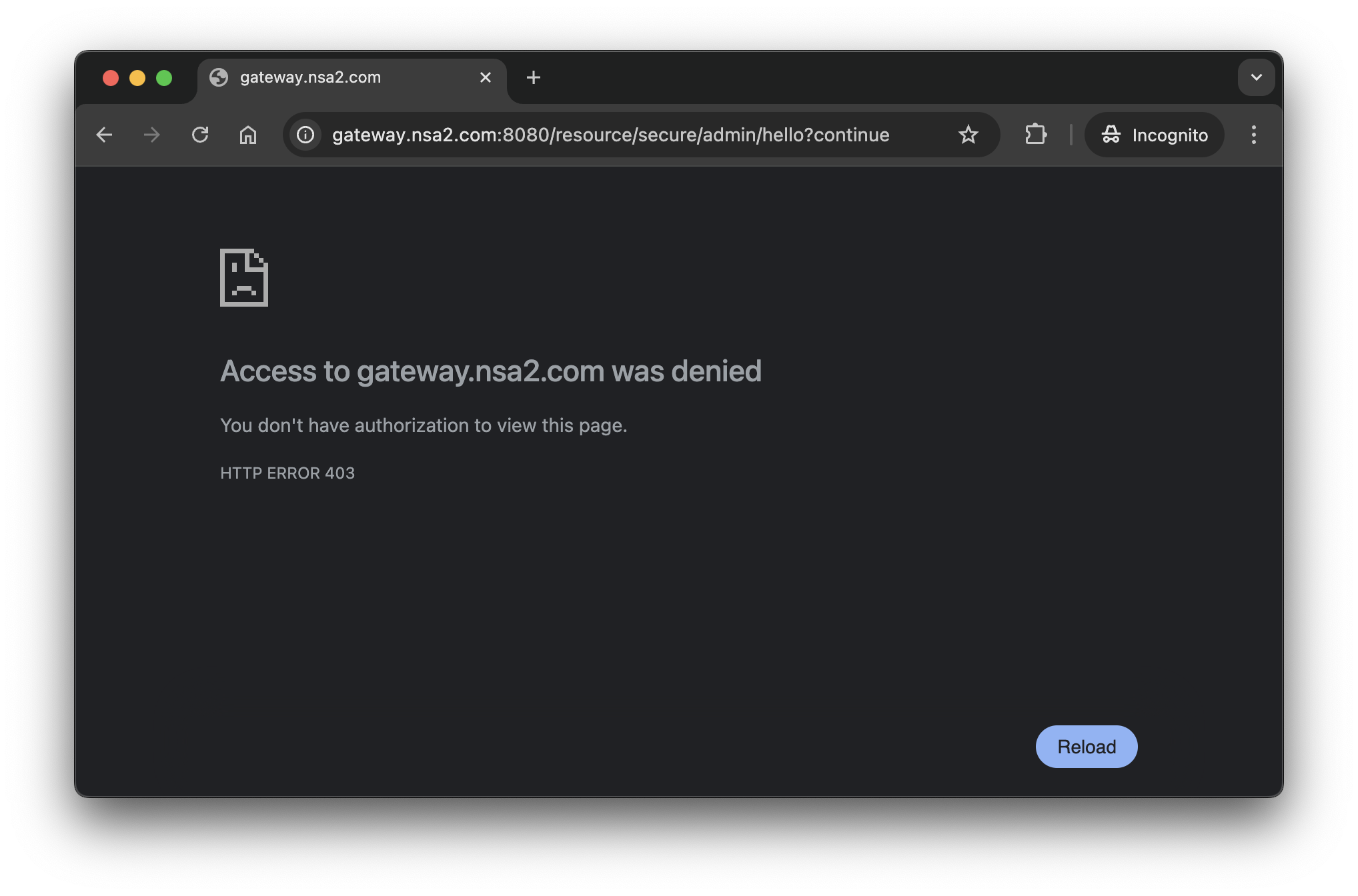

When the 'nsa2user' user tries to access the /secure/admin/hello endpoint, an 'Access Denied' error will be returned.

Figure 7. Access Denied Error

Conclusion

This guide demonstrated how to set up OAuth 2.0 and OpenID Connect authentication using Keycloak with Spring Boot applications. We configured a Keycloak server, integrated it with a Spring Cloud Gateway (OAuth 2.0 Client), and secured a Spring Resource Server (OAuth 2.0 Resource Server). The setup supports user authentication, role-based access control, and token relay for secured API calls.

This project is available on GitHub at link: nsalexamy/keycloak-spring-react-bff.

All my LinkedIn articles are available at My LinkedIn Article Library.
