Single Sign-On (SSO) with Keycloak, Traefik, and OAuth2 Proxy

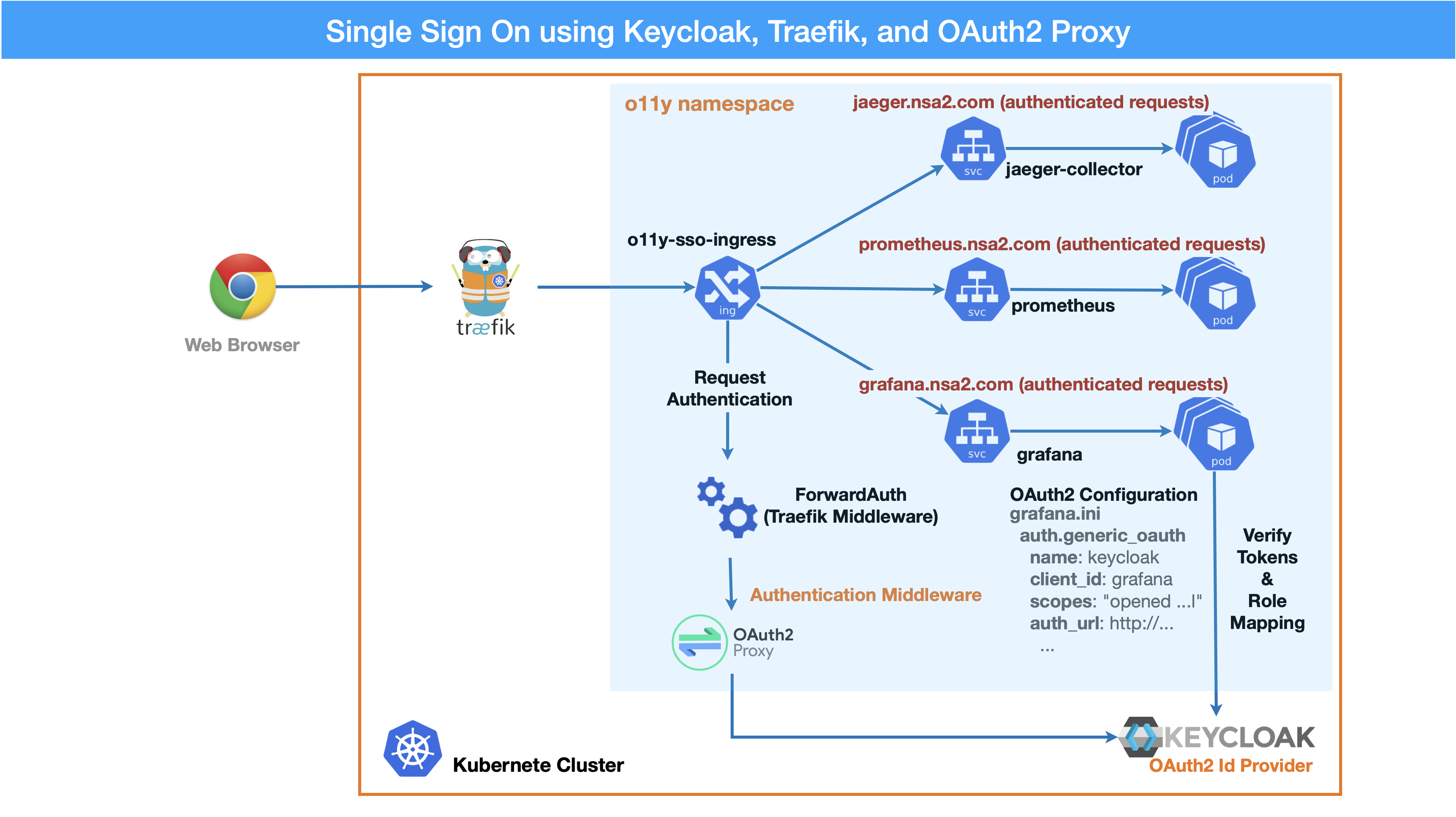

Overview

This guide walks you through setting up Single Sign-On (SSO) using Keycloak as the Identity Provider (IdP), OAuth2 Proxy as the authentication middleware, and Traefik as the Ingress controller. This SSO configuration secures access to observability tools such as:

Jaeger – No native authentication
Prometheus – No native authentication
Grafana – Built-in OIDC support

Once configured, users can authenticate once through Keycloak and access all integrated services without repeated logins.

Prerequisites

Ensure the following components are installed in your Kubernetes cluster:

Kubernetes cluster
Traefik Ingress Controller
Keycloak
Jaeger Collector installed
Prometheus installed
Grafana installed

This guide builds upon the following previous works:

Target Services

The Single Sign On will be applied to the following services:

jaeger-collector - port name: jaeger, port: 16686
prometheus - port name: web, port: 9090
grafana - port name: service, port: 80

Use the following commands to verify service port configurations:

Jaeger-Collector

$ kubectl -n o11y get svc jaeger-collector -o yaml | yq '.metadata.name, .spec.ports'

# Example Output
jaeger-collector
- name: jaeger
  port: 16686
  protocol: TCP
  targetPort: 16686
- appProtocol: grpc
  name: otlp-grpc
  port: 4317
  protocol: TCP
  targetPort: 4317
- appProtocol: http
  name: otlp-http
  port: 4318
  protocol: TCP
  targetPort: 4318

Prometheus

$ kubectl -n o11y get svc prometheus -o yaml | yq '.metadata.name, .spec.ports'

# Example Output

prometheus
- name: web
  nodePort: 30796
  port: 9090
  protocol: TCP
  targetPort: web

Grafana

$ kubectl -n o11y get svc grafana -o yaml | yq '.metadata.name, .spec.ports'

# Example Output
grafana
- name: service
  port: 80
  protocol: TCP
  targetPort: 3000

Keycloak

Keycloak is an open-source Identity and Access Management solution that supports user federation, identity brokering, and social login.

For more information on how to set up Keycloak, please refer to the following documentation:

OAuth2 Proxy as a Standalone Reverse Proxy in Kubernetes

Keycloak Configuration Summary

Realm: nsa2-realm
Client ID: nsa2-o11y
User: devops
Password: password
Realm Roles: grafana-admin

Valid redirect URIs:

Valid post logout redirect URIs:

Web Origins:

OAuth2 Proxy as Authentication Middleware

OAuth2 Proxy handles authentication and forwards validated requests to backend services. It integrates seamlessly with Keycloak and Traefik.

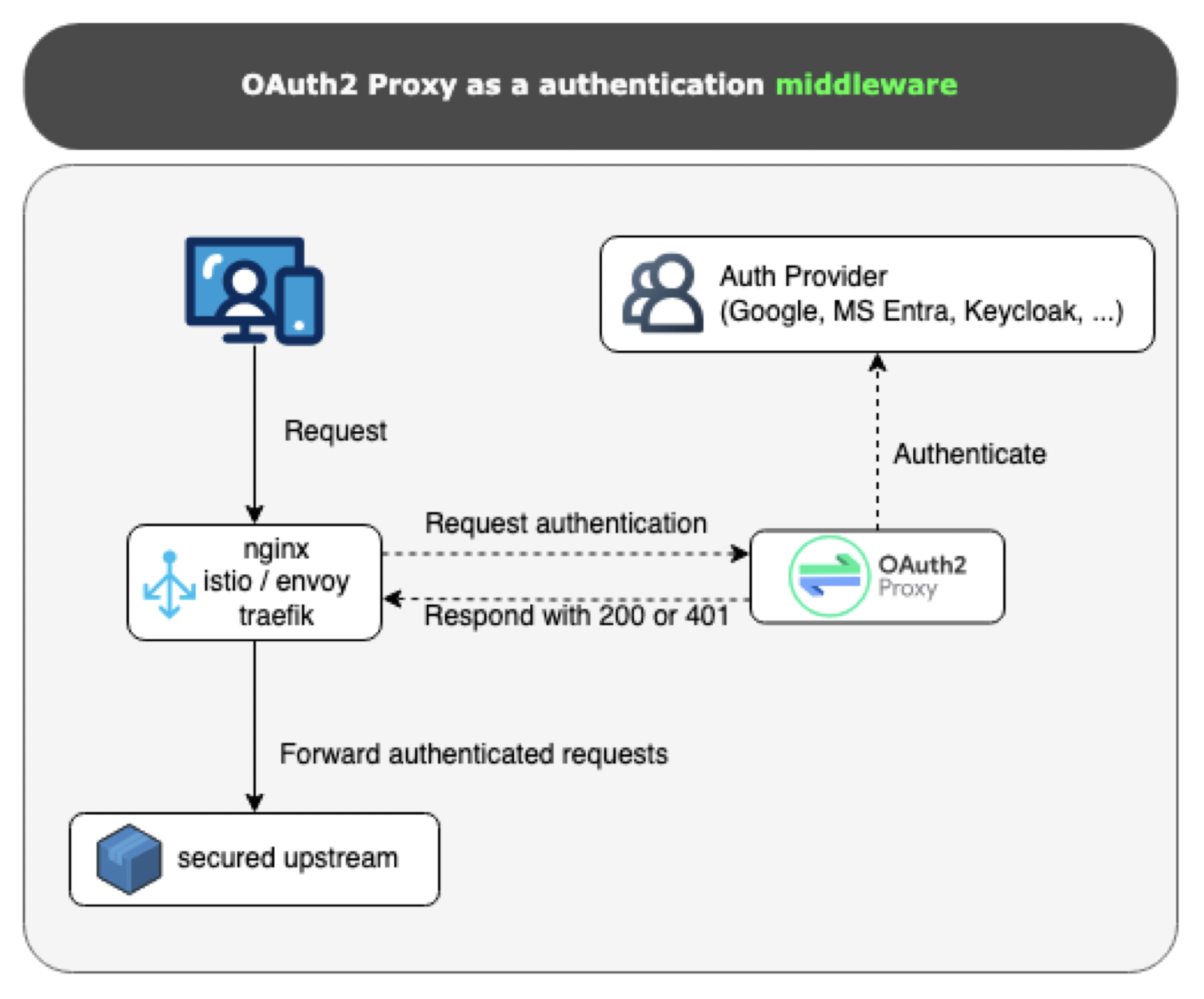

Figure 1. oauth2 proxy as authentication middleware

For more information on how to set up OAuth2 Proxy, please refer to the following documentation:

Install OAuth2 Proxy

Here is an example of the custom values file for the OAuth2 Proxy Helm chart. You can use this file to customize the OAuth2 Proxy installation.

oauth2 proxy custom values

config:
  (1)
  existingSecret: oauth2-proxy-secret

  configFile: |
    provider = "oidc"
    (2)
    oidc_issuer_url = "http://{keycloak-service-url}/realms/nsa2-realm"
    email_domains = ["*"]
    cookie_secure = false
    upstreams = ["static://200"]
    (3)
    redirect_url = "http://oauth2-proxy.nsa2.com/oauth2/callback"
    scope = "openid email profile"
    pass_access_token = true
    pass_authorization_header = true
    pass_user_headers = true
    set_authorization_header = true
    cookie_domains = ".nsa2.com"
    cookie_name = "_oauth2_proxy"
    cookie_refresh = "2m"
    cookie_expire = "24h"
    whitelist_domains = [".nsa2.com"]
    # return authenticated user to nginx
    set_xauthrequest = true

# 94
extraArgs:
  - --cookie-secure=false
  - --skip-provider-button
  - --ssl-insecure-skip-verify
  - --reverse-proxy

1	Use the existing secret to store the Keycloak client secret.
2	Set the Keycloak issuer URL.
3	Set the redirect URL to the OAuth2 Proxy callback URL. We will create the Ingress resource for the OAuth2 Proxy later.

To install OAuth2 Proxy, you can use the following command:

$ helm upgrade --install oauth2-proxy \
  --namespace o11y \
  --create-namespace \
  -f oauth2-proxy/custom-values.yaml \
  oauth2-proxy/oauth2-proxy --version 7.12.6

Create OAuth2 Proxy Secret

Here is an example of how to create the OAuth2 Proxy secret. You can use the kubectl create secret command to create the secret in the o11y namespace.

oauth2 proxy secret

apiVersion: v1
data:
  client-id: your-client-id
  client-secret: your-client-secret
  cookie-secret: your-cookie-secret
kind: Secret
metadata:
  name: oauth2-proxy-secret
  namespace: o11y

You can generate the YAML file using the following command:

$ CLIENT_ID=YOUR_CLIENT_ID
$ CLIENT_SECRET=YOUR_CLIENT_SECRET
$ COOKIE_SECRET=$( openssl rand -base64 32 | head -c 32 | base64)

$ kubectl -n o11y create secret generic oauth2-proxy-secret \
  --from-literal=client-id=$CLIENT_ID \
  --from-literal=client-secret=$CLIENT_SECRET \
  --from-literal=cookie-secret=$COOKIE_SECRET \
  --dry-run=client -o yaml | yq eval 'del(.metadata.creationTimestamp)' > oauth2-proxy-secret.yaml

OAuth2 Proxy Ingress

oauth2 proxy ingress

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: oauth2-proxy-ingress
  namespace: o11y
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  ingressClassName: traefik
  rules:
    - host: oauth2-proxy.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: oauth2-proxy
                port:
                  name: http

Traefik Ingress Controller

The Traefik Ingress Controller is a Kubernetes-native ingress controller that provides a reverse proxy and load balancer for your applications. It can be used to route traffic to different services based on the request URL, headers, and other criteria.

forward-auth Middleware

The forward-auth middleware is used to authenticate requests before they reach the backend service. It works by forwarding the request to the OAuth2 Proxy, which handles the authentication process.

forward-auth Middleware

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: forward-auth
  namespace: o11y
spec:
  forwardAuth:
    (1)
    address: http://oauth2-proxy.o11y.svc.cluster.local/oauth2/
    trustForwardHeader: true
    authResponseHeaders:
      - "X-Auth-Request-User"
      - "X-Auth-Request-Email"
      - "Authorization"

1	Set the address of the OAuth2 Proxy service. The `trustForwardHeader` option is set to true to trust the forwarded headers from the Ingress controller.

Protected Ingress for Observability Tools

The Ingress resources for Jaeger, Prometheus, and Grafana are configured to use the forward-auth middleware. This means that all requests to these services will be authenticated by the OAuth2 Proxy before being forwarded to the backend service.

ingress for Single Sign-On for Jaeger, Prometheus, and Grafana

# using EJS templating. using ingress variable
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: o11y-sso-ingress
  namespace: o11y
  annotations:
    kubernetes.io/ingress.class: traefik
    (1)
    traefik.ingress.kubernetes.io/router.middlewares: "o11y-forward-auth@kubernetescrd"

spec:
  (2)
  ingressClassName: traefik
  rules:
    (3)
    - host: jaeger.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: jaeger-collector
                port:
                  name: jaeger

    (4)
    - host: prometheus.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: prometheus
                port:
                  name: web

    (5)
    - host: grafana.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: grafana
                port:
                  name: service

1	Set the middleware to use the forward-auth middleware.
2	Set the Ingress class to use the Traefik Ingress controller.
3	Set the host for the Jaeger service.
4	Set the host for the Prometheus service.
5	Set the host for the Grafana service.

Authentication Flow

The authentication flow works as follows:

The user accesses the observability tool (e.g., Jaeger, Prometheus, Grafana) via the Ingress URL.
The Ingress controller (Traefik) forwards the request to the OAuth2 Proxy.
The OAuth2 Proxy checks if the user is authenticated. If not, it redirects the user to the Keycloak login page.
The user enters their credentials and logs in.
Keycloak redirects the user back to the OAuth2 Proxy with an authorization code.
The OAuth2 Proxy exchanges the authorization code for an access token and ID token.
The OAuth2 Proxy sets the access token and ID token in the request headers and forwards the request to the backend service (e.g., Jaeger, Prometheus, Grafana).

SSO Foundry

The SSO Foundry is a submodule of Service Foundry, designed to automate SSO setup for observability platforms or other applications. It simplifies the process of configuring SSO by generating the necessary Kubernetes resources and Helm charts.

1. Create SSO Foundry

$ yo nsa2:sso-foundry init

? Namespace o11y
? Root Domain(eg. example.com) nsa2.com

The prompt will ask for the namespace and root domain. The namespace is the Kubernetes namespace where the SSO Foundry will be deployed. The root domain is the domain name that will be used for the SSO Foundry.

The command will create a configuration file called sso-foundry-config.yaml in the current directory. This file contains the configuration for the SSO Foundry.

2. Update SSO Foundry Configuration

sso-foundry-config.yaml

common:

  namespace: o11y
  root-domain: nsa2.com

oauth2:
  enabled: true
  oidc-issuer-url: "http://keycloak-service-url/realms/nsa2-realm"
  client_id: "your-client-id"
  client_secret: "your-client-secret"

oauth2-proxy:
  enabled: true
  namespace: o11y
  release-name: oauth2-proxy  # release name for helm
  ingresses:
    - name: o11y-sso-ingress
      namespace: o11y
      services:
        - service-name: jaeger-collector
          port-name: jaeger
          subdomain: jaeger
        - service-name: prometheus
          port-name: web
          subdomain: prometheus
        - service-name: grafana
          port-name: service
          subdomain: grafana

3. Generate Kubernetes Resource Files

After updating the sso-foundry-config.yaml file, you can generate the Kubernetes resource files using the following command:

$ yo nsa2:sso-foundry generate

The command above will generate the following files:

$ tree .
.
├── build-sso-foundry.sh
├── deploy-sso-foundry.sh
├── helm-charts
│   └── oauth2-proxy
│       ├── custom-values.yaml
│       └── oauth2-proxy-7.12.6.tgz
├── k8s
│   ├── oauth2-proxy
│   │   ├── kustomization.yaml
│   │   └── oauth2-proxy-secret.yaml
│   └── traefik
│       ├── forward-auth-middleware.yaml
│       ├── kustomization.yaml
│       ├── o11y-sso-ingress.yaml
│       └── oauth2-proxy-ingress.yaml
├── sso-foundry-config.yaml
└── undeploy-sso-foundry.sh

4. Build SSO Foundry Locally

Unlike other foundries, the SSO Foundry does not require a build step. It is a simple SSO solution that can be deployed directly to the Kubernetes cluster.

$ ./build-sso-foundry.sh

# Example Output

Building SSO Foundry for Cloud Foundry
Nothing to build locally for SSO Foundry

5. Deploy SSO Foundry

To deploy the SSO Foundry, I used Helm charts and Kustomize to manage the Kubernetes resources. The deployment script will install the OAuth2 Proxy and Traefik Ingresses.

This script file is created in the Generate step based on the sso-foundry-config.yaml file. The script will install the OAuth2 Proxy and Traefik Ingresses.

deploy-sso-foundry.sh

#!/bin/bash

echo "Deploying SSO Foundry to Cloud Foundry"

K8S_NAMESPACE="o11y"
OAUTH2_PROXY_HELM_REPO="helm-charts/oauth2-proxy/oauth2-proxy-7.12.6.tgz"
OAUTH2_PROXY_HELM_RELEASE_NAME="oauth2-proxy"
OAUTH2_PROXY_HELM_CUSTOM_VALUES_FILE="helm-charts/oauth2-proxy/custom-values.yaml"

# Check if treafik is installed
if ! kubectl -n traefik get deployment traefik; then
  echo "Traefik is not installed. Please install Traefik first."
  exit 1
fi

# Install OAuth2 Proxy
echo "Installing OAuth2 Proxy"
kubectl apply -k k8s/oauth2-proxy
helm upgrade --install $OAUTH2_PROXY_HELM_RELEASE_NAME $OAUTH2_PROXY_HELM_REPO \
  -f $OAUTH2_PROXY_HELM_CUSTOM_VALUES_FILE \
  --namespace $K8S_NAMESPACE --create-namespace

# Install Traefik Ingresses
echo "Installing Traefik Ingresses"
kubectl apply -k k8s/traefik

To deploy the SSO Foundry, run the following command:

$ ./deploy-sso-foundry.sh

6. Undeploy SSO Foundry

This script file is created in the Generate step based on the sso-foundry-config.yaml file. The script will uninstall the OAuth2 Proxy and Traefik Ingresses.

undeploy-sso-foundry.sh

#!/bin/bash

echo "Undeploying SSO Foundry to Cloud Foundry"

K8S_NAMESPACE="o11y"
#OAUTH2_PROXY_HELM_REPO="helm-charts/oauth2-proxy/oauth2-proxy-7.12.6.tgz"
OAUTH2_PROXY_HELM_RELEASE_NAME="oauth2-proxy"
OAUTH2_PROXY_HELM_CUSTOM_VALUES_FILE="k8s/oauth2-proxy/custom-values.yaml"



# Uninstall Traefik Ingresses
echo "Uninstalling Traefik Ingresses"
kubectl delete -k k8s/traefik

# Install OAuth2 Proxy
echo "Uninstalling OAuth2 Proxy"
helm delete $OAUTH2_PROXY_HELM_RELEASE_NAME --namespace $K8S_NAMESPACE
kubectl delete -k k8s/oauth2-proxy

To undeploy the SSO Foundry, run the following command:

$ ./undeploy-sso-foundry.sh

Test Single Sign-On

Visit the following URLs in your browser:

You will be redirected to the Keycloak login screen.

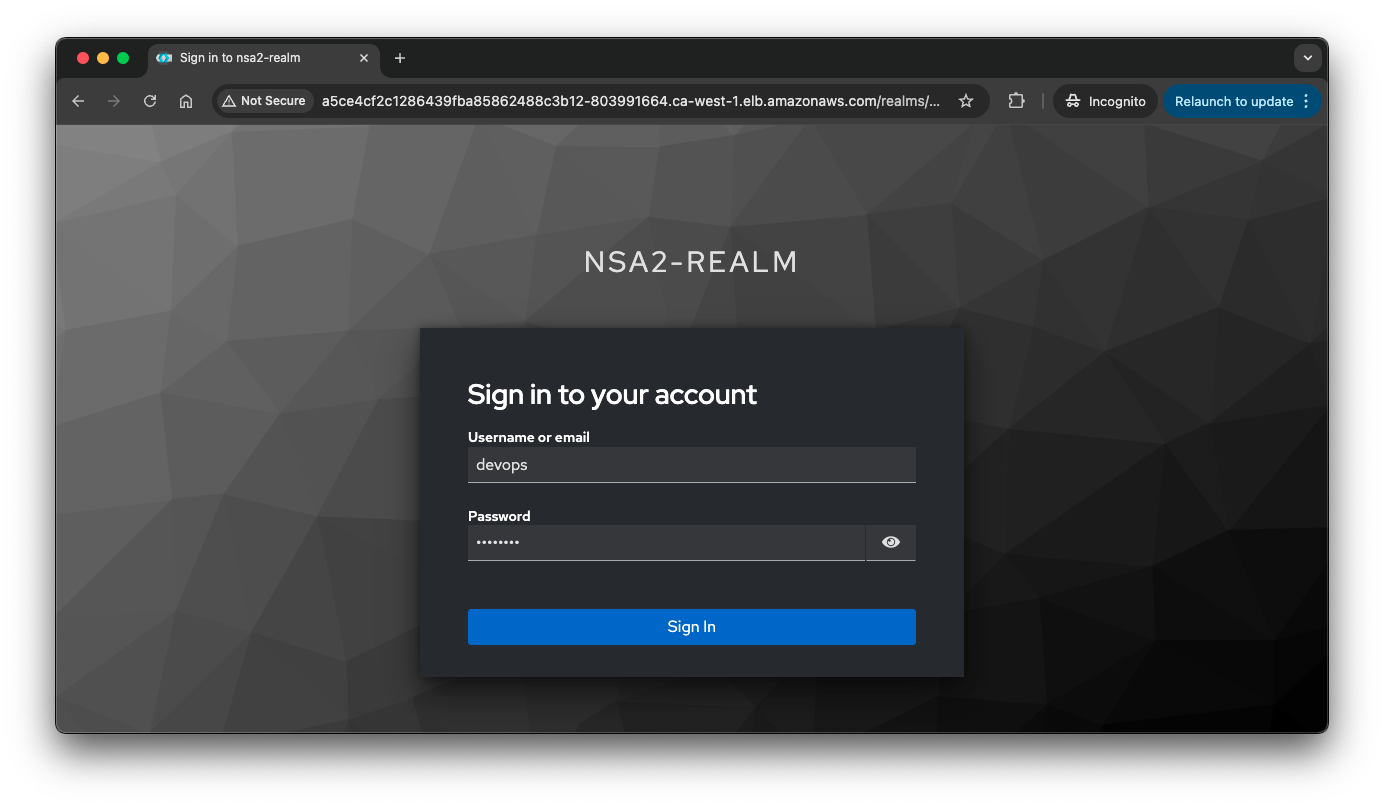

Figure 2. Keycloak Login Page

Use:

User: devops
Password: password

After authentication, you will be redirected to the requested service.

Once logged in, you will see the following page:

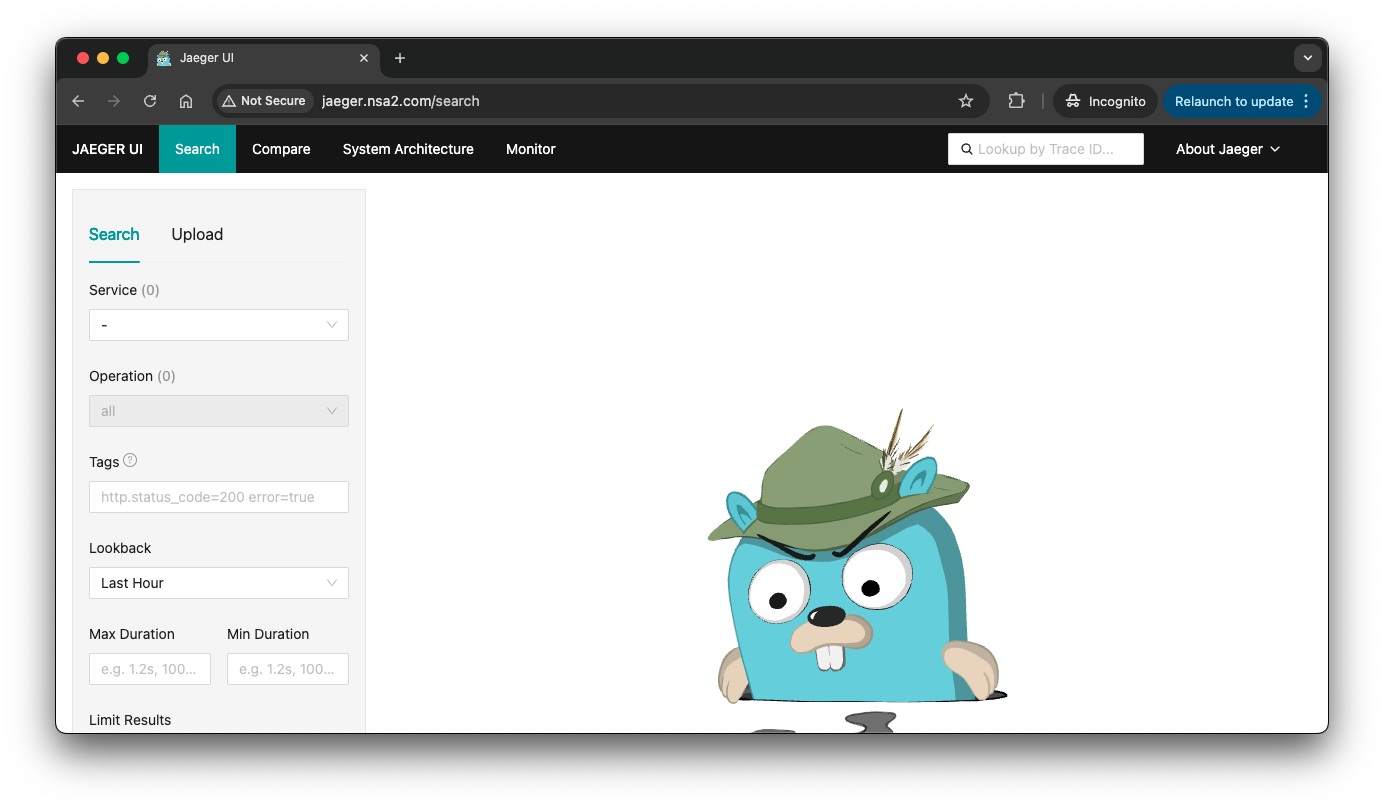

http://jaeger.nsa2.com

Figure 3. Jaeger UI

http://prometheus.nsa2.com

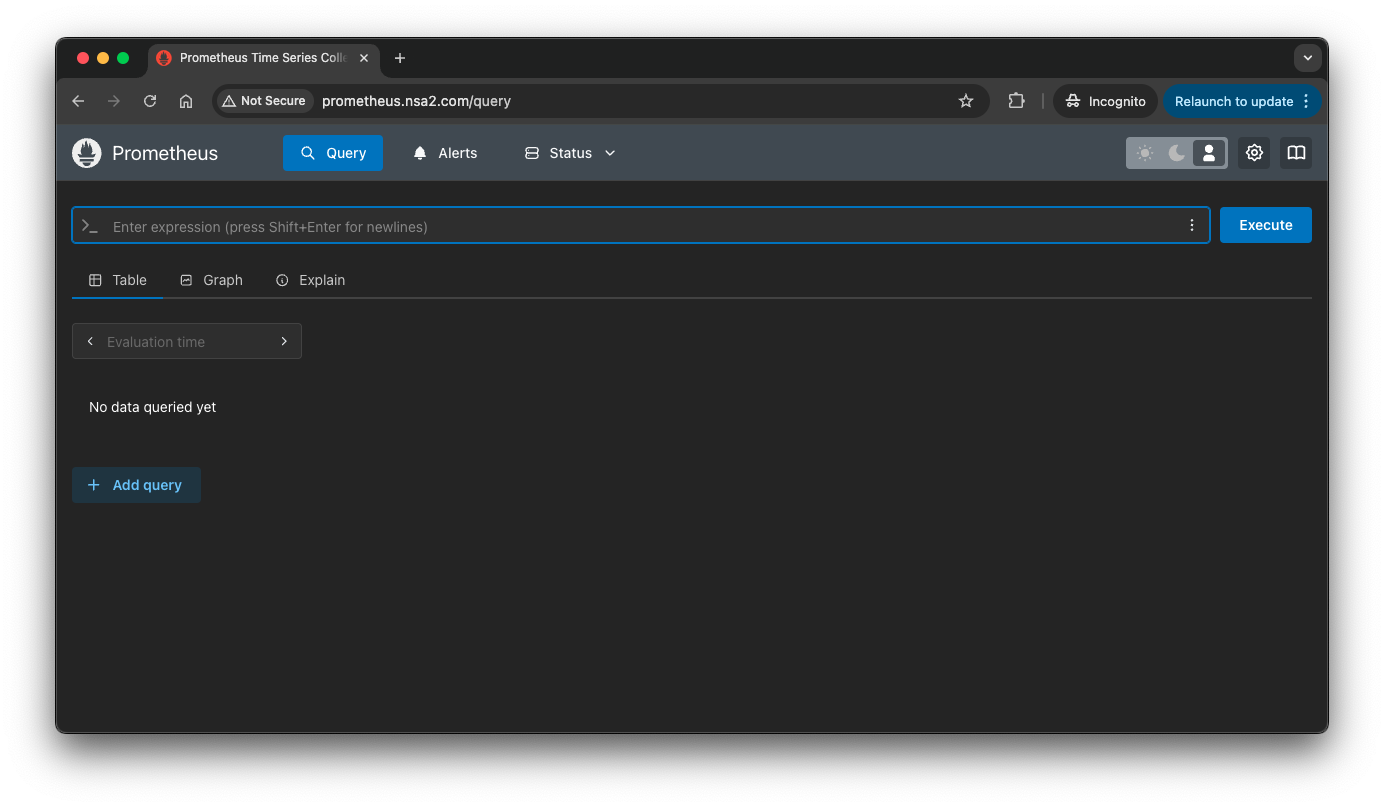

Figure 4. Prometheus UI

http://grafana.nsa2.com

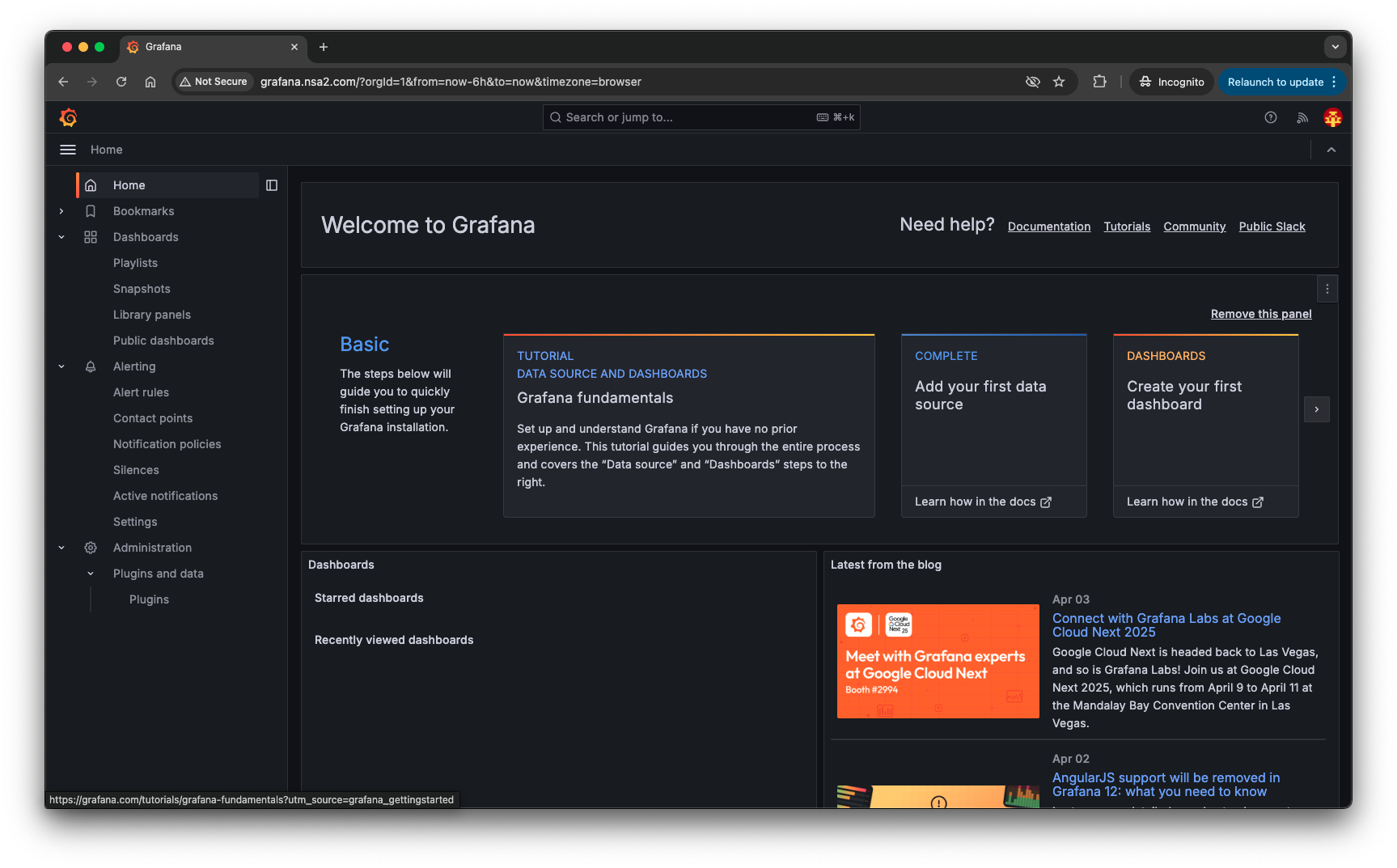

Figure 5. Grafana UI

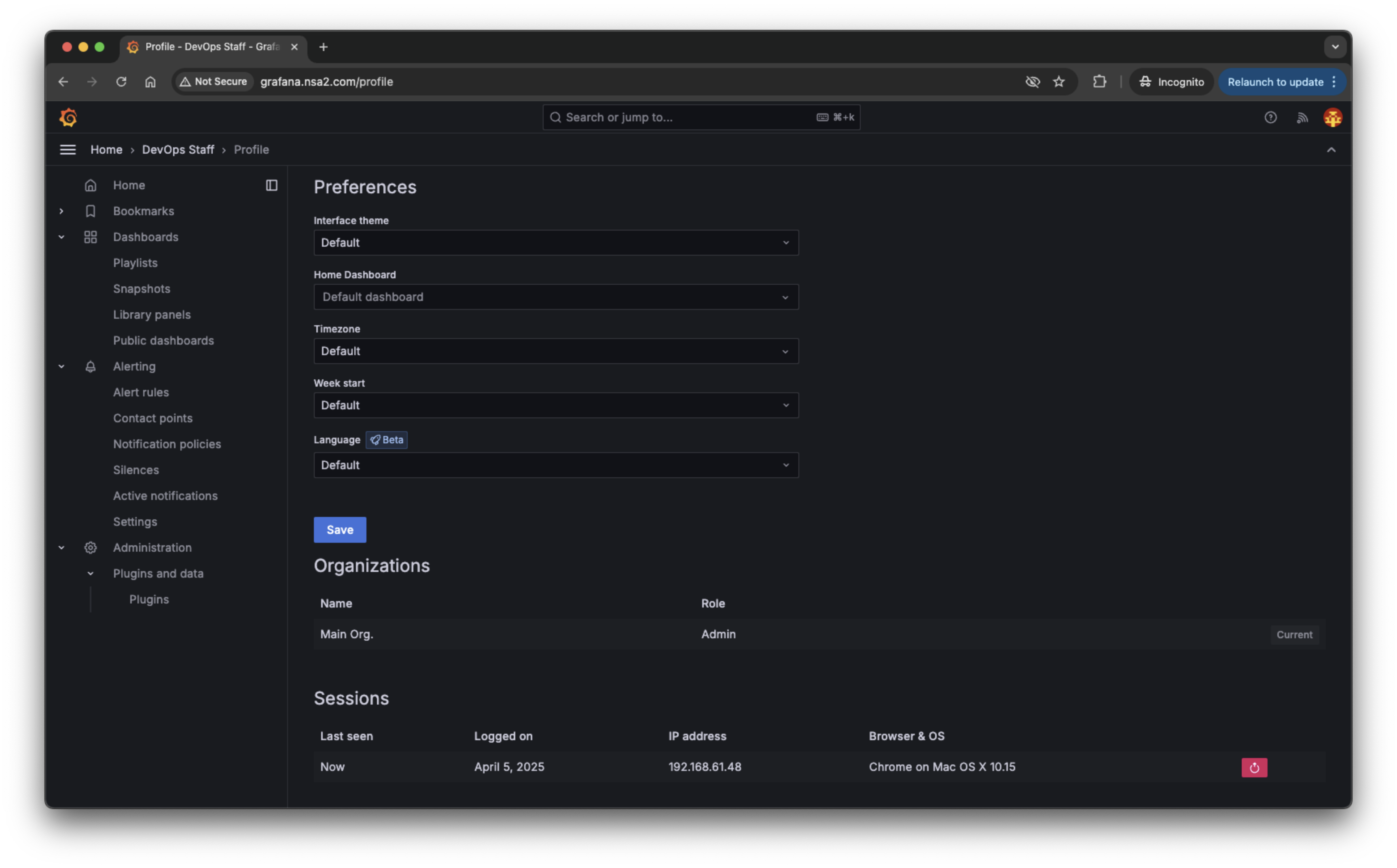

Figure 6. Grafana Admin Profile

You can check the user profile in Grafana. The user is authenticated via Keycloak and has the grafana-admin role.

Logout

Grafana provides a “Sign out” option.
For Jaeger and Prometheus, logout is not available via UI.

Figure 7. Grafana Sign Out

After clicking on the "Sign out" button, you will be redirected to the Keycloak logout page.

Figure 8. Keycloak Logout Page

Use the following manual logout URL to clear Keycloak session:

http://a5ce4cf2c1286439fba85862488c3b12-803991664.ca-west-1.elb.amazonaws.com/realms/nsa2-realm/protocol/openid-connect/logout?redirect_uri=http://oauth2-proxy.nsa2.com/

Conclusion

This guide demonstrated how to configure a centralized SSO mechanism across Jaeger, Prometheus, and Grafana using Keycloak, Traefik, and OAuth2 Proxy. By leveraging OAuth2 Proxy as a reverse proxy and middleware, you ensure secure and seamless user authentication across your observability stack.

Single Sign-On (SSO) with Keycloak, Traefik, and OAuth2 Proxy

Overview

Prerequisites

Related Articles

Target Services

Keycloak

Keycloak Configuration Summary

OAuth2 Proxy as Authentication Middleware

Install OAuth2 Proxy

Create OAuth2 Proxy Secret

OAuth2 Proxy Ingress

Traefik Ingress Controller

forward-auth Middleware

Protected Ingress for Observability Tools

Authentication Flow

SSO Foundry

1. Create SSO Foundry

2. Update SSO Foundry Configuration

3. Generate Kubernetes Resource Files

4. Build SSO Foundry Locally

5. Deploy SSO Foundry

6. Undeploy SSO Foundry

Test Single Sign-On

Logout

Conclusion
