OAuth2 Authentication for Grafana with Keycloak

Overview

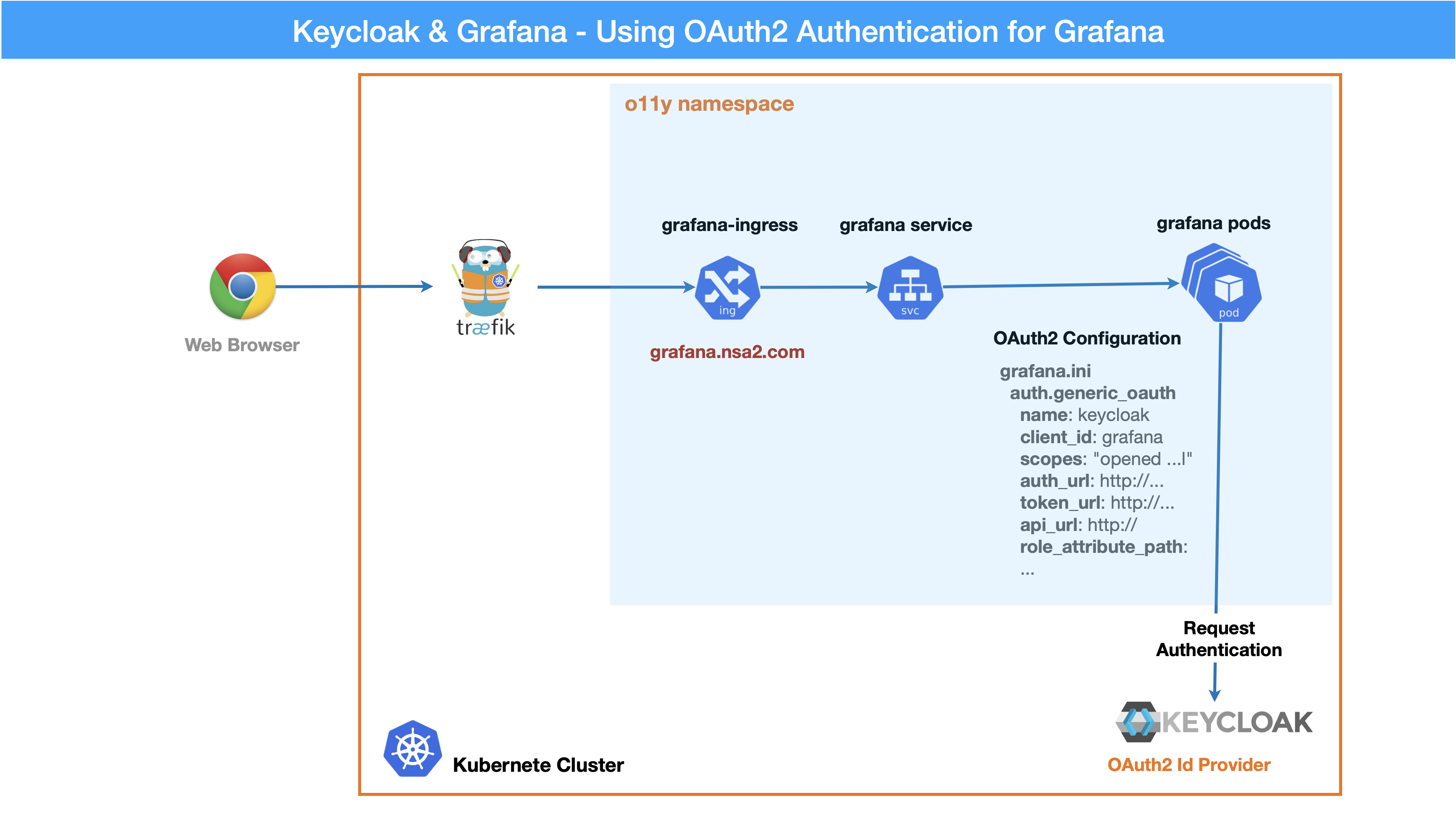

Grafana is a core component of the Observability stack. This guide provides a step-by-step walkthrough to integrate OAuth2 authentication in Grafana using Keycloak as the Identity Provider (IdP).

Unlike Grafana, tools like Jaeger and Prometheus don’t support OAuth2 natively. They require OAuth2 Proxy as a middleware. Grafana, however, includes native support for OAuth2 authentication, making integration simpler.

Prerequisites

Before proceeding, ensure the following components are already deployed in your Kubernetes cluster:

Traefik: Ingress Controller
Keycloak: Identity Provider

Related Guides:

Traefik & OAuth2 Proxy - Using OAuth2 Proxy as Authentication Middleware

Installing Grafana

Using the Latest Helm Chart

Grafana Helm charts are available at:

https://grafana.github.io/helm-charts

Add and Update the Helm Repository

$ helm repo add grafana https://grafana.github.io/helm-charts
$ helm repo update grafana

Pull the Helm Chart

To use a specific version (e.g., 8.10.4), download it to a dedicated directory:

Pull the Grafana Helm chart to the directory $HOME/Dev/helm/charts/grafana

$ mkdir -p $HOME/Dev/helm/charts/grafana
$ helm pull grafana/grafana -d $HOME/Dev/helm/charts/grafana

Pull the Grafana Helm chart to the current directory

$ helm pull grafana/grafana

Verify the download:

$ ls -l

# Example output
-rw-r--r--@ 1 young  staff  131387 Mar 19 10:49 grafana-8.10.4.tgz

This document will use the Grafana Helm chart version 8.10.4.

Inspect Default values

To better understand the configuration options of the Grafana Helm chart, you can view the values.yaml file.

$ helm show values grafana/grafana > values.yaml

Kubernetes Setup

Create Namespace

$ kubectl create namespace o11y

Create Secret for Admin Credentials

In a previous document, I created a secret for Admin Credentials. However, I will configure to use accounts from Keycloak for authentication. Therefore, I will skip this step.

Create Secret for OAuth2 Client Secret

We’ll store the Keycloak client secret securely in a Kubernetes secret.

Create secret for OAuth2 Client Secret

# use yq to remove the creationTimestamp
$ kubectl -n o11y create secret generic grafana-client-secret \
  --from-literal=GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET={your-keycloak-client-secret} --dry-run=client -o yaml | yq eval 'del(.metadata.creationTimestamp)' > grafana-client-secret.yaml

The variable GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET is used to set the OAuth2 Client Secret in the Grafana configuration.

Apply the secret

$ kubectl apply -f grafana-client-secret.yaml

This secret is used in the custom-values.yaml file.

custom-values.yaml - envFromSecrets

envFromSecrets:
  - name: grafana-client-secret

Grafana Configuration custom-values.yaml

custom-values.yaml

rbac:
  namespaced: true

# for resources and nodeSelector, use your own values
resources: {}
nodeSelector: {}

persistence:
  enabled: true

# 561
(1)
envFromSecrets:
  - name: grafana-client-secret

# 857
(2)
grafana.ini:
  server:
    root_url: "http://grafana.nsa2.com"   (3)
  (4)
  log:
    mode: console
    level: debug
    filters:
      name:
        - "oauth2"
  auth:

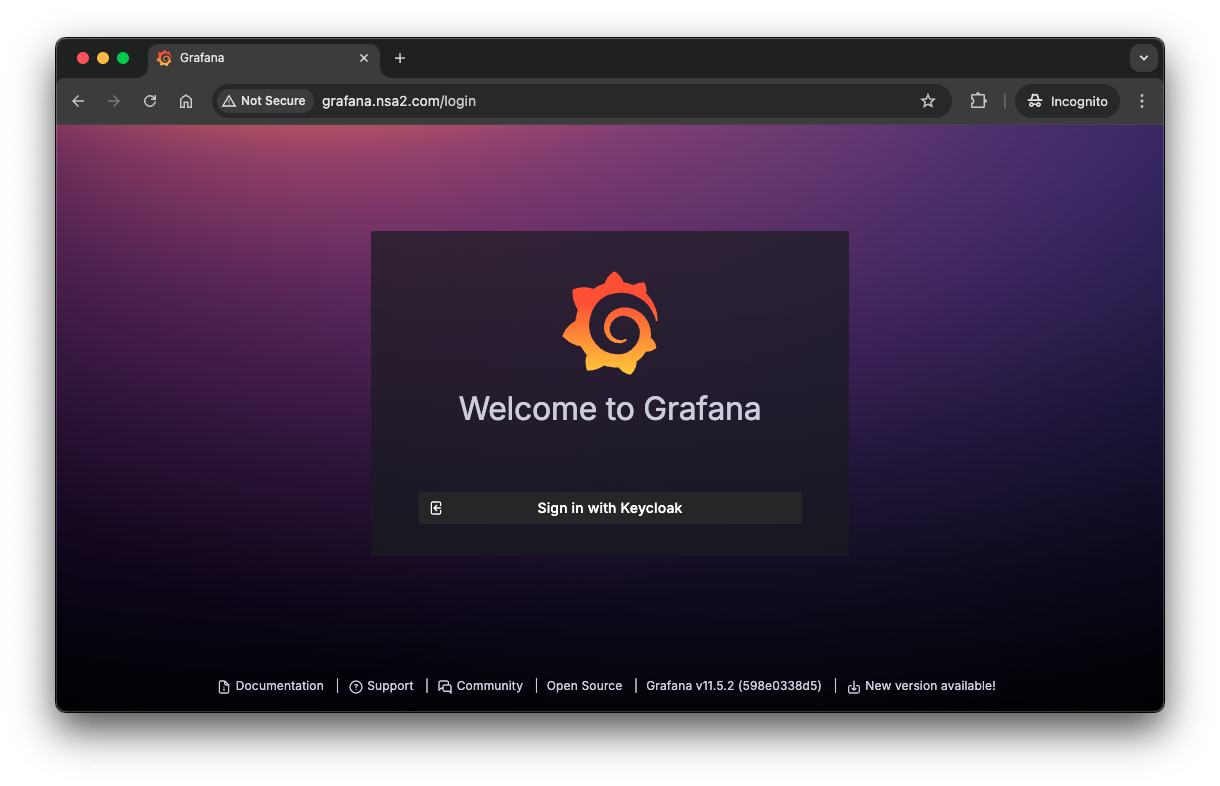

    disable_login_form: true # Redirects all users to OIDC login
    disable_signout_menu: false
  auth.generic_oauth:
    enabled: true
    name: Keycloak
    allow_sign_up: true
    client_id: "grafana"  (5)
    scopes: "openid profile email" (6)
    (7)
    auth_url: "http://{your-keycloak-url}/realms/nsa2-realm/protocol/openid-connect/auth"
    token_url: "http://{your-keycloak-url}/realms/nsa2-realm/protocol/openid-connect/token"
    api_url: "http://{your-keycloak-url}/realms/nsa2-realm/protocol/openid-connect/userinfo"
    (8)
    role_attribute_path: "contains(realm_access.roles[*], 'grafana-admin') && 'Admin' || contains(realm_access.roles[*], 'grafana-editor') && 'Editor' || 'Viewer'"
    tls_skip_verify_insecure: true
    use_pkce: true

1	use the secret to set the OAuth2 Client Secret
2	Grafana configuration
3	root_url: Grafana URL
4	log configuration
5	client_id: Grafana Client ID
6	scopes: OpenID Connect scopes
7	auth_url, token_url, and api_url: Keycloak URLs
8	role_attribute_path: Grafana Role Mapping.

In ID Token, the roles are stored in the realm_access.roles array. The role_attribute_path is used to map the roles to Grafana roles. In this example, the roles are mapped to Grafana roles as follows:

{
    "realm_access": {
        "roles": [
            "grafana-admin"
        ]
    }
}

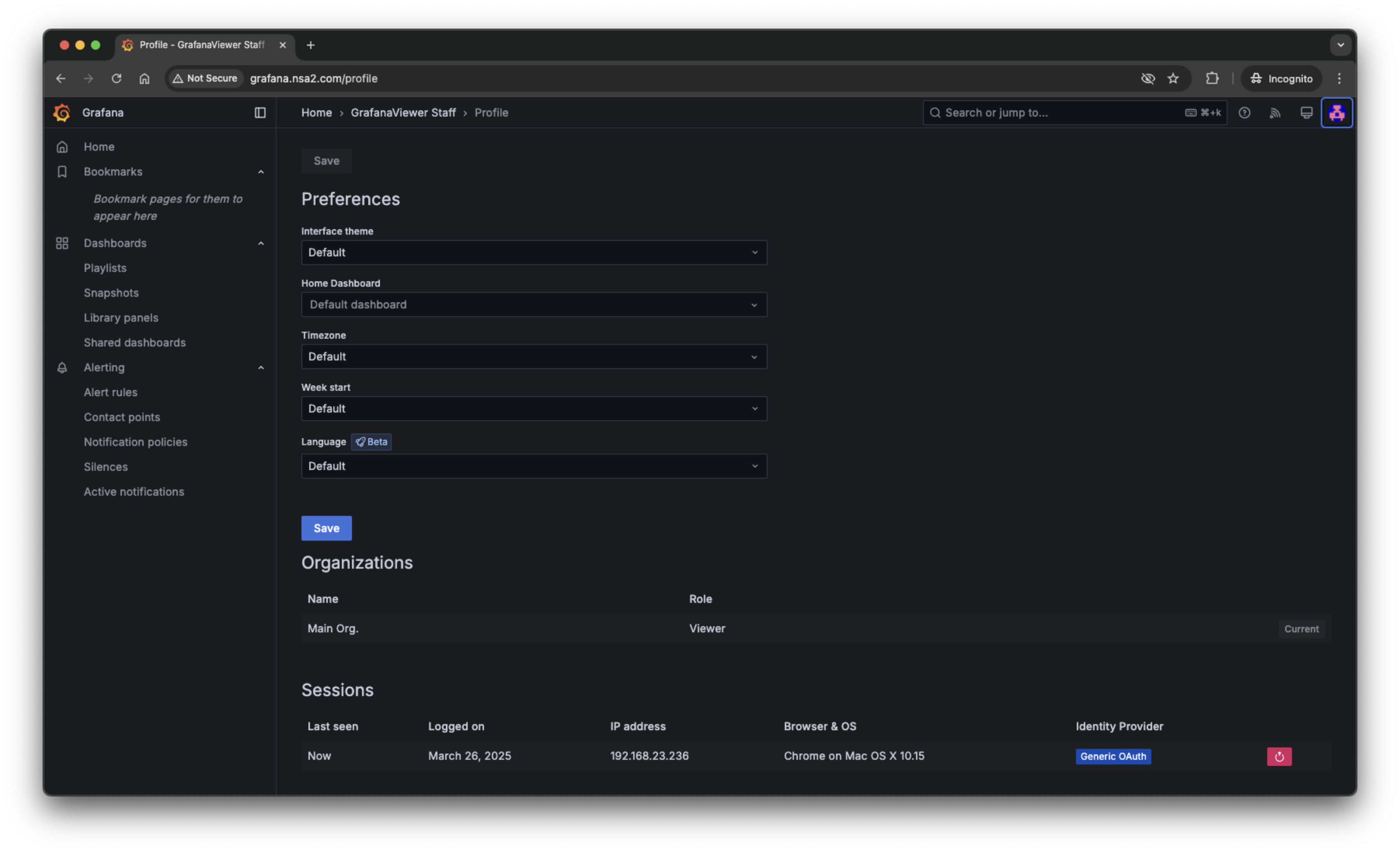

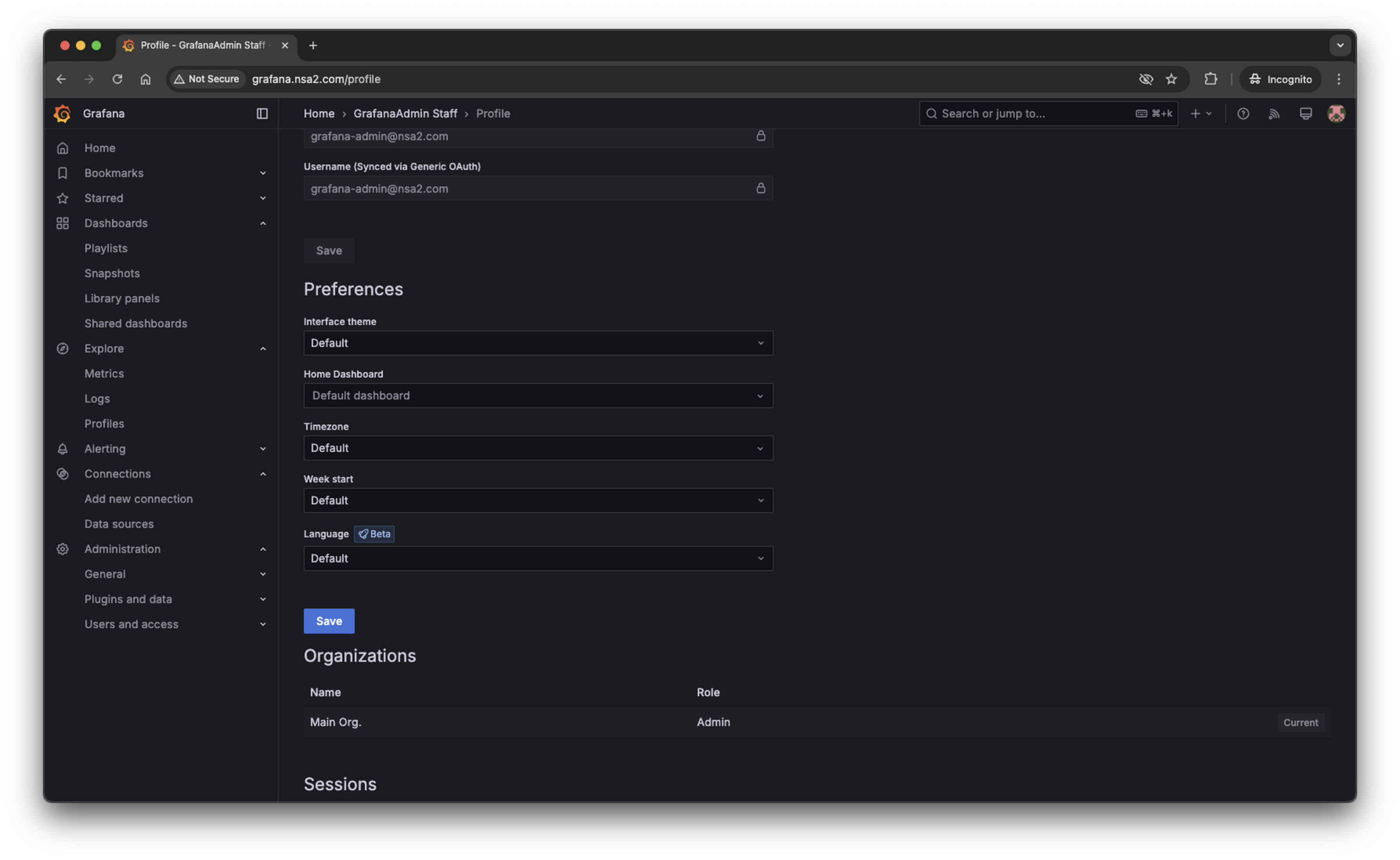

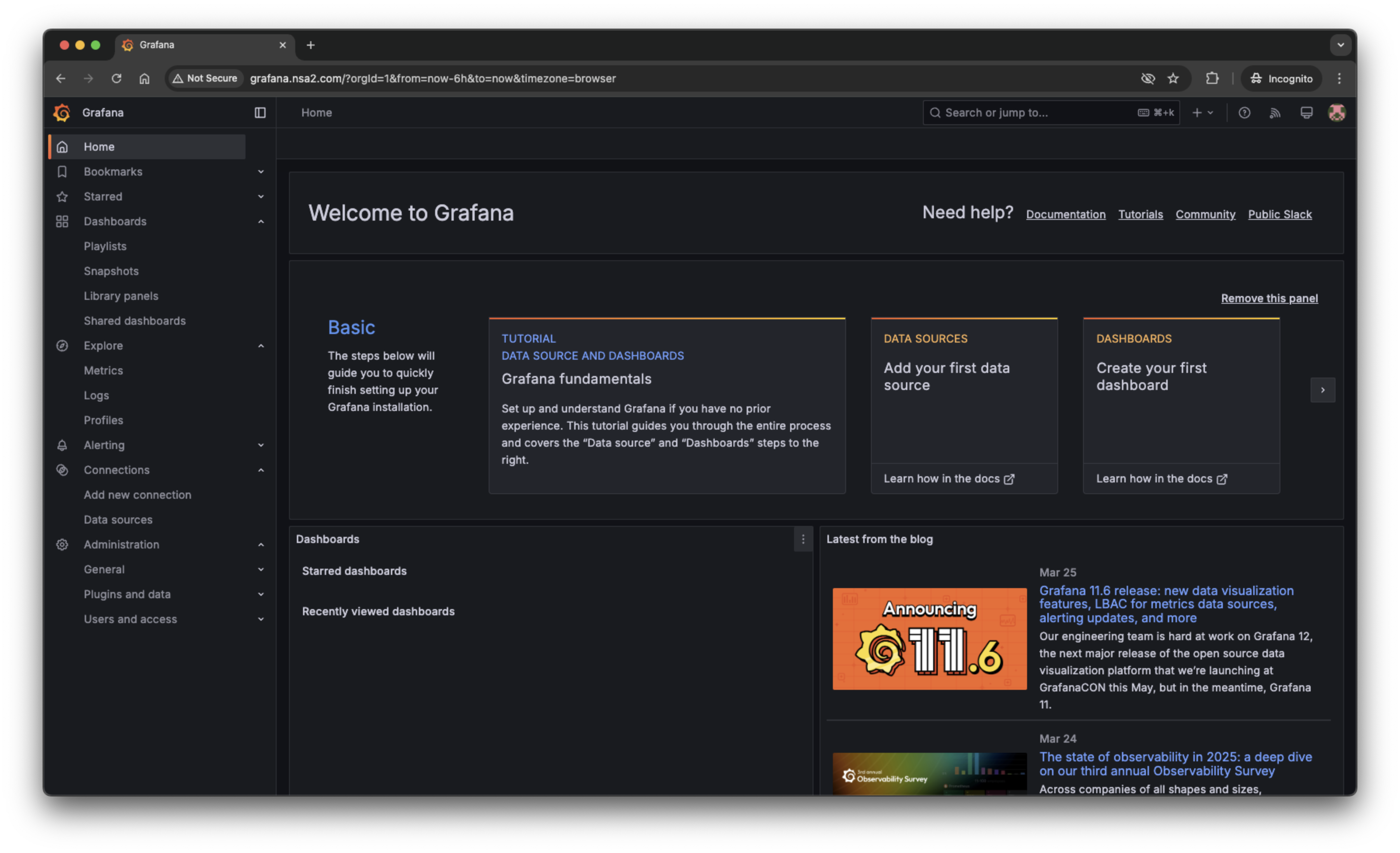

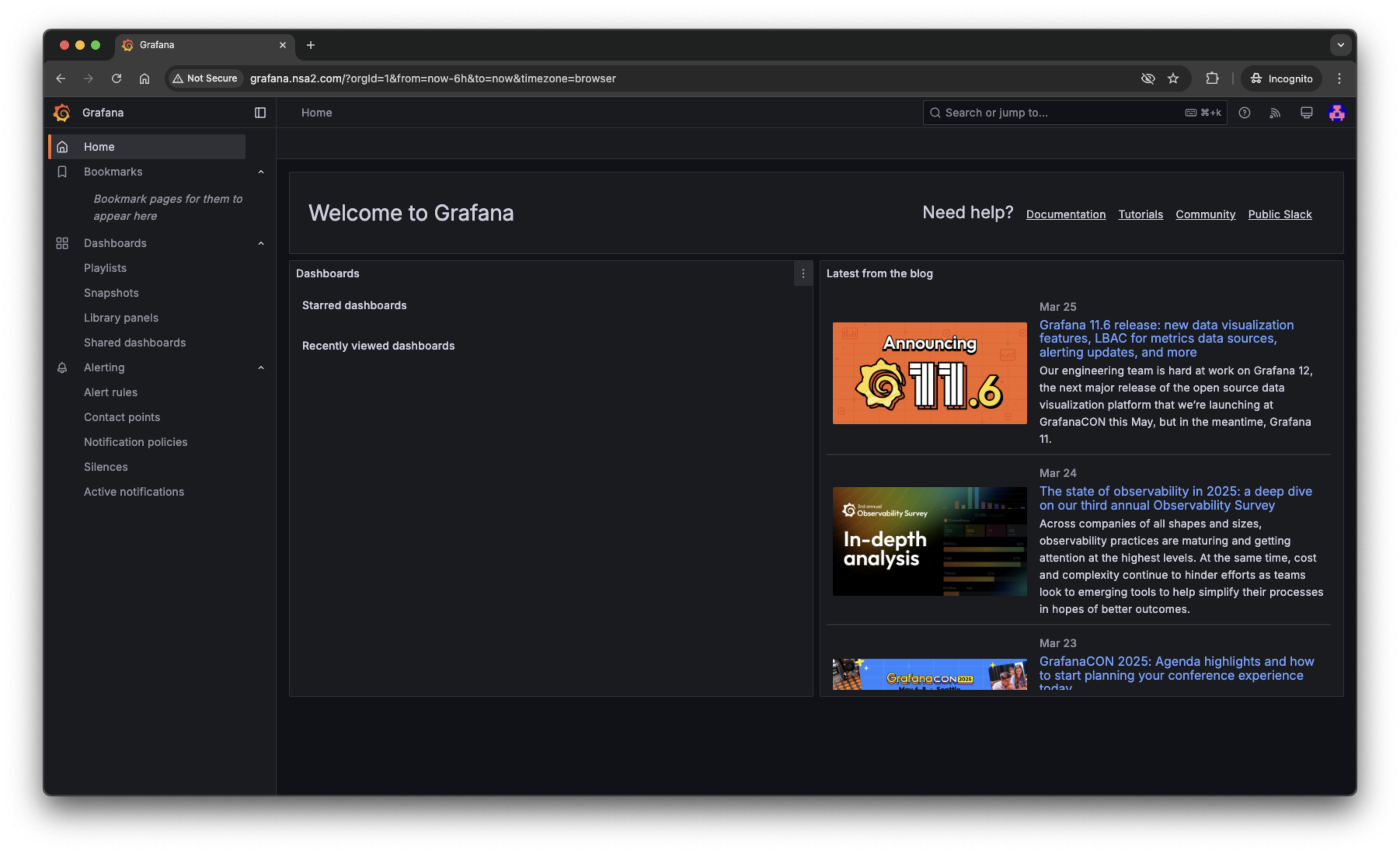

In the above example, the role_attribute_path is set to 'Admin' if the user has the 'grafana-admin' role. If the user has the 'grafana-editor' role, the role_attribute_path is set to 'Editor'. Otherwise, the role_attribute_path is set to 'Viewer'.

Keycloak Setup

The configuration options in the custom-values.yaml file are as follows:

Realm: nsa2-realm
Client ID: grafana
Client Secret: Retrieve from Keycloak
Valid Redirect URL: http://grafana.nsa2.com/*
Valid Post Logout URL: http://grafana.nsa2.com/*

For users, I created the following Realm roles in Keycloak:

Keycloak Realm Roles:

grafana-admin: for Grafana Admin role
grafana-editor: for Grafana Editor role
grafana-viewer: for Grafana Viewer role

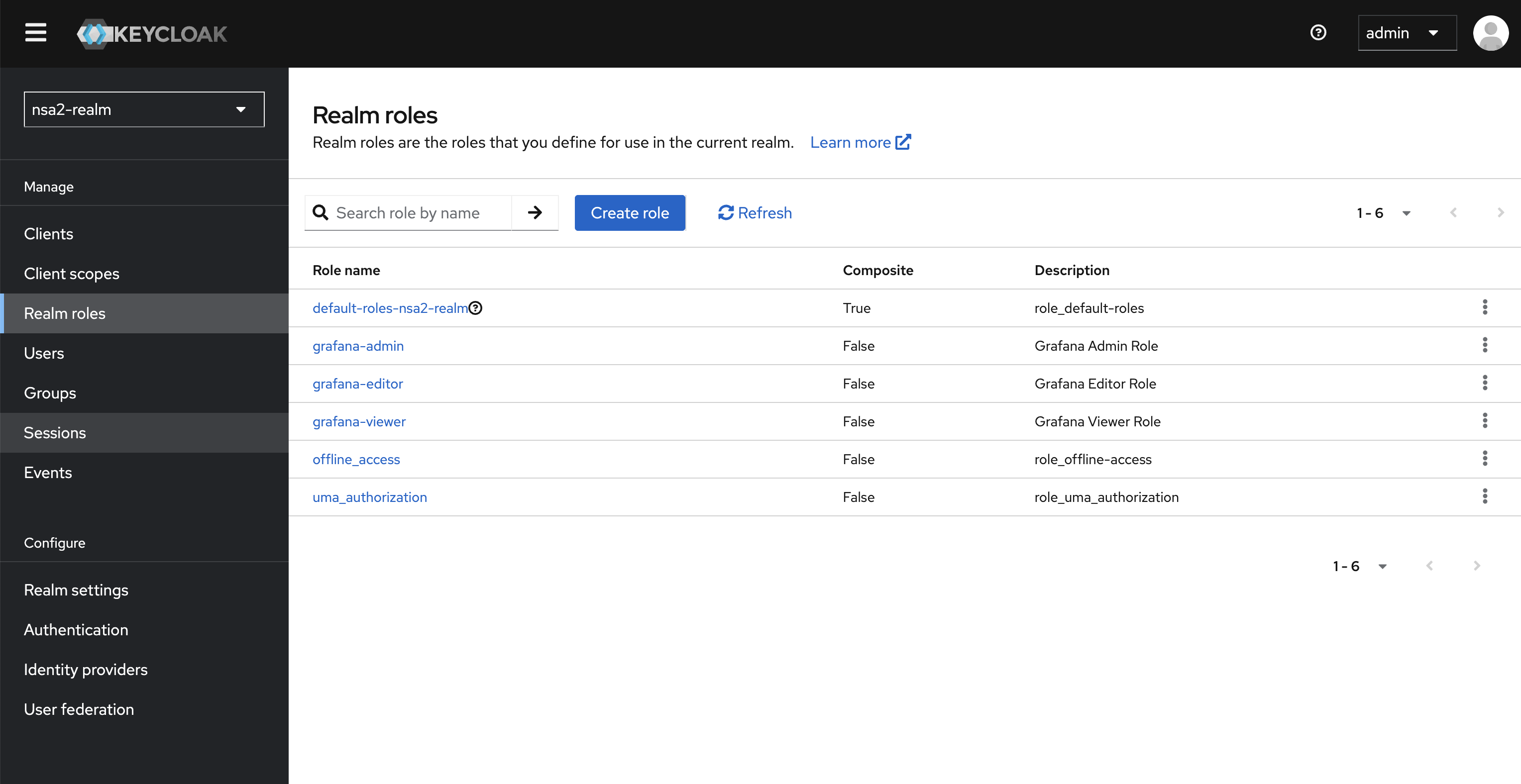

Figure 1. Keycloak Realm Roles

Users:

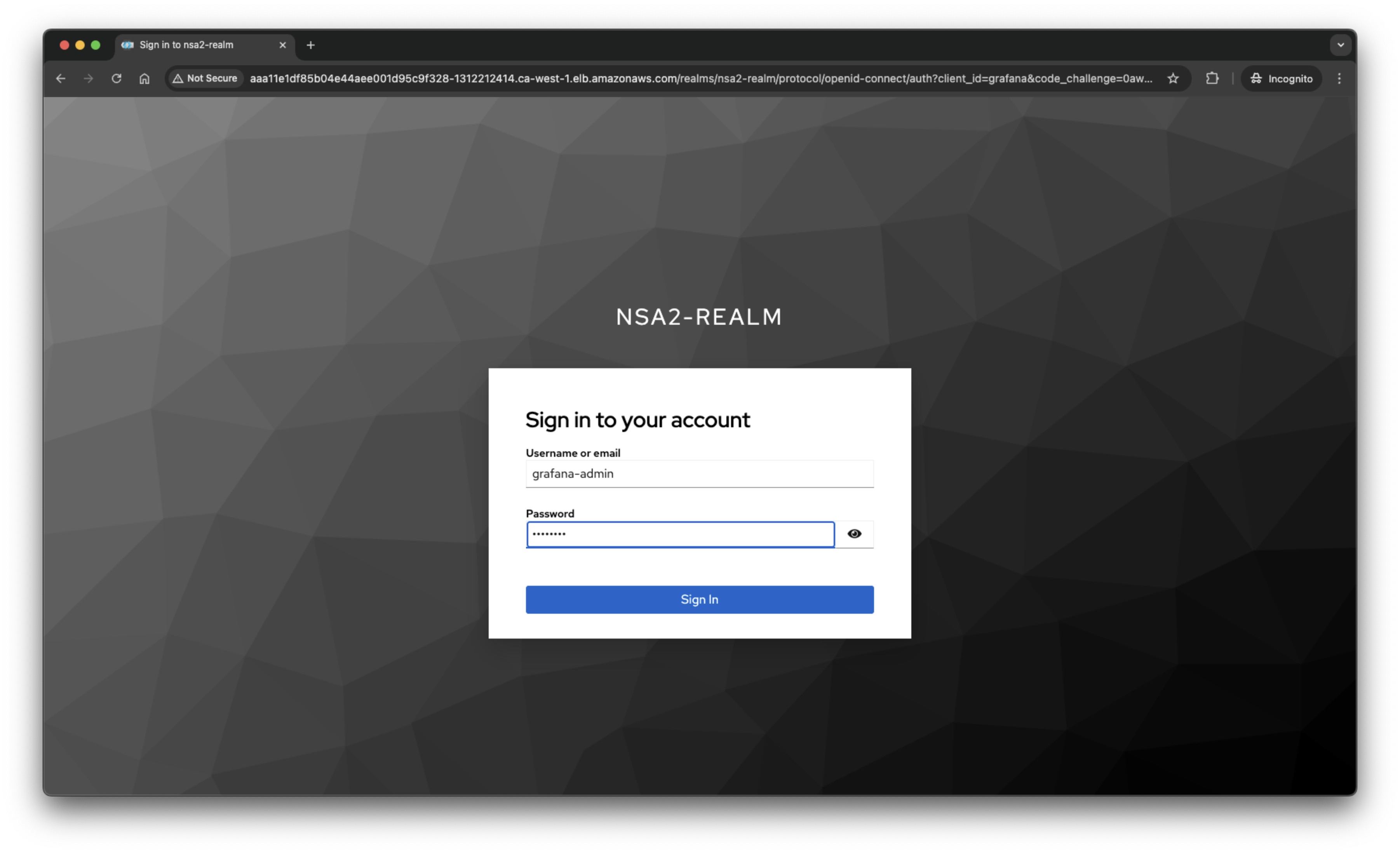

grafana-admin: having grafana-admin Realm role
grafana-editor: having grafana-editor Realm role
grafana-viewer: having grafana-viewer Realm role

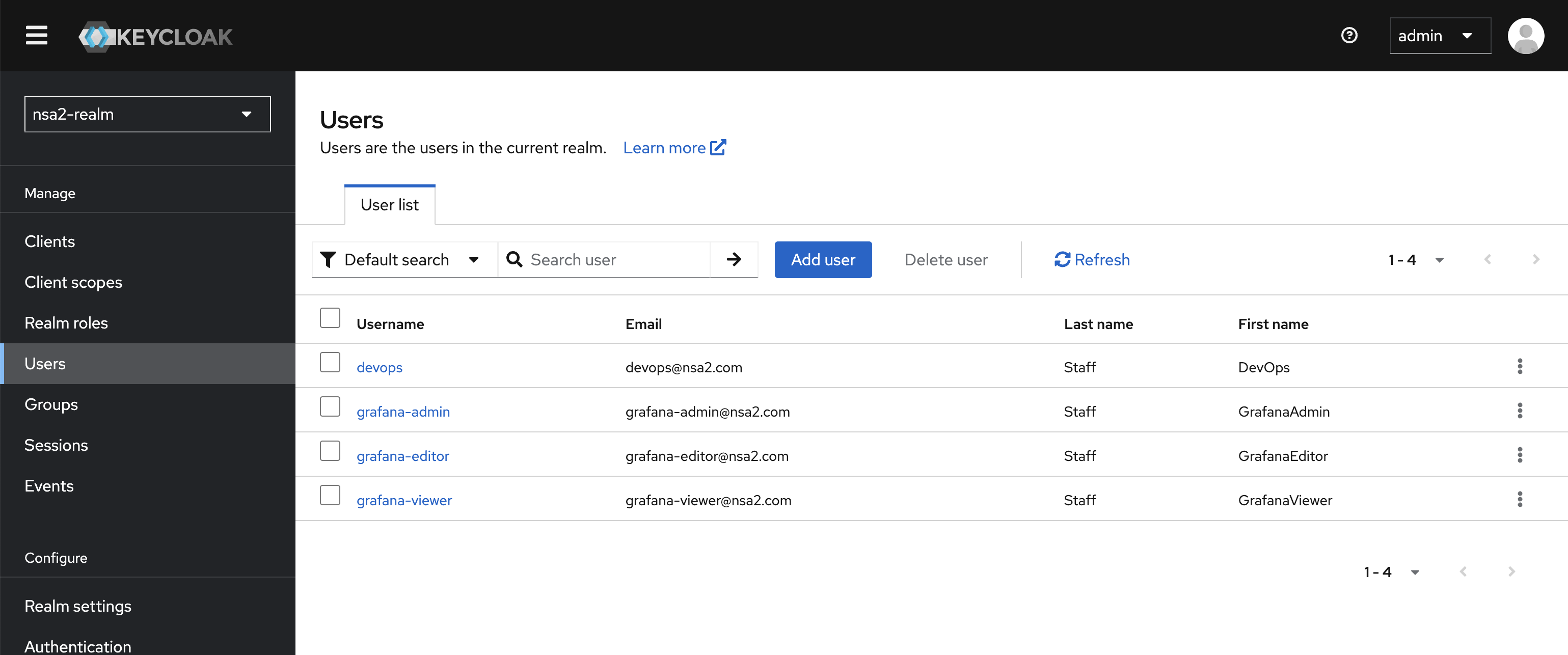

Figure 2. Keycloak Users

Assign these roles to users in Keycloak.

Deploy Grafana with Helm

$ helm upgrade --install -n o11y grafana grafana/grafana \
  -f custom-values.yaml --version 8.10.4

Installing Grafana Ingress

The annotation 'kubernetes.io/ingress.class' has been deprecated. Use 'ingressClassName' instead.

Using Traefik Ingress Controller:

grafana-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: grafana-ingress
  namespace: o11y
#  annotations:
#    kubernetes.io/ingress.class: traefik
spec:
  ingressClassName: traefik
  rules:
    - host: grafana.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: grafana
                port:
                  name: service

Apply the Ingress

$ kubectl apply -f grafana-ingress.yaml

DNS Configuration

Add the following entry to the /etc/hosts file:

{traefik-service-ip-address}     grafana.nsa2.com

Inspect grafana.ini

The grafana.ini section in the custom-values.yaml file is used to configure Grafana. You can find the grafana.ini file in the Grafana pod in the /etc/grafana directory. You can copy the grafana.ini file to the local directory.

Copy grafana.ini to the local directory

$ kubectl -n o11y cp "$(ko get pods  -l app.kubernetes.io/name=grafana | awk 'NR>1' | head -n 1 | awk '{print $1}'):etc/grafana/grafana.ini" grafana.ini
