Keycloak - Create Realm with Terraform

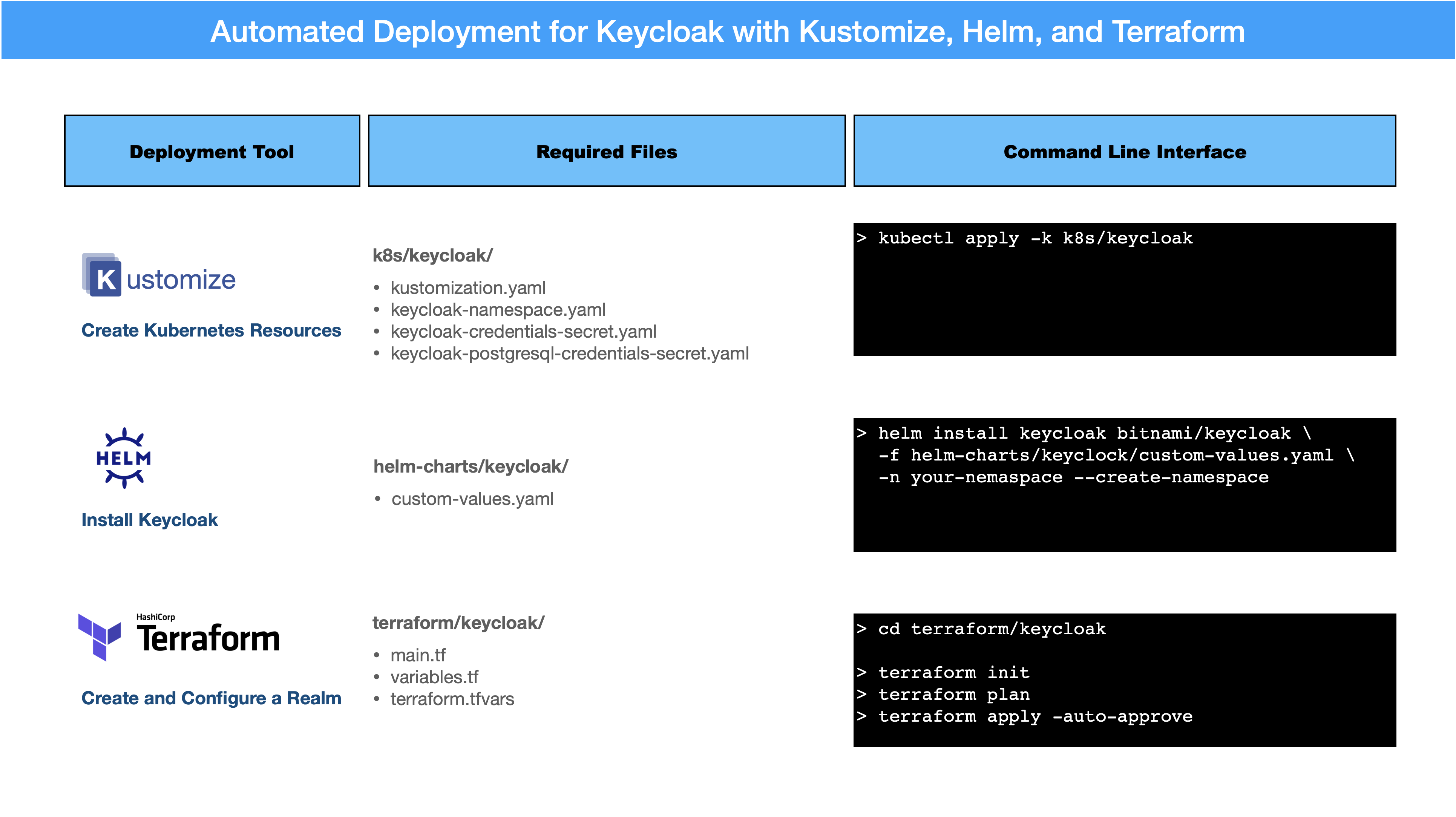

Automated Deployment

Introduction

As part of the SSO Foundry deployment, this document outlines the process of automating Keycloak installation and configuration using Kustomize, Helm, and Terraform.

This guide focuses specifically on creating a Keycloak realm using Terraform within a Kubernetes-based deployment.

Prerequisites

Make sure the following tools are installed:

  • helm

  • kubectl

  • jq

What is Terraform?

Terraform is an open-source infrastructure-as-code tool by HashiCorp. It enables defining and provisioning infrastructure using the HashiCorp Configuration Language (HCL).

With Terraform, we will create the Keycloak realm and its associated resources. The configuration will include the following:

  • Keycloak Realm

  • Keycloak Client

  • Keycloak User

  • Keycloak Realm Role

  • Keycloak Client Scope to add roles to ID token

Install Terraform (macOS)

Install Terraform using Homebrew:

$ brew tap hashicorp/tap
$ brew install hashicorp/tap/terraform

Verify Installation

To verify that Terraform is installed correctly, run the following command:

$ terraform -v

Example Output

Terraform v1.11.4
on darwin_arm64

Deployment Scenario

This document covers steps 3 and 4 from the full deployment pipeline:

  1. Create Kubernetes resources for Keycloak using Kustomize

  2. Install Keycloak using Helm

  3. Get the Keycloak LoadBalancer hostname

  4. Create a Keycloak realm using Terraform

  5. Create Kubernetes resources for OAuth2 Proxy using Kustomize

  6. Install OAuth2 Proxy using Helm

  7. Install Ingresses using Kustomize

Directory Structure

The directory structure for the SSO Foundry deployment is as follows:

$ tree -d .

.
├── bin
├── helm-charts
│   ├── keycloak
│   └── oauth2-proxy
├── k8s
│   ├── keycloak
│   ├── oauth2-proxy
│   └── traefik
└── terraform
    └── keycloak

Directory Descriptions:

Table 1. Directory Structure
Directory Description

bin

Contains scripts for installation and configuration

helm-charts/keycloak

Contains the Keycloak Helm chart

k8s/keycloak

Contains Kubernetes kustomization.yaml and resources for Keycloak

terraform/keycloak

Contains main.tf and variables.tf for Keycloak

Installing Keycloak

Use the follow Yeoman generator steps for Service Foundry:

  1. yo nsa2:{submodule-name} init - Generate the configuration file

  2. yo nsa2:{submodule-name} generate - Generate Kubernetes resources, Helm charts, and Terraform files

  3. yo nsa2:{submodule-name} build - Build components locally if needed

  4. yo nsa2:{submodule-name} deploy - Deploy components to the Kubernetes cluster. Push custom Docker images to the registry if needed

For SSO Foundry, the submodule-name is sso-foundry.

sso-foundry-config.yaml

This file can be generated using the command below.

$ yo nsa2:sso-foundry init
sso-foundry-config.yaml - Keycloak and OAuth2 Configuration
#(1)
keycloak:
  enabled: true
  namespace: keycloak
  release-name: keycloak
  version: "24.4.13"
  admin-user: "admin"
  admin-password: "changeit"
  realm: nsa2-realm
  # http or https
  protocol: http
  postgresql:
    enabled: true
    postgres-password: "changeit"
    username: "keycloak"
    password: "changeit"
    database: "keycloak"

#(2)
oauth2:
  enabled: true

  # if oidc-issuer-url is empty
  # the issuer URL will be generated from the keycloak service
  # http://<keycloak-service-hostname>/realms/<keycloak-realm>
  oidc-issuer-url: ""
  client_id: "nsa2-o11y"
  client_secret: "gZ343TCd0kBehqTOkGZFkbL4WvXoa3Ss"

# oauth2-proxy configuration is omitted for brevity
1 Keycloak configuration - These configuration values are used to create a Keycloak instance in the Kubernetes cluster.
2 OAuth2 Configuration - These configuration values are used to create a Client in Keycloak and configure OAuth2 Proxy.

You can modify the sso-foundry-config.yaml file to customize the Keycloak and OAuth2 Proxy configuration. The keycloak section contains the configuration for Keycloak, including the namespace, release name, version, admin user, and PostgreSQL configuration. The oauth2 section contains the configuration for OAuth2 Proxy, including the client ID and client secret.

Generate Kubernetes Resources, Helm Charts, and Terraform Files

The next step is to generate the Kubernetes resources, Helm charts, and Terraform files using the command below.

$ yo nsa2:sso-foundry generate

The command will generate the following files and directories:

$ tree .
.
├── bin
│   ├── deploy-keycloak.sh
│   └── undeploy-keycloak.sh
├── build-sso-foundry.sh
├── deploy-sso-foundry.sh
├── helm-charts
│   ├── keycloak
│   │   ├── custom-values.yaml
│   │   └── keycloak-24.4.13.tgz
│   └── oauth2-proxy
│       ├── custom-values.yaml
│       └── oauth2-proxy-7.12.6.tgz
├── k8s
│   ├── keycloak
│   │   ├── keycloak-credentials-secret.yaml
│   │   ├── keycloak-namespace.yaml
│   │   ├── keycloak-postgresql-credentials-secret.yaml
│   │   ├── kustomization.yaml
│   │   └── nsa2-realm-export.json
│   ├── oauth2-proxy
│   │   ├── kustomization.yaml
│   │   ├── oauth2-proxy-config.yaml
│   │   └── oauth2-proxy-secret.yaml
│   └── traefik
│       ├── forward-auth-middleware.yaml
│       ├── kustomization.yaml
│       ├── o11y-sso-ingress.yaml
│       └── oauth2-proxy-ingress.yaml
├── sso-foundry-config.yaml
├── terraform
│   └── keycloak
│       ├── main.tf
│       └── variables.tf
└── undeploy-sso-foundry.sh

Among the files above, I will explain the files related to Terraform used to create a Keycloak realm.

Terraform Configuration Files

The Terraform files are located in the terraform/keycloak directory. The files are as follows:

  • variables.tf - This file contains the variables used in the main.tf file.

  • terraform.tfvars - This file contains the values for the variables defined in variables.tf. This file can be created and configured after Keycloak is installed and the LoadBalancer hostname is available.

  • main.tf - This file contains the Terraform configuration for creating a Keycloak realm, client, user, and roles.

variables.tf

To create a Keycloak realm, I need to access Keycloak using the Keycloak LoadBalancer hostname. The hostname is passed as a variable to the Terraform configuration.

variable "kc_lb_hostname" {
  description = "Keycloak load balancer hostname"
  type        = string
}

terraform.tfvars

The terraform.tfvars file contains the values for the variables defined in variables.tf. The kc_lb_hostname variable is set to the Keycloak LoadBalancer hostname. The hostname can be obtained after Keycloak is installed and the LoadBalancer service is created.

kc_lb_hostname = "a9e632348b7944f03a3a890000000000-1740928954.ca-west-1.elb.amazonaws.com"

main.tf

The main.tf file is generated by the Yeoman generator based on the sso-foundry-config.yaml file. This file contains the Terraform configuration for creating a Keycloak realm, client, user, and roles. The configuration uses the Keycloak provider to interact with the Keycloak instance.

Provider Setup

main.tf - Keycloak Configuration
#(1)
terraform {
  required_providers {
    keycloak = {
      source  = "keycloak/keycloak"
      version = "~> 5.0.0" # You can use the latest stable version
    }
  }
}

#(2)
provider "keycloak" {
  client_id = "admin-cli"
  username  = "admin"
  password  = "changeit"
  url       = "http://${var.kc_lb_hostname}"  #(3)
  realm     = "master"
}
1 Keycloak is not officially supported by HashiCorp. The Keycloak provider is maintained by the community. The provider is used to interact with the Keycloak instance.
2 The Keycloak provider is configured with the Keycloak LoadBalancer hostname, admin username, and password.
3 The url parameter is set to the Keycloak LoadBalancer hostname. kc_lb_hostname is passed through the terraform.tfvars file.

Realm and Client

main.tf - Keycloak Realm, Client
# Create a new realm
#(1)
resource "keycloak_realm" "nsa2_realm" {
  realm   = "nsa2-realm"
  enabled = true
}

# Create a new client
#(2)
resource "keycloak_openid_client" "nsa2_o11y" {
  #realm_id                     = keycloak_realm.this.id
  realm_id                     = keycloak_realm.nsa2_realm.id
  client_id                    = "nsa2-o11y"
  name                         = "NSA2 Observability"
  enabled                      = true
  access_type                  = "CONFIDENTIAL" # or "PUBLIC"
  standard_flow_enabled        = true
  implicit_flow_enabled        = false
  direct_access_grants_enabled = true
  client_secret                = "gZ343TCd0kBehqTOkGZFkbL4WvXoa3Ss"

  valid_redirect_uris = [
    "http://prometheus.nsa2.com/*",
    "http://grafana.nsa2.com/*",
    "http://jaeger.nsa2.com/*",
    "http://oauth2-proxy.nsa2.com/*"
  ]

  valid_post_logout_redirect_uris = [
    "http://prometheus.nsa2.com/*",
    "http://grafana.nsa2.com/*",
    "http://jaeger.nsa2.com/*",
    "http://oauth2-proxy.nsa2.com/*"
  ]

  web_origins = [
    "http://prometheus.nsa2.com",
    "http://jaeger.nsa2.com",
    "http://grafana.nsa2.com",
    "http://oauth2-proxy.nsa2.com"
  ]
}
1 The keycloak_realm resource is used to create a new Keycloak realm. The realm name is set to nsa2-realm.
2 The keycloak_openid_client resource is used to create a new Keycloak client. The client ID is set to nsa2-o11y, and the client secret is set to gZ343TCd0kBehqTOkGZFkbL4WvXoa3Ss. The valid redirect URIs and web origins are set to the corresponding URLs for Prometheus, Grafana, Jaeger, and OAuth2 Proxy.

Realm Roles and User

main.tf - Keycloak Realm Roles, User
# Create realm roles - grafana-admin, grafana-editor, grafana-viewer

#(1)
resource "keycloak_role" "grafana_admin_role" {
  realm_id = keycloak_realm.nsa2_realm.id
  name     = "grafana-admin"
}

resource "keycloak_role" "grafana_editor_role" {
  realm_id = keycloak_realm.nsa2_realm.id
  name     = "grafana-editor"
}

resource "keycloak_role" "grafana_viewer_role" {
  realm_id = keycloak_realm.nsa2_realm.id
  name     = "grafana-viewer"
}

# Create devops User
#(2)
resource "keycloak_user" "devops" {
  realm_id   = keycloak_realm.nsa2_realm.id
  username   = "devops"
  email      = "devops@nsa2.com"
  email_verified = true
  enabled    = true
  first_name = "DevOps"
  last_name  = "Staff"

  initial_password {
    value     = "password"
    temporary = false
  }

  required_actions = []
}
1 The keycloak_role resource is used to create realm roles. The roles are created for Grafana with the names grafana-admin, grafana-editor, and grafana-viewer.
2 The keycloak_user resource is used to create users.

Assign Roles to User

main.tf - Keycloak User Roles mapping
# Assign roles to the user
#(1)
resource "keycloak_user_roles" "devops_roles" {
  realm_id = keycloak_realm.nsa2_realm.id
  user_id  = keycloak_user.devops.id

  role_ids = [
    keycloak_role.grafana_admin_role.id,
    #keycloak_role.grafana_roles["grafana-admin"].id
    # data.keycloak_role.grafana_admin.id
# or keycloak_role.grafana_admin.id if defined as a resource
  ]
}
1 The keycloak_user_roles resource is used to assign roles to the user. The user is assigned the grafana-admin role.

Create Client Scope & Role Mapper

main.tf - Keycloak Client Scope
# Create a new client scope
#(1)
resource "keycloak_openid_client_scope" "o11y_client_scope" {
  realm_id = keycloak_realm.nsa2_realm.id
  name     = "nsa2-o11y-client-scope"
  description = "Client scope for NSA2 Observability"
  include_in_token_scope = true
}

# Configure the client scope to add roles to the ID token
#(2)
resource "keycloak_openid_user_realm_role_protocol_mapper" "realm_roles_mapper" {
  realm_id        = keycloak_realm.nsa2_realm.id
  client_scope_id = keycloak_openid_client_scope.o11y_client_scope.id
  name            = "realm-role-mapper"

  claim_name        = "realm_access.roles"
  claim_value_type  = "String"
  add_to_id_token   = true
  add_to_access_token = true
  add_to_userinfo   = true
  multivalued        = true
}

# Add the client scope to the client
#(3)
resource "keycloak_openid_client_default_scopes" "client_default_scopes" {
  realm_id  = keycloak_realm.nsa2_realm.id
  client_id = keycloak_openid_client.nsa2_o11y.id

  default_scopes = [
    "web-origins",
    "acr",
    "roles",
    "profile",
    "basic",
    "email",
    keycloak_openid_client_scope.o11y_client_scope.name
  ]
}
1 The keycloak_openid_client_scope resource is used to create a new client scope. The client scope is created for NSA2 Observability.
2 The keycloak_openid_user_realm_role_protocol_mapper resource is used to configure the client scope to add roles to the ID token. The claim_name is set to realm_access.roles, and the claim_value_type is set to String. The add_to_id_token, add_to_access_token, and add_to_userinfo parameters are set to true.
3 The keycloak_openid_client_default_scopes resource is used to add the client scope to the client. The default_scopes parameter is set to include the client scope name.

Apply Terraform Configuration

Run the following in the terraform/keycloak directory:

$ terraform init
$ terraform plan
$ terraform apply -auto-approve

Screenshot

After applying Terraform, you will see:

  • A new relam: nsa2-realm

  • A client: nsa2-o11y

  • Roles: grafana-admin, grafana-editor, grafana-viewer

  • User: devops with the role grafana-admin

New Keycloak Realm and Client

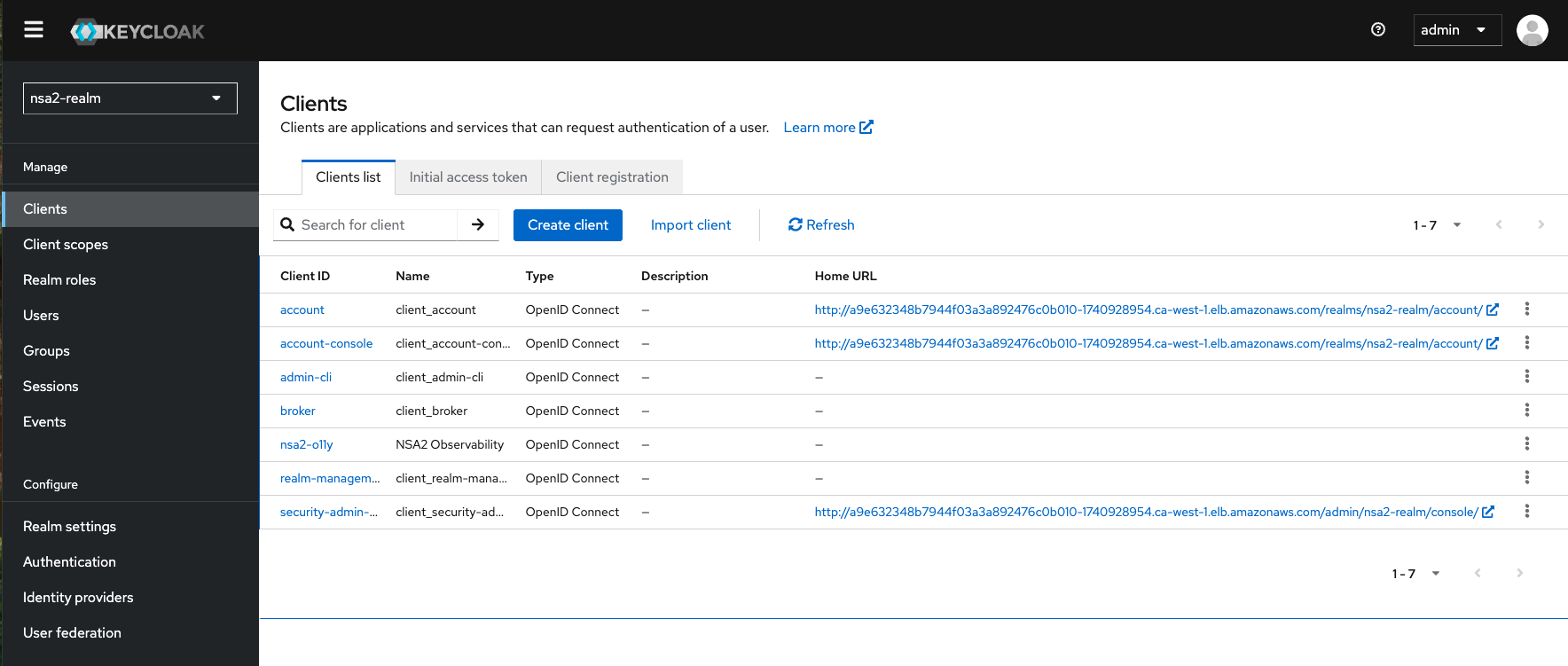

As described in the main.tf file, a new Keycloak realm named nsa2-realm and a new client named nsa2-o11y are created.

Keycloak Admin - Realm and Client
Figure 1. Keycloak Admin - Realm and Client

Keycloak Realm Roles

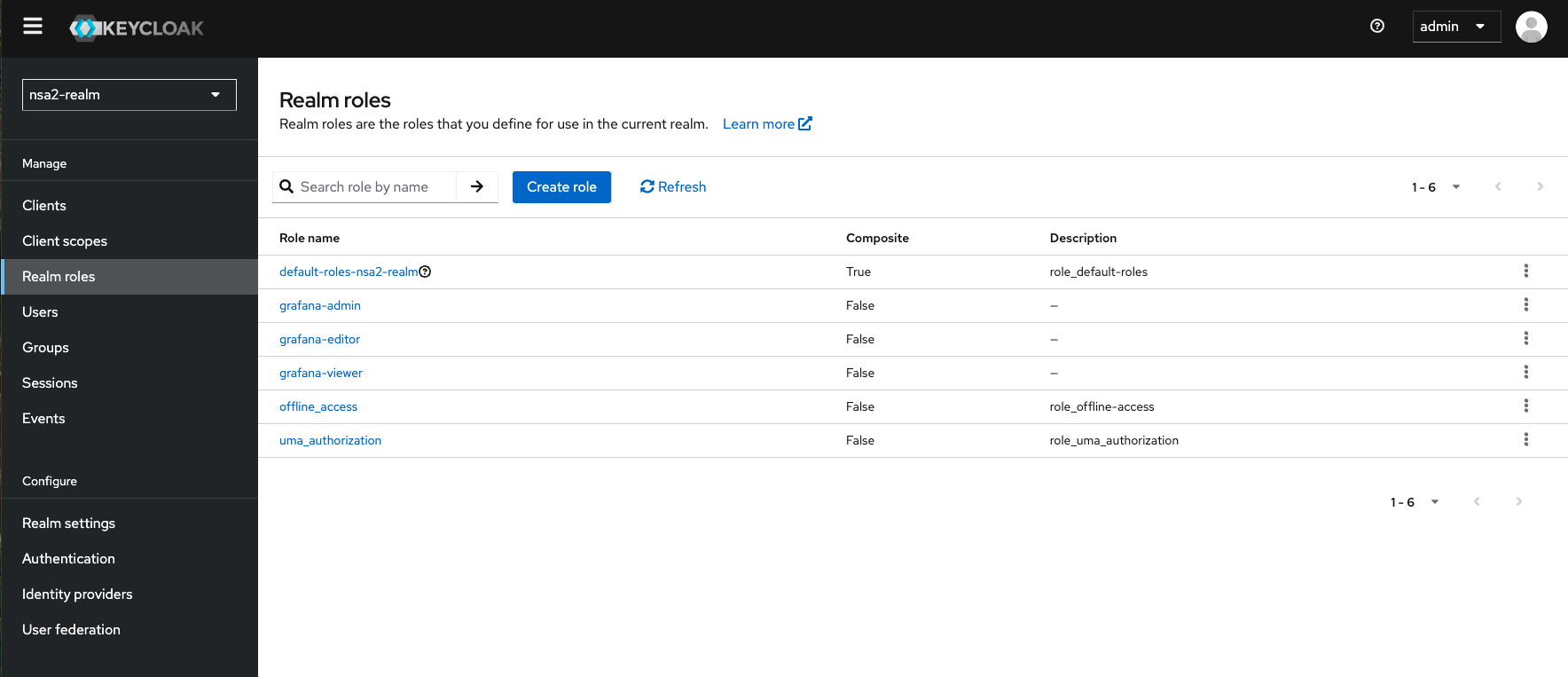

The realm roles grafana-admin, grafana-editor, and grafana-viewer are created in the nsa2-realm.

Keycloak Admin - Realm Roles
Figure 2. Keycloak Admin - Realm Roles

Keycloak User

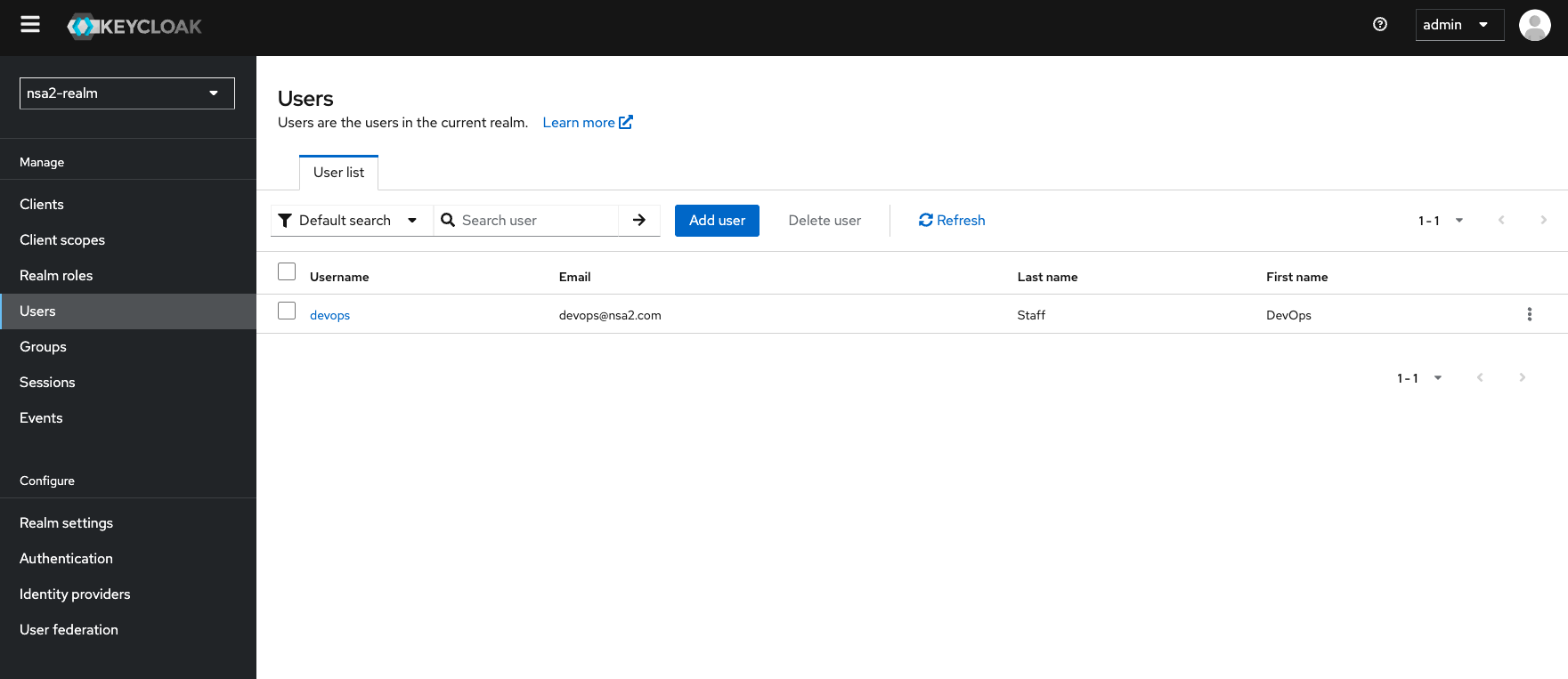

The user devops is created in the nsa2-realm. The user is assigned the grafana-admin role.

Keycloak Admin - Users
Figure 3. Keycloak Admin - Users

Conclusion

This guide demonstrated how to automate the creation of a Keycloak realm, client, user, and roles using Terraform as part of the SSO Foundry deployment.

With this setup:

  • You reduce manual configuration

  • Ensure consistent environments

  • Integrate SSO capabilities seamlessly across services
