Distributed Tracing - Spring Boot Application with OpenTelemetry Instrumentation

Introduction

This article is part of a series of articles on Distributed Tracing. In this article, we will discuss how to set up Zipkin and a sample Spring Boot application to demonstrate distributed tracing.

  1. Part 1 - Distributed Tracing - Setup Zipkin and Sample Spring Boot Application

  2. Part 2 - Distributed Tracing - Spring Boot Application with Micrometer and OpenTelemetry

  3. Part 3 - Distributed Tracing - Spring Boot Application with OpenTelemetry Instrumentation

  4. Part 4 - Distributed Tracing - Spring Boot Application with OpenTelemetry Collector

This article is the third part of the series.

OpenTelemetry Instrumentation

This article describes how to use OpenTelemetry instrumentation in a Spring Boot application. The requirements are as follows:

  • Enable tracing for HTTP requests, JDBC calls, and RabbitMQ messages.

  • Disable tracing for Actuator endpoints.

  • Use OpenTelemetry with Zipkin.

OpenTelemetry

What is OpenTelemetry?

OpenTelemetry is an open-source project that provides a set of APIs, libraries, agents, and instrumentation to collect distributed traces and metrics from applications. OpenTelemetry is a merger of two popular distributed tracing projects, OpenTracing and OpenCensus.

Out of the box instrumentation

Refer to the following link for more information on out-of-the-box instrumentation for Java:

Features - Property and Default Value
JDBC

otel.instrumentation.jdbc.enabled (Default: true)
Logback

otel.instrumentation.logback-appender.enabled (Default: true)
Spring Web

otel.instrumentation.spring-web.enabled (Default: true)
Spring Web MVC

otel.instrumentation.spring-webmvc.enabled (Default: true)
Spring Webflux

otel.instrumentation.spring-webflux.enabled (Default: true)
Kafka

otel.instrumentation.kafka.enabled (Default: true)
MongoDB

otel.instrumentation.mongodb.enabled (Default: true)
Micrometer

otel.instrumentation.micrometer.enabled (Default: false)
R2DBC

otel.instrumentation.r2dbc.enabled (Default: true)

Download OpenTelemetry Instrumentation

Run the following command to download the OpenTelemetry instrumentation:

$ mkdir -p javaagent
$ curl -L -O https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar --output-dir javaagent

The command above downloads the OpenTelemetry Java agent to the javaagent directory.

System environment variables

set environment variables
$ export JAVA_TOOL_OPTIONS="-javaagent:./javaagent/opentelemetry-javaagent.jar" \
  OTEL_TRACES_EXPORTER=zipkin \
  OTEL_EXPORTER_ZIPKIN_ENDPOINT=http://zipkin-server:9411/api/v2/spans \
  OTEL_METRICS_EXPORTER=none \
  OTEL_LOGS_EXPORTER=none

Build and run the application

Make sure that JAVA_TOOL_OPTIONS is set to the OpenTelemetry Java agent before building the application. Otherwise, the tracing for database calls will not work.
build the application
$ ./gradlew clean bootJar

Picked up JAVA_TOOL_OPTIONS: -javaagent:./javaagent/opentelemetry-javaagent.jar
run the application
$ java -jar build/libs/nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar

Picked up JAVA_TOOL_OPTIONS: -javaagent:./javaagent/opentelemetry-javaagent.jar
test the application
$ curl http://localhost:8080/error-logs/notify

4

Navigate to the Zipkin UI to view the traces.

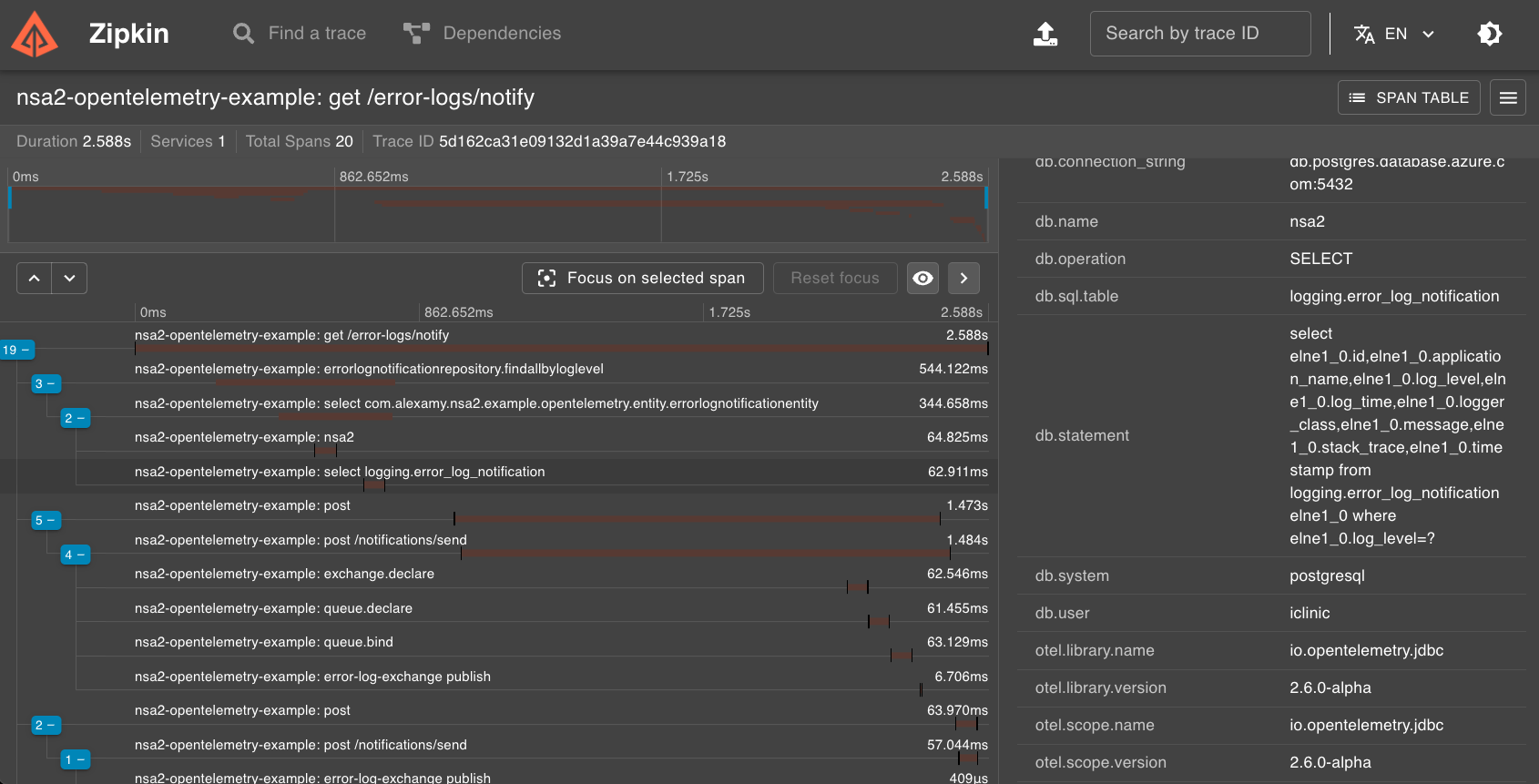

Zipkin OpenTelemetry Traces
Figure 1. Zipkin UI

OpenTelemetry instrumentation provider more detailed information about the traces as you can see from the image above. The traces include the HTTP request, JDBC call, and RabbitMQ message.

OpenTelemetry Operator for Kubernetes(Inject OpenTelemetry Auto-Instrumentation in Kubernetes)

This section was written with reference to the following links:

The OpenTelemetry Operator is a Kubernetes operator that manages the lifecycle of OpenTelemetry components. The operator deploys and manages the OpenTelemetry Collector, which collects, processes, and exports telemetry data.

The OpenTelemetry Operator supports injecting and configuring auto-instrumentation libraries for:

  • Java

  • .NET

  • Node.js

  • Python

  • Go

In this document, we will focus on Java auto-instrumentation. And we will use the Zipkin server to collect traces without the OpenTelemetry Collector.

I will cover the topic of using the OpenTelemetry Collector in a separate article.

To enable OpenTelemetry instrumentation on Kubernetes, we will need to install the following components:

  • cert-manager

  • OpenTelemetry Operator

Install cert-manager

To install the operator in an existing cluster, make sure you have cert-manager installed and run:

cert-manager installation

$ kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.15.2/cert-manager.yaml

namespace/cert-manager created
customresourcedefinition.apiextensions.k8s.io/certificaterequests.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/certificates.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/challenges.acme.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/clusterissuers.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/issuers.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/orders.acme.cert-manager.io created
serviceaccount/cert-manager-cainjector created
serviceaccount/cert-manager created
serviceaccount/cert-manager-webhook created
clusterrole.rbac.authorization.k8s.io/cert-manager-cainjector created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-issuers created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-clusterissuers created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-certificates created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-orders created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-challenges created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-ingress-shim created
clusterrole.rbac.authorization.k8s.io/cert-manager-cluster-view created
clusterrole.rbac.authorization.k8s.io/cert-manager-view created
clusterrole.rbac.authorization.k8s.io/cert-manager-edit created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-approve:cert-manager-io created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-certificatesigningrequests created
clusterrole.rbac.authorization.k8s.io/cert-manager-webhook:subjectaccessreviews created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-cainjector created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-issuers created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-clusterissuers created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-certificates created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-orders created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-challenges created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-ingress-shim created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-approve:cert-manager-io created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-certificatesigningrequests created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-webhook:subjectaccessreviews created
role.rbac.authorization.k8s.io/cert-manager-cainjector:leaderelection created
role.rbac.authorization.k8s.io/cert-manager:leaderelection created
role.rbac.authorization.k8s.io/cert-manager-webhook:dynamic-serving created
rolebinding.rbac.authorization.k8s.io/cert-manager-cainjector:leaderelection created
rolebinding.rbac.authorization.k8s.io/cert-manager:leaderelection created
rolebinding.rbac.authorization.k8s.io/cert-manager-webhook:dynamic-serving created
service/cert-manager created
service/cert-manager-webhook created
deployment.apps/cert-manager-cainjector created
deployment.apps/cert-manager created
deployment.apps/cert-manager-webhook created
mutatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created
validatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created

All resources are created in the cert-manager namespace.

Install OpenTelemetry Operator

$ kubectl apply -f https://github.com/open-telemetry/opentelemetry-operator/releases/latest/download/opentelemetry-operator.yaml

namespace/opentelemetry-operator-system created
customresourcedefinition.apiextensions.k8s.io/instrumentations.opentelemetry.io created
customresourcedefinition.apiextensions.k8s.io/opampbridges.opentelemetry.io created
customresourcedefinition.apiextensions.k8s.io/opentelemetrycollectors.opentelemetry.io created
serviceaccount/opentelemetry-operator-controller-manager created
role.rbac.authorization.k8s.io/opentelemetry-operator-leader-election-role created
clusterrole.rbac.authorization.k8s.io/opentelemetry-operator-manager-role created
clusterrole.rbac.authorization.k8s.io/opentelemetry-operator-metrics-reader created
clusterrole.rbac.authorization.k8s.io/opentelemetry-operator-proxy-role created
rolebinding.rbac.authorization.k8s.io/opentelemetry-operator-leader-election-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/opentelemetry-operator-manager-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/opentelemetry-operator-proxy-rolebinding created
service/opentelemetry-operator-controller-manager-metrics-service created
service/opentelemetry-operator-webhook-service created
deployment.apps/opentelemetry-operator-controller-manager created
certificate.cert-manager.io/opentelemetry-operator-serving-cert created
issuer.cert-manager.io/opentelemetry-operator-selfsigned-issuer created
mutatingwebhookconfiguration.admissionregistration.k8s.io/opentelemetry-operator-mutating-webhook-configuration created
validatingwebhookconfiguration.admissionregistration.k8s.io/opentelemetry-operator-validating-webhook-configuration created

Deploy Spring Boot Application with OpenTelemetry Instrumentation

Dockerfile

Dockerfile and opentelemetry-javaagent.jar are required to build the Docker image.

The directory structure is as follows:

build/libs directory structure
build/libs
├── Dockerfile
├── nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar
└── opentelemetry-javaagent.jar

Here is the Dockerfile:

build/libs/Dockerfile
FROM openjdk:21-jdk-bullseye
COPY ./nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar /usr/app/nsa2-opentelemetry-example.jar
COPY ./opentelemetry-javaagent.jar /usr/app/javaagent/opentelemetry-javaagent.jar

WORKDIR /usr/app
EXPOSE 8080

ENTRYPOINT ["java", "-Xshare:off", "-javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar", "-jar", "nsa2-opentelemetry-example.jar"]

JVM Options used in the Dockerfile:

  • -Xshare:off option is used to disable class data sharing.

  • -javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar option is used to enable OpenTelemetry instrumentation.

OpenTelemetry Instrumentation Java Configuration

Properties for OpenTelemetry instrumentation are listed below:

https://opentelemetry.io/docs/languages/java/configuration/ - OpenTelemetry Java Configuration

System Properties and Environment Variables

Any setting configurable with a system property can also be configured with an environment variable. Apply the following steps to convert a system property to an environment variable:

  • Convert the name to uppercase.

  • Replace all . and - characters with _.

For example, the system property otel.traces.exporter can be set as an environment variable OTEL_TRACES_EXPORTER.

Helm chart

Properties for OpenTelemetry instrumentation can be set in the deployment.yaml file of the Helm chart.

For more information on how to use Helm chart to deploy your application, refer to the following link:

Part 2: Deploying Spring Boot Application to Kubernetes

templates/deployment.yaml
          env:
            - name: OTEL_TRACES_EXPORTER
              value: zipkin
            - name: OTEL_EXPORTER_ZIPKIN_ENDPOINT
              value: http://zipkin-server:9411/api/v2/spans
            - name: OTEL_METRICS_EXPORTER
              value: none
            - name: OTEL_LOGS_EXPORTER
              value: none

For more information on how to use Zipkin exporter, refer to the following link:

OpenTelemetry Instrumentation extension

Exclude URLs from Tracing

In Kubernetes, when you deploy a Spring Boot application with live probes, the health check URLs are called frequently, and they are traced in the Zipkin server. To exclude these URLs from tracing, we can use the OpenTelemetry Instrumentation extension.

I created a separate Java project to demonstrate how to exclude health check URLs from tracing.

There are two classes in the project:

  • HealthCheckExclusionSampler.java

  • Nas2AutoConfigurationCustomizerProvider.java

HealthCheckExclusionSampler.java

I implemented a custom sampler to exclude health check URLs from tracing.

HealthCheckExclusionSampler.java
package com.alexamy.nsa2.otel.extension;

import io.opentelemetry.api.common.AttributeKey;
import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.trace.SpanKind;
import io.opentelemetry.context.Context;
import io.opentelemetry.sdk.trace.data.LinkData;
import io.opentelemetry.sdk.trace.samplers.Sampler;
import io.opentelemetry.sdk.trace.samplers.SamplingResult;

import java.util.List;

public class HealthCheckExclusionSampler implements Sampler {

    @Override
    public SamplingResult shouldSample(Context parentContext, String traceId,
                                       String name, SpanKind spanKind,
                                       Attributes attributes, List<LinkData> parentLinks) {

        String urlPath = attributes.get(AttributeKey.stringKey("url.path"));

        if(urlPath != null && urlPath.contains("/actuator/health")) {
            return SamplingResult.drop();
        }

        return SamplingResult.recordAndSample();
    }

    @Override
    public String getDescription() {
        return "HealthCheckExclusionSampler";
    }
}

If the URL path contains "/actuator/health", the sampler will drop the trace.

Nas2AutoConfigurationCustomizerProvider.java

I implemented a customizer provider to add the custom sampler to the OpenTelemetry instrumentation.

Nas2AutoConfigurationCustomizerProvider.java
package com.alexamy.nsa2.otel.extension;

import com.google.auto.service.AutoService;
import io.opentelemetry.sdk.autoconfigure.spi.AutoConfigurationCustomizer;
import io.opentelemetry.sdk.autoconfigure.spi.AutoConfigurationCustomizerProvider;

@AutoService(AutoConfigurationCustomizerProvider.class)
public class Nas2AutoConfigurationCustomizerProvider implements AutoConfigurationCustomizerProvider {

    @Override
    public void customize(AutoConfigurationCustomizer autoConfigurationCustomizer) {
        autoConfigurationCustomizer.addSamplerCustomizer(
            (sampler, configProperties) -> new HealthCheckExclusionSampler());
    }
}

The class with @AutoService annotation is automatically discovered by the OpenTelemetry instrumentation. The addSamplerCustomizer method is used to add the custom sampler to the OpenTelemetry instrumentation.

The project is built as a JAR file named nsa2-otel-extension-1.0-all.jar and used as an extension in the Spring Boot application.

For more information on how to develop an OpenTelemetry Instrumentation extension, refer to the following link:

Once you have the extension project, you can build the JAR file and use it with -Dotel.javaagent.extensions option to exclude URLs from tracing.

how to use the extension
$ java -javaagent:path/to/opentelemetry-javaagent.jar \
     -Dotel.javaagent.extensions=nsa2-otel-extension-1.0-all.jar \
     -jar myapp.jar

Dockerfile

To use the OpenTelemetry Instrumentation extension in a Docker container, you need to add the extension JAR file to the Docker image.

Now the directory sturecture is as follows:

build/libs directory structure
build/libs
├── Dockerfile
├── nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar
├── nsa2-otel-extension-1.0-all.jar
└── opentelemetry-javaagent.jar

Here is the Dockerfile:

Dockerfile
FROM openjdk:21-jdk-bullseye
COPY ./nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar /usr/app/nsa2-opentelemetry-example.jar
COPY ./opentelemetry-javaagent.jar /usr/app/javaagent/opentelemetry-javaagent.jar
COPY ./nsa2-otel-extension-1.0-all.jar /usr/app/javaagent/nsa2-otel-extension-1.0-all.jar
WORKDIR /usr/app
EXPOSE 8080
#ENTRYPOINT ["./run-app.sh"]

ENTRYPOINT ["java", "-Xshare:off", "-Dotel.javaagent.extensions=/usr/app/javaagent/nsa2-otel-extension-1.0-all.jar", "-jar", "nsa2-opentelemetry-example.jar"]

Now we filter out the health check URLs from tracing and the Zipkin server will not show the traces for the health check URLs.

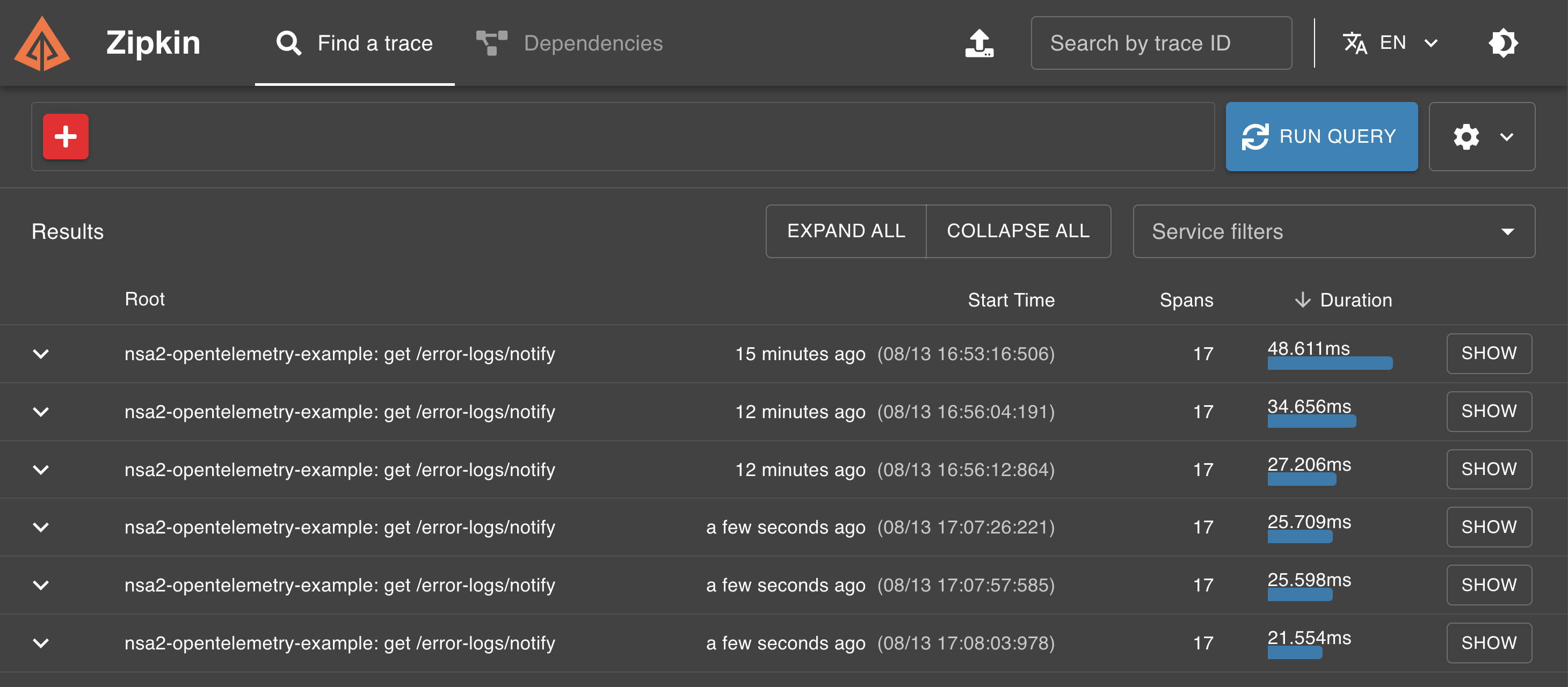

zipkin otel no healthcheck

Comparison to using Spring Boot Actuator for Tracing

In the previous article, we used Spring Boot Actuator to enable tracing for HTTP, JDBC, and RabbitMQ calls and disable tracing for health check URLs. We needed to add small amount of codes to enable tracing

Tracing enablement
Spring Actuator with Micrometer

Small amount of code are needed
OpenTelemetry Instrumentation

No code was added.
Excluding Health check URLs
Spring Actuator with Micrometer

Need to implement Spring Configuration Beans
OpenTelemetry Instrumentation

Need to implement extensions

Conclusion

In this article, we learned how to use OpenTelemetry Instrumentation in a Spring Boot application. We also learned how to exclude health check URLs from tracing using OpenTelemetry Instrumentation extension. To use OpenTelemetry Instrumentation in Kubernetes, we need to install the OpenTelemetry Operator. And we implemented a custom sampler to exclude health check URLs from tracing. In the next article, we will learn how to use the OpenTelemetry Collector in a Spring Boot application.

Trouble Shooting

HttpExporter not working resulting in 404 page not found

Solution

  1. block metrics and logs exporter

VM warning: Sharing is only supported for boot loader classes #3111

Solution

  1. Use -Xshare:off option to disable class data sharing

Inject OpenTelemetry Auto-Instrumentation in Kubernetes

Exclude URLs from Tracing
