Introduction

This article is part of a series of articles on Distributed Tracing. In this article, we will discuss how to set up Zipkin and a sample Spring Boot application to demonstrate distributed tracing.

This article is the last part of the series.

OpenTelemetry Collector

OpenTelemetry Collector is a vendor-agnostic agent for observability data. It is a powerful tool that can be used to collect, process, and export telemetry data. It can be used to collect traces, metrics, and logs from various sources and export them to various destinations.

In this article, we will use OTLP as the receiver and Zipkin as the exporter. OTLP is a protocol that can be used to send telemetry data to the OpenTelemetry Collector. Zipkin is a distributed tracing system that can be used to visualize and analyze traces.

In the previous article, we used OpenTelemetry Instrumentation to export traces to Zipkin directly shown in the following diagram.

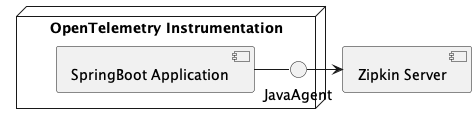

Figure 1. OpenTelemetry Instrumentation to Zipkin

In this article, we will use OpenTelemetry Collector to receive traces from OpenTelemetry Instrumentation and export them to Zipkin as shown in the following diagram. If needed, trace data can be processed and transformed before exporting it to Zipkin.

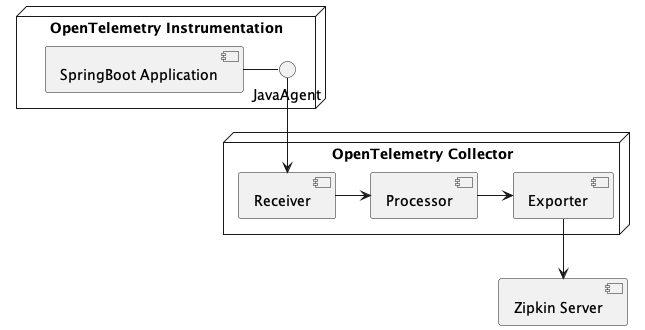

Figure 2. OpenTelemetry Collector to Zipkin

Install OpenTelemetry Collector and Instrumentation

When installing OpenTelemetry Operator, Some CDRs are created to install OpenTelemetry Collector and Instrumentation.

CDR stands for Custom Resource Definition. It is a Kubernetes API extension that allows you to define custom resources. OpenTelemetry Operator uses CDRs to install OpenTelemetry Collector and Instrumentation.

Install OpenTelemetry Collector

otel-collector.yaml

apiVersion: opentelemetry.io/v1beta1
kind: OpenTelemetryCollector
metadata:
  name: otel
  namespace: nsa2
spec:
  config:
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318
    processors:
      memory_limiter:
        check_interval: 1s
        limit_percentage: 75
        spike_limit_percentage: 15
      batch:
        send_batch_size: 10000
        timeout: 10s


    exporters:
      debug: {}
      zipkin:
        endpoint: http://zipkin-server:9411/api/v2/spans
        format: proto


    service:
      pipelines:
        traces:
          receivers: [otlp]
          processors: [filter/ottl, memory_limiter, batch]
          exporters: [zipkin]

Please note that the name of the collector is otel instead of otel-collector. This will create a service and a deployment for the OpenTelemetry Collector, both named otel-collector.

Run the following command to install the OpenTelemetry Collector.

$ kubectl apply -f otel-collector.yaml

$ kubectl get all -n nsa2 | grep otel

pod/otel-collector-86b854bdfc-xvxjt                                   1/1     Running   0          26s
service/otel-collector                                  ClusterIP   10.0.183.81    <none>        4317/TCP,4318/TCP   28s
service/otel-collector-headless                         ClusterIP   None           <none>        4317/TCP,4318/TCP   27s
service/otel-collector-monitoring                       ClusterIP   10.0.81.190    <none>        8888/TCP            27s
deployment.apps/otel-collector                                             1/1     1            1           28s
replicaset.apps/otel-collector-86b854bdfc                                             1         1         1       28s

We can find the OpenTelemetry Collector pod, service, and deployment in the nsa2 namespace and their names are prefixed with otel-collector.

Without installing Instrumentation shown in the next section, OpenTelemetry Instrumentation can use the OpenTelemetry Collector as the receiver by setting the OTEL_EXPORTER_OTLP_ENDPOINT environment variable to the OpenTelemetry Collector’s endpoint.

templates/deployment.yaml

          env:
            - name: JAVA_TOOL_OPTIONS
              value: "-javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar"
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: http://otel-collector:4318
            - name: OTEL_METRICS_EXPORTER
              value: none
            - name: OTEL_LOGS_EXPORTER
              value: none

Note that JAVA_TOOL_OPTIONS is set to use the OpenTelemetry Java agent. And OTEL_EXPORTER_OTLP_ENDPOINT is set to the OpenTelemetry Collector’s HTTP endpoint.

But when there are many applications are up and running, it is better to use Instrumentation to export traces to the OpenTelemetry Collector.

Install OpenTelemetry Instrumentation

We are going to install OpenTelemetry Instrumentation using the manifest file shown below. With OpenTelemetry Instrumentation, we can manage the configuration of the OpenTelemetry Java agent in a single place.

otel-instrumentation.yaml

# https://opentelemetry.io/docs/kubernetes/operator/automatic/
apiVersion: opentelemetry.io/v1alpha1
kind: Instrumentation
metadata:
  name: otel-instrumentation
  namespace: nsa2
spec:
  exporter:
    endpoint: http://otel-collector:4317
  propagators:
    - tracecontext
    - baggage
#    - b3
  sampler:
    type: parentbased_traceidratio
    argument: "1"
#  env:
#    - name: OTEL_EXPORTER_OTLP_ENDPOINT
#      value: http://otel-collector:4318
  java:
    env:
      - name: JAVA_TOOL_OPTIONS
        value: "-javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar"
      - name: OTEL_EXPORTER_OTLP_ENDPOINT
        value: http://otel-collector:4318
      - name: OTEL_METRICS_EXPORTER
        value: none
      - name: OTEL_LOGS_EXPORTER
        value: none

In the manifest file, the default exporter for traces is OTLP. System variables set in java.env section are used to configure the OpenTelemetry Java agent for all Java applications. Using Instrumentation makes it easier to manage the configuration of the OpenTelemetry Java agent.

$ kubectl apply -f otel-instrumentation.yaml

Now all OpenTelemetry related configurations can be removed from the deployment manifest file.

Dockerfile

The Dockerfile for the application is as follows:

FROM openjdk:21-jdk-bullseye
COPY ./nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar /usr/app/nsa2-opentelemetry-example.jar
COPY ./opentelemetry-javaagent.jar /usr/app/javaagent/opentelemetry-javaagent.jar
WORKDIR /usr/app
EXPOSE 8080


ENTRYPOINT ["java", "-Xshare:off", "-Dotel.javaagent.extensions=/usr/app/javaagent/nsa2-otel-extension-1.0-all.jar", "-jar", "nsa2-opentelemetry-example.jar"]

Please note that I do not use "-javaagent" option in the ENTRYPOINT. Instead, I set JAVA_TOOL_OPTIONS in the manifest file for OpenTelemetry Instrumentation. This way, Docker images can apply OpenTelemetry instrumentation without changing the Dockerfile.

Deployment manifest

templates/deployment.yaml

# omitted for brevity

          env:
#            - name: JAVA_TOOL_OPTIONS
#              value: "-javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar"
#            - name: OTEL_EXPORTER_OTLP_ENDPOINT
#              value: http://otel-collector:4318
#            - name: OTEL_METRICS_EXPORTER
#              value: none
#            - name: OTEL_LOGS_EXPORTER
#              value: none

In the deployment manifest file, OpenTelemetry related configurations are removed. The OpenTelemetry Java agent is configured in the OpenTelemetry Instrumentation manifest file. Only system variables required for the application are set in the deployment manifest file.

Auto Instrumentation Injection

Please refer to the link below for more information on auto-instrumentation injection.

https://github.com/open-telemetry/opentelemetry-operator/blob/main/README.md

To use OpenTelemetry Instrumentation, the following annotation should be set in the deployment manifest file or Helm Chart.

sidecar.opentelemetry.io/inject: "true"
instrumentation.opentelemetry.io/inject-java: "true"

Helm Chart

When using Helm Chart, the following values can be set in the values.yaml file.

values.yaml

podAnnotations: {
  sidecar.opentelemetry.io/inject: "true",
  instrumentation.opentelemetry.io/inject-java: "true"
}

Deployment manifest

When using deployment manifest, the following annotation should be set in the deployment manifest file.

deployment manifest

spec:
# omitted for brevity
  template:
    metadata:
      annotations:
        sidecar.opentelemetry.io/inject: "true"
        instrumentation.opentelemetry.io/inject-java: "true"

Conclusion

In this article, we discussed how to set up OpenTelemetry Collector and Instrumentation to export traces to Zipkin. OpenTelemetry Collector is a powerful tool that can be used to collect, process, and export telemetry data. It can be used to collect traces, metrics, and logs from various sources and export them to various destinations.
