Implementing End-to-End Observability in React Applications with OpenTelemetry

On this page

Overview
- OpenTelemetry Language SDK Status
Part 1: Setting Up the React Application
Part 2: Enabling OpenTelemetry Tracing
Validation
- Using ConsoleSpanExporter
- Using OTLPTraceExporter
Further Enhancements
Conclusion
References

Overview

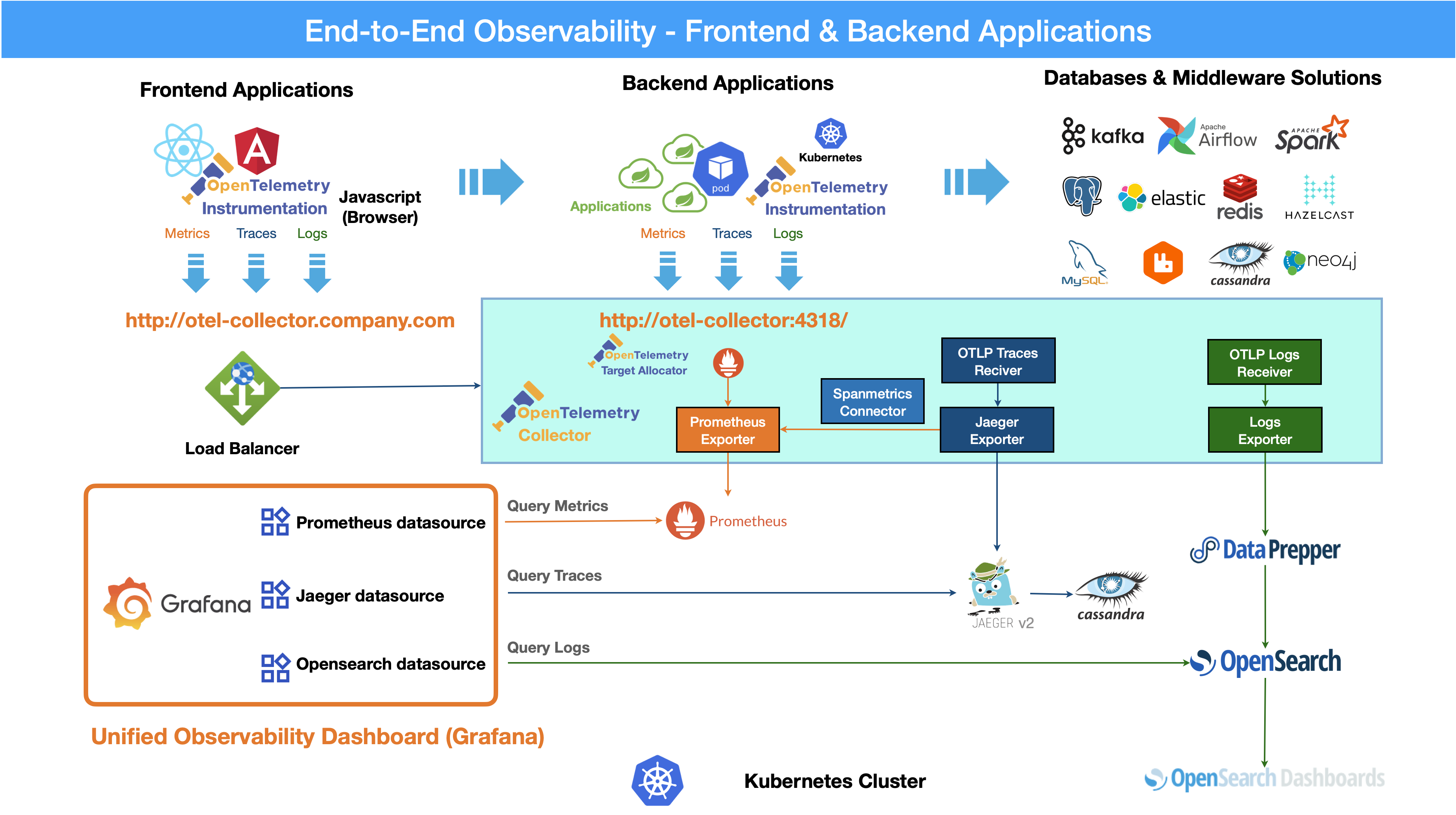

This comprehensive guide walks through the process of implementing end-to-end observability in a React application using OpenTelemetry (OTel). It covers application setup, OTLP tracing integration, and visualization using observability tools such as Jaeger and Grafana.

By instrumenting both the frontend and backend, developers can trace user interactions, monitor API calls, and gain full-stack visibility into their application’s behavior.

The guide consists of two parts:

Part 1: Setting up a React application
Part 2: Integrating OpenTelemetry for frontend tracing

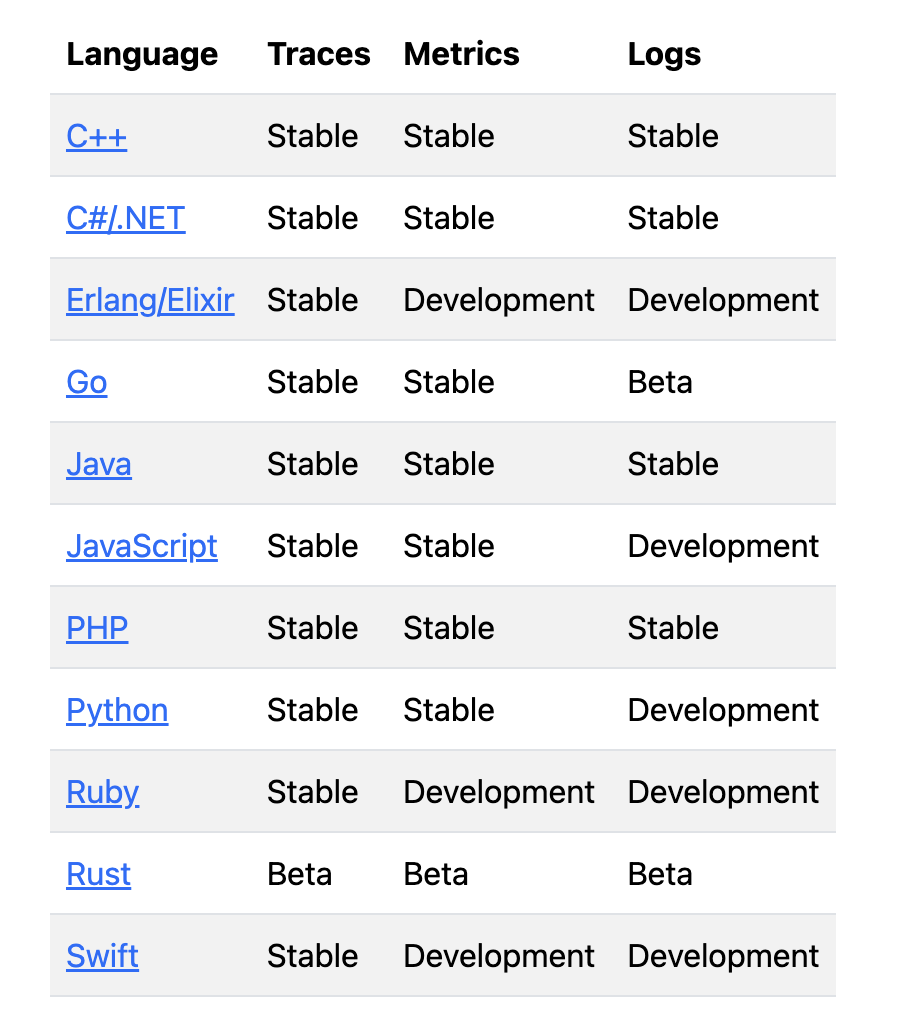

OpenTelemetry Language SDK Status

Note that the status of OpenTelemetry JavaScript SDK for Logs is currently in development.

Figure 1. OTel SDK Status from https://opentelemetry.io/docs/languages/

Part 1: Setting Up the React Application

Step 1: Bootstrap the React Project

Use Vite to create a new React + TypeScript project:

$ npm create vite@latest react-o11y-app --template react-ts

Need to install the following packages:
  create-vite@latest
  create-vite@6.5.0
  Ok to proceed? (y) y
? Select a framework: › React
? Select a variant: › TypeScript


$ cd react-o11y-app
$ npm install

Step 2: Install Supporting Libraries

Install Axios and developer tools:

$ npm install axios
$ npm install --save-dev eslint prettier

Step 3: Configure Access to the OTLP Endpoint

You can expose the OTLP endpoint using:

Ingress Controller
Port Forwarding

3.1: Expose with Ingress

otel-collector-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: otel-collector-ingress
  namespace: o11y
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  ingressClassName: traefik
  rules:
    ## otel-collector
    #(1)
    - host: otel-collector.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: otel-collector
                port:
                  name: otlp-http

    #(2)
    ## otel-spring-example
    - host: otel-spring-example.nsa2.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: otel-spring-example
                port:
                  name: http

1	This rule exposes the OTLP endpoint for the OpenTelemetry Collector.
2	This rule exposes the OTLP endpoint for the OTEL Spring Example application.

Apply it:

$ kubectl apply -f react-o11y-backend-ingress.yaml

3.2: Use Port Forwarding (Dev)

$ kubectl -n o11y port-forward service/otel-collector 4318:4318

Step 4: Configure Environment Variables

To configure the OpenTelemetry libraries, we will use environment variables. Create a .env file in the root of your project and add the following variables:

$ touch .env

src/.env

VITE_OTEL_EXPORTER_OTLP_ENDPOINT=
VITE_OTEL_SPRING_EXAMPLE_URL=

The actual values for these variables will be set with environment variables like this:

#$ export VITE_OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4318
$ export VITE_OTEL_EXPORTER_OTLP_ENDPOINT=http://otel-collector:4318
# OR
$ export VITE_OTEL_EXPORTER_OTLP_ENDPOINT=http://otel-collector.nsa2.com

$ export VITE_OTEL_SPRING_EXAMPLE_URL=http://otel-spring-example.nsa2.com

Step 5: Add API Request Logic

src/api/observaility.ts

import axios from 'axios';


const otelSpringExampleUrl = import.meta.env.VITE_OTEL_SPRING_EXAMPLE_URL || 'http://localhost:8080';

console.log('Using OTEL Spring Example URL:', otelSpringExampleUrl);

const api = axios.create({
  baseURL: otelSpringExampleUrl
});


export const sleepCall = async (seconds:number): Promise<string> => {
  const response = await api.get(`/sleep/${seconds}`);
  return response.data;
};

Step 6: Create a Test Component(TraceButton)

Build a simple button component to test interactions, and wire it into your App.tsx and main.tsx.

src/components/TraceButton.tsx

import { useState } from 'react';
import { sleepCall } from '../api/observability';

export const TraceButton = () => {
  const [seconds, setSeconds] = useState(1);
  const [response, setResponse] = useState('');
  const [loading, setLoading] = useState(false);

  const handleClick = async () => {
    setLoading(true);
    setResponse('');
    console.log('Calling sleep endpoint with seconds:', seconds);
    try {
      const result = await sleepCall(seconds);
      console.log('-- Response from sleep endpoint:', JSON.stringify(result));
      setResponse(result['message'] || `Slept for ${seconds} seconds`);
    } catch (error) {
      console.error('Request failed:', error);
      setResponse('Error occurred');
    } finally {
      setLoading(false);
    }
  };

  return (
    <div style={{ padding: '1rem' }}>
      <label>
        Sleep Seconds:{' '}
        <input
          type="number"
          id="secondsInput"
          value={seconds}
          onChange={(e) => setSeconds(Number(e.target.value))}
          min={1}
          style={{ width: '60px', marginRight: '1rem' }}
        />
      </label>
      <button onClick={handleClick} disabled={loading} id='traceButton' >
        {loading ? 'Waiting...' : 'Call Sleep Endpoint'}
      </button>
      <div style={{ marginTop: '1rem' }}>{response && <p>{response}</p>}</div>
    </div>
  );
};

Step 7: Create the Home Page

src/pages/Home.tsx

import { TraceButton } from '../components/TraceButton';

const Home = () => {
  return (
    <div>
      <h1>Observability Test App</h1>
      <TraceButton />
    </div>
  );
};

export default Home;

Step 8: Load the Home Page in the App Component

src/App.tsx

import './App.css'
import Home from './pages/Home';

function App() {
  return <Home />;
}

export default App

Step 9: Keep the main.tsx file as is

src/main.tsx

import { StrictMode } from 'react'
import { createRoot } from 'react-dom/client'
import './index.css'
import App from './App.tsx'

createRoot(document.getElementById('root')!).render(
  <StrictMode>
    <App />
  </StrictMode>,
)

Step 10: Start Development Server

Start the development server:

$ npm run dev

Visit http://localhost:5173 to test the app.

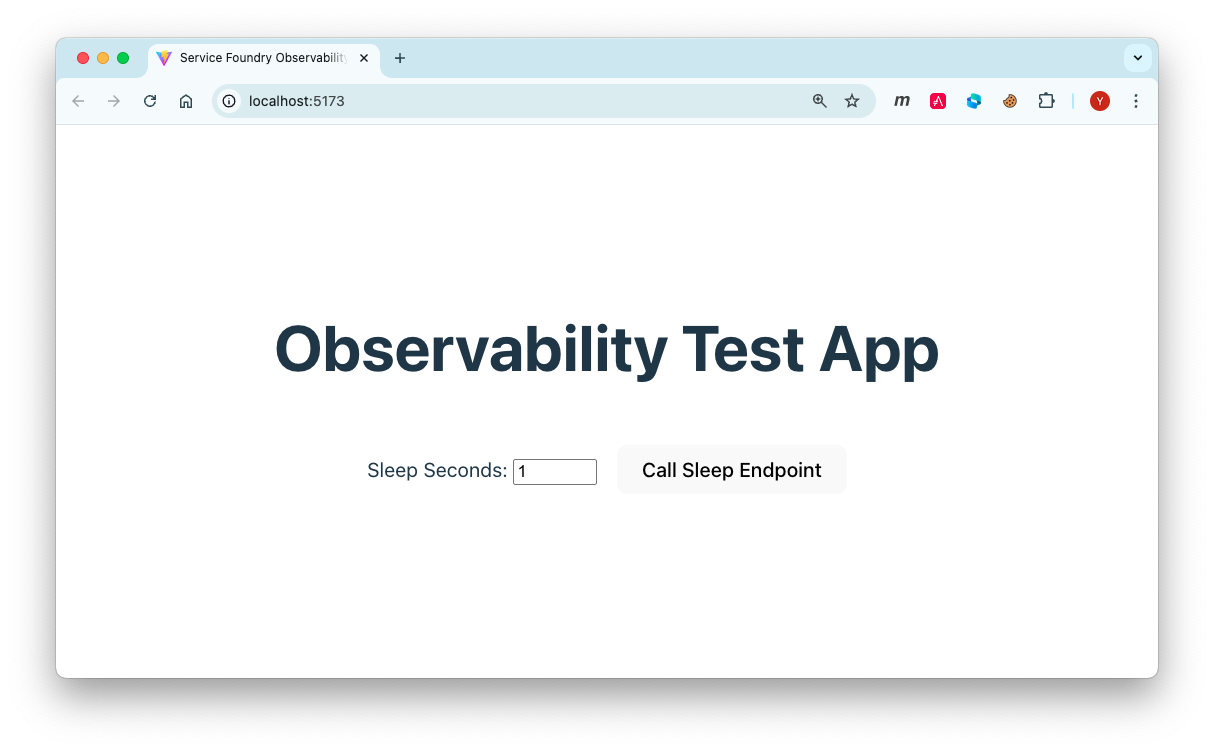

Figure 2. React Application UI for Testing Observability

Part 2: Enabling OpenTelemetry Tracing

In part 2, we will apply the OpenTelemetry libraries to our React application to store traces.

Step 1: Install OpenTelemetry Packages

Install the OpenTelemetry libraries to enable observability features in your application.

$ npm install @opentelemetry/api @opentelemetry/sdk-trace-web @opentelemetry/instrumentation-fetch
$ npm install @opentelemetry/sdk-trace-base
$ npm install @opentelemetry/resources
$ npm install @opentelemetry/context-zone  @opentelemetry/instrumentation-document-load
$ npm install @opentelemetry/instrumentation-xml-http-request
$ npm install @opentelemetry/instrumentation-user-interaction
$ npm install @opentelemetry/exporter-trace-otlp-http

Step 2: Initialize OpenTelemetry Tracing

src/otel.ts

import { WebTracerProvider } from '@opentelemetry/sdk-trace-web';
import  {
    resourceFromAttributes,
    defaultResource
} from '@opentelemetry/resources';
import {
    ATTR_SERVICE_NAME,
    ATTR_SERVICE_VERSION,
} from '@opentelemetry/semantic-conventions';
import { OTLPTraceExporter } from '@opentelemetry/exporter-trace-otlp-http';
import { registerInstrumentations } from '@opentelemetry/instrumentation';
import { FetchInstrumentation } from '@opentelemetry/instrumentation-fetch';
import { ZoneContextManager } from '@opentelemetry/context-zone';
// import { SimpleSpanProcessor } from '@opentelemetry/sdk-trace-base';
import { ConsoleSpanExporter, SimpleSpanProcessor } from '@opentelemetry/sdk-trace-base';
import { DocumentLoadInstrumentation } from '@opentelemetry/instrumentation-document-load';
import { UserInteractionInstrumentation } from '@opentelemetry/instrumentation-user-interaction';
import { XMLHttpRequestInstrumentation } from '@opentelemetry/instrumentation-xml-http-request';
// Logs
// import { logs } from '@opentelemetry/api';
import { OTLPLogExporter } from '@opentelemetry/exporter-logs-otlp-http';


(1)
const otlpEndpoint = import.meta.env.VITE_OTEL_EXPORTER_OTLP_ENDPOINT; // Adjust to your OTLP endpoint
(2)
const otelSpringExampleUrl = import.meta.env.VITE_OTEL_SPRING_EXAMPLE_URL || 'http://localhost:8080';
// Convert to regex safely
const escapedUrl = otelSpringExampleUrl.replace(/[.*+?^${}()|[\]\\]/g, '\\$&');
const otelUrlRegex = new RegExp(escapedUrl);

(3)
const resource = defaultResource().merge(
    resourceFromAttributes({
        [ATTR_SERVICE_NAME]: 'react-o11y-app', // Adjust to your service name
        [ATTR_SERVICE_VERSION]: '1.0.0', // Optional: Add version or other attributes
    })
);

(4)
const traceExporter = new OTLPTraceExporter({
  url: `${otlpEndpoint}/v1/traces`, // or your collector's trace endpoint
  headers: {}, // optional headers (e.g., for auth)
});



(5)
const provider = new WebTracerProvider({
    spanProcessors: [
        new SimpleSpanProcessor(traceExporter),
        // new SimpleSpanProcessor(new ConsoleSpanExporter()), // Optional: Console exporter for debugging
    ],

    resource: resource,// Optional: Add version or other attributes
});

(6)
provider.register({
    contextManager: new ZoneContextManager(), // Use ZoneContextManager for Angular compatibility
});


(7)
registerInstrumentations({
  instrumentations: [
    new DocumentLoadInstrumentation(),
    new UserInteractionInstrumentation(),
    new FetchInstrumentation({
      propagateTraceHeaderCorsUrls: [/\/api\//, otelUrlRegex], // adjust to your backend
    }),
    new XMLHttpRequestInstrumentation({
      propagateTraceHeaderCorsUrls: [/\/api\//, otelUrlRegex],
    }),
  ],
});

1	The OTLP endpoint is configured using the environment variable `VITE_OTEL_EXPORTER_OTLP_ENDPOINT`.
2	The OTEL Spring Example URL is configured using the environment variable `VITE_OTEL_SPRING_EXAMPLE_URL`. This URL is used to propagate trace headers to the backend.
3	The resource is created with service name and version attributes.
4	The `OTLPTraceExporter` is initialized with the OTLP endpoint for traces.
5	The `WebTracerProvider` is created with a `SimpleSpanProcessor` that uses the `OTLPTraceExporter` to send traces.
6	The `ZoneContextManager` is registered to manage context propagation in the application.
7	The instrumentations are registered to automatically instrument document load events, user interactions, fetch requests, and XMLHttpRequests. The `propagateTraceHeaderCorsUrls` option is used to specify which URLs should propagate trace headers.

Instrumentation Details

The following instrumentations are automatically registered:

DocumentLoadInstrumentation: Automatically instruments document load events.
UserInteractionInstrumentation: Automatically instruments user interactions like clicks and form submissions.
FetchInstrumentation: Automatically instruments fetch requests, propagating trace headers to specified URLs.
XMLHttpRequestInstrumentation: Automatically instruments XMLHttpRequests, propagating trace headers to specified URLs.

Step 3: Initialize OpenTelemetry in the main.tsx file

Add the following code to the top of your main.tsx file to initialize OpenTelemetry:

import './otel';

src/main.tsx - updated

import './otel';
import { StrictMode } from 'react'
import { createRoot } from 'react-dom/client'
import './index.css'
import App from './App.tsx'

createRoot(document.getElementById('root')!).render(
  <StrictMode>
    <App />
  </StrictMode>,
)

Step 4: Set Up CORS on OTLP Collector

Ensure your OpenTelemetry Collector allows frontend origins:

otel-collector.yaml

  config:
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318

            #(1)
            cors:
              allowed_origins:
                - "http://localhost:5173"
                - "http://react-o11y-app.nsa2.com"
                - "https://react-o11y-app.nsa2.com"

              allowed_headers:
                - "Authorization"
                - "Content-Type"
                - "Accept"
                - "User-Agent"
                - "X-Forwarded-For"
                - "X-Requested-With"
              max_age: 3600

1	The CORS configuration allows requests from the specified origins, which is necessary for the frontend to communicate with the OTLP endpoint.

Validation

Start the app and click the button. Traces should appear in:

Console (if ConsoleSpanExporter enabled)
Jaeger or Grafana UI

$ export VITE_OTEL_EXPORTER_OTLP_ENDPOINT=http://otel-collector.nsa2.com
$ export VITE_OTEL_SPRING_EXAMPLE_URL=http://otel-spring-example.nsa2.com

$ npm run dev

Visit http://localhost:5173

Figure 3. React Application UI for Testing Observability

Using ConsoleSpanExporter

All traces will be logged to the console. This is useful for debugging and verifying that traces are being sent correctly. You can also use the ConsoleSpanExporter to log traces to the console for debugging purposes.

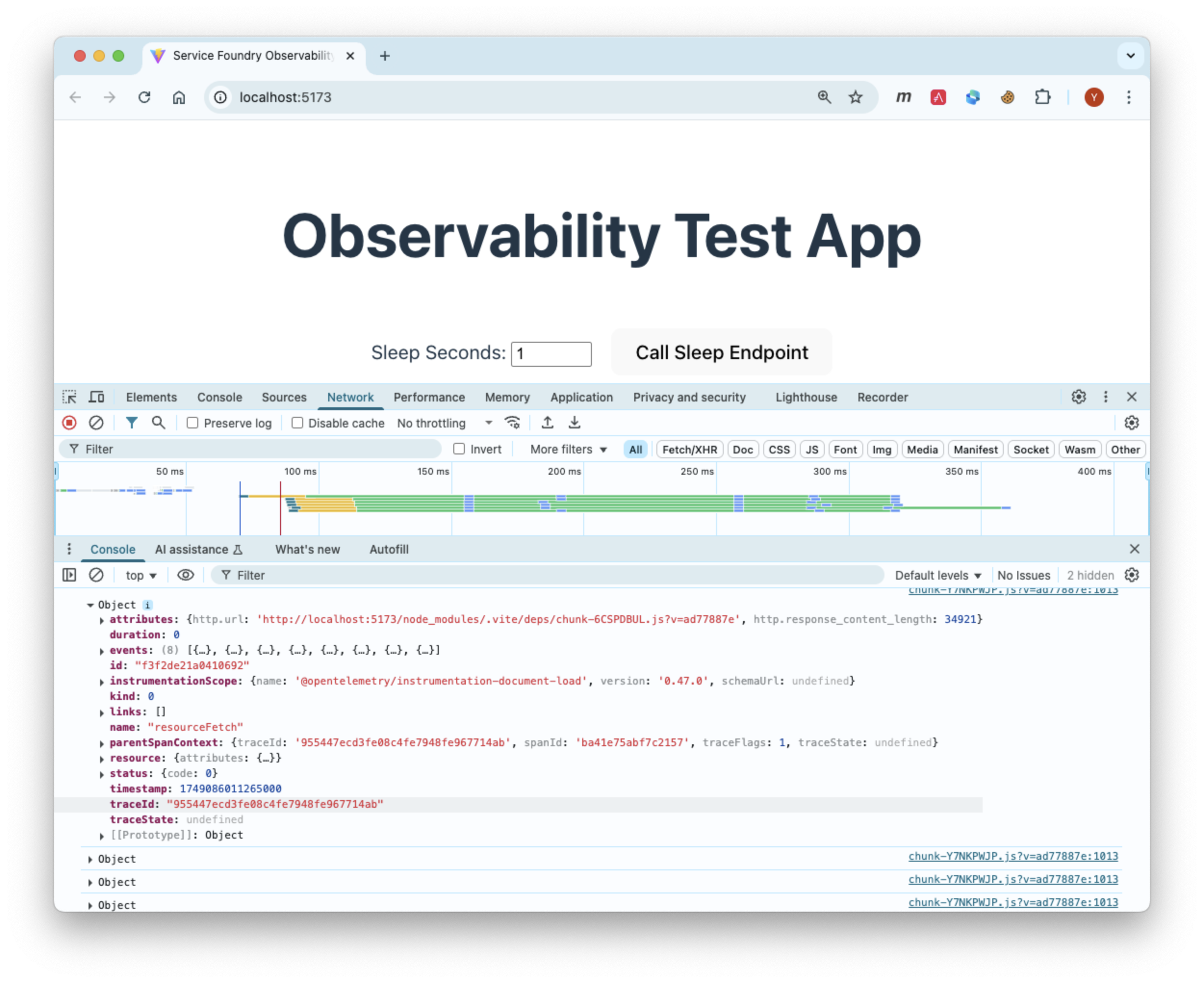

Figure 4. Traces from React in Console

To turn off the ConsoleSpanExporter, you can comment out the line in the otel.ts file:

src/otel.ts - updated

const provider = new WebTracerProvider({
    spanProcessors: [
        new SimpleSpanProcessor(traceExporter),
        // new SimpleSpanProcessor(new ConsoleSpanExporter()), // Optional: Console exporter for debugging
    ],

    resource: resource,// Optional: Add version or other attributes
});

Using OTLPTraceExporter

The OTLPTraceExporter is used to send traces to an OpenTelemetry Collector or backend that supports the OTLP protocol.

Figure 5. Grafana UI for Jaeger - Search Traces

Figure 6. Grafana UI for Jaeger - Detail View from react-o11y-app and otel-spring-example

Further Enhancements

Planned additions:

Deploying the React application in Kubernetes
Visualizing frontend traces in Grafana dashboards
Adding OTLP logging support

Conclusion

This guide demonstrated how to build an end-to-end observable React application using OpenTelemetry. By integrating tracing at the frontend and backend levels, developers can gain actionable insights and improve the overall reliability and debuggability of their applications.

📘 View the web version:

https://nsalexamy.github.io/service-foundry/pages/documents/o11y-foundry/o11y-in-react/
