Using MinIO as Object Storage for Loki in Development Environments

Overview

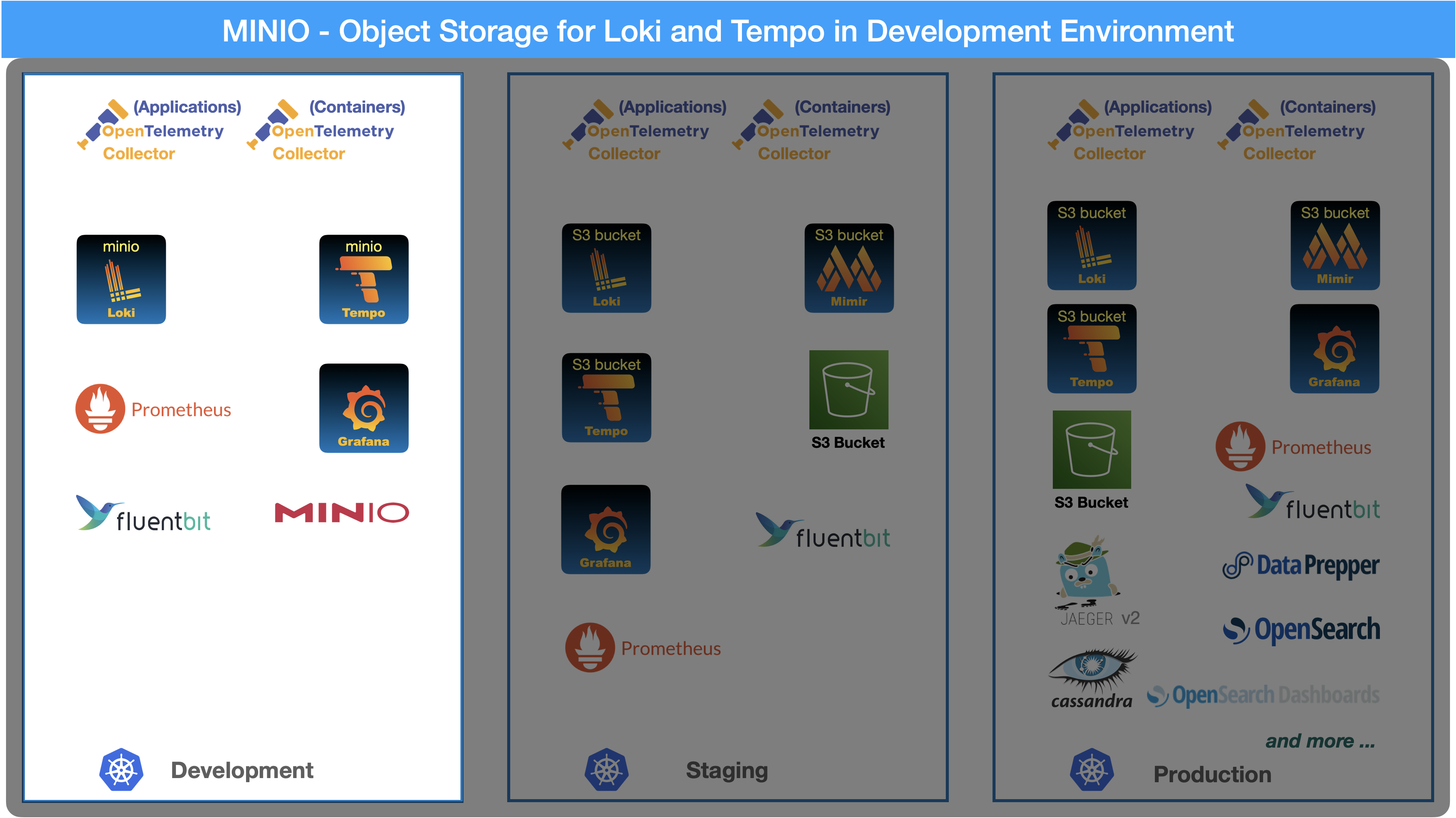

To eliminate the dependency on Amazon S3 in development environments, MinIO serves as an efficient, fully compatible object storage alternative for Loki.

This guide provides step-by-step instructions for installing MinIO on a Kubernetes cluster and configuring it to work seamlessly with Grafana Loki.

What is MinIO?

MinIO is a high-performance, distributed object storage system offering full compatibility with the S3 API. It can act as a drop-in replacement for Amazon S3 in Kubernetes-based workloads.

Advantages of Using MinIO Over S3

Cost-Effective – Operates in your environment, reducing cloud storage expenses.
High Performance – Optimized for low-latency and high-throughput workloads.
Full Control – Enables complete ownership of data and infrastructure.
S3 Compatibility – Seamless integration with tools and services designed for Amazon S3.

Installing MinIO with Helm

Add MinIO Helm Repository

Add the MinIO Helm repository to your local Helm client:

$ helm repo add minio https://charts.min.io/
$ helm repo update minio

Pull Minio chart

This section is not essential for installing MinIO, but it is useful when you want to use the chart for your own purposes, to keep a certain version, or to inspect the chart values.

To see the current version of MinIO, run the command below:

$ helm search repo minio

minio/minio             5.4.0           RELEASE.2024-12-18T13-15-44Z    High Performance Object Storage

The command below will pull the MinIO Helm chart to your local machine:

$ helm pull minio/minio

The minio-5.4.0.tgz file will be downloaded to your current directory.

Download and Inspect the Chart

To get the default values for the MinIO Helm chart, you can run the following command:

$ helm show values minio/minio --version 5.4.0 > minio-values-5.4.0.yaml

Custom Helm Values for Development

custom-minio-values-5.4.0.yaml

#(1)
rootUser: minioroot
rootPassword: minioroot

#(2)
replicas: 2   # 16 by default, but set to 2 for development

#(3)
persistence:
  size: 10Gi  # 500Gi by default, but set to 10Gi for development

users:
  - accessKey: accessKey
    secretKey: secretKey
    policy: none

1	Set the root user and password for MinIO.
2	Configure the number of replicas and persistence size for MinIO. The value of replicas in the default values file is set to 16 which is not suitable for development environments. We set it to 2 for a development environment.
3	Set the persistence size to 10Gi for development. The default value is 500Gi which is not suitable for development environments.

Install MinIO

To install MinIO in your Kubernetes cluster, you can use the following Helm command:

$ helm install minio minio/minio \
  -n o11y --create-namespace \
  --version 5.4.0 \
  -f custom-minio-values-5.4.0.yaml

Bucket Creation for Loki

Unlike S3, bucket names in MinIO are not globally unique, so you can create buckets with the same name in different namespaces. However, it is a good practice to use unique names for your buckets to avoid confusion.

The following buckets are needed for Loki:

loki-chunks: This bucket is used to store Loki’s chunked log data.
loki-ruler: This bucket is used to store Loki’s ruler data.

Install MinIO Client (mc)

To manage MinIO, you can use the MinIO client (mc). Download the MinIO client from the official website or use the following command to install it:

$ brew install minio/stable/mc

$ mc --version
$ mc --help

Accessing MinIO Locally

Port Forward the MinIO service to your local machine to access it via a web browser or the MinIO client (mc).

$ kubectl -n o11y port-forward svc/minio 9000:9000

Create an alias for the MinIO instance using the MinIO client (mc).

$ mc alias set minio-local http://localhost:9000 minioroot minioroot

'minio-local' is the alias for your MinIO instance. You can change it to any name you prefer.

Before deploying Loki, you need to create the required buckets in MinIO. The following commands will create the loki-chunks and loki-ruler buckets:

$ mc mb minio-local/loki-chunks
$ mc mb minio-local/loki-ruler

List Buckets

Verify that the buckets have been created successfully by listing the buckets in your MinIO instance.

$ mc ls minio-local

# Sample Output:
[2025-06-23 18:36:47 UTC]     0B loki-chunks/
[2025-06-23 18:36:47 UTC]     0B loki-ruler/

Persistence Considerations

MinIO ensures that log data remains persistent even if the Loki service is restarted. This persistence is achieved through the use of persistent volumes, which retain stored data unless the MinIO deployment itself is deleted.

In the example configuration for development environments, the persistence size is set to 10Gi in the custom values file. This can be adjusted based on your storage needs.

Choosing a Storage Class

Selecting the right storage class is critical for managing persistent volumes effectively. In this setup:

ebs-sc (EBS – Elastic Block Store): Suitable for development. It allows a single pod in a specific Availability Zone (AZ) to access a volume.
efs-sc (EFS – Elastic File System): Recommended for production. Multiple pods across different AZs can access the same volume.

To inspect the persistent volume claims (PVCs) created by MinIO, use the following command:

$ kubectl -n o11y get pvc -l app=minio \
  -o custom-columns="NAME:.metadata.name,STATUS:.status.phase,CAPACITY:.status.capacity.storage,ACCESS MODES:.status.accessModes[*],STORAGECLASS:.spec.storageClassName"

Sample Output:

NAME             STATUS   CAPACITY   ACCESS MODES    STORAGECLASS
export-minio-0   Bound    10Gi       ReadWriteOnce   ebs-sc
export-minio-1   Bound    10Gi       ReadWriteOnce   ebs-sc

If you need to retain data even after deleting the MinIO Helm release, consider using a PVC with the efs-sc storage class.

For more on EFS setup, refer to:

Configuring Loki to Use MinIO

Below is a sample Loki configuration for using MinIO as the object store in SingleBinary deployment mode:

deploymentMode: SingleBinary
# https://grafana.com/docs/loki/latest/configure/storage/
loki:
  auth_enabled: false

  storage:
    type: s3
    bucketNames:
      chunks: loki-chunks
      ruler: loki-ruler

    s3:
      s3forcepathstyle: true
      #(1)
      # http<s>://<username>:<secret>@<fqdn>:<port>
      endpoint: http://minioroot:minioroot@minio.o11y.svc:9000

  storage_config:

    aws:
      s3: http://minioroot:minioroot@minio.o11y.svc:9000
      s3forcepathstyle: true

    tsdb_shipper:
      active_index_directory: /var/loki/index
      cache_location: /var/loki/cache
      cache_ttl: 24h

  schemaConfig:
    configs:
      - from: "2025-06-01"
        store: tsdb
        object_store: s3
        schema: v13
        index:
          prefix: index_
          period: 24h

  compactor:
    retention_enabled: true
    delete_request_store: s3

  ruler:
    replicas: 1
    enable_api: true
    storage:
      type: s3

      s3:
        region: null
        bucketnames: loki-ruler
        s3forcepathstyle: true

    alertmanager_url: http://mimir-alertmanager/alertmanager

  limits_config:
    allow_structured_metadata: true
    retention_period: 672h # 28 days

  ingester:
    chunk_idle_period: 30s #5m
    max_chunk_age: 1m #1h
    wal:
      flush_on_shutdown: true

sidecar:
  rules:
    enabled: false

singleBinary:
  replicas: 2
  resources:
    requests:
      cpu: 500m
      memory: 1Gi
    limits:
      cpu: 1
      memory: 2Gi
  # extraArgs: ["-log.level=info", "-config.expand-env=true"]

gateway:
  enabled: true

# Disable other deployment modes
backend:
  replicas: 0
read:
  replicas: 0
write:
  replicas: 0

distributor:
  replicas: 0
ingester:
  replicas: 0
querier:
  replicas: 0
queryFrontend:
  replicas: 0
queryScheduler:
  replicas: 0
ruler:
  replicas: 0
compactor:
  replicas: 0
indexGateway:
  replicas: 0

#(2)
# serviceAccount:
  # use the default service account
  # annotations:
    # eks.amazonaws.com/role-arn: arn:aws:iam::445567090745:role/o11yLokiServiceAccountRole

1	Set the endpoint for MinIO. The format is `http<s>://<username>:<password>@<fqdn>:<port>`. In this case, we are using the MinIO root user and password.
2	The `serviceAccount` section is commented out. This annotation will try to handle IAM Roles for Service Accounts(IRSA) for the Loki service account, but it is not necessary because this does not use AWS S3. You can uncomment it if you want to use IRSA in production environments.

Verifying the Logs in MinIO

To view the contents of the loki-chunks bucket, you can use the following command:

$ mc tree minio-local/loki-chunks
