Collecting Metrics using Spring Boot Actuator and Visualizing them using Prometheus and Grafana

Introduction

This article is part of a series of articles on Metrics in Microservices. In this article, we will discuss how to collect metrics from a Spring Boot application and how to visualize them using Prometheus and Grafana.

Part 1 - Metrics in Microservices - Collecting Metrics using Spring Boot Actuator and Visualizing them using Prometheus and Grafana
Part 2 - Metrics in Microservices - Collecting Metrics using OpenTelemetry Instrumentation and Visualizing them using Prometheus and Grafana on Kubernetes
Part 3 - Metrics in Microservices - Collecting Metrics using OpenTelemetry Collector and Visualizing them using Prometheus and Grafana on Kubernetes

This article is the first part of the series.

Metrics is one of main components of the observability stack. It is used to collect, store and visualize time series data. It is used to monitor the health of the system and to debug issues. It is used to track the performance of the system and to plan for capacity. It is used to understand the behavior of the system and to make informed decisions.

In this article, we will look at how to collect metrics from a Spring Boot application and how to visualize them using Prometheus and Grafana.

Spring Boot Application

We need a Spring Boot application for this post. We are going to use the Spring Boot Application that is used for the distributed tracing.

The application can be found at the link below:

Distributed Tracing - Setup Zipkin and Sample Spring Boot Application

Make sure that the two dependencies below are added to build.gradle.kts:

implementation("org.springframework.boot:spring-boot-starter-actuator")
implementation("io.micrometer:micrometer-registry-prometheus")

I configured properties below to make it to be monitored by Prometheus.

application.yaml

# omited for brevity


management:
  endpoint.health.probes.enabled: true
  health:
    livenessstate.enabled: true
    readinessstate.enabled: true

  endpoints.web.exposure.include:
    - info
    - health
    - metrics
    - prometheus

Please make sure the endpoint /actuator/prometheus is available.

Prometheus Operator

What is Prometheus Operator?

Prometheus Operator is a Kubernetes Operator that manages Prometheus and Grafana instances. It is a part of the Cloud Native Computing Foundation (CNCF) and is widely used for monitoring Kubernetes clusters.

Install Prometheus Operator

There are several ways to install the Prometheus Operator.

Install using YAML files
Install using Kube-Prometheus
Install using Helm Chart

In this article, we will use the YAML files provided by the Prometheus Operator GitHub repository.

Use default namespace

Run the following commands to install the CRDs and deploy the operator in the default namespace:

— Prometheus Operator User Guide
Install using YAML files

It is recommended to install the Prometheus Operator in the default namespace.

Run the following commands to install the Prometheus Operator in the default namespace. I downloaded the latest version of the Prometheus Operator bundle from the GitHub repository and saved it to a file named prometheus-operator-bundle.yaml to look at the contents. But you can apply it directly without saving it to a file.

$ LATEST=$(curl -s https://api.github.com/repos/prometheus-operator/prometheus-operator/releases/latest | jq -cr .tag_name)
$ curl -sL https://github.com/prometheus-operator/prometheus-operator/releases/download/${LATEST}/bundle.yaml > \
  prometheus-operator-bundle.yaml

$ kubectl apply --server-side=true -f prometheus-operator-bundle.yaml -n default

customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/prometheusagents.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/scrapeconfigs.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com serverside-applied
clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator serverside-applied
clusterrole.rbac.authorization.k8s.io/prometheus-operator serverside-applied
deployment.apps/prometheus-operator serverside-applied
serviceaccount/prometheus-operator serverside-applied
service/prometheus-operator serverside-applied

I used the --server-side=true flag to install the Prometheus Operator because the file size is greater than 262144 bytes.

Troubleshooting

Namespace issue

If you try to install the Prometheus Operator in a namespace other than the default namespace, you will get the following error message:

the namespace from the provided object "default" does not match the namespace "monitoring". You must pass '--namespace=default' to perform this operation.

File size issue

Because the file size is greater than 262144 bytes, you need to use the --server-side=true flag to install the Prometheus Operator. If you try to install it without the --server-side=true flag, you will get the following error message:

install without the --server-side=true flag

$ kubectl apply -f prometheus-operator-bundle.yaml -n default

error message

Error from server (Invalid): error when creating "prometheus-operator-bundle.yaml":
CustomResourceDefinition.apiextensions.k8s.io "alertmanagerconfigs.monitoring.coreos.com" is invalid:
metadata.annotations: Too long: must have at most 262144 bytes

...

Service Monitor

This section is in reference to the link below:

https://prometheus-operator.dev/docs/developer/getting-started/

For more information about how to install ServiceMonitor, RBAC, Prometheus, refer to the link above.

ServiceMonitor is a custom resource that is used to monitor the services running in the Kubernetes cluster. It is used to scrape the metrics data from the target service.

We need some properties used for the service to create a ServiceMonitor.

labels
port name

View labels and port name

We used Helm chart to deploy the application, and it added labels to the service. We can use these labels to create a ServiceMonitor.

get labels from the target service

$ SVC_NAME=nsa2-opentelemetry-example; NS=nsa2; kubectl -n $NS get service $SVC_NAME -o yaml | yq .metadata.labels

app.kubernetes.io/instance: nsa2-opentelemetry-example
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/name: nsa2-opentelemetry-example
app.kubernetes.io/version: 1.16.0
helm.sh/chart: nsa2-opentelemetry-example-0.1.0

I decided to use the app.kubernetes.io/name label to create the ServiceMonitor.

And port information used in the application is also needed. We can get the port name from the service.

get service port name

$ SVC_NAME=nsa2-opentelemetry-example; NS=nsa2; kubectl -n $NS get service $SVC_NAME -o yaml | yq '.spec.ports | .[].name'

http

We are going to use the http port name to create the ServiceMonitor for endpoints.

nsa2-opentelemetry-example-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: nsa2-opentelemetry-example-servicemonitor
  namespace: nsa2
  labels:
    team: nsa2
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: nsa2-opentelemetry-example
  endpoints:
#    - port: http
#      interval: 30s
#      scheme: http
#      path: /actuator/prometheus
    - port: metrics
      interval: 30s
      scheme: http
      path: /metrics

Note that we are using /actuator/prometheus as the target endpoint that provides the metrics data by the Spring Boot Actuator. You can see the labels and port name in the ServiceMonitor configuration. The app.kubernetes.io/name label is used to select the target service in matchLabels.

create ServiceMonitor

$ kubectl apply -n nsa2 -f nsa2-opentelemetry-example-servicemonitor.yaml

servicemonitor.monitoring.coreos.com/nsa2-opentelemetry-example-servicemonitor created

We created a ServiceMonitor named nsa2-opentelemetry-example-servicemonitor in the namespace nsa2. The ServiceMonitor is used to scrape the metrics data from the target service.

I added a label team: nsa2 to the ServiceMonitor to select the target service. Prometheus running on nsa2 namespace will scrape the metrics from all related services using ServiceMonitors having team: nsa2 label. You can add more labels to the ServiceMonitor to select the target service.

Deploy Prometheus

Now that we have the ServiceMonitor, we can deploy Prometheus to scrape the metrics data from the target service. We need proper permissions to create Prometheus resources. We are going to create RBAC resources first.

Create RBAC

We need to create the following RBAC resources below.

ServiceAccount
ClusterRole
ClusterRoleBinding

prometheus-rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus
  namespace: nsa2
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: prometheus-nsa2
  namespace: nsa2
rules:
  - apiGroups: [""]
    resources:
      - nodes
      - nodes/metrics
      - services
      - endpoints
      - pods
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources:
      - configmaps
    verbs: ["get"]
  - apiGroups:
      - discovery.k8s.io
    resources:
      - endpointslices
    verbs: ["get", "list", "watch"]
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs: ["get", "list", "watch"]
  - nonResourceURLs: ["/metrics"]
    verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: prometheus-nsa2
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus-nsa2
subjects:
  - kind: ServiceAccount
    name: prometheus
    namespace: nsa2

create RBAC resources

$ kubectl -n nsa2 apply -f prometheus-rbac.yaml

serviceaccount/prometheus created
clusterrole.rbac.authorization.k8s.io/prometheus created
clusterrolebinding.rbac.authorization.k8s.io/prometheus created

We created a ServiceAccount named prometheus which is used to run the Prometheus pod. We also created a ClusterRole named prometheus and a ClusterRoleBinding named prometheus to give the proper permissions to the ServiceAccount.

Create Prometheus

We need to create a Prometheus resource to deploy Prometheus. We are going to use the Prometheus configuration file below.

prometheus.yaml

apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  name: prometheus
  namespace: nsa2
spec:
  serviceAccountName: prometheus
  serviceMonitorSelector:
    matchLabels:
      team: nsa2
  resources:
    requests:
      memory: 400Mi
  enableAdminAPI: false

  # for more information on the following configuration,
  #  see
  # - https://prometheus-operator.dev/docs/api-reference/api/
  # - https://prometheus.io/docs/prometheus/latest/querying/api/#remote-write-receiver
  # /api/v1/write (web.enable-remote-write-receiver)
  # /api/v1/otlp/v1/metrics (web.enable-otlp-receiver)
  additionalArgs:
    - name: "web.enable-remote-write-receiver"
      value: ""
    - name: "web.enable-otlp-receiver"
      value: ""
#  according to log message, the following configuration is not working.
#  enableFeatures:
#    - remote-write-receiver
#    - otlp-write-receiver

In the Prometheus configuration, we are using the ServiceMonitor that we created earlier. It is configured in serviceMonitorSelector section with the label of team: nsa2. The Prometheus Operator automatically discovers the ServiceMonitor and scrapes the metrics data.

We are going to create a Prometheus resource in namespace nsa2 to scrape the metrics data from the target service.

Create Prometheus

$ kubectl apply -n nsa2 -f prometheus.yaml

prometheus.monitoring.coreos.com/prometheus created

The service monitor that we created earlier is used in the Prometheus configuration. Service Monitor provides the target service information to Prometheus. The Prometheus Operator automatically discovers the ServiceMonitor and scrapes the metrics data.

Adding Persistent Volume

Refer to the link below to add a Persistent Volume to the Prometheus deployment.

https://github.com/prometheus-operator/prometheus-operator/blob/main/Documentation/user-guides/storage.md

Exposing the Prometheus service

We can expose the Prometheus service to access the Prometheus UI. Run the command below to expose the Prometheus service.

prometheus-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: nsa2
spec:
  type: NodePort
  ports:
    - name: web
      nodePort: 30900
      port: 9090
      protocol: TCP
      targetPort: web
  selector:
    prometheus: prometheus

Create Prometheus Service

$ kubectl apply -n nsa2 -f prometheus-service.yaml

service/prometheus created

Now that we have Prometheus running, we can access the Prometheus UI by port-forwarding the Prometheus service.

port-forward Prometheus service

$ kubectl -n nsa2 port-forward service/prometheus 9090:9090

Now you can access the Prometheus UI at http://localhost:9090.

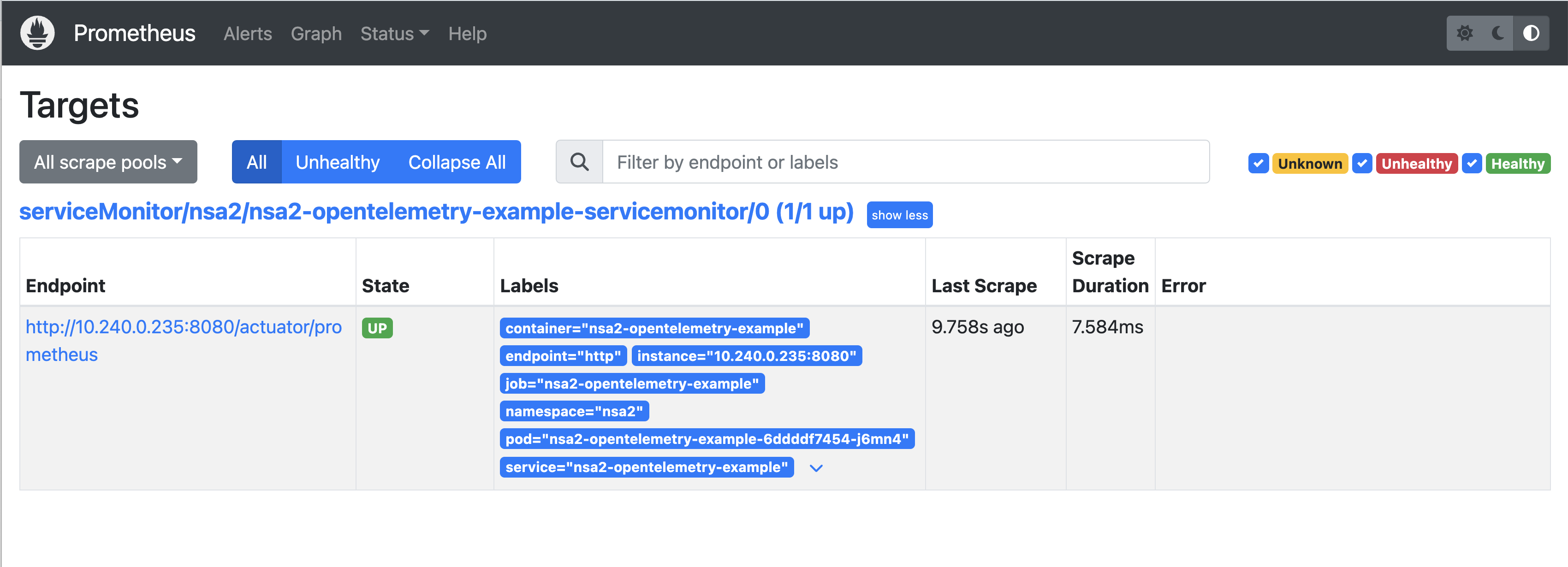

Execute Status → Targets to see the targets that Prometheus is scraping. You can see the target that we created earlier. Or navigate http://localhost:9090/targets to see the targets.

Scale out the target service

Because we are using ServiceMonitor, Prometheus automatically discovers the pods of the target service and scrapes the metrics data.

Let’s execute the command below to scale out the target service to see how Prometheus discovers the new pods.

scale out the target service

$ kubectl -n nsa2 scale deployment nsa2-opentelemetry-example --replicas=3

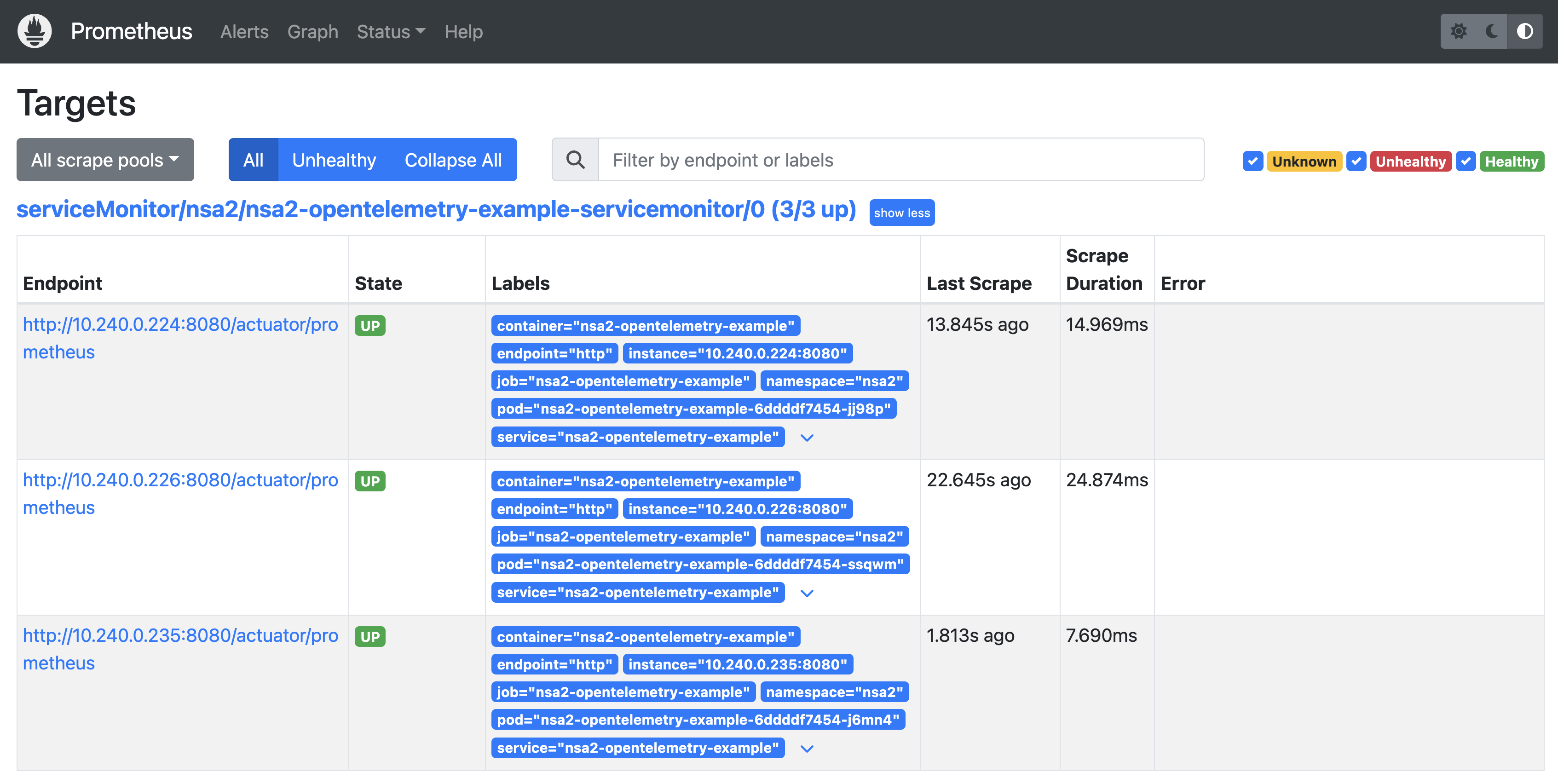

Now you can see the new pods in the Prometheus UI.

Prometheus Graph

You can use the Prometheus UI to create a graph to visualize the metrics data. Navigate to the Graph tab and enter the query below to see the metrics data. Or use http://localhost:9090/graph to see the graph.

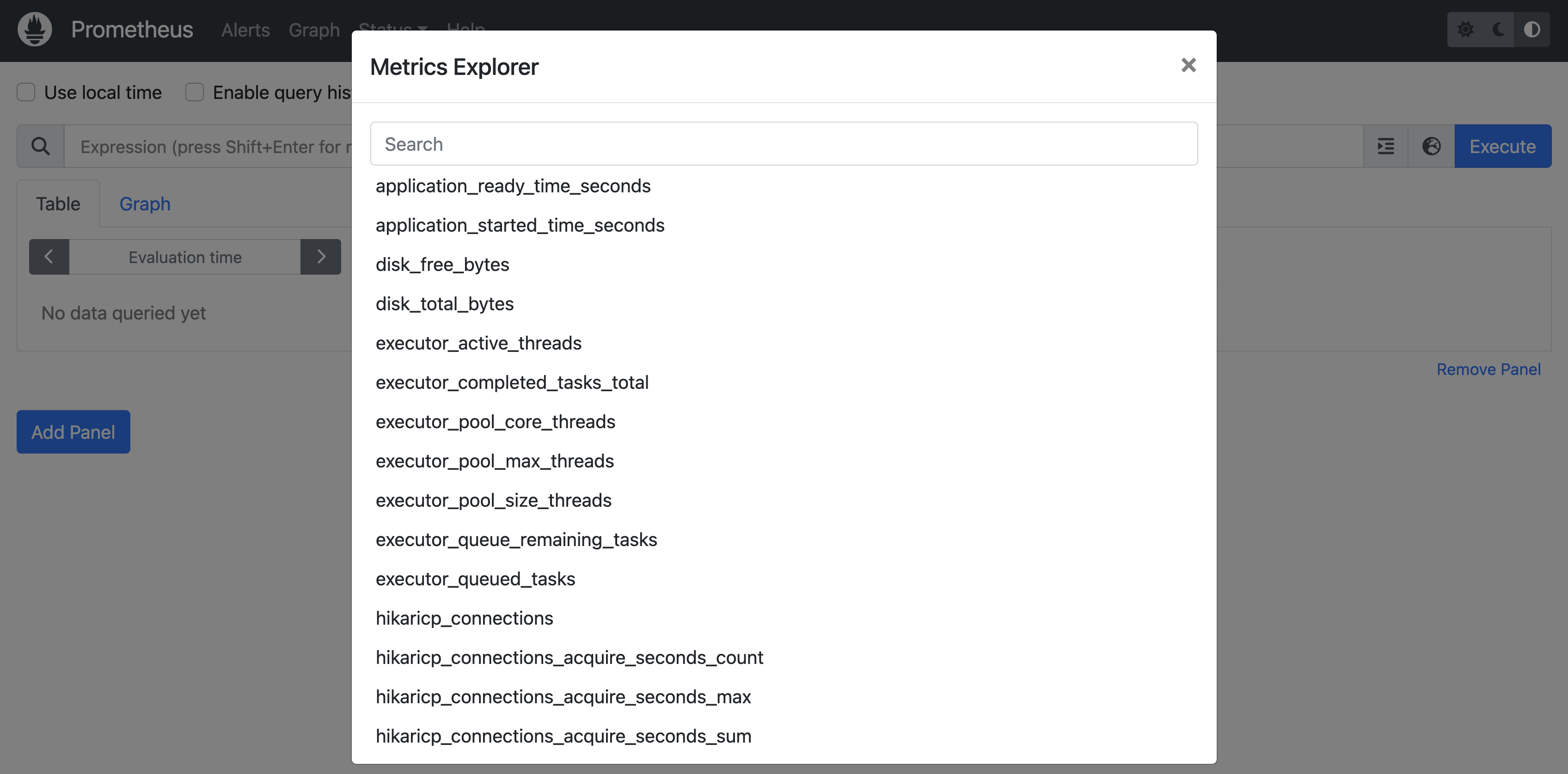

Click Metrics Explorer button to see the available metrics which is located left side of the Execute button.

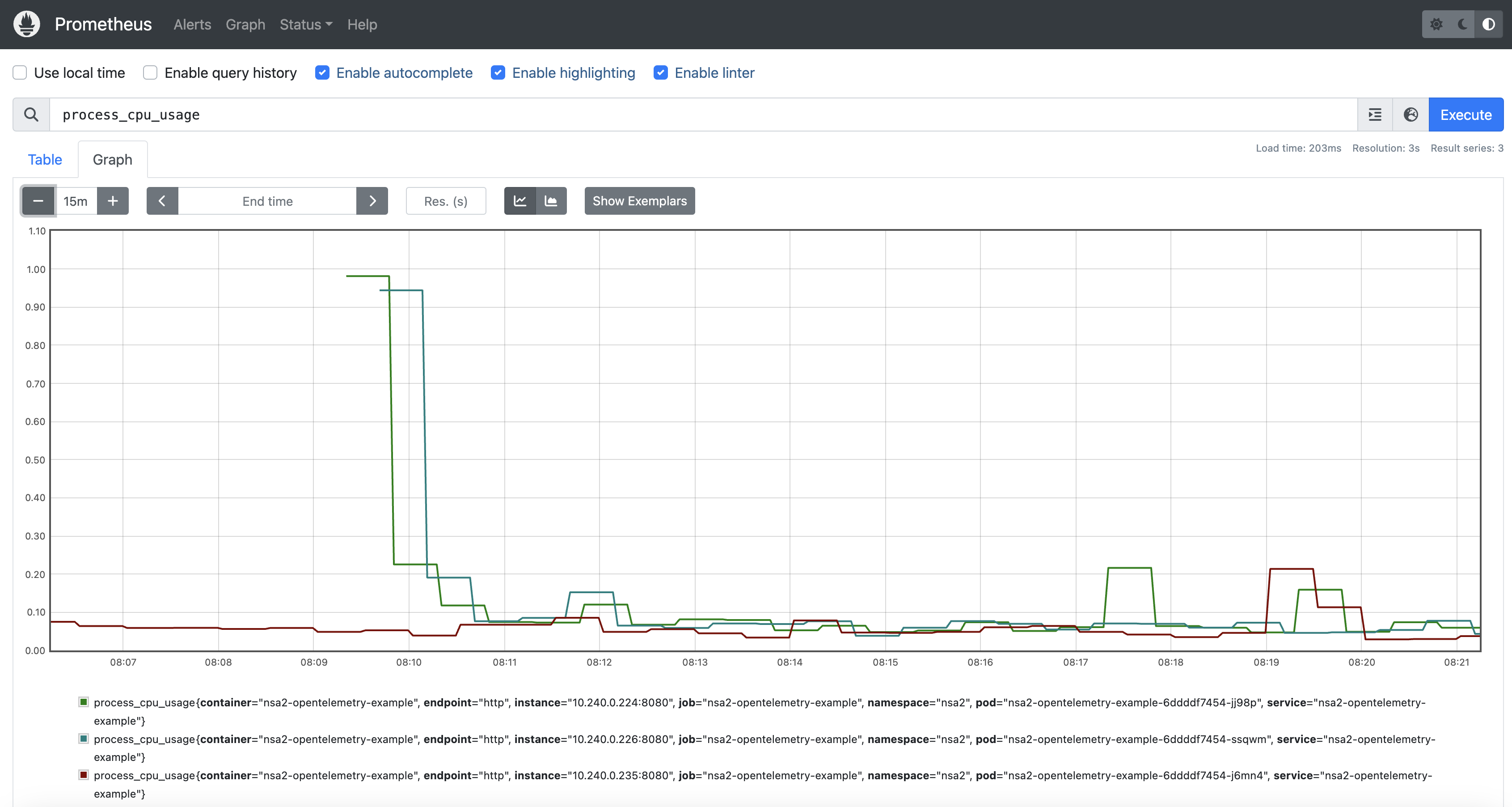

To visualize the metrics data, enter the query below in the query input box. Here is an example of 'process_cpu_usage' metric.

References

https://medium.com/@moyo.oyegunle/using-prometheus-and-spring-boot-actuator-to-monitor-your-application-1b0b7b1b71e2

Grafana

What is Grafana?

Grafana is an open-source analytics and monitoring platform. It is used to visualize time series data. It is used to monitor the health of the system and to debug issues. It is used to track the performance of the system and to plan for capacity. It is used to understand the behavior of the system and to make informed decisions.

Install Grafana using Helm

This section is in reference to the link below:

https://grafana.com/docs/grafana/latest/setup-grafana/installation/helm/

add the Grafana Helm repository

$ helm repo add grafana https://grafana.github.io/helm-charts

"grafana" has been added to your repositories

$ helm repo update
$ helm search repo grafana

create a namespace for Grafana

$ kubectl get namespace nsa2 || kubectl create namespace nsa2

The command above will create a namespace named nsa2 if it does not exist.

Search for the Grafana Helm chart

$ helm search repo grafana/grafana

NAME                            CHART VERSION   APP VERSION     DESCRIPTION
grafana/grafana                 8.4.4           11.1.3          The leading tool for querying and visualizing t...
grafana/grafana-agent           0.42.0          v0.42.0         Grafana Agent
grafana/grafana-agent-operator  0.4.1           0.42.0          A Helm chart for Grafana Agent Operator
grafana/grafana-sampling        0.1.1           v0.40.2         A Helm chart for a layered OTLP tail sampling a...

values.yaml

We are going to create a file named nsa2-grafana-values.yaml to store the values of the Grafana Helm chart.

Show the values of the Grafana Helm chart

$ helm show values grafana/grafana > grafana-opensearch-values.yaml

We saved the values of the Grafana Helm chart to a file named grafana-values.yaml. We will see the whole configuration of the Grafana Helm chart in the file.

nsa2-grafana-values.yaml

resources:
  limits:
    cpu: 200m
    memory: 1024Mi
  requests:
    cpu: 100m
    memory: 128Mi

nodeSelector:
  agentpool: depnodes


persistence:
  enabled: true

admin:
  existingSecret: grafana-admin-credentials

datasources:
  datasources.yaml:
    apiVersion: 1
    datasources:
    - name: Prometheus
      type: prometheus
      url: http://prometheus:9090
      # Access mode - proxy (server in the UI) or direct (browser in the UI).
      access: proxy
      isDefault: true

The configuration file above includes the values that we are going to use to install Grafana. To save data in the persistent volume, we set the persistence.enabled to true. We also set the datasources.datasources.yaml to configure the Prometheus data source. We set the admin.existingSecret to grafana-admin-credentials to store the admin password in the secret. We will create the secret in the next step.

Create a secret for the admin password

We are going to create a secret to store the admin password for Grafana. The admin user is admin and the password is admin for this example. You can change the password to a more secure one.

create a secret for the admin password

$ kubectl create secret generic grafana-admin-credentials \
  --from-literal=admin-user=admin \
  --from-literal=admin-password=admin -n nsa2 \
  --dry-run=client -o yaml \
  | yq eval 'del(.metadata.creationTimestamp)' \
  > grafana-admin-credentials.yaml

$ kubectl apply -f grafana-admin-credentials.yaml

We created a secret named grafana-admin-credentials to store the admin password for Grafana. The admin user is admin and the password is admin for this example.

Install Grafana

Run the commands below to install the Grafana Helm chart.

Install the Grafana Helm chart

$ helm install grafana grafana/grafana --namespace nsa2 -f nsa2-grafana-opensearch-values.yaml

Uninstall Grafana

Run the commands below to uninstall the Grafana Helm chart.

Uninstall the Grafana Helm chart

$ helm uninstall grafana -n nsa2

$ kubectl -n nsa2 delete secret grafana-admin-credentials
$ kubectl -n nsa2 delete pvc -l app.kubernetes.io/name=grafana

Expose Grafana

port-forward to access Grafana

$ kubectl -n nsa2 port-forward svc/grafana 3000:80

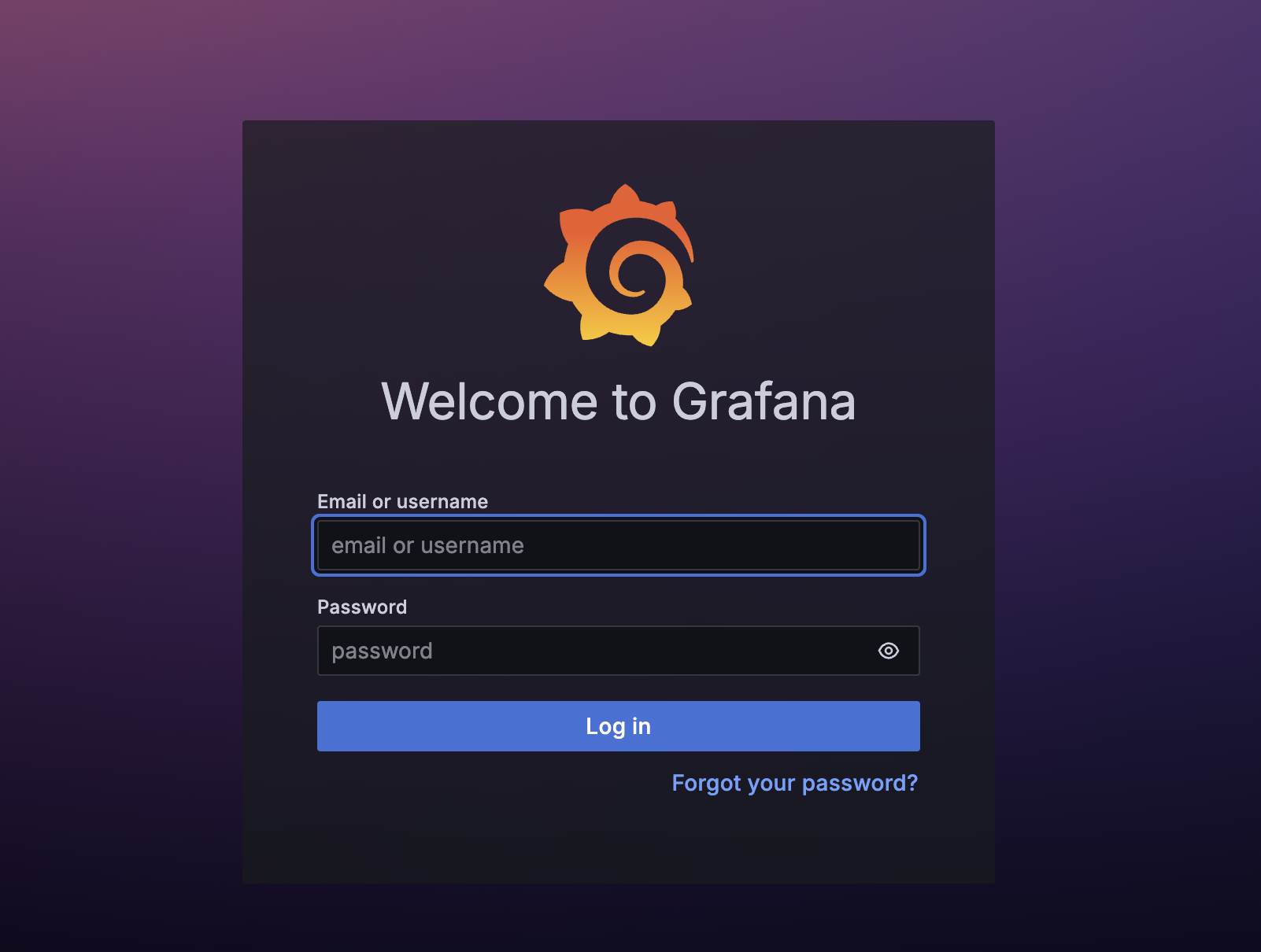

You can access Grafana at http://localhost:3000.

Use the admin user and password to sign in that are stored in the secret grafana-admin-credentials.

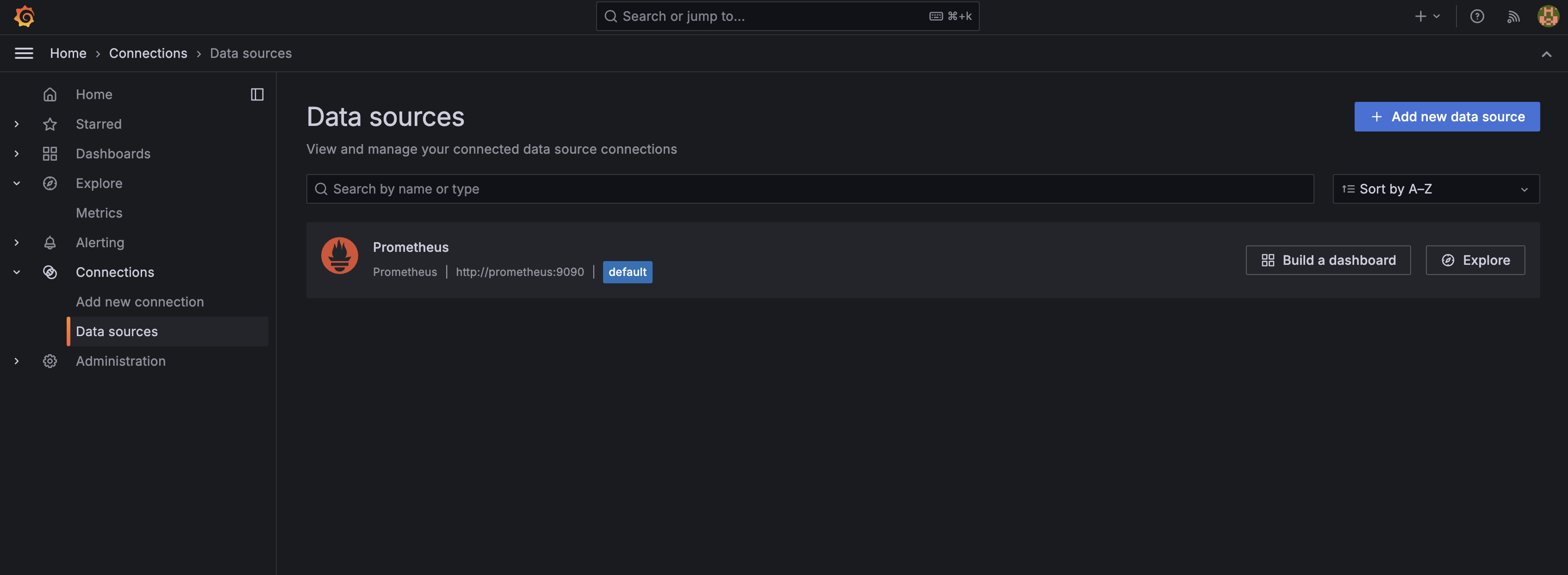

We can see prometheus as a data source in the image above which is configured in the nsa2-grafana-values.yaml file.

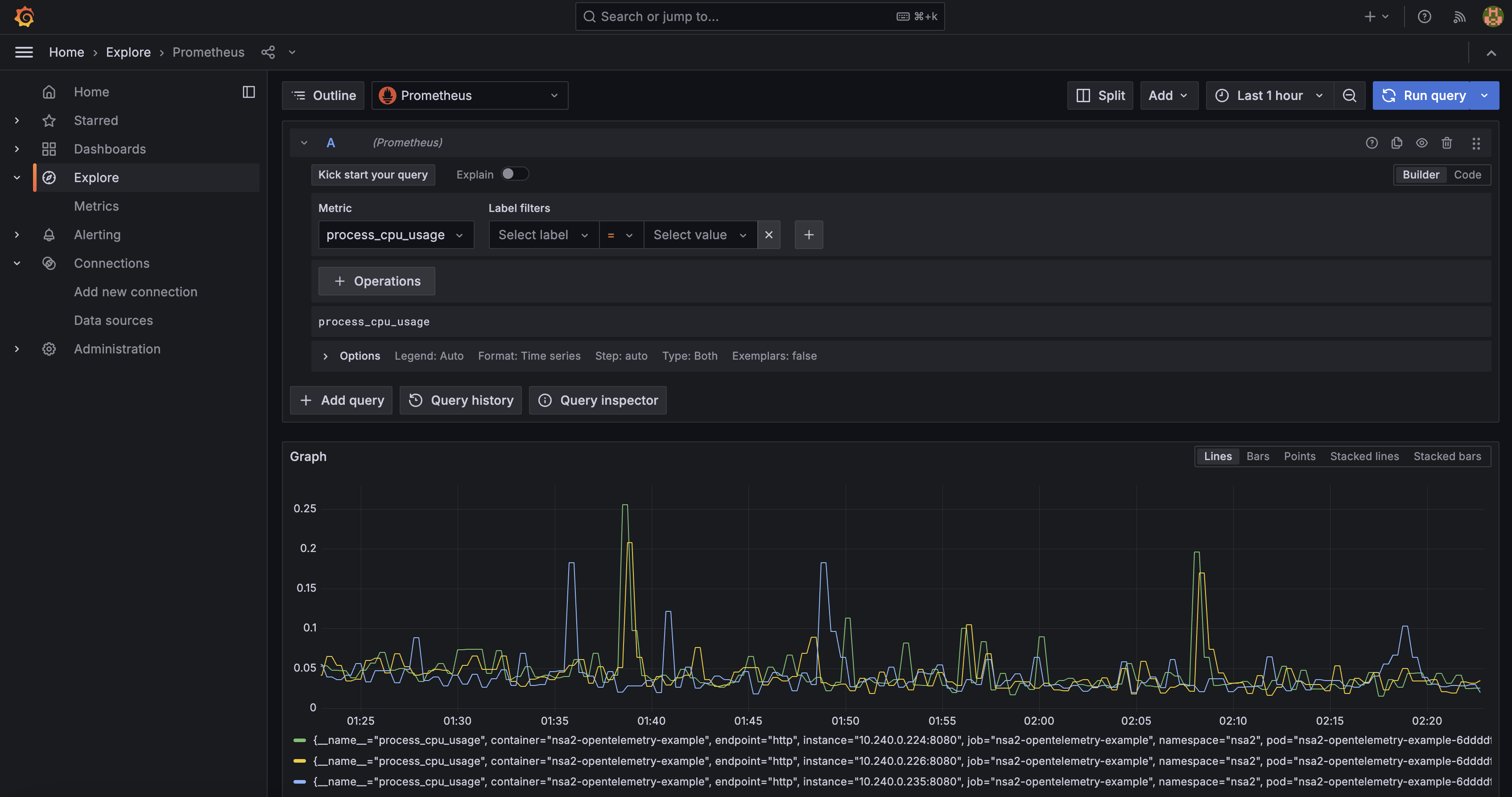

Here is an example of a dashboard that shows the CPU usage of the process.

Forced to change the password

The password for the admin user is admin by default. We are forced to change the password when we log in for the first time. It is changeme as of 2024-09-23.

Conclusion

In this article, we explored the process of collecting metrics from a Spring Boot application, providing detailed steps on how to monitor and analyze the application’s performance. We guided you through the installation of Prometheus and Grafana on a Kubernetes cluster, explaining how Prometheus gathers metrics data and Grafana visualizes it. Additionally, we demonstrated how to create dashboards in Grafana to effectively interpret and track the collected metrics, helping you gain a deeper understanding of your application’s behavior and resource usage.

Collecting Metrics using Spring Boot Actuator and Visualizing them using Prometheus and Grafana

Introduction

Spring Boot Application

Prometheus Operator

What is Prometheus Operator?

Install Prometheus Operator

Use default namespace

Troubleshooting

Namespace issue

File size issue

Service Monitor

View labels and port name

Deploy Prometheus

Create RBAC

Create Prometheus

Adding Persistent Volume

Exposing the Prometheus service

Scale out the target service

Prometheus Graph

References

Related

Grafana

What is Grafana?

Install Grafana using Helm

values.yaml

Create a secret for the admin password

Install Grafana

Uninstall Grafana

Expose Grafana

Forced to change the password

Conclusion
