Application Observability Platform - Scrape Metrics using OpenTelemetry Target Allocator

On this page

Overview
Instrumenting Applications with OpenTelemetry
- Step 1: Download the ava Agent
- Sample Dockerfile for a Spring Boot Application
Accessing Exported Metrics
- Collector Configuration with Target Allocator Enabled
- Create ServiceMonitor
Scraping with Prometheus

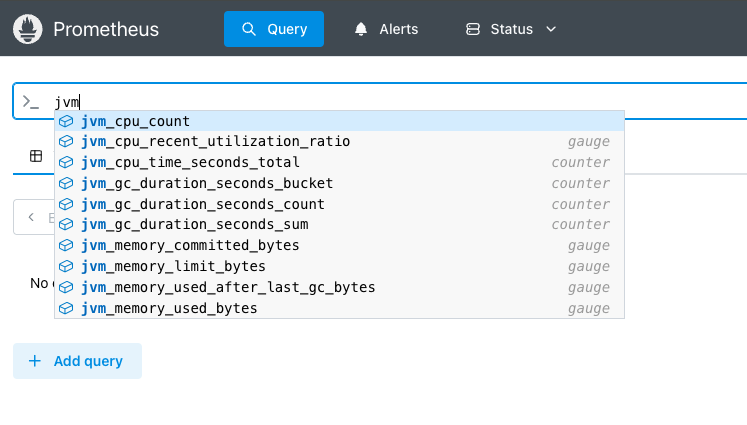

Filtering Metrics with the filter Processor
Conclusion

Overview

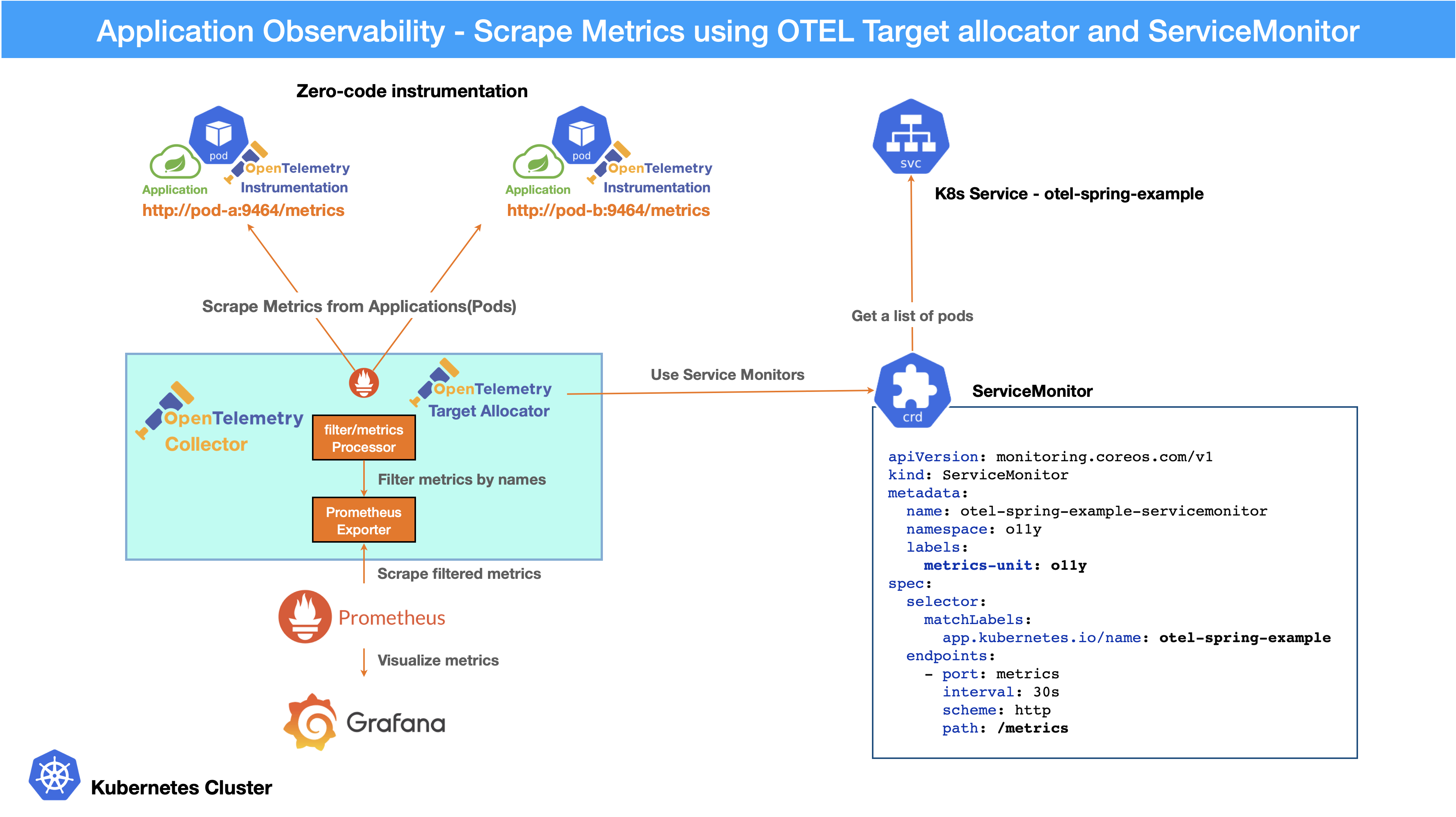

This guide outlines how to collect metrics from your application using the OpenTelemetry Target Allocator. It also demonstrates how to filter those metrics using the metrics filter processor in the OpenTelemetry Collector.

Topics covered:

Instrumenting applications with OpenTelemetry to expose metrics
Configuring ServiceMonitor to work with the Target Allocator
Integrating Target Allocator in the OpenTelemetry Collector
Filtering metrics using the filter processor

Instrumenting Applications with OpenTelemetry

OpenTelemetry Instrumentation allows automatic collection of telemetry data from your application, including metrics, traces, and logs.

Step 1: Download the ava Agent

You can download the latest OpenTelemetry Java Agent from the following link:

https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases

The opentelemetry-javaagent.jar file is the Java agent that you can use to instrument your application.

java -javaagent:path-to-opentelemetry-javaagent.jar -jar path-to-your-application.jar

OpenTelemetry exposes a Prometheus-compatible endpoint at:

http://<application-host>:9464/metrics

Sample Dockerfile for a Spring Boot Application

Below is a Dockerfile that integrates the OpenTelemetry Java Agent into a Spring Boot application:

FROM openjdk:21-jdk-bullseye
COPY ./otel-spring-example-0.0.1-SNAPSHOT.jar /usr/app/otel-spring-example.jar
COPY ./opentelemetry-javaagent.jar /usr/app/javaagent/opentelemetry-javaagent.jar
WORKDIR /usr/app
EXPOSE 8080
EXPOSE 9464
ENTRYPOINT ["java", "-Xshare:off", "-javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar", "-jar", "otel-spring-example.jar", "--spring.cloud.bootstrap.enabled=true", "--server.port=8080", "--spring.main.banner-mode=off"]

The application exposes metrics on port 9464.

Accessing Exported Metrics

With Service Foundry set up, the example app (otel-spring-example) runs in the o11y namespace and is instrumented with the OpenTelemetry agent.

To port-forward and access the metrics endpoint:

$ kubectl port-forward -n o11y svc/otel-spring-example 9464:9464

Then visit:

http://localhost:9464/metrics

This endpoint exposes a wide range of JVM and HTTP server metrics.

The entire metrics output is too long to display here, but you can see a sample of the metrics below:

# HELP http_server_request_duration_seconds Duration of HTTP server requests.
# TYPE http_server_request_duration_seconds histogram
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.005"} 9055
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.01"} 9064
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.025"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.05"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.075"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.1"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.25"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.5"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="0.75"} 9066
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="1.0"} 9067
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="2.5"} 9068
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="5.0"} 9068
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="7.5"} 9068
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="10.0"} 9068
http_server_request_duration_seconds_bucket{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http",le="+Inf"} 9068
http_server_request_duration_seconds_count{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http"} 9068
http_server_request_duration_seconds_sum{http_request_method="GET",http_response_status_code="200",http_route="/actuator/health/**",network_protocol_version="1.1",otel_scope_name="io.opentelemetry.tomcat-10.0",otel_scope_version="2.9.0-alpha",url_scheme="http"} 10.92108946699998
# HELP jvm_class_count Number of classes currently loaded.
# TYPE jvm_class_count gauge
jvm_class_count{otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 13574.0
# HELP jvm_class_loaded_total Number of classes loaded since JVM start.
# TYPE jvm_class_loaded_total counter
jvm_class_loaded_total{otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 13801.0
# HELP jvm_class_unloaded_total Number of classes unloaded since JVM start.
# TYPE jvm_class_unloaded_total counter
jvm_class_unloaded_total{otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 227.0
# HELP jvm_cpu_count Number of processors available to the Java virtual machine.
# TYPE jvm_cpu_count gauge
jvm_cpu_count{otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.0
# HELP jvm_cpu_recent_utilization_ratio Recent CPU utilization for the process as reported by the JVM.
# TYPE jvm_cpu_recent_utilization_ratio gauge
jvm_cpu_recent_utilization_ratio{otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 0.014705882352941176
# HELP jvm_cpu_time_seconds_total CPU time used by the process as reported by the JVM.
# TYPE jvm_cpu_time_seconds_total counter
jvm_cpu_time_seconds_total{otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 60.84
# HELP jvm_gc_duration_seconds Duration of JVM garbage collection actions.
# TYPE jvm_gc_duration_seconds histogram
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="0.01"} 0
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="0.1"} 2
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="1.0"} 3
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="10.0"} 3
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="+Inf"} 3
jvm_gc_duration_seconds_count{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 3
jvm_gc_duration_seconds_sum{jvm_gc_action="end of major GC",jvm_gc_name="MarkSweepCompact",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 0.375
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="0.01"} 143
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="0.1"} 156
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="1.0"} 156
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="10.0"} 156
jvm_gc_duration_seconds_bucket{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha",le="+Inf"} 156
jvm_gc_duration_seconds_count{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 156
jvm_gc_duration_seconds_sum{jvm_gc_action="end of minor GC",jvm_gc_name="Copy",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 0.8930000000000001
# HELP jvm_memory_committed_bytes Measure of memory committed.
# TYPE jvm_memory_committed_bytes gauge
jvm_memory_committed_bytes{jvm_memory_pool_name="CodeHeap 'non-nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2555904.0
jvm_memory_committed_bytes{jvm_memory_pool_name="CodeHeap 'non-profiled nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 9764864.0
jvm_memory_committed_bytes{jvm_memory_pool_name="CodeHeap 'profiled nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2.29376E7
jvm_memory_committed_bytes{jvm_memory_pool_name="Compressed Class Space",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 9699328.0
jvm_memory_committed_bytes{jvm_memory_pool_name="Eden Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.9398656E7
jvm_memory_committed_bytes{jvm_memory_pool_name="Metaspace",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 7.962624E7
jvm_memory_committed_bytes{jvm_memory_pool_name="Survivor Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2359296.0
jvm_memory_committed_bytes{jvm_memory_pool_name="Tenured Gen",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 4.8164864E7
# HELP jvm_memory_limit_bytes Measure of max obtainable memory.
# TYPE jvm_memory_limit_bytes gauge
jvm_memory_limit_bytes{jvm_memory_pool_name="CodeHeap 'non-nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 5828608.0
jvm_memory_limit_bytes{jvm_memory_pool_name="CodeHeap 'non-profiled nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.22916864E8
jvm_memory_limit_bytes{jvm_memory_pool_name="CodeHeap 'profiled nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.22912768E8
jvm_memory_limit_bytes{jvm_memory_pool_name="Compressed Class Space",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.073741824E9
jvm_memory_limit_bytes{jvm_memory_pool_name="Eden Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 7.1630848E7
jvm_memory_limit_bytes{jvm_memory_pool_name="Survivor Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 8912896.0
jvm_memory_limit_bytes{jvm_memory_pool_name="Tenured Gen",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.78978816E8
# HELP jvm_memory_used_after_last_gc_bytes Measure of memory used, as measured after the most recent garbage collection event on this pool.
# TYPE jvm_memory_used_after_last_gc_bytes gauge
jvm_memory_used_after_last_gc_bytes{jvm_memory_pool_name="Eden Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 0.0
jvm_memory_used_after_last_gc_bytes{jvm_memory_pool_name="Survivor Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 51432.0
jvm_memory_used_after_last_gc_bytes{jvm_memory_pool_name="Tenured Gen",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2.8897232E7
# HELP jvm_memory_used_bytes Measure of memory used.
# TYPE jvm_memory_used_bytes gauge
jvm_memory_used_bytes{jvm_memory_pool_name="CodeHeap 'non-nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1465088.0
jvm_memory_used_bytes{jvm_memory_pool_name="CodeHeap 'non-profiled nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 9717760.0
jvm_memory_used_bytes{jvm_memory_pool_name="CodeHeap 'profiled nmethods'",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2.288896E7
jvm_memory_used_bytes{jvm_memory_pool_name="Compressed Class Space",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 9219224.0
jvm_memory_used_bytes{jvm_memory_pool_name="Eden Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 5660880.0
jvm_memory_used_bytes{jvm_memory_pool_name="Metaspace",jvm_memory_type="non_heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 7.8783512E7
jvm_memory_used_bytes{jvm_memory_pool_name="Survivor Space",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 51432.0
jvm_memory_used_bytes{jvm_memory_pool_name="Tenured Gen",jvm_memory_type="heap",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2.9044624E7
# HELP jvm_thread_count Number of executing platform threads.
# TYPE jvm_thread_count gauge
jvm_thread_count{jvm_thread_daemon="false",jvm_thread_state="runnable",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.0
jvm_thread_count{jvm_thread_daemon="false",jvm_thread_state="timed_waiting",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 2.0
jvm_thread_count{jvm_thread_daemon="false",jvm_thread_state="waiting",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 1.0
jvm_thread_count{jvm_thread_daemon="true",jvm_thread_state="runnable",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 8.0
jvm_thread_count{jvm_thread_daemon="true",jvm_thread_state="timed_waiting",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 7.0
jvm_thread_count{jvm_thread_daemon="true",jvm_thread_state="waiting",otel_scope_name="io.opentelemetry.runtime-telemetry-java8",otel_scope_version="2.9.0-alpha"} 3.0
# TYPE otlp_exporter_exported_total counter
otlp_exporter_exported_total{otel_scope_name="io.opentelemetry.exporters.otlp-http",success="false",type="log"} 2.0
otlp_exporter_exported_total{otel_scope_name="io.opentelemetry.exporters.otlp-http",success="true",type="log"} 13.0
# TYPE otlp_exporter_seen_total counter
otlp_exporter_seen_total{otel_scope_name="io.opentelemetry.exporters.otlp-http",type="log"} 15.0
# HELP processedLogs_ratio_total The number of logs processed by the BatchLogRecordProcessor. [dropped=true if they were dropped due to high throughput]
# TYPE processedLogs_ratio_total counter
processedLogs_ratio_total{dropped="false",otel_scope_name="io.opentelemetry.sdk.logs",processorType="BatchLogRecordProcessor"} 13.0
# HELP queueSize_ratio The number of items queued
# TYPE queueSize_ratio gauge
queueSize_ratio{otel_scope_name="io.opentelemetry.sdk.logs",processorType="BatchLogRecordProcessor"} 0.0
queueSize_ratio{otel_scope_name="io.opentelemetry.sdk.trace",processorType="BatchSpanProcessor"} 0.0
# TYPE target_info gauge
target_info{container_id="df6df175d51d25b922e38ea865136c856c76ac6b0fd47749b3bfb21693dc8b00",host_arch="amd64",host_name="otel-spring-example-57d5cc6b88-tfhq9",os_description="Linux 5.10.236-228.935.amzn2.x86_64",os_type="linux",process_command_args="[/usr/local/openjdk-21/bin/java, -Xshare:off, -Dotel.javaagent.extensions=/usr/app/javaagent/nsa2-otel-extension-1.0-all.jar, -jar, otel-spring-example.jar, --spring.cloud.bootstrap.enabled=true, --server.port=8080, --spring.main.banner-mode=off]",process_executable_path="/usr/local/openjdk-21/bin/java",process_pid="1",process_runtime_description="Oracle Corporation OpenJDK 64-Bit Server VM 21+35-2513",process_runtime_name="OpenJDK Runtime Environment",process_runtime_version="21+35-2513",service_instance_id="1d0a9d8e-045e-4819-a833-af3f8ac947ea",service_name="otel-spring-example",service_version="0.0.1-SNAPSHOT",telemetry_distro_name="opentelemetry-java-instrumentation",telemetry_distro_version="2.9.0",telemetry_sdk_language="java",telemetry_sdk_name="opentelemetry",telemetry_sdk_version="1.43.0"} 1

Collector Configuration with Target Allocator Enabled

OpenTelemetry Target Allocator is a component that dynamically assigns scrape targets for metrics collection. It is used to automate the process of scraping metrics from OpenTelemetry-instrumented applications.

otel-collector.yaml - metrics related configuration

apiVersion: opentelemetry.io/v1beta1
kind: OpenTelemetryCollector
metadata:
  name: otel
  namespace: o11y

spec:
  mode: statefulset
  targetAllocator:
    enabled: true
    serviceAccount: otel-targetallocator-sa
    prometheusCR:
      enabled: true
      # use this to enable ServiceMonitor
      serviceMonitorSelector: {}
      podMonitorSelector: {}

  config:
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318

      prometheus:
        config:
          scrape_configs:
            - job_name: 'otel-collector'
              scrape_interval: 30s
              static_configs:
                - targets: ['0.0.0.0:8888']

    processors:
      memory_limiter:
        check_interval: 1s
        limit_percentage: 75
        spike_limit_percentage: 15
      batch:
        send_batch_size: 10000
        timeout: 10s

    exporters:
      debug:
        verbosity: detailed

      prometheus:
        endpoint: "0.0.0.0:8889"  # new scrape endpoint for filtered metrics

    service:
      pipelines:
        metrics:
          receivers: [otlp, prometheus]
          processors: []
          exporters: [prometheus]

In the above configuration, we have enabled the target allocator and set the service account to otel-targetallocator-sa. We have also enabled the ServiceMonitor and PodMonitor selectors, which will allow us to scrape metrics from the OpenTelemetry Target Allocator.

Create ServiceMonitor

A ServiceMonitor enables Prometheus to scrape metrics from the instrumented service:

otel-spring-example-service-monitor.yaml - ServiceMonitor configuration

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: otel-spring-example-servicemonitor
  namespace: o11y
  labels:
    metrics-unit: o11y

spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: otel-spring-example
  endpoints:
    - port: metrics
      interval: 30s
      scheme: http
      path: /metrics

To ensure this is picked up by the Target Allocator, use the following in the Collector config:

      serviceMonitorSelector:
        matchLabels:
          metrics-unit: o11y

From all Pods with label 'app.kubernetes.io/name: otel-spring-example', the ServiceMonitor will scrape metrics from the Pod with label 'metrics-unit: o11y'.

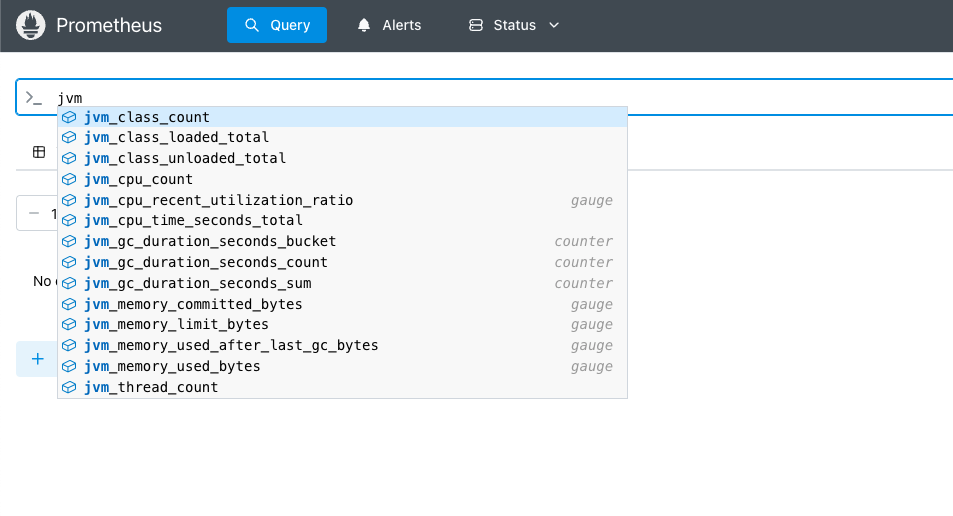

Scraping with Prometheus

To scrape the OpenTelemetry Collector’s metrics, create a ScrapeConfig:

otel-collector-scrape-config.yaml - Prometheus scrape configuration

apiVersion: monitoring.coreos.com/v1alpha1
kind: ScrapeConfig
metadata:
  name: otel-collector-scrape-config
  namespace: o11y
  labels:
    prometheus: o11y-prometheus

spec:
  staticConfigs:
    - labels:
        job: prometheus-job
      targets:
        - otel-collector:8889

And configure Prometheus to use it:

prometheus.yaml - Prometheus configuration

apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  name: prometheus
  namespace: o11y
spec:
  scrapeConfigSelector:
    matchLabels:
      prometheus: o11y-prometheus

  resources:
    requests:
      memory: 400Mi
  enableAdminAPI: false

Now, metrics can be queried directly from Prometheus.

Figure 1. Prometheus query - metrics with 'jvm_' prefix

Filtering Metrics with the filter Processor

To reduce noise and focus on essential metrics, apply a filter in the OpenTelemetry Collector configuration:

otel-collector.yaml - metrics related configuration

    receivers:
      prometheus:
        config:
          scrape_configs:
            - job_name: 'otel-collector'
              scrape_interval: 30s
              static_configs:
                - targets: ['0.0.0.0:8888']

    processors:
      filter/metrics:
        metrics:
          include:
            match_type: regexp
            metric_names:
              - "^jvm_memory_.*"
              - "^jvm_cpu_.*"
              - "^jvm_threads_.*"
              - "^http_server.*"
              - "^jvm_gc_.*"

    exporters:
      prometheus:
        endpoint: "0.0.0.0:8889"  # new scrape endpoint for filtered metrics

    service:
      pipelines:
        metrics:
          receivers: [otlp, prometheus]
          processors: [filter/metrics]
          exporters: [prometheus]

This limits the Prometheus exporter (on port 8889) to only expose selected metrics.

Access them at:

http://otel-collector:8889/metrics

Filtered view example:

Now jvm_class_count metric is filtered out by the filter processor. You can see the metrics starting with 'jvm_' on Prometheus.

Figure 2. Prometheus query - filtered metrics with 'jvm_' prefix

Conclusion

In this guide, we demonstrated how to:

Instrument your Java application with OpenTelemetry
Scrape metrics using the OpenTelemetry Target Allocator
Use ServiceMonitor to automate target discovery
Filter unnecessary metrics using the metrics filter processor

By following these steps, you can build a robust, scalable observability pipeline for your cloud-native applications.

This document is also available in better format at: https://nsalexamy.github.io/service-foundry/pages/documents/o11y-foundry/metrics-otel-target-allocator/
