Collecting Metrics using OpenTelemetry Instrumentation and Visualizing them using Prometheus and Grafana on Kubernetes

On this page

Introduction
- OpenTelemetry Instrumentation for Metrics
Spring Boot Application
- Remove Prometheus Dependency
- Remove Prometheus Configuration
Configure OpenTelemetry Java Agent
Run the Spring Boot Application locally
Dockerfile
Prometheus Configuration
Grafana Configuration
Comparison between Spring Boot Actuator and OpenTelemetry Instrumentation
- Differences of Prometheus metrics
Conclusion

Introduction

This article is part of a series of articles on Metrics in Microservices. In this article, we will discuss how to collect metrics from a Spring Boot application and how to visualize them using Prometheus and Grafana.

This article is the second part of the series.

As for Prometheus and Grafana, we will use the same Prometheus and Grafana that we used in the previous article.

In this article, we will look at how to collect metrics from a Spring Boot application using OpenTelemetry Instrumentation and how to visualize them using Prometheus and Grafana on Kubernetes. Unlike when using Spring Boot Actuator, we will not need to add any dependencies to the Spring Boot application. We will use OpenTelemetry Java Agent to collect metrics from the Spring Boot application.

OpenTelemetry Instrumentation for Metrics

When OTEL_METRICS_EXPORTER is set to prometheus, the OpenTelemetry Java Agent will expose metrics at the endpoint :9464/metrics by default. We are going to use this endpoint to collect metrics instead of using the Spring Boot Actuator endpoint which is :8080/actuator/prometheus.

Spring Boot Application

We still need to use Actuator endpoints to expose health check. We will use the same Spring Boot application that we used in the previous article.

Remove Prometheus Dependency

Since we are going to use OpenTelemetry Java Agent, we don’t need to add any dependencies to the Spring Boot application.

Remove the following dependencies from build.gradle.kts:

build.gradle.kts

    implementation("io.micrometer:micrometer-registry-prometheus")

Remove Prometheus Configuration

Remove endpoint prometheus from endpoints.web.exposure.include in application.yaml.

application.yaml

management:
  endpoint.health.probes.enabled: true
  health:
    livenessstate.enabled: true
    readinessstate.enabled: true

  endpoints.web.exposure.include:
    - health
#    - metrics
#    - prometheus

Configure OpenTelemetry Java Agent

https://opentelemetry.io/docs/specs/otel/configuration/sdk-environment-variables/#prometheus-exporter

$ OTEL_METRICS_EXPORTER=prometheus

# These are the default values, so you don't need to set them.
$ OTEL_EXPORTER_PROMETHEUS_HOST=localhost
$ OTEL_EXPORTER_PROMETHEUS_PORT=9464

Run the Spring Boot Application locally

After configuring the OpenTelemetry Java Agent, run the Spring Boot application.

$ java -javaagent:./javaagent/opentelemetry-javaagent.jar \
  -Dotel.javaagent.extensions=./javaagent/nsa2-otel-extension-1.0-all.jar \
  -jar build/libs/nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar --server.port=8080

The port that the Spring Boot application is running on is 8080. In addition to this, the OpenTelemetry Instrumentation will expose metrics at the endpoint :9464/metrics.

Let’s access the Actuator health check endpoint and the metrics endpoint.

8080/actuator/health

$ curl http://localhost:8080/actuator/health
{"status":"UP"}

9464/metrics

$ curl http://localhost:9464/metrics

# metrics data will be shown

Dockerfile

FROM openjdk:21-jdk-bullseye
COPY ./nsa2-opentelemetry-example-0.0.1-SNAPSHOT.jar /usr/app/nsa2-opentelemetry-example.jar
COPY ./opentelemetry-javaagent.jar /usr/app/javaagent/opentelemetry-javaagent.jar
COPY ./nsa2-otel-extension-1.0-all.jar /usr/app/javaagent/nsa2-otel-extension-1.0-all.jar
WORKDIR /usr/app
EXPOSE 8080
EXPOSE 9496


ENTRYPOINT ["java", "-Xshare:off",
"-Dotel.javaagent.extensions=/usr/app/javaagent/nsa2-otel-extension-1.0-all.jar", "-jar",
"nsa2-opentelemetry-example.jar"]

Deploy Docker Image to Container Registry

Deploy to Kubernetes using Helm Chart

values.yaml

service:
  type: ClusterIP
  port: 8080

metrics:
  port: 9464

I added metrics.port to the values.yaml file to expose the metrics endpoint.

templates/deployment.yaml

    spec:
      {{- with .Values.imagePullSecrets }}
      imagePullSecrets:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      serviceAccountName: {{ include "nsa2-opentelemetry-example.serviceAccountName" . }}
      securityContext:
        {{- toYaml .Values.podSecurityContext | nindent 8 }}
      containers:
        - name: {{ .Chart.Name }}
          securityContext:
            {{- toYaml .Values.securityContext | nindent 12 }}
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag | default .Chart.AppVersion }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}
          env:

# omitted for brevity
            - name: JAVA_TOOL_OPTIONS
              value: "-javaagent:/usr/app/javaagent/opentelemetry-javaagent.jar"
            - name: OTEL_METRICS_EXPORTER
              value: prometheus
          ports:
            - name: http
              containerPort: {{ .Values.service.port }}
              protocol: TCP
            - name: metrics
              containerPort: {{ .Values.metrics.port }}
              protocol: TCP

I added an environment variable OTEL_METRICS_EXPORTER to the deployment.yaml file. The value is set to prometheus.

I added a new port for the metrics endpoint in the deployment.yaml file. The port value configured in the values.yaml file is used.

templates/service.yaml

spec:
  type: {{ .Values.service.type }}
  ports:
    - port: {{ .Values.service.port }}
      targetPort: http
      protocol: TCP
      name: http
    - port: {{ .Values.metrics.port }}
      targetPort: http
      protocol: TCP
      name: metrics

I added a new port for the metrics endpoint in the service.yaml file. The port value configured in the values.yaml file is used.

Access the Metrics using Port Forwarding

$ kubectl -n nsa2 port-forward service/nsa2-opentelemetry-example 8080:8080 9464:9464

After port forwarding, access the metrics endpoint.

http://localhost:9464/metrics

Prometheus Configuration

nsa2-opentelemetry-example-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: nsa2-opentelemetry-example-servicemonitor
  labels:
    team: nsa2
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: nsa2-opentelemetry-example
  endpoints:
    - port: metrics
      interval: 30s
      scheme: http
      path: /metrics

Now we are using the endpoint that the OpenTelemetry Instrumentation exposes. We need to update the Prometheus configuration to scrape the metrics from the new endpoint.

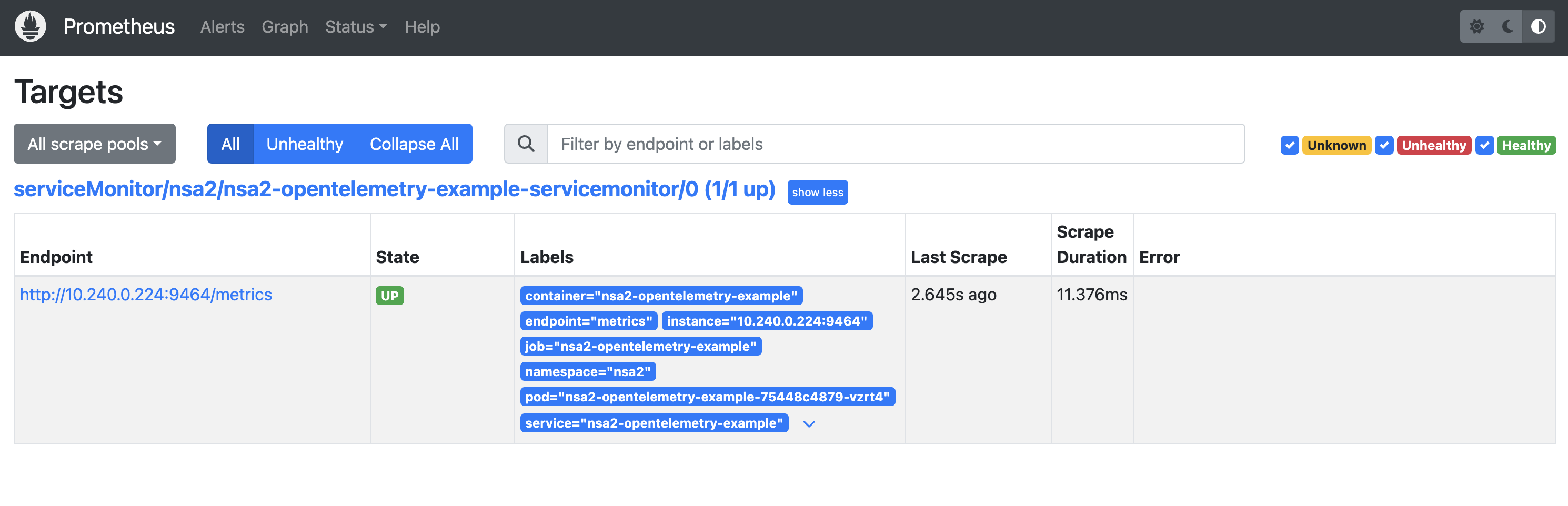

Figure 1. Prometheus configuration

Grafana Configuration

As for Grafana, no configuration changes are needed. We can simply use the same Grafana dashboard from the previous article.

Comparison between Spring Boot Actuator and OpenTelemetry Instrumentation

When using Spring Boot Actuator, we need to add dependencies to the Spring Boot application and configure the application to expose metrics. We also need to install Prometheus and Grafana to collect and visualize metrics.

When using OpenTelemetry Instrumentation, we don’t need to add dependencies to the Spring Boot application. We only need to download the OpenTelemetry Java Agent and configure the application to use the Java Agent. We also need to install Prometheus and Grafana to collect and visualize metrics. Using OpenTelemetry Instrumentation is more language agnostic and doesn’t require any changes to the application code.

Differences of Prometheus metrics

We can compare the metrics exposed by Spring Boot Actuator and OpenTelemetry Instrumentation.

We have to make sure that the metrics exposed by OpenTelemetry Instrumentation are NOT same as the metrics exposed by Spring Boot Actuator. For example, process_cpu_usage is exposed by Spring Boot Actuator but not by OpenTelemetry Instrumentation.

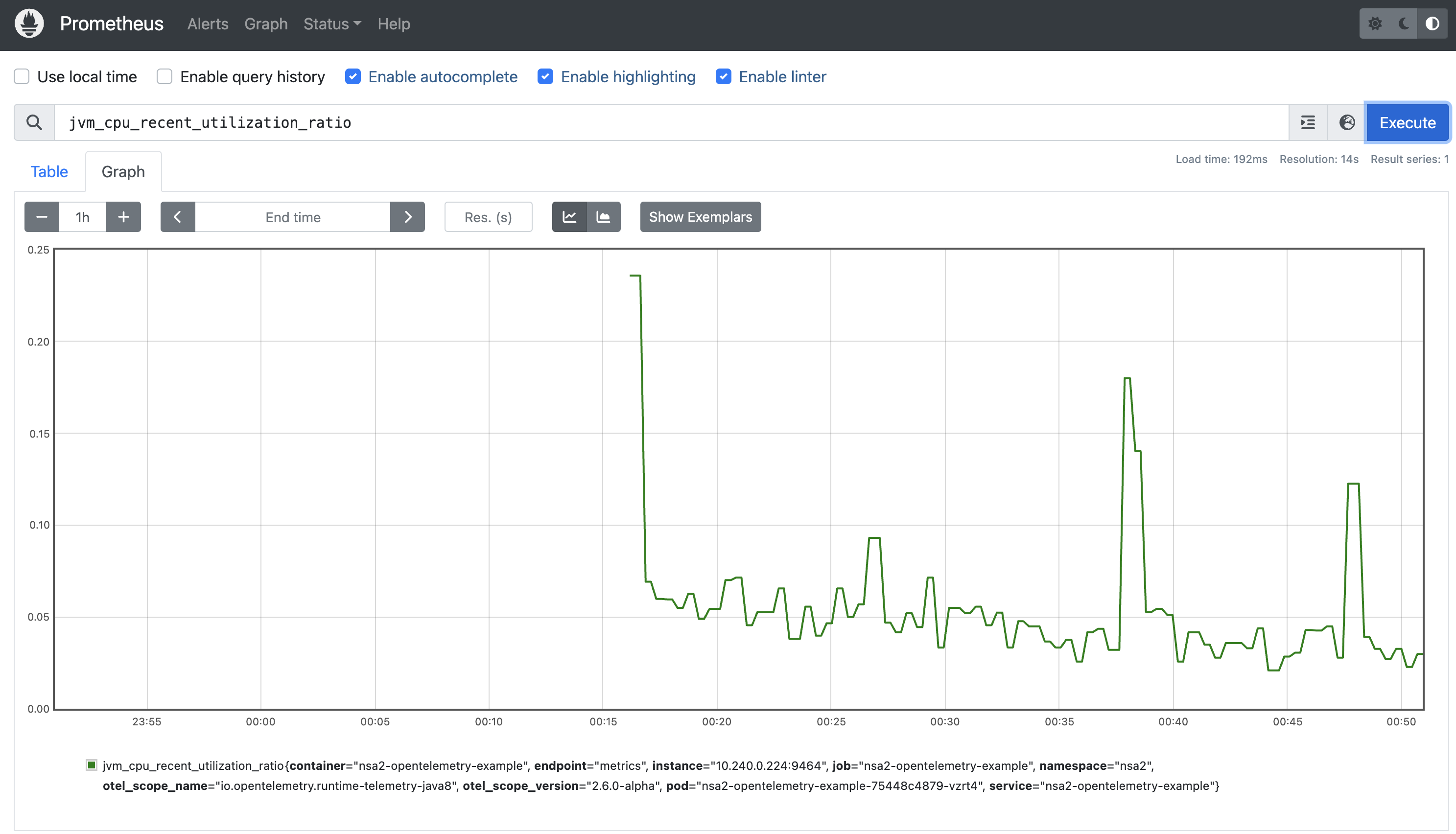

Here is a screen capture of a graph that shows jvm_cpu_recent_utilization_ratio. This metric is exposed by OpenTelemetry Instrumentation.

Figure 2. Prometheus Graph

OpenTelemetry Instrumentation offers different metrics than Spring Boot Actuator. We should compare them carefully to determine which metrics are most useful for our application.

Here are the whole metrics exposed by Spring Actuator and OpenTelemetry Instrumentation so that we can compare them.

:8080/actuator/prometheus

# HELP application_ready_time_seconds Time taken for the application to be ready to service requests
# TYPE application_ready_time_seconds gauge
application_ready_time_seconds
{main_application_class="com.alexamy.nsa2.example.opentelemetry.Nsa2OpentelemetryExampleApplication"} 16.046
# HELP application_started_time_seconds Time taken to start the application
# TYPE application_started_time_seconds gauge
application_started_time_seconds
{main_application_class="com.alexamy.nsa2.example.opentelemetry.Nsa2OpentelemetryExampleApplication"} 15.861
# HELP disk_free_bytes Usable space for path
# TYPE disk_free_bytes gauge
disk_free_bytes{path="/Users/younggyukim/Dev/alexamy/examples/nsa2-opentelemetry-example/."} 2.19574505472E11
# HELP disk_total_bytes Total space for path
# TYPE disk_total_bytes gauge
disk_total_bytes{path="/Users/younggyukim/Dev/alexamy/examples/nsa2-opentelemetry-example/."} 9.9466258432E11
# HELP executor_active_threads The approximate number of threads that are actively executing tasks
# TYPE executor_active_threads gauge
executor_active_threads{name="applicationTaskExecutor"} 0.0
# HELP executor_completed_tasks_total The approximate total number of tasks that have completed execution
# TYPE executor_completed_tasks_total counter
executor_completed_tasks_total{name="applicationTaskExecutor"} 0.0
# HELP executor_pool_core_threads The core number of threads for the pool
# TYPE executor_pool_core_threads gauge
executor_pool_core_threads{name="applicationTaskExecutor"} 8.0
# HELP executor_pool_max_threads The maximum allowed number of threads in the pool
# TYPE executor_pool_max_threads gauge
executor_pool_max_threads{name="applicationTaskExecutor"} 2.147483647E9
# HELP executor_pool_size_threads The current number of threads in the pool
# TYPE executor_pool_size_threads gauge
executor_pool_size_threads{name="applicationTaskExecutor"} 0.0
# HELP executor_queue_remaining_tasks The number of additional elements
that this queue can ideally accept without blocking
# TYPE executor_queue_remaining_tasks gauge
executor_queue_remaining_tasks{name="applicationTaskExecutor"} 2.147483647E9
# HELP executor_queued_tasks The approximate number of tasks that are queued for execution
# TYPE executor_queued_tasks gauge
executor_queued_tasks{name="applicationTaskExecutor"} 0.0
# HELP hikaricp_connections Total connections
# TYPE hikaricp_connections gauge
hikaricp_connections{pool="HikariPool-1"} 10.0
# HELP hikaricp_connections_acquire_seconds Connection acquire time
# TYPE hikaricp_connections_acquire_seconds summary
hikaricp_connections_acquire_seconds_count{pool="HikariPool-1"} 0
hikaricp_connections_acquire_seconds_sum{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_acquire_seconds_max Connection acquire time
# TYPE hikaricp_connections_acquire_seconds_max gauge
hikaricp_connections_acquire_seconds_max{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_active Active connections
# TYPE hikaricp_connections_active gauge
hikaricp_connections_active{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_creation_seconds Connection creation time
# TYPE hikaricp_connections_creation_seconds summary
hikaricp_connections_creation_seconds_count{pool="HikariPool-1"} 0
hikaricp_connections_creation_seconds_sum{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_creation_seconds_max Connection creation time
# TYPE hikaricp_connections_creation_seconds_max gauge
hikaricp_connections_creation_seconds_max{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_idle Idle connections
# TYPE hikaricp_connections_idle gauge
hikaricp_connections_idle{pool="HikariPool-1"} 10.0
# HELP hikaricp_connections_max Max connections
# TYPE hikaricp_connections_max gauge
hikaricp_connections_max{pool="HikariPool-1"} 10.0
# HELP hikaricp_connections_min Min connections
# TYPE hikaricp_connections_min gauge
hikaricp_connections_min{pool="HikariPool-1"} 10.0
# HELP hikaricp_connections_pending Pending threads
# TYPE hikaricp_connections_pending gauge
hikaricp_connections_pending{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_timeout_total Connection timeout total count
# TYPE hikaricp_connections_timeout_total counter
hikaricp_connections_timeout_total{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_usage_seconds Connection usage time
# TYPE hikaricp_connections_usage_seconds summary
hikaricp_connections_usage_seconds_count{pool="HikariPool-1"} 0
hikaricp_connections_usage_seconds_sum{pool="HikariPool-1"} 0.0
# HELP hikaricp_connections_usage_seconds_max Connection usage time
# TYPE hikaricp_connections_usage_seconds_max gauge
hikaricp_connections_usage_seconds_max{pool="HikariPool-1"} 0.0
# HELP http_server_requests_active_seconds
# TYPE http_server_requests_active_seconds summary
http_server_requests_active_seconds_count
{exception="none",method="GET",outcome="SUCCESS",status="200",uri="UNKNOWN"} 1
http_server_requests_active_seconds_sum
{exception="none",method="GET",outcome="SUCCESS",status="200",uri="UNKNOWN"} 0.098384125
# HELP http_server_requests_active_seconds_max
# TYPE http_server_requests_active_seconds_max gauge
http_server_requests_active_seconds_max
{exception="none",method="GET",outcome="SUCCESS",status="200",uri="UNKNOWN"} 0.098404167
# HELP http_server_requests_seconds
# TYPE http_server_requests_seconds summary
http_server_requests_seconds_count
{error="none",exception="none",method="GET",outcome="CLIENT_ERROR",status="404",uri="/**"} 1
http_server_requests_seconds_sum
{error="none",exception="none",method="GET",outcome="CLIENT_ERROR",status="404",uri="/**"} 0.07982925
# HELP http_server_requests_seconds_max
# TYPE http_server_requests_seconds_max gauge
http_server_requests_seconds_max
{error="none",exception="none",method="GET",outcome="CLIENT_ERROR",status="404",uri="/**"} 0.07982925
# HELP jdbc_connections_active Current number of active connections that have been allocated from the data source.
# TYPE jdbc_connections_active gauge
jdbc_connections_active{name="dataSource"} 0.0
# HELP jdbc_connections_idle Number of established but idle connections.
# TYPE jdbc_connections_idle gauge
jdbc_connections_idle{name="dataSource"} 10.0
# HELP jdbc_connections_max Maximum number of active connections that can be allocated at the same time.
# TYPE jdbc_connections_max gauge
jdbc_connections_max{name="dataSource"} 10.0
# HELP jdbc_connections_min Minimum number of idle connections in the pool.
# TYPE jdbc_connections_min gauge
jdbc_connections_min{name="dataSource"} 10.0
# HELP jvm_info JVM version info
# TYPE jvm_info gauge
jvm_info{runtime="OpenJDK Runtime Environment",vendor="Eclipse Adoptium",version="21.0.3+9-LTS"} 1
# HELP jvm_buffer_count_buffers An estimate of the number of buffers in the pool
# TYPE jvm_buffer_count_buffers gauge
jvm_buffer_count_buffers{id="direct"} 5.0
jvm_buffer_count_buffers{id="mapped"} 0.0
jvm_buffer_count_buffers{id="mapped - 'non-volatile memory'"} 0.0
# HELP jvm_buffer_memory_used_bytes An estimate of the memory that the Java virtual machine is using for this buffer pool
# TYPE jvm_buffer_memory_used_bytes gauge
jvm_buffer_memory_used_bytes{id="direct"} 43008.0
jvm_buffer_memory_used_bytes{id="mapped"} 0.0
jvm_buffer_memory_used_bytes{id="mapped - 'non-volatile memory'"} 0.0
# HELP jvm_buffer_total_capacity_bytes An estimate of the total capacity of the buffers in this pool
# TYPE jvm_buffer_total_capacity_bytes gauge
jvm_buffer_total_capacity_bytes{id="direct"} 43008.0
jvm_buffer_total_capacity_bytes{id="mapped"} 0.0
jvm_buffer_total_capacity_bytes{id="mapped - 'non-volatile memory'"} 0.0
# HELP jvm_classes_loaded_classes The number of classes that are currently loaded in the Java virtual machine
# TYPE jvm_classes_loaded_classes gauge
jvm_classes_loaded_classes 20234.0
# HELP jvm_classes_unloaded_classes_total The total number of classes unloaded
since the Java virtual machine has started execution
# TYPE jvm_classes_unloaded_classes_total counter
jvm_classes_unloaded_classes_total 1.0
# HELP jvm_compilation_time_ms_total The approximate accumulated elapsed time spent in compilation
# TYPE jvm_compilation_time_ms_total counter
jvm_compilation_time_ms_total{compiler="HotSpot 64-Bit Tiered Compilers"} 19733.0
# HELP jvm_gc_live_data_size_bytes Size of long-lived heap memory pool after reclamation
# TYPE jvm_gc_live_data_size_bytes gauge
jvm_gc_live_data_size_bytes 0.0
# HELP jvm_gc_max_data_size_bytes Max size of long-lived heap memory pool
# TYPE jvm_gc_max_data_size_bytes gauge
jvm_gc_max_data_size_bytes 8.589934592E9
# HELP jvm_gc_memory_allocated_bytes_total Incremented for an increase
in the size of the (young) heap memory pool after one GC to before the next
# TYPE jvm_gc_memory_allocated_bytes_total counter
jvm_gc_memory_allocated_bytes_total 6.7108864E7
# HELP jvm_gc_memory_promoted_bytes_total Count of positive increases
in the size of the old generation memory pool before GC to after GC
# TYPE jvm_gc_memory_promoted_bytes_total counter
jvm_gc_memory_promoted_bytes_total 2371752.0
# HELP jvm_gc_overhead An approximation of the percent of CPU time used
by GC activities over the last lookback period or
since monitoring began, whichever is shorter, in the range [0..1]
# TYPE jvm_gc_overhead gauge
jvm_gc_overhead 1.8017326593718715E-4
# HELP jvm_gc_pause_seconds Time spent in GC pause
# TYPE jvm_gc_pause_seconds summary
jvm_gc_pause_seconds_count{action="end of minor GC",cause="G1 Evacuation Pause",gc="G1 Young Generation"} 1
jvm_gc_pause_seconds_sum{action="end of minor GC",cause="G1 Evacuation Pause",gc="G1 Young Generation"} 0.021
# HELP jvm_gc_pause_seconds_max Time spent in GC pause
# TYPE jvm_gc_pause_seconds_max gauge
jvm_gc_pause_seconds_max{action="end of minor GC",cause="G1 Evacuation Pause",gc="G1 Young Generation"} 0.021
# HELP jvm_memory_committed_bytes The amount of memory in bytes that is committed for the Java virtual machine to use
# TYPE jvm_memory_committed_bytes gauge
jvm_memory_committed_bytes{area="heap",id="G1 Eden Space"} 6.7108864E7
jvm_memory_committed_bytes{area="heap",id="G1 Old Gen"} 6.291456E7
jvm_memory_committed_bytes{area="heap",id="G1 Survivor Space"} 1.2582912E7
jvm_memory_committed_bytes{area="nonheap",id="CodeHeap 'non-nmethods'"} 2555904.0
jvm_memory_committed_bytes{area="nonheap",id="CodeHeap 'non-profiled nmethods'"} 9175040.0
jvm_memory_committed_bytes{area="nonheap",id="CodeHeap 'profiled nmethods'"} 1.998848E7
jvm_memory_committed_bytes{area="nonheap",id="Compressed Class Space"} 1.4811136E7
jvm_memory_committed_bytes{area="nonheap",id="Metaspace"} 1.11542272E8
# HELP jvm_memory_max_bytes The maximum amount of memory in bytes that can be used for memory management
# TYPE jvm_memory_max_bytes gauge
jvm_memory_max_bytes{area="heap",id="G1 Eden Space"} -1.0
jvm_memory_max_bytes{area="heap",id="G1 Old Gen"} 8.589934592E9
jvm_memory_max_bytes{area="heap",id="G1 Survivor Space"} -1.0
jvm_memory_max_bytes{area="nonheap",id="CodeHeap 'non-nmethods'"} 5840896.0
jvm_memory_max_bytes{area="nonheap",id="CodeHeap 'non-profiled nmethods'"} 1.22908672E8
jvm_memory_max_bytes{area="nonheap",id="CodeHeap 'profiled nmethods'"} 1.22908672E8
jvm_memory_max_bytes{area="nonheap",id="Compressed Class Space"} 1.073741824E9
jvm_memory_max_bytes{area="nonheap",id="Metaspace"} -1.0
# HELP jvm_memory_usage_after_gc The percentage of long-lived heap pool used after the last GC event, in the range [0..1]
# TYPE jvm_memory_usage_after_gc gauge
jvm_memory_usage_after_gc{area="heap",pool="long-lived"} 0.004481658339500427
# HELP jvm_memory_used_bytes The amount of used memory
# TYPE jvm_memory_used_bytes gauge
jvm_memory_used_bytes{area="heap",id="G1 Eden Space"} 3.7748736E7
jvm_memory_used_bytes{area="heap",id="G1 Old Gen"} 3.8497152E7
jvm_memory_used_bytes{area="heap",id="G1 Survivor Space"} 9024656.0
jvm_memory_used_bytes{area="nonheap",id="CodeHeap 'non-nmethods'"} 1853312.0
jvm_memory_used_bytes{area="nonheap",id="CodeHeap 'non-profiled nmethods'"} 9127936.0
jvm_memory_used_bytes{area="nonheap",id="CodeHeap 'profiled nmethods'"} 1.9715968E7
jvm_memory_used_bytes{area="nonheap",id="Compressed Class Space"} 1.4331032E7
jvm_memory_used_bytes{area="nonheap",id="Metaspace"} 1.10542936E8
# HELP jvm_threads_daemon_threads The current number of live daemon threads
# TYPE jvm_threads_daemon_threads gauge
jvm_threads_daemon_threads 28.0
# HELP jvm_threads_live_threads The current number of live threads including both daemon and non-daemon threads
# TYPE jvm_threads_live_threads gauge
jvm_threads_live_threads 32.0
# HELP jvm_threads_peak_threads The peak live thread count since the Java virtual machine started or peak was reset
# TYPE jvm_threads_peak_threads gauge
jvm_threads_peak_threads 33.0
# HELP jvm_threads_started_threads_total The total number of application threads started in the JVM
# TYPE jvm_threads_started_threads_total counter
jvm_threads_started_threads_total 37.0
# HELP jvm_threads_states_threads The current number of threads
# TYPE jvm_threads_states_threads gauge
jvm_threads_states_threads{state="blocked"} 0.0
jvm_threads_states_threads{state="new"} 0.0
jvm_threads_states_threads{state="runnable"} 8.0
jvm_threads_states_threads{state="terminated"} 0.0
jvm_threads_states_threads{state="timed-waiting"} 11.0
jvm_threads_states_threads{state="waiting"} 13.0
# HELP logback_events_total Number of log events that were enabled by the effective log level
# TYPE logback_events_total counter
logback_events_total{level="debug"} 0.0
logback_events_total{level="error"} 0.0
logback_events_total{level="info"} 5.0
logback_events_total{level="trace"} 0.0
logback_events_total{level="warn"} 0.0
# HELP process_cpu_time_ns_total The "cpu time" used by the Java Virtual Machine process
# TYPE process_cpu_time_ns_total counter
process_cpu_time_ns_total 4.3053116E10
# HELP process_cpu_usage The "recent cpu usage" for the Java Virtual Machine process
# TYPE process_cpu_usage gauge
process_cpu_usage 0.0033893960264652057
# HELP process_files_max_files The maximum file descriptor count
# TYPE process_files_max_files gauge
process_files_max_files 10240.0
# HELP process_files_open_files The open file descriptor count
# TYPE process_files_open_files gauge
process_files_open_files 36.0
# HELP process_start_time_seconds Start time of the process since unix epoch.
# TYPE process_start_time_seconds gauge
process_start_time_seconds 1.724603759504E9
# HELP process_uptime_seconds The uptime of the Java virtual machine
# TYPE process_uptime_seconds gauge
process_uptime_seconds 138.065
# HELP rabbitmq_acknowledged_total
# TYPE rabbitmq_acknowledged_total counter
rabbitmq_acknowledged_total{name="rabbit"} 0.0
# HELP rabbitmq_acknowledged_published_total
# TYPE rabbitmq_acknowledged_published_total counter
rabbitmq_acknowledged_published_total{name="rabbit"} 0.0
# HELP rabbitmq_channels
# TYPE rabbitmq_channels gauge
rabbitmq_channels{name="rabbit"} 0.0
# HELP rabbitmq_connections
# TYPE rabbitmq_connections gauge
rabbitmq_connections{name="rabbit"} 0.0
# HELP rabbitmq_consumed_total
# TYPE rabbitmq_consumed_total counter
rabbitmq_consumed_total{name="rabbit"} 0.0
# HELP rabbitmq_failed_to_publish_total
# TYPE rabbitmq_failed_to_publish_total counter
rabbitmq_failed_to_publish_total{name="rabbit"} 0.0
# HELP rabbitmq_not_acknowledged_published_total
# TYPE rabbitmq_not_acknowledged_published_total counter
rabbitmq_not_acknowledged_published_total{name="rabbit"} 0.0
# HELP rabbitmq_published_total
# TYPE rabbitmq_published_total counter
rabbitmq_published_total{name="rabbit"} 0.0
# HELP rabbitmq_rejected_total
# TYPE rabbitmq_rejected_total counter
rabbitmq_rejected_total{name="rabbit"} 0.0
# HELP rabbitmq_unrouted_published_total
# TYPE rabbitmq_unrouted_published_total counter
rabbitmq_unrouted_published_total{name="rabbit"} 0.0
# HELP system_cpu_count The number of processors available to the Java virtual machine
# TYPE system_cpu_count gauge
system_cpu_count 10.0
# HELP system_cpu_usage The "recent cpu usage" of the system the application is running in
# TYPE system_cpu_usage gauge
system_cpu_usage 0.0
# HELP system_load_average_1m The sum of the number of runnable entities queued to available processors and
the number of runnable entities running on the available processors averaged over a period of time
# TYPE system_load_average_1m gauge
system_load_average_1m 1.9248046875
# HELP tomcat_sessions_active_current_sessions
# TYPE tomcat_sessions_active_current_sessions gauge
tomcat_sessions_active_current_sessions 0.0
# HELP tomcat_sessions_active_max_sessions
# TYPE tomcat_sessions_active_max_sessions gauge
tomcat_sessions_active_max_sessions 0.0
# HELP tomcat_sessions_alive_max_seconds
# TYPE tomcat_sessions_alive_max_seconds gauge
tomcat_sessions_alive_max_seconds 0.0
# HELP tomcat_sessions_created_sessions_total
# TYPE tomcat_sessions_created_sessions_total counter
tomcat_sessions_created_sessions_total 0.0
# HELP tomcat_sessions_expired_sessions_total
# TYPE tomcat_sessions_expired_sessions_total counter
tomcat_sessions_expired_sessions_total 0.0
# HELP tomcat_sessions_rejected_sessions_total
# TYPE tomcat_sessions_rejected_sessions_total counter
tomcat_sessions_rejected_sessions_total 0.0

:9464/metrics

# HELP db_client_connections_create_time_milliseconds The time it took to create a new connection.
# TYPE db_client_connections_create_time_milliseconds histogram
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="0.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="5.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="10.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="25.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="50.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="75.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="100.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="250.0"} 0
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="500.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="750.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="1000.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="2500.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="5000.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="7500.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="10000.0"} 9
db_client_connections_create_time_milliseconds_bucket
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1",le="+Inf"} 9
db_client_connections_create_time_milliseconds_count
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1"} 9
db_client_connections_create_time_milliseconds_sum
{otel_scope_name="io.opentelemetry.hikaricp-3.0",otel_scope_version="2.6.0-alpha",pool_name="HikariPool-1"} 3922.0
...

Conclusion

In this article, we have learned how to instrument a Spring Boot application with OpenTelemetry Instrumentation and how to export the telemetry data to Prometheus. We also compared the OpenTelemetry Instrumentation with the Spring Boot Actuator. OpenTelemetry Instrumentation is more language agnostic and provides more flexibility in terms of exporting telemetry data to various backends.
