Collecting Metrics using OpenTelemetry Collector and Visualizing them using Prometheus and Grafana on Kubernetes

On this page

Introduction
Create a ServiceAccount
OpenTelemetry Collector
- otel-targetallocator service
- Scale out
Prometheus
Use OTLP HTTP Exporter
Benefits of using OpenTelemetry Collector and Target Allocator
Grafana
Conclusion
Reference

Introduction

This article is part of a series of articles on Metrics in Microservices. In this article, we will discuss how to collect metrics from a Spring Boot application using OpenTelemetry Collector and how to visualize them using Prometheus and Grafana on Kubernetes.

This article is the third part of the series.

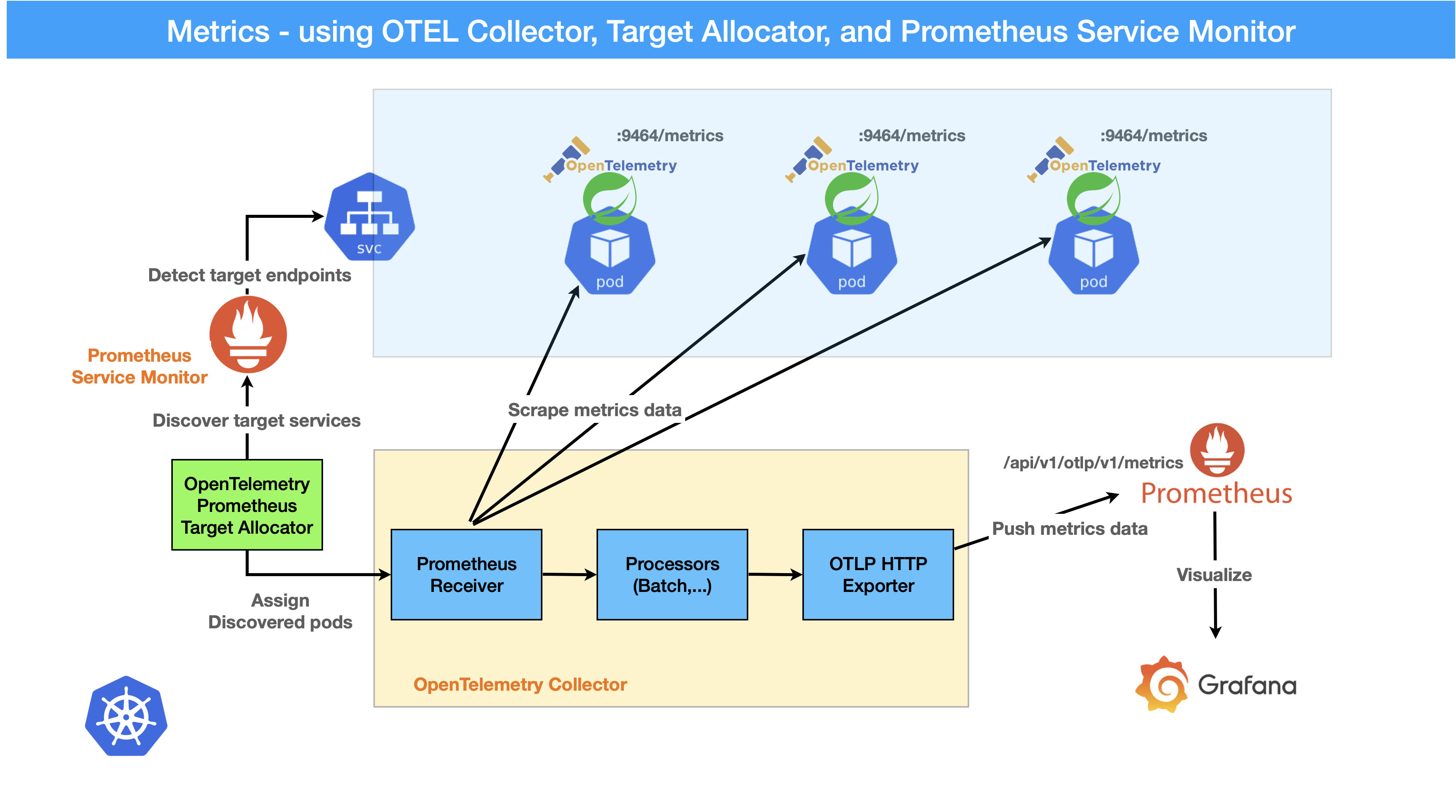

In this article, we will discuss how to collect metrics from a Spring Boot application using OpenTelemetry Collector and Target Allocator. OpenTelemetry Instrumentation provides metrics data from a dedicated endpoint. Prometheus ServiceMonitor will discover the target endpoints and Prometheus target allocator will scrape the metrics data from the target endpoints. The metrics data will be exported to Prometheus using the Prometheus Remote Write Exporter. OTLP HTTP Exporter can replace the Prometheus Remote Write Exporter to export metrics data to an OTLP HTTP endpoint. We are going to use both exporters in this article.

OpenTelemetry Collector

OpenTelemetry Collector is a vendor-agnostic, open-source telemetry collector that is used to collect, process, and export telemetry data. It is a powerful tool that can be used to collect metrics, traces, and logs from various sources and export them to various destinations.

Target Allocator

A tool to distribute targets of the PrometheusReceiver on all deployed Collector instances

— OpenTelemetry
Target Allocator

The OpenTelemetry Operator comes with an optional component, the Target Allocator (TA). In a nutshell, the TA is a mechanism for decoupling the service discovery and metric collection functions of Prometheus such that they can be scaled independently. The Collector manages Prometheus metrics without needing to install Prometheus. The TA manages the configuration of the Collector’s Prometheus Receiver.

The TA serves two primary functions:

Even distribution of Prometheus targets among a pool of Collectors
Discovery of Prometheus Custom Resources like ServiceMonitors and PodMonitors

For more information on Target Allocator, refer to the link below:

https://opentelemetry.io/docs/kubernetes/operator/target-allocator/

Prometheus Remote Write Exporter

Prometheus Remote Write Exporter is an exporter that is used to export metrics to Prometheus. It is a powerful tool that can be used to export metrics from various sources to Prometheus. This feature is available when remote-write-receiver is enabled in Prometheus.

OTLP HTTP Exporter

OTLP HTTP Exporter is an exporter that is used to export metrics to an OTLP HTTP endpoint. It is a powerful tool that can be used to export metrics from various sources to an OTLP HTTP endpoint. This feature is available when otlp-write-receiver is enabled in Prometheus.

Create a ServiceAccount

To use Target Allocator, we need permission to access the Kubernetes API. We are going to create a ServiceAccount named opentelemetry-targetallocator-sa in nsa2 namespace to be used by the OpenTelemetry Collector.

The two roles are being bound to the ServiceAccount:

opentelemetry-targetallocator-role
opentelemetry-targetallocator-cr-role

Here is the RBAC configuration for the ServiceAccount:

opentelemetry-targetallocator-sa.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: opentelemetry-targetallocator-sa
  namespace: nsa2
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: opentelemetry-targetallocator-role
rules:
  - apiGroups: [""]
    resources:
      - nodes
      - nodes/metrics
      - services
      - endpoints
      - pods
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources:
      - configmaps
    verbs: ["get"]
  - apiGroups:
      - discovery.k8s.io
    resources:
      - endpointslices
    verbs: ["get", "list", "watch"]
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs: ["get", "list", "watch"]
  - nonResourceURLs: ["/metrics"]
    verbs: ["get"]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: opentelemetry-targetallocator-cr-role
rules:
  - apiGroups:
      - monitoring.coreos.com
    resources:
      - servicemonitors
      - podmonitors
    verbs:
      - '*'
  - apiGroups: [""]
    resources:
      - namespaces
    verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: opentelemetry-targetallocator-rb
subjects:
  - kind: ServiceAccount
    name: opentelemetry-targetallocator-sa
    namespace: nsa2
roleRef:
  kind: ClusterRole
  name: opentelemetry-targetallocator-role
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: opentelemetry-targetallocator-cr-rb
subjects:
  - kind: ServiceAccount
    name: opentelemetry-targetallocator-sa
    namespace: nsa2
roleRef:
  kind: ClusterRole
  name: opentelemetry-targetallocator-cr-role
  apiGroup: rbac.authorization.k8s.io

To create the ServiceAccount, Roles, and RoleBindings, run the following command:

$ kubectl -n nsa2 apply -f opentelemetry-targetallocator-sa.yaml

OpenTelemetry Collector

In this section, we are going to deploy the OpenTelemetry Collector to collect metrics from the Spring Boot application. The OpenTelemetry Collector will scrape metrics data from the Spring Boot application using the Prometheus Receiver. The metrics data will be exported to Prometheus using the Prometheus Remote Write Exporter.

otel-collector.yaml

apiVersion: opentelemetry.io/v1beta1
kind: OpenTelemetryCollector
metadata:
  name: otel
  namespace: nsa2

spec:
  mode: statefulset
  targetAllocator:
    enabled: true
    serviceAccount: opentelemetry-targetallocator-sa
    prometheusCR:
      enabled: true
      serviceMonitorSelector: {}
      podMonitorSelector: {}

  config:
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318

      prometheus:
        config:
          scrape_configs:
            - job_name: 'otel-collector'
              scrape_interval: 30s
              static_configs:
                - targets: ['0.0.0.0:8888']



    processors:
      memory_limiter:
        check_interval: 1s
        limit_percentage: 75
        spike_limit_percentage: 15
      batch:
        send_batch_size: 10000
        timeout: 10s


    exporters:
      debug: {}
      zipkin:
        endpoint: http://zipkin-server:9411/api/v2/spans
        format: proto
      prometheusremotewrite:
        # https://prometheus.io/docs/prometheus/latest/querying/api/#remote-write-receiver
        endpoint: http://prometheus:9090/api/v1/write
      otlphttp:
#        endpoint: http://otel-collector:4318
        # https://prometheus.io/docs/prometheus/latest/querying/api/#otlp-receiver
        metrics_endpoint: http://prometheus:9090/api/v1/otlp/v1/metrics




    service:
#      extensions: [health_check, pprof, zpages]
      pipelines:
        traces:
          receivers: [otlp]
          processors: [memory_limiter, batch]
          exporters: [zipkin]
        metrics:
          receivers: [otlp, prometheus]
          processors: []
          exporters: [otlphttp]

I added the following configuration to the OpenTelemetry Collector configuration file to enable the Target Allocator:

  mode: statefulset
  targetAllocator:
    enabled: true
    serviceAccount: opentelemetry-targetallocator-sa
    prometheusCR:
      enabled: true
      serviceMonitorSelector: {}
      podMonitorSelector: {}

To filter the ServiceMonitors and PodMonitors, we can use the serviceMonitorSelector and podMonitorSelector fields. If we want to filter the ServiceMonitors and PodMonitors, we can add the labels to the fields.

      serviceMonitorSelector:
        matchLabels:
          team: nsa2

I added prometheus to the receivers section to enable the Prometheus Receiver. It scrapes metrics data according to the configuration in the config section.

prometheus receiver

    receiver:

# omitted

      prometheus:
        config:
          scrape_configs:
            - job_name: 'otel-collector'
              scrape_interval: 30s
              static_configs:
                - targets: ['0.0.0.0:8888']

exporters

    exporters:

      prometheusremotewrite:
        endpoint: http://prometheus:9090/api/v1/write

      otlphttp:
        metrics_endpoint: http://prometheus:9090/api/v1/otlp/v1/metrics

There are two exporters in the configuration file:

prometheusremotewrite
otlphttp

The prometheusremotewrite exporter exports metrics data to the Prometheus Remote Write endpoint. The otlphttp exporter exports metrics data to the OTLP HTTP endpoint.

For more information on the Prometheus Remote Write Exporter, refer to the link below:

https://prometheus.io/docs/prometheus/latest/querying/api/#remote-write-receiver

For more information on the OTLP HTTP Exporter, refer to the link below:

https://prometheus.io/docs/prometheus/latest/querying/api/#otlp-receiver

metrics pipeline

    service:
      pipelines:

# omitted

        metrics:
          receivers: [otlp, prometheus]
          processors: []
          exporters: [prometheusremotewrite]
          # exporters: [otlphttp]

I added prometheus to the receivers field to enable the Prometheus Receiver. I added prometheusremotewrite to the exporters field to export metrics data to the Prometheus Remote Write endpoint.

To apply the configuration, run the following command:

$ kubectl -n nsa2 apply -f otel-collector.yaml

otel-targetallocator service

If all the configurations are correct, the OpenTelemetry Collector will create a service named otel-targetallocator in the nsa2 namespace. The service will have the following endpoints:

port-forward otel-targetallocator service

$ kubectl -n nsa2 port-forward service/otel-targetallocator 18080:8080

To check the endpoints, open the following URL in a browser:

http://localhost:18080/jobs

{
  "otel-collector": {
    "_link": "/jobs/otel-collector/targets"
  },
  "serviceMonitor/nsa2/nsa2-opentelemetry-example-servicemonitor/0": {
    "_link": "/jobs/serviceMonitor%2Fnsa2%2Fnsa2-opentelemetry-example-servicemonitor%2F0/targets"
  }
}

If you click on the _link field, you will see the targets that the OpenTelemetry Collector is scraping metrics data from.

Scale out

$ kubectl -n nsa2 scale --replicas=2 deployment nsa2-opentelemetry-example

If you scale out the Spring Boot application, the new pod will be added to the target list of the OpenTelemetry Collector.

Prometheus

We are going to comment out the serviceMonitorSelector section in the prometheus.yaml file because we are going to use the Target Allocator to manage the ServiceMonitors. Instead, I enabled two features in the prometheus.yaml file:

remote-write-receiver
otlp-write-receiver

For more information on feature flags, refer to the link below:

https://prometheus.io/docs/prometheus/latest/feature_flags/

prometheus.yaml

apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  name: prometheus
  namespace: nsa2
spec:
  serviceAccountName: prometheus

  resources:
    requests:
      memory: 400Mi
  enableAdminAPI: false

  # for more information on the following configuration,
  #  see
  # - https://prometheus-operator.dev/docs/api-reference/api/
  # - https://prometheus.io/docs/prometheus/latest/querying/api/#remote-write-receiver
  # /api/v1/write (web.enable-remote-write-receiver)
  # /api/v1/otlp/v1/metrics (web.enable-otlp-receiver)
  additionalArgs:
    - name: "web.enable-remote-write-receiver"
      value: ""
    - name: "web.enable-otlp-receiver"
      value: ""

To apply the configuration, run the following command:

$ kubectl -n nsa2 apply -f prometheus.yaml

port-forward Prometheus service

$ kubectl -n nsa2 port-forward service/prometheus 9090:9090

To check the Prometheus UI, open the following URL in a browser:

http://localhost:9090

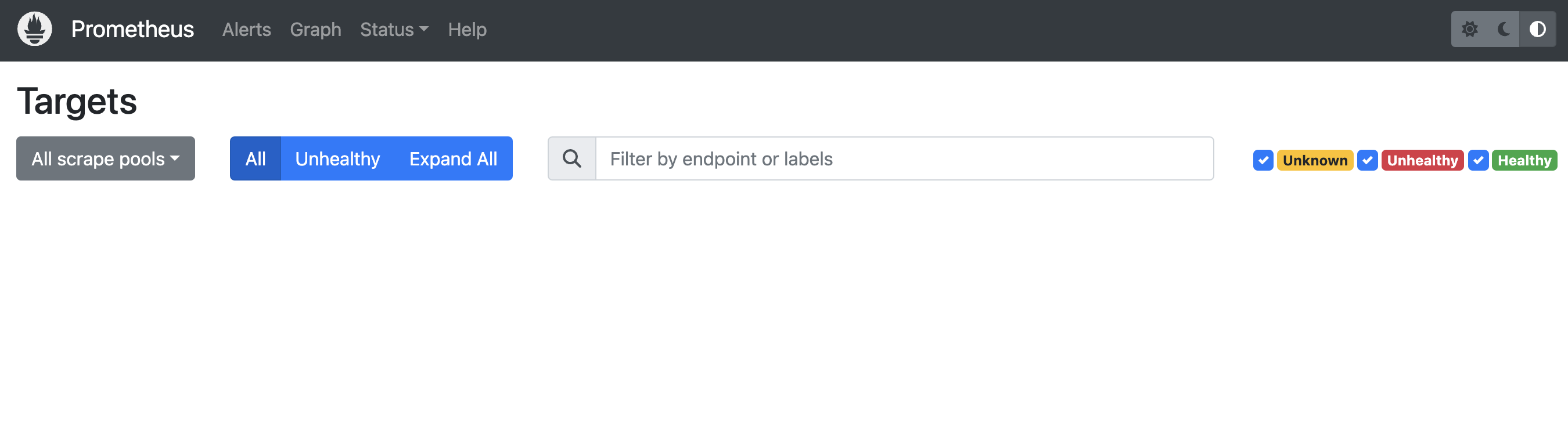

If you click on the Targets menu, you will not see any targets because the Target Allocator is managing the targets.

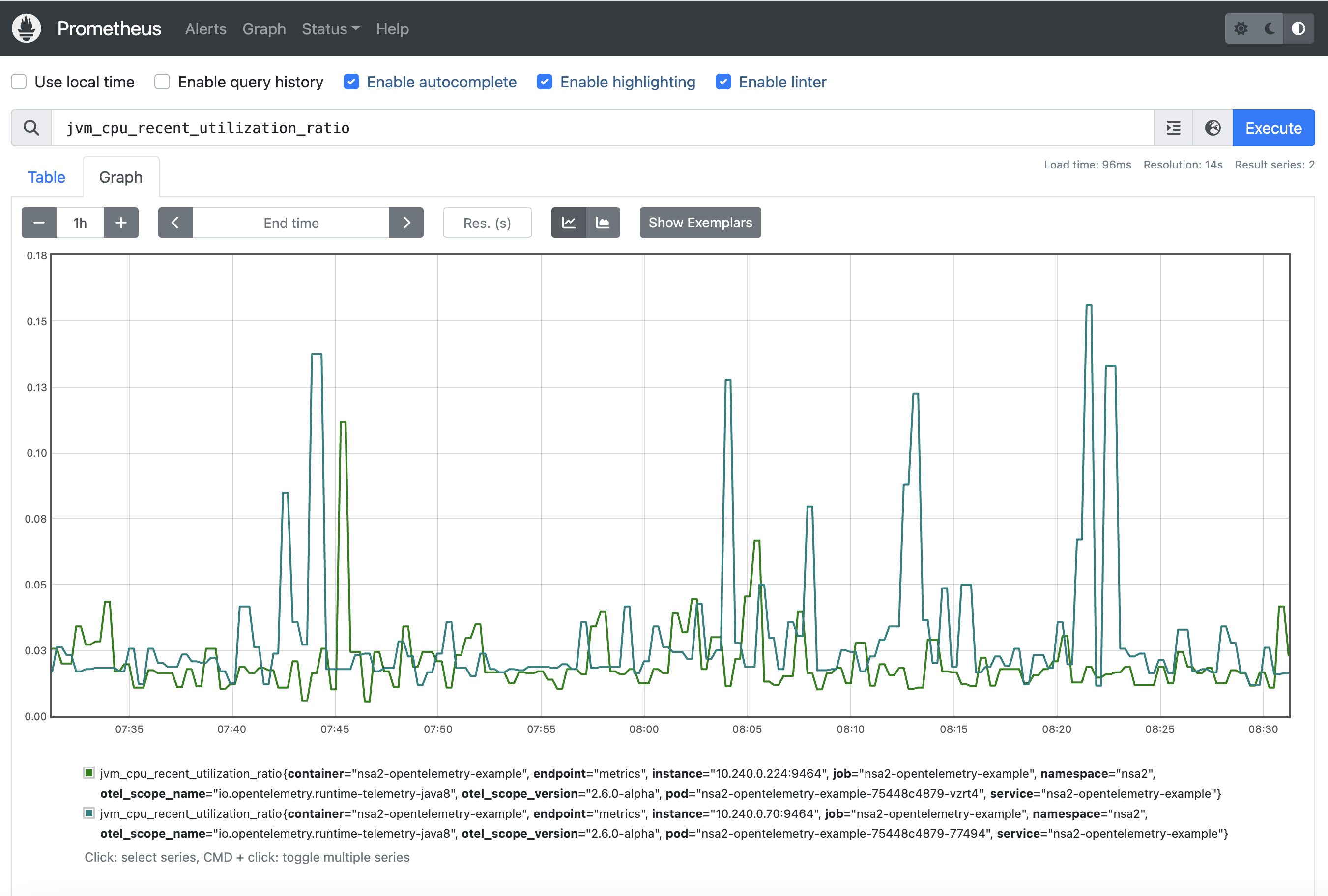

However, if you execute the following query in the Prometheus UI, you will see the metrics data from the Spring Boot application:

jvm_cpu_recent_utilization_ratio

This is because the OpenTelemetry Collector is scraping metrics data from the Spring Boot application and exporting it to Prometheus.

Use OTLP HTTP Exporter

To use the OTLP HTTP Exporter, you need to comment out the prometheusremotewrite exporter and uncomment the otlphttp exporter in the OpenTelemetry Collector configuration file.

        metrics:
          receivers: [otlp, prometheus]
          processors: []
          #exporters: [prometheusremotewrite]
          exporters: [otlphttp]

To apply the configuration, run the following command:

$ kubectl -n nsa2 apply -f otel-collector.yaml

The output is almost the same as the Prometheus Remote Write Exporter. The only difference is that the metrics data is exported to the OTLP HTTP endpoint.

Benefits of using OpenTelemetry Collector and Target Allocator

The OpenTelemetry Collector and Target Allocator provide the following benefits:

Scalability: The OpenTelemetry Collector and Target Allocator can be scaled independently.
Service Discovery: The Target Allocator manages the configuration of the Collector’s Prometheus Receiver.
Centralized Configuration: The OpenTelemetry Collector and Target Allocator provide a centralized configuration for managing Prometheus Custom Resources like ServiceMonitors and PodMonitors.

Grafana

As for Grafana, we are going to use the same configuration as in the previous article.

Conclusion

In this article, we discussed how to collect metrics from a Spring Boot application using OpenTelemetry Collector and how to visualize them using Prometheus and Grafana on Kubernetes. We also discussed how to use the Target Allocator to manage the configuration of the Collector’s Prometheus Receiver.
