Scraping Container Metrics via Kubelet cAdvisor in Kubernetes

On this page

Overview
Accessing cAdvisor Metrics from Kubelet
- RBAC Configuration for Metrics Access
- Verifying Access to Kubelet cAdvisor Metrics
OpenTelemetry Collector Configuration
Setting up a ServiceMonitor
Merging Metrics into Prometheus
Visualizing with PromQL in Grafana
Conclusion

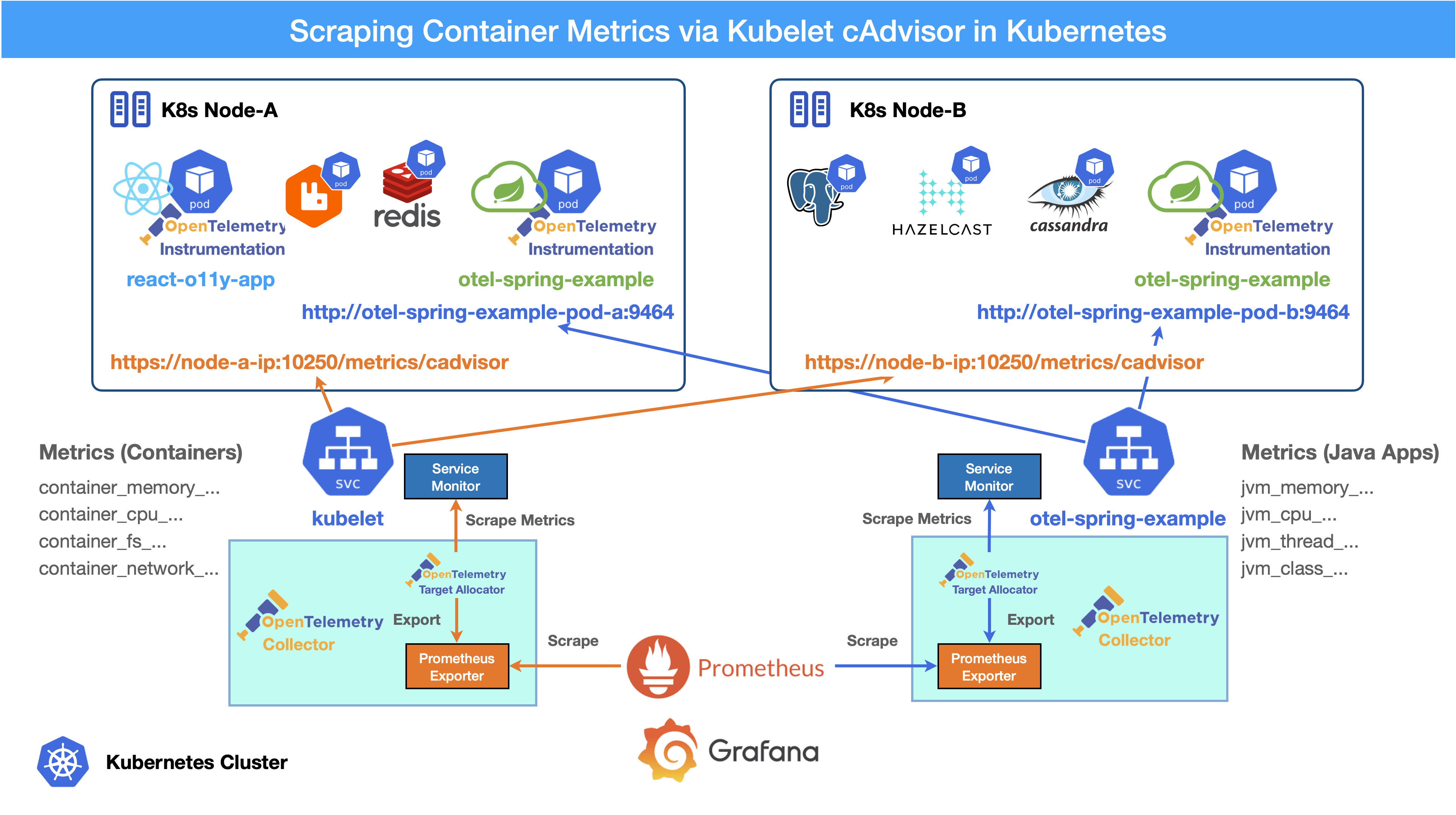

Overview

This guide provides a comprehensive walkthrough for collecting container resource metrics using the cAdvisor endpoint exposed by Kubelet on Kubernetes nodes. These metrics provide deep visibility into container performance, including CPU, memory, disk I/O, and network usage—essential for robust monitoring and troubleshooting.

Accessing cAdvisor Metrics from Kubelet

Kubelet exposes cAdvisor(Container Advisor) metrics on the /metrics/cadvisor endpoint, accessible over port 10250 (TLS) or 10255 (non-TLS).

The endpoint looks like this:

https://<node-ip>:10250/metrics/cadvisor

To verify:

$ kubectl -n kube-system get service kubelet -o wide

# Output
NAME      TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                        AGE   SELECTOR
kubelet   ClusterIP   None         <none>        10250/TCP,10255/TCP,4194/TCP   26m   <none>

For details on the kubelet service, you can run the following command:

$ kubectl -n kube-system get service kubelet -o yaml

Sample output:

apiVersion: v1
kind: Service
metadata:
  creationTimestamp: "2025-06-06T20:32:07Z"
  labels:
    app.kubernetes.io/managed-by: prometheus-operator
    app.kubernetes.io/name: kubelet
    k8s-app: kubelet
  name: kubelet
  namespace: kube-system
  resourceVersion: "29241"
  uid: 57fe6d64-5a0f-496d-a900-2942ba59d79a
spec:
  clusterIP: None
  clusterIPs:
  - None
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  - IPv6
  ipFamilyPolicy: RequireDualStack
  ports:
  - name: https-metrics
    port: 10250
    protocol: TCP
    targetPort: 10250
  - name: http-metrics
    port: 10255
    protocol: TCP
    targetPort: 10255
  - name: cadvisor
    port: 4194
    protocol: TCP
    targetPort: 4194
  sessionAffinity: None
  type: ClusterIP
status:
  loadBalancer: {}

The port name https-metrics is used for secure metrics scraping, while http-metrics is for insecure metrics. Using 'https-metrics' is recommended for security reasons.

NOTE: Port 10250 requires authentication via bearer token or client certificates.
TIP: If the kubelet service is missing, install Prometheus Operator via Helm. It will provision the required service automatically.

RBAC Configuration for Metrics Access

To scrape Kubelet cAdvisor metrics, you need to ensure that the Prometheus service account has the necessary permissions. You can create a ClusterRole and ClusterRoleBinding to grant access to the Kubelet metrics.

kubelet-cadvisor-rbac.yaml

# kubelet-scraper-sa.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubelet-scraper
  namespace: monitoring
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-targetallocator-rb-monitoring
subjects:
  - kind: ServiceAccount
    name:  kubelet-scraper
    namespace: monitoring
roleRef:
  kind: ClusterRole
  name: otel-targetallocator-role
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-targetallocator-cr-rb-monitoring
subjects:
  - kind: ServiceAccount
    name:  kubelet-scraper
    namespace: monitoring
roleRef:
  kind: ClusterRole
  name: otel-targetallocator-cr-role
  apiGroup: rbac.authorization.k8s.io

The Cluster Roles otel-targetallocator-role and otel-targetallocator-cr-role was covered in the previous documentation on Collecting Metrics using OpenTelemetry Collector and Visualizing them using Prometheus and Grafana on Kubernetes

Apply it with:

$ kubectl create namespace monitoring
$ kubectl apply -f kubelet-cadvisor-rbac.yaml

Verifying Access to Kubelet cAdvisor Metrics

To access the Kubelet cAdvisor metrics, you can use the following command to retrieve the metrics directly from the Kubelet API. This requires that you have access to the Kubernetes cluster and the necessary permissions to read the Kubelet metrics.

Get Node IP addresses:

$ kubectl get nodes -o wide

Use the internal IP address of one of the nodes to access the Kubelet metrics. The Kubelet API is typically available at https://<node-ip>:10250/metrics/cadvisor.

Use busybox pod to access the Kubelet metrics. First, create a pod with the kubelet-scraper service account in the monitoring namespace. This pod will have the necessary permissions to access the Kubelet metrics.

$ kubectl run -i -t --rm busybox --image=busybox --restart=Never --overrides='{"spec": { "serviceAccountName": "kubelet-scraper" } }' -n monitoring

Now, you are inside the busybox pod. First, retrieve the bearer token for authentication:

inside busybox pod

# TOKEN=$(cat /var/run/secrets/kubernetes.io/serviceaccount/token)

# echo $TOKEN

Now, you can use wget to access the Kubelet cAdvisor metrics endpoint. Replace <node-ip> with the actual Internal IP address of your Kubernetes node:

inside busybox pod

$ wget --no-check-certificate --header="Authorization: Bearer $TOKEN" https://192.168.39.48:10250/metrics/cadvisor -O -

Example Output:

# HELP cadvisor_version_info A metric with a constant '1' value labeled by kernel version, OS version, docker version, cadvisor version & cadvisor revision.
# TYPE cadvisor_version_info gauge
cadvisor_version_info{cadvisorRevision="",cadvisorVersion="",dockerVersion="",kernelVersion="5.10.236-228.935.amzn2.x86_64",osVersion="Amazon Linux 2"} 1

// Kubelet cAdvisor metrics - omitted for brevity

# TYPE machine_swap_bytes gauge
machine_swap_bytes{boot_id="810cc739-14e6-4fd5-855b-545e7a2b7c48",machine_id="ec2333bbe85a7b8da257530bee8bab25",system_uuid="ec2333bb-e85a-7b8d-a257-530bee8bab25"} 0
-                    100% |*********************************************************************************************************************************************|  498k  0:00:00 ETA
written to stdout

It returns a large number of metrics related to container resource usage, such as CPU, memory, disk I/O, and network statistics. You can use these metrics to monitor the performance of your containers and troubleshoot issues.

In this example, we will use metrics filter to narrow down the metrics to a specific container, such as otel-spring-example, react-o11y-app, or 'cassandra'.

OpenTelemetry Collector Configuration

This OpenTelemetry Collector configuration focuses on scraping Kubelet cAdvisor metrics. It includes the necessary receivers, processors, exporters, and service settings to collect and export Kubelet metrics.

Configure the collector to scrape and filter Kubelet metrics:

kubelet-metrics-collector.yaml

apiVersion: opentelemetry.io/v1beta1
kind: OpenTelemetryCollector
metadata:
  name: kubelet-metrics
  namespace: monitoring

spec:
  image: otel/opentelemetry-collector-contrib:0.127.0 # 0.127.0 or later. latest is not recommended for production use.
  mode: statefulset
  serviceAccount: kubelet-scraper
  replicas: 1
  targetAllocator:
    enabled: true
    serviceAccount: kubelet-scraper
    prometheusCR:
      enabled: true
      serviceMonitorSelector:
        matchLabels:
          otel-collector: kubelet-metrics
      #podMonitorSelector: {}


  config:
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318

      prometheus:
        config:
          #(1)
          scrape_configs:
            - job_name: 'kubectl-metrics-collector-job'
              scrape_interval: 30s
              static_configs:
                - targets: ['0.0.0.0:8888']

    processors:
      #(2)
      filter/metrics:
        metrics:
          include:
            match_type: regexp
            metric_names:
              - "^container_cpu.*"
              - "^container_memory_.*"
#            expressions:
#              - 'attributes["container"] == "react-o11y-app"'
#              - 'attributes["container"] == "otel-spring-example"'
#              - 'resource.container == "react-o11y-app"'
#              - 'resource.container == "otel-spring-example"'
      #(3)
      filter/containers:
        error_mode: propagate
        metrics:
          datapoint:
            - |
              not ( attributes["container"] == "react-o11y-app"
                or attributes["container"] == "otel-spring-example"
                or attributes["container"] == "cassandra")
#            - 'Not HasAttrOnDatapoint("container", "react-o11y-app") or HasAttrOnDatapoint("container", "otel-spring-example")' # Filter by container attribute
#            - 'not (resource.attributes["container"] == "react-o11y-app")' # Exclude kubelet metrics
#            - 'resource.attributes["namespace"] =="kube-system"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="default"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="monitoring"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="cert-manager"'
#            - 'resource.attributes["namespace"] =="keycloak"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="kube-public"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="kube-node-lease"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="opentelemetry-operator-system"' # Filter by namespace
#            - 'resource.attributes["namespace"] =="service-foundry"'
#            - 'resource.attributes["namespace"] =="traefik"'# Filter by namespace and container

#          include:
#            match_type: expr
#            expressions:
#              - 'Label("container") == "react-o11y-app"' # Use OR within a single expression
#              - 'attributes["container"] == "react-o11y-app" or attributes["container"] == "otel-spring-example"' # Use OR within a single expression

    #              - 'resource.container == "kubelet"'
#              - 'resource.container == "kube-proxy"'

    exporters:
      debug:
        verbosity: detailed

      prometheus:
        endpoint: "0.0.0.0:8889"

    service:
      pipelines:
        metrics:
          receivers: [otlp, prometheus]
          processors: [filter/metrics, filter/containers]
          exporters: [debug, prometheus]

1	Scrapes cAdvisor metrics via Prometheus receiver.
2	Applies filtering to reduce data volume.
3	Targets specific containers of interest.

For details on the OpenTelemetry Collector Filter processor, refer to the Filter Processor documentation.

Deploy with:

$ kubectl apply -f kubelet-metrics-collector.yaml

Setting up a ServiceMonitor

Create a ServiceMonitor to instruct the OpenTelemetry Target Allocator:

kubelet-cadvisor-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: kubelet-cadvisor
  namespace: kube-system
  labels:
    otel-collector: kubelet-metrics
    metrics-unit: monitoring
    release: otel                    # should match your OTEL Target Allocator or Prometheus selector
spec:
  jobLabel: k8s-app
  selector:
    matchLabels:
      k8s-app: kubelet               # must match the label of the kubelet service
  namespaceSelector:
    matchNames:
      - kube-system
  endpoints:
    #(1)
    - port: https-metrics
      scheme: https
      interval: 30s
      #(2)
      path: /metrics/cadvisor
      tlsConfig:
        insecureSkipVerify: true
      #(3)
      bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token

1	The https-metrics port is used for secure scraping of Kubelet metrics, while the http-metrics port is used for insecure scraping. The cadvisor port is specifically for cAdvisor metrics.
2	The path is set to `/metrics/cadvisor`, which is the endpoint for Kubelet cAdvisor metrics.
3	The `kubelet-scraper` service account is used to authenticate the scraping of Kubelet metrics. This service account should have the necessary permissions to access the Kubelet metrics endpoint.

Apply it:

$ kubectl apply -f kubelet-cadvisor-servicemonitor.yaml

Merging Metrics into Prometheus

To forward these metrics to Prometheus:

kubelet-metrics-scrape-config.yaml

apiVersion: monitoring.coreos.com/v1alpha1
kind: ScrapeConfig
metadata:
  name: kubelet-metrics-scrape-config
  namespace: o11y
#  namespace: monitoring
  labels:
    #(1)
    prometheus: o11y-prometheus

spec:
  staticConfigs:
    - labels:
        job: kubelet-metrics-scrape-job
      targets:
#        - kubelet-metrics-collector:8889
        #(2)
        - kubelet-metrics-collector.monitoring.svc:8889

1	This label selector is used to identify the ScrapeConfig that can be used by Prometheus to scrape metrics from the Kubelet cAdvisor endpoint.
2	The endpoint is the Prometheus exporter endpoint of the OpenTelemetry Collector that is scraping Kubelet cAdvisor metrics.

Apply the scraping configuration to Prometheus:

$ kubectl apply -f kubelet-metrics-scrape-config.yaml

Visualizing with PromQL in Grafana

Sample PromQL:

View container memory usage in Grafana

container_memory_usage_bytes

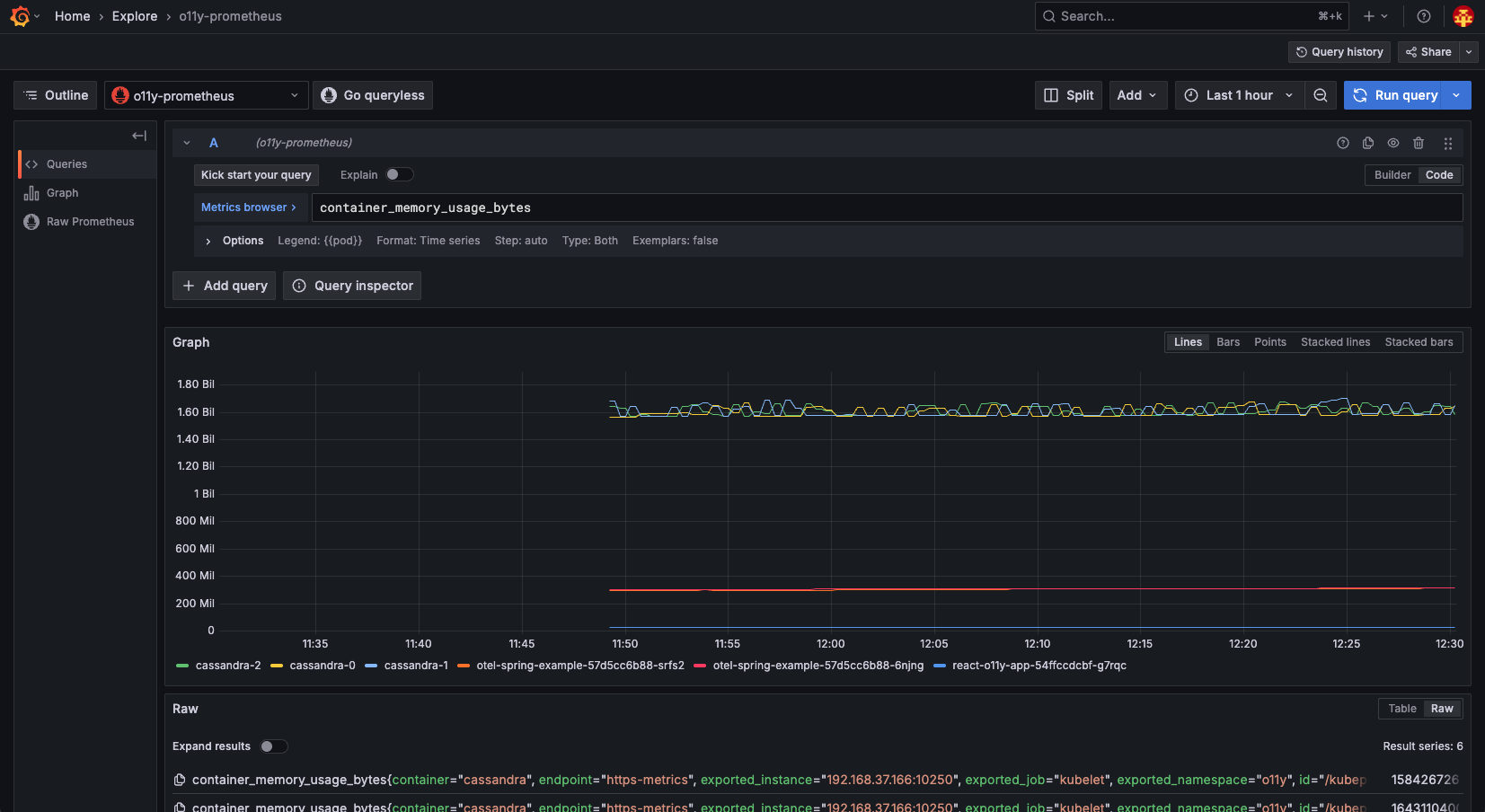

Figure 1. Grafana UI - Exploring Container Memory Usage

Note that the metrics include metrics related to containers including otel-spring-example, react-o11y-app, and 'cassandra'.

kubelet-metrics-collector.yaml - filter/containers

      filter/containers:
        error_mode: propagate
        metrics:
          datapoint:
            - |
              not ( attributes["container"] == "react-o11y-app"
                or attributes["container"] == "otel-spring-example"
                or attributes["container"] == "cassandra")

You can modify the queries to specify containers of interest.

container_memory_usage_bytes{container="otel-spring-example"} OR container_memory_usage_bytes{container="react-o11y-app"}

The following query can be used to see the File System Read Bytes for containers:

View file system read bytes

container_fs_reads_bytes_total

NOTE: Metrics like container_fs_reads_bytes_total may be filtered out. To retain them, adjust the filter processor in the OpenTelemetry Collector config:

kubelet-metrics-collector.yaml - filter/metrics

      filter/metrics:
        metrics:
          include:
            match_type: regexp
            metric_names:
              - "^container_cpu.*"
              - "^container_memory_.*"

You can see the result of the query in Grafana:

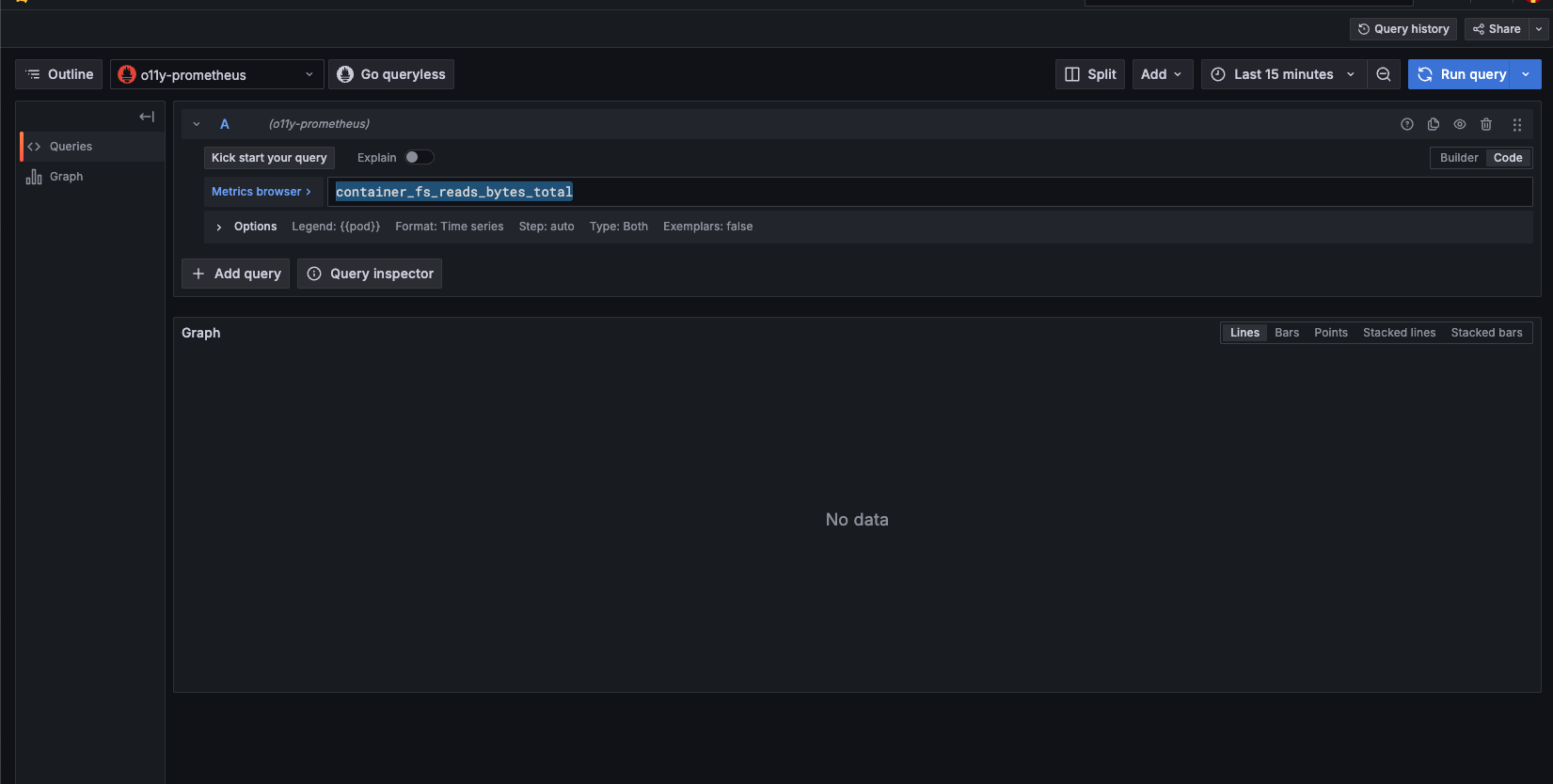

Figure 2. Grafana UI - Exploring Container File System Reads - No Data

Conclusion

By integrating cAdvisor metrics exposed by Kubelet into your observability stack via OpenTelemetry Collector and Prometheus, you gain powerful insights into container-level performance across your Kubernetes nodes. This guide helps you configure access, scrape securely, filter meaningfully, and visualize effectively using Grafana.
