Automated Loki Installationon Kubernetes with S3 Storage

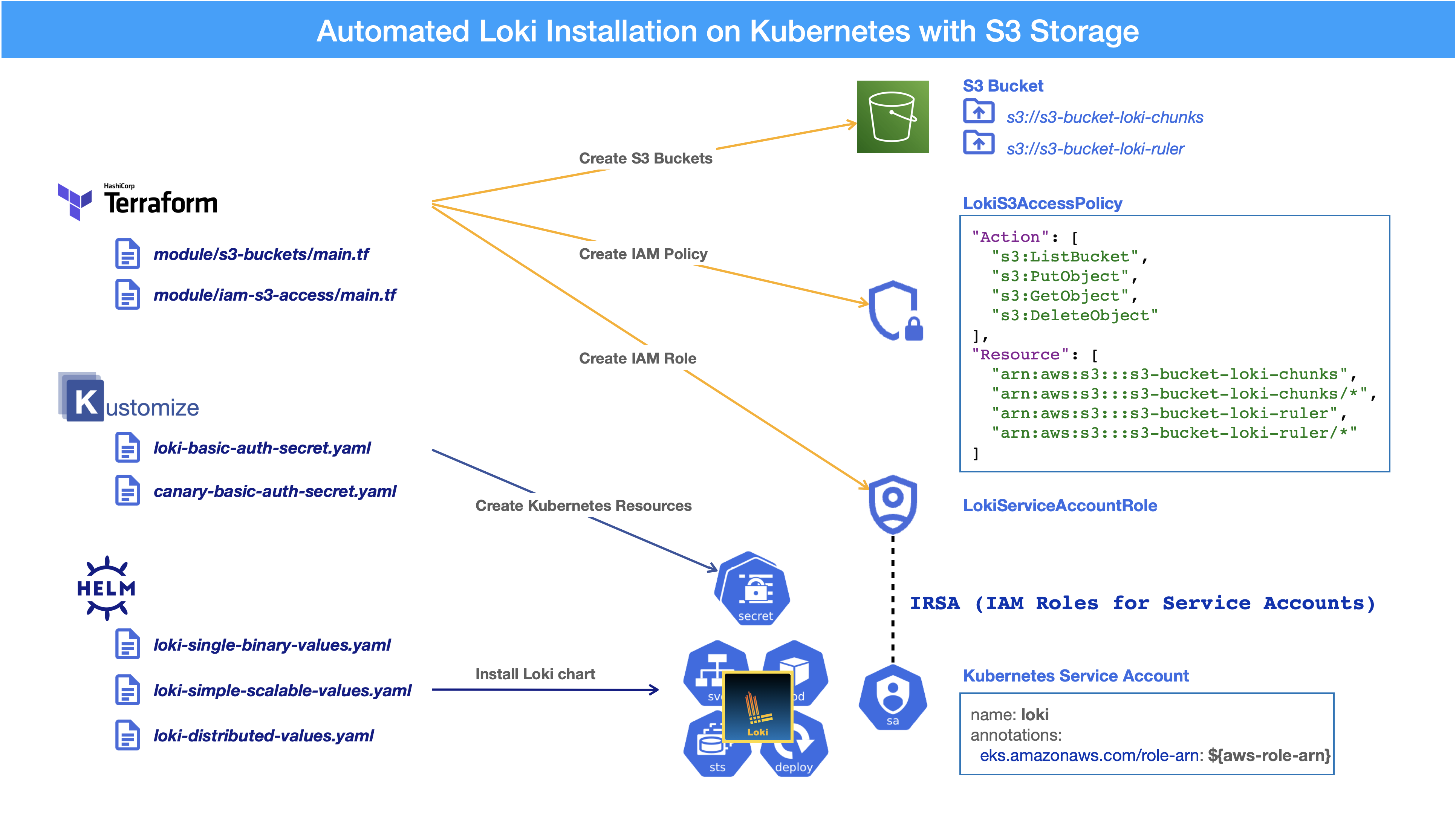

Overview

For production-grade deployments, Grafana Loki can be configured to use cloud-based object storage such as Amazon S3, Google Cloud Storage, or Azure Blob Storage. This guide provides a comprehensive walkthrough to deploy Loki on Kubernetes using Amazon S3 as the storage backend.

S3 Buckets Referenced

S3 bucket names must be globally unique. This guide assumes the following naming convention:

Chunks bucket: ${unique-prefix}-${k8s-namespace}-loki-chunks
Ruler bucket: ${unique-prefix}-${k8s-namespace}-loki-ruler

Where:

unique-prefix refers to your project or organization name
k8s-namespace is the Kubernetes namespace where Loki is deployed (e.g., o11y)

Topics Covered

Understanding IAM Roles for Service Accounts (IRSA)
Creating and configuring S3 buckets
Manual setup via AWS CLI
Automating IAM policies and roles with Terraform
Overview of Loki deployment modes
Installing Loki in Single Binary Mode with S3

IAM Roles for Service Accounts (IRSA)

Amazon EKS supports IRSA, allowing Kubernetes service accounts to assume IAM roles without storing AWS credentials in pods. This setup is ideal for granting secure and scoped access to AWS services like S3.

In this guide, Loki will assume an IAM role via a Kubernetes service account to access the S3 buckets.

IAM Role: LokiServiceAccountRole
IAM Policy: LokiS3AccessPolicy
Kubernetes Service Account: loki

Refer to the official documentation for more details: https://docs.aws.amazon.com/eks/latest/userguide/iam-roles-for-service-accounts.html

Configuring S3 Buckets and IAM Roles

Manual Setup with AWS CLI

Prepare your environment:

$ export LOKI_CHUNKS_BUCKET_NAME=your-loki-chunks
$ export LOKI_RULER_BUCKET_NAME=your-loki-ruler

Create the S3 buckets:

$ aws s3 mb s3://$LOKI_CHUNKS_BUCKET_NAME --region $AWS_REGION
$ aws s3 mb s3://$LOKI_RULER_BUCKET_NAME --region $AWS_REGION

Define IAM Policy and Role

This section is written based on the official documentation: https://grafana.com/docs/loki/latest/setup/install/helm/deployment-guides/aws/#defining-iam-roles-and-policies

Create a policy document loki-s3-policy.json

aws/loki-s3-policy.json

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "LokiStorage",
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:PutObject",
                "s3:GetObject",
                "s3:DeleteObject"
            ],
            "Resource": [
                "arn:aws:s3:::< CHUNK BUCKET NAME >",
                "arn:aws:s3:::< CHUNK BUCKET NAME >/*",
                "arn:aws:s3:::< RULER BUCKET NAME >",
                "arn:aws:s3:::< RULER BUCKET NAME >/*"
            ]
        }
    ]
}

Run the following command to create the IAM policy using the AWS CLI. Make sure to replace < CHUNK BUCKET NAME > and < RULER BUCKET NAME > with your actual S3 bucket names.

Create the policy:

$ aws iam create-policy --policy-name LokiS3AccessPolicy --policy-document file://aws/loki-s3-policy.json

Create a trust policy trust-policy.json for OIDC-based IRSA:

Create a JSON file named trust-policy.json with the following content. This policy will allow the Loki service account to assume the IAM role using OIDC.

aws/trust-policy.json

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::< ACCOUNT ID >:oidc-provider/oidc.eks.<INSERT REGION>.amazonaws.com/id/< OIDC ID >"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "oidc.eks.<INSERT REGION>.amazonaws.com/id/< OIDC ID >:sub": "system:serviceaccount:<INSERT K8S NAMESPACE>:loki",
                    "oidc.eks.<INSERT REGION>.amazonaws.com/id/< OIDC ID >:aud": "sts.amazonaws.com"
                }
            }
        }
    ]
}

To get the OIDC ID, you can run the following command:

$ aws eks describe-cluster --name $EKS_CLUSTER_NAME \
    --query "cluster.identity.oidc.issuer" --output text

Create the IAM role using the AWS CLI:

$ aws iam create-role --role-name LokiServiceAccountRole --assume-role-policy-document file://aws/trust-policy.json

Attach the policy to the role:

$ aws iam attach-role-policy --role-name LokiServiceAccountRole --policy-arn arn:aws:iam::${AWS_ACCOUNT_ID}:policy/LokiS3AccessPolicy

The Role and Policy should now be created and attached. You can verify this by navigating to the AWS IAM console and checking the roles and policies.

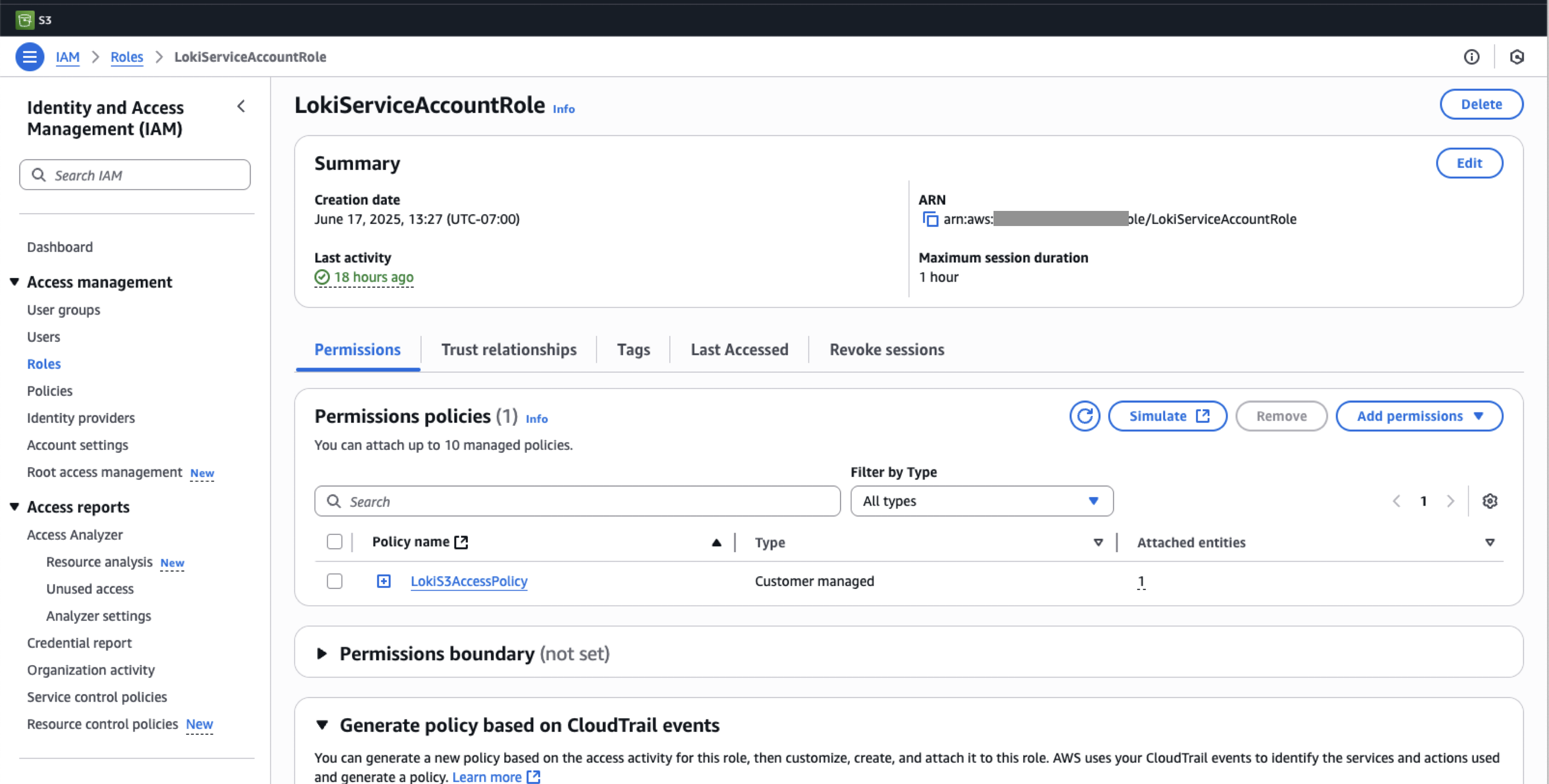

Figure 1. AWS Console - IAM Role created manually

loki service account

The service account 'loki' will be created in the Kubernetes namespace where Loki is deployed (e.g., o11y). This service account will be associated with the IAM role created in the previous step.

The annotation "eks.amazonaws.com/role-arn" must be set to the ARN of the IAM role you created. This allows the Kubernetes service account to assume the IAM role and access the S3 buckets.

custom-values.yaml

serviceAccount:
  create: true
  annotations:
    "eks.amazonaws.com/role-arn": "arn:aws:iam::<AWS_ACCOUNT_ID>:role/LokiServiceAccountRole" # The service role you created

Automating with Terraform

Terraform simplifies IAM and S3 provisioning across environments.

Terraform will handle following tasks during the deployment:

Creating S3 buckets for Loki chunks and ruler data
Creating an IAM policy for S3 access
Creating an IAM role for the Loki service account
Attaching the IAM policy to the role

It also deletes the S3 buckets and IAM roles when you destroy the Terraform resources.

Terraform Structure

The Terraform code is structured as follows:

terraform
├── main.tf
├── modules
│   ├── iam-s3-access
│   │   ├── main.tf
│   │   ├── outputs.tf
│   │   └── variables.tf
│   └── s3-buckets
│       ├── main.tf
│       ├── outputs.tf
│       └── variables.tf
├── terraform.tfvars
└── variables.tf

Terraform modules:

s3-buckets: Creates Loki-specific S3 buckets
iam-s3-access: Creates IAM role and policy for Loki access

Main Terraform Files

variables.tf

Variables defined in the variables.tf:

eks_cluster_name: Name of the EKS cluster where Loki is deployed.
aws_region: AWS region where the EKS cluster is deployed.
s3_bucket_prefix: Prefix for the S3 bucket names.
loki_namespace: Namespace for Loki (default is o11y).
loki_serviceaccount: Service account for Loki (default is loki).
s3_bucket_suffixes: List of suffixes for S3 buckets (default is -chunks and -ruler).

variables.tf

variable "eks_cluster_name" {
  description = "Name of the Kubernetes cluster"
  type        = string
}

variable "aws_region" {
  description = "AWS region where the EKS cluster is deployed"
  type        = string
}

variable "s3_bucket_prefix" {
  description = "Prefix for S3 bucket names"
  type        = string
}

variable "loki_namespace" {
  description = "Namespace for Loki"
  type        = string
  default     = "o11y"
}

variable "loki_serviceaccount" {
  description = "Service account for Loki"
  type        = string
  default     = "loki"
}

variable "s3_bucket_suffixes" {
  description = "List of suffixes for S3 buckets"
  type = list(string)
  default = [
    "-chunks",
    "-ruler",
  ]
}

main.tf

The main.tf file is the entry point for the Terraform configuration. It defines the local variables, modules, and data sources required to create the S3 buckets and IAM roles.

main.tf

locals {
  #(1)
  s3_bucket_names = [
    for suffix in var.s3_bucket_suffixes : "${var.s3_bucket_prefix}${var.loki_namespace}${suffix}"
  ]
}

#(2)
module "s3_buckets" {
  source = "./modules/s3-buckets"

  s3_bucket_names = local.s3_bucket_names
  enable_versioning = true
}

data "aws_eks_cluster" "this" {
  name = var.eks_cluster_name
}

data "aws_iam_openid_connect_provider" "this" {
  url = data.aws_eks_cluster.this.identity[0].oidc[0].issuer
}

locals {
  oidc_url = data.aws_eks_cluster.this.identity[0].oidc[0].issuer
  oidc_arn = data.aws_iam_openid_connect_provider.this.arn
  # remove https:// from the URL
  oidc_url_path = regex("://(.*)", local.oidc_url)[0]

  #(3)
  assume_role_policy = jsonencode({
    Version = "2012-10-17",
    Statement = [
      {
        Effect = "Allow",
        Principal = {
          Federated = local.oidc_arn
        },
        Action = "sts:AssumeRoleWithWebIdentity",
        Condition = {
          StringEquals = {
            "${local.oidc_url_path}:sub" = "system:serviceaccount:${var.loki_namespace}:${var.loki_serviceaccount}",
            "${local.oidc_url_path}:aud" = "sts.amazonaws.com"
          }
        }
      }
    ]
  })
}

#(4)
# iam_s3_access
module "iam_access_loki_s3" {
  source = "./modules/iam-s3-access"

  role_name = "${var.loki_namespace}LokiServiceAccountRole"
  policy_name = "${var.loki_namespace}LokiS3AccessPolicy"
  s3_bucket_names = local.s3_bucket_names
  assume_role_policy_json = local.assume_role_policy
}

#(5)
# print IAM role and policy details
output "loki_iam_role_name" {
  value = module.iam_access_loki_s3.role_name
}
output "loki_iam_role_arn" {
  value = module.iam_access_loki_s3.role_arn
}
output "loki_iam_policy_name" {
  value = module.iam_access_loki_s3.policy_name
}
output "loki_iam_policy_arn" {
  value = module.iam_access_loki_s3.policy_arn
}

1	This creates a list of S3 bucket names based on the prefix and suffixes defined in the variables.
2	This module creates the S3 buckets using the names defined in the `locals` block.
3	This block defines the assume role policy for the IAM role that allows the Loki service account to assume the role using OIDC.
4	This module creates the IAM role and policy for Loki to access S3.
5	These outputs provide the IAM role and policy details that can be used in the Loki Helm chart.

Module s3-buckets

variables.tf

Variables defined in the variables.tf:

s3_bucket_names: List of S3 bucket names to be created.
enable_versioning: A boolean variable to enable versioning for the S3 buckets (default is true).

variables.tf

variable "s3_bucket_names" {
    description = "List of S3 bucket names for Loki"
    type        = list(string)
}

variable "enable_versioning" {
    description = "Enable versioning for S3 buckets"
    type        = bool
    default     = true
}

main.tf

The main.tf file in the s3-buckets module defines the S3 buckets and their versioning configuration. It uses the aws_s3_bucket and aws_s3_bucket_versioning resources to create the S3 buckets and enable versioning if specified.

main.tf

#(1)
resource "aws_s3_bucket" "this" {
  for_each = toset(var.s3_bucket_names)

  bucket   = each.value
  force_destroy = true

  tags = {
    ManagedBy = "Terraform"
  }
}

#(2)
resource "aws_s3_bucket_versioning" "this" {
  for_each = var.enable_versioning ? aws_s3_bucket.this : {}

  bucket = each.value.id
  versioning_configuration {
    status = "Enabled"
  }
}

1	This resource creates S3 buckets for each name in the `s3_bucket_names` list. It also enables versioning if specified.
2	This resource enables versioning for the S3 buckets if the `enable_versioning` variable is set to true.

Module iam-s3-access

Variables defined in the variables.tf:

role_name: Name of the IAM role for S3 access.
policy_name: Name of the IAM policy for S3 access.
s3_bucket_names: List of S3 bucket names for Loki.
assume_role_policy_json: JSON policy document that defines who can assume the IAM role (default is an empty string).

variables.tf

variable "role_name" {
  description = "IAM role name for S3 access"
  type        = string
}

variable "policy_name" {
    description = "Name of the IAM policy for S3 access"
    type        = string
}

variable "s3_bucket_names" {
    description = "List of S3 bucket names for Loki"
    type        = list(string)
}

variable "assume_role_policy_json" {
    description = "JSON policy document that defines who can assume the IAM role"
    type        = string
    default     = ""
}

main.tf

The main.tf file in the iam-s3-access module defines the IAM role and policy for Loki to access S3. It uses the aws_iam_role, aws_iam_policy_document, aws_iam_policy, and aws_iam_role_policy_attachment resources to create the necessary IAM resources.

main.tf

#(1)
resource "aws_iam_role" "this" {
  name = var.role_name
  assume_role_policy = var.assume_role_policy_json
}

data "aws_iam_policy_document" "this" {
  dynamic "statement" {
    for_each = var.s3_bucket_names
    content {
      actions = [
        "s3:ListBucket",
        "s3:GetObject",
        "s3:PutObject",
        "s3:DeleteObject"
      ]
      resources = [
        "arn:aws:s3:::${statement.value}",
        "arn:aws:s3:::${statement.value}/*"
      ]
    }
  }
}

#(2)
resource "aws_iam_policy" "this" {
  name   = var.policy_name
  policy = data.aws_iam_policy_document.this.json
}

#(3)
resource "aws_iam_role_policy_attachment" "this" {
  role       = aws_iam_role.this.name
  policy_arn = aws_iam_policy.this.arn
}

1	This resource creates an IAM role with the specified name and assume role policy.
2	This data source generates the IAM policy document that allows access to the specified S3 buckets.
3	This resource attaches the IAM policy to the IAM role created in the previous step.

Verify the IAM Role and Policy

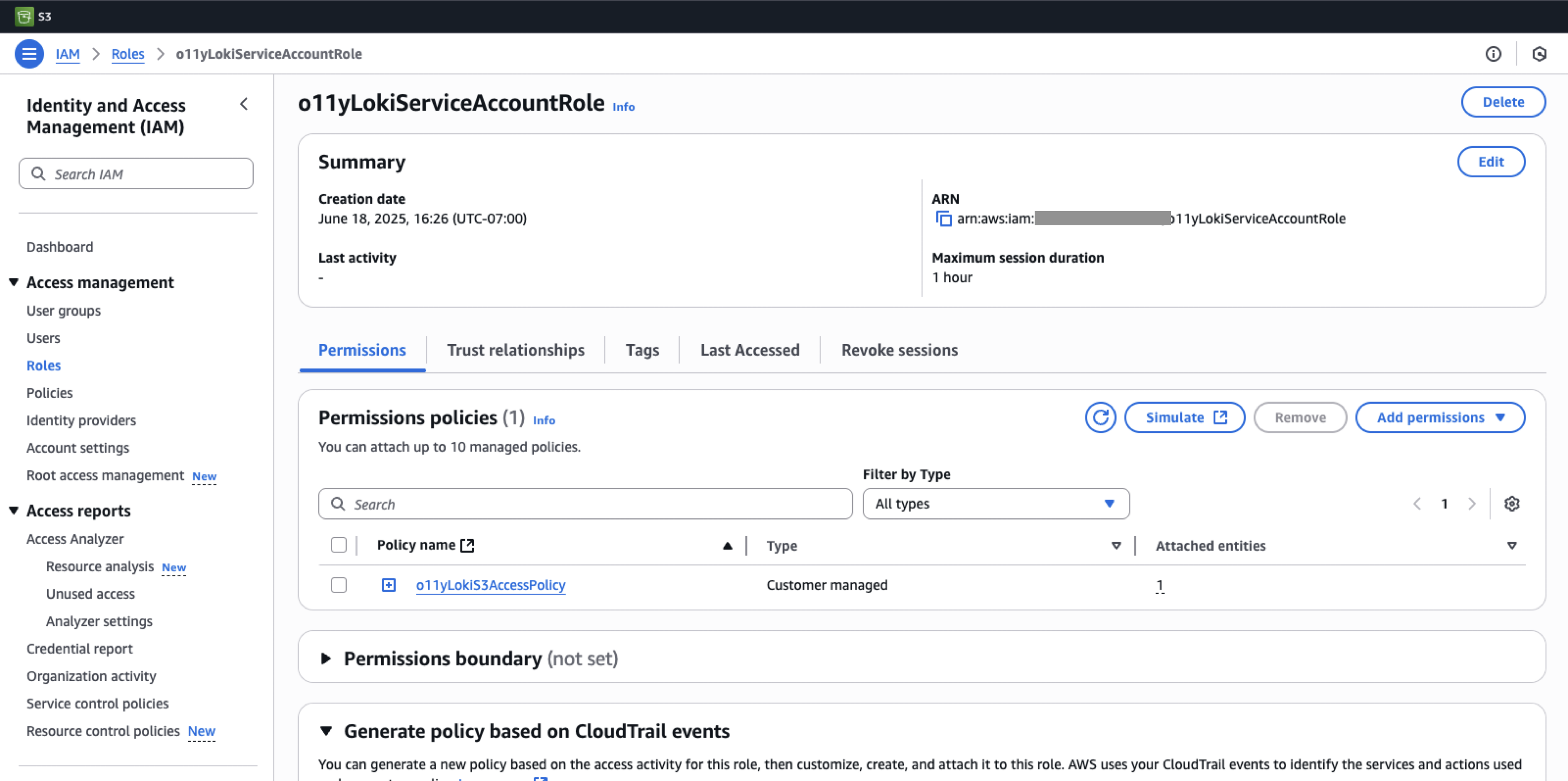

Figure 2. AWS Console - IAM Role Created by Terraform

Loki Deployment Modes

Refer to the official documentation for more details: https://grafana.com/docs/loki/latest/get-started/deployment-modes/

There are several deployment modes for Loki, including:

Single Binary: A single binary that runs all components of Loki.
Simple Scalable: A simple scalable deployment that uses a single binary for the ingester and querier, but separates the distributor and storage.
Distributed: A distributed deployment that separates all components of Loki into different pods.

Single Binary Mode

In single binary mode, all components of Loki are run in a single pod. This is suitable for small deployments or development environments.

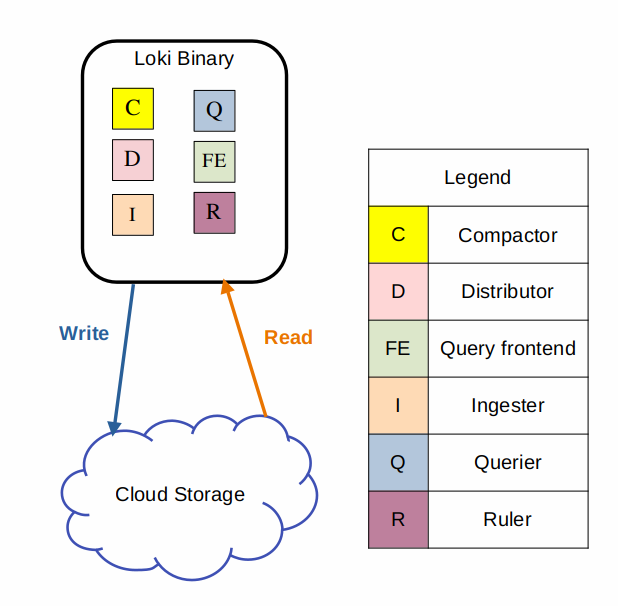

Figure 3. Loki Single Binary Mode - image source: grafana.com

This mode is the simplest to set up and requires the least amount of resources. It is not recommended for production use, but it is useful for testing and development.

Example resources created in Single Binary Mode

$ kubectl -n o11y get deployments,statefulsets,daemonsets
NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/loki-gateway   1/1     1            1           52m

NAME                                  READY   AGE
statefulset.apps/loki                 1/1     52m
statefulset.apps/loki-chunks-cache    1/1     52m
statefulset.apps/loki-results-cache   1/1     52m

NAME                         DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/loki-canary   2         2         2       2            2           <none>          52m

Simple Scalable Mode

This is the default mode for Loki. It separates the ingester and querier into different pods, but uses a single pod for the distributor and storage. This mode is suitable for small to medium deployments.

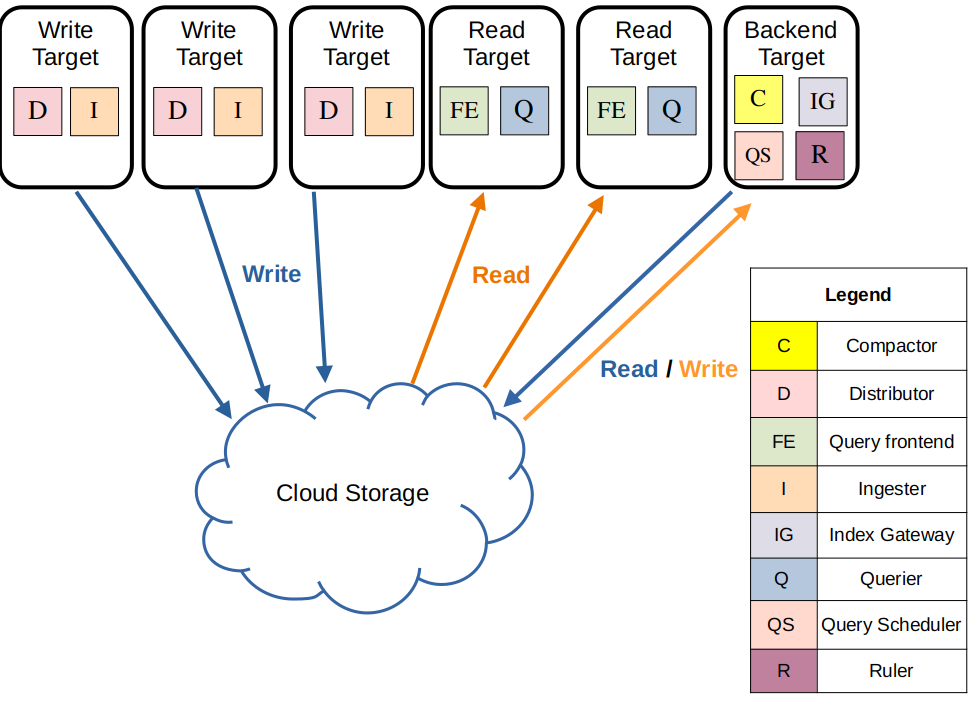

Figure 4. Loki Simple Scalable Mode - image source: grafana.come

This mode requires more resources than the single binary mode, but it provides better scalability and reliability. It is suitable for small to medium deployments.

Example resources created in Simple Scalable Mode

$ kubectl -n o11y get deployments,statefulsets,daemonsets
NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/loki-gateway   1/1     1            1           50s
deployment.apps/loki-read      0/3     3            0           50s

NAME                                  READY   AGE
statefulset.apps/loki-backend         3/3     51s
statefulset.apps/loki-chunks-cache    1/1     51s
statefulset.apps/loki-results-cache   1/1     51s
statefulset.apps/loki-write           0/3     51s

NAME                         DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/loki-canary   3         3         3       3            3           <none>          51s

Distributed Mode

In distributed mode, all components of Loki are separated into different pods. This mode is suitable for large deployments and provides better scalability and reliability.

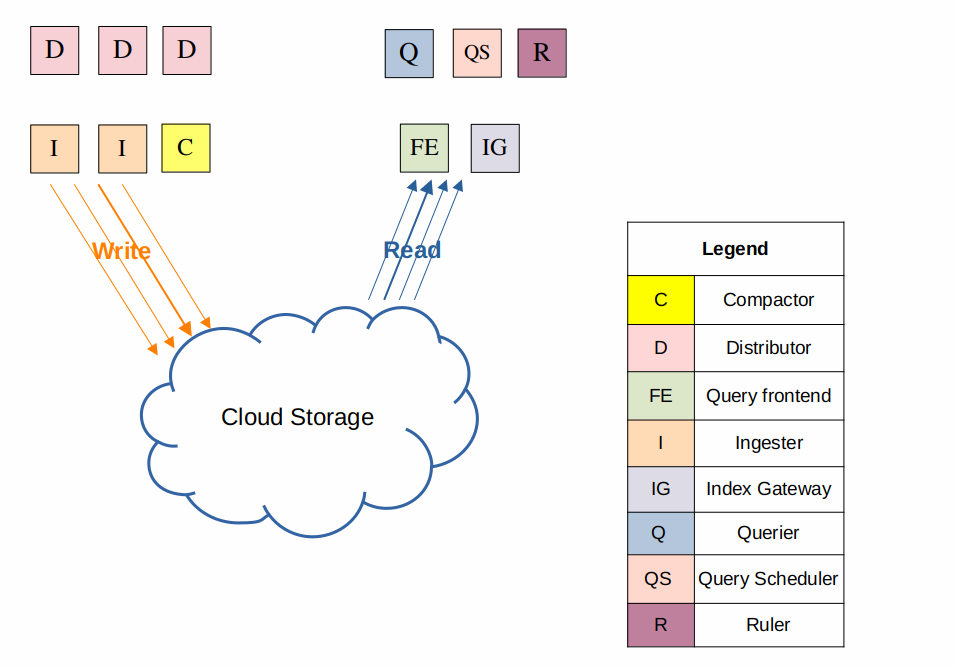

Figure 5. Loki Distributed Mode - image source: grafana.com

This mode requires the most resources, but it provides the best scalability and reliability. It is suitable for large deployments and production use.

Example resources created in Distributed Mode

$ kubectl -n o11y get deployments,statefulsets,daemonsets
NAME                                   READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/loki-distributor       3/3     3            3           2m37s
deployment.apps/loki-gateway           1/1     1            1           2m37s
deployment.apps/loki-querier           3/3     3            3           2m37s
deployment.apps/loki-query-frontend    2/2     2            2           2m37s
deployment.apps/loki-query-scheduler   2/2     2            2           2m37s

NAME                                  READY   AGE
statefulset.apps/loki-chunks-cache    1/1     2m37s
statefulset.apps/loki-compactor       1/1     2m37s
statefulset.apps/loki-index-gateway   2/2     2m37s
statefulset.apps/loki-ingester        3/3     2m37s
statefulset.apps/loki-results-cache   1/1     2m37s
statefulset.apps/loki-ruler           1/1     2m37s

NAME                         DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/loki-canary   3         3         3       3            3           <none>          2m37s

Installing Loki in Single Binary Mode with S3

Use the following values.yaml with Helm to deploy Loki in Single Binary mode using S3:

loki-singlebinary-values.yaml

deploymentMode: SingleBinary

loki:
  auth_enabled: false
  #(1)
  storage:
    type: s3
    bucketNames:
      chunks: {your-bucket-prefix}-loki-chunks
      ruler: {your-bucket-prefix}-loki-ruler
    s3:
      region: ca-west-1 # for example, ca-west-1

  #(2)
  storage_config:
    aws:
      region: ca-west-1 # for example, eu-west-2
      s3forcepathstyle: false

  #(3)
  schemaConfig:
    configs:
      - from: "2025-06-01"
        store: tsdb
        object_store: s3
        schema: v13
        index:
          prefix: loki_index_
          period: 24h

  compactor:
    retention_enabled: true
    delete_request_store: s3

  ruler:
    replicas: 1
    enable_api: true
    storage:
      type: s3

      s3:
        region: ca-west-1
        bucketnames: {your-bucket-prefix}-loki-ruler
        s3forcepathstyle: false

    alertmanager_url: http://mimir-alertmanager/alertmanager

  limits_config:
    allow_structured_metadata: true
    retention_period: 672h # 28 days

singleBinary:
  replicas: 1
  resources:
    requests:
      cpu: 500m
      memory: 1Gi
    limits:
      cpu: 1
      memory: 2Gi

#(4)
serviceAccount:
  # use the default service account
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::{aws-account-id}:role/o11yLokiServiceAccountRole

gateway:
  enabled: true

# Disable other deployment modes
backend:
  replicas: 0
read:
  replicas: 0
write:
  replicas: 0

distributor:
  replicas: 0
ingester:
  replicas: 0
querier:
  replicas: 0
queryFrontend:
  replicas: 0
queryScheduler:
  replicas: 0
ruler:
  replicas: 0
compactor:
  replicas: 0
indexGateway:
  replicas: 0

1	Replace `{your-bucket-prefix}` with the actual prefix you want to use for your S3 buckets.
2	Set the AWS region where your S3 buckets are located.
3	The schema configuration defines the storage schema for Loki. The `from` date should be set to a date in the future to ensure that Loki uses the new schema.
4	Replace `{aws-account-id}` with your actual AWS account ID. This is the IAM role that allows Loki to access the S3 buckets.

Run the following command to install Loki using Helm with the above values file:

$ helm install loki grafana/loki \
  --namespace o11y --create-namespace \
  -f loki-singlebinary-values.yaml

Verify the Installation on Grafana

Configure Grafana to connect to the Loki data source at http://loki:3000. Logs should appear under the Explore section.

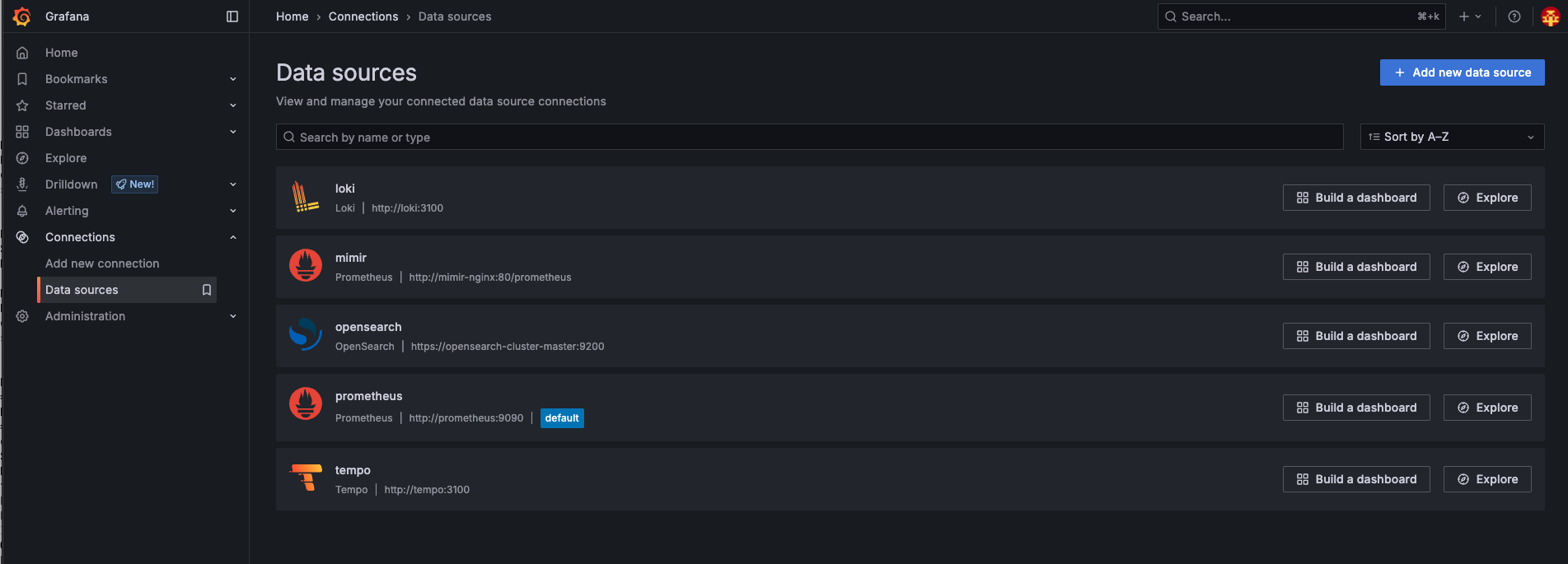

Figure 6. Grafana Data Source Configuration for Loki

Logs can be viewed in Grafana by navigating to the Explore section and selecting the Loki data source.

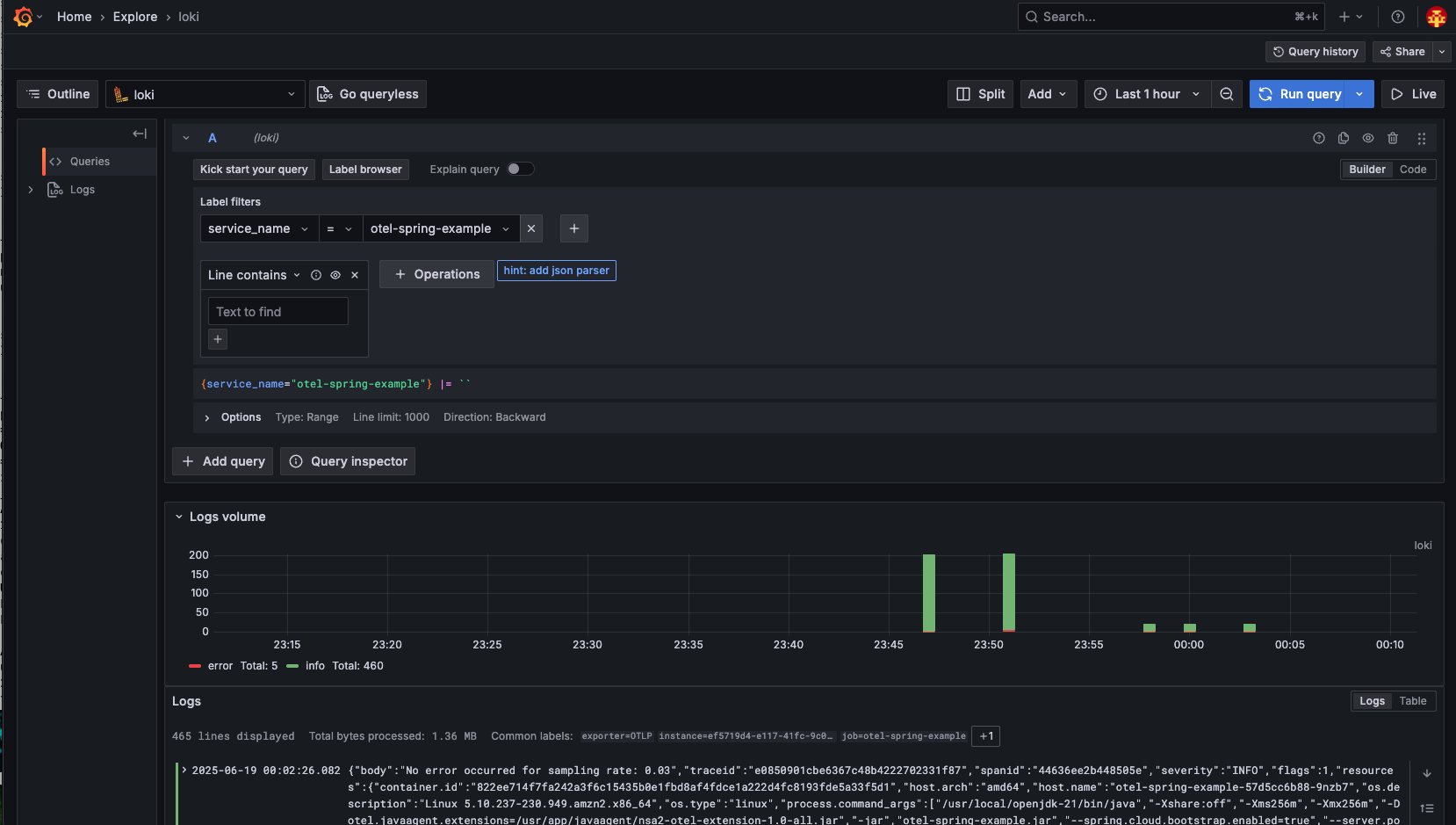

Figure 7. Grafana Loki Logs

You can find some files in the S3 bucket that Loki has created. You can verify this by navigating to the AWS S3 console and checking the contents of the S3 buckets.

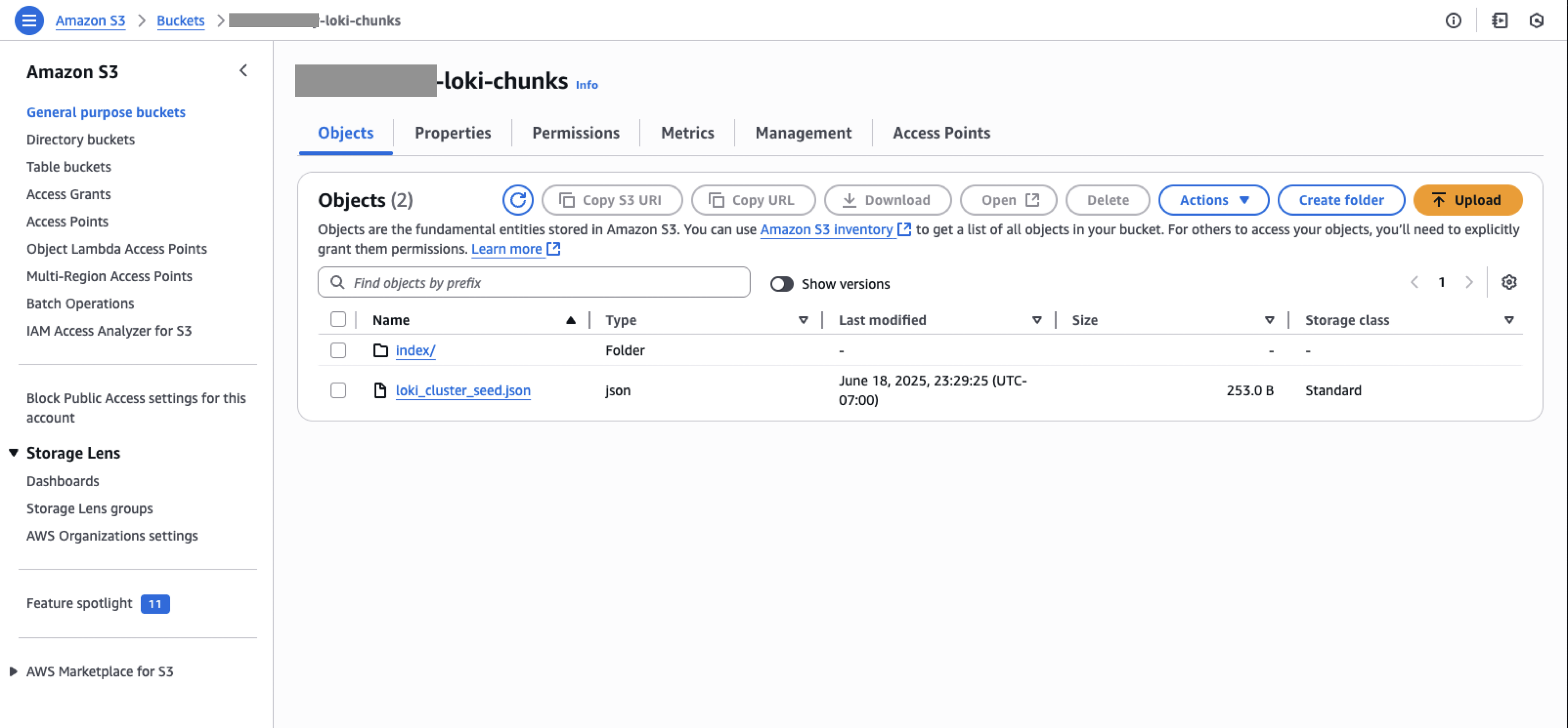

Figure 8. AWS Console - S3 Buckets created by Loki

Conclusion

This guide demonstrated how to automate the deployment of Grafana Loki on Kubernetes with Amazon S3 as the storage backend using both manual and Terraform-based approaches. By leveraging IRSA, your deployment is secure and production-ready.

📘 View the web version:

https://nsalexamy.github.io/service-foundry/pages/documents/o11y-foundry/install-loki-s3-on-k8s/
