Deploying Grafana Loki on Kubernetes

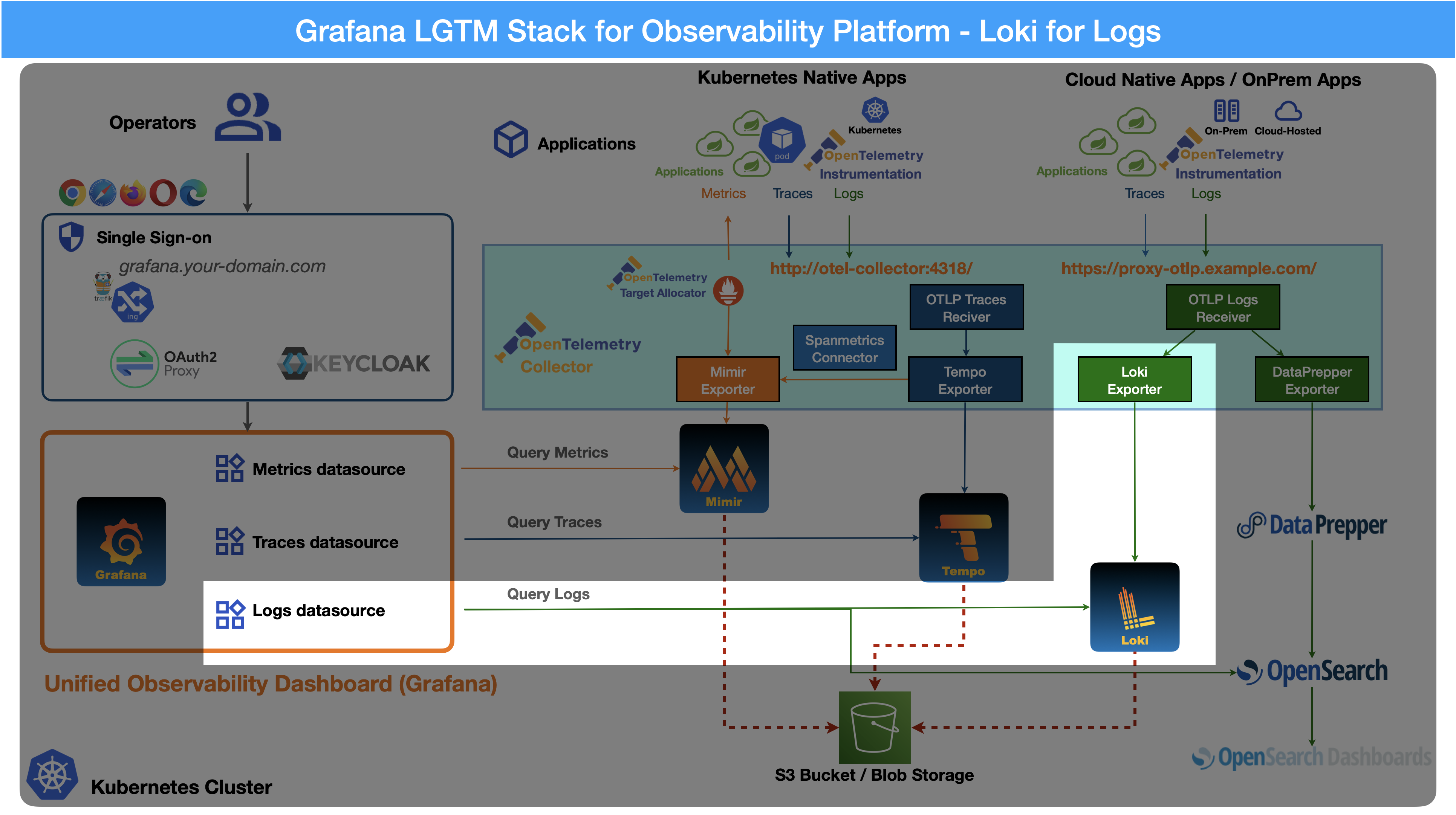

Introduction

This guide provides a comprehensive walkthrough for deploying Grafana Loki on a Kubernetes cluster using Helm. Loki is a horizontally scalable, highly available log aggregation system designed for efficiency, simplicity, and tight integration with Grafana.

What is Loki?

Loki is a multi-tenant log aggregation system inspired by Prometheus. It indexes logs by labels, offering a cost-effective alternative to traditional full-text indexing solutions.

Key Advantages

Scalable: Designed to handle high log volume with horizontal scaling support.
Multi-Tenant: Allows logical isolation of logs across teams or services.
Cost-Efficient: Lightweight indexing reduces storage and compute costs.
Grafana Integration: Seamlessly integrates into Grafana for unified observability with metrics and traces.
Simplicity: Loki’s architecture is simple to deploy and operate.
Flexible Storage: Supports local file systems, S3, GCS, and other object stores.
Powerful Query Language: Enables advanced filtering and searching via LogQL.
Optimized Indexing: Uses a minimal indexing strategy for fast queries.
CNCF Project: Backed by a strong community as a CNCF project.
OpenTelemetry Support: Easily ingests logs through the OpenTelemetry Collector.

Pre-requisites

Add Loki Helm Repository

$ helm repo add grafana https://grafana.github.io/helm-charts
$ helm repo update

Verify Chart Availability

$ helm search repo grafana/loki

Example output:

grafana/loki                    6.30.1          3.5.0           Helm chart for Grafana Loki and Grafana Enterpr...
grafana/loki-canary             0.14.0          2.9.1           Helm chart for Grafana Loki Canary
grafana/loki-distributed        0.80.5          2.9.13          Helm chart for Grafana Loki in microservices mode
grafana/loki-simple-scalable    1.8.11          2.6.1           Helm chart for Grafana Loki in simple, scalable...
grafana/loki-stack              2.10.2          v2.9.3          Loki: like Prometheus, but for logs.

This guide uses the grafana/loki chart.

Download the Loki Helm Chart

$ helm pull grafana/loki --version 6.30.1

This downloads loki-6.30.1.tgz into the current directory.

Inspect Default Values

$ helm show values grafana/loki --version 6.30.1 > loki-values-6.30.1.yaml

This file contains default values which can be customized based on your deployment needs.

Deploying Loki with Filesystem Storage

For development purposes, Loki can be configured to use MinIO as a local object store.

Example: loki-filesystem-values.yaml

You can find a base configuration from the official Loki GitHub repository:

https://github.com/grafana/loki/blob/main/production/helm/loki/simple-scalable-values.yaml

Here’s a simplified version for testing:

loki-filesystem-values.yaml

loki:
  auth_enabled: false
  schemaConfig:
    configs:
      - from: 2024-04-01
        store: tsdb
        object_store: s3
        schema: v13
        index:
          prefix: loki_index_
          period: 24h
  ingester:
    chunk_encoding: snappy
  tracing:
    enabled: true
  querier:
    # Default is 4, if you have enough memory and CPU you can increase, reduce if OOMing
    max_concurrent: 4

#(1)
deploymentMode: SimpleScalable

backend:
  replicas: 3
read:
  replicas: 3
write:
  replicas: 3

# Enable minio for storage
#(2)
minio:
  enabled: true

# Zero out replica counts of other deployment modes
singleBinary:
  replicas: 0

ingester:
  replicas: 0
querier:
  replicas: 0
queryFrontend:
  replicas: 0
queryScheduler:
  replicas: 0
distributor:
  replicas: 0
compactor:
  replicas: 0
indexGateway:
  replicas: 0
bloomCompactor:
  replicas: 0
bloomGateway:
  replicas: 0

1	This configuration sets Loki to run in SimpleScalable mode, which is suitable for development and testing. It uses a single binary deployment with multiple replicas for the backend, read, and write components.
2	This configuration enables MinIO as the storage backend for Loki. If you want to use S3 instead, you can remove the `minio` section and configure the S3 settings in the `loki` section.

Install Loki

Create the namespace if it doesn’t already exist:

$ kubectl get namespace o11y &> /dev/null || kubectl create namespace o11y

Install the Loki release:

$ helm install loki grafana/loki \
  --namespace o11y \
  --version 6.30.1 \
  --values loki-filesystem-values.yaml

Validate Deployment

Verify pods and services:

$ kubectl -n o11y get pods,services -l app.kubernetes.io/name=loki

This confirms successful deployment.

Example output:

NAME                                READY   STATUS    RESTARTS   AGE
pod/loki-backend-0                  2/2     Running   0          31m
pod/loki-backend-1                  2/2     Running   0          31m
pod/loki-backend-2                  2/2     Running   0          31m
pod/loki-canary-m7hz6               1/1     Running   0          31m
pod/loki-canary-r957h               1/1     Running   0          30m
pod/loki-canary-zn7qd               1/1     Running   0          31m
pod/loki-chunks-cache-0             2/2     Running   0          31m
pod/loki-gateway-5ffbb7f958-gxnfg   1/1     Running   0          31m
pod/loki-read-6ffdcc89dc-2ntlx      1/1     Running   0          31m
pod/loki-read-6ffdcc89dc-5zzfn      1/1     Running   0          31m
pod/loki-read-6ffdcc89dc-jnhps      1/1     Running   0          31m
pod/loki-results-cache-0            2/2     Running   0          31m
pod/loki-write-0                    1/1     Running   0          31m
pod/loki-write-1                    1/1     Running   0          31m
pod/loki-write-2                    1/1     Running   0          31m

NAME                                     TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)              AGE
service/loki-backend                     ClusterIP   10.100.214.56    <none>        3100/TCP,9095/TCP    31m
service/loki-backend-headless            ClusterIP   None             <none>        3100/TCP,9095/TCP    31m
service/loki-canary                      ClusterIP   10.100.61.157    <none>        3500/TCP             31m
service/loki-chunks-cache                ClusterIP   None             <none>        11211/TCP,9150/TCP   31m
service/loki-gateway                     ClusterIP   10.100.218.190   <none>        80/TCP               31m
service/loki-memberlist                  ClusterIP   None             <none>        7946/TCP             31m
service/loki-query-scheduler-discovery   ClusterIP   None             <none>        3100/TCP,9095/TCP    31m
service/loki-read                        ClusterIP   10.100.73.20     <none>        3100/TCP,9095/TCP    31m
service/loki-read-headless               ClusterIP   None             <none>        3100/TCP,9095/TCP    31m
service/loki-results-cache               ClusterIP   None             <none>        11211/TCP,9150/TCP   31m
service/loki-write                       ClusterIP   10.100.237.223   <none>        3100/TCP,9095/TCP    31m
service/loki-write-headless              ClusterIP   None             <none>        3100/TCP,9095/TCP    31m

Accessing Loki Gateway

The loki-gateway service acts as the primary entry point for Grafana and OpenTelemetry.

Access it within the cluster:

http://loki-gateway.80 (in the same namespace)
http://loki-gateway.o11y.svc.cluster.local:80 (using the service name and namespace)
http://loki-gateway.o11y.svc:80 (using the service name and namespace)

To view its configuration:

$ kubectl -n o11y get service loki-gateway -o yaml

Configuring OpenTelemetry Collector

Example configuration for Loki exporter:

otel-collector.yaml

    exporters:
      # Other exporters...
      #(1)
      loki:
        endpoint: http://loki-gateway:80/loki/api/v1/push
        tls:
          insecure: true


    service:
      pipelines:
        #(2)
        logs/to_opensearch:
          receivers: [otlp]
          processors: [batch]
          exporters: [otlp/data-prepper-logs]
        #(3)
        logs/to_loki:
          receivers: [otlp]
          processors: [batch, memory_limiter]
          exporters: [loki]

1	This configuration sets up the Loki exporter in the OpenTelemetry Collector to send logs to the Loki gateway service. The `endpoint` specifies the URL of the Loki gateway service, and `tls.insecure: true` allows insecure connections (useful for local development).
2	This pipeline processes logs received from the OTLP receiver and sends them to OpenSearch using the Data Prepper exporter. It uses the `batch` processor to batch logs before sending them.
3	This pipeline processes logs received from the OTLP receiver and sends them to Loki using the Loki exporter. It also uses the `batch` processor to batch logs before sending them, and the `memory_limiter` processor to limit memory usage.

Configuring Grafana for Loki

To visualize logs in Grafana:

Go to Connections > Data Sources.
Click "Add data source" > Choose "Loki".

Use the following settings:

Name: loki
URL: http://loki-gateway

Grafana Loki Data Source

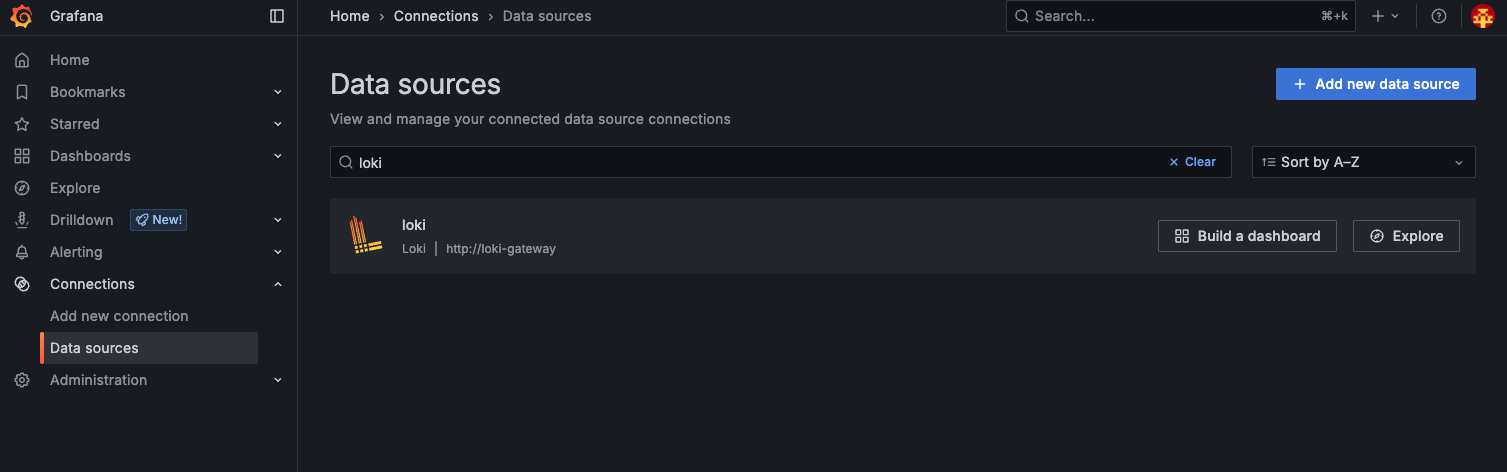

Figure 1. Grafana UI - Data Sources - Loki

Exploring Logs in Grafana

Use label filters to find logs from a service:

Label filters: service_name
value: otel-spring-example

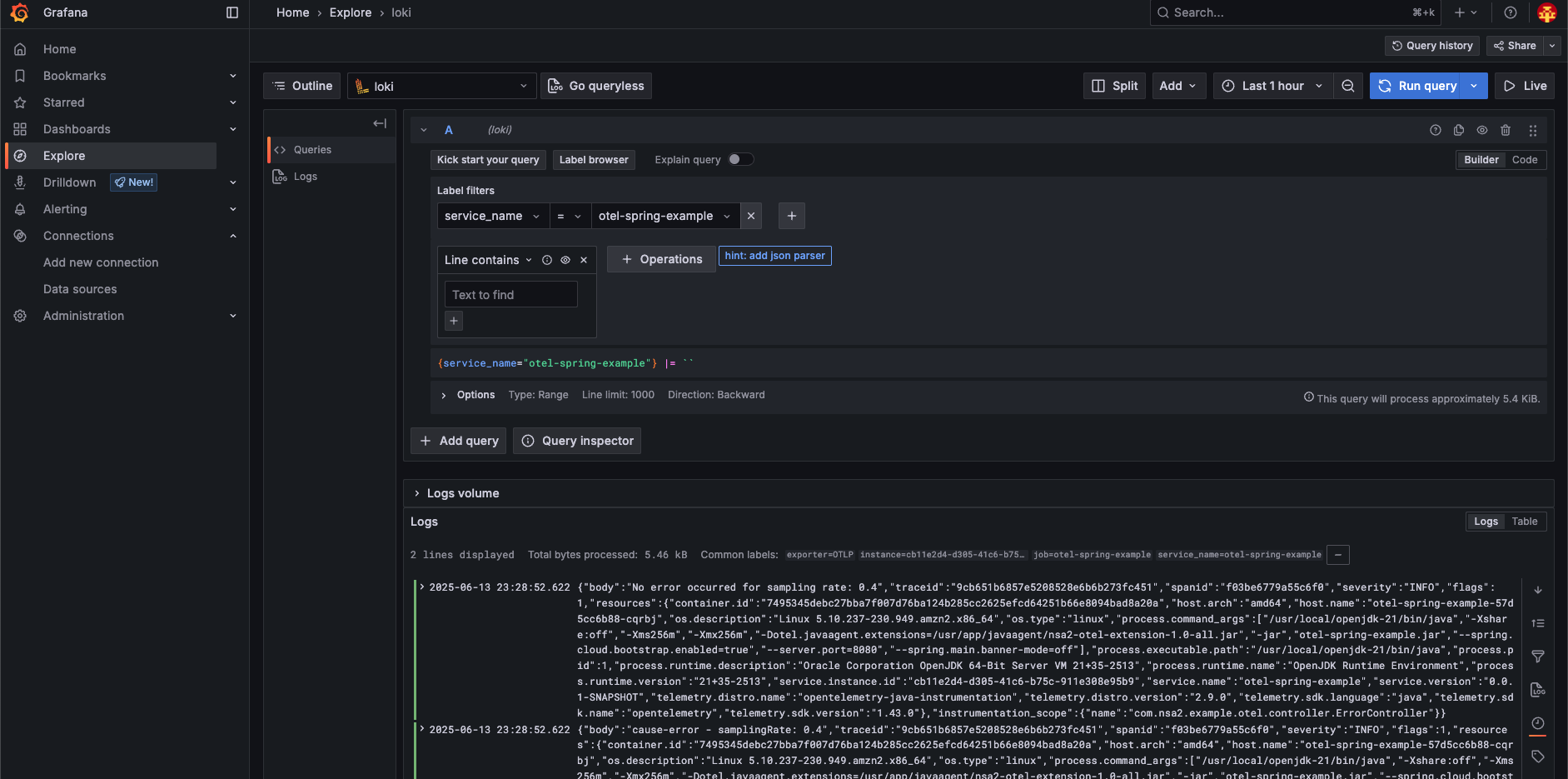

Figure 2. Grafana UI - Explore Logs

Correlating Logs and Traces

In the previous article, we deployed Tempo and configured it to collect traces from the OpenTelemetry Collector. Now, you can correlate logs with traces in Grafana.

For more information on how to set up Tempo, refer to the article on Installing Tempo on Kubernetes.

Now we have Tempo and Loki configured, we can correlate logs with traces in Grafana.

To correlate logs with traces: 1. Ensure Tempo is deployed and configured. 2. In Grafana > Data Sources > Tempo, configure:

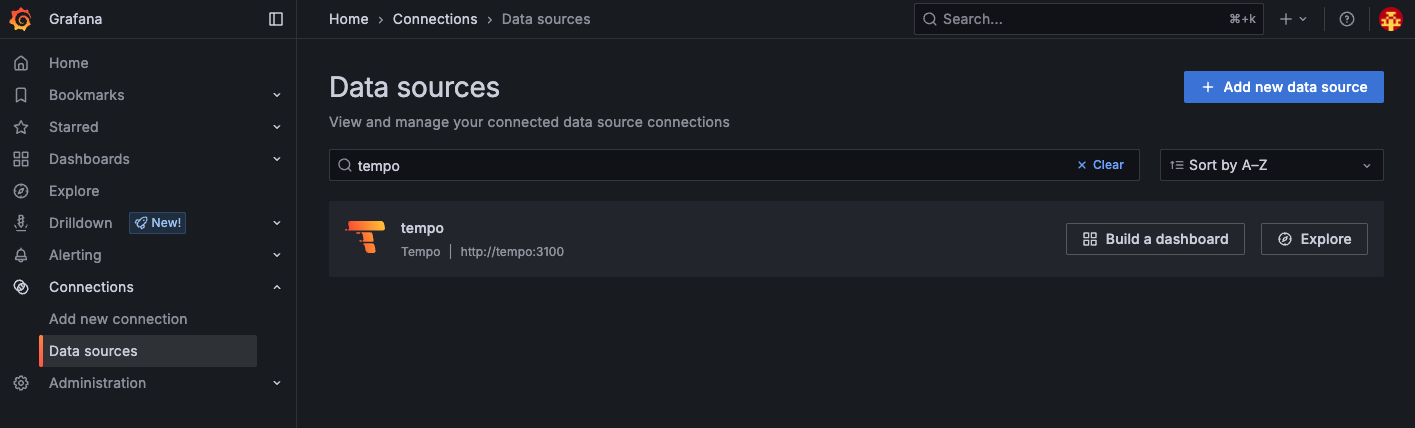

Figure 3. Grafana UI - Data Sources - Tempo

In Trace to logs section, configure the following settings:

Data source: loki
Filter by trace ID: check the box
Filter by span ID: check the box

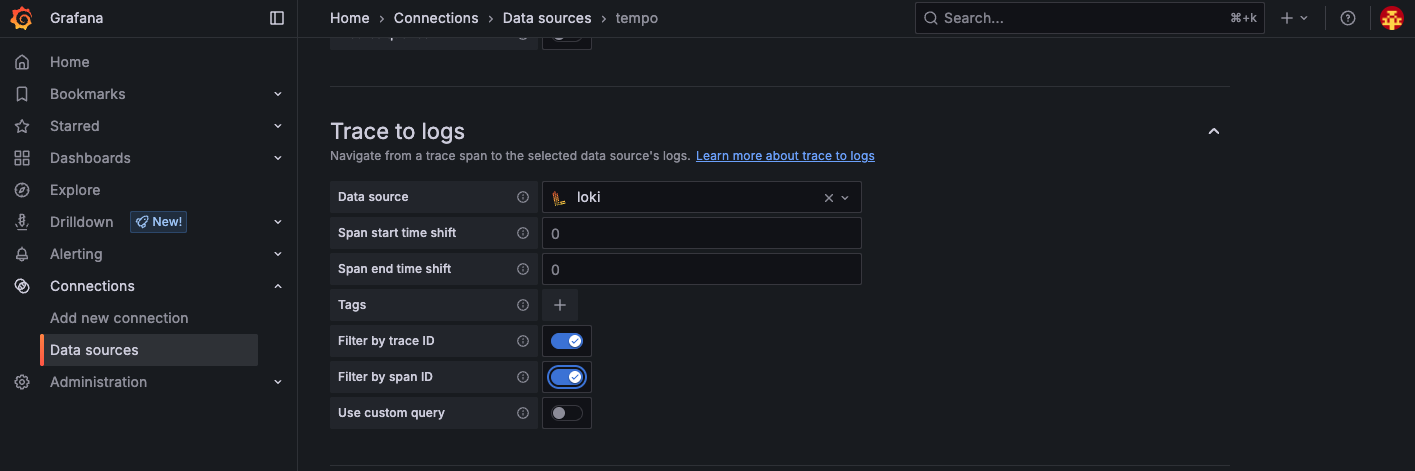

Figure 4. Grafana UI - Tempo Configuration - Trace to Logs

Click on "Save & test" to save the configuration.

Now you can explore traces and logs together in Grafana. When you view a trace, you will see the logs associated with that trace by clicking on the "Logs" tab in the trace view.

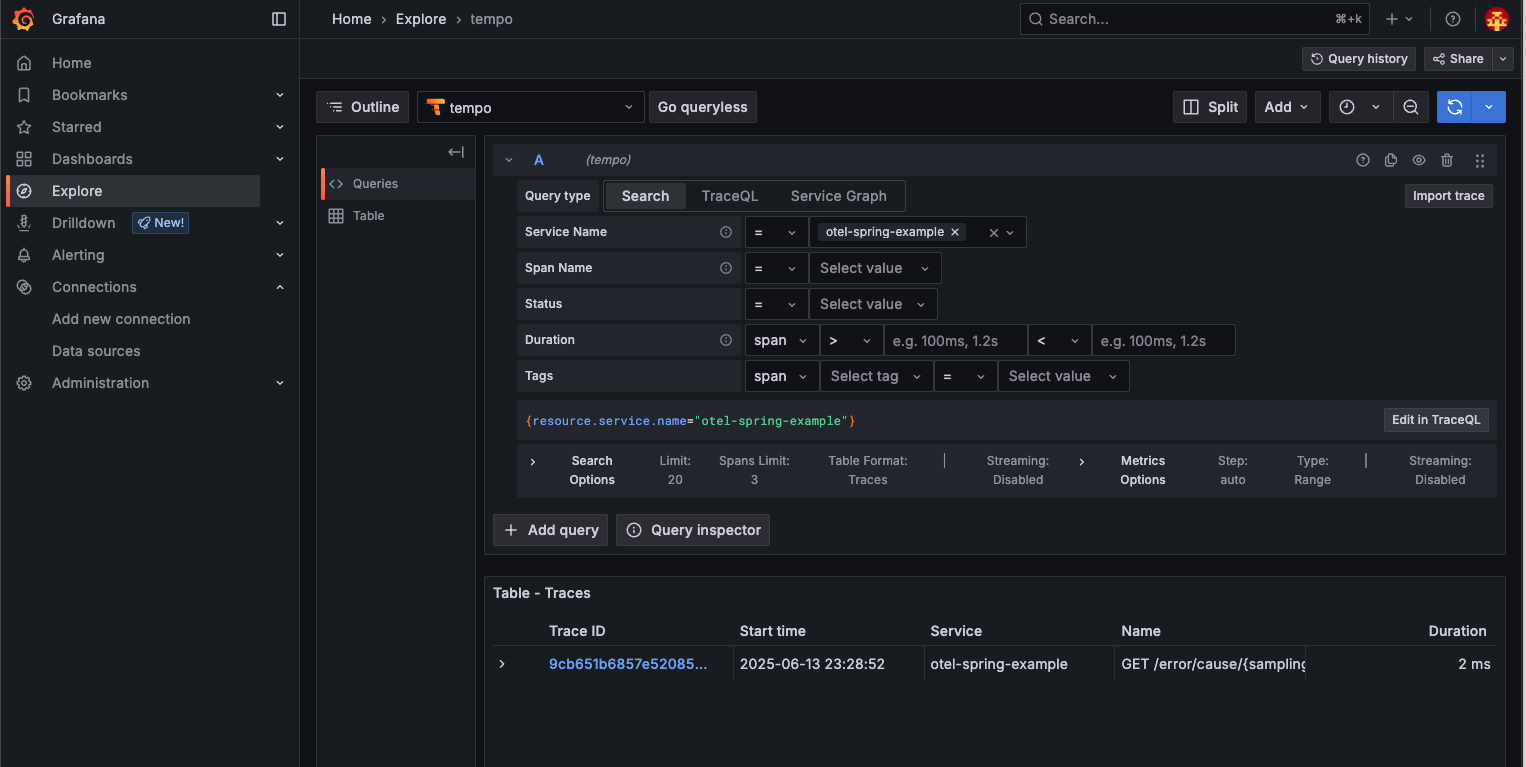

Figure 5. Grafana UI - Explore Traces

Now, when exploring a trace:

Click on Logs for this span to view the associated logs.

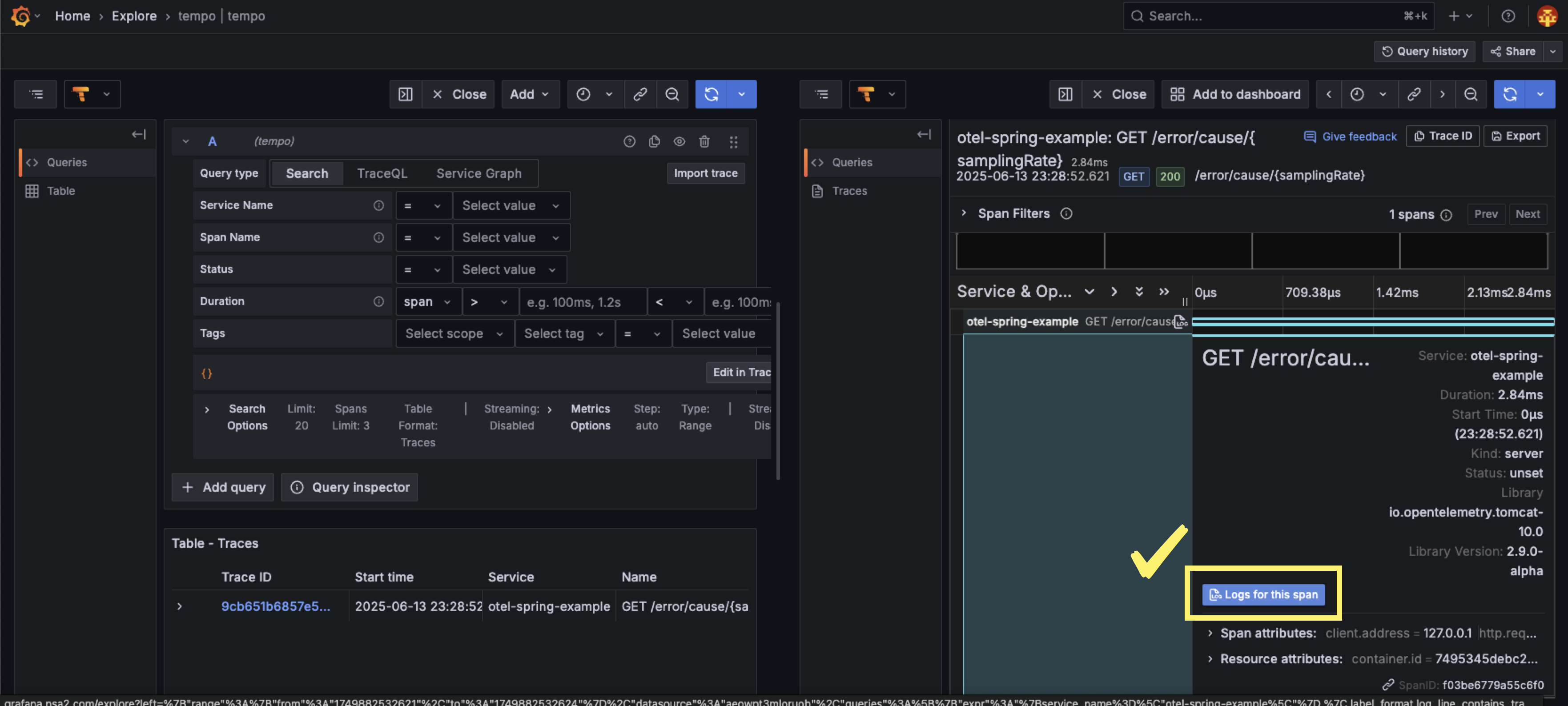

Figure 6. Grafana UI - Trace Details - Logs

Now you can see the logs associated with the trace span. You can filter the logs by the trace ID and span ID to narrow down the results.

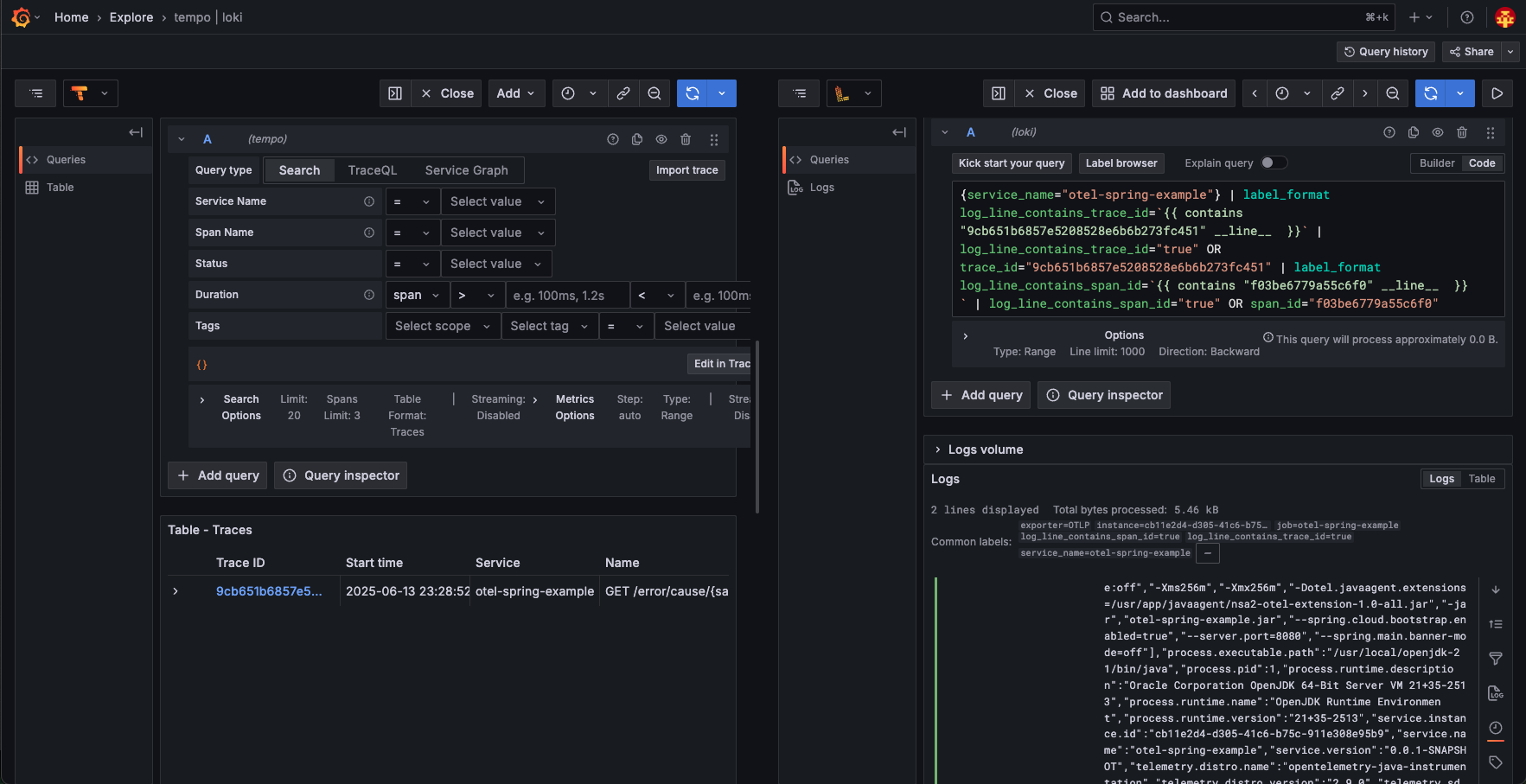

Figure 7. Grafana UI - Trace Details - Logs

Correlating logs with traces in Grafana allows you to troubleshoot issues more effectively by providing context for the trace data. You can see the logs that were generated during the execution of a trace, which can help you understand the behavior of your application and identify any issues that may have occurred.

This trace-log correlation enhances debugging by giving full context of application events.

Conclusion

This guide covered the deployment of Grafana Loki on Kubernetes using Helm. We explored both filesystem-based and object storage (MinIO/S3) configurations, integrated Loki with the OpenTelemetry Collector, and configured Grafana to visualize and correlate logs with traces. Loki offers a powerful and scalable approach to centralized logging in cloud-native environments.

📘 View the web version:

https://nsalexamy.github.io/service-foundry/pages/documents/o11y-foundry/install-loki-on-k8s/

Next Steps

Configure S3 as the storage backend for Loki to support production-grade deployments with scalable and durable log storage.
