Building a Unified Observability Dashboard with Grafana
Introduction
This guide provides a detailed walkthrough on creating a unified observability dashboard in Grafana. By integrating multiple data sources—Prometheus for metrics, Jaeger for distributed tracing, and OpenSearch for centralized logging—Grafana becomes a single pane of glass for monitoring your entire application landscape.
The dashboard enables real-time visibility across logs, metrics, and traces, allowing for faster diagnostics and streamlined operational workflows.
Related articles:

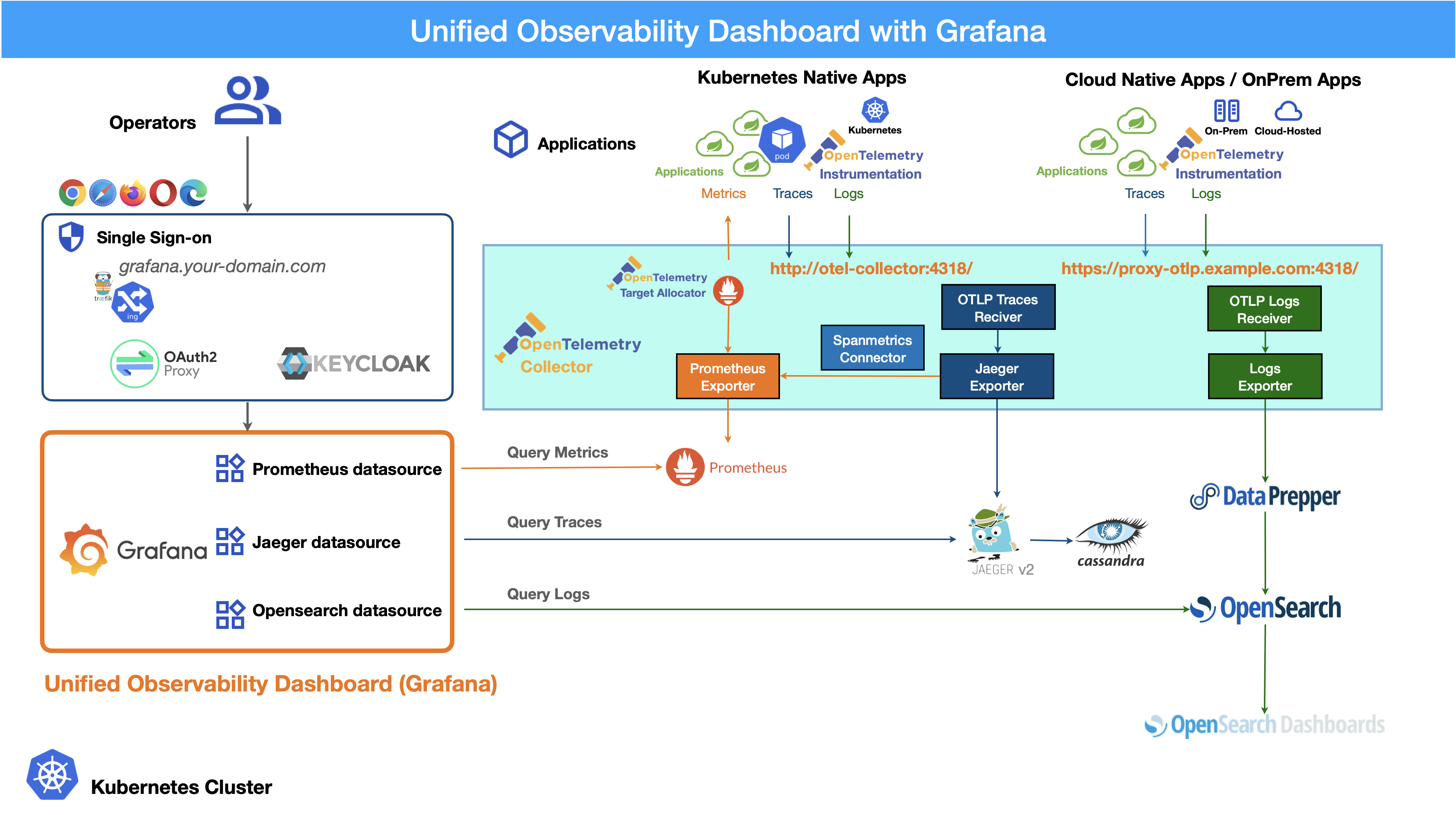

Unified Grafana Dashboard Overview
The unified dashboard brings together various observability signals through dedicated panels:
-
Metrics Panel: Real-time application and system metrics from Prometheus (e.g., JVM memory usage, CPU).
-
Traces Panel: Distributed tracing data visualized from Jaeger.
-
Logs Panel: Application logs searchable via OpenSearch and visualized in Grafana.
Key Benefits
A unified Grafana dashboard provides several advantages:
-
Centralized Observability: One dashboard to monitor logs, metrics, and traces.
-
Improved Incident Response: Easier root cause analysis by correlating signals in one view.
-
Customizable and Extensible: Easily tailored to your operational needs.
-
Team Collaboration: Shared dashboards promote team visibility and operational alignment.
Grafana Configuration
Service Foundry for Observability automates Grafana setup using pre-configured Helm values that include:
-
Data source provisioning for Prometheus, Jaeger, and OpenSearch
-
A unified dashboard integrating all three sources
-
Alerting rules for JVM and trace-based metrics
|
All configurations are managed via the grafana-values.yaml file used in Helm deployment. |
Data Source Configuration
datasources:
datasources.yaml:
apiVersion: 1
datasources:
#(1)
- name: <%= namespace %>-prometheus
type: prometheus
url: http://prometheus:9090
uid: prometheus
# Access mode - proxy (server in the UI) or direct (browser in the UI).
access: proxy
isDefault: true
#(2)
- name: <%= namespace %>-jaeger
type: jaeger
url: http://jaeger-collector:16686
uid: jaeger
access: proxy
#(3)
- name: <%= namespace %>-opensearch
type: grafana-opensearch-datasource
url: https://opensearch-cluster-master:9200
uid: "--opensearch--"
#access: proxy
basicAuth: true
basicAuthUser: admin
editable: true
jsonData:
pplEnabled: true
version: 2.19.1
timeField: "time"
logMessageField: "body"
logLevelField: "severityText"
tlsAuthWithCACert: true
secureJsonData:
basicAuthPassword: <%= opensearch.initialAdminPassword %>
tlsCACert: |
-----BEGIN CERTIFICATE-----
YOUR_CA_CERTIFICATE_CONTENT_HERE
-----END CERTIFICATE-----| 1 | Add Prometheus as a data source for metrics collection. |
| 2 | Add Jaeger as a data source for distributed tracing. |
| 3 | Add OpenSearch as a data source for centralized logging. |
Service Foundry for Observability automatically provisions these data sources during the Grafana deployment using Helm. The grafana-values.yaml file contains the necessary configurations to set up these data sources.

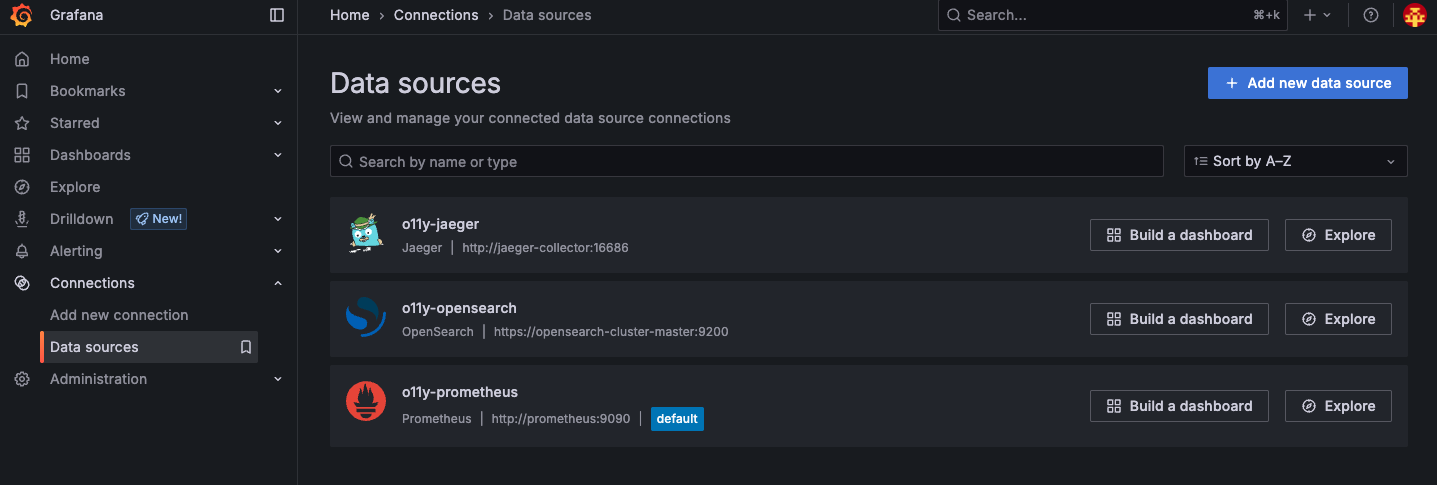

The screenshot below shows the Grafana UI with the provisioned data sources.
Unified Dashboard Provisioning
Set up dashboard providers and load dashboards via ConfigMaps:
dashboardProviders:
dashboardproviders.yaml:
apiVersion: 1
providers:
- name: default
orgId: 1
folder: ''
type: file
disableDeletion: false
editable: true
options:
path: /var/lib/grafana/dashboards/defaultConfigMap for Dashboards
To load the unified dashboard into Grafana, you need to create a ConfigMap that contains the dashboard JSON file. This ConfigMap will be referenced in the grafana-values.yaml file.
-
jvm-memory-dashboard.json - JVM Memory Dashboard
-
traces-java-applications.json - Traces Dashboard
-
traces-to-metrics.json - Metrics converted from Traces
dashboardsConfigMaps:
default: grafana-default-dashboardsThe screenshot below shows the unified dashboard that combines metrics, traces, and logs from Prometheus, Jaeger, and OpenSearch.
Configuring Alerts
Alerts are managed directly in grafana-values.yaml since ConfigMaps are not supported for alert provisioning.
Contact Points (e.g., Email)
Contact points are used to define how Grafana sends alerts. You can configure contact points such as email, Slack, or other notification channels.
alerting:
contactpoints.yaml:
apiVersion: 1
contactPoints:
- orgId: 1
name: service-operators
receivers:
- uid: cen4b1ckf03cwb
type: email
settings:
addresses: your-email@example.com
singleEmail: false

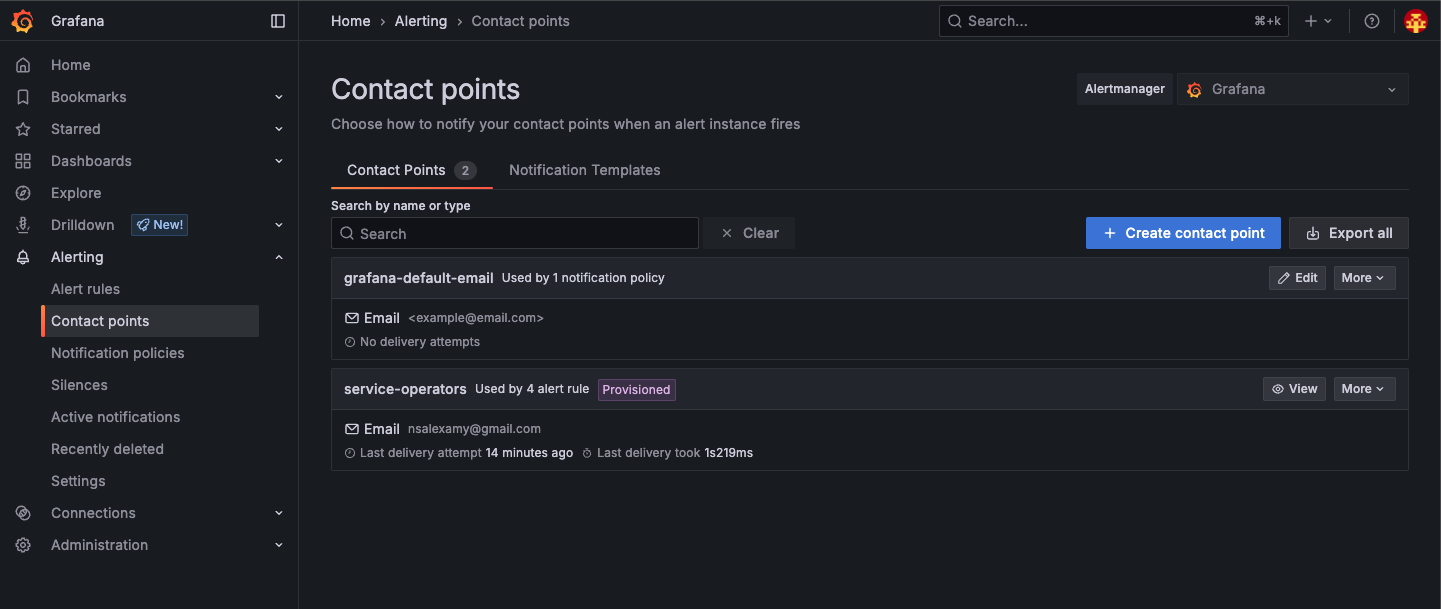

disableResolveMessage: falseThe screenshot below shows the Grafana UI where you can configure contact points for alert notifications.
Alerting Rules
Alert rules can be defined in the 'rules.yaml' section of the grafana-values.yaml file. These rules specify the conditions under which alerts are triggered.

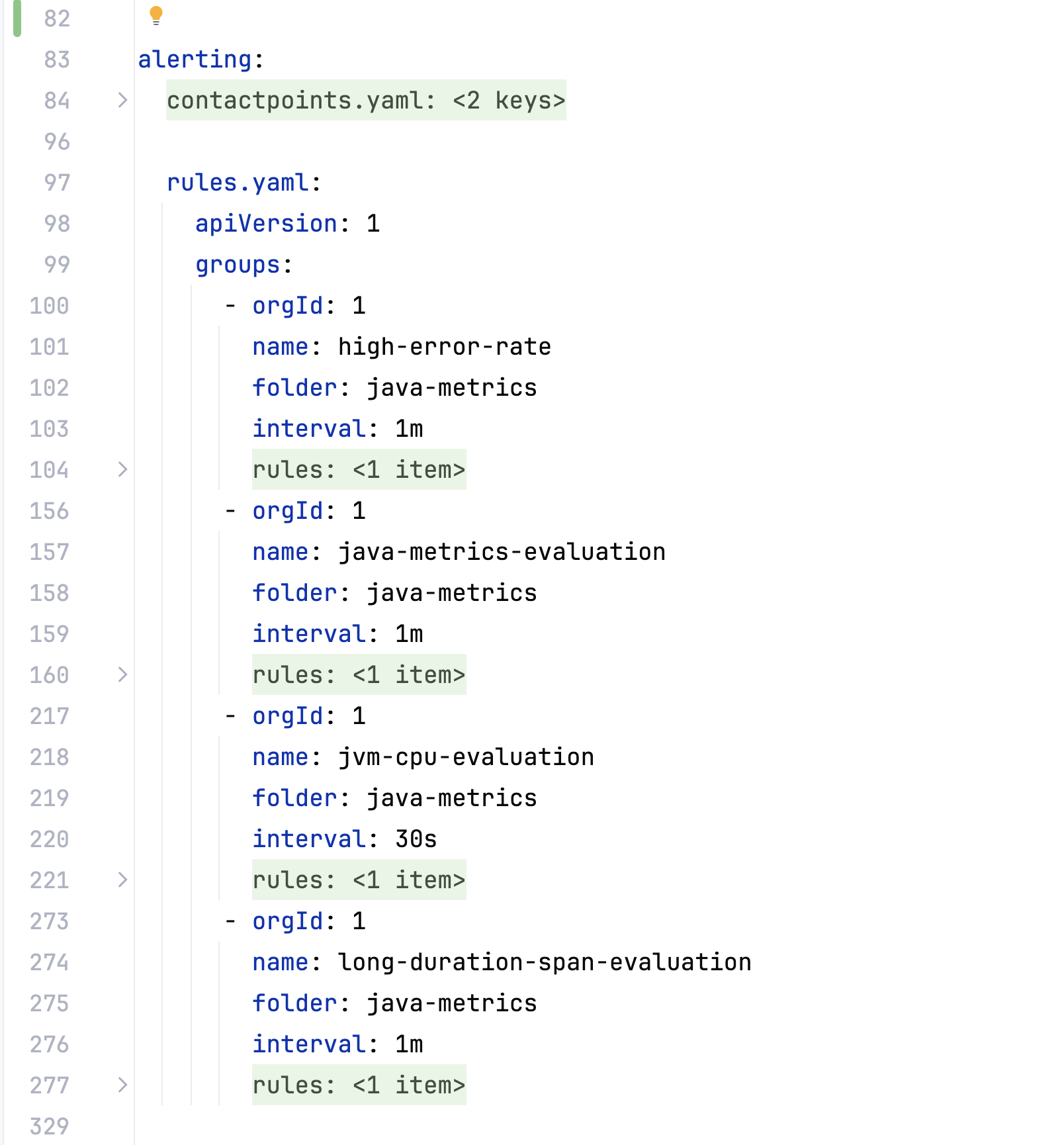

Since the contents of the alerting rules can be quite extensive, I just provide a brief overview here. Here are some examples of alerting rules that can be defined:
Here is an example of an alerting rule for monitoring JVM memory usage:
- orgId: 1
name: java-metrics-evaluation
folder: java-metrics
interval: 1m
rules:
- uid: een4b7bt3iu4gf
title: High JVM Memory Usage
condition: C
data:
- refId: A
relativeTimeRange:
from: 600
to: 0
datasourceUid: o11y-prometheus
model:
editorMode: code
expr: |-
(
sum by(pod) (jvm_memory_used_bytes{jvm_memory_type="heap"})
/
sum by(pod) (jvm_memory_limit_bytes{jvm_memory_type="heap"})
) * 100
instant: true
intervalMs: 1000
legendFormat: __auto
maxDataPoints: 43200
range: false
refId: A
- refId: C
datasourceUid: __expr__
model:
conditions:
- evaluator:
params:
- 80
type: gt
operator:
type: and
query:
params:
- C
reducer:
params: [ ]
type: last
type: query
datasource:
type: __expr__
uid: __expr__
expression: A
intervalMs: 1000
maxDataPoints: 43200
refId: C
type: threshold
dashboardUid: ""
panelId: 0
noDataState: NoData
execErrState: Error
for: 1m
isPaused: false
notification_settings:

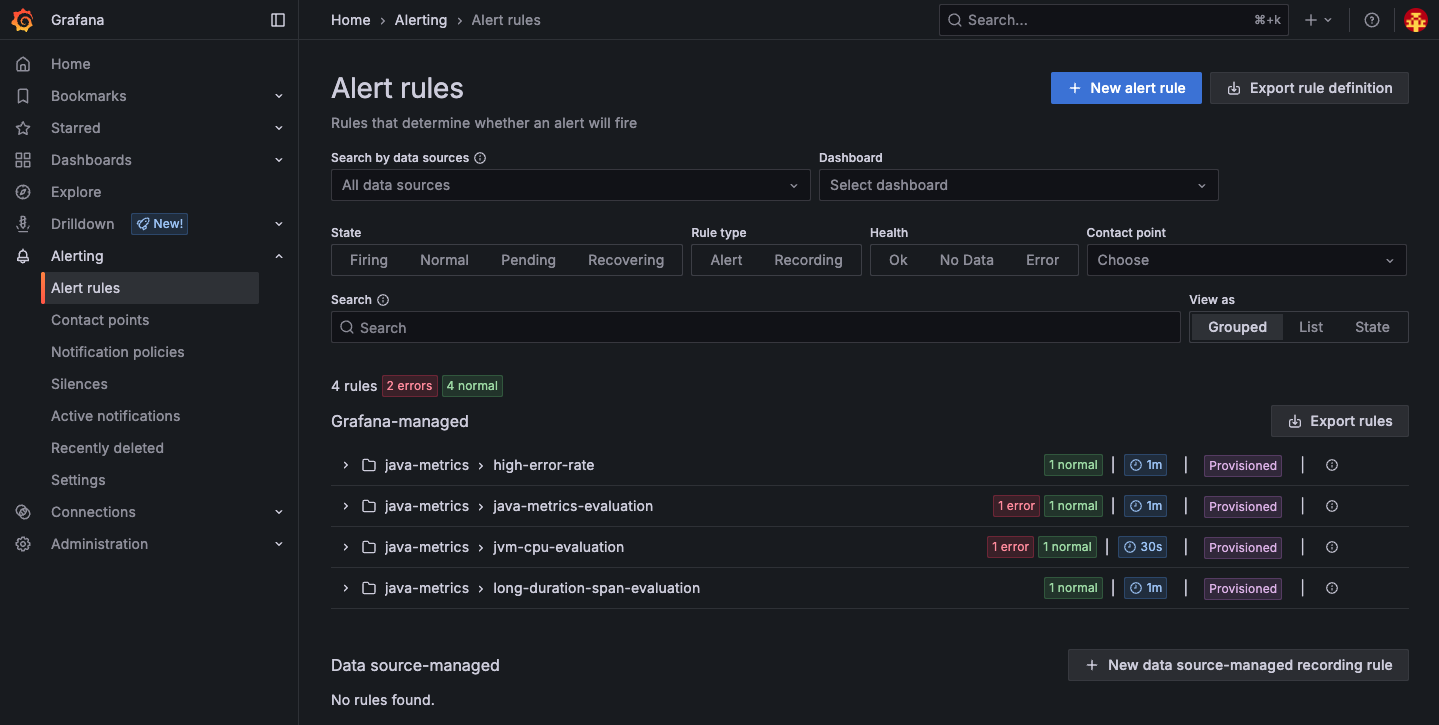

receiver: service-operatorsThe screenshot below shows the Grafana UI where you can configure alerting rules for monitoring JVM memory usage, CPU utilization, and trace metrics.
Exploring Telemetry in Grafana
Use the Explore tab in Grafana to interactively query metrics, traces, and logs.
Navigate to Data Sources in Grafana to see the provisioned data sources.

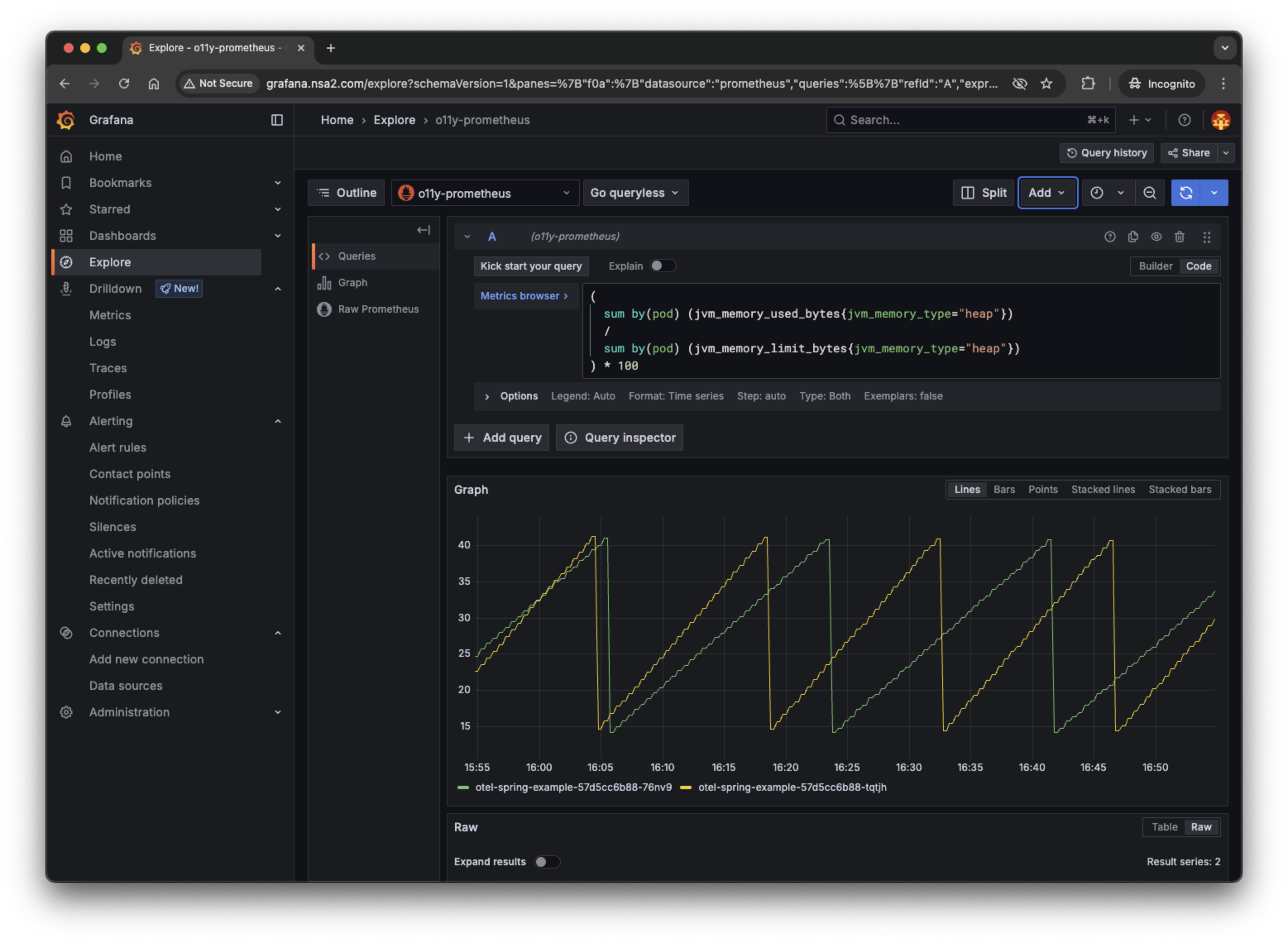

Metrics Example (JVM Memory Usage)
Click 'Explore' next to the Prometheus data source to run queries and visualize metrics.
PromQL queries can be used to retrieve specific metrics. For example, to monitor JVM memory usage, you can use the following query:
(
sum by(pod) (jvm_memory_used_bytes{jvm_memory_type="heap"})
/
sum by(pod) (jvm_memory_limit_bytes{jvm_memory_type="heap"})
) * 100
This can be added to a Grafana dashboard panel to visualize JVM memory usage over time.

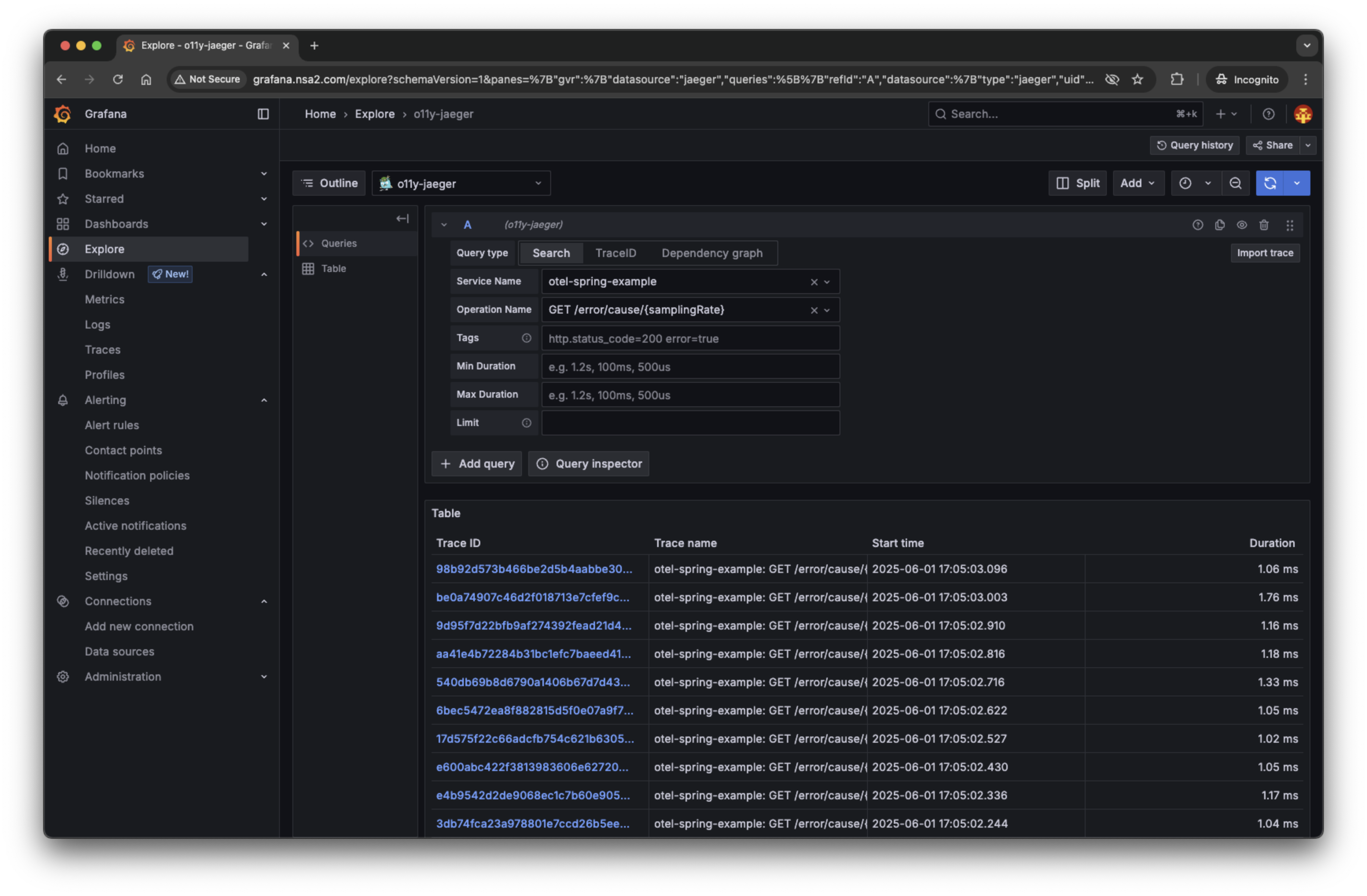

Traces Example (Jaeger)
Click 'Explore' next to the Jaeger data source to run queries and visualize traces.
Choose the 'Search' query type and select your application service (e.g., otel-spring-example) to view traces. Operation name can be specified to filter traces further.

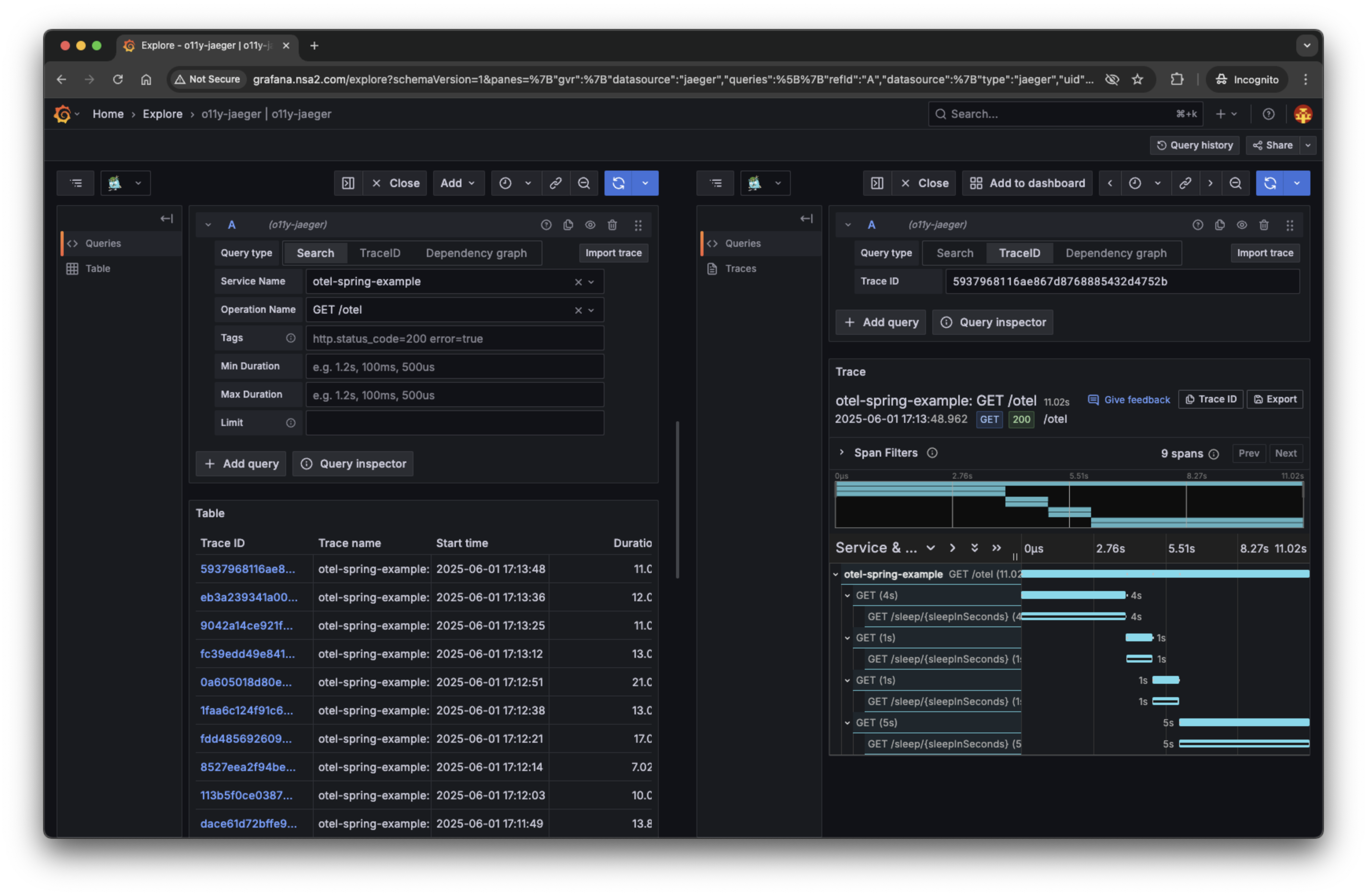

Click on a trace to drill down into its spans, durations, and metadata.
Logs Example (OpenSearch)

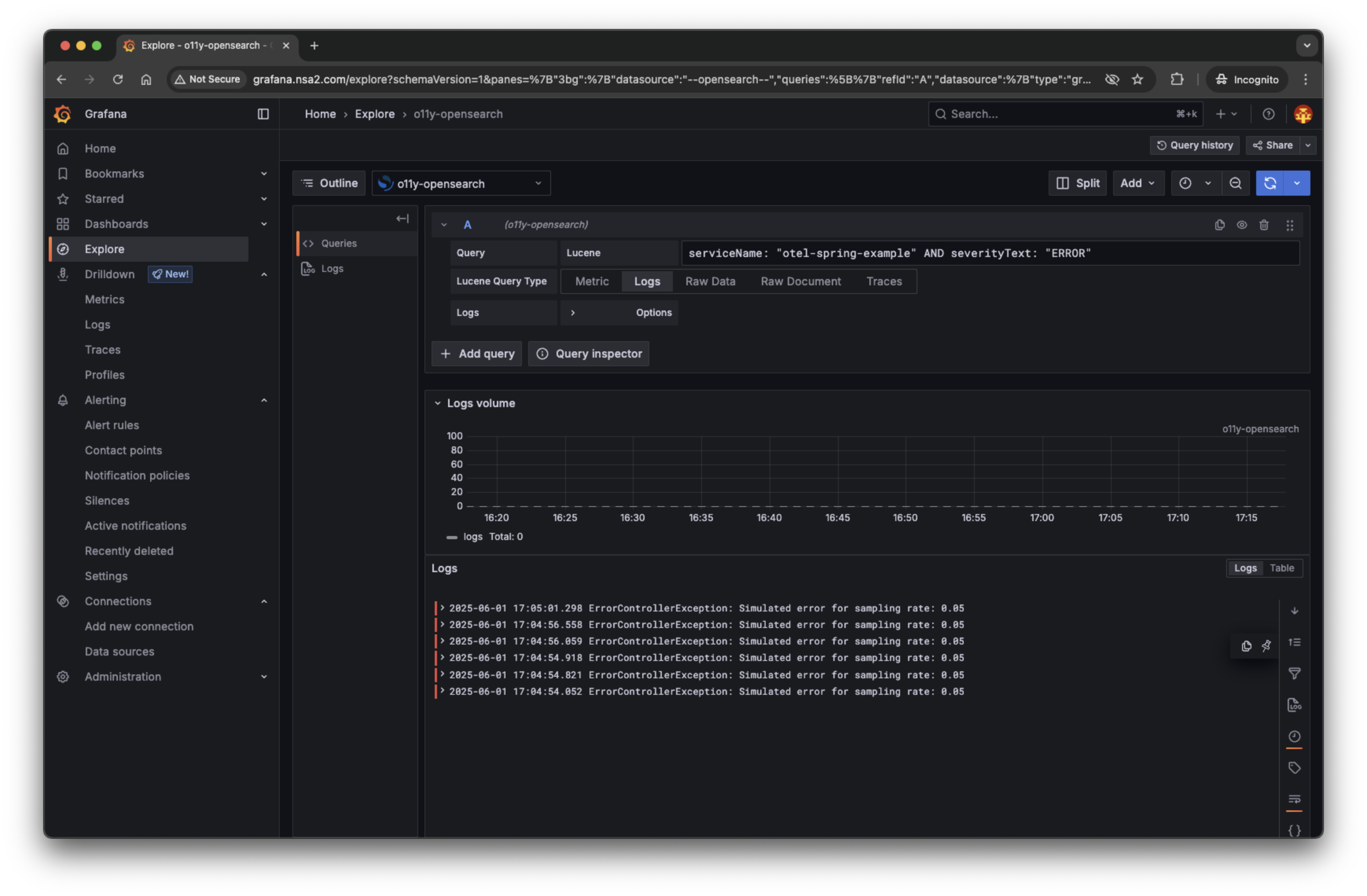

Click 'Explore' next to the OpenSearch data source to run Lucene queries and view logs.
Choose the 'Logs' query type to search logs. You can filter logs by service name, severity level, or other fields.
serviceName: "otel-spring-example" AND severityText: "ERROR"

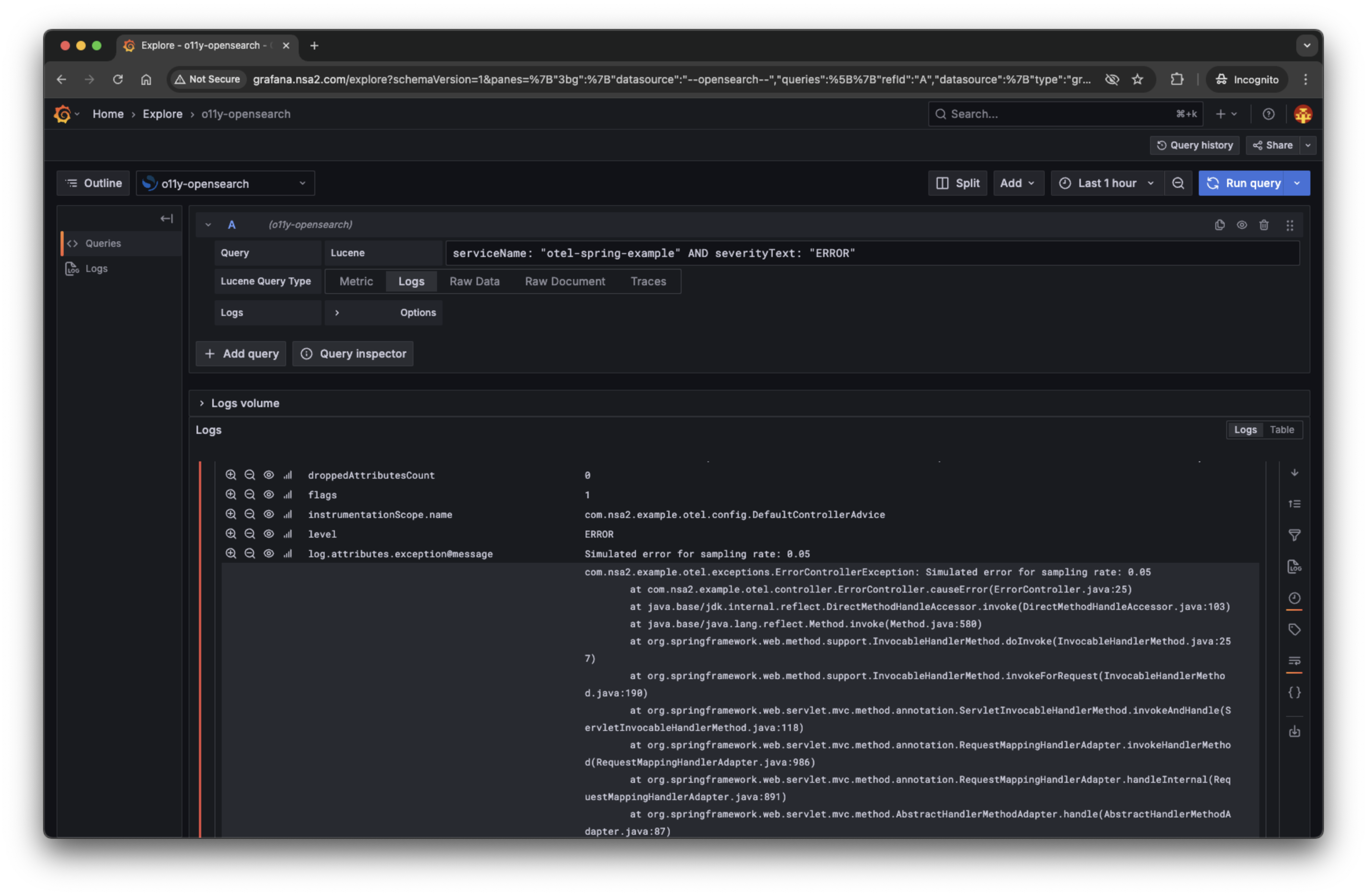

All detials of the log entry, such as timestamp, severity, message, and service metadata, can be viewed by clicking on any log entry.
Conclusion
By unifying metrics, traces, and logs into a single Grafana dashboard, you can achieve comprehensive visibility and faster diagnostics across your microservices environment. This centralized observability experience empowers teams to proactively manage system performance and collaborate more effectively.
