Automating Grafana Resource Provisioning with Helm Charts

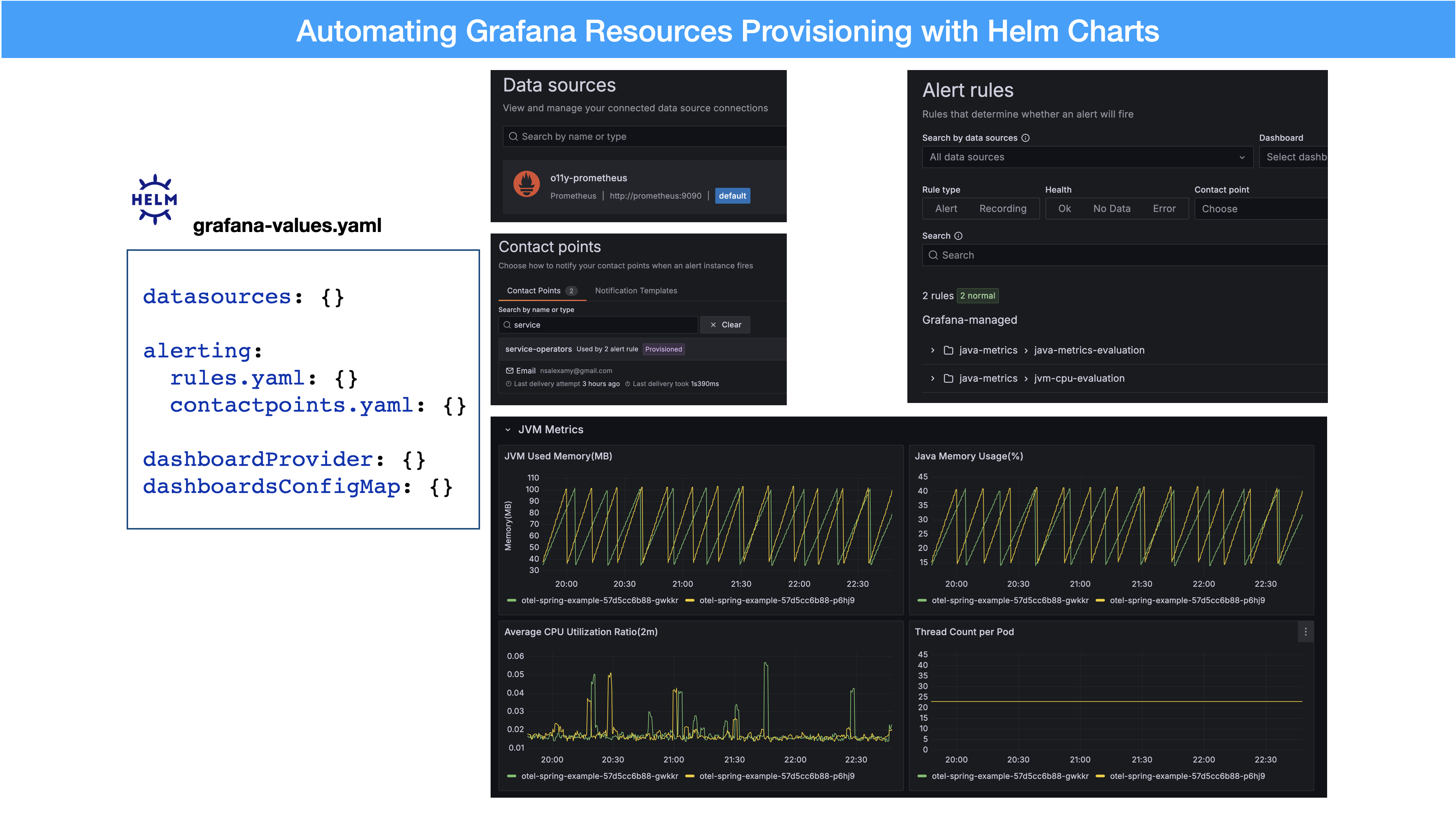

Overview
This guide outlines how to provision Grafana resources using Helm charts in a Kubernetes environment. The following Grafana components are covered:
-
Datasources
-
Dashboard Providers
-
Dashboards
-
Alerting Contact Points
-
Alerting Rules
For more details on Grafana provisioning, refer to the official documentation:
Grafana Datasources
A Grafana datasource defines how Grafana connects to external systems such as Prometheus, Elasticsearch, or MySQL to retrieve data for dashboards and panels.
Key Capabilities
-
Connect to external data sources
-
Configure authentication and access modes
-
Query and visualize metrics
-
Support various data source types (e.g., Prometheus, Loki)

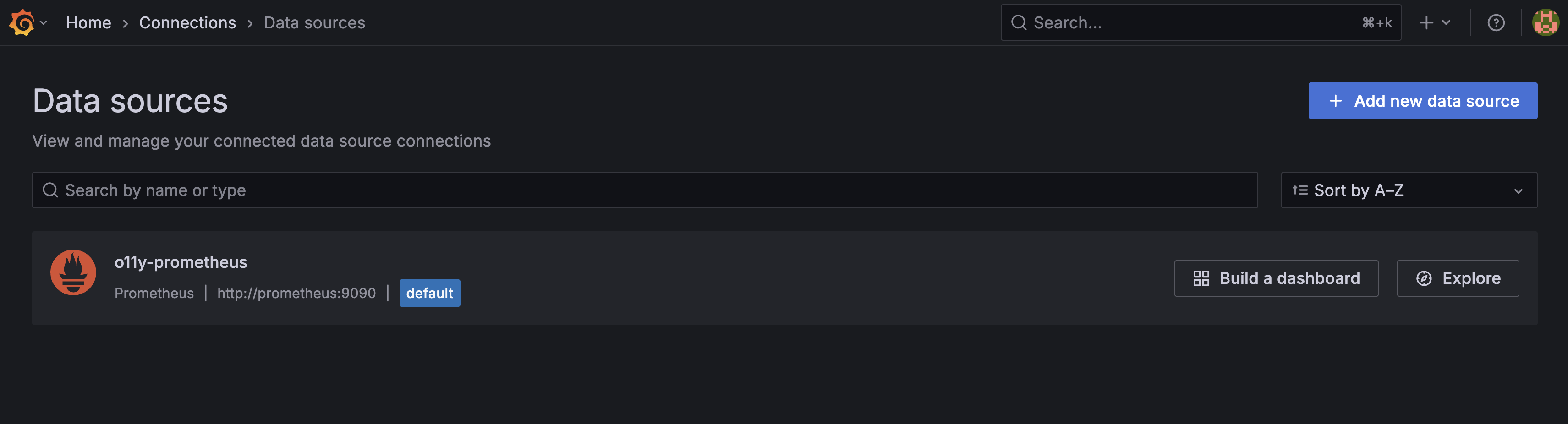

Example: Prometheus Datasource Configuration
Here, we will configure a Prometheus datasource for Grafana using a Helm chart. This datasource will be used to query metrics collected by Prometheus.
datasources:
datasources.yaml:
apiVersion: 1
datasources:
- name: o11y-prometheus
type: prometheus
url: http://prometheus:9090
uid: o11y-prometheus
# Access mode - proxy (server in the UI) or direct (browser in the UI).
access: proxy
isDefault: true
Grafana Dashboard Providers
Dashboard providers in Grafana enable you to load dashboards from files at startup. This allows dashboards to be managed declaratively, which is ideal for CI/CD pipelines or GitOps workflows.
Key Capabilities
-
Load dashboards automatically from JSON files
-
Group dashboards into folders
-
Control editability and deletion
-
Integrate with Infrastructure as Code tools
Example: Dashboard Provider Configuration
The example below shows how to configure a dashboard provider in Grafana using a Helm chart. This configuration will load dashboards from a specified directory and make them available in Grafana.
dashboardProviders:
dashboardproviders.yaml:
apiVersion: 1
providers:
- name: default
orgId: 1
folder: ''
type: file
disableDeletion: false
editable: true
options:
path: /var/lib/grafana/dashboards/defaultGrafana Dashboards
Dashboards are visual interfaces that display data through panels such as graphs, tables, and gauges. They provide real-time observability and insights for developers and operators
Key Capabilities
-
Aggregate and visualize telemetry data
-
Organize data into panels and layouts
-
Share and reuse across teams

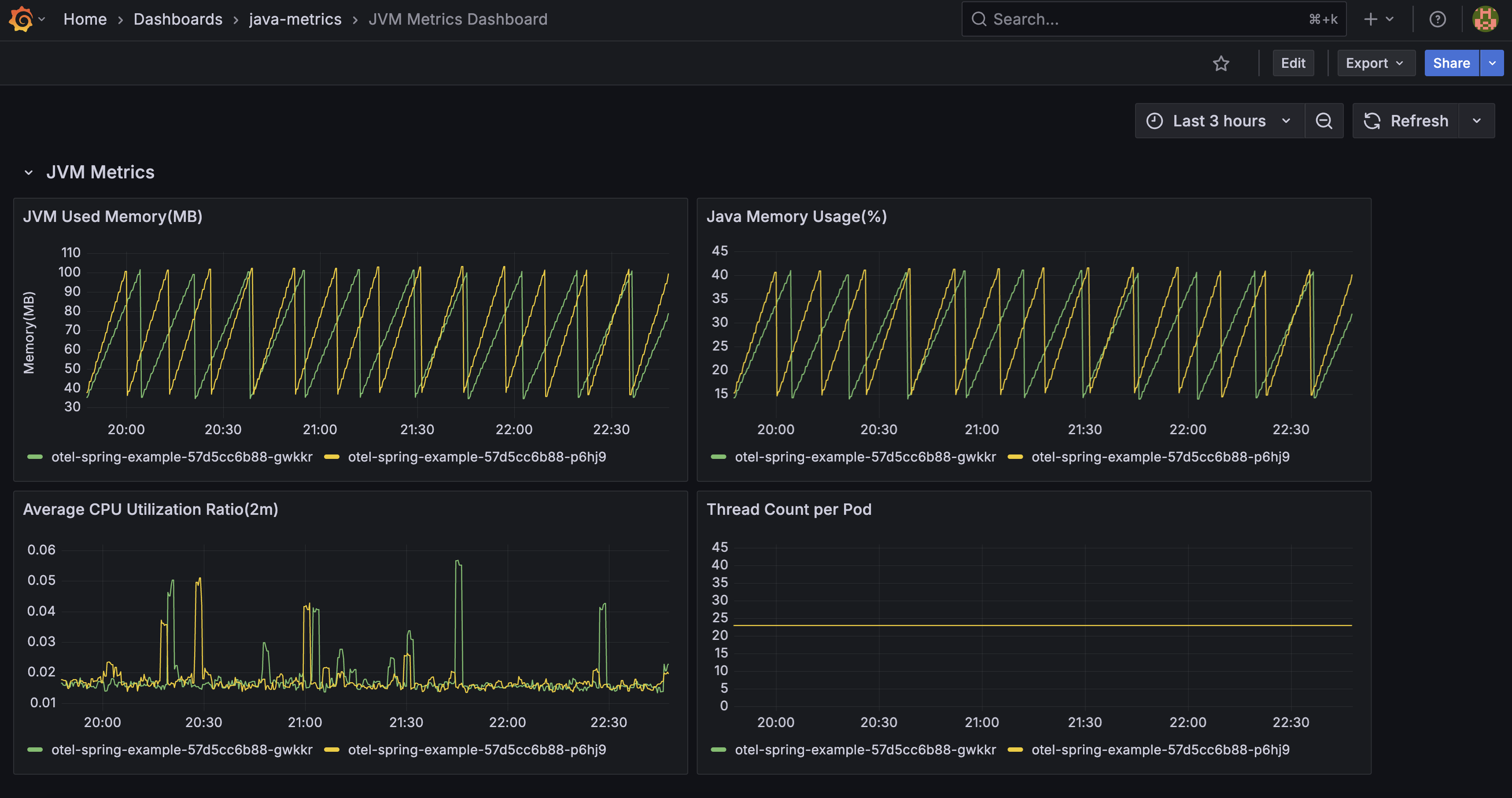

Example 1: Inline JSON Dashboard Configuration
RAW_JSON is a JSON representation of a Grafana dashboard. The example below shows how to configure a dashboard in Grafana using a Helm chart. This configuration will load a dashboard from a JSON file and make it available in Grafana.
dashboards:
# default is the name of the dashboard provider
default:
some-dashboard:
json: |
$RAW_JSONThis way is more straightforward for simple dashboards, but it can become cumbersome for larger or more complex dashboards. In this document, we will focus on using ConfigMaps to manage Grafana dashboards, which is a more scalable approach.
Example 2: Using a ConfigMap to Load Dashboards
The example below shows how to configure a dashboard in Grafana using a Helm chart with the dashboardConfigMaps section. This configuration will load a dashboard from a ConfigMap and make it available in Grafana.
dashboardsConfigMaps:
# default is the name of the dashboard provider
# grafana-default-dashboards is the name of the ConfigMap containing the dashboard JSON files
default: grafana-default-dashboardsCreating the ConfigMap
Use the following command to generate a ConfigMap containing all dashboard JSON files:
$ kubectl -n o11y create configmap grafana-default-dashboards --from-file=./dashboards/This command creates a ConfigMap named grafana-default-dashboards in the o11y namespace, containing all JSON files from the ./dashboards/ directory. Grafana will automatically load these dashboards when it starts.
View Details - jvm-memory-dashboard.json
{
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "grafana",
"uid": "-- Grafana --"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"type": "dashboard"
}
]
},
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": 3,
"links": [],
"panels": [
{
"collapsed": false,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 0
},
"id": 3,
"panels": [],
"title": "JVM Metrics",
"type": "row"
},
{
"datasource": {
"type": "prometheus",
"uid": "o11y-prometheus"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "Memory(MB)",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": [
{
"__systemRef": "hideSeriesFrom",
"matcher": {
"id": "byNames",
"options": {
"mode": "exclude",
"names": [
"otel-spring-example-57d5cc6b88-p6hj9"
],
"prefix": "All except:",
"readOnly": true
}
},
"properties": [
{
"id": "custom.hideFrom",
"value": {
"legend": false,
"tooltip": false,
"viz": false
}
}
]
}
]
},
"gridPos": {
"h": 7,
"w": 11,
"x": 0,
"y": 1
},
"id": 2,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "12.0.0",
"targets": [
{
"editorMode": "code",
"expr": "sum by(pod) (jvm_memory_used_bytes{jvm_memory_type=\"heap\"} / (1024 * 1024))",
"legendFormat": "__auto",
"range": true,
"refId": "A"
}
],
"title": "JVM Used Memory(MB)",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "o11y-prometheus"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 7,
"w": 11,
"x": 11,
"y": 1
},
"id": 1,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "12.0.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "o11y-prometheus"
},
"editorMode": "code",
"expr": "(\n sum by(pod) (jvm_memory_used_bytes{jvm_memory_type=\"heap\"})\n /\n sum by(pod) (jvm_memory_limit_bytes{jvm_memory_type=\"heap\"})\n ) * 100",
"legendFormat": "__auto",
"range": true,
"refId": "A"
}
],
"title": "Java Memory Usage(%)",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "o11y-prometheus"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 7,
"w": 11,
"x": 0,
"y": 8
},
"id": 4,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "12.0.0",
"targets": [
{
"editorMode": "code",
"expr": "sum by (pod)(avg_over_time(jvm_cpu_recent_utilization_ratio[2m]))",
"legendFormat": "__auto",
"range": true,
"refId": "A"
}
],
"title": "Average CPU Utilization Ratio(2m)",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "o11y-prometheus"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": [
{
"__systemRef": "hideSeriesFrom",
"matcher": {
"id": "byNames",
"options": {
"mode": "exclude",
"names": [
"otel-spring-example-57d5cc6b88-gwkkr"
],
"prefix": "All except:",
"readOnly": true
}
},
"properties": [
{
"id": "custom.hideFrom",
"value": {
"legend": false,
"tooltip": false,
"viz": false
}
}
]
}
]
},
"gridPos": {
"h": 7,
"w": 11,
"x": 11,
"y": 8
},
"id": 5,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "12.0.0",
"targets": [
{
"editorMode": "code",
"expr": "sum by (pod)(jvm_thread_count)",
"legendFormat": "__auto",
"range": true,
"refId": "A"
}
],
"title": "Thread Count per Pod",
"type": "timeseries"
}
],
"preload": false,
"schemaVersion": 41,
"tags": [],
"templating": {
"list": []
},
"time": {
"from": "now-1h",
"to": "now"
},
"timepicker": {},
"timezone": "browser",
"title": "JVM Metrics Dashboard",
"uid": "2549ec10-8ff8-43b3-899b-9b88d0d62b7d",
"version": 17
}
Grafana Alerting
Grafana’s unified alerting system enables you to define alert rules and notification channels declaratively.
alerting:
policies.yaml: {}
rules.yaml: {}
contactpoints.yaml: {}
templates.yaml: {}
mutetimes.yaml: {}This guide focuses on contactpoints.yaml and rules.yaml.
|
Unlike dashboards, alerting resources are typically not managed via ConfigMaps but instead provisioned directly from Helm values. |
Contact Points
Contact points define how alerts are delivered to external systems such as email, Slack, or PagerDuty.
Key Capabilities
-
Define alert notification channels
-
Configure contact methods for teams or services
-
Enable alert routing and escalation

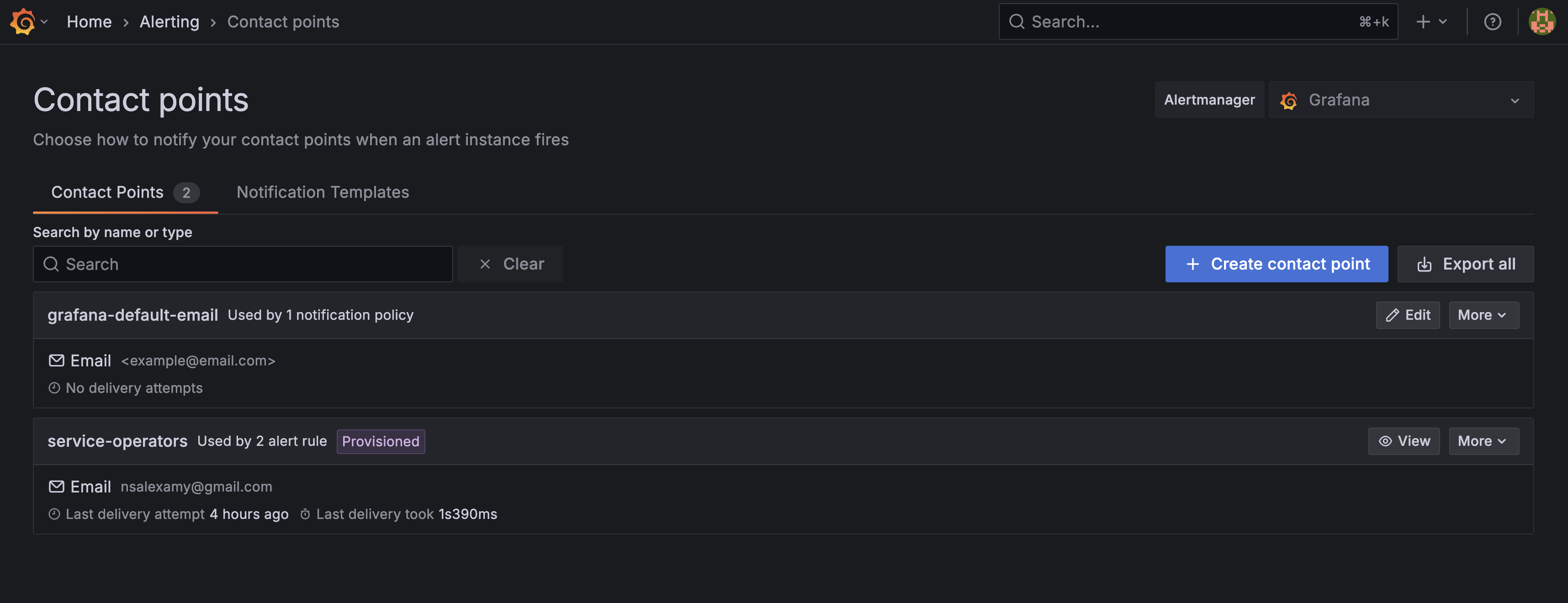

Example: Email Contact Point Configuration
The example below shows how to configure a contact point in Grafana using a Helm chart. This configuration will create an email contact point that sends notifications to a specified email address.
alerting:
contactpoints.yaml:
apiVersion: 1
contactPoints:
- orgId: 1
name: service-operators
receivers:
- uid: cen4b1ckf03cwb
type: email
settings:
addresses: nsalexamy@gmail.com
singleEmail: false
disableResolveMessage: false
Alert Rules
Alert rules define the logic and thresholds that determine when an alert should be triggered.
Key Capabilities
-
Monitor specific metrics using PromQL or expressions
-
Define thresholds for alerting
-
Trigger actions via contact points

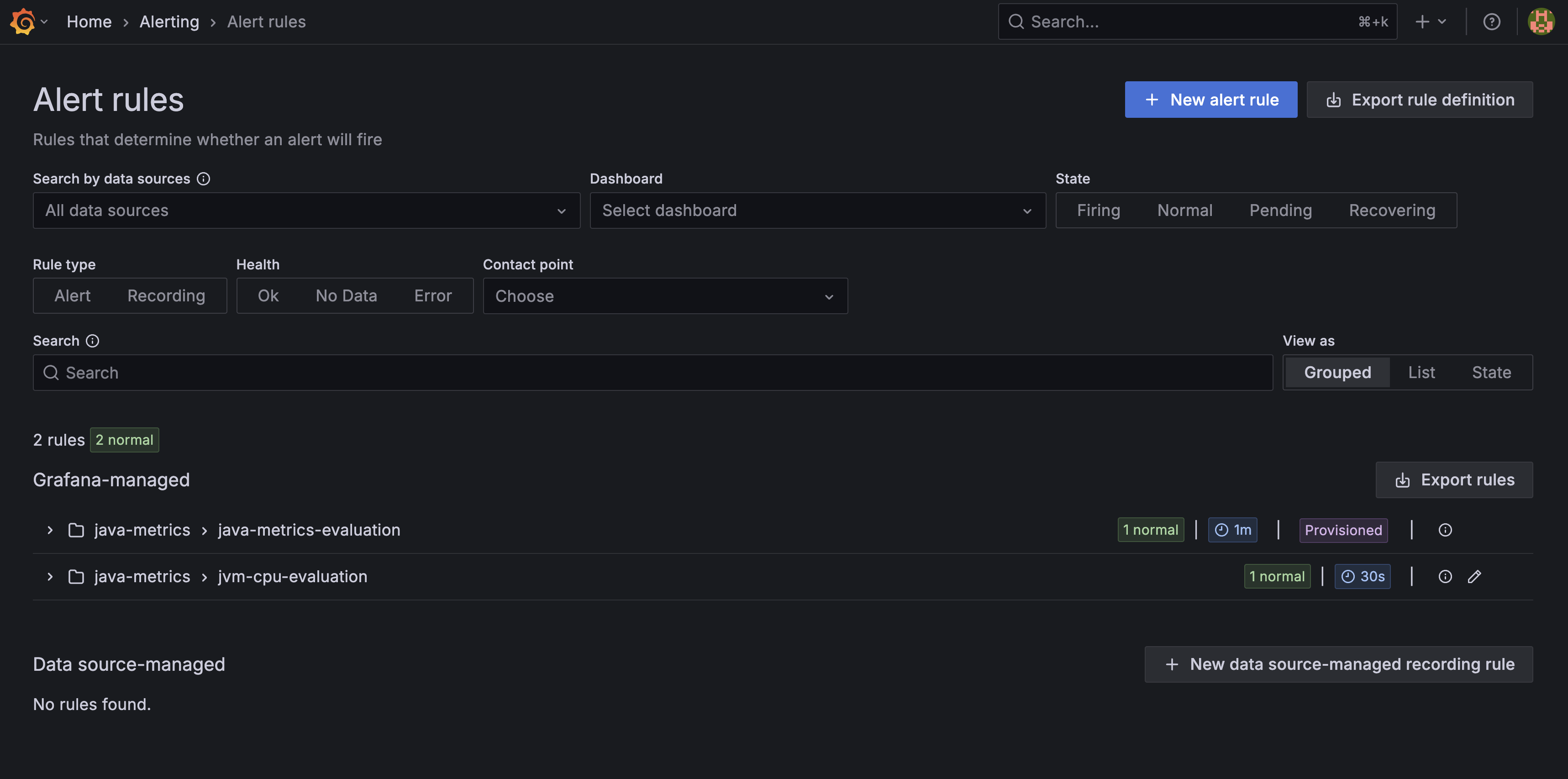

Example: Alert Rules for JVM Memory and CPU Usage
The example below shows how to configure alert rules in Grafana using a Helm chart. This configuration will create alert rules that monitor JVM memory usage and CPU utilization, triggering notifications when thresholds are exceeded.
# in alerting section
rules.yaml:
apiVersion: 1
groups:
- orgId: 1
name: java-metrics-evaluation
folder: java-metrics
interval: 1m
rules:
- uid: een4b7bt3iu4gf
title: High JVM Memory Usage
condition: C
data:
- refId: A
relativeTimeRange:
from: 600
to: 0
datasourceUid: o11y-prometheus
model:
editorMode: code
expr: |-
(
sum by(pod) (jvm_memory_used_bytes{jvm_memory_type="heap"})
/
sum by(pod) (jvm_memory_limit_bytes{jvm_memory_type="heap"})
) * 100
instant: true
intervalMs: 1000
legendFormat: __auto
maxDataPoints: 43200
range: false
refId: A
- refId: C
datasourceUid: __expr__
model:
conditions:
- evaluator:
params:
- 80
type: gt
operator:
type: and
query:
params:
- C
reducer:
params: [ ]
type: last
type: query
datasource:
type: __expr__
uid: __expr__
expression: A
intervalMs: 1000
maxDataPoints: 43200
refId: C
type: threshold
dashboardUid: ""
panelId: 0
noDataState: NoData
execErrState: Error
for: 1m
isPaused: false
notification_settings:
receiver: service-operators
- orgId: 1
name: jvm-cpu-evaluation
folder: java-metrics
interval: 30s
rules:
- uid: den6wkxi4n75sf
title: high-jvm-cpu
condition: C
data:
- refId: A
relativeTimeRange:
from: 600
to: 0
datasourceUid: o11y-prometheus
model:
editorMode: code
expr: avg_over_time(jvm_cpu_recent_utilization_ratio[2m])
instant: true
intervalMs: 1000
legendFormat: __auto
maxDataPoints: 43200
range: false
refId: A
- refId: C
datasourceUid: __expr__
model:
conditions:
- evaluator:
params:
- 0.6
type: gt
operator:
type: and
query:
params:
- C
reducer:
params: [ ]
type: last
type: query
datasource:
type: __expr__
uid: __expr__
expression: A
intervalMs: 1000
maxDataPoints: 43200
refId: C
type: threshold
noDataState: NoData
execErrState: Error
for: 1m
isPaused: false
notification_settings:
receiver: service-operators
Conclusion
This guide demonstrated how to provision and manage Grafana resources using Helm charts, covering datasources, dashboard providers, dashboards, contact points, and alert rules. This approach enables repeatable, automated deployment of observability tooling within Kubernetes environments.
To explore advanced configurations, refer to the official Grafana documentation.
You can also view this document in web format at: https://nsalexamy.github.io/service-foundry/pages/documents/o11y-foundry/grafana-resource-provisioning/
