Grafana Integration with OpenSearch for Centralized Log Management

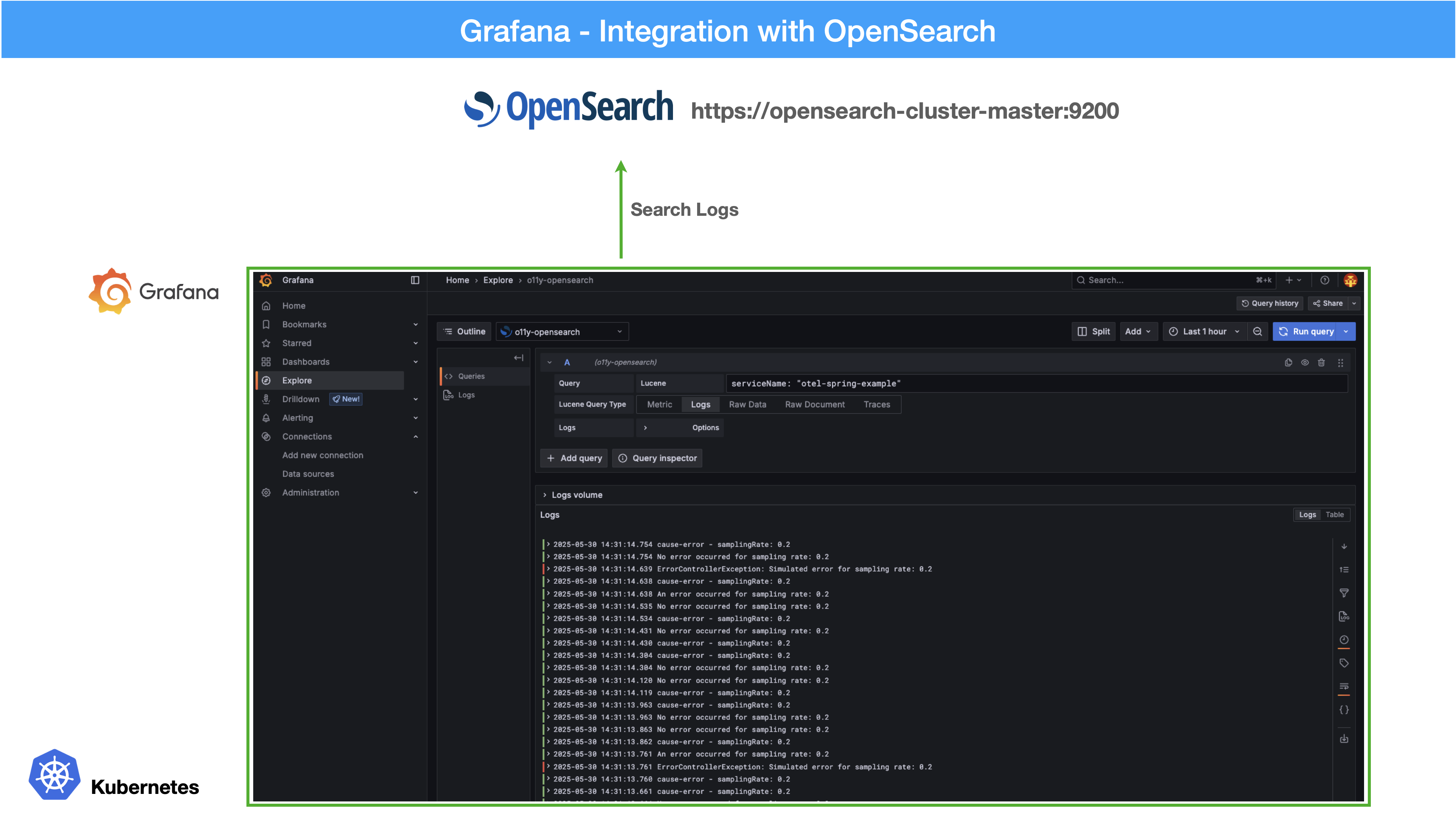

grafana integration with opensearch

Introduction

This guide provides a comprehensive overview of integrating Grafana with OpenSearch to enable centralized log visualization and monitoring. It covers:

  • Installing the OpenSearch plugin for Grafana

  • Configuring OpenSearch as a Grafana data source

  • Querying logs within Grafana

  • Provisioning the OpenSearch data source via Helm values

Installing the OpenSearch Plugin for Grafana

To connect Grafana to OpenSearch, the grafana-opensearch-datasource plugin must be installed.

grafana-values.yaml - plugins
plugins:
  - grafana-opensearch-datasource

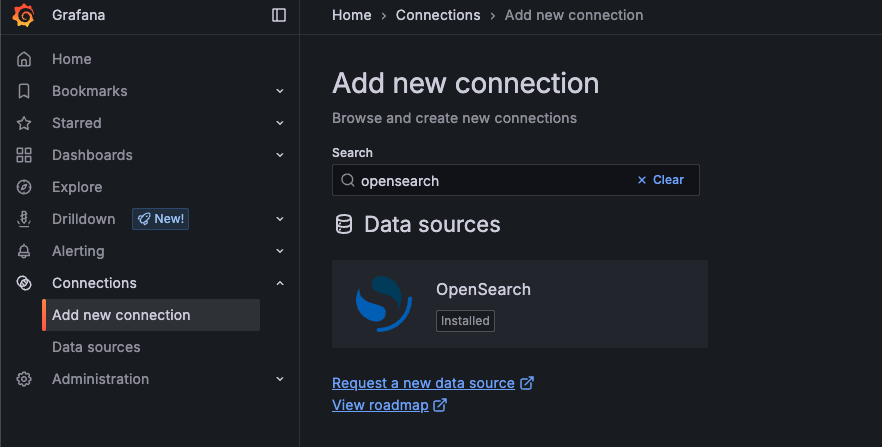

grafana opensearch installed
Figure 1. Grafana UI - Data Sources - OpenSearch Plugin

Ensure the plugin status is marked as Installed in the Grafana Data Sources UI.

Configuring OpenSearch as a Data Source

To add OpenSearch as a Grafana data source:

  1. In Grafana, go to Connections > Add new connection

  2. Search for and select OpenSearch

  3. Click Add new data source

  4. Fill in following fields:

OpenSearch Data Source Configuration:

  • Name : grafana-opensearch-datasource

  • HTTP URL : https://opensearch-cluster-master:9200

  • Auth Basic Auth : Enabled

  • Auth With CA Cert : Enabled

  • User : admin

  • Password : your-opensearch-admin-password

  • TLS/SSL Auth Details - CA Cert : OpenSearch CA certificate

  • Time field : time

  • Log field name : severityText

  • Message field name : body

Retrieving the OpenSearch CA Certificate

If you manage certificates with cert-manager, and the OpenSearch cluster uses a secret named opensearch-tls, run:

$ ko get secret opensearch-tls -o yaml | yq '.data."ca.crt"' | base64 -d

OpenSearch listed in Data Sources

Once you have created the OpenSearch data source in Grafana, you can test the connection by clicking the "Save & Test" button. If the connection is successful, you will see a confirmation message.

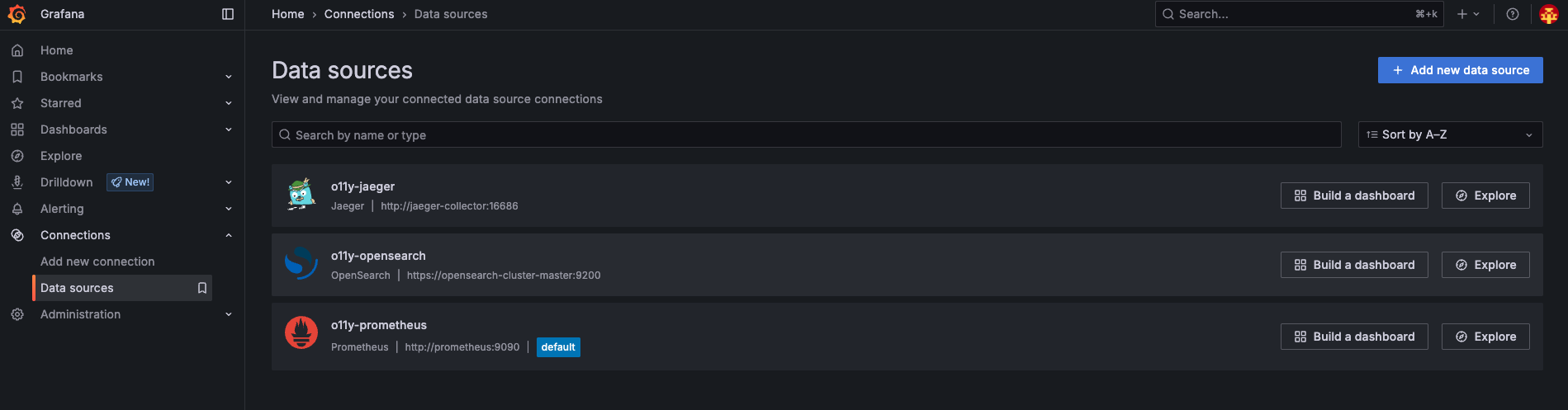

grafana datasources
Figure 2. Grafana UI - Data Sources

Exploring Logs in Grafana Using OpenSearch

After configuring OpenSearch, click the Explore button next to the data source to run Lucene queries and view logs.

Sample Log Queries

Click on 'Logs' tab for Lucene Query Type to search logs.

Filter logs by service name:

serviceName: "otel-spring-example"

Filter logs by severity level:

serviceName: "otel-spring-example" AND severityText: "ERROR"

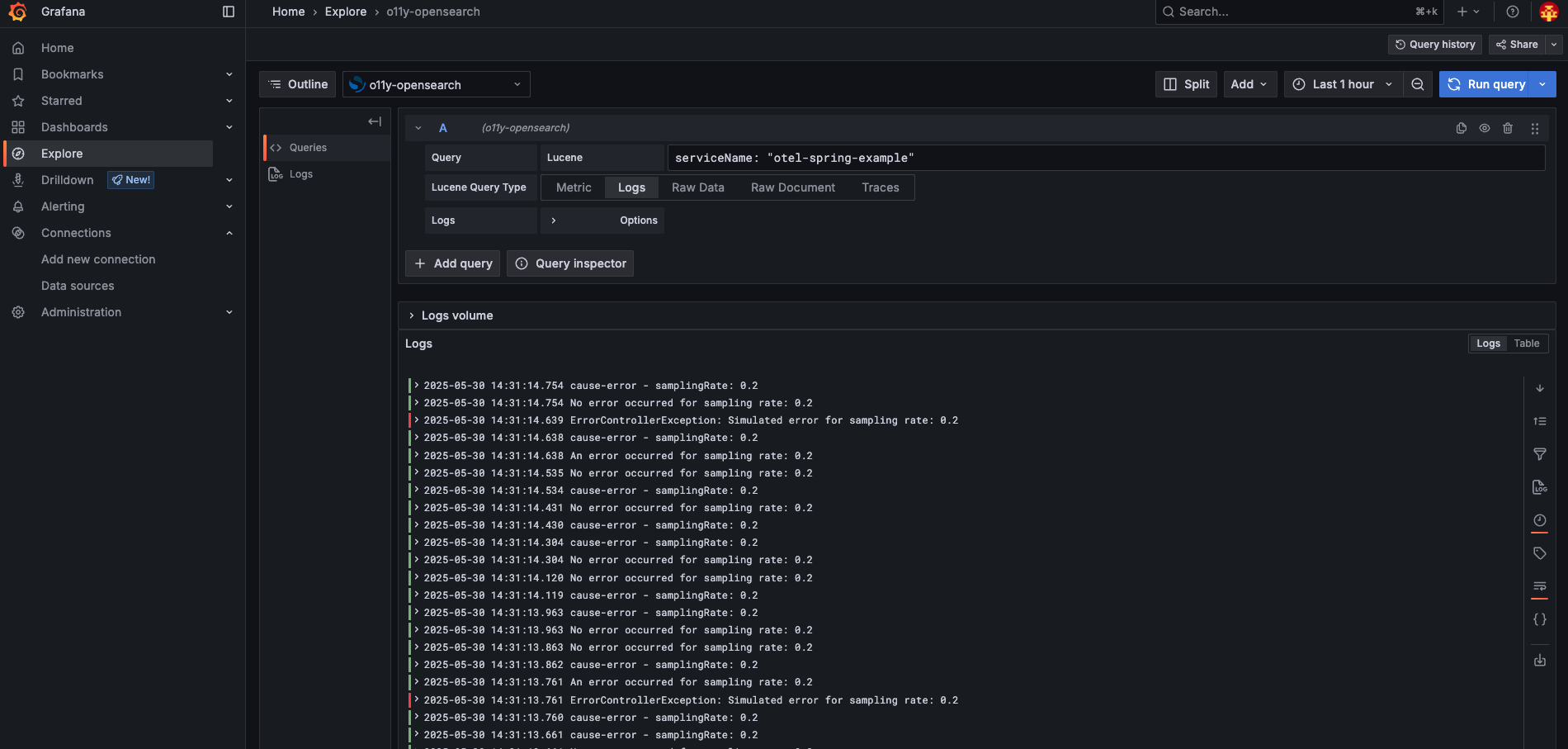

grafana explore opensearch search log
Figure 3. Grafana UI - Explore Logs of a Service

Click any log entry to view detailed fields such as timestamp, severity, message, and service metadata.

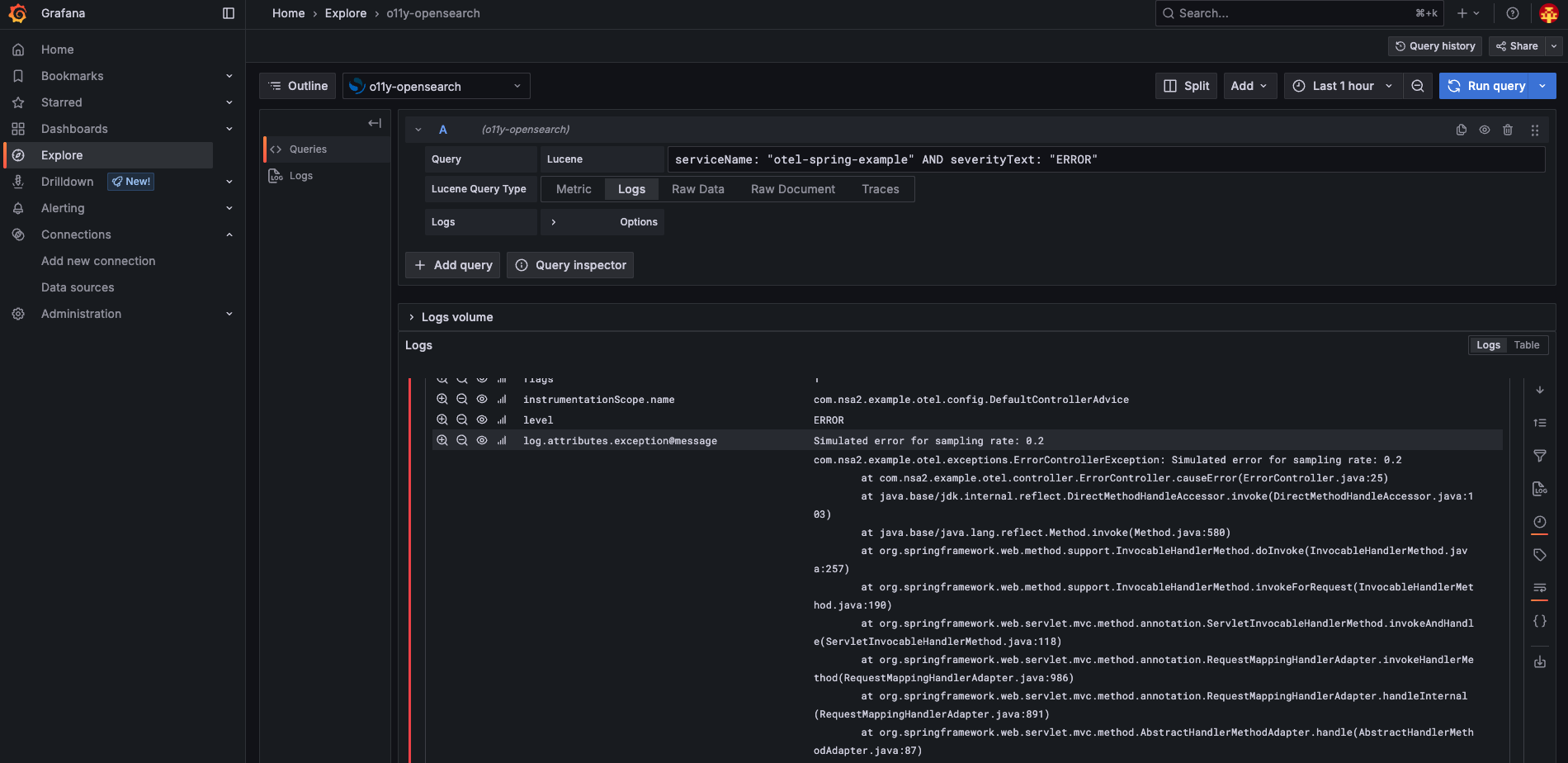

grafana explore opensearch detail view
Figure 4. Grafana UI - Log Entry Details

Provisioning the OpenSearch Data Source

To provision the OpenSearch data source during Grafana deployment via Helm, add the following configuration to your grafana-values.yaml file:

grafana-values.yaml - datasources - OpenSearch
datasources:
  datasources.yaml:
    apiVersion: 1
    datasources:
    - name: o11y-opensearch
      type: grafana-opensearch-datasource
      url: https://opensearch-cluster-master:9200
      uid: "--opensearch--"
      basicAuth: true
      basicAuthUser: admin
      editable: true
      jsonData:
        pplEnabled: true
        version: 2.19.1
        timeField: "time"
        logMessageField: "body"
        logLevelField: "severityText"
        tlsAuthWithCACert: true

      secureJsonData:
        basicAuthPassword: your-initial-admin-password
        tlsCACert: |
          -----BEGIN CERTIFICATE-----
          YOUR_CA_CERTIFICATE_CONTENT_HERE
          -----END CERTIFICATE-----

Conclusion

By integrating Grafana with OpenSearch, you enable powerful log exploration and visualization capabilities across your applications. This setup eliminates the need for standalone log viewers by consolidating observability into Grafana dashboards. With support for provisioning, automation, and secure TLS-based authentication, this solution is ideal for modern Kubernetes-native environments.
