Grafana Mimir Deployment Guide for Scalable Metrics Storage

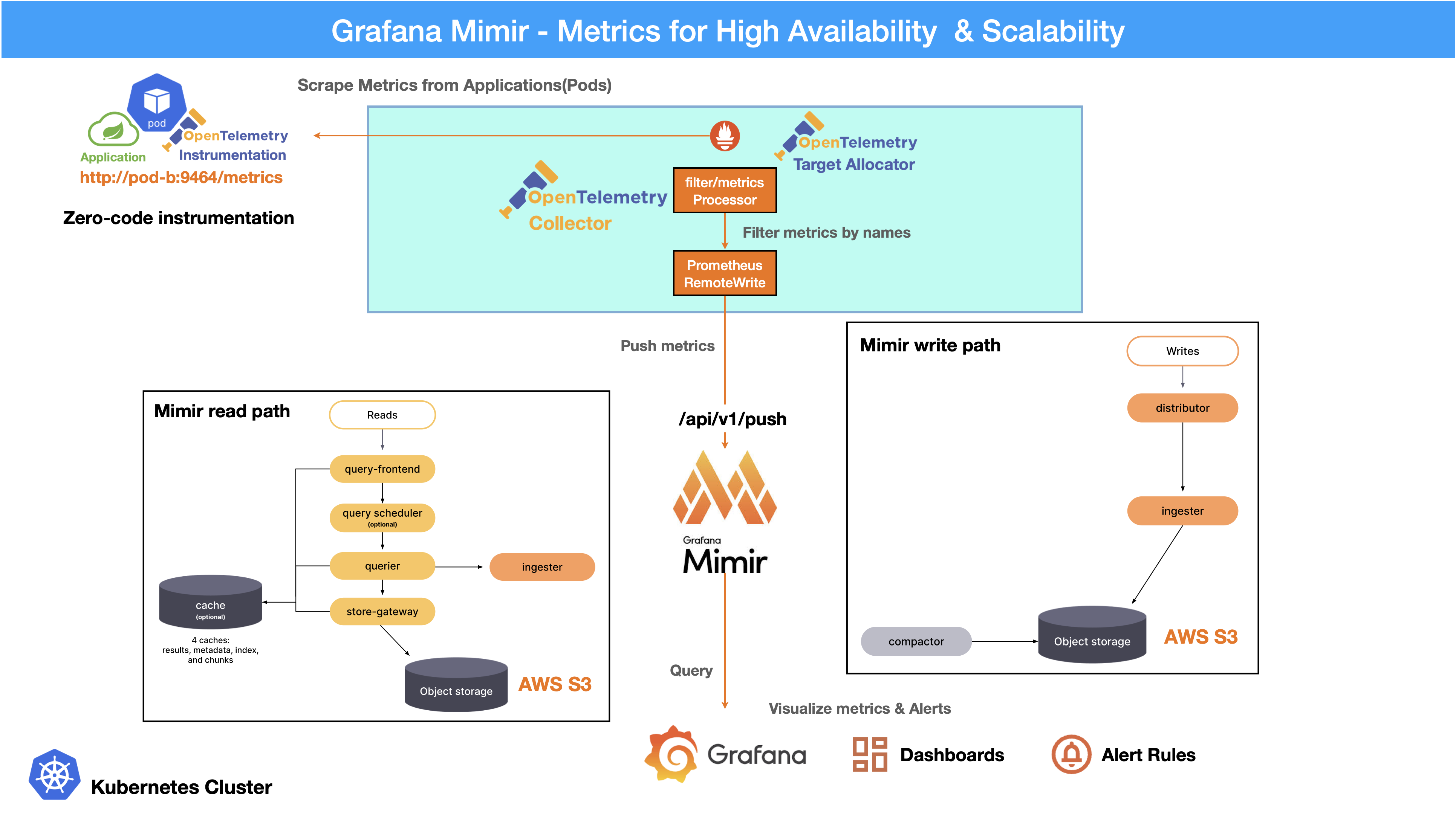

grafana mimir with otel

Introduction

This guide outlines the process for deploying Grafana Mimir on a Kubernetes cluster using Helm. Grafana Mimir is a highly scalable, multi-tenant time series database designed for long-term storage of Prometheus metrics and enterprise-grade observability.

Why Grafana Mimir?

While Prometheus is widely adopted for monitoring and alerting, it has limitations in long-term retention, scalability, and high availability. Mimir addresses these limitations by offering:

  • Horizontal scalability

  • High availability

  • Multi-tenancy

  • Long-term storage

  • Query federation support

Prometheus vs. Mimir

Feature Prometheus Grafana Mimir

Storage

Local

Remote (e.g., S3)

HA Support

Limited

Full

Scalability

Single-node

Horizontally scalable

Multi-tenancy

Not supported

Supported

Mimir Architecture Overview

Grafana Mimir is composed of distributed microservices:

  • Distributor – Routes metrics to ingesters

  • Ingester – Stores metrics in memory and flushes to long-term storage

  • Querier / Query Frontend / Query Scheduler – Optimizes and executes queries

  • Store Gateway – Provides access to historical data in object storage

  • Compactor – Optimizes and deduplicates time series blocks

  • Ruler / Alertmanager – Handles rule evaluation and alerting

  • Overrides Exporter / Rollout Operator – Configuration and deployment management

Microservices of Mimir
$ kubectl -n mimir get pods

get pods
NAME                                        READY   STATUS      RESTARTS   AGE
mimir-alertmanager-0                        1/1     Running     0          24m
mimir-compactor-0                           1/1     Running     0          24m
mimir-distributor-64b789cbf-rxpc9           1/1     Running     0          24m
mimir-ingester-zone-a-0                     1/1     Running     0          24m
mimir-ingester-zone-b-0                     1/1     Running     0          24m
mimir-ingester-zone-c-0                     1/1     Running     0          24m
mimir-make-minio-buckets-5.4.0-2swr7        0/1     Completed   0          24m
mimir-minio-5477c4c7b4-p6kdw                1/1     Running     0          24m
mimir-nginx-7b49958f6b-s97r6                1/1     Running     0          24m
mimir-overrides-exporter-5b55fc5498-4ltgg   1/1     Running     0          24m
mimir-querier-6846596d85-77x55              1/1     Running     0          24m
mimir-querier-6846596d85-8z4rw              1/1     Running     0          24m
mimir-query-frontend-564f784bd-flnsk        1/1     Running     0          24m
mimir-query-scheduler-5d56cc5fbc-nx9zm      1/1     Running     0          24m
mimir-query-scheduler-5d56cc5fbc-wjg27      1/1     Running     0          24m
mimir-rollout-operator-5d576bc569-2pkwd     1/1     Running     0          24m
mimir-ruler-7b9d584d54-v7pgj                1/1     Running     0          24m
mimir-store-gateway-zone-a-0                1/1     Running     0          24m
mimir-store-gateway-zone-b-0                1/1     Running     0          24m
mimir-store-gateway-zone-c-0                1/1     Running     0          24m

Installation Steps

Add the Grafana Helm Repository

$ helm repo add grafana https://grafana.github.io/helm-charts
$ helm repo update grafana

Retrieve Default Chart Values

$ helm show values grafana/mimir-distributed > values.yaml

Prepare S3 Buckets

Create the following S3 buckets for storing blocks, alertmanager data, and ruler rules:

  • {your-s3-prefix}-mimir-blocks-bucket

  • {your-s3-prefix}-mimir-alertmanager-bucket

  • {your-s3-prefix}-mimir-ruler-bucket

Create the S3 bucket using the AWS CLI.

#$ aws s3 mb s3://$S3_BUCKET_NAME --region $S3_REGION

$ aws s3 mb s3://{your-s3-prefix}-mimir-blocks-bucket --region $S3_REGION
$ aws s3 mb s3://{your-s3-prefix}-mimir-alertmanager-bucket --region $S3_REGION
$ aws s3 mb s3://{your-s3-prefix}-mimir-ruler-bucket --region $S3_REGION

To validate:

$ aws s3 ls --region $S3_REGION

Delete the S3 bucket if needed.

$ aws s3 rb s3://$S3_BUCKET_NAME --force --region $S3_REGION

Create Kubernetes Secret for S3 Access

Create mimir-s3-credentials secret in the mimir namespace. This secret contains the AWS credentials required for Mimir to access the S3 buckets.

$ kubectl get namespaces mimir || kubectl create namespace mimir

$ kubectl -n mimir create secret generic mimir-s3-credentials \
  --from-literal=AWS_ACCESS_KEY_ID=$AWS_ACCESS_KEY_ID \
  --from-literal=AWS_ACCOUNT_ID=$AWS_ACCOUNT_ID \
  --from-literal=AWS_SECRET_ACCESS_KEY=$AWS_SECRET_ACCESS_KEY \
  --from-literal=AWS_REGION=$AWS_REGION

Define Custom Helm Values

custom-values.yaml
# 46
global:
  extraEnvFrom:
    #(1)
    - secretRef:
        name: mimir-s3-credentials

mimir:
  structuredConfig:
    common:
      storage:
        backend: "s3"
        s3:
          endpoint: "s3.ca-west-1.amazonaws.com"
          region: "ca-west-1"
          access_key_id: "${AWS_ACCESS_KEY_ID}"
          secret_access_key: "${AWS_SECRET_ACCESS_KEY}"


    # Configuration specific to blocks storage (metrics data)
    #(1)
    blocks_storage:
      backend: "s3"
      s3:
        bucket_name: "{your-s3-prefix}-mimir-blocks-bucket"
        region: "ca-west-1"
        endpoint: "s3.ca-west-1.amazonaws.com"
        access_key_id: "${AWS_ACCESS_KEY_ID}"
        secret_access_key: "${AWS_SECRET_ACCESS_KEY}"
      tsdb:
        block_ranges_period: [10m]  # 2h by default
        retention_period: 24h  # 15d by default
    alertmanager_storage:
      backend: "s3"
      s3:
        bucket_name: "{your-s3-prefix}-mimir-alertmanager-bucket"
        region: "ca-west-1"
        endpoint: "s3.ca-west-1.amazonaws.com"
        access_key_id: "${AWS_ACCESS_KEY_ID}"
        secret_access_key: "${AWS_SECRET_ACCESS_KEY}"
    ruler_storage:
      backend: "s3"
      s3:
        bucket_name: "{your-s3-prefix}-mimir-ruler-bucket"
        region: "ca-west-1"
        endpoint: "s3.ca-west-1.amazonaws.com"
        access_key_id: "${AWS_ACCESS_KEY_ID}"
        secret_access_key: "${AWS_SECRET_ACCESS_KEY}"

<1>. The extraEnvFrom section allows Mimir to access the AWS credentials stored in the Kubernetes secret mimir-s3-credentials. This is necessary for Mimir to authenticate with the S3 service. <2>. The blocks_storage section configures Mimir to use the specified S3 bucket for storing metrics data. The retention_period is set to 24 hours, and the block_ranges_period is set to 10 minutes.

Deploy Mimir with Helm

$ helm install mimir grafana/mimir-distributed \
  --namespace mimir --create-namespace \
  -f custom-values.yaml

Example Output:

W0602 15:41:29.928025   58136 warnings.go:70] metadata.name: this is used in Pod names and hostnames, which can result in surprising behavior; a DNS label is recommended: [must not contain dots]
NAME: mimir
LAST DEPLOYED: Mon Jun  2 15:41:25 2025
NAMESPACE: mimir
STATUS: deployed
REVISION: 1
NOTES:
Welcome to Grafana Mimir!
Remote write endpoints for Prometheus or Grafana Agent:
Ingress is not enabled, see the nginx.ingress values.
From inside the cluster:
  http://mimir-nginx.mimir.svc:80/api/v1/push

Read address, Grafana data source (Prometheus) URL:
Ingress is not enabled, see the nginx.ingress values.
From inside the cluster:
  http://mimir-nginx.mimir.svc:80/prometheus

**IMPORTANT**: Always consult CHANGELOG.md file at https://github.com/grafana/mimir/blob/main/operations/helm/charts/mimir-distributed/CHANGELOG.md and the deprecation list there to learn about breaking changes that require action during upgrade.

Maintenance Commands

Upgrade or Reinstall

$ helm upgrade --install mimir grafana/mimir-distributed \
  --namespace mimir \
  -f custom-values.yaml

Uninstall and Cleanup

$ helm uninstall mimir --namespace mimir

Delete PVCs

$ kubectl -n mimir get pvc -l app.kubernetes.io/name=mimir | awk 'NR>1' | awk '{print $1}' | xargs -I {} kubectl -n mimir delete pvc {}

Verify S3 Storage

$ aws s3 ls s3://$S3_BUCKET_NAME --recursive --human-readable --summarize

2025-06-03 02:08:52   91 Bytes __mimir_cluster/mimir_cluster_seed.json
2025-06-03 02:40:45   11.7 KiB anonymous/01JWTJKJJNBRNMBVMTYXZ9RJB9/chunks/000001
2025-06-03 02:40:45   42.9 KiB anonymous/01JWTJKJJNBRNMBVMTYXZ9RJB9/index
2025-06-03 02:40:45  617 Bytes anonymous/01JWTJKJJNBRNMBVMTYXZ9RJB9/meta.json

Total Objects: 4
Total Size: 55.4 KiB

OpenTelemetry Integration

Configure the OpenTelemetry Collector to forward metrics to Mimir:

spec:
  config:
    # omitted for brevity

    exporters:

      #(1)
      prometheusremotewrite:
        endpoint: http://mimir-nginx.mimir.svc:80/api/v1/push
        tls:
          insecure: true


    services:
      pipelines:
        metrics:
          receivers: [otlp, prometheus]
          processors: [filter/metrics]
          exporters: [prometheus, prometheusremotewrite]

        metrics/spanmetrics:
          receivers: [spanmetrics]
          processors: []
          exporters: [prometheus, prometheusremotewrite]

<1>. The prometheusremotewrite exporter is configured to send metrics to Mimir’s remote write endpoint.

Grafana Integration

Add Mimir as a Prometheus Data Source

To add Mimir as a data source in Grafana, follow these steps:

  1. Go to Connections > Add new connection

  2. Select Prometheus as the data source

  3. Set the URL to http://mimir-nginx.mimir.svc:80/prometheus

  4. Name the data source (e.g., prometheus-mimir)

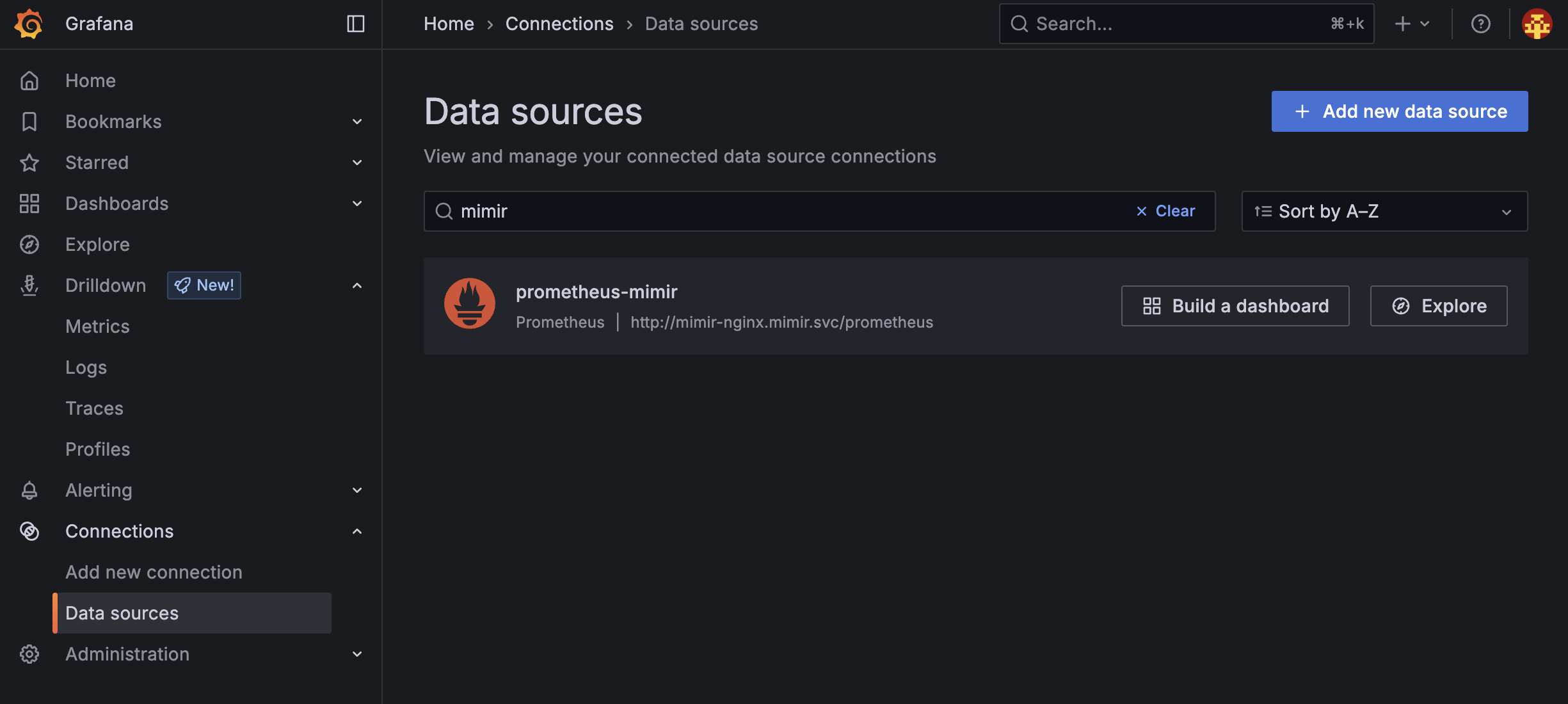

grafana mimir datasource
Figure 1. Grafana Data Source - prometheus-mimir

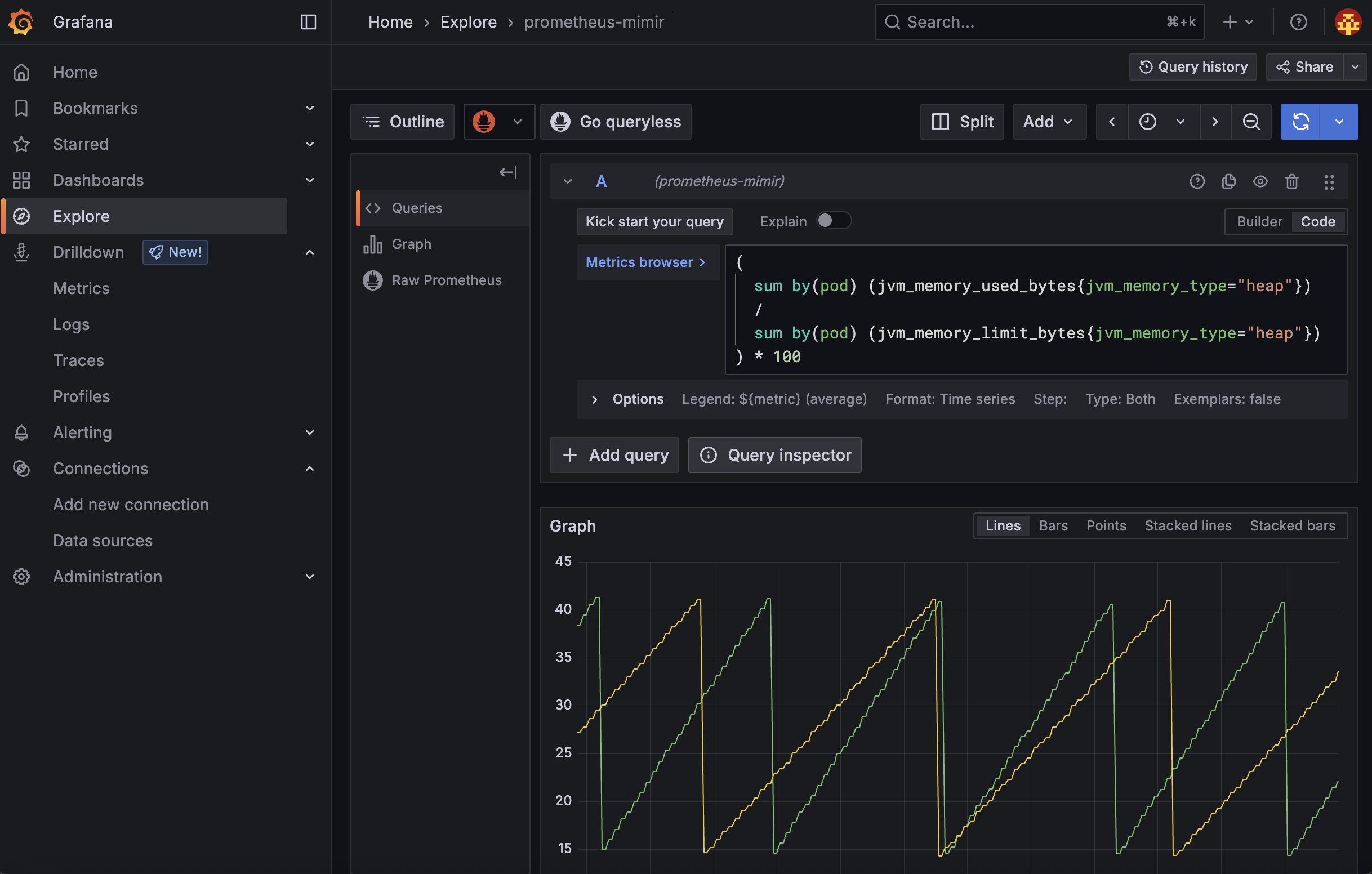

grafana mimir explore
Figure 2. Grafana Explore - Mimir Data Source

Conclusion

With Grafana Mimir deployed, your observability stack gains a robust, scalable backend for long-term metric storage. Mimir enhances Prometheus with enterprise-grade features including HA, multi-tenancy, and deep integration with Grafana and OpenTelemetry. This setup ensures your monitoring system is ready for growth and operational reliability at scale.
