Alerting Incidents in Grafana: A Guide to Application Observability Rules

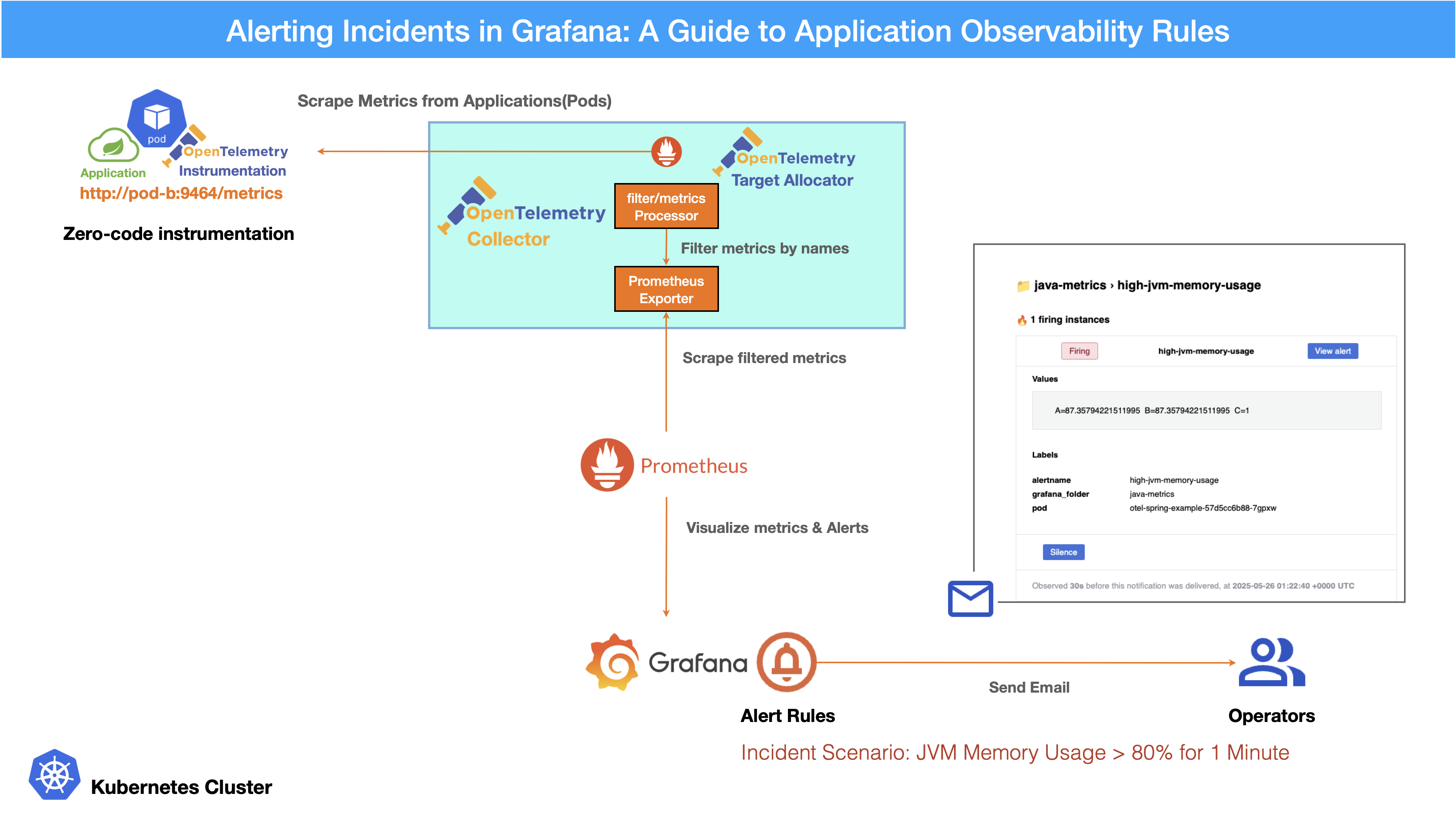

Overview

This guide explains how to configure a Grafana dashboard and alert rules to monitor JVM memory usage in a Kubernetes environment. The objective is to detect situations where the JVM memory usage of Java applications running in Pods exceeds 80% for more than one minute, and to notify service operators accordingly.

Incident Scenario: JVM Memory Usage > 80% for 1 Minute

This scenario captures an incident where Java applications running in any Pod use more than 80% of their allocated JVM heap memory for over one minute, triggering an alert notification to the designated service operators.

Metrics Utilized

jvm_memory_used_bytes{jvm_memory_type="heap"} - JVM heap memory used (in bytes)
jvm_memory_limit_bytes{jvm_memory_type="heap"} - JVM heap memory limit (in bytes, e.g., set via -Xms256m in the Dockerfile)
sum by(pod) - Aggregates the metric values per Pod

Prometheus Queries

The following Prometheus queries are used to calculate JVM memory usage per Pod and serve as the basis for visualization and alerting in Grafana.

A: The maximun JVM message usage per Pod
B: The used JVM memory per Pod
C: (A / B) * 100 - The percentage of JVM memory usage per Pod

Maximum JVM Heap Memory per Pod

sum by (pod) (
  jvm_memory_limit_bytes{jvm_memory_type="heap"}
)

As seen in the screenshot below, the maximum JVM memory limit per Pod is 256MB. There are two pods running the otel-spring-example application.

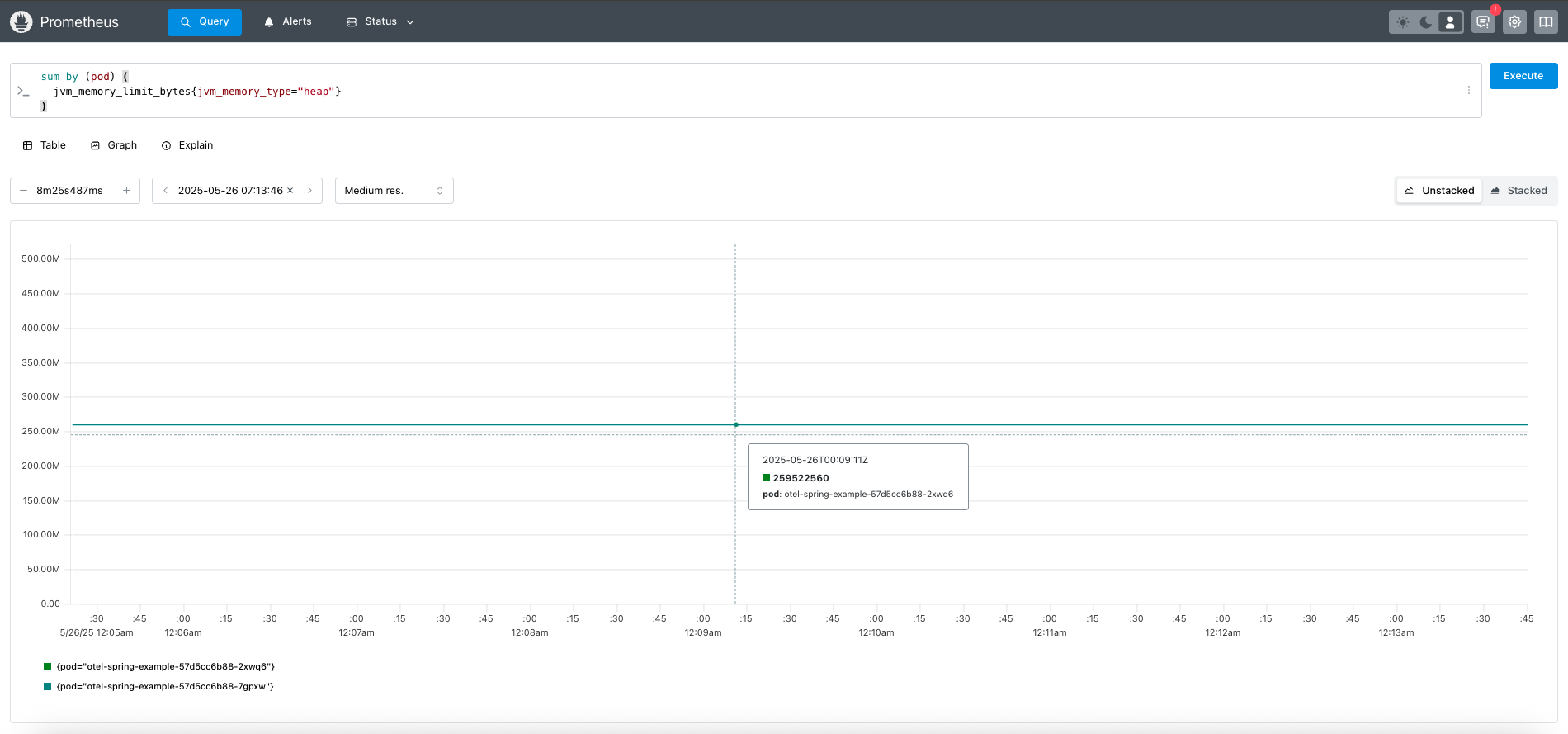

Figure 1. Prometheus Query - JVM Memory Limit per Pod

The used JVM memory per Pod

sum by (pod) (
  jvm_memory_used_bytes{jvm_memory_type="heap"}
)

As seen in the screenshot below, the used JVM memory per Pod is 120MB. The otel-spring-example application is consuming 120MB of memory.

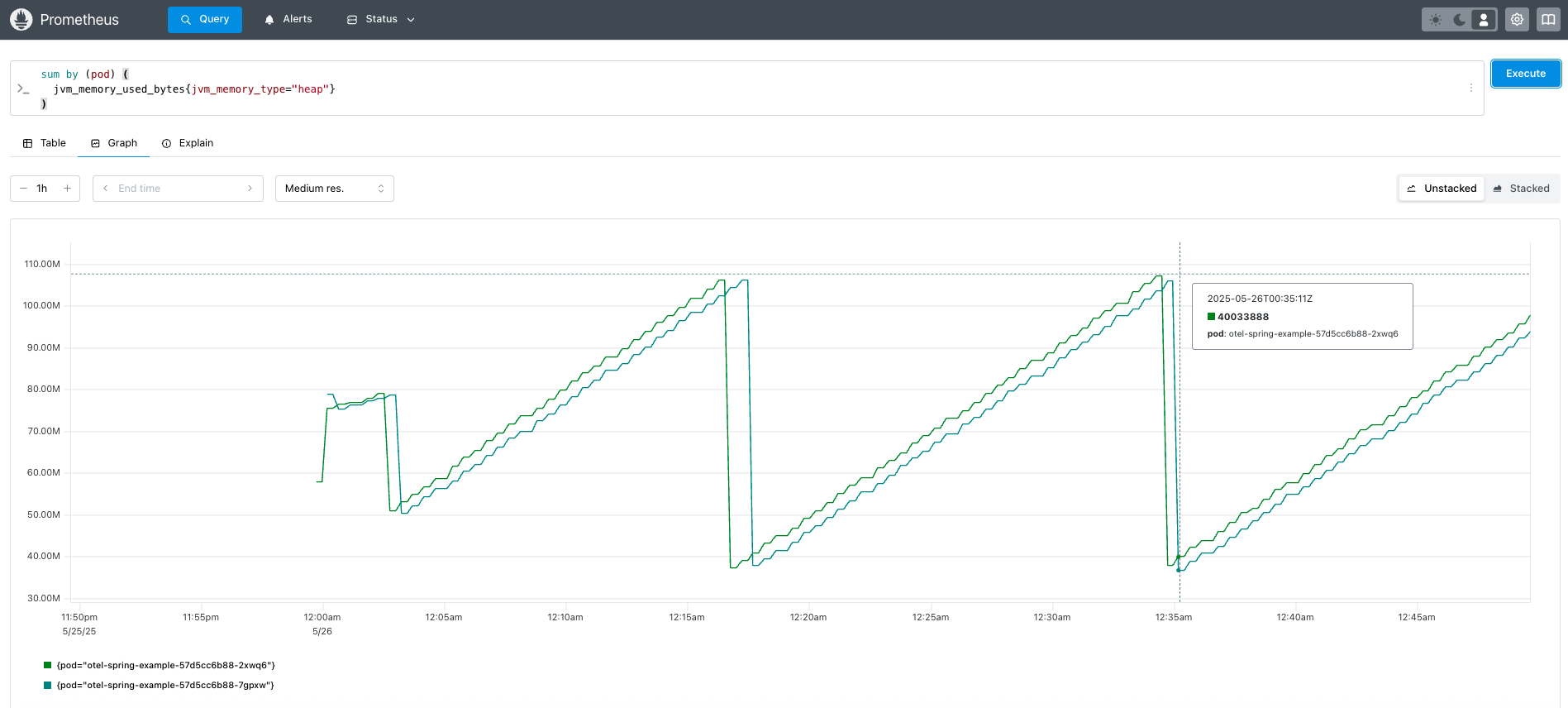

Figure 2. Prometheus Query - JVM Memory Used per Pod

Memory usage trends typically fluctuate due to garbage collection (GC). Usage increases with application activity and drops after GC.

VM Heap Memory Usage Percentage per Pod

sum by (pod) (
  jvm_memory_used_bytes{jvm_memory_type="heap"}
) /
sum by (pod) (
  jvm_memory_limit_bytes{jvm_memory_type="heap"}
) * 100

As seen in the screenshot below, the percentage of JVM memory usage per Pod looks similar to the used JVM memory per Pod.

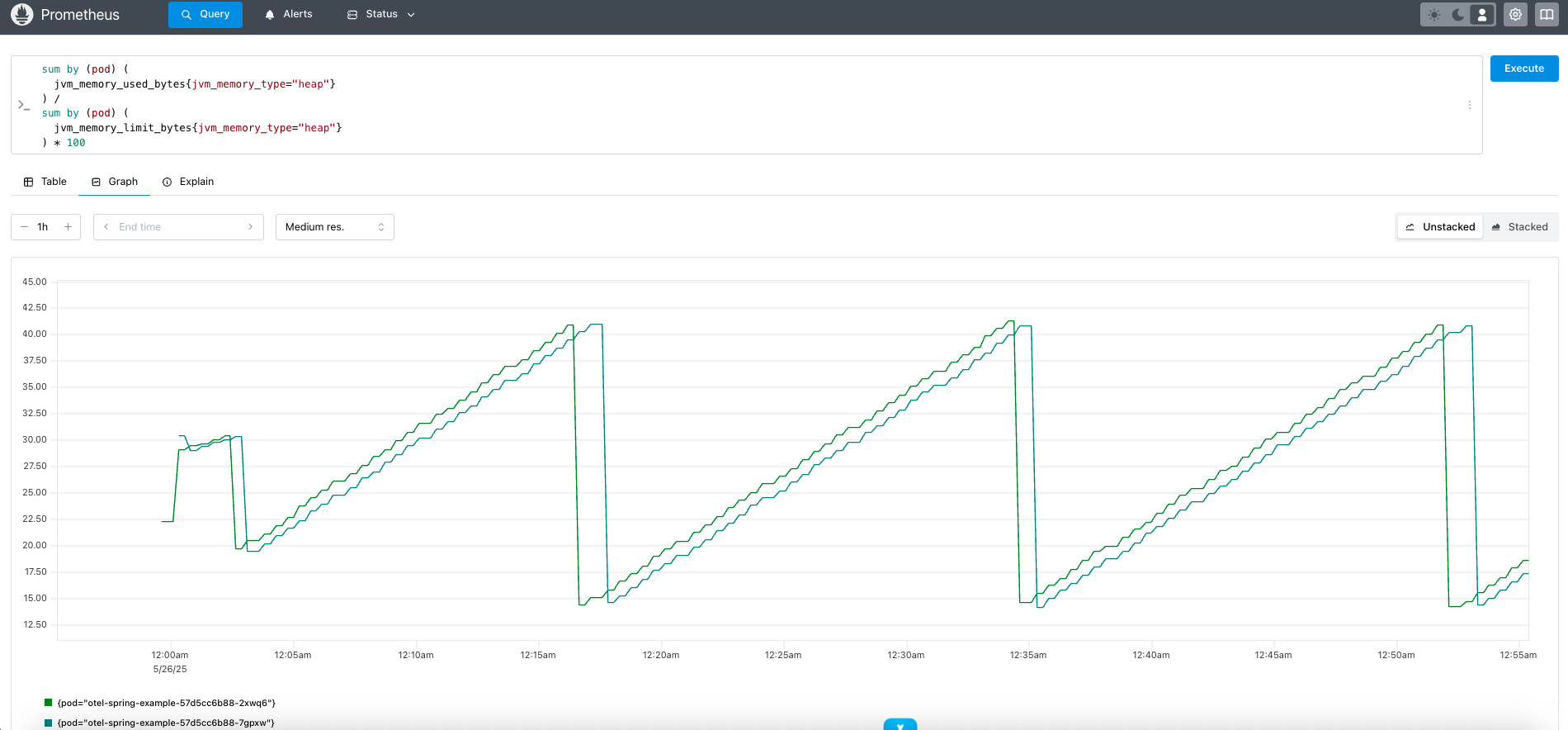

Figure 3. Prometheus Query - JVM Memory Usage Percentage per Pod

Grafana Setup

Grafana SMTP Configuration

To enable email notifications for alerts, configure Grafana’s SMTP settings using a ConfigMap and Kubernetes secret.

custom values.yaml for Grafana Helm Chart

grafana.ini:
  #(1)
  smtp:
    enabled: true
    host: your-smtp-server:your-smtp-server-port # for example, smtp.gmail.com:587
    from_address: your-email-address
    from_name: Grafana Alerts
    skip_verify: false
    startTLS_policy: MandatoryStartTLS

smtp:
  # this secret must contain user and password for SMTP server
  #(2)
  existingSecret: grafana-smtp-credentials

1	SMTP configuration for Grafana
2	Kubernetes secret for SMTP credentials

Create Grafana SMTP credentials secret

Create a Kubernetes secret to store the SMTP credentials. This secret will be used by Grafana to send alert notifications via email.

$ kubectl -n o11y create secret generic grafana-smtp-credentials \
  --from-literal=user=your-smtp-user \
  --from-literal=password=your-smtp-password

Grafana Configuration

Connection to Prometheus

Navigate Connections > Add new connection
Select Prometheus
Click 'Add new data source' button at top-right corner
Fill in the details:
- Name: o11y-prometheus
- Set as Default: true
- Prometheus server URL: http://prometheus:9090
- Authentication methods: Forward OAuth Identity
Click 'Save & test' button

Setting Up Alerting

Contact points

Navigate Alerting > Contact points.
Click 'Create contact point' button
Configure:
- Name: Service Operators
- Integration: Email
- Addresses: nsalexamy@gmail.com
Click Test, then Save contact point

Alert Rules

Go to Alerting > Alert rules
Click 'New alert rule' button
Fill out the form
- Name: high-jvm-memory-usage
- Data source: o11y-prometheus
- PromQL: use the PromQL below
- Threshold: IS ABOVE 80
- Folder: java-metrics
- Evaluation Group: java-metrics-evaluation
- Evaluation interval: 30s
- Pending period: 1m
- Contact point: Service Operators
Click 'Save rule and exit'

PromQL

(
  sum by(pod) (jvm_memory_used_bytes{jvm_memory_type="heap"})
  /
  sum by(pod) (jvm_memory_limit_bytes{jvm_memory_type="heap"})
) * 100

Dashboards

Navigate Dashboards > New > New dashboard
Click 'Add visualization' button
Select o11y-prometheus for Data source
Input the PromQL used in the previous section
Click 'Save dashboard' and name it 'JVM Memory Usage'

Application Setup: otel-spring-example

A Spring Boot application instrumented with OpenTelemetry, used to simulate JVM memory consumption.

Dockerfile for otel-spring-example

To make it easy to test, the JVM memory is set to 256MB in the Dockerfile of the otel-spring-example application. The application is instrumented with OpenTelemetry and uses the OpenTelemetry Java agent to collect metrics.

Dockerfile

FROM openjdk:21-jdk-bullseye
COPY otel-spring-example/otel-spring-example-0.0.1-SNAPSHOT.jar /usr/app/otel-spring-example.jar
COPY otel-spring-example/opentelemetry-javaagent.jar /usr/app/javaagent/opentelemetry-javaagent.jar
COPY otel-spring-example/nsa2-otel-extension-1.0-all.jar /usr/app/javaagent/nsa2-otel-extension-1.0-all.jar
WORKDIR /usr/app
EXPOSE 8080
EXPOSE 9464
ENTRYPOINT ["java", "-Xshare:off", "-Xms256m", "-Xmx256m", "-Dotel.javaagent.extensions=/usr/app/javaagent/nsa2-otel-extension-1.0-all.jar", "-jar", "otel-spring-example.jar", "--spring.cloud.bootstrap.enabled=true", "--server.port=8080", "--spring.main.banner-mode=off"]

MetricsController.java

This controller is designed for testing metrics.

The endpoint below allocates the given amount of memory in MB for 1 minute.

/metrics/consume/memory/{mb}

MetricsController.java

@RestController
@RequestMapping("/metrics")
@Slf4j
@RequiredArgsConstructor
public class MetricsController {
    public static final int MB = 1024 * 1024;
    public static final int SLEEP_TIME_IN_SECONDS = 60; // 60 seconds

    private final SleepClientService sleepClientService;

    @GetMapping("/consume/memory/{mb}")
    @SuppressWarnings("rawtypes")
    public Map consumeMemory(@PathVariable int mb) {

        log.info("Consuming memory of {} MB", mb);
        List<byte[]> memoryHog = new ArrayList<>();

        memoryHog.add(new byte[mb * MB]);


        Map result = sleepClientService.callSleepController(SLEEP_TIME_IN_SECONDS);

        log.info("releasing memory of {} MB", mb);
        // Release the memory
        memoryHog.clear();

        result.put("memory-used", mb + "MB");


        return result;
    }
}

Testing the Endpoint

Port forward to call the endpoint

$ kubectl -n o11y port-forward svc/otel-spring-example 8080:8080

After checking the current memory usage, you can run the command below to make the total memory usage to be 210MB to 220MB, which is over 80% of the maximum JVM memory limit (256MB).

Run the command below to make the application to use more 140MB memory for testing

$ curl http://localhost:8080/metrics/consume/memory/140

When running the test, the JVM memory usage should be over 80% for more than 1 minute. You can check the Grafana dashboard to see the JVM memory usage.

Monitor the dashboard to confirm JVM memory usage exceeds 80% for over 1 minute.

The JVM memory usage can be checked in the Grafana dashboard. The dashboard shows the JVM memory usage per Pod and the percentage of JVM memory usage per Pod.

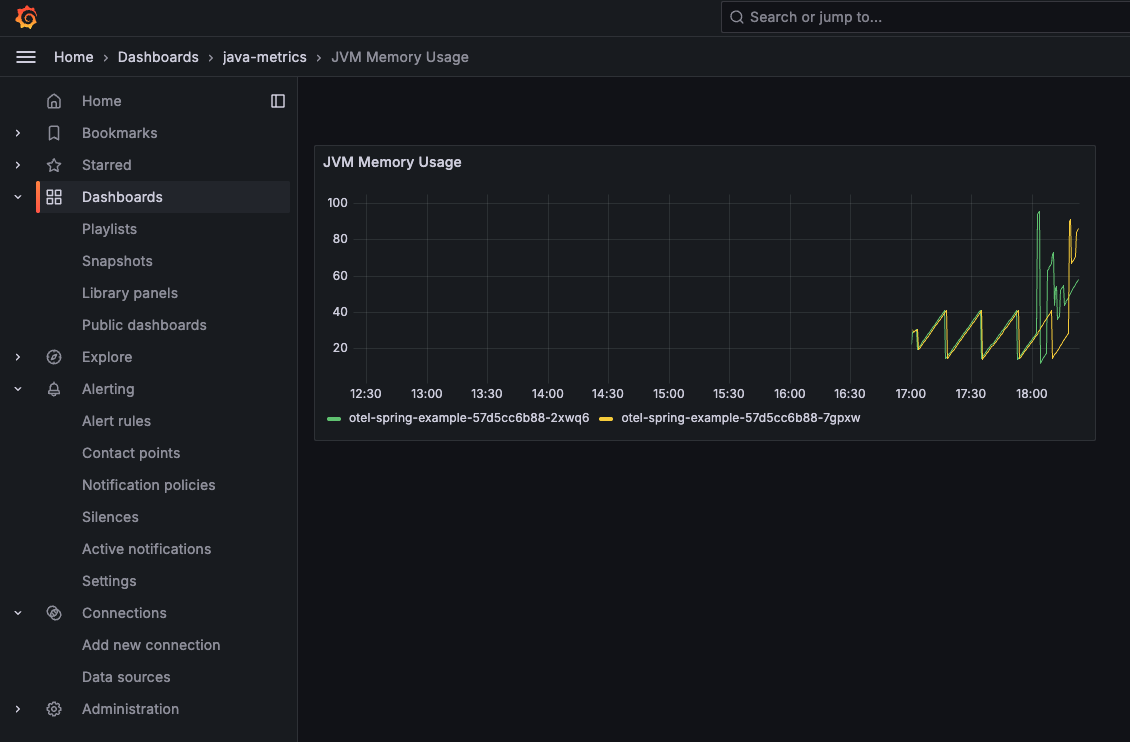

Figure 4. Grafana Dashboard - JVM Memory Usage

Alerting Incident

And the percentage of JVM memory usage per Pod stays over 80% for more than 1 minute, then the alert is triggered as shown below.

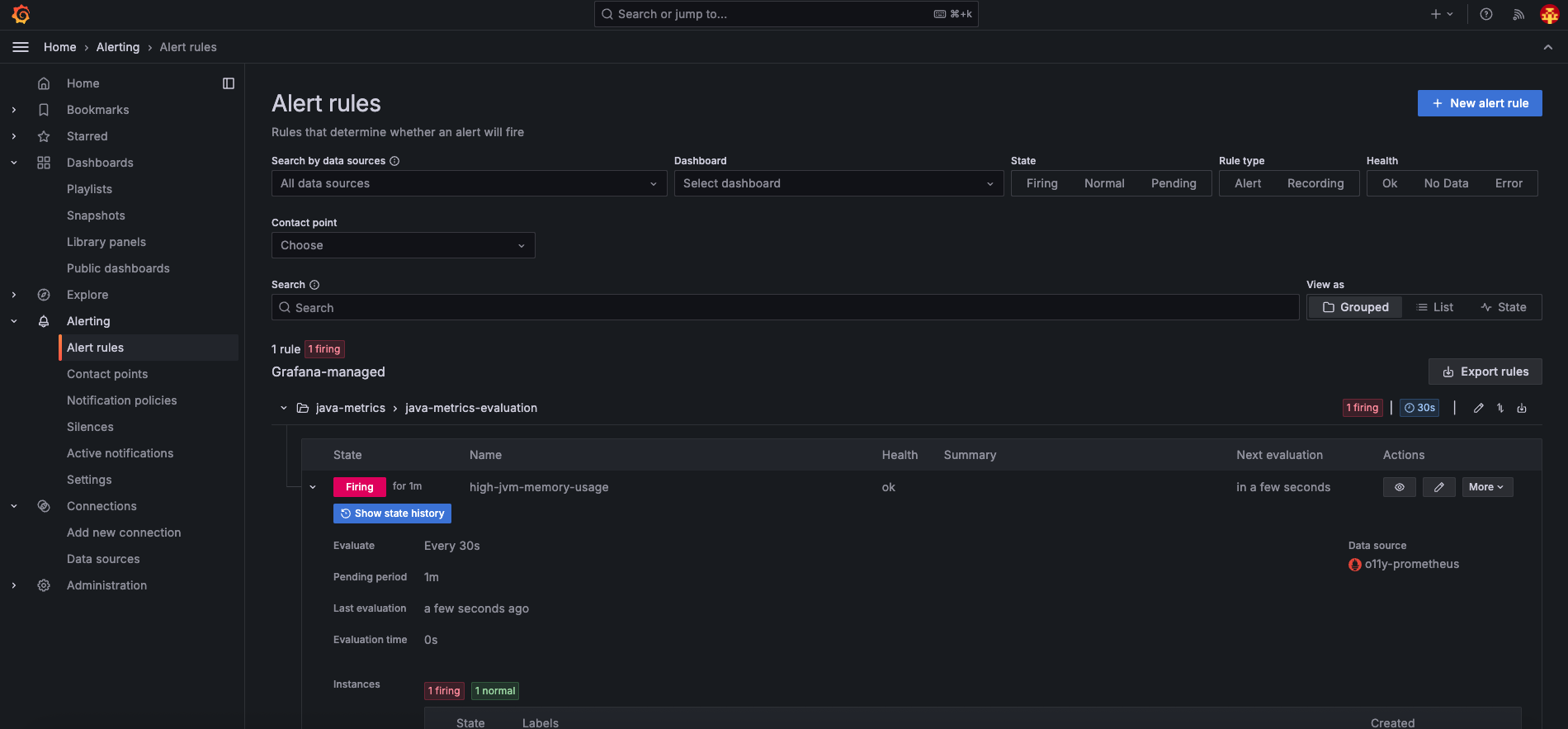

Figure 5. Grafana Alert - High JVM Memory Usage

Email Notification

When the alert is triggered, an email notification is sent to the configured contact point. The email contains details about the alert, including the alert name, state, and a link to the Grafana dashboard for further investigation.

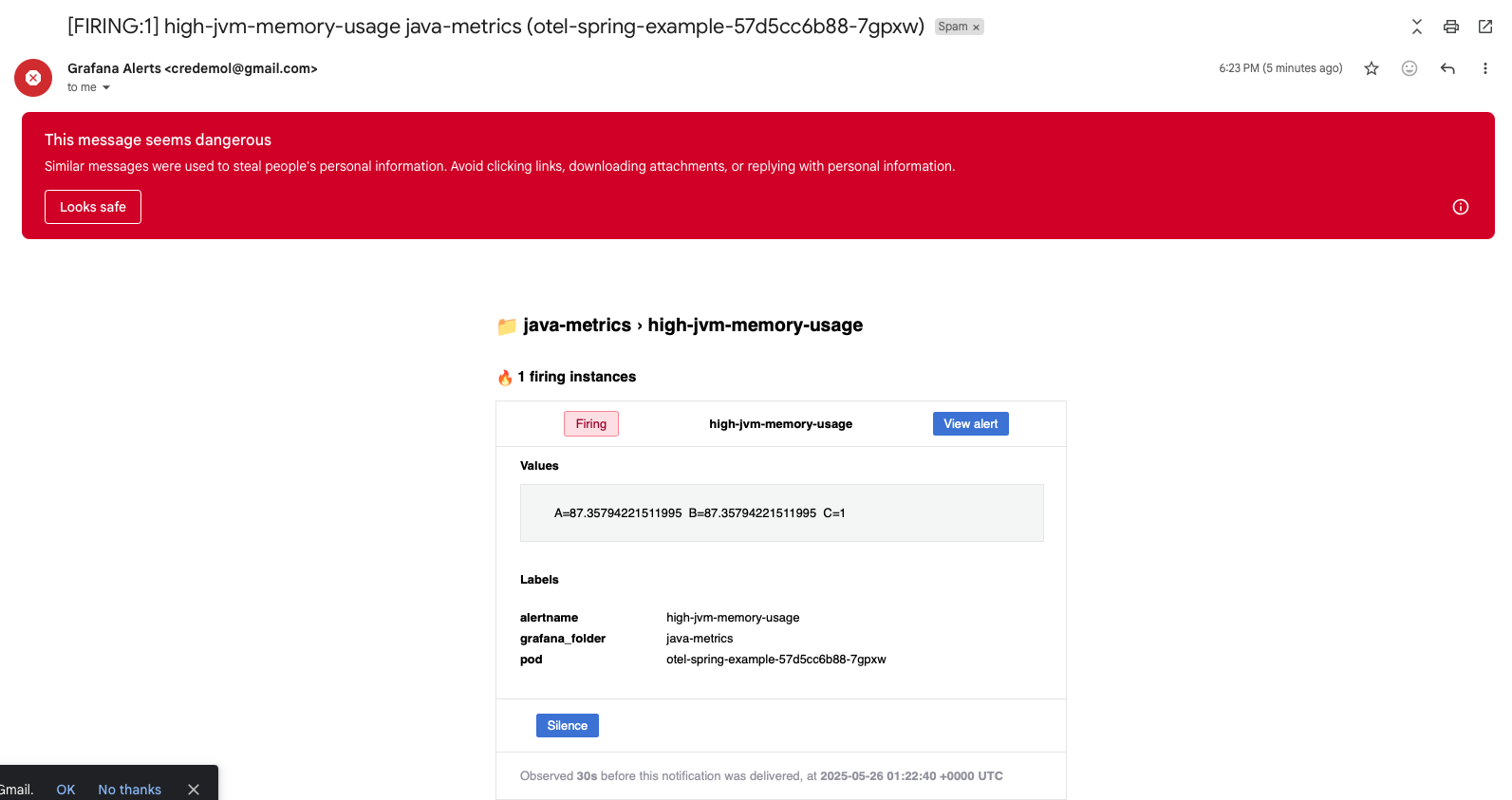

Figure 6. Grafana Alert Notification - Email

Conclusion

This guide demonstrates how to set up Grafana alert rules and dashboards for JVM memory monitoring in Kubernetes. By implementing these configurations, service teams can proactively respond to memory-related incidents in Java applications
