Centralized Logging - Part 3 : Installing Elasticsearch and Kibana

On this page

Introduction
- Centralized Logging series
Install Elasticsearch
Conclusion

Introduction

In this tutorial, we will install Elasticsearch and Kibana to Kubernetes. Elasticsearch is a distributed, RESTful search and analytics engine capable of solving a growing number of use cases. Kibana is an open-source data visualization dashboard for Elasticsearch. It provides visualization capabilities on top of the content indexed on an Elasticsearch cluster.

If you already have any Elasticsearch and Kibana instances available, you can skip this tutorial.

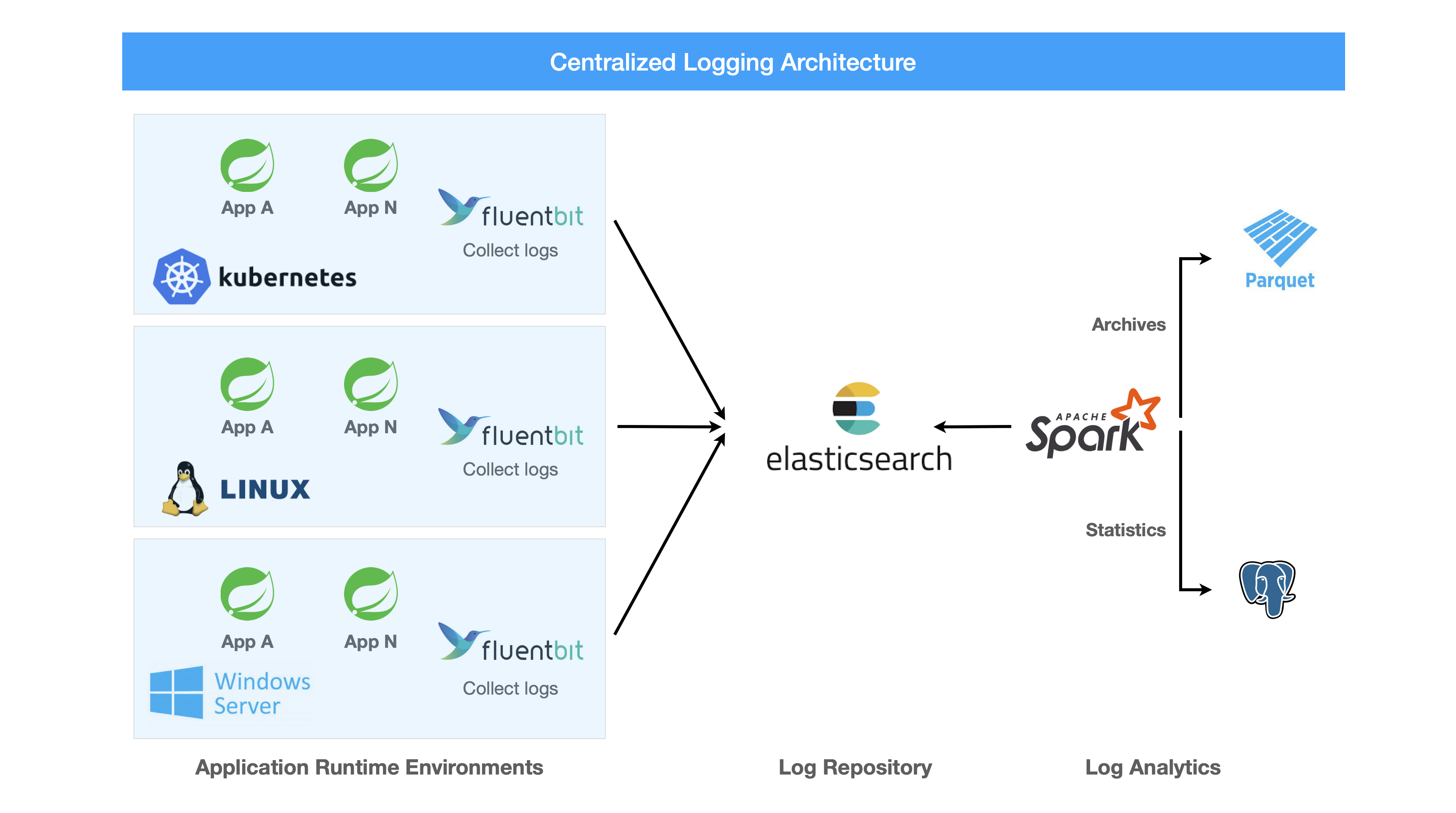

Centralized Logging series

This tutorial is the 3rd part of the Centralized Logging series. The series covers the following topics:

Part 1 - Logging in Spring Boot Application
Part 2 - Deploying Spring Boot Application to Kubernetes
Part 3 - Installing Elasticsearch and Kibana to Kubernetes
Part 4 - Centralized Logging with Fluent-bit and Elasticsearch(Kubernetes)
Part 5 - Centralized Logging with Fluent-bit and Elasticsearch(On-premise)
Part 6 - Log Analysis with Apache Spark

Install Elasticsearch

We are going to install Elasticsearch and Kibana to Kubernetes using Helm in the logging namespace. We will create a self-signed certificate for the internal Certificate Authority(CA) and use it to create a self-signed certificate for the Elasticsearch cluster. We will create a secret to store the certificates and another secret to store the Elasticsearch credentials.

Create a Namespace

Create a namespace for the logging components:

$ kubectl create namespace logging
$ kubectl get namespaces

First, we will install Elasticsearch to Kubernetes using Helm.

Add the Elastic Helm repository:

$ helm repo add elastic https://helm.elastic.co
$ helm repo update
$ helm repo list
$ helm search repo elastic

Create Certificate Authority and Certificates

In this section, we will create a self-signed certificate for the internal Certificate Authority(CA) and use it to create a self-signed certificate for the Elasticsearch cluster.

Here is an example of creating a self-signed certificate for the internal CA:

$ mkdir -p src/main/k8s/ca && cd $_


$ openssl req -newkey rsa:2048 -keyout my-ca.key -nodes -x509 -days 3650 -out my-ca.crt \
-subj "/C=CA/ST=BC/L=Vancouver/O=Alexamy/CN=elasticsearch-master" \
-addext "subjectAltName=DNS:elasticsearch-master.logging,\
  DNS:elasticsearch-master-0, DNS:elasticsearch-master-1,\
  DNS:elasticsearch-master-2, DNS:elasticsearch-master.logging.svc.cluster.local"

$ ls
my-ca.crt  my-ca.key

Make sure that the command below shows CA:TRUE in the output:

$ openssl x509 -text -noout -in my-ca.crt | grep CA

                CA:TRUE

Now that we have self-signed certificate and key for the internal CA, we will create self-signed certificate for the Elasticsearch cluster. This certificate is suitable for development and testing purposes. For production, you should use a certificate signed by a trusted Certificate Authority(CA).

create a private key for the Elasticsearch cluster

$ openssl genrsa -out elasticsearch-master.key 2048
#$ openssl genrsa -out elasticsearch-master.key 2048 && chmod 0600 elasticsearch-master.key

create a Certificate Signing Request(CSR) for the Elasticsearch cluster

$ openssl req -new -sha256 -key elasticsearch-master.key -out elasticsearch-master.csr -config openssl-csr.conf

# or use the following command to create a CSR with subjectAltName
$ openssl req -new -sha256 -key elasticsearch-master.key -out elasticsearch-master.csr \
-subj "/C=CA/ST=BC/L=Vancouver/O=Alexamy/CN=elasticsearch-master" \
-addext "subjectAltName=DNS:elasticsearch-master.logging, \
DNS:elasticsearch-master-0, DNS:elasticsearch-master-1, \
DNS:elasticsearch-master-2, \
DNS:elasticsearch-master.logging.svc.cluster.local, DNS:elasticsearch.logging.alexamy.com"

create a self-signed certificate for the Elasticsearch cluster

$ openssl x509 -req -in elasticsearch-master.csr -CA my-ca.crt -CAkey my-ca.key \
-CAcreateserial -out elasticsearch-master.crt -days 1825 -sha256

$  openssl x509 -text -noout -in  elasticsearch-master.crt

create a PEM file for the Elasticsearch cluster

$ cat elasticsearch-master.crt my-ca.crt > elasticsearch-master.pem

This PEM file will be used by clients to connect to the Elasticsearch cluster. This will be used in the next tutorials when we configure Fluent-bit to send logs to Elasticsearch.

Create a Secret for the Certificates

Create a secret to store the certificates for Elasticsearch:

$ kubectl create secret tls elasticsearch-master-certs  --cert=elasticsearch-master.crt \
  --key=elasticsearch-master.key -n logging

To add ca.crt to the secret, run the following command:

$ caContents=$(base64 -i my-ca.crt | tr -d '\n')

$ kubectl -n logging patch secret elasticsearch-master-certs -p "{\"data\":{\"my-ca.crt\":\"$caContents\"}}"

In elasticsearch-certs secret, we have the following keys:

tls.key
tls.crt
my-ca.crt

All these keys are required for Elasticsearch to use TLS.

Create a Secret for Elasticsearch credentials

A secret is required to store the Elasticsearch credentials. We will create a secret with the username and password for Elasticsearch.

$ kubectl create secret generic elasticsearch-master-credentials --from-literal=username=elastic \
--from-literal=password=changeit --dry-run=client -o yaml \
-n logging > elasticsearch-master-credentials-secret.yaml

$ kubectl apply -f elasticsearch-master-credentials-secret.yaml

I have set the username to elastic and the password to changeit. You can change the password to a secure one.

Install Elasticsearch using Helm on Kubernetes

Now we are ready to install Elasticsearch to Kubernetes using Helm.

The elasticsearch-values.yaml file contains the values for the Elasticsearch Helm chart.

elasticsearch-values.yaml

esConfig:
  elasticsearch.yml: |
    xpack.security.enabled: "true"
    xpack.security.transport.ssl.enabled: "true"
    xpack.security.transport.ssl.supported_protocols: "TLSv1.2"
    xpack.security.transport.ssl.client_authentication: "none"
    xpack.security.transport.ssl.key: "/usr/share/elasticsearch/config/certs/tls.key"
    xpack.security.transport.ssl.certificate: "/usr/share/elasticsearch/config/certs/tls.crt"
    xpack.security.transport.ssl.certificate_authorities: "/usr/share/elasticsearch/config/certs/my-ca.crt"
    xpack.security.transport.ssl.verification_mode: "certificate"
    xpack.security.http.ssl.enabled: "true"
    xpack.security.http.ssl.supported_protocols: "TLSv1.2"
    xpack.security.http.ssl.client_authentication: "none"
    xpack.security.http.ssl.key: "/usr/share/elasticsearch/config/certs/tls.key"
    xpack.security.http.ssl.certificate: "/usr/share/elasticsearch/config/certs/tls.crt"
    xpack.security.http.ssl.certificate_authorities: "/usr/share/elasticsearch/config/certs/my-ca.crt"



createCert: false

extraEnvs:
  - name: "ELASTIC_PASSWORD"
    valueFrom:
      secretKeyRef:
        name: "elasticsearch-master-credentials"
        key: "password"
  - name: "ELASTIC_USERNAME"
    valueFrom:
      secretKeyRef:
        name: "elasticsearch-master-credentials"
        key: "username"

secret:
  enabled: false

secretMounts:
  - name: "elastic-certificates"
    secretName: "elasticsearch-master-certs"
    path: "/usr/share/elasticsearch/config/certs"
    defaultMode: "0755"

# This settings are for Minikube
resources:
  requests:
    cpu: "500m"
    memory: "2Gi"
  limits:
    cpu: "500m"
    memory: "2Gi"

# This settings are for Minikube.
volumeClaimTemplate:
  accessModes: ["ReadWriteOnce"]
  resources:
    requests:
      storage: 8Gi

#nodeSelector:
#  agentpool: depnodes

#extraVolumes:
#  - name: ca-pem-store
#    configMap:
#      name: ca-pem-store
# - name: extras
#   emptyDir: {}

#extraVolumeMounts:
#  - name: ca-pem-store
#    mountPath: /etc/ssl/certs/elasticsearch-master.pem
#    subPath: elasticsearch-master.pem
#    readOnly: false
# - name: extras
#   mountPath: /usr/share/extras
#   readOnly: true

In esConfig, we have the following files:

"/usr/share/elasticsearch/config/certs/tls.key"
"/usr/share/elasticsearch/config/certs/tls.crt"
"/usr/share/elasticsearch/config/certs/my-ca.crt"

These files are saved in the elasticsearch-certs secret. These files are mounted to the Elasticsearch container to enable TLS.

And ELASTICSEARCH_USERNAME and ELASTICSEARCH_PASSWORD are set to the values in the elasticsearch-master-credentials secret.

As for resources and volume size, you can adjust them based on your requirements.

$ helm install elasticsearch elastic/elasticsearch -n logging \
  -f elasticsearch-opensearch-values.yaml

NAME: elasticsearch
LAST DEPLOYED: Sun May 26 20:39:00 2024
NAMESPACE: logging
STATUS: deployed
REVISION: 1
NOTES:
1. Watch all cluster members come up.
  $ kubectl get pods --namespace=logging -l app=elasticsearch-master -w
2. Retrieve elastic user's password.
  $ kubectl get secrets --namespace=logging elasticsearch-master-credentials -ojsonpath='{.data.password}' | base64 -d
3. Test cluster health using Helm test.
  $ helm --namespace=logging test elasticsearch

Uninstall Elasticsearch

To uninstall Elasticsearch, run the following command:

uninstall Elasticsearch

$ helm uninstall elasticsearch -n logging

Install Kibana

Install Kibana on Kubernetes using Helm

kibana-values.yaml

elasticsearchCertificateAuthoritiesFile: my-ca.crt

resources:
  requests:
    cpu: "100m"
    memory: "256Mi"
  limits:
    cpu: "400m"
    memory: "1Gi"


protocol: https

nodeSelector:
  agentpool: depnodes

The default values.yaml file for Kibana is like the one below. Because we have the same secrets defined in values.yaml file, I just need to overwrite elasticsearchCertificateAuthoritiesFile to my-ca.crt. I also set protocol to https because elasticsearchHosts is https://elasticsearch-master:9200. As for resources, you can adjust them based on your requirements.

values.yaml file for Kibana

elasticsearchHosts: "https://elasticsearch-master:9200"
elasticsearchCertificateSecret: elasticsearch-master-certs
elasticsearchCertificateAuthoritiesFile: ca.crt
elasticsearchCredentialSecret: elasticsearch-master-credentials

To install Kibana, run the following command:

$ helm install kibana elastic/kibana -n logging \
  -f kibana-opensearch-values.yaml

Install Kibana on Minikube

$ helm install kibana elastic/kibana -n logging \
  -f kibana-minikube-opensearch-values.yaml

Access Kibana

To access Kibana, you need to create a port-forward to the Kibana service.

$ kubectl port-forward service/kibana-kibana 5601:5601 -n logging

Now you can access Kibana at http://localhost:5601. You can log in with the username elastic and the password changeit.

Clean up

To uninstall Kibana, run the following command:

$ helm uninstall kibana -n logging
$ kubectl -n logging delete configmap -l app=kibana

$ echo "serviceaccount role rolebinding job" | tr " " '\n' | xargs -I {} kubectl -n logging delete {}/pre-install-kibana-kibana

$ echo "serviceaccount role rolebinding job" | tr " " '\n' | xargs -I {} kubectl -n logging delete {}/post-delete-kibana-kibana

In addition to uninstalling Kibana, we also delete the configmap , serviceaccounts, roles, rolebindings jobs created by the Helm chart.

Conclusion

In this tutorial, we installed Elasticsearch and Kibana to Kubernetes using Helm. We created a self-signed certificate for the internal Certificate Authority(CA) and used it to create a self-signed certificate for the Elasticsearch cluster. We created a secret to store the certificates and another secret to store the Elasticsearch credentials.
