Fluent-bit with Elasticsearch on K8s

Introduction

In this tutorial, we will deploy Fluent-bit to Kubernetes. Fluent-bit will collect logs from the Spring Boot application and forward them to Elasticsearch. We will use the Helm package manager to deploy Fluent-bit and Elasticsearch to Kubernetes.

We are going to more focus on how to collect logs from the Spring Boot application and forward them to Elasticsearch. We will not cover the details of Elasticsearch in this tutorial.

Scenario

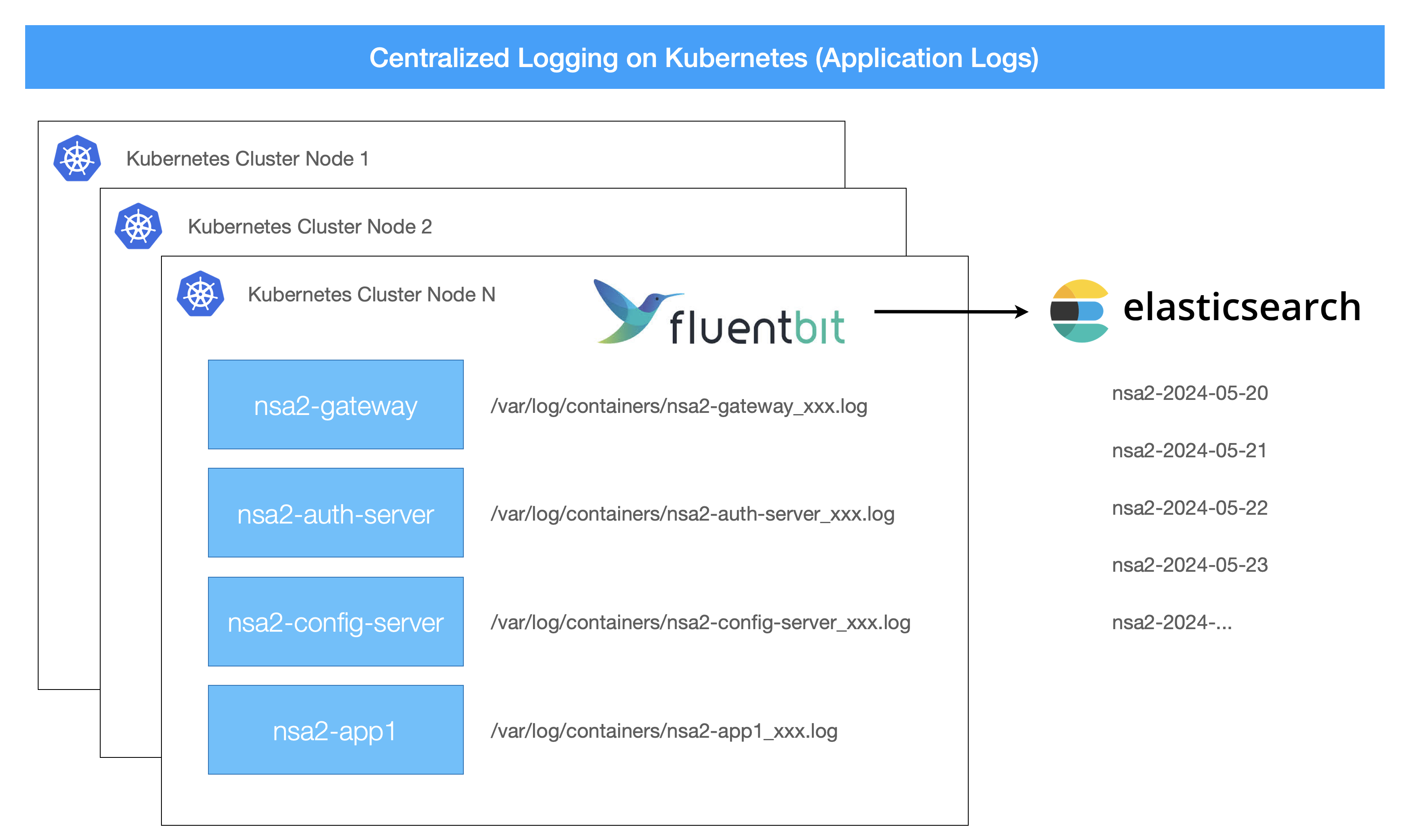

We are going to run a group of pods in Kubernetes and all pods have a prefix of nsa2-. In pods, if applications write log messages to stdout or stderr, then these log messages are saved in files under /var/log/containers directory of each Kubernetes node. So, we will set the Fluent-bit configuration to read log messages from all files of which names are starting with nsa2- in the /var/log/containers/ folder of the Kubernetes node. After Fluent-bit collects log messages from those files, and it will forward log messages to Elasticsearch for indexing. The index name will be nsa2-{date-string}. Consequently, we can search and analyze the log messages in Kibana.

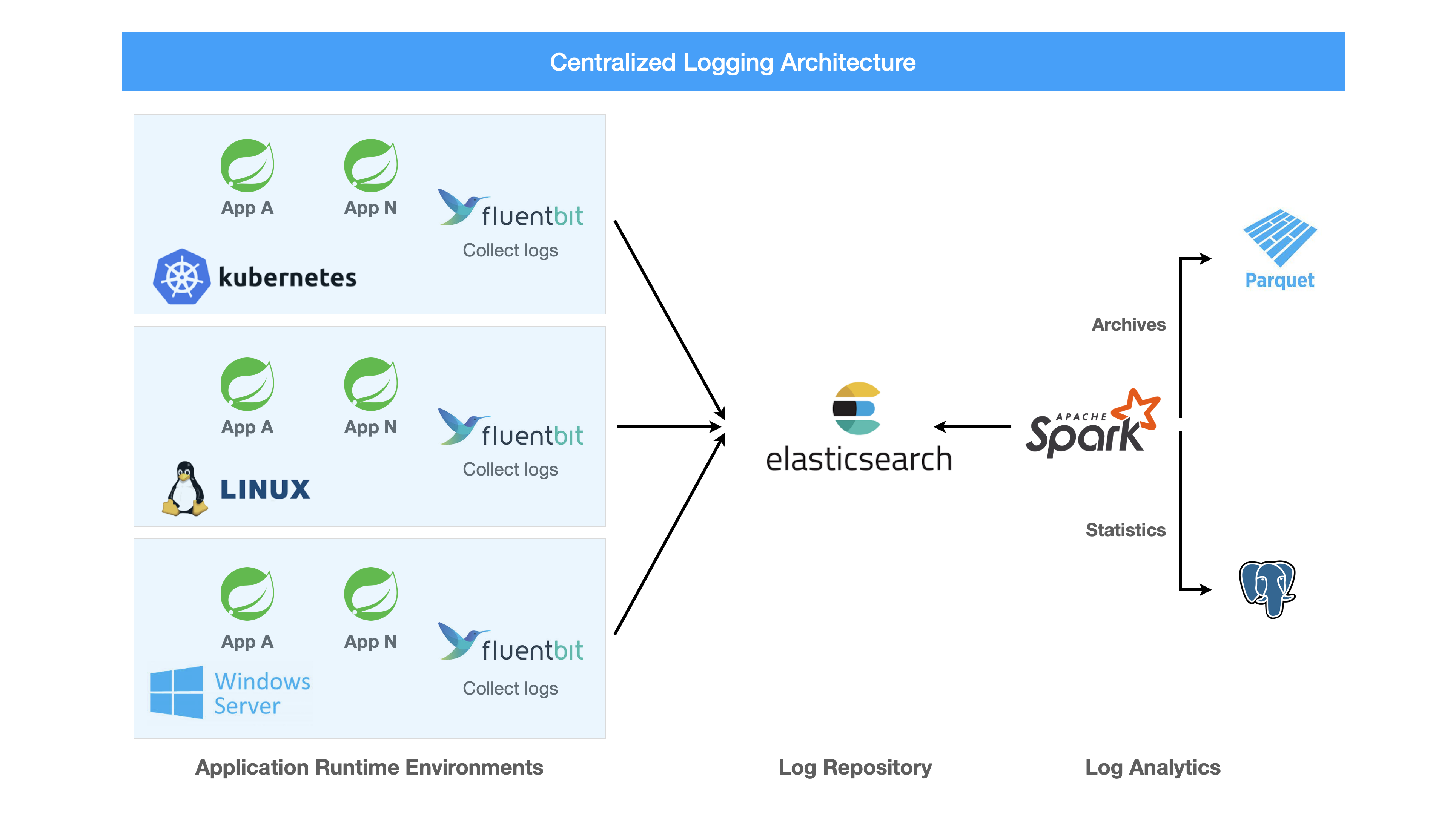

Centralized Logging series

This tutorial is the 4th part of the Centralized Logging series. The series covers the following topics:

Part 1 - Logging in Spring Boot Application
Part 2 - Deploying Spring Boot Application to Kubernetes
Part 3 - Installing Elasticsearch and Kibana to Kubernetes
Part 4 - Centralized Logging with Fluent-bit and Elasticsearch(Kubernetes)
Part 5 - Centralized Logging with Fluent-bit and Elasticsearch(On-premise)
Part 6 - Log Analysis with Apache Spark

Prerequisites

Before you begin, ensure you have the following in place:

A Kubernetes cluster
Helm 3 installed
kubectl installed
A Spring Boot application deployed to Kubernetes
Elasticsearch installed
Kibana installed
A PEM file for Fluent-bit to use for TLS communication with Elasticsearch

Install Fluent-bit on Kubernetes

In this tutorial, we are going to focus on how to collect logs from the Spring Boot applications and forward them to Elasticsearch. We will not cover the details of Elasticsearch in this tutorial. I have provided how to install Elasticsearch to Kubernetes using Helm in a separate tutorial.

Create a Namespace

Create a namespace for the logging components:

$ kubectl create namespace logging
$ kubectl get namespaces

Install Fluent-bit

First, we are going to add the Fluent Helm repository to Helm. Then we will create a ConfigMap to store the PEM file for Fluent-bit to use for TLS communication with Elasticsearch.

Add the Fluent Helm repository

$ helm repo add fluent https://fluent.github.io/helm-charts
$ helm repo update
$ helm repo list
$ helm search repo fluent

Create ConfigMap having a PEM file for Fluent-bit

We need a PEM file to communicate with Elasticsearch over HTTPS. We will create a PEM file for Fluent-bit to use for TLS communication with Elasticsearch.

I am using a PEM file named elasticsearch-master.pem for the Elasticsearch cluster. We will create a ConfigMap to store the PEM file for Fluent-bit to use for TLS communication with Elasticsearch.

Create a ConfigMap for the PEM file

$ kubectl create configmap \
  elasticsearch-master-ca-store \
  --from-file=elasticsearch-master.pem=elasticsearch-master.pem \
  -n logging

Log Parsers for Spring Boot application

It is crutial to understand the log message format of the Spring Boot application to parse the logs from the application. We will use the default log format of Spring Boot. If you want to use your own log format, you need to update the log parser in Fluent-bit configuration.

Simple log message

Let’s begin with an example of a simple log message from the Spring Boot application:

an example of a simple log message

2024-05-27T22:14:06.787Z  INFO 1 --- [nsa2-logging-example] [           main] c.a.n.e.l.LoggingExampleApplication      : Application started successfully.

The log message has the following fields:

Named group	Captured value
Timestamp	2024-05-27T22:14:06.787Z
Log level	INFO
PID	1
Application name	nsa2-logging-example
Thread	main
Logger name	c.a.n.e.l.LoggingExampleApplication
Log message	Application started successfully.

Named group

Captured value

Timestamp

2024-05-27T22:14:06.787Z

Log level

INFO

PID

Application name

nsa2-logging-example

Thread

main

Logger name

c.a.n.e.l.LoggingExampleApplication

Log message

Application started successfully.

Named capturing groups

When using regular expressions to parse log messages, named capturing groups are useful to extract fields from the log message.

For more information about named capturing groups, see the following link:

Named capturing groups: (?<name>…)

We are going to use the following regular expression to parse the log message: This is an example of named capturing groups in regular expressions.

^(?<timestamp>[0-9-]+T[:0-9\.]+\d{3}Z)\s+(?<level>[A-Z]+)\s+\d+ \s\-{3}\s+\[(?<appName>[\w\-\d]+)\]+\s+\[\s*(?<thread>[\w\-\d]+)\]+ \s+[\w\d\.]*\.(?<loggerClass>[\w\.\d]+)\s+:(?<message>.*)$

With the regular expression above, we can extract the following fields from the log message:

Group name	Captured value
timestamp	2024-05-27T22:14:06.787Z
level	INFO
appName	nsa2-logging-example
thread	main
loggerClass	LoggingExampleApplication
message	Application started successfully.

Group name

Captured value

timestamp

2024-05-27T22:14:06.787Z

level

INFO

appName

nsa2-logging-example

thread

main

loggerClass

LoggingExampleApplication

message

Application started successfully.

I did not include the PID field in the regular expression because it is not useful on Kubernetes. The PID is the process ID of the application running in the container here. But sometimes, PID might be useful when applications are running On-Prem environment.

In this section, I have set level, appName, thread, loggerClass, and message fields to show you how named capturing groups work. But when setting up Fluent-bit, I am not going to use all of these fields. I will use only the timestamp and message fields because Fluent-bit send a record in a chunk to Elasticsearch. So those fields in a record are not appropriate for each log message.

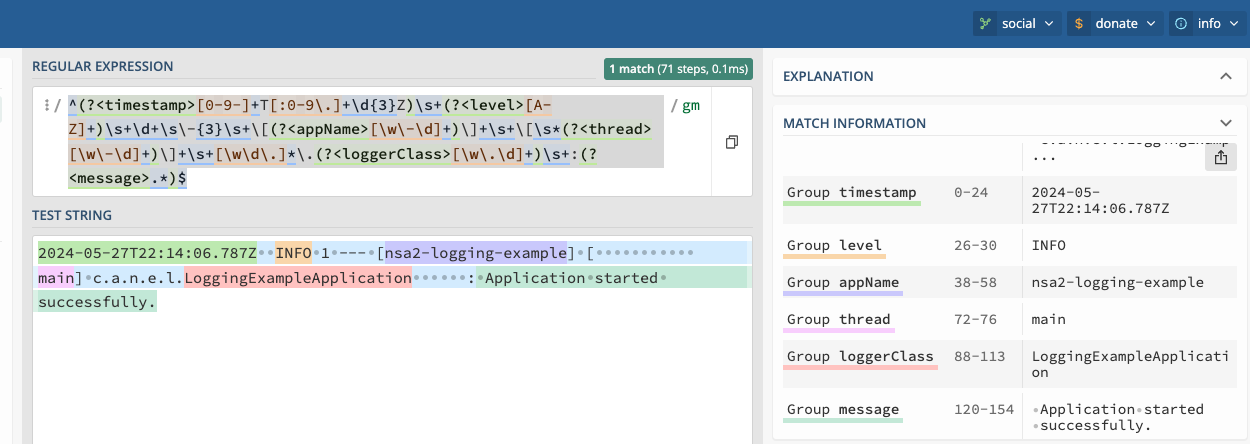

Here is an online regex tester to test the regular expression: https://regex101.com/r/QDPqYB/1

It is handy to test the regular expression before using it in Fluent-bit configuration.

fluentbit-values.yaml

The fluentbit-values.yaml file contains the configuration for Fluent-bit. We will use this file when installing Fluent-bit to Kubernetes using Helm.

env, extraVolumes, and extraVolumeMounts

In the fluentbit-values.yaml, we will provide the environment variables, extra volumes, and extra volume mounts for Fluent-bit.

Some resources regarding Elasticsearch like elasticsearch-master-credentials and elasticsearch-master-ca-store are created in the previous tutorials. We will use these resources in the Fluent-bit configuration.

fluentbit-values.yaml - env

env:
  - name: ELASTIC_PASSWORD
    valueFrom:
      secretKeyRef:
        name: elasticsearch-master-credentials
        key: password

ELASTIC_PASSWORD is the password for the Elasticsearch user. This will be used by Fluent-bit to connect to Elasticsearch.

fluentbit-values.yaml - extraVolumes

extraVolumes:
  - name: elasticsearch-master-ca-store
    configMap:
      name: elasticsearch-master-ca-store

extraVolumeMounts:
  - name: elasticsearch-master-ca-store
    mountPath: /etc/ssl/certs/elasticsearch-master.pem
    subPath: elasticsearch-master.pem
    readOnly: false

Because Elasticsearch 8.5 supports only HTTPS, we need to provide the PEM file to Fluent-bit for TLS communication with Elasticsearch. We will mount the ConfigMap elasticsearch-master-ca-store to the path /etc/ssl/certs/elasticsearch-master.pem in the Fluent-bit container.

priorityClass

Fluent-bit si deployed as a DaemonSet to Kubernetes which means that it runs on all nodes in the cluster.

When deploying a DaemonSet to Kubernetes, you might face the issue of pods pending because of insufficient resources. In that case, you can set the priorityClass to the DaemonSet to give it a higher priority so that it can be scheduled to the nodes.

For more information, see the following link:

https://kubernetes.io/docs/concepts/scheduling-eviction/pod-priority-preemption/

This is an example of how to see the priorityClass in Kubernetes: .check the priorityClass

$ kubectl get priorityclass

NAME                      VALUE        GLOBAL-DEFAULT   AGE
addon-priority            999999       false            4y85d
high-priority             1000000      false            4y85d
system-cluster-critical   2000000000   false            4y85d
system-node-critical      2000001000   false            4y85d

When you don’t have a priorityClass in your Kubernetes cluster, you can create a priorityClass with the following command:

$ kubectl apply -f - <<EOF

apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: high-priority
value: 1000000
globalDefault: false
description: "This priority class should be used for XYZ service pods only."

EOF

In the fluentbit-values.yaml, I have set the priorityClassName to high-priority to give the Fluent-bit DaemonSet a higher priority.

fluentbit-values.yaml - priorityClassName

priorityClassName: "high-priority"

config

In the fluentbit-values.yaml, we will provide the configuration for Fluent-bit. We will configure the inputs, filters, and outputs for Fluent-bit.

config section consists of the following fields:

fluentbit-values.yaml - config

config:
  service:

  inputs:

  filters:

  outputs:

  upstream:

  customParsers:

  extraFiles:

service

The service field is used to configure the Fluent-bit service. Some extra configuration files for parsers can be provided in the Parsers_File field.

  service: |
    [SERVICE]
        Daemon Off
        Flush {{ .Values.flush }}
        Log_Level {{ .Values.logLevel }}
        Parsers_File /fluent-bit/etc/parsers.conf
        Parsers_File /fluent-bit/etc/conf/custom_parsers.conf
        HTTP_Server On
        HTTP_Listen 0.0.0.0
        HTTP_Port {{ .Values.metricsPort }}
        Health_Check On

fluentbit-values.yaml - config - inputs

config:
  inputs: |

    [INPUT]
        Name tail
        Path /var/log/containers/nsa2-*.log
        Tag nsa2.*
        Mem_Buf_Limit 32MB
        multiline.parser              docker, cri
        Path_Key            filePath

All pods whose names start with nsa2- will have their logs collected by Fluent-bit. The logs will be collected from the files whose names start with nsa2- in the /var/log/containers directory. The multiline.parser is used to parse the multiline logs. The filePath field will be used as the log file path. The logs will be tagged with nsa2.*.

filters

fluentbit-values.yaml - config - filters

config:
  filters: |

    [FILTER]
        Name                    multiline
        Match                   nsa2.*
        multiline.parser        java, multiline-parser
        multiline.key_content   log

The multiline filter is used to parse the multiline logs. The logs tagged with nsa2.* will be parsed using the java and multiline-parser parsers. The log field will be used as the log message.

we are going to use a couple of more filters in the later sections to remove log message prefix created by Docker logging driver.

outputs

In the fluentbit-values.yaml, we will provide the configuration for the outputs. We will configure the output to forward the logs to Elasticsearch.

fluentbit-values.yaml - config - outputs

config:
  outputs: |

    [OUTPUT]
        Name es
        Match nsa2.*
        Host elasticsearch-master
        Logstash_Format On
        Retry_Limit False
        Logstash_Prefix      nsa2-
        Trace_Output        On
        Trace_Error         On
        Replace_Dots        On
        Buffer_Size         512M
        HTTP_User           elastic
        HTTP_Passwd         ${ELASTIC_PASSWORD}
        Suppress_Type_Name  On
        tls                 On
        tls.verify          On
        tls.ca_file          /etc/ssl/certs/elasticsearch-master.pem

The logs tagged with nsa2.* will be forwarded to Elasticsearch. The logs will be sent to the elasticsearch-master service. The Logstash_Format is set to On to format the logs in Logstash format. The HTTP_User is set to elastic and the HTTP_Passwd is set to ${ELASTIC_PASSWORD}. The tls is set to On to enable TLS communication with Elasticsearch. The tls.ca_file is set to /etc/ssl/certs/elasticsearch-master.pem to provide the PEM file for TLS communication.

customParsers

customParsers is used to provide custom parsers for Fluent-bit. We will provide the custom parsers for Fluent-bit to parse the log messages especially the multiline logs.

The regular expression used in this section is just an example to see how Fluent-bit parsers treat named captured group. We are going to use a different regular expression in the next section.

fluentbit-values.yaml - config - customParsers

config:
  customParsers: |

    [PARSER]
        Name named-capture-test
        Format regex
        Regex (?<timestamp>[0-9\-]+T[:0-9\.]+\d{3}Z)\s+(?<level>[A-Z]+)\s+\d+\s\-{3}\s+\[(?<appName>[\w\-\d]+)\]+\s+\[.*\]+\s+[\w\d\.]*\.(?<loggerClass>[\w\.\d]+)\s+:(?<message>.*)

    [MULTILINE_PARSER]
        name              multiline-parser
        type              regex
        flush_timeout      1000

        # rules |   state name  | regex pattern                    | next state
        # ------|---------------|----------------------------------|-----------
        # https://github.com/fluent/fluent-bit/discussions/5430
        rule      "start_state" "/(?<timestamp>[0-9\-]+T[:0-9\.]+\d{3}Z)\s+(?<level>[A-Z]+)\s+\d+\s\-{3}\s+\[(?<appName>[\w\-\d]+)\]+\s+\[.*\]+\s+[\w\d\.]*\.(?<loggerClass>[\w\.\d]+)\s+:(?<message>.*)/"  "cont"
        rule      "cont"        "/^(?:\s+at\s.*)|(?:[\w$_][\w\d.$:]*.*)$/"

The named-capture-test parser will parse the log message using the regular expression. The multiline-parser will be used to parse the multiline logs. In Java applications, the stack trace log message might be multiline. The flush_timeout is set to 1000 to flush the multiline logs after 1 second.

I have configured for level, appName, loggerClass, and message fields for this example. But the pattern of the regular expression is simpler than the previous one. Because Fluent-bit sends a record in a chunk to Elasticsearch when the multiline.parser is configured. So those fields in a record will not be useful for each log message.

Multiline parser

Here are some resources to understand the multiline parser in Fluent-bit:

In Java applications, multiline logs are common. For example, stack trace log messages are multiline. We need to parse the multiline logs to get useful information from the logs.

Here is an example of a multiline log message:

2024-05-28T00:47:38.982Z ERROR 1 --- [nsa2-logging-example]
[or-http-epoll-2] c.a.n.e.l.c.LoggingExampleController     :
=====> onErrorResume: No enum constant org.slf4j.event.Level.INVALID

java.lang.IllegalArgumentException: No enum constant org.slf4j.event.Level.INVALID
	at java.base/java.lang.Enum.valueOf(Unknown Source) ~[na:na]
	at org.slf4j.event.Level.valueOf(Level.java:16)
~[slf4j-api-2.0.13.jar!/:2.0.13]
	at com.alexamy.nsa2.example.logging.service
.LoggingExampleService.lambda$writeLog$0(LoggingExampleService.java:23)
~[!/:0.0.1-SNAPSHOT]
	at reactor.core.publisher.MonoSupplier$MonoSupplierSubscription.request(MonoSupplier.java:126)
~[reactor-core-3.6.5.jar!/:3.6.5]

... omitted for brevity

	at io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:997)
~[netty-common-4.1.109.Final.jar!/:4.1.109.Final]
	at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
~[netty-common-4.1.109.Final.jar!/:4.1.109.Final]
	at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
~[netty-common-4.1.109.Final.jar!/:4.1.109.Final]
	at java.base/java.lang.Thread.run(Unknown Source) ~[na:na]

The first line of the log message has the same format as the simple log message. The stack trace is multiline and starts with the java.lang.IllegalArgumentException line. The multiline-parser will parse these types of multiline logs. The final version of the regular expression for the multiline parser will be provided alter in this tutorial after applying a few filters to remove the log message prefix created by Docker logging driver.

Install Fluent-bit using Helm on Kubernetes

Now we are ready to install Fluent-bit to Kubernetes using Helm. The following command will install Fluent-bit to the logging namespace.

$ helm -n logging install fluent-bit fluent/fluent-bit -f fluentbit-opensearch-values.yaml

Internal purpose.

$ helm -n logging install fluent-bit fluent/fluent-bit \
  -f fluentbit-opensearch-values.yaml --set nodeSelector.agentpool=depnodes

I added nodeSelector.agentpool=depnodes to the Helm command to deploy Fluent-bit to the node pool named depnodes. You can remove this option if you do not have a node pool named depnodes.

Install Fluent-bit using Helm on Minikube

WIP. I will provide the values for Minikube in the next update.

$ helm install fluent-bit fluent/fluent-bit -n logging -f fluentbit-opensearch-values.yaml

Uninstall Fluent-bit

To uninstall Fluent-bit, run the following command:

$ helm uninstall fluent-bit -n logging

Collecting logs from the Spring Boot application

Before we collect logs from the Spring Boot application, we need to deploy the Spring Boot application to Kubernetes. We will use the same Spring Boot application that we deployed in Part 2 of the series.

We can use the Helm chart that we created in Part 2 to deploy the Spring Boot application to Kubernetes.

$ kubectl create namespace nsa2
$ helm install nsa2-logging-example src/main/helm/nsa2-logging-example -n nsa2 --set replicaCount=3

$ kubectl -n nsa2 port-forward svc/nsa2-logging-example 18080:8080

Elasticsearch index

When Fluent-bit forwards the logs to Elasticsearch, it will create an index with the name nsa2-{date-string}.

Elasticsearch documents sent by Fluent-bit

When Fluent-bit collects logs from the Spring Boot application, it will send the logs to Elasticsearch. The logs will be sent as documents to Elasticsearch.

Please remember that multiline parser is used to parse the log messages. So the log message will be chunked and sent to Elasticsearch. The fields in a record will not be useful for each log message.

Document with a simple log message

Let’s begin by looking at a document with a simple log message:

To write a log message in the Spring Boot application, we can use the following command:

$ curl -X POST -H "Content-Type: application/json" \
  -d 'This is an WARN log message' http://localhost:18080/v1.0.0/log/WARN

{
  "@timestamp": "2024-06-06T21:48:27.821Z",
  "timestamp": "2024-06-06T21:51:13.819Z",
  "level": "WARN",
  "appName": "nsa2-logging-example",
  "loggerClass": "LoggingExampleService",
  "message": " Writing log - level: WARN, message: This is an WARN log message\n",
  "log": "2024-06-06T21:51:13.819968386Z stdout F 2024-06-06T21:51:13.819Z WARN 1 --- [nsa2-logging-example] [or-http-epoll-2] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is an WARN log message\n",
  "filePath": "/var/log/containers/nsa2-logging-example-5c8c465555-lhcss_nsa2_nsa2-logging-example-adc9cb921fb8ae407971d03326a153ada850e6c64a1175a8f6796766035dde97.log"
}

Document with chunked log message

To simulate a chunked log message, we can use the following command:

$ echo "INFO WARN" | tr " " '\n' \
  | xargs -I {} curl -X POST -H "Content-Type: application/json" \
  -d "This is a sample of {} level messages" \
  http://localhost:18080/v1.0.0/log/{}

Two log messages with different level will be written to the log file. The log messages will be chunked and sent to Elasticsearch.

Here is an example of a document with a chunked log message:

{
  "@timestamp": "2024-06-06T21:48:27.821Z",
  "timestamp": "2024-06-06T21:55:29.119Z",
  "level": "INFO",
  "appName": "nsa2-logging-example",
  "loggerClass": "LoggingExampleService",
  "message": " Writing log - level: WARN, message: This is a sample of WARN level messages\n",
  "log": "2024-06-06T21:55:29.119686381Z stdout F 2024-06-06T21:55:29.119Z INFO 1 --- [nsa2-logging-example] [or-http-epoll-3] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: INFO, message: This is a sample of INFO level messages\n 2024-06-06T21:55:29.395604417Z stdout F 2024-06-06T21:55:29.395Z WARN 1 --- [nsa2-logging-example] [or-http-epoll-4] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is a sample of WARN level messages\n",
  "filePath": "/var/log/containers/nsa2-logging-example-5c8c465555-lhcss_nsa2_nsa2-logging -example-adc9cb921fb8ae407971d03326a153ada850e6c64a1175a8f6796766035dde97.log"
}

As you can see, named capturing groups are not appropriate for chunked log messages. For example, The value of the level field is INFO, but the log message contains both INFO and WARN level messages. The message field contains the log message, but it is not useful for chunked log messages. These fine-grained fields are useful for simple log messages when we are not using the multiline parser like when parsing webserver logs. But conventionally Java applications have stack trace log messages that are multiline. So we do not need to use these fields for chunked log messages.

Here is the pattern of the regular expression that I used to parse the log message:

(?<timestamp>[0-9\-]+T[:0-9\.]+\d{3}Z)\s+(?<message>.*)

This pattern will extract only the timestamp and message fields from the log message.

Once you update the Fluent-bit configuration with the new regular expression, you will see the following document in Elasticsearch:

{
  "@timestamp": "2024-06-06T22:07:27.554Z",
  "timestamp": "2024-06-06T22:07:27.554214387Z",
  "message": "stdout F 2024-06-06T22:07:27.553Z INFO 1 --- [nsa2-logging-example] [or-http-epoll-4] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: INFO, message: This is a sample of INFO level messages\n 2024-06-06T22:07:27.780009745Z stdout F 2024-06-06T22:07:27.779Z WARN 1 --- [nsa2-logging-example] [or-http-epoll-1] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is a sample of WARN level messages",
  "log": "2024-06-06T22:07:27.554214387Z stdout F 2024-06-06T22:07:27.553Z INFO 1 --- [nsa2-logging-example] [or-http-epoll-4] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: INFO, message: This is a sample of INFO level messages\n 2024-06-06T22:07:27.780009745Z stdout F 2024-06-06T22:07:27.779Z WARN 1 --- [nsa2-logging-example] [or-http-epoll-1] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is a sample of WARN level messages",
  "filePath": "/var/log/containers/nsa2-logging-example-5c8c465555-lhcss_nsa2_nsa2-logging-example -adc9cb921fb8ae407971d03326a153ada850e6c64a1175a8f6796766035dde97.log"
}

Still, the log message looks redundant. We can remove the timestamp field from the document because the timestamp field is already in the @timestamp field. And message field is quite similar to the log field. So we can remove the message field from the document.

The updated regular expression is as follows:

([0-9\-]+T[:0-9\.]+\d{3}Z)\s+(.*)

We can notice that there is no named capturing group in the regular expression any longer.

{
  "@timestamp": "2024-06-06T22:17:47.503Z",
  "log": "2024-06-06T22:17:47.503239291Z stdout F 2024-06-06T22:17:47.502Z INFO 1 --- [nsa2-logging-example] [or-http-epoll-4] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: INFO, message: This is a sample of INFO level messages\n 2024-06-06T22:17:48.010204823Z stdout F 2024-06-06T22:17:48.009Z WARN 1 --- [nsa2-logging-example] [or-http-epoll-1] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is a sample of WARN level messages\n 2024-06-06T22:17:48.231040111Z stdout F 2024-06-06T22:17:48.229Z ERROR 1 --- [nsa2-logging-example] [or-http-epoll-2] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: ERROR, message: This is a sample of ERROR level messages\n", "filePath": "/var/log/containers/nsa2-logging-example-5c8c465555-lhcss_nsa2_nsa2-logging -example-adc9cb921fb8ae407971d03326a153ada850e6c64a1175a8f6796766035dde97.log"
}

You may notice that there is additional information before the log messages. They look like this: `2024-06-06T22:17:47.503239291Z stdout F `. This is added by the Docker logging driver. I do not want to include this information in the log message. I want to keep the log message as it is logged by the application.

To remove the additional part from the log message, we can use the Kubernetes Filter.

Kubernetes Filter

Fluent Bit Kubernetes Filter allows to enrich your log files with Kubernetes metadata.

For more information about the Kubernetes Filter, see the following link:

https://docs.fluentbit.io/manual/pipeline/filters/kubernetes

fluentbit-values.yaml - config - filter

  filters: |
    [FILTER]
        Name kubernetes
        Match nsa2.*

Just by adding the Kubernetes Filter with default configurations, the log message will be enriched with Kubernetes metadata. When the filter is applied, the log message will look like this:

{
  "@timestamp": "2024-06-06T23:26:04.692Z",
  "time": "2024-06-06T23:26:04.692181582Z",
  "stream": "stdout",
  "_p": "F",
  "log": "2024-06-06T23:26:04.691Z WARN 1 --- [nsa2-logging-example] [or-http-epoll-1] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is an WARN log message",
  "kubernetes": {
    "pod_name": "nsa2-logging-example-5c8c465555-lhcss",
    "namespace_name": "nsa2",
    "pod_id": "74fa83de-8e90-40c9-be0a-c2690f79549f",
    "labels": {
      "app_kubernetes_io/instance": "nsa2-logging-example",
      "app_kubernetes_io/managed-by": "Helm",
      "app_kubernetes_io/name": "nsa2-logging-example",
      "app_kubernetes_io/version": "1.16.0",
      "helm_sh/chart": "nsa2-logging-example-0.1.0",
      "pod-template-hash": "5c8c465555"
    },
    "host": "aks-depnodes-90256095-vmss000001",
    "container_name": "nsa2-logging-example",
    "docker_id": "adc9cb921fb8ae407971d03326a153ada850e6c64a1175a8f6796766035dde97",
    "container_hash": "docker.io/credemol/nsa2-logging-example@sha256: b6552a4f1253b118b7deda59a4a0cfd7c2896670f225513beebdaee96ae0dd41",
    "container_image": "docker.io/credemol/nsa2-logging-example:latest"
  }
}

There are two significant changes in the log message:

The log message is enriched with Kubernetes metadata. The kubernetes field contains the pod name, namespace name, pod ID, labels, host, container name, Docker ID, container hash, and container image.
The log message contains additional fields like time, stream, and _p. These fields are added by the Docker logging driver. And log field does not contain the additional information that is added by the Docker logging driver.

And we can also remove some of the fields that are not useful for us. For example, we can remove the time, stream, _p and kubernetes field from the document.

Record Modifier Filter

For more information about the Record Modifier Filter, see the following link:

https://docs.fluentbit.io/manual/pipeline/filters/record-modifier

Here is an example of how to remove the time, stream, _p, and kubernetes fields from the document:

fluentbit-values.yaml - config - filter

    [FILTER]
        Name record_modifier
        Match nsa2.*
        Remove_key time
        Remove_key stream
        Remove_key _p
        Remove_key kubernetes

In this tutorial, I have removed the time, stream, _p, and kubernetes fields from the document. If needed, you can keep the kubernetes field in the document which contains some useful information about the pod.

This is the final format of the document that will be indexed in Elasticsearch.

{
  "@timestamp": "2024-06-07T00:34:59.336Z",
  "log": "2024-06-07T00:34:59.336Z  WARN 1 --- [nsa2-logging-example] [or-http-epoll-1] c.a.n.e.l.service.LoggingExampleService  : Writing log - level: WARN, message: This is an WARN log message"
}

Updated Parser configuration for Fluent-bit

The error message can be simply illustrated as follows:

<timestamp> <level> <PID> --- [<appName>] [<thread>] <loggerClass> : <message>
empty line
java class name and error message
stack trace lines starting with at with spaces
empty line

The rules for the multiline parser are start_state, empty_row, cont. The start_state rule will match the first line of the log message. The empty_row rule will match the empty line. The cont rule will match the lines that start with a java class name, stack trace lines, or an empty line.

Here is the updated multiline parser configuration:

fluentbit-values.yaml - config - customParsers

    [MULTILINE_PARSER]
        name              multiline-parser
        type              regex
        flush_timeout      1000
        Skip_Empty_Lines  Off

        # rules |   state name  | regex pattern                    | next state
        # ------|---------------|----------------------------------|-----------
        rule      "start_state"      "/([\d-]+T[\d:.]+)Z ([\s\S]*)/m"  "empty_row"
        rule      "empty_row"        "/^$/m"                                    "cont"
        # start with at java class or start with java class name or empty line
        rule      "cont"
"/(?:\s+at\s.*)|^(?:[a-zA-Z_$][a-zA-Z\d_$]*(\.[a-zA-Z_$][a-zA-Z\d_$]*)*)|^\s*$/m"
"cont"

Updated config for Fluent-bit

Here is the updated config for Fluent-bit:

fluentbit-values.yaml - config

config:
  service: |
    [SERVICE]
        Daemon Off
        Flush {{ .Values.flush }}
        Log_Level {{ .Values.logLevel }}
        Parsers_File /fluent-bit/etc/parsers.conf
        Parsers_File /fluent-bit/etc/conf/custom_parsers.conf
        HTTP_Server On
        HTTP_Listen 0.0.0.0
        HTTP_Port {{ .Values.metricsPort }}
        Health_Check On

  ## https://docs.fluentbit.io/manual/pipeline/inputs
  inputs: |
    [INPUT]
        Name tail
        Path /var/log/containers/nsa2-*.log
        Tag nsa2.*
        Mem_Buf_Limit 32MB
        multiline.parser             cri
        Skip_Empty_Lines              On

  ## https://docs.fluentbit.io/manual/pipeline/filters
  filters: |
    [FILTER]
        Name kubernetes
        Match nsa2.*
        Labels Off
        Annotations Off

    [FILTER]
        Name record_modifier
        Match nsa2.*
        Remove_key time
        Remove_key stream
        Remove_key _p
        Remove_key kubernetes

    [FILTER]
        Name                    multiline
        Match                   nsa2.*
        multiline.parser        multiline-parser
        multiline.key_content   log

    [FILTER]
        Name              parser
        Match             nsa2.*
        Key_Name          log
        Parser            named-capture-test
        Preserve_Key      true
        Reserve_Data      true

  ## https://docs.fluentbit.io/manual/pipeline/outputs
  outputs: |
    [OUTPUT]
        Name es
        Match nsa2.*
        Host elasticsearch-master
        Logstash_Format On
        Retry_Limit False
        Logstash_Prefix      nsa2
        Trace_Output        On
        Trace_Error         On
        Replace_Dots        On
        Buffer_Size         512M
        HTTP_User           elastic
        HTTP_Passwd         ${ELASTIC_PASSWORD}
        Suppress_Type_Name  On
        tls                 On
        tls.verify          On
        tls.ca_file          /etc/ssl/certs/elasticsearch-master.pem

  upstream: {}

  ## https://docs.fluentbit.io/manual/pipeline/parsers
  customParsers: |
    [PARSER]
        Name          docker_no_time
        Format        json
        Time_Keep     Off
        Time_Key      time
        Time_Format   %Y-%m-%dT%H:%M:%S.%L

    [MULTILINE_PARSER]
        name              multiline-parser
        type              regex
        flush_timeout      1000
        Skip_Empty_Lines  Off

        # rules |   state name  | regex pattern                    | next state
        # ------|---------------|----------------------------------|-----------
        rule      "start_state"      "/([\d-]+T[\d:.]+)Z ([\s\S]*)/m"  "empty_row"
        rule      "empty_row"        "/^$/m"                                    "cont"
        # start with at java class or start with java class name or empty line
        rule      "cont" "/(?:\s+at\s.*)|^(?:[a-zA-Z_$][a-zA-Z\d_$]*(\.[a-zA-Z_$][a-zA-Z\d_$]*)*)|^\s*$/m" "cont"


    [PARSER]
        Name named-capture-test
        Format regex
        Skip_Empty_Values On
        # simplified version
        Regex /([0-9\-]+T[:0-9\.]+\d{3}Z)\s+(.*)/m

  extraFiles: {}

The full fluentbit-values.yaml can be found in the following link:

fluentbit-values.yaml

Test script

Generate logs from the Spring Boot application

To generate 100 logs from the Spring Boot application, we can use the following command:

$ kubectl -n nsa2 port-forward svc/nsa2-logging-example 18080:8080

$ for i in {1..100}; do  \
  curl -X POST -H "Content-Type: application/json" \
  -d "This is an INFO log message - $i" \
  http://localhost:18080/v1.0.0/log/INFO; done

Generate logs with different log levels

echo "TRACE DEBUG INFO WARN ERROR" | \
  tr " " '\n' | \
  xargs -I {} curl -X POST -H "Content-Type: application/json" \
  -d "This is a sample of {} level messages" \
  http://localhost:18080/v1.0.0/log/{}

Generate a stack trace log message

To generate a stack trace log message from the Spring Boot application, we can use the following command:

for i in {1..10}; do \
    curl -X POST -H "Content-Type: application/json" \
    -d "This is n invalid log message - $i" \
    http://localhost:18080/v1.0.0/log/INVALID; done

View logs in Kibana

To view the logs in Kibana, we need to port-forward the Kibana service to our local machine.

$ kubectl port-forward svc/kibana-kibana 5601:5601 -n logging

Navigate to http://localhost:5601 in your browser and go to the Discover tab in Kibana. You should see the logs from the Spring Boot application.

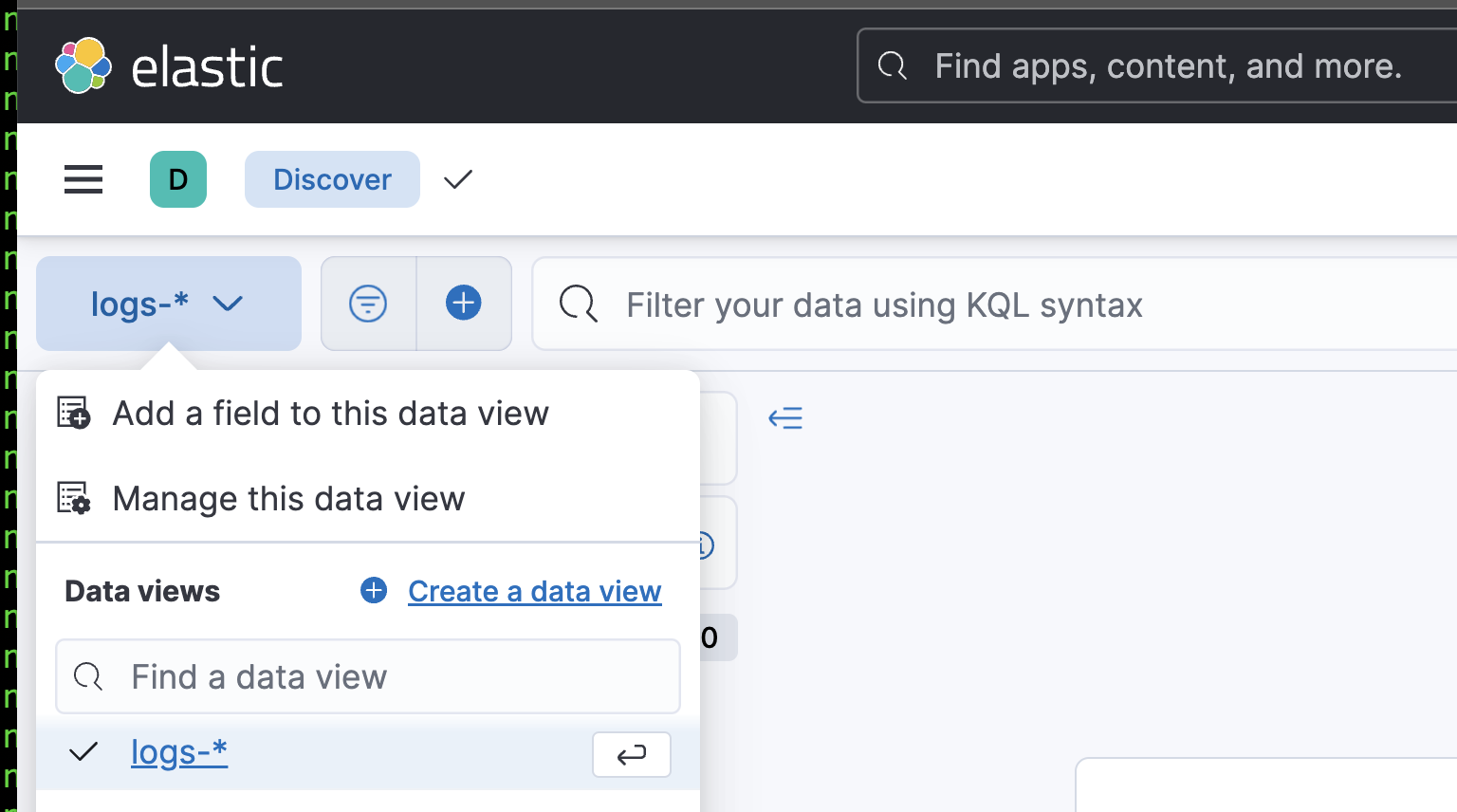

Create a new Data View

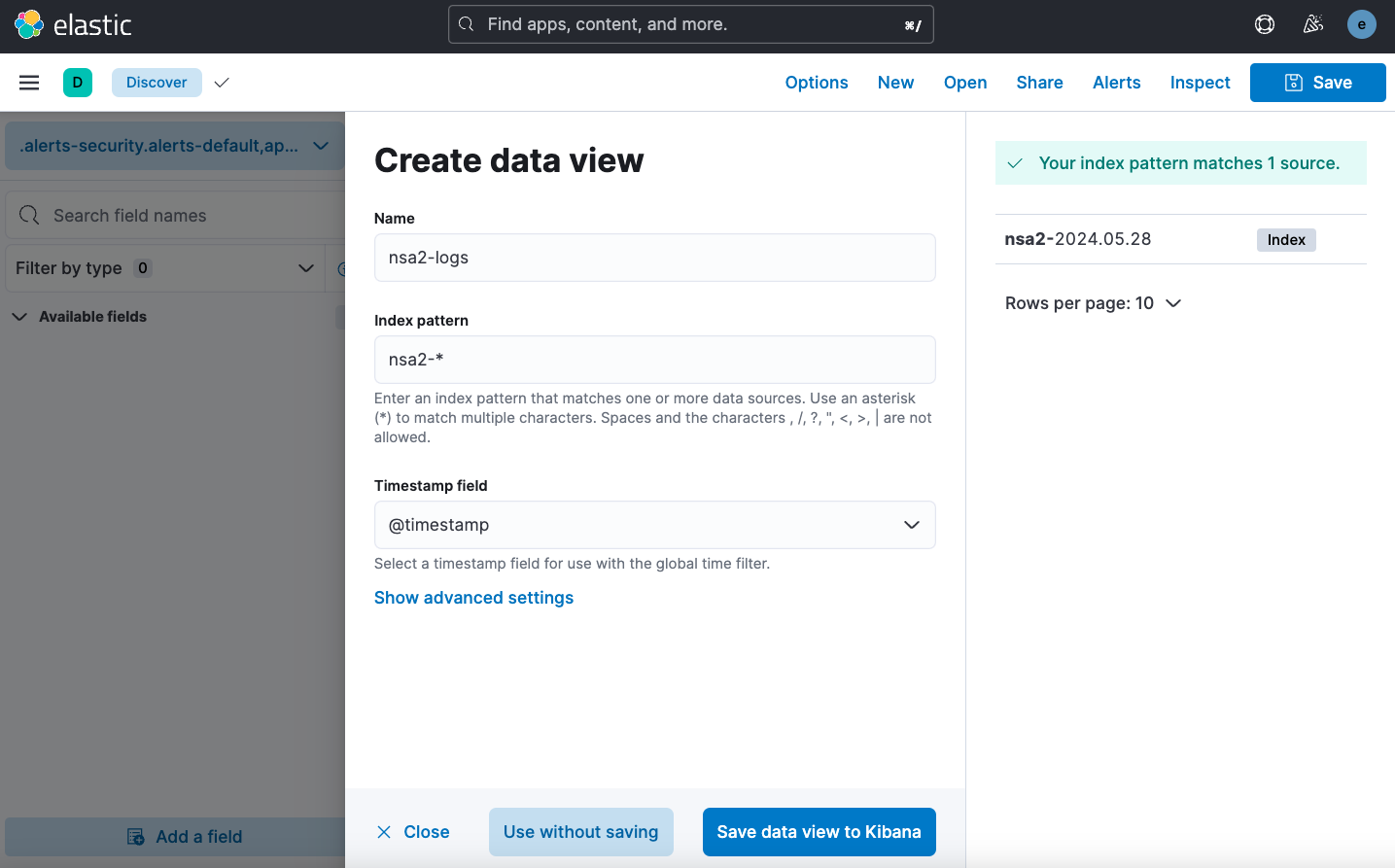

To create a new Data View in Kibana, follow these steps:

Go to the Discover tab in Kibana.
Click on the Create a Data View button.

Enter nsa2-logs for Name and Select the index pattern nsa2-*.
Click on the Save data view to Kibana button.

Search for the logs in the nsa2-logs Data View.

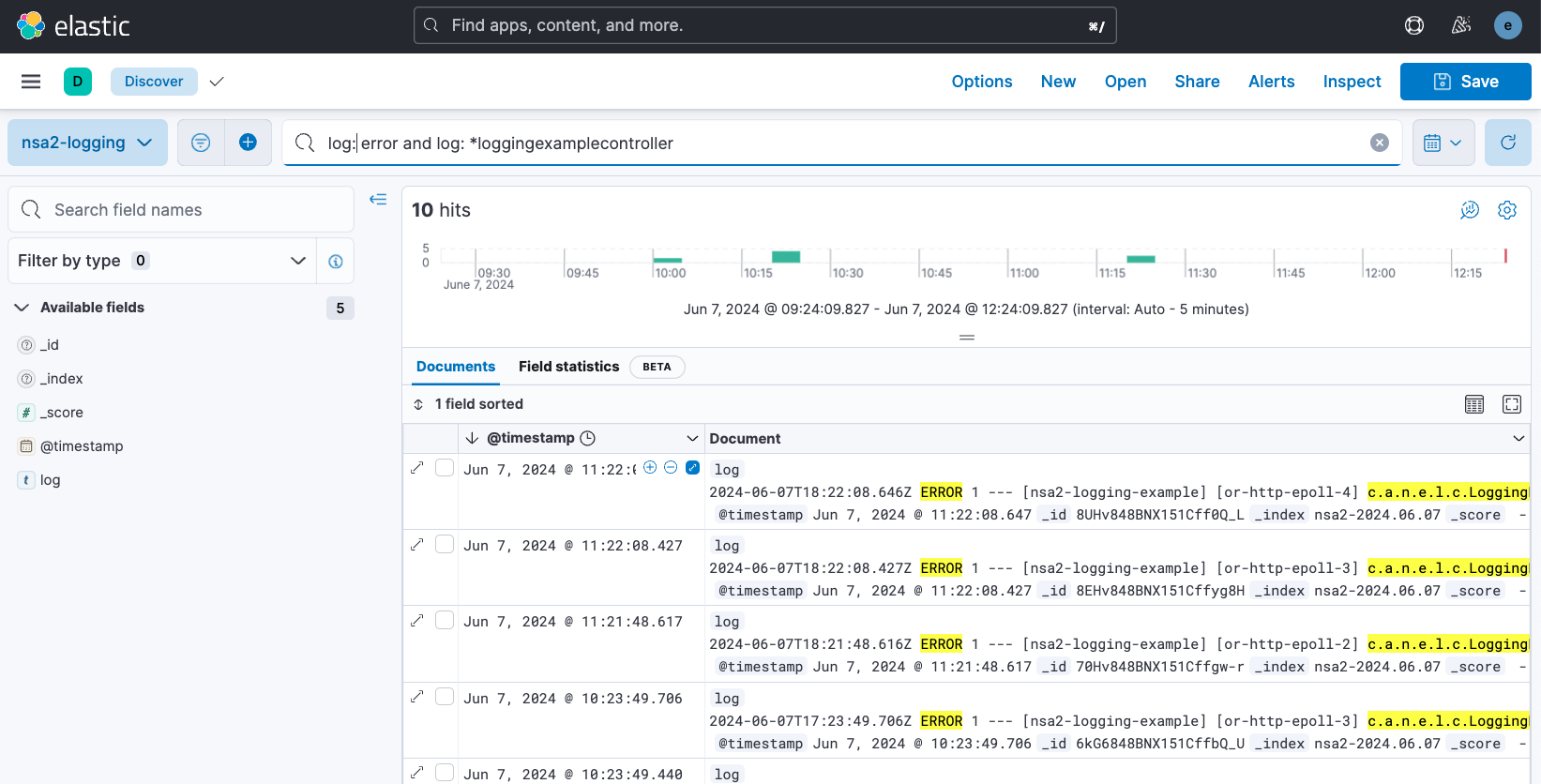

I entered log: error and log: LoggingExampleController in KQL text field to filter the logs. It filters the logs that contain the word error in the log message and the logs that contain the word LoggingExampleController in the log message. You can use different filters to search for logs in the Data View.

Conclusion

In this tutorial, we have learned how to collect logs from a Spring Boot application running in Kubernetes using Fluent-bit. We have configured Fluent-bit to parse the log messages and send them to Elasticsearch. We have also enriched the log messages with Kubernetes metadata using the Kubernetes Filter.
