Full-Stack Observability for Go Applications using OpenTelemetry eBPF

On this page

Introduction
- Key Components
What is eBPF?
What is OpenTelemetry eBPF Instrumentation?
Why Fluent Bit?
Enable OBI from the Service Foundry Console
- Deploying OBI with Custom Configuration
Manual Installation with Full Customization
- eBPF DaemonSet via Kustomize
- Fluent Bit DaemonSet via Helm
Instrumenting Go Applications
Traefik for Trace Context Injection
Conclusion

Introduction

This guide walks you through setting up complete observability for Go applications in Kubernetes using OpenTelemetry’s eBPF-based instrumentation. You’ll learn how to trace, monitor, and log your services with minimal application code changes. OpenTelemetry eBPF captures traces and metrics, while Fluent Bit handles logs and enriches them with trace context, enabling full trace-log correlation.

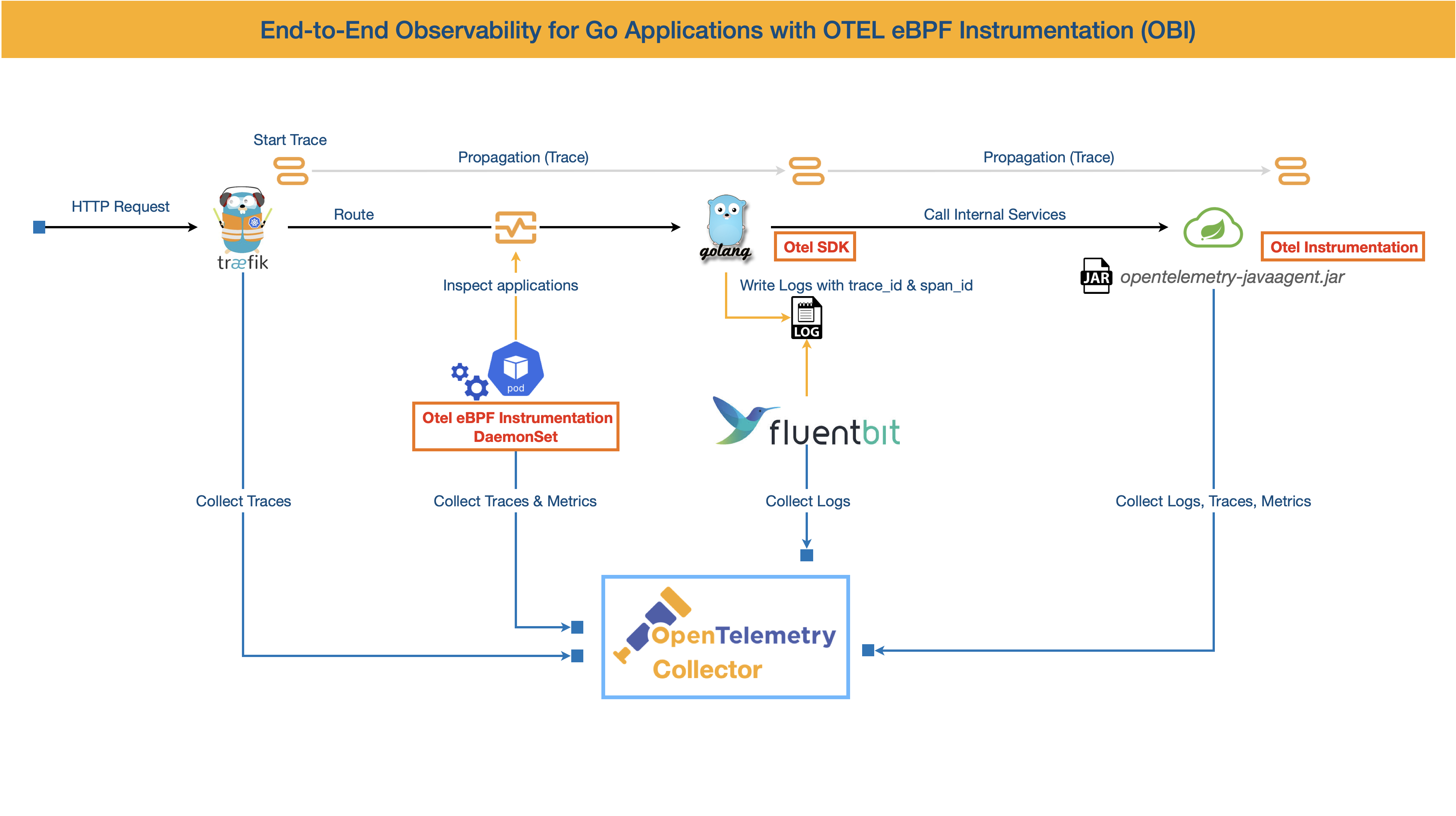

By the end of this guide, you’ll have an observability setup like the following:

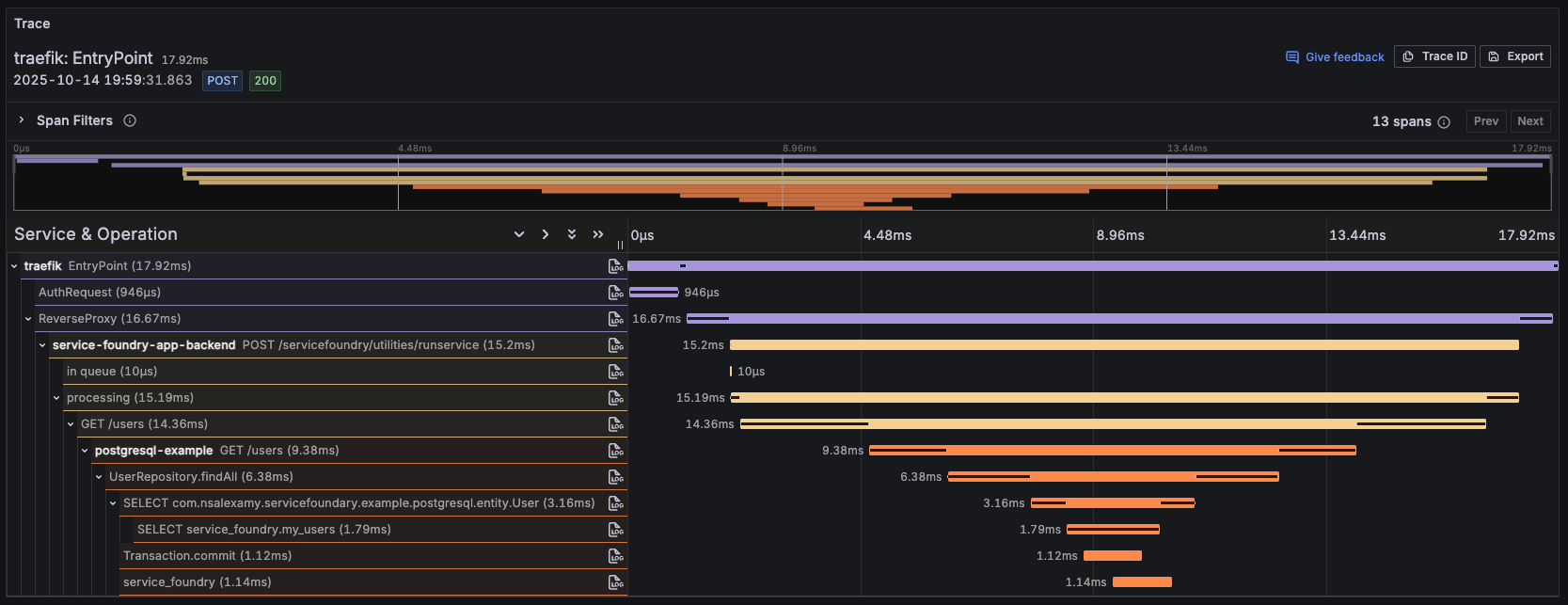

Figure 1. End-to-End Observability Stack - Traces

Visualize distributed traces across Go services and infrastructure components using eBPF auto-instrumentation, as shown above.

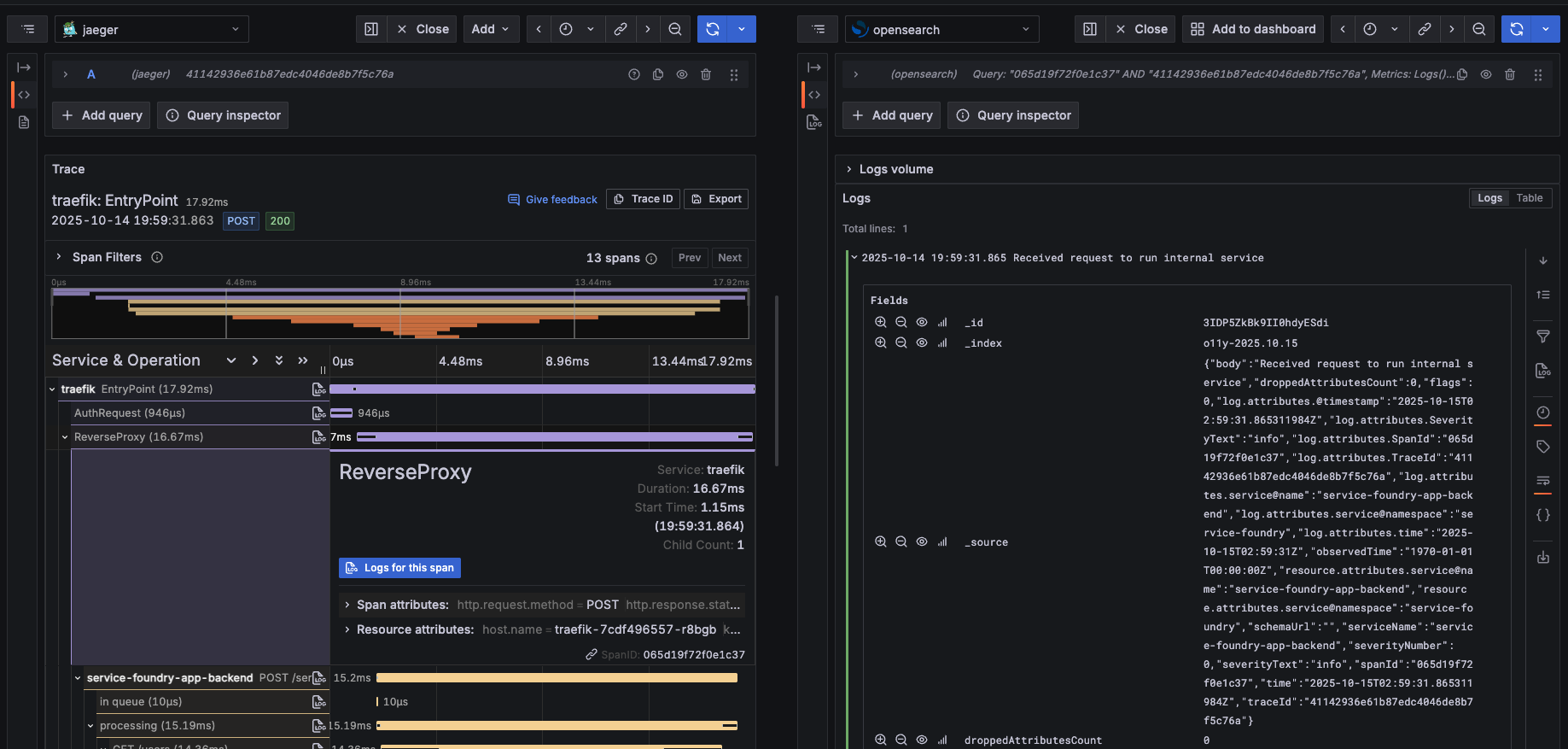

Figure 2. End-to-End Observability Stack - Logs correlated with Traces

Clicking a span in a trace reveals correlated logs, which offer contextual insight into the application’s behavior.

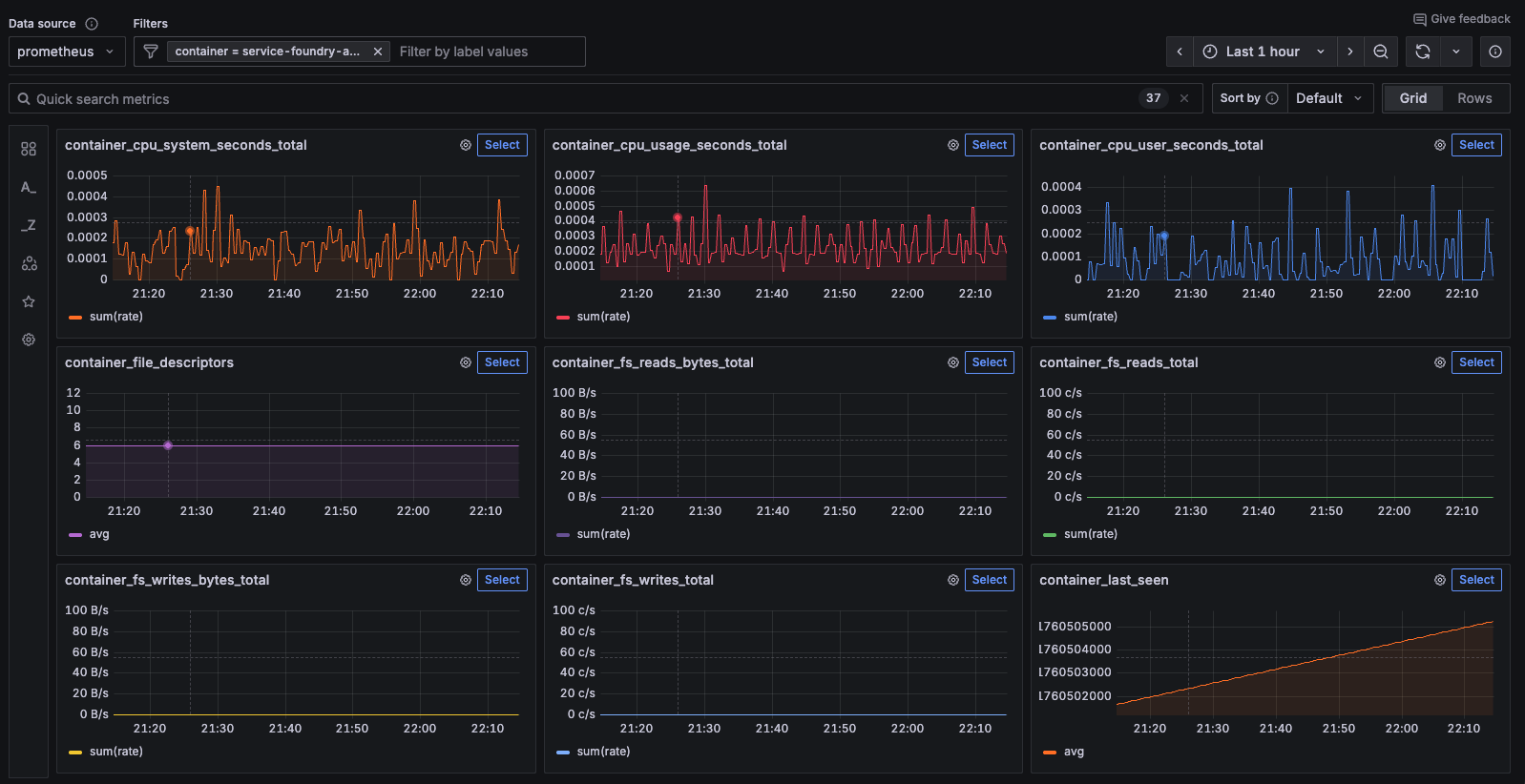

Figure 3. End-to-End Observability Stack - Metrics

System and application metrics like latency, error rate, and resource consumption are collected transparently.

Key Components

This setup relies on the following tools:

OpenTelemetry Collector for ingesting and exporting traces, metrics, and logs.
eBPF DaemonSet to inspect application behavior without modifying code.
OpenTelemetry Go SDK to emit logs with trace IDs.
Traefik to inject and propagate trace context.
Fluent Bit to parse and forward logs enriched with trace IDs.

What is eBPF?

Extended Berkeley Packet Filter (eBPF) enables safe, dynamic instrumentation inside the Linux kernel. It allows you to attach logic to events such as system calls, network activity, and tracepoints—ideal for capturing telemetry across running workloads.

What is OpenTelemetry eBPF Instrumentation?

OpenTelemetry eBPF auto-instruments processes at the system level. It detects and collects span data from network traffic, syscalls, and libraries without requiring code changes. When deployed as a DaemonSet in Kubernetes, it automatically inspects eligible pods.

Why Fluent Bit?

Since eBPF does not collect logs, Fluent Bit is used to gather logs from Go applications. These logs are enriched with trace_id and span_id and sent to the OpenTelemetry Collector for correlation.

Enable OBI from the Service Foundry Console

The Service Foundry Console includes a one-click Enable OBI button. When clicked, it deploys the required eBPF and Fluent Bit DaemonSets.

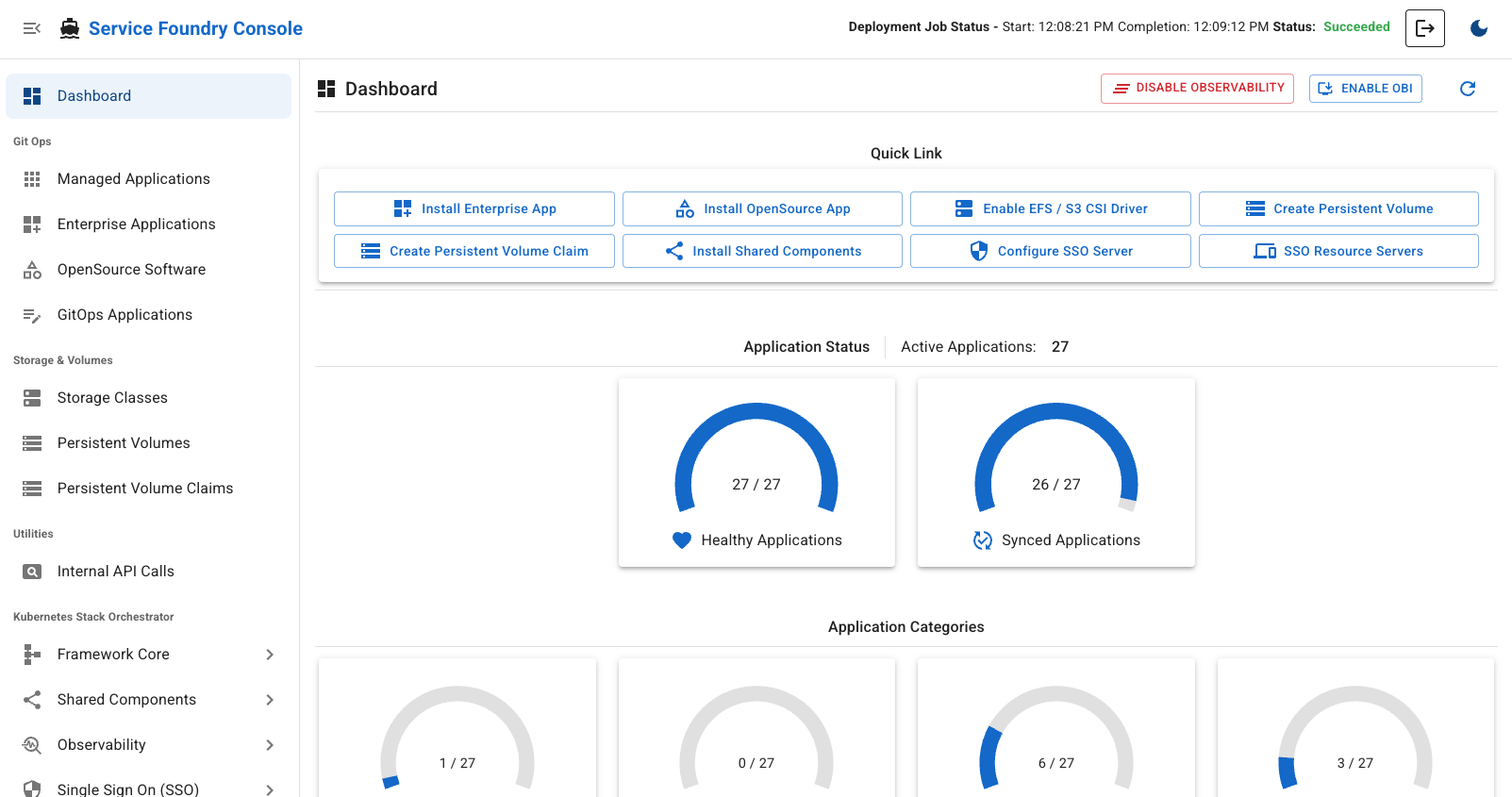

Figure 4. Service Foundry Console - Enable OBI

You can also clean up the deployment using the Disable OBI button.

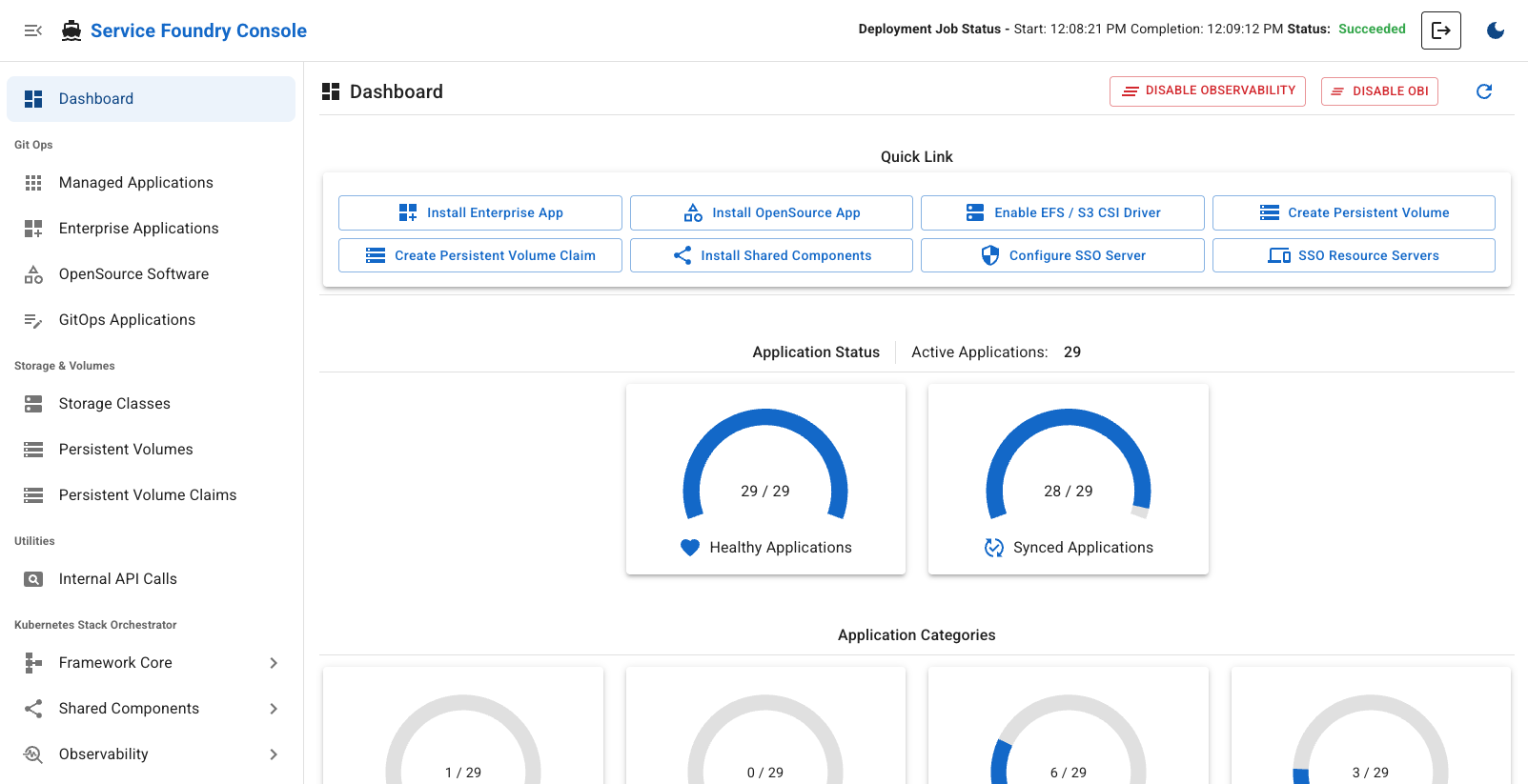

Figure 5. Service Foundry Console - Disable OBI

Deploying OBI with Custom Configuration

'Enable OBI' button deploys the eBPF and Fluent Bit DaemonSets with default settings. When you need to customize the configuration, you can use 'Deploy OBI' menu

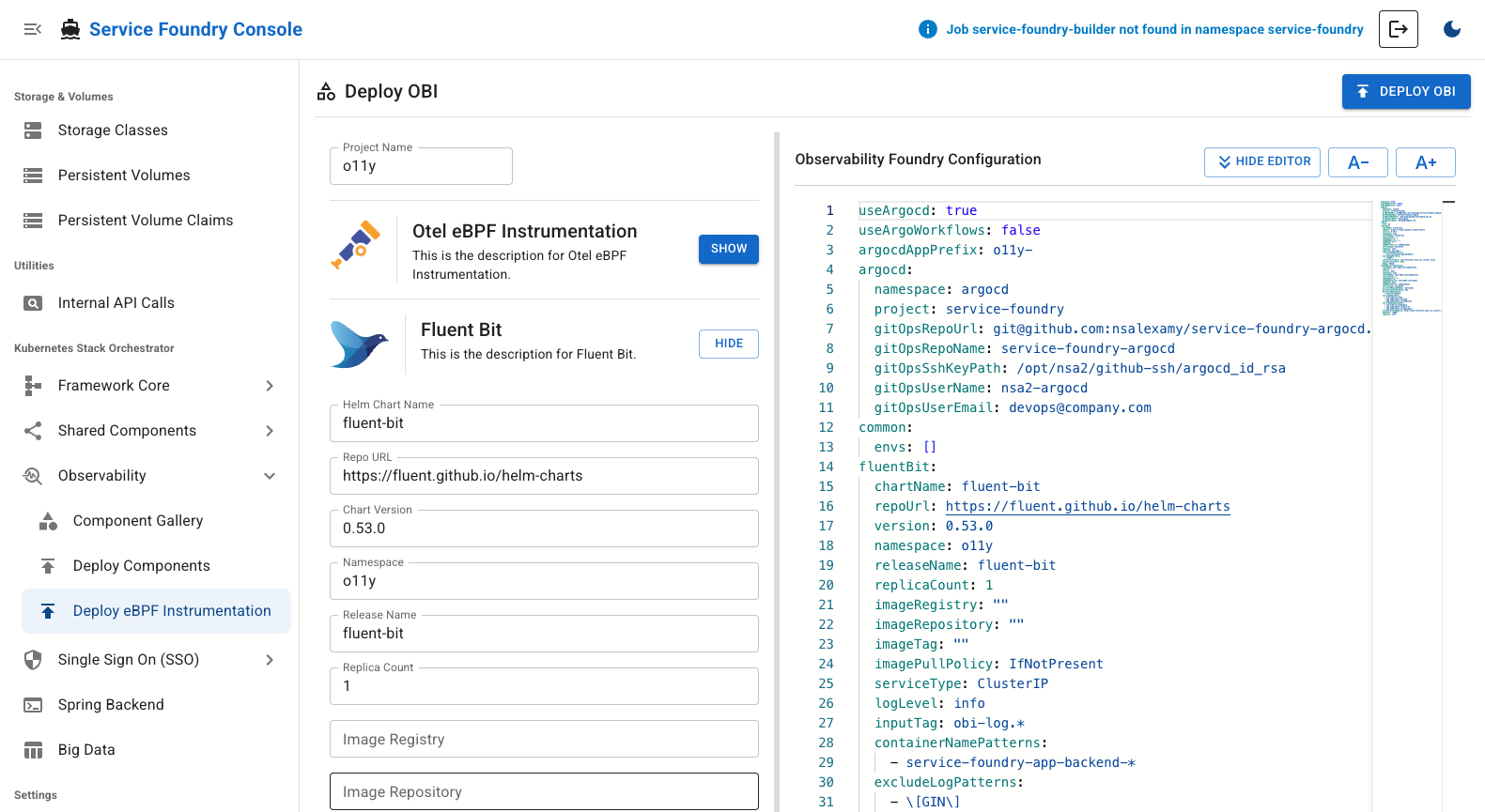

Figure 6. Service Foundry Console - Deploy OBI

You can customize the configuration by editing the form fields on Service Foundry Console.

fluentBit:
  # omitted for brevity
  # Customize Fluent Bit configuration
  logLevel: info
  inputTag: obi-log.*
  containerNamePatterns:
    - service-foundry-app-backend-*
  excludeLogPatterns:
    - \[GIN\]
  otelCollectorHost: otel-collector.o11y.svc.cluster.local
  otelCollectorPort: 4318
  debug: false

otelEbpfInstrumentation:
  # omitted for brevity
  # Customize eBPF DaemonSet configuration
  discoveryPodLabelName: instrument
  discoveryPodLabelValue: obi
  discoveryNamespaces:
    - service-foundry
  serviceNameLabels:
    - override-svc-name
    - app.kubernetes.io/name
    - app.kubernetes.io/component
  serviceNamespaceLabels:
    - override-svc-namespace
    - app.kubernetes.io/part-of
    - app.kubernetes.io/namespace
  otelCollectorEndpoint: http://otel-collector.o11y.svc.cluster.local:4318
  openPort: "8080"
  logLevel: info

Manual Installation with Full Customization

You can manually deploy OBI using YAML files.

eBPF DaemonSet via Kustomize

The following files are used:

kustomization.yaml
obi-rbac.yaml
obi-configmap.yaml
obi-daemonset.yaml

These files configure permissions, discovery rules, and runtime settings.

See https://opentelemetry.io/docs/zero-code/obi/configure/service-discovery/ for more discovery options.

kustomization.yaml

Like other ArgoCD applications in Service Foundry, a kustomization.yaml file is used to manage the resources for the OBI DaemonSet.

namespace: o11y

resources:
  - obi-rbac.yaml
  - obi-configmap.yaml
  - obi-daemonset.yaml

obi-rbac.yaml

Create a ServiceAccount, ClusterRole, and ClusterRoleBinding for the OBI DaemonSet.

For more information about the required permissions, refer to the official documentation:

https://opentelemetry.io/docs/zero-code/obi/setup/kubernetes/

apiVersion: v1
kind: ServiceAccount
metadata:
  name: obi
  namespace: o11y
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: obi
rules:
  - apiGroups: ['apps']
    resources: ['replicasets']
    verbs: ['list', 'watch']
  - apiGroups: ['']
    resources: ['pods', 'services', 'nodes']
    verbs: ['list', 'watch']
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: obi
subjects:
  - kind: ServiceAccount
    name: obi
    namespace: o11y
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: obi

obi-configmap.yaml

The obi-configmap.yaml file contains the configuration for the OBI DaemonSet.

In the discovery section, we specify that we want to instrument pods in the service-foundry namespace with the label instrument: obi. and more discovery options are available in the official documentation:

https://opentelemetry.io/docs/zero-code/obi/configure/service-discovery/

apiVersion: v1
kind: ConfigMap
metadata:
  name: obi-config
  namespace: o11y
data:
  obi-config.yml: |-
    discovery:
      instrument:

      - k8s_namespace: service-foundry
        k8s_pod_labels:
          instrument: obi

    # https://opentelemetry.io/docs/zero-code/obi/configure/service-discovery/
    kubernetes:
      resource_labels:
        service.name:
          - "override-svc-name"
          - "app.kubernetes.io/name"
          - "app.kubernetes.io/component"

        service.namespace:
          - "override-svc-namespace"
          - "app.kubernetes.io/part-of"
          - "app.kubernetes.io/namespace"

    # Controls how eBPF-generated spans behave
    ebpf:
      # When true, OBI does NOT auto-detect existing SDKs.
      # Instead, it assumes that incoming requests may already contain trace headers.
      disable_sdk_detection: true

      # When true, include spans for inbound/outbound network calls
      # (so OBI generates child spans only when trace context exists)
      include_network_spans: true

      # Optional: capture network metadata
      capture_headers: true
      capture_body: false

      # Optional: enrich spans with Kubernetes metadata
      kube_metadata_enable: true

    otel_traces_export:
      endpoint: http://otel-collector.o11y.svc.cluster.local:4318

obi-daemonset.yaml

The obi-daemonset.yaml file defines the DaemonSet that deploys the OBI agent on each node in the Kubernetes cluster.

---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: obi
  namespace: service-foundry
  labels:
    app: obi
spec:
  selector:
    matchLabels:
      app: obi
  template:
    metadata:
      labels:
        app: obi
    spec:
      hostPID: true # Required to access the processes on the host
      serviceAccountName: obi # required if you want kubernetes metadata decoration
      containers:
        - name: autoinstrument
          image: otel/ebpf-instrument:main
          securityContext:
            privileged: true
            runAsUser: 0
            capabilities:
              add:
                - SYS_ADMIN
                - SYS_RESOURCE
                - CAP_NET_ADMIN
          env:
            #- name: OTEL_EXPORTER_OTLP_ENDPOINT
            #  value: 'http://otel-collector.o11y.svc.cluster.local:4318'
              # required if you want kubernetes metadata decoration
            #- name: OTEL_EBPF_KUBE_METADATA_ENABLE
            #  value: 'true'
            - name: OTEL_EBPF_CONFIG_PATH
              value: /etc/obi/config/obi-config.yml
            - name: OTEL_EBPF_LOG_LEVEL
              value: 'debug' # debug, info, warn, error
            - name: OTEL_EBPF_BPF_CONTEXT_PROPAGATION # all, headers, ip, disabled
              value: headers
            - name: OTEL_EBPF_BPF_TRACK_REQUEST_HEADERS
              value: 'true'
            - name: OTEL_EBPF_METRIC_FEATURES
              value: network,application

          volumeMounts:
            - name: obi-config
              mountPath: /etc/obi/config
            - name: var-run-obi
              mountPath: /var/run/obi
            - name: cgroup
              mountPath: /sys/fs/cgroup

      volumes:
        - name: obi-config
          configMap:
            name: obi-config
        - name: var-run-obi
          emptyDir: {}
        - name: cgroup
          hostPath:
            path: /sys/fs/cgroup

Fluent Bit DaemonSet via Helm

Customize custom-values-0.53.0.yaml to match your application log format.

Example log entry (from Go SDK):

go-log-format.txt

{
  "job.name":"service-foundry-builder",
  "level":"info",
  "msg":"Received request for job status",
  "span_id":"316912bad90ada05",
  "time":"2025-10-15T03:27:15Z",
  "trace_id":"e3501aa248ec89c9e1d629720797cbf1"
}

Logs are parsed, enriched, and shipped to the Otel Collector using the OpenTelemetry output plugin.

Input Configuration

In the input configuration, we use the Tail input plugin to read log files from the specified path. The Path parameter should match the log file path of your Go application.

config:

  inputs: |

    [INPUT]
        Name tail
        Path        /var/log/containers/service-foundry-app-backend-*.log
        Tag         obi-log.*
        Parser      cri_json_tail
        Mem_Buf_Limit 32MB
        multiline.parser              docker,

Filters Configuration

In the filters configuration, we use several filter plugins to process and enrich the log entries.

After all filters are applied, the log entry will be transformed into the following format:

[1760489734.138600321, {}, {"job.name"=>"service-foundry-builder", "SeverityText"=>"info", "msg"=>"Received request for job status", "SpanId"=>"210d9d66448b8a82", "time"=>"2025-10-15T00:55:34Z", "TraceId"=>"ccd3e8cd7f82aaa010b27493763c78dc", "@timestamp"=>"2025-10-15T00:55:34.138600321Z", "service.namespace"=>"service-foundry", "service.name"=>"service-foundry-app-backend"}]

Output Configuration

In the output configuration, we use the OpenTelemetry output plugin to send logs to the Otel Collector. The Host and Port parameters should match the Otel Collector’s service name and port in your Kubernetes cluster.

 outputs: |
    [OUTPUT]
        Name            opentelemetry
        Match           obi-log.*
        Host            otel-collector.o11y.svc.cluster.local
        Port            4318
        Logs_uri        /v1/logs
        TLS             Off
        Logs_Body_Key   msg
        Logs_Body_Key_Attributes On
        Logs_Timestamp_Metadata_Key @timestamp
        Logs_Resource_Metadata_Key   service.name

Instrumenting Go Applications

middleware.go

Use OpenTelemetry’s W3C propagator to extract trace context from headers:

middleware.go

package tracing

import (
	"context"
	"net/http"

	"github.com/gin-gonic/gin"
	"go.opentelemetry.io/otel/propagation"
)

// Global propagator for W3C Trace Context (traceparent, tracestate)
var Propagator = propagation.TraceContext{}

// ExtractContext extracts any incoming OpenTelemetry trace context
// (e.g., from OBI, upstream services, or gateways) from HTTP headers.
func ExtractContext(r *http.Request) context.Context {

	return Propagator.Extract(r.Context(), propagation.HeaderCarrier(r.Header))
}

func Middleware() gin.HandlerFunc {
	return func(c *gin.Context) {
		// Extract context from request headers (from OBI or upstream)
		ctx := ExtractContext(c.Request)

		// Replace the request context so downstream handlers use it
		c.Request = c.Request.WithContext(ctx)

		c.Next()
	}
}

logger.go

Extend your logger to include trace fields from context:

logger.go

package logger

import (
	"context"

	"github.com/sirupsen/logrus"
	"go.opentelemetry.io/otel/trace"
)

var _logger = logrus.New()

func Init() {
	_logger.SetFormatter(&logrus.JSONFormatter{})
	_logger.SetLevel(logrus.InfoLevel)
}

// Info logs a message with trace_id and span_id from context
func Info(ctx context.Context, msg string, fields ...logrus.Fields) {
	entry := _logger.WithFields(extractTraceFields(ctx))
	if len(fields) > 0 {
		for k, v := range fields[0] {
			entry = entry.WithField(k, v)
		}
	}
	entry.Info(msg)
}

// Error logs an error message with trace context
func Error(ctx context.Context, msg string, err error) {
	_logger.WithFields(extractTraceFields(ctx)).WithError(err).Error(msg)
}

// extractTraceFields pulls trace_id/span_id from context
func extractTraceFields(ctx context.Context) logrus.Fields {
	sc := trace.SpanContextFromContext(ctx)

	if !sc.IsValid() {
		return logrus.Fields{}
	}
	return logrus.Fields{
		"trace_id": sc.TraceID().String(),
		"span_id":  sc.SpanID().String(),
	}
}

main.go

This Middleware should be added to your Gin router to ensure that all incoming requests have their trace context extracted and set in the request context.

main.go

func main() {
	logger.Init()


	r := gin.Default()

	// Custom tracing middleware to extract context from incoming requests
	r.Use(tracing.Middleware())

    // omitted for brevity
}

Writing Logs in Handlers

Use this logger in handlers to correlate logs with traces.

handler.go

func RunInternalServiceHandler(c *gin.Context) {
	ctx := c.Request.Context()

	logger.Info(ctx, "Received request to run internal service")

    // omitted for brevity
}

This log entry will include the trace_id and span_id, allowing you to correlate it with the corresponding trace in your observability stack.

Traefik for Trace Context Injection

Traefik is configured to inject trace context headers. This ensures upstream requests receive a root span.

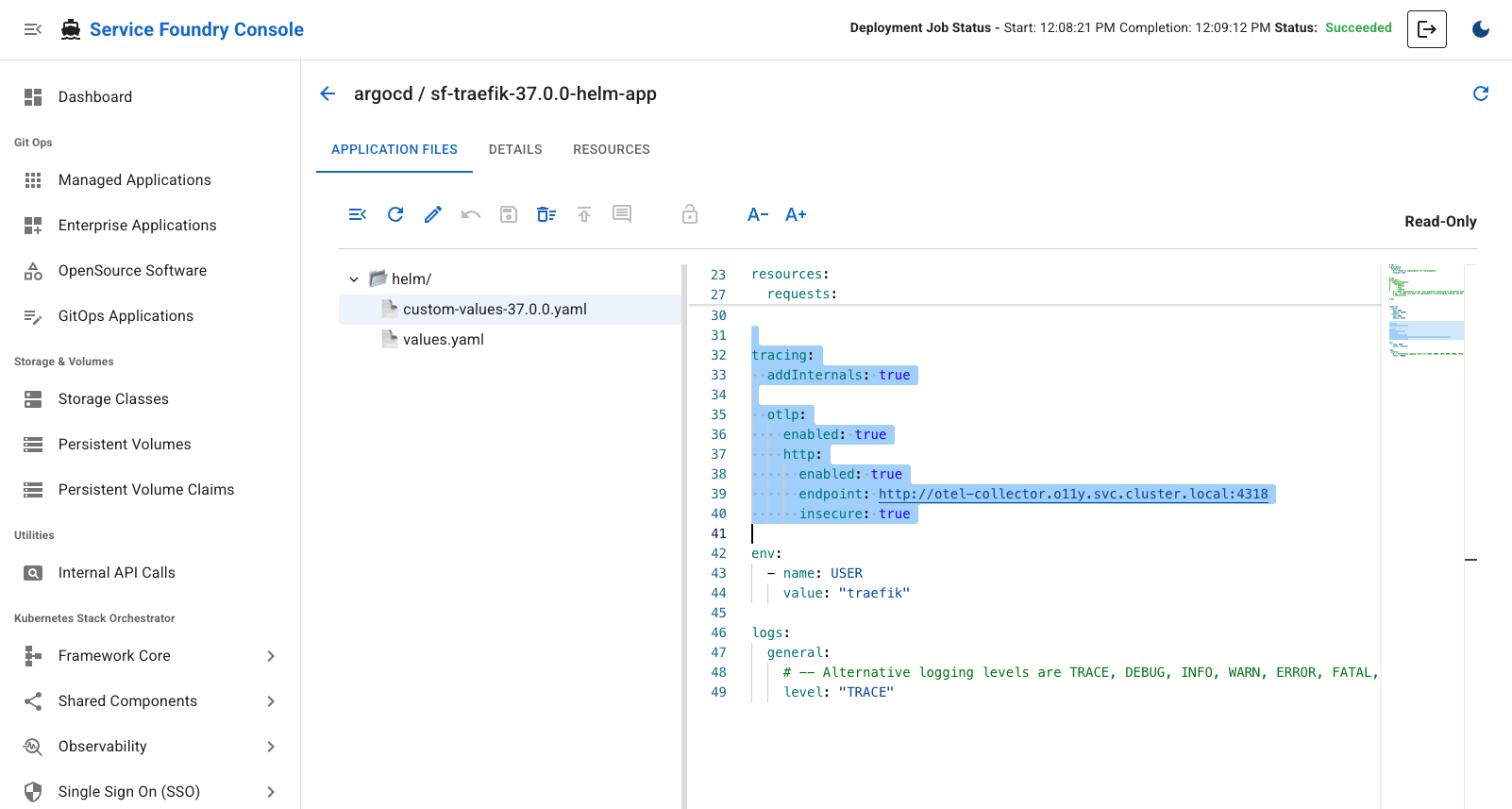

Figure 7. Service Foundry Console - Edit Traefik Configuration

Add the following configuration to the custom-values.yaml file for Traefik:

custom-values.yaml

tracing:
  addInternals: true

  otlp:
    enabled: true
    http:
      enabled: true
      endpoint: http://otel-collector.o11y.svc.cluster.local:4318
      insecure: true

Once you have published the changes, ArgoCD will automatically deploy the updated Traefik configuration within a few minutes.

Conclusion

With eBPF auto-instrumentation and minimal SDK usage, you now have full observability for your Go applications. This includes trace-log correlation, system metrics, and distributed tracing—all without modifying application logic.

For more, visit the official OpenTelemetry OBI docs:

https://opentelemetry.io/docs/zero-code/obi/

📘 View the web version:

https://nsalexamy.github.io/service-foundry/pages/documents/o11y-foundry/end-to-end-obi/
