Model Serving with KServe: A Complete Guide to Kubernetes-Native Inference

Overview

In the modern machine learning lifecycle, training a model is only half the battle. The real challenge lies in serving that model reliably, efficiently, and at scale. This guide explores how to bridge the gap between model development and production deployment using KServe, a highly scalable and serverless inference platform built on Kubernetes.

We will walk through an integrated MLOps workflow involving three core components:

  1. JupyterHub: The collaborative development environment where data scientists train and evaluate models.

  2. MLflow: The tracking and registry service used to manage experiments and model versions.

  3. KServe: The inference engine that pulls models from S3 and serves them via standardized APIs.

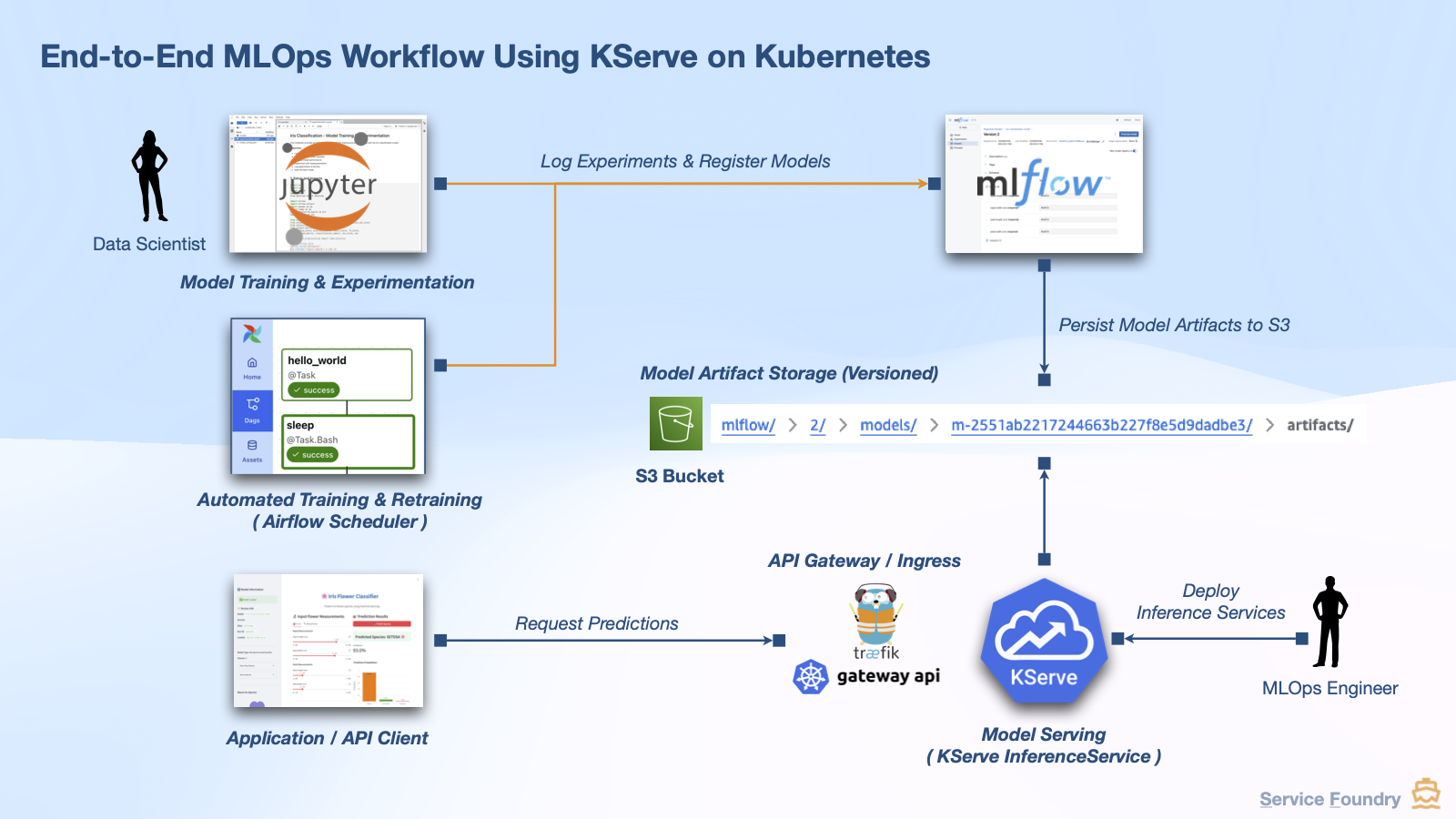

The MLOps Data Flow

The integration follows a structured path from development to production:

graph TD
    A[Data Scientist] -->|Trains Model| B(JupyterHub)
    B -->|Logs Model & Artifacts| C(MLflow)
    C -->|Stores Artifacts| D[AWS S3]
    E[MLOps Engineer] -->|Creates InferenceService| F(KServe)
    F -->|Fetches Model| D
    G[Application] -->|Inference Request| F
    F -->|Prediction Result| G

  1. Model Training: Using JupyterHub, models are trained and logged to MLflow.

  2. Artifact Management: MLflow manages model versions and stores their weights in an AWS S3 bucket.

  3. Inference Deployment: An MLOps engineer creates a KServe InferenceService manifest.

  4. Model Serving: KServe’s "Storage Initializer" fetches the model from S3 and prepares it for serving.

  5. Consumption: External applications consume the model via the Open Inference Protocol (V2).

Prerequisites

Before proceeding, ensure you have the following infrastructure and tools ready:

  • Kubernetes Cluster: A running cluster (v1.33+) with sufficient resources for ML workloads.

  • Access Control: kubectl configured with administrative access.

  • Package Management: Helm (v3+) for deploying charts.

  • Storage: An AWS S3 bucket for model artifacts and appropriate IAM credentials.

  • Continuous Delivery: Argo CD (recommended) for GitOps-based deployments.

What is KServe?

KServe is an open-source, production-ready, and highly extensible serverless inference platform designed for Kubernetes. It simplifies the deployment of machine learning models by providing a consistent interface across different frameworks.

By leveraging Knative for serverless scaling and Istio (or Gateway API) for advanced traffic management, KServe allows teams to focus on their models rather than the underlying infrastructure complexity. KServe supports both Predictive Inference (Classical ML) and Generative Inference (LLMs), making it a versatile choice for modern AI platforms.

Key Benefits

KServe provides a standard inference protocol across multiple frameworks, enabling a unified approach to model serving.

  • Serverless Scaling: Automatically scales models based on traffic, including scale-to-zero to save resources when idle.

  • Standardized Protocol: Implements the V2 Inference Protocol (Open Inference Protocol), allowing clients to interact with models consistently regardless of the framework (Scikit-Learn, PyTorch, XGBoost, etc.).

  • AI Gateway Integration: Built-in support for Envoy AI Gateway for enterprise-grade routing, canary deployments, and observability.

Helm Chart Investigation

When using OCI repository, helm version should be passed with --version flag.

$ CHART_VERSION=v0.16.0
$ HELM_REPO=oci://ghcr.io/kserve/charts
$ CHART_NAME=kserve

Save Values to File

$ helm show values $HELM_REPO/$CHART_NAME --version $CHART_VERSION > values-$CHART_VERSION.yaml

Pull KServe Chart

$ helm pull $HELM_REPO/$CHART_NAME --version $CHART_VERSION --untar --untardir ./kserve-chart

S3 Storage Configuration

KServe requires access to a centralized storage backend (S3) to retrieve model artifacts. In this section, we will configure an S3 bucket and the necessary IAM credentials.

Step 1: Initialize Configuration Variables

Define the following environment variables to ensure consistency across the setup:

BUCKET_NAME=nsa2-sf-ml-models  (1)
POLICY_NAME=MlModelStoragePolicy (2)
SID=MlModelStorageAccess
IAM_USER_NAME=mlops (3)
K8S_SECRET_NAME=mlops-aws-credentials (4)
NAMESPACE=kserve
1 The target S3 bucket name.
2 The name of the IAM policy to be created.
3 The dedicated IAM user for KServe.
4 The Kubernetes secret name where AWS credentials will be stored.

Step 2: Create S3 Bucket and IAM Credentials

2.1 Create the S3 Bucket

  1. Log in to the AWS Management Console and navigate to S3.

  2. Click Create bucket.

  3. Enter a unique Bucket name (e.g., nsa2-sf-ml-models).

  4. Select an AWS Region (e.g., ca-central-1).

  5. Keep Block all public access enabled for security.

  6. Finalize by clicking Create bucket.

Note the bucket name and region, as they are required for the KServe InferenceService configuration.

2.2 Define IAM Policy for Model Access

To allow KServe components to interact with S3, we define an IAM policy with the minimum necessary permissions: GetObject, PutObject, ListBucket, and DeleteObject.

cat <<EOF > ${POLICY_NAME}.json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "${SID}",
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:GetObject",
                "s3:ListBucket",
                "s3:DeleteObject"
            ],
            "Resource": [
                "arn:aws:s3:::${BUCKET_NAME}",
                "arn:aws:s3:::${BUCKET_NAME}/*"
            ]
        }
    ]
}
EOF

Create the policy in AWS IAM:

  1. Navigate to IAM > Policies > Create policy.

  2. Select the JSON tab and paste the configuration from MlModelStoragePolicy.json.

  3. Name it MlModelStoragePolicy and click Create policy.

2.3 Create a Dedicated IAM User

Create a programmatic user that will assume the previously defined policy.

For production workloads on AWS EKS, IAM Roles for Service Accounts (IRSA) is the recommended authentication method. IRSA provides temporary, automatically rotated credentials. This guide uses static IAM users for simplicity and cross-platform compatibility.

Steps to Create the User:

  1. Navigate to IAM > Users > Create user.

  2. Set User name to mlops.

  3. Do not enable Management Console access. This is a programmatic-only user.

  4. Click Next.

  5. Select Attach policies directly and choose MlModelStoragePolicy.

  6. Complete the creation process.

2.4 Generate Access Keys

  1. Select the mlops user from the list.

  2. Navigate to the Security credentials tab.

  3. Click Create access key.

  4. Select Third-party service and proceed.

  5. Critically Important: Securely store the Access key ID and Secret access key. They are required for the Kubernetes secret.

Step 3: Securely Store Credentials in Kubernetes

KServe needs these credentials to authenticate with S3. We store them in a standard Kubernetes Secret.

# Define your AWS credentials securely in the terminal
MLOPS_AWS_ACCESS_KEY_ID="your-access-key-id"
MLOPS_AWS_SECRET_ACCESS_KEY="your-secret-access-key"

# Generate the Secret manifest
kubectl create secret generic $K8S_SECRET_NAME \
  -n $NAMESPACE \
  --from-literal=AWS_ACCESS_KEY_ID=${MLOPS_AWS_ACCESS_KEY_ID} \
  --from-literal=AWS_SECRET_ACCESS_KEY=${MLOPS_AWS_SECRET_ACCESS_KEY} \
  --dry-run=client -o yaml > $K8S_SECRET_NAME.yaml

# Clean up sensitive environment variables
unset MLOPS_AWS_ACCESS_KEY_ID
unset MLOPS_AWS_SECRET_ACCESS_KEY

3.1 Encrypting the Secret with Sealed Secrets

To safely commit the secret to Git, we use Sealed Secrets. This encrypts the secret such that it can only be decrypted by the sealed-secrets-controller running in your cluster.

# Use the apply-sealed-secrets script to encrypt manifests in the current directory
$ apply-sealed-secrets ./
mlops-aws-credentials.yaml - sealed secret
apiVersion: bitnami.com/v1alpha1
kind: SealedSecret
metadata:
  creationTimestamp: null
  name: mlops-aws-credentials
  namespace: kserve
spec:
  encryptedData:
    AWS_ACCESS_KEY_ID: AgCd8Cquw0n...MqnVEodw==
    AWS_SECRET_ACCESS_KEY: AgAxcpMFlQES...VVAtJz
  template:
    metadata:
      creationTimestamp: null
      name: mlops-aws-credentials
      namespace: kserve

3.2 Applying the Encrypted Manifest

Once sealed, the generated mlops-aws-credentials.yaml can be safely applied to the cluster.

$ kubectl apply -f mlops-aws-credentials.yaml

Configuring MLflow for S3 Model Storage

Before KServe can serve a model, MLflow must be configured to use S3 as its artifact store. This ensures that every model registered in MLflow is physically stored in the S3 bucket we created.

In my previous guide, we installed MLflow using local storage. The following configuration updates the MLflow Helm chart to enable S3 support.

custom-values.yaml (MLflow)
# MLflow S3 Configuration
extraSecretNamesForEnvFrom:
  - mlops-aws-credentials (1)

extraEnvVars:
  AWS_DEFAULT_REGION: "ca-central-1" (2)

artifactRoot:
  proxiedArtifactStorage: true
  s3:
    enabled: true
    bucket: nsa2-sf-ml-models (3)
    path: mlflow (4)
    existingSecret:
      name: mlops-aws-credentials
1 Mounts AWS credentials from our secret as environment variables.
2 Required for the boto3 library used by MLflow.
3 The target S3 bucket for all model artifacts.
4 The base directory within the bucket for MLflow artifacts.

When a model is logged, it will be stored at: s3://{bucket_name}/mlflow/{experiment_id}/models/{model_run_id}/artifacts/

Step 4: Install KServe CRDS

KServe uses Custom Resource Definitions (CRDs) to define its API objects. It is best practice to install CRDs separately from the main controller chart, especially when using GitOps tools like Argo CD, to ensure stable upgrades.

$ NAMESPACE=kserve
$ CHART_VERSION=v0.16.0
$ CHART_NAME=kserve-crd
$ RELEASE_NAME=kserve-crd
$ HELM_REPO=oci://ghcr.io/kserve/charts

# Install the CRD chart
$ helm install $RELEASE_NAME $HELM_REPO/$CHART_NAME \
    --version $CHART_VERSION --namespace $NAMESPACE --create-namespace

Verify the CRDs are active:

$ kubectl get crd | grep kserve

Step 5: Install KServe Controller

With the CRDs in place, we can now install the KServe controller. We will use a custom-values.yaml file to configure the deployment mode and S3 storage.

Configuring KServe for "Standard" Mode

KServe supports two primary deployment modes: Knative (Serverless) and Standard (RawDeployment).

Standard Mode (RawDeployment) is preferred when you do not want to manage the complexity of Knative. It uses native Kubernetes Deployments and HorizontalPodAutoscalers for serving models while still providing the same standardized V2 Inference Protocol.
custom-values.yaml (KServe)
kserve:
  controller:
    deploymentMode: Standard (1)
    gateway:
      domain: servicefoundry.org (2)
      urlScheme: https
      ingressGateway:
        enableGatewayApi: true (3)
        kserveGateway: traefik/traefik-gateway
        className: traefik

  storage:
    storageSpecSecretName: mlops-aws-credentials (4)
    s3:
      endpoint: s3.ca-central-1.amazonaws.com (5)
      region: ca-central-1
      useHttps: "1"
      verifySSL: "1"
      useVirtualBucket: "1"
      useAnonymousCredential: "0"
1 Sets the controller to use native Kubernetes deployments instead of Knative.
2 The base domain for all served models.
3 Enables integration with the Kubernetes Gateway API (using Traefik in this guide).
4 The name of our previously created S3 credentials secret.
5 The AWS S3 regional endpoint.

Install the chart using the custom values:

$ RELEASE_NAME=kserve
$ helm upgrade --install --cleanup-on-fail \
    $RELEASE_NAME $HELM_REPO/kserve \
    --version $CHART_VERSION --namespace $NAMESPACE --create-namespace \
    -f custom-values.yaml

Now that we have the Scikit-Learn model in S3 and KServe installed, we can deploy it as an InferenceService.

Configuring S3 Access for the Inference Pod

By default on EKS, pods attempt to use the node’s IAM role. To ensure reliable access using our static credentials, we create a dedicated Service Account and link it to our secret.

# Create the Service Account
kubectl create sa sa-s3-access -n kserve

# Link the Secret to the Service Account
kubectl patch sa sa-s3-access -n kserve -p '{"secrets": [{"name": "mlops-aws-credentials"}]}'

Deploying the Inference Manifest

The InferenceService defines how the model is served, including the framework, model location, and protocol version.

iris-inference-serving.yaml
apiVersion: "serving.kserve.io/v1beta1"
kind: "InferenceService"
metadata:
  name: "iris-classifier"
  namespace: kserve
spec:
  predictor:
    serviceAccountName: sa-s3-access (1)
    model:
      modelFormat:
        name: "sklearn" (2)
      storageUri: "s3://nsa2-sf-ml-models/mlflow/2/models/m-2551ab2217244663b227f8e5d9dadbe3/artifacts" (3)
      protocolVersion: v2 (4)
      runtime: kserve-sklearnserver (5)
1 The Service Account providing S3 credentials.
2 The model framework (Scikit-Learn).
3 The S3 path to the MLflow model artifacts.
4 Enables the modern V2 Inference Protocol.
5 The optimized KServe runtime for Scikit-Learn.

Apply the manifest:

$ kubectl apply -f iris-inference-serving.yaml

Verify the InferenceService.

$ kubectl get isvc iris-classifier -n kserve

# sample output
NAME           URL                                              READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION   AGE
sklearn-iris   https://sklearn-iris-kserve.servicefoundry.org   True                                                                  28s

Testing the Inference Endpoint

To test the model, we send a POST request following the V2 Inference Protocol. This protocol requires a specific JSON structure containing inputs, datatype, and shape.

input_1.json
{
  "inputs": [
    {
      "name": "input-0",
      "shape": [1, 4],
      "datatype": "FP32",
      "data": [
        [4.0, 3.9, 2.3, 0.6]
      ]
    }
  ]
}

Perform Inference with Curl

First, retrieve the service URL and then send the request:

# Get the model's public hostname
SERVICE_HOSTNAME=$(kubectl get isvc iris-classifier -n kserve -o jsonpath='{.status.url}' | cut -d "/" -f 3)

# Send the inference request
curl -s -X POST \
  -H "Host: ${SERVICE_HOSTNAME}" \
  -H "Content-Type: application/json" \
  -d @./input_1.json \
  https://${SERVICE_HOSTNAME}/v2/models/iris-classifier/infer | jq

Understanding the Prediction Result

If successful, the model returns a numeric prediction.

Sample Output
{
  "model_name": "iris-classifier",
  "outputs": [
    {
      "name": "output-0",
      "datatype": "INT64",
      "shape": [1],
      "data": [0]
    }
  ]
}

The numeric value in the data field maps to the Iris species:

  • 0: Iris-Setosa

  • 1: Iris-Versicolor

  • 2: Iris-Virginica

In this example, the result 0 indicates that the flower was classified as an Iris-Setosa.

Building a KServe Client (Streamlit)

While curl is excellent for testing, production users require a more approachable interface. MLOps engineers often build dedicated client applications—such as Streamlit dashboards—to provide a user-friendly way to interact with deployed models.

Client Architecture

The client application is typically deployed as a separate microservice within the Kubernetes cluster. It handles:

  1. User Input: Capturing features via sliders or forms.

  2. Protocol Transformation: Converting user inputs into the specific V2 Inference Protocol JSON format.

  3. Authentication: Managing tokens if the inference endpoint is protected.

  4. Result Visualization: Displaying the prediction results (labels, probabilities, or images).

KServe Client Implementation

1. Streamlit Application Core

The core logic of the client involves a get_prediction function that performs the REST call to KServe.

services/kserve-client/app.py
import streamlit as st
import requests
import json

def get_prediction(data):
    # Construct V2 Inference Protocol payload
    payload = {
        "inputs": [
            {
                "name": "input-0", (1)
                "shape": [len(data), 4], (2)
                "datatype": "FP32",
                "data": data
            }
        ]
    }

    # Send request to the KServe InferenceService URL
    response = requests.post(
        KSERVE_URL,
        json=payload,
        headers={"Content-Type": "application/json"}
    )
    return response.json()
1 Must match the input name defined in the model (default is input-0 for Scikit-Learn).
2 The shape specifies the number of instances and features (e.g., [1, 4]).

2. Containerization

To deploy the client on Kubernetes, we bundle it into a lightweight container.

services/kserve-client/Dockerfile
FROM python:3.11-slim

WORKDIR /app
COPY services/kserve-client/requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt (1)

COPY services/kserve-client/app.py .
COPY services/kserve-client/scripts/ ./scripts/

EXPOSE 8501 (2)
ENTRYPOINT ["./scripts/entrypoint.sh"]
1 Installs streamlit and requests.
2 Default port for Streamlit.

Deploying to Production

The deployment process follows a standard GitOps flow:

  1. Build: Create the Docker image and push it to a private container registry.

  2. Configuration: Use Helm to define the Deployment, Service, and HttpRoute for the client.

  3. Sync: Use Argo CD to synchronize the manifests with the Kubernetes cluster.

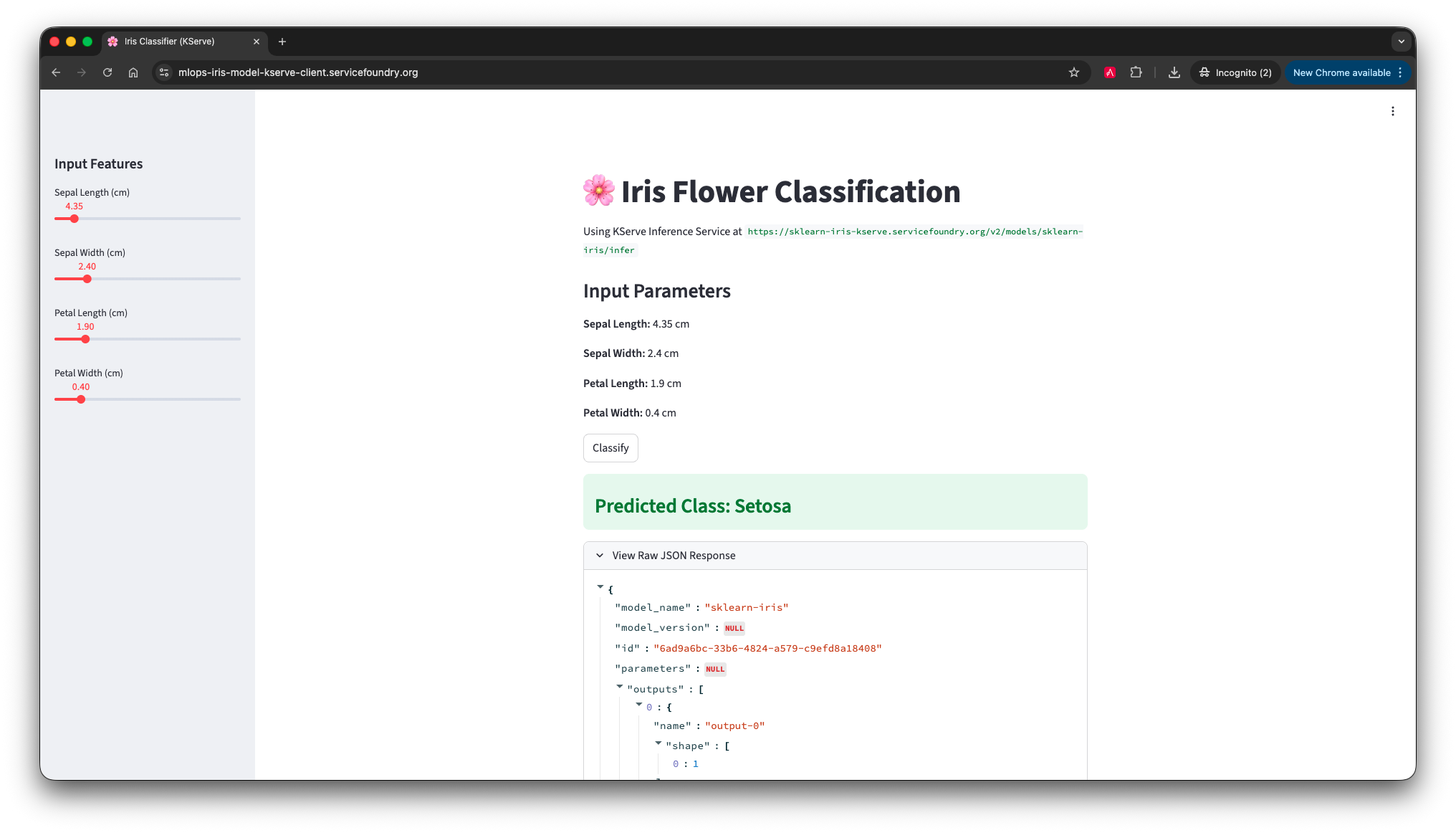

Once deployed, the model becomes accessible via a friendly URL, as shown below:

Streamlit Prediction Interface
Figure 1. Production Streamlit Interface

Conclusion

Deploying machine learning models in production requires a platform that is both robust and flexible. KServe provides this by standardizing the inference layer while allowing for sophisticated features like serverless scaling and advanced traffic management.

By integrating KServe with MLflow and AWS S3, organization can build a cohesive MLOps pipeline where models transition seamlessly from training to high-performance inference.

Key Takeaways

  • Standardization: The V2 Inference Protocol ensures a consistent API for all models.

  • Separation of Concerns: KServe handles infrastructure (scaling, routing), while data scientists focus on model logic.

  • Efficiency: Standard mode (RawDeployment) provides a lightweight alternative to Knative for teams starting their MLOps journey.

References
