Kaniko Tutorial - Using S3 for Docker Context Storage

Introduction

This guide is the third part of the Kaniko tutorial series. It demonstrates how to build a Docker image using a Docker context stored in AWS S3 and push the resulting image to Amazon ECR using Kaniko in a Kubernetes environment.

What you will learn

Create and configure an S3 bucket
Package and upload the Docker context as a .tar.gz archive
Create a Kubernetes ConfigMap for the Dockerfile
Set up a Kubernetes Secret for AWS credentials
Use Terraform to create and configure an IAM role for Kaniko
Define and deploy the Kaniko pod manifest
Build and push Docker images securely to ECR

Prerequisites

Ensure you have the following:

An active Kubernetes cluster
kubectl installed and configured
An Amazon ECR (or Docker Hub) account
AWS CLI installed and authenticated
Terraform installed

Step 1: Kubernetes Setup

Create a Namespace

Create the kaniko namespace if it does not exist:

$ kubectl get namesapce kaniko &> /dev/null || kubectl create namespace kaniko

Create a ConfigMap for the Dockerfile

$ kubectl -n kaniko create configmap service-foundry-builder-dockerfile \
  --from-file=docker-context/Dockerfile \
  --dry-run=client -o yaml \
  | yq eval 'del(.metadata.creationTimestamp)' \
  > service-foundry-builder-dockerfile-configmap.yaml


# Apply the manifest

$ kubectl apply -f service-foundry-builder-dockerfile-configmap.yaml

Create a Secret for AWS Credentials

Set environment variables:

$ export AWS_ACCESS_KEY_ID=your-aws-access-key-id
$ export AWS_ACCOUNT_ID=your-aws-account-id
$ export AWS_SECRET_ACCESS_KEY=your-aws-secret-access-key
$ export AWS_REGION=your-aws-region

Create the Kubernetes secret:

$ kubectl -n kaniko create secret generic aws-secret \
  --from-literal=AWS_ACCESS_KEY_ID=$AWS_ACCESS_KEY_ID \
  --from-literal=AWS_ACCOUNT_ID=$AWS_ACCOUNT_ID \
  --from-literal=AWS_SECRET_ACCESS_KEY=$AWS_SECRET_ACCESS_KEY \
  --from-literal=AWS_REGION=$AWS_REGION

Step 2: Prepare Docker Context on S3

Set environment variables for your S3 bucket:

Prepare environment variables for S3 bucket name and region:

$ S3_BUCKET=your-s3-bucket-name
$ S3_REGION=your-s3-region

Create an S3 Bucket

$ aws s3 mb s3://$S3_BUCKET --region $S3_REGION

# Output:

Package Docker Context

Create a .tar.gz archive of your Docker context:

$ tar -czf service-foundry-builder.tar.gz -C docker-context .

Upload the archive to S3

$ aws s3 cp service-foundry-builder.tar.gz s3://$S3_BUCKET/docker-context/service-foundry-builder.tar.gz --region $S3_REGION

Step 3: Configure IAM with Terraform

Use Terraform to configure IAM permissions for the Kaniko pod.

Required IAM Policies

EC2InstanceProfileForImageBuilderECRContainerBuilds: for pushing images to ECR.
AmazonS3ReadOnlyAccess: for reading the Docker context from S3

Terraform Configuration

kaniko-irsa.tf

This Terraform file will create an IAM role for the Kaniko pod and attach the necessary policies. The role will be assigned to the Kubernetes service account used by the Kaniko pod.

terraform-irsa.tf - Providers

provider "aws" {
  region = var.aws_region
}

provider "kubernetes" {
  config_path = "~/.kube/config"
}

terraform-irsa.tf - Data Sources

# Get AWS and EKS context
data "aws_caller_identity" "current" {}

data "aws_eks_cluster" "cluster" {
  name = var.eks_cluster_name
}

data "aws_eks_cluster_auth" "cluster" {
  name = data.aws_eks_cluster.cluster.name
}

terraform-irsa.tf - IAM Role for IRSA

# Create IAM Role for IRSA
resource "aws_iam_role" "kaniko_irsa_role" {
  name = "kaniko-irsa-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17",
    Statement = [
      {
        Effect = "Allow",
        Principal = {
          Federated = "arn:aws:iam::${data.aws_caller_identity.current.account_id}:oidc-provider/${replace(data.aws_eks_cluster.cluster.identity[0].oidc[0].issuer, "https://", "")}"
        },
        Action = "sts:AssumeRoleWithWebIdentity",
        Condition = {
          StringEquals = {
            "${replace(data.aws_eks_cluster.cluster.identity[0].oidc[0].issuer, "https://", "")}:sub" = "system:serviceaccount:${var.namespace}:kaniko-builder-sa"
          }
        }
      }
    ]
  })
}

kaniko-irsa.tf - Attach IAM Policy to Role

# Attach the policy to the role
resource "aws_iam_role_policy_attachment" "ecr_push" {
  role       = aws_iam_role.kaniko_irsa_role.name
  policy_arn = "arn:aws:iam::aws:policy/EC2InstanceProfileForImageBuilderECRContainerBuilds"
}

resource "aws_iam_role_policy_attachment" "s3_access" {
  role       = aws_iam_role.kaniko_irsa_role.name
  policy_arn = "arn:aws:iam::aws:policy/AmazonS3ReadOnlyAccess"
}

kaniko-irsa.tf - Create Kubernetes Service Account and assign IAM role

# Create Kubernetes service account annotated with IRSA role
resource "kubernetes_service_account" "kaniko_sa" {
  metadata {
    name      = "kaniko-builder-sa"
    namespace = var.namespace
    annotations = {
      "eks.amazonaws.com/role-arn" = aws_iam_role.kaniko_irsa_role.arn
    }
  }
}

terraform.tfvars

All the variables are defined in the variables.tf file.

terraform.tfvars

variable "aws_region" {
  description = "AWS region where EKS is deployed"
  type        = string
}

variable "eks_cluster_name" {
  description = "EKS cluster name"
  type        = string
}

variable "namespace" {
  description = "Kubernetes namespace where Kaniko runs"
  type        = string
  default     = "kaniko"
}

terraform.tfvars

Use your AWS region and EKS cluster name in the terraform.tfvars file.

terraform.tfvars

aws_region       = "your-aws-region"
eks_cluster_name = "your-eks-cluster-name"
namespace        = "kaniko"

Apply Terraform Configuration

Create an IAM role for the Kaniko pod using Terraform.

$ cd terraform
$ terraform init
$ terraform plan
$ terraform apply -auto-approve

Step 4: Deploy Kaniko Pod

Create a Kaniko Pod Manifest

service-foundry-builder-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  generateName: service-foundry-builder-
  namespace: kaniko
spec:
  # service account with permissions to push to ECR
  #(1)
  serviceAccountName: kaniko-builder-sa

  initContainers:
    #(2)
    - name: create-ecr-repo
      image: amazonlinux
      command: ["/bin/sh", "-c"]
      args:
        - |
          yum install -y aws-cli && \
          echo "Checking or creating ECR repository..." && \
          aws ecr describe-repositories --region ca-west-1 --repository-names service-foundry-builder || \
          aws ecr create-repository --region ca-west-1 --repository-name service-foundry-builder
      envFrom:
        - secretRef:
            name: aws-secret
    #(3)
    - name: setup-ecr-auth
      image: amazonlinux
      command: [ "/bin/sh", "-c" ]

      args:
        - |
          yum install -y aws-cli docker && \
          mkdir -p /kaniko/.docker && \
          aws ecr get-login-password --region ca-west-1 \
            | docker login --username AWS \
                          --password-stdin 123456789012.dkr.ecr.ca-west-1.amazonaws.com && \
          cp ~/.docker/config.json /kaniko/.docker/config.json
      volumeMounts:
        - name: docker-config
          mountPath: /kaniko/.docker

      envFrom:
        - secretRef:
            name: aws-secret

  containers:
    - name: kaniko
      image: gcr.io/kaniko-project/executor:latest
      #(4)
      args: [
        "--dockerfile=/workspace/Dockerfile",
        "--context=s3://your-s3-bucket-name/docker-context/service-foundry-builder.tar.gz",
        "--destination=123456789012.dkr.ecr.ca-west-1.amazonaws.com/service-foundry-builder",
        "--build-arg=TARGETARCH=amd64"
      ]

      envFrom:
        - secretRef:
            name: aws-secret

      volumeMounts:
        - name: dockerfile-storage
          mountPath: /workspace
        - name: docker-config
          mountPath: /kaniko/.docker


  restartPolicy: Never

  #(5)
  volumes:
    - name: dockerfile-storage
      configMap:
        name: service-foundry-builder-dockerfile
    - name: docker-config
      emptyDir: {}

1	The service account with permissions to push to ECR.
2	The init container that creates the ECR repository if it doesn’t exist.
3	The init container that sets up the ECR authentication.
4	The Kaniko executor image. This image is used to build the Docker image.
5	The volume that stores the Dockerfile.

Deploy the Kaniko Pod

The Kaniko pod manifest is created. You can check the pod manifest using the following command:

$ kubectl create -f service-foundry-builder-pod.yaml

Confirm the Image Push

As the result of the Kaniko pod, the Docker image is built and pushed to ECR. Check the logs to verify the image was built and pushed to ECR successfully.

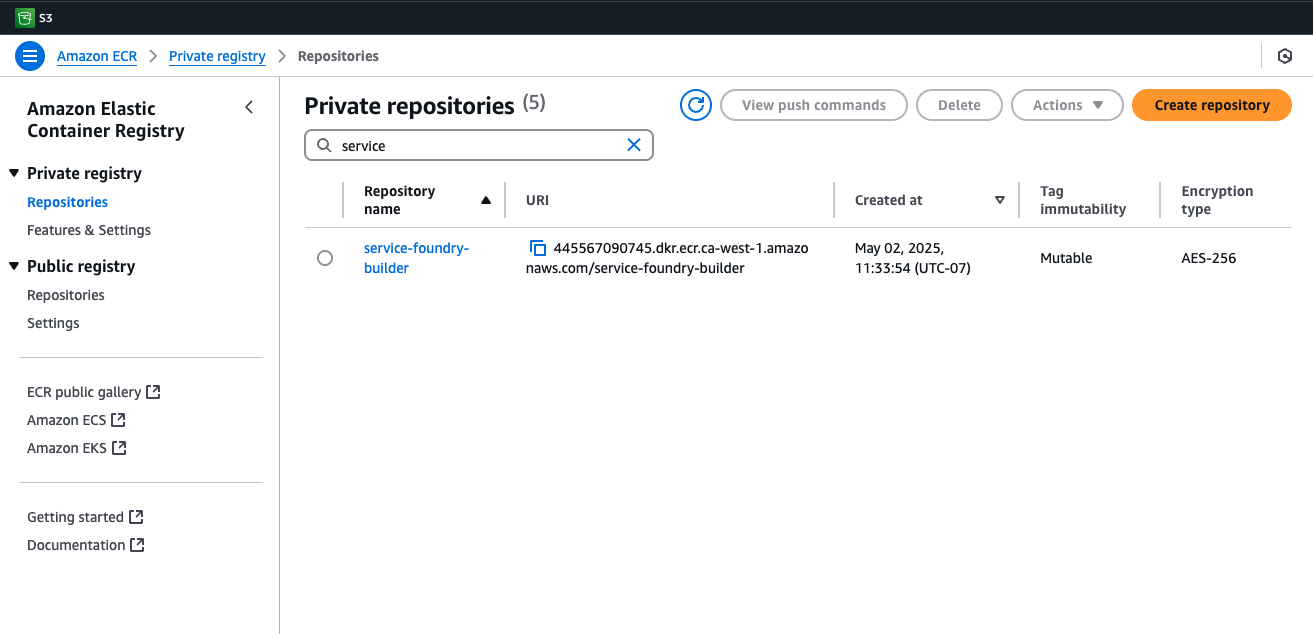

Figure 1. ecr-repository - service-foundry-builder

Run the Built Image

Test the newly built Docker image:

$ kubectl -n kaniko run -it --rm kaniko-python-app \
  --image=123456789012.dkr.ecr.ca-west-1.amazonaws.com/service-foundry-builder \
  --restart=Never

Conclusion

You’ve successfully built a Docker image using Kaniko in a Kubernetes cluster, stored the Docker context in an S3 bucket, and pushed the image to Amazon ECR. This approach provides a scalable, secure, and Docker-daemon-free solution for container image builds in cloud-native environments.
