Implementing GitOps with Argo CD on Kubernetes

Introduction

This guide walks through the process of installing Argo CD on a Kubernetes cluster using Helm. It covers installation, basic configuration, and how to define and manage Argo CD applications using both Kustomize and Helm charts. Argo CD is a powerful, Kubernetes-native GitOps tool that enables declarative, version-controlled, and automated deployment of applications by continuously syncing Kubernetes clusters to the desired state defined in a Git repository.

While this tutorial uses Docker Desktop with Kubernetes enabled for demonstration, the same approach can be applied to any Kubernetes environment.

What is Argo CD?

Argo CD is a declarative continuous delivery tool purpose-built for Kubernetes. It follows the GitOps model, where the desired state of applications is stored in Git and automatically applied to Kubernetes clusters. It provides a rich UI, CLI, and API for managing and monitoring deployments.

Key Benefits

Declarative GitOps: Use Git to define and manage application state with version control.
Automated Synchronization: Continuously sync your cluster to reflect the latest Git commit.
Rollback Support: Roll back to a previous working version using Git history.
Multi-Cluster Management: Control multiple clusters from a single Argo CD installation.

Installing Argo CD using Helm

Add the Argo CD Helm Repository

Add the Argo CD Helm repository to your local Helm client:

$ helm repo add argo https://argoproj.github.io/argo-helm
$ helm repo update

Search Available Chart Versions

$ helm search repo argo-cd

Sample output:

NAME            CHART VERSION   APP VERSION     DESCRIPTION
argo/argo-cd    8.1.2           v3.0.6          A Helm chart for Argo CD, a declarative, GitOps...

Pull the Helm Chart

$ helm pull argo/argo-cd

This downloads argo-cd-8.1.2.tgz to your current directory.

Get Default Values

$ helm show values argo/argo-cd > argo-cd-values-8.1.2.yaml

Define Custom Values

custom-argo-cd-values-8.1.2.yaml

# To access the Argo CD UI, you can use NodePort or Ingress.
server:
  service:
    type: NodePort

Install with Custom Values

Run the following command to install Argo CD using the custom values file. This command will create a new namespace called argocd and install Argo CD in that namespace.

$ helm install argocd argo/argo-cd \
  --namespace argocd --create-namespace \
  --version 8.1.2 \
  -f custom-argo-cd-values-8.1.2.yaml

Use argocd as the release name to avoid long service name prefixes.

Release name is overridden by the nameOverride value in the values.yaml file. The default value is argocd, but you can change it to argo-cd or any other name. .values.yaml

# -- Provide a name in place of `argocd`
nameOverride: argocd

when using 'argocd': argocd- prefix is used for the service name.
when using 'argo-cd': argo-cd-argocd- prefix is used for the service name.

Accessing Argo CD

Use NodePort or Ingress. If Ingress is not enabled, use port-forwarding or visit the NodePort directly.

$ kubectl -n argocd get service argocd-server

# Sample output:
NAME            TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)                      AGE
argocd-server   NodePort   10.98.159.55   <none>        80:30080/TCP,443:30443/TCP   24h

Navigate to:

http://localhost:30080

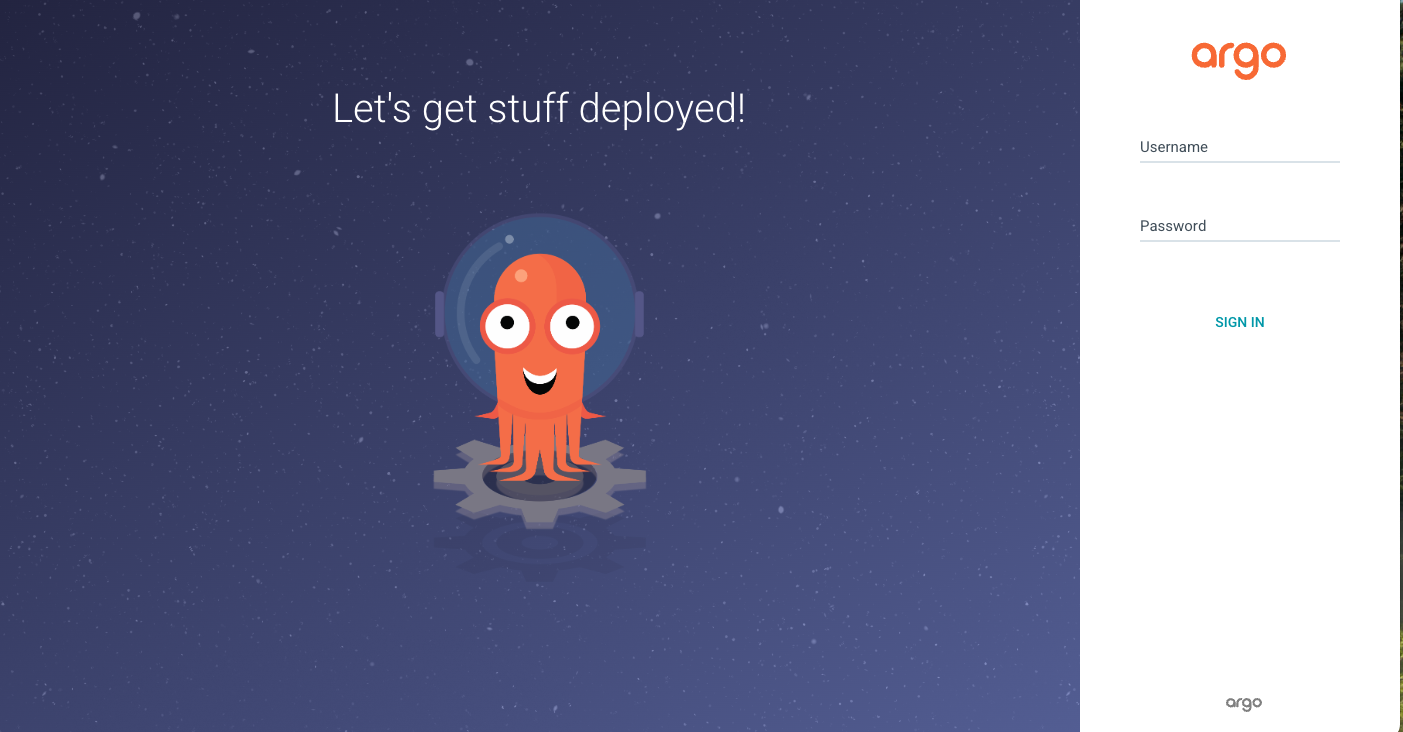

Figure 1. Argo CD Login Page

Username: admin
Password: Retrieve it using:

$ ARGOCD_PASSWORD=$(kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d)

Argo CD CLI

Install using Homebrew:

$ brew install argocd

To log in to Argo CD using the CLI, you need the initial admin password and the NodePort or LoadBalancer IP address. If you are using a LoadBalancer, you can retrieve the hostname or IP address of the Argo CD server service.

$ ARGOCD_PASSWORD=$(kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d)
$ ARGOCD_NODE_PORT=$(kubectl -n argocd get service argocd-server -o jsonpath='{.spec.ports[?(@.name=="http")].nodePort}')
$  argocd login localhost:$ARGOCD_NODE_PORT --username admin --password $ARGOCD_PASSWORD --insecure

Sample output:

'admin:login' logged in successfully
Context 'localhost:32724' updated

Argo CD Logout

$ argocd logout $ARGOCD_IP:$ARGOCD_NODE_PORT

Creating Applications

Argo CD supports both Kustomize and Helm-based deployments. The Service Foundry Generator outputs ready-to-deploy manifests and charts.

Example Directory Structures

Kustomize:

$ tree k8s

k8s
├── keycloak
│   ├── keycloak-credentials-secret.yaml
│   ├── keycloak-namespace.yaml
│   ├── keycloak-postgresql-credentials-secret.yaml
│   └── kustomization.yaml
├── otel-operator
│   ├── kustomization.yaml
│   ├── opentelemetry-operator-0.127.0.yaml
│   └── opentelemetry-operator.yaml
└── prometheus-operator
    ├── bundle.yaml
    ├── kustomization.yaml
    ├── prometheus-operator-bundle-v0.81.0.yaml
    ├── prometheus-operator-bundle-v0.82.0.yaml
    └── prometheus-operator-bundle-v0.83.0.yaml

Helm Charts:

$ tree helm-charts

helm-charts
├── argo-workflows
│   ├── argo-workflows-0.45.19.tgz
│   └── custom-values-0.45.19.yaml
├── argocd
│   ├── argo-cd-8.1.2.tgz
│   └── custom-values-8.1.2.yaml
├── cert-manager
│   ├── cert-manager-v1.17.1.tgz
│   ├── cert-manager-v1.17.2.tgz
│   ├── custom-values-v1.17.1.yaml
│   └── custom-values-v1.17.2.yaml
├── keycloak
│   ├── custom-values-24.4.13.yaml
│   ├── custom-values.yaml
│   └── keycloak-24.4.13.tgz
└── traefik
    ├── custom-values-34.4.1.yaml
    ├── custom-values.yaml
    └── traefik-34.4.1.tgz

All these files generated by the Service Foundry Generator are used to create Argo CD applications. I restructured the directory structure to make it easier to manage the Kubernetes manifests files and Helm charts.

$ tree -d -L 4 argocd

argocd
└── apps
    ├── cert-manager
    │   └── helm
    │       └── cert-manager
    ├── keycloak
    │   ├── helm
    │   │   └── keycloak
    │   └── kustomize
    ├── otel-operator
    │   └── kustomize
    ├── prometheus-operator
    │   └── kustomize
    └── traefik
        └── helm
            └── traefik

The apps directory will be saved in a Git repository, and you can use it to create Argo CD applications.

In the apps directory, you can find the following subdirectories:

cert-manager: need helm chart to install cert-manager.
keycloak: need both kustomize and helm chart to install keycloak.
otel-operator: need kustomize to install OpenTelemetry Operator.
prometheus-operator: need kustomize to install Prometheus Operator.
traefik: need helm chart to install Traefik.

Subdirectories under each application:

kustomize: contains the kustomization files to deploy the application using Kustomize.
helm/{release-name}: contains the Helm chart files and custom values to deploy the application using Helm.

Defining Argo CD Applications

Kustomize Example

apps/otel-operator/otel-operator-kustomize-app.yaml

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: otel-operator-kustomize-app
  namespace: argocd
spec:
  #(1)
  destination:
    namespace: opentelemetry-operator-system
    name: in-cluster
  syncPolicy:
    automated: {}
    syncOptions:
      - CreateNamespace=true

  project: service-foundry

  #(2)
  source:
    repoURL: git@github.com:nsalexamy/argo-cd-example.git
    path: apps/otel-operator/kustomize/
    targetRevision: HEAD

1	Specify the destination namespace and cluster where the application will be deployed.
2	Specify the Git repository and path where the kustomization files are located.

Helm (Git Repository) Example

For Helm chart applications, you can create an Argo CD application that uses a Helm chart stored in a Git repository.

With this approach, the values file is managed in the Git repository, and all changes to the values file will be tracked in Git. This is useful for managing different environments or configurations.

apps/cert-manager/cert-manager-helm-chart-app.yaml

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: keycloak-helm-app
  namespace: argocd

spec:
  destination:
    namespace: cert-manager
    name: in-cluster
  project: service-foundry
  source:
    repoURL: git@github.com:nsalexamy/argo-cd-example.git
    #(1)
    targetRevision: HEAD
    path: apps/cert-manager/helm/cert-manager
    helm:
      #(2)
      releaseName: cert-manager
      #(3)
      valueFiles:
        - custom-values-v1.17.2.yaml

1	This revision can be a branch of the Git repository, such as `HEAD`, `main`, or a specific commit SHA.
2	Specify the Helm release name. Without this, Argo CD name is used as the release name.
3	Specify the custom values file to use with the Helm chart. The location of the custom values file is relative to the path specified in the `source.path`.

Helm (Helm Repository) Example

For Helm chart applications, you can also create an Argo CD application that uses a Helm chart stored in a Helm repository.

With this approach, the contents of values is saved in the Argo CD application spec, which is NOT part of the Git repository. To update the values, you need to update the Argo CD application spec directly.

apps/cert-manager/cert-manager-helm-chart-app.yaml

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: cert-manager-chart-app
  namespace: argocd

spec:
  destination:
    namespace: cert-manager
    #server: https://kubernetes.default.svc
    name: in-cluster
  project: service-foundry
  source:
    #(1)
    repoURL: https://charts.jetstack.io
    #(2)
    chart: cert-manager
    #(3)
    targetRevision: v1.17.2

    helm:
      #(4)
      values: |
        crds:
          enabled: true

1	Specify the Helm repository URL.
2	Specify the Helm chart name.
3	Specify the Helm chart version. This can be a specific version or a branch name.
4	Specify the custom values for the Helm chart. This is a YAML block that contains the values to be used with the Helm chart.

For better version control, prefer Git-based Helm deployments over inlined values.

Creating Applications via CLI or kubectl

Using Argo CD CLI:

$ argocd app create -f cert-manager/apps/cert-manager-config-prep-app.yaml

Using kubectl:

$ kubectl apply -f cert-manager/apps/cert-manager-helm-chart-app.yaml

Viewing Application Specs

After creating an application, you can get the application spec using the following command:


$ argocd app get argocd/traefik-chart-app -o yaml | yq e '{"spec": .spec, "metadata": {"name": .metadata.name, "namespace": .metadata.namespace}}' -P

Register Git Repository

You can add a GitHub repository to Argo CD to manage your applications. This allows you to use GitOps practices to manage your Kubernetes applications.

$ argocd repo add git@github.com:your-org/your-repo.git \
  --ssh-private-key-path ~/.ssh/argo_cd_key \
  --project project-name \
  --name my-github-repo

Add the public key to GitHub

Then add the SSH public key as a Deploy Key in your GitHub repository.

Go to GitHub:

Repo → Settings → Deploy keys → Add deploy key
Title: argo-cd
Paste the public key
Check Allow write access if needed

Argo CD UI

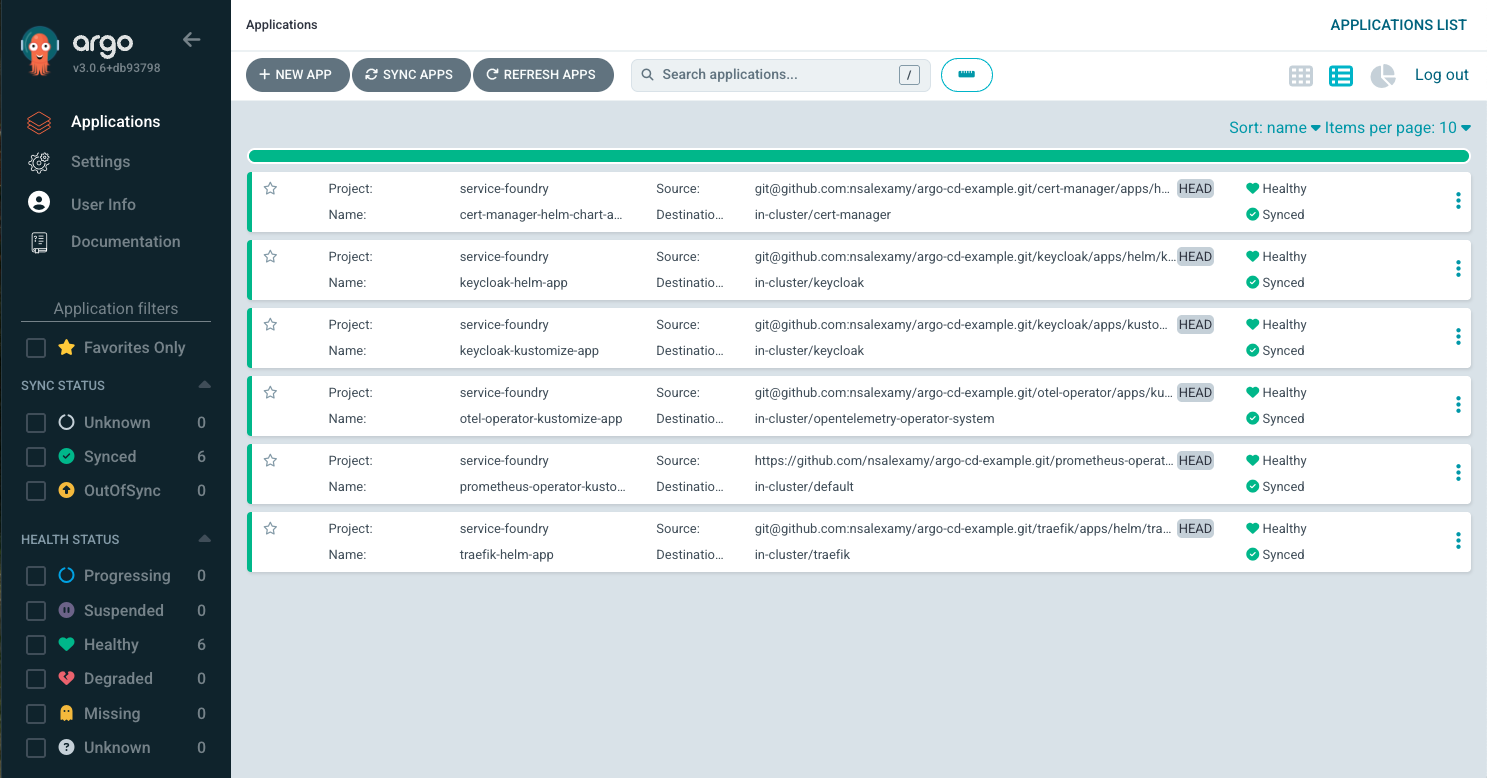

Figure 2. ArgoCD UI - Applications

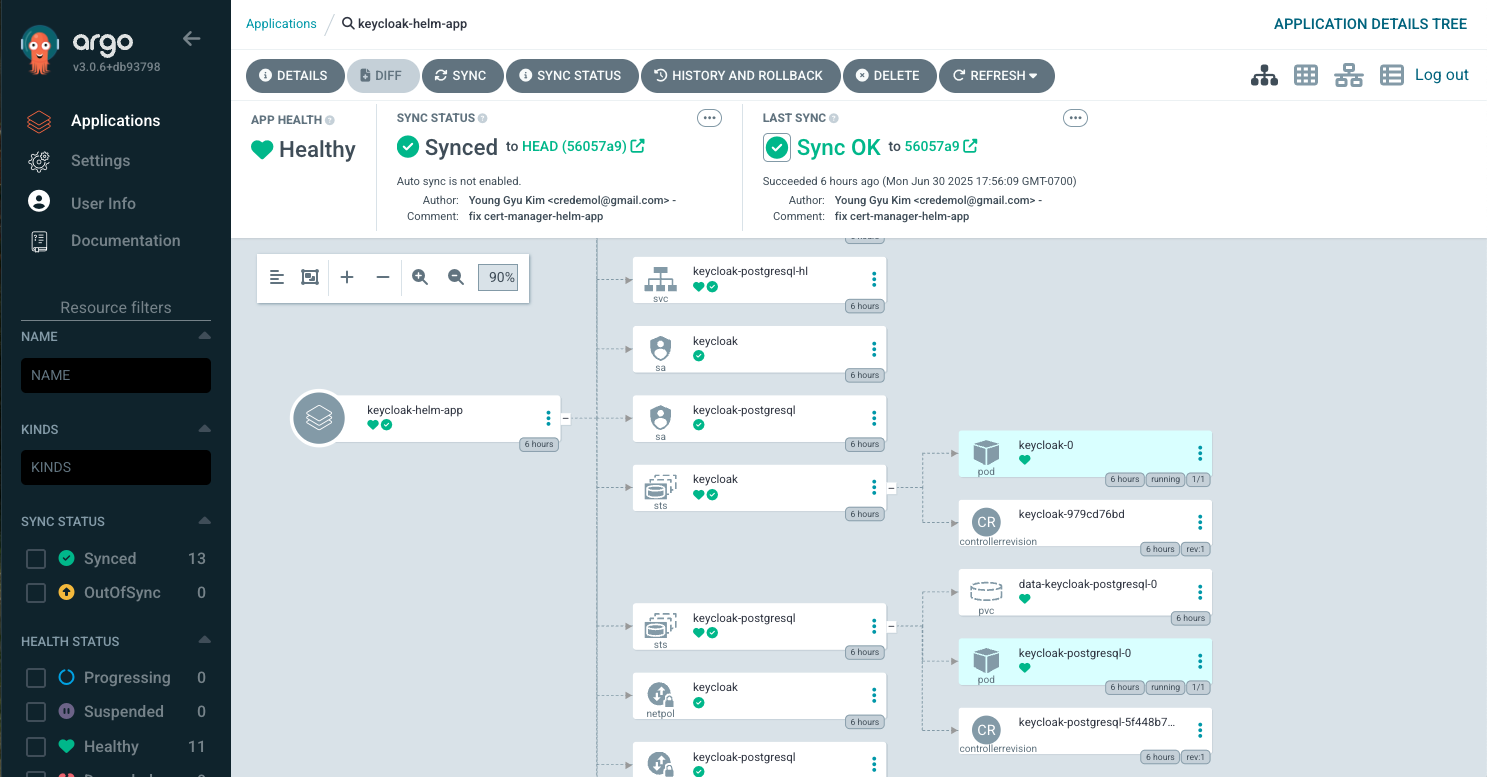

Figure 3. ArgoCD UI - Application Details Tree

Conclusion

Argo CD provides a robust and scalable GitOps solution for Kubernetes. In this guide, we installed Argo CD using Helm, configured access, and demonstrated how to create applications with both Kustomize and Helm. We also covered best practices for organizing repositories and automating deployments using the Argo CD CLI and UI.
