Cross-Namespace Middleware Reference with Traefik for IngressRoute and HTTPRoute

Introduction

YouTube Tutorial: https://youtu.be/r3zaaSM7KAE
📘 Web version: https://nsalexamy.github.io/service-foundry/pages/documents/blog/traefik-cross-namespace/

In Kubernetes, namespace isolation is a fundamental security principle. By default, resources in one namespace cannot directly reference resources in another namespace without explicit permission. This design prevents accidental or malicious cross-namespace access and helps maintain clear boundaries between teams and applications.

However, when working with Traefik as your ingress controller or Gateway API implementation, you may encounter scenarios where you need to share middleware across multiple namespaces. For example, you might have a centralized authentication middleware that should be used by applications in different namespaces.

This presents a challenge: Traefik respects Kubernetes security boundaries and does not allow cross-namespace middleware references by default. Additionally, the Gateway API’s ExtensionRef type (used in HTTPRoute to reference Traefik middleware) has a limitation—it uses LocalObjectReference, which does not include a namespace field.

Understanding LocalObjectReference

The Gateway API specification defines LocalObjectReference with only three fields:

group: The API group of the referent (e.g., "traefik.io")
kind: The resource type (e.g., "Middleware")
name: The name of the resource

Notice what’s missing: there is no namespace field. This means that when you reference a middleware from an HTTPRoute using ExtensionRef, you can only reference middleware in the same namespace as the HTTPRoute itself.

For more details, refer to the Gateway API LocalObjectReference specification.

In this article, we will demonstrate how to overcome this limitation by:

Enabling global cross-namespace support in Traefik
Using direct namespace references in IngressRoute
Leveraging the Chain middleware pattern for HTTPRoute

The Problem: Middleware Duplication

Our Use Case

Our platform team maintains a centralized Single Sign-On (SSO) solution using OAuth2 Proxy and Keycloak. We use Traefik’s forwardAuth middleware to protect applications and third-party services (like Grafana, Argo Rollouts, and Jaeger) that don’t natively support SSO.

We have defined a reusable forward-auth middleware in the service-foundry namespace:

forward-auth-middleware.yaml in service-foundry namespace

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: forward-auth
  namespace: service-foundry
spec:
  forwardAuth:
    address: http://oauth2-proxy.service-foundry.svc.cluster.local/oauth2/ (1)
    trustForwardHeader: true (2)
    authResponseHeaders: (3)
      - "X-Auth-Request-User"
      - "X-Auth-Request-Email"
      - "Authorization"

1	Forward Auth Address: Points to our OAuth2 Proxy service. All authentication requests are delegated to this endpoint.
2	Trust Forward Header: Allows Traefik to trust the authentication headers returned by OAuth2 Proxy.
3	Auth Response Headers: These headers are passed from OAuth2 Proxy to the backend application, providing user identity information.

The Duplication Problem

Without cross-namespace support, when we want to protect the Argo Rollouts dashboard (running in the argo-rollouts namespace), we face two options:

Duplicate the middleware: Copy the entire forward-auth middleware definition into the argo-rollouts namespace
Accept the limitation: Only use middleware defined locally in each namespace

Option 1 leads to maintenance nightmares:

Multiple copies of the same configuration across namespaces
Inconsistent behavior if one copy is updated but others are not
Increased risk of configuration drift and errors
Violation of the DRY (Don’t Repeat Yourself) principle

This is clearly not sustainable for a production environment.

Solution Overview

To enable cross-namespace middleware sharing in Traefik, we’ll implement a three-part solution:

Enable Global Cross-Namespace Support: Configure Traefik to allow cross-namespace middleware references at the controller level
Direct Namespace Reference in IngressRoute: Use Traefik’s native namespace property in IngressRoute middleware references
Chain Middleware Pattern for HTTPRoute: Work around the LocalObjectReference limitation by creating a local "delegate" middleware that chains to the remote middleware

Let’s explore each approach in detail.

Step 1: Enable Global Cross-Namespace Support

The first step is to enable cross-namespace middleware references in Traefik’s configuration. This is a global setting that affects all IngressRoute and middleware chain references.

Configuration

In your Traefik Helm chart values (or ArgoCD Application), you need to set the allowCrossNamespace flag:

custom-values.yaml

experimental:
  kubernetesGateway:
    enabled: true (1)

providers:
  kubernetesGateway:
    enabled: true (1)

  kubernetesCRD:
    allowCrossNamespace: true (2)

gateway:
  listeners:
    web:
      port: 80
      namespacePolicy: (3)
        from: All

1	Gateway API Support: Enables Traefik’s Gateway API provider, allowing you to use `HTTPRoute` and other Gateway API resources.
2	Allow Cross-Namespace: This is the critical setting. When set to `true`, Traefik will allow `IngressRoute` resources and middleware chains to reference middleware in other namespaces. Security Note: This is a cluster-wide setting. Ensure you have proper RBAC policies in place to control who can create middleware in shared namespaces.
3	Namespace Policy: Allows `HTTPRoute` resources from any namespace to bind to this Gateway. This is separate from middleware cross-namespace support but is often needed in multi-tenant environments.

Security Considerations

Enabling allowCrossNamespace: true has security implications:

Positive: Reduces configuration duplication and ensures consistency
Risk: A malicious or misconfigured middleware in one namespace could potentially affect routes in other namespaces

Best Practices:

Use RBAC to restrict who can create/modify middleware in shared namespaces (like service-foundry)
Treat shared middleware namespaces as "platform" namespaces with strict access controls
Regularly audit middleware configurations
Consider using admission controllers (like OPA Gatekeeper) to enforce middleware naming conventions and policies

Step 2: Using Cross-Namespace Middleware in IngressRoute

IngressRoute is Traefik’s native Custom Resource Definition (CRD) for defining routing rules. Unlike the Gateway API’s HTTPRoute, IngressRoute has built-in support for cross-namespace middleware references through an explicit namespace property.

How It Works

Once you’ve enabled allowCrossNamespace: true in Traefik’s configuration, you can reference middleware from any namespace by specifying both the name and namespace fields in your middleware reference.

Example: Argo Rollouts Dashboard

Let’s protect the Argo Rollouts dashboard using the centralized forward-auth middleware from the service-foundry namespace:

argo-rollouts-ingressroute.yaml

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: argo-rollouts-ingressroute
  namespace: argo-rollouts (1)
spec:
  entryPoints:
    - web (2)
    - websecure (2)

  routes:
    # Dashboard UI Route
    - match: Host(`argo-rollouts.servicefoundry.org`) && PathPrefix(`/rollouts`) (3)
      kind: Rule
      services:
        - name: argo-rollouts-dashboard
          port: 3100
      middlewares:
        - name: forward-auth (4)
          namespace: service-foundry (5)

    # API Route
    - match: Host(`argo-rollouts.servicefoundry.org`) && PathPrefix(`/api`)
      kind: Rule
      services:
        - name: argo-rollouts-dashboard
          port: 3100
      middlewares:
        - name: forward-auth
          namespace: service-foundry

    # Root Redirect
    - match: Host(`argo-rollouts.servicefoundry.org`) && Path(`/`)
      kind: Rule
      services:
        - name: argo-rollouts-dashboard
          port: 3100
      middlewares:
        - name: argo-rollouts-redirect (6)

1	IngressRoute Namespace: This `IngressRoute` is defined in the `argo-rollouts` namespace
2	Entry Points: Accepts traffic on both HTTP (web) and HTTPS (websecure) ports
3	Routing Rule: Matches requests to `argo-rollouts.servicefoundry.org` with path `/rollouts`
4	Middleware Name: References the `forward-auth` middleware
5	Cross-Namespace Reference: The key difference—we explicitly specify `namespace: service-foundry` to reference middleware from a different namespace
6	Local Middleware: This middleware is defined locally in the `argo-rollouts` namespace, so no namespace field is needed

Key Benefits

No Duplication: We’re using the exact same forward-auth middleware across all namespaces
Centralized Management: Updates to the forward-auth middleware in service-foundry automatically apply to all routes using it
Clear Intent: The explicit namespace field makes it obvious that we’re using a shared resource

Step 3: Using Cross-Namespace Middleware in HTTPRoute

HTTPRoute is part of the Kubernetes Gateway API standard. Unlike IngressRoute, it uses ExtensionRef with LocalObjectReference to reference Traefik middleware, which does not include a namespace field.

While ReferenceGrant is the standard Gateway API mechanism for authorizing cross-namespace references (for Secrets, Services, etc.), Traefik has not yet extended ReferenceGrant support to cover ExtensionRef for Middlewares as of early 2026.

Since we cannot directly specify a namespace in HTTPRoute’s `ExtensionRef, we need a workaround: the Chain middleware pattern.

The Chain Middleware Pattern

Traefik’s Chain middleware allows you to combine multiple middlewares into a single, reusable unit. We can leverage this feature to create a "delegate" middleware in the local namespace that chains to the remote middleware.

Here’s how it works:

Create a Chain middleware in the argo-rollouts namespace
Configure it to reference the forward-auth middleware from service-foundry (using the namespace property, which Chain middleware supports)
Reference the local Chain middleware from the HTTPRoute (no namespace needed)

Creating the Delegate Middleware

In the argo-rollouts namespace, create a Chain middleware that delegates to the shared forward-auth middleware:

forward-auth-delegate.yaml (in argo-rollouts namespace)

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: forward-auth-delegate
  namespace: argo-rollouts (1)
spec:
  chain:
    middlewares:
      - name: forward-auth (2)
        namespace: service-foundry (3)

1	Local Namespace: This delegate middleware is created in the `argo-rollouts` namespace
2	Target Middleware: References the `forward-auth` middleware
3	Cross-Namespace Reference: The Chain middleware supports the `namespace` property, allowing us to reference middleware from `service-foundry`

This is a lightweight "pointer" to the real middleware. It contains no authentication logic itself—it simply delegates to the shared forward-auth middleware.

Using the Delegate in HTTPRoute

Now we can reference the local forward-auth-delegate middleware from our HTTPRoute:

argo-rollouts-httproute.yaml

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: argo-rollouts-httproute
  namespace: argo-rollouts (1)
spec:
  parentRefs: (2)
    - name: traefik-gateway
      namespace: traefik
  hostnames: (3)
    - argo-rollouts.servicefoundry.org
  rules:
    # Dashboard UI Route
    - matches:
      - path:
          type: PathPrefix
          value: /rollouts
      filters: (4)
        - type: ExtensionRef
          extensionRef:
            group: traefik.io
            kind: Middleware
            name: "forward-auth-delegate" (5)
      backendRefs:
      - name: argo-rollouts-dashboard
        group: ""
        kind: Service
        port: 3100
        weight: 1
    - matches:
      - path:
          type: PathPrefix
          value: /api
      filters:
        - type: ExtensionRef
          extensionRef:
            group: traefik.io
            kind: Middleware
            name: "forward-auth-delegate"
      backendRefs:
      - name: argo-rollouts-dashboard
        group: ""
        kind: Service
        port: 3100
        weight: 1
    - matches:
      - path:
          type: PathPrefix
          value: /
      filters:
        - type: ExtensionRef
          extensionRef:
            group: traefik.io
            kind: Middleware
            name: argo-rollouts-redirect (6)
      backendRefs:
      - name: argo-rollouts-dashboard
        kind: Service
        port: 3100

1	HTTPRoute Namespace: Defined in the `argo-rollouts` namespace
2	Parent Gateway: Binds to the `traefik-gateway` in the `traefik` namespace
3	Hostname Matching: Routes traffic for `argo-rollouts.servicefoundry.org`
4	Filters: The Gateway API term for middleware/transformations applied to requests
5	Local Reference: We reference `forward-auth-delegate`, which exists in the same namespace as the `HTTPRoute`. No namespace field needed (or allowed) in `ExtensionRef`
6	Direct Local Middleware: For middleware that’s truly local to this namespace, we reference it directly

Why This Works

The Chain middleware pattern creates an indirection layer:

HTTPRoute (argo-rollouts)
  └──> forward-auth-delegate (argo-rollouts) [Chain Middleware]
         └──> forward-auth (service-foundry) [ForwardAuth Middleware]

The HTTPRoute only sees a local middleware (forward-auth-delegate)
The Chain middleware uses Traefik’s native cross-namespace support to reference the remote middleware
The actual authentication logic remains centralized in service-foundry

Trade-offs

Pros:

Works with standard Gateway API HTTPRoute
Maintains centralized middleware logic
Clear separation of concerns

Cons:

Requires creating a delegate middleware in each namespace
Slightly more complex than direct reference (as in IngressRoute)
The delegate is namespace-specific boilerplate

Verification

Let’s verify that our cross-namespace middleware configuration is working correctly.

Testing the SSO Flow

Navigate to https://argo-rollouts.servicefoundry.org in your browser. If everything is configured correctly, you should be redirected to the Keycloak login page:

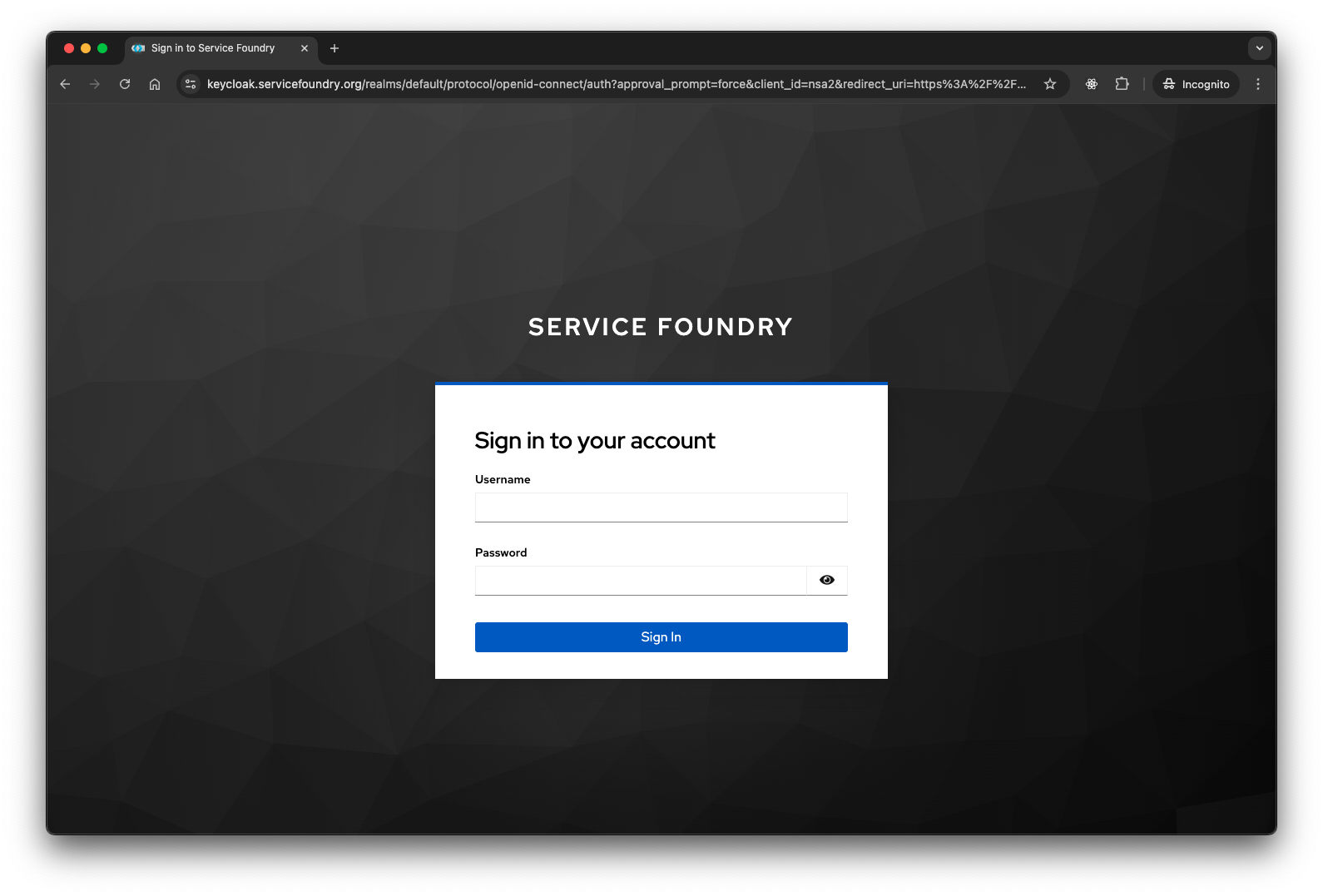

Figure 1. Keycloak Login Page (SSO)

This confirms that:

The HTTPRoute is routing traffic correctly
The forward-auth-delegate middleware is being applied
The Chain middleware is successfully delegating to the forward-auth middleware in service-foundry
OAuth2 Proxy is intercepting the request and redirecting to Keycloak

After successful authentication, you’ll see the Argo Rollouts dashboard:

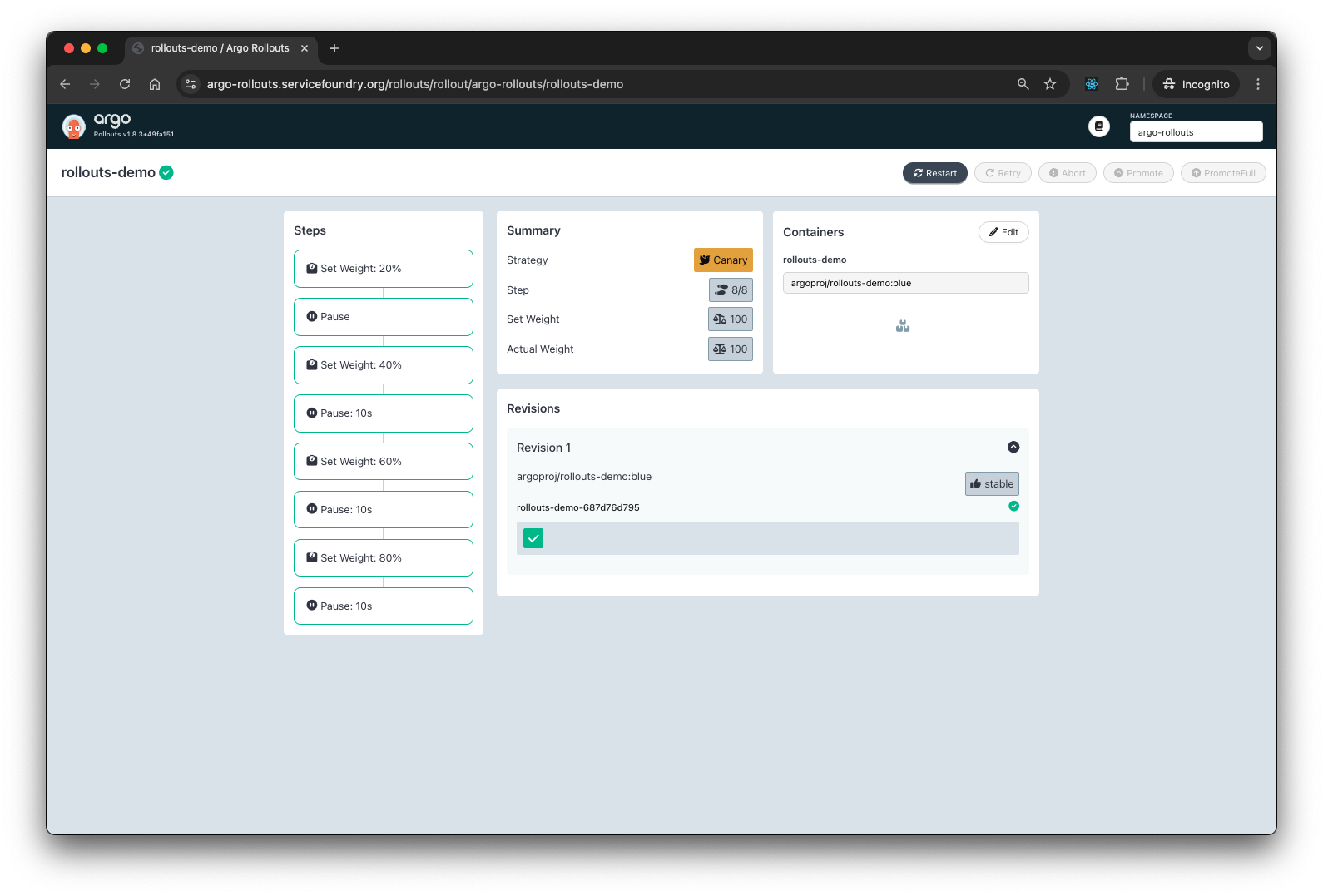

Figure 2. Argo Rollouts Dashboard

Success! The cross-namespace middleware is working as expected.

Summary

We’ve successfully implemented cross-namespace middleware sharing in Traefik using three complementary approaches:

Global Configuration: Enabled allowCrossNamespace: true in Traefik’s Helm values to permit cross-namespace middleware references
IngressRoute: Used direct namespace references via the namespace property in middleware references
HTTPRoute: Implemented the Chain middleware pattern to work around the LocalObjectReference limitation

Key Takeaways

Centralized Management: We eliminated middleware duplication by maintaining a single source of truth in the service-foundry namespace
Security: We discussed the importance of RBAC and access controls when enabling cross-namespace references
Standards Compliance: We used the Gateway API standard (HTTPRoute) while still leveraging Traefik-specific features
Flexibility: Teams can choose between IngressRoute (simpler) or HTTPRoute (standards-based) depending on their needs

Best Practices

Treat shared middleware namespaces as platform namespaces with strict access controls
Use descriptive names for delegate middlewares (e.g., forward-auth-delegate instead of just auth)
Document which middlewares are shared vs. namespace-specific
Regularly audit middleware configurations for security and consistency
Consider using GitOps (ArgoCD) to manage middleware configurations declaratively

By following this pattern, you can maintain clean, DRY configurations while respecting Kubernetes namespace boundaries and security principles.
