Introduction

YouTube Tutorial: Deploy Multi-Environment Apps with Kustomize, Helm & ArgoCD | GitOps Tutorial

In this article, we’ll explore how to combine two powerful Kubernetes tools—Kustomize and Helm—to manage your applications across multiple environments using GitOps principles with ArgoCD.

What We’ll Build

We’ll deploy the service-foundry-community Helm chart (which we created in the previous article) to three different environments using Kustomize overlays and ArgoCD. This chart contains:

  • A backend subchart (Go-based API server)

  • A frontend subchart (React application)

  • Traefik IngressRoute for routing traffic

The chart is stored in AWS ECR as an OCI artifact, and we’ll pull it locally for use with Kustomize.

What You’ll Learn

By the end of this guide, you’ll have:

  • Deployed the same application to three environments with different configurations

  • Set up environment-specific sealed secrets

  • Configured ArgoCD Applications for each environment

  • Used ArgoCD ApplicationSets to manage multiple environments efficiently

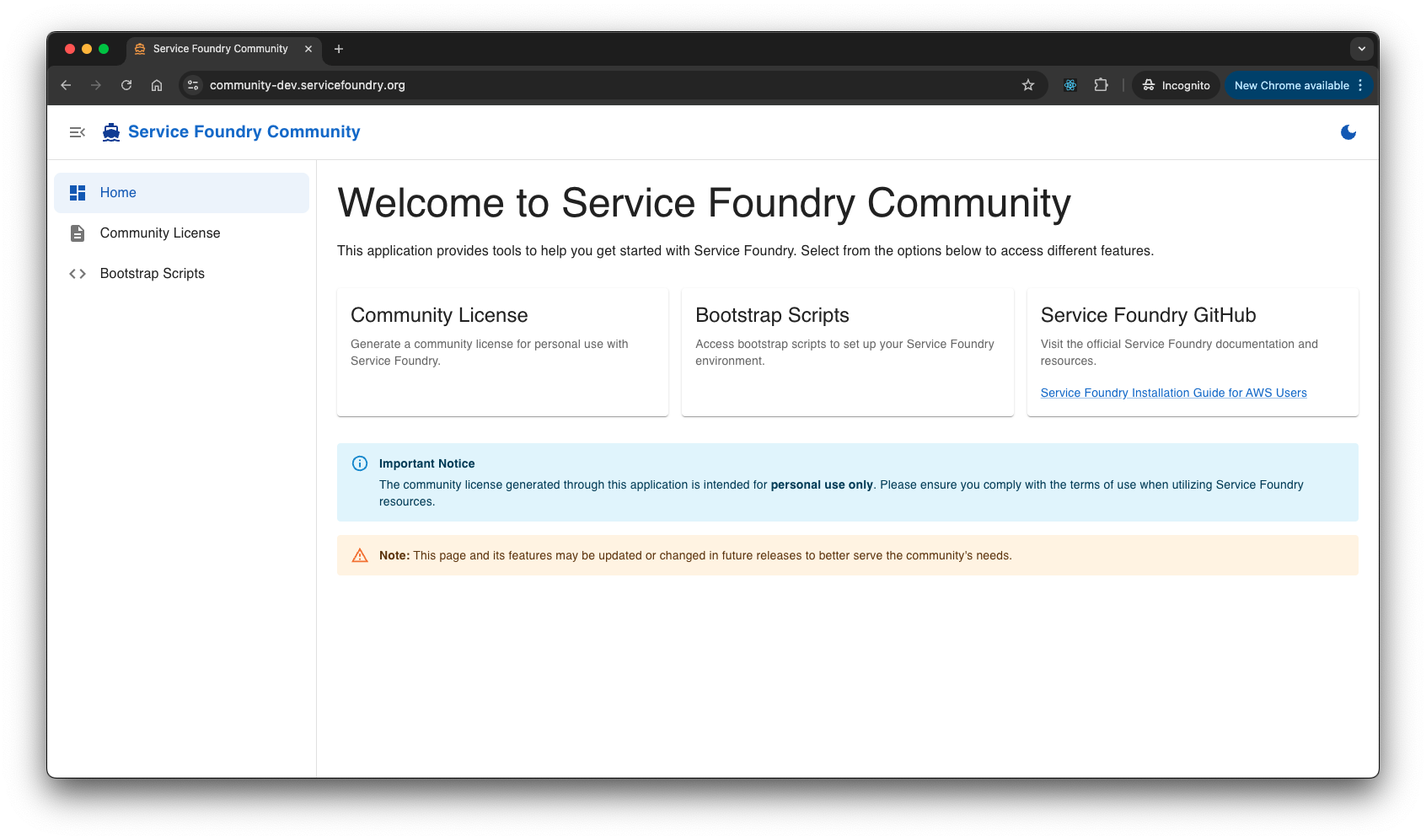

Your deployments will be accessible at:

Prerequisites

Before we begin, you should have:

  • A Kubernetes cluster with ArgoCD installed

  • AWS CLI configured with ECR access

  • Helm CLI installed

  • Basic understanding of Kubernetes, Helm, and Kustomize concepts

Understanding the Custom Helm Chart

Before diving into the Kustomize configuration, let’s quickly review the structure of our service-foundry-community chart.

Chart Structure

Here’s the complete directory tree:

$  tree service-foundry-community --dirsfirst
service-foundry-community
├── charts
│   ├── backend
│   │   ├── charts
│   │   ├── templates
│   │   │   ├── tests
│   │   │   │   └── test-connection.yaml
│   │   │   ├── _helpers.tpl
│   │   │   ├── deployment.yaml
│   │   │   ├── hpa.yaml
│   │   │   ├── ingress.yaml
│   │   │   ├── NOTES.txt
│   │   │   ├── secret.yaml
│   │   │   ├── service.yaml
│   │   │   └── serviceaccount.yaml
│   │   ├── Chart.yaml
│   │   └── values.yaml
│   └── frontend
│       ├── charts
│       ├── templates
│       │   ├── tests
│       │   │   └── test-connection.yaml
│       │   ├── _helpers.tpl
│       │   ├── configmap.yaml
│       │   ├── deployment.yaml
│       │   ├── hpa.yaml
│       │   ├── ingress.yaml
│       │   ├── NOTES.txt
│       │   ├── service.yaml
│       │   └── serviceaccount.yaml
│       ├── Chart.yaml
│       └── values.yaml
├── templates
│   ├── _helpers.tpl
│   ├── api-stripprefix-middleware.yaml
│   └── ingressroute.yaml
├── Chart.yaml
└── values.yaml

As you can see:

  • Backend and frontend subcharts live in the charts/ directory

  • Each subchart is a standard Helm chart with typical Kubernetes resources

  • The parent chart contains shared resources like the IngressRoute and middleware

Routing Configuration

The parent chart includes a Traefik IngressRoute that handles traffic routing:

ingressroute.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: {{ include "service-foundry-community.fullname" . }}-ingress-route
  namespace: {{ .Release.Namespace }}
spec:
  entryPoints:
    - web
    - websecure

  routes:

    - match: Host(`{{ .Values.host }}`) && PathPrefix(`/api`)
      kind: Rule
      services:
        - name: {{ include "service-foundry-community.backendFullname" . }}
          port: http
      middlewares:
        - name: api-stripprefix

    - match: Host(`{{ .Values.host }}`) && PathPrefix(`/`)
      kind: Rule
      services:
        - name: {{ include "service-foundry-community.frontendFullname" . }}
          port: http
      middlewares: []

This configuration:

  • Routes requests to /api/* to the backend service

  • Routes all other requests to the frontend service

  • Uses the api-stripprefix middleware to remove /api from backend requests

The middleware is defined as:

api-stripprefix-middleware.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: api-stripprefix
  namespace: {{ .Release.Namespace }}
spec:
  stripPrefix:
    prefixes:
      - /api

This strips the /api prefix from incoming requests so the backend receives clean paths (e.g., /api/health becomes /health).

For more details on how this chart was created, check out the video tutorial or the written guide.

GitOps Repository Structure

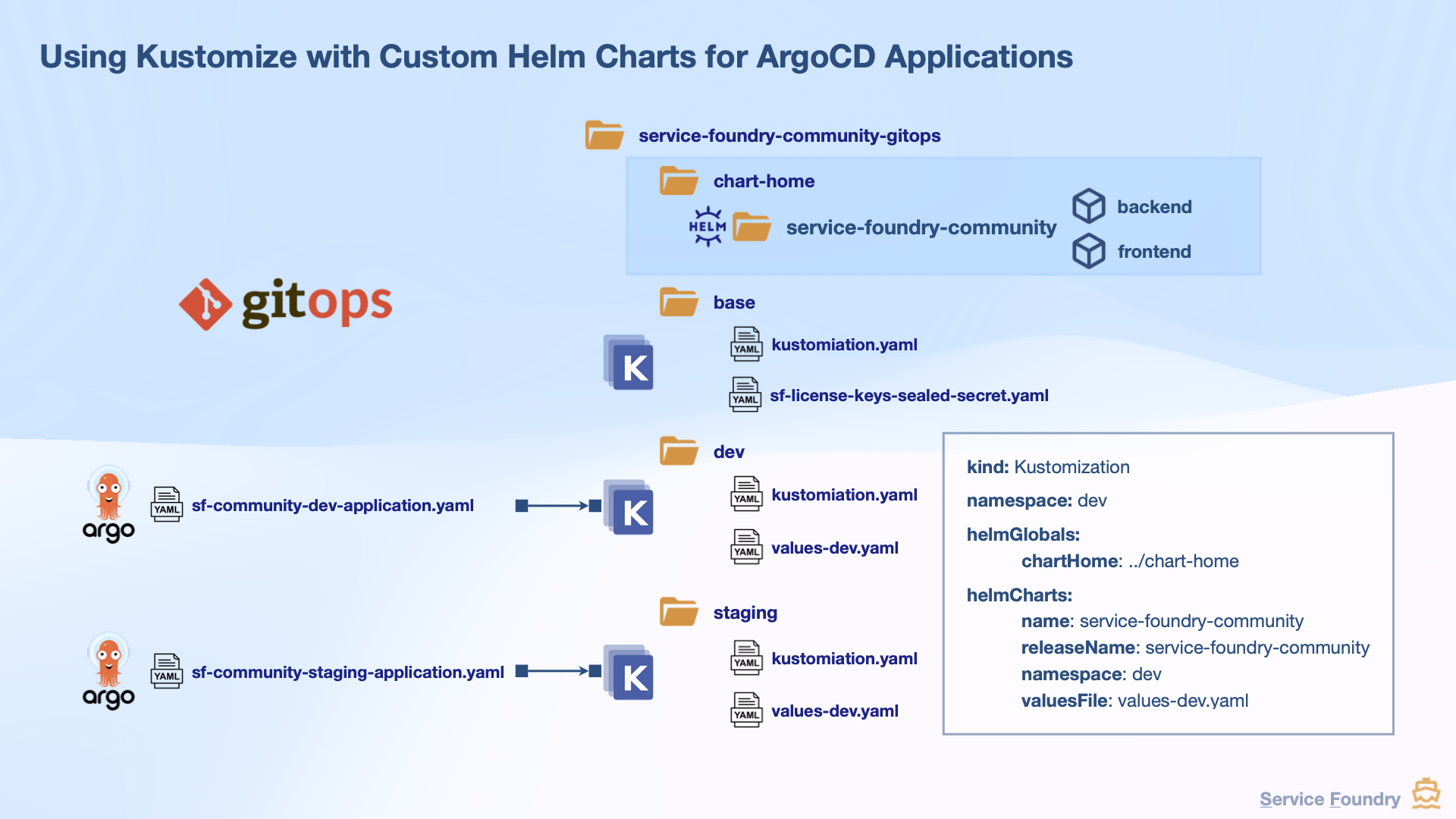

Now let’s look at how we organize our GitOps repository for managing multiple environments.

Top-Level Directory Layout

$ tree service-foundry-community-gitops
service-foundry-community-gitops
├── argocd
├── base
├── chart-home
├── dev
├── prod
└── staging

Here’s what each directory contains:

Directory Purpose

argocd/

ArgoCD Application and ApplicationSet manifests that tell ArgoCD what to deploy

base/

Base directory for shared resources (currently unused in this example, but useful for common configurations)

chart-home/

The unpacked Helm chart that’s shared across all environments. You can also create environment-specific chart directories if different versions are needed

dev/

Development environment overlay with dev-specific values and secrets

staging/

Staging environment overlay with staging-specific values and secrets

prod/

Production environment overlay with prod-specific values and secrets

Pulling the Helm Chart from ECR

Why Use a Local Chart?

When using Kustomize with ArgoCD, there’s an important limitation: Kustomize cannot directly access private OCI registries like AWS ECR. This means we can’t reference our chart directly from ECR in our kustomization.yaml files.

The solution? Pull the chart once and commit it to our Git repository. This approach:

  • Works seamlessly with ArgoCD and Kustomize

  • Ensures all environments use the same chart version

  • Follows GitOps principles (everything in Git)

  • Eliminates the need for ArgoCD to authenticate with ECR

Authenticating with ECR

First, we need to log in to the AWS ECR registry using Helm:

$ aws ecr get-login-password --region ${AWS_REGION} | \
    helm registry login --username AWS --password-stdin \
    ${AWS_ACCOUNT_ID}.dkr.ecr.${AWS_REGION}.amazonaws.com
This assumes your AWS CLI is already configured with valid credentials and you have permission to access the ECR repository.

Pulling and Extracting the Chart

Now let’s pull the chart and extract it to our chart-home/ directory:

# Create the chart-home directory
$ mkdir -p chart-home

# Clean up any existing chart
$ rm -rf chart-home/service-foundry-community

# Pull and extract the chart from ECR
$ helm pull \
    oci://${AWS_ACCOUNT_ID}.dkr.ecr.${AWS_REGION}.amazonaws.com/helm-charts/service-foundry-community \
    --version ${CHART_VERSION} \
    --untar \
    --destination chart-home/
The --untar flag is crucial here. Kustomize cannot work with .tgz archives—it needs the extracted chart directory.

After running these commands, you’ll have the chart ready in chart-home/service-foundry-community/.

Managing Secrets Across Environments

One of the challenges with multi-environment deployments is managing secrets securely. Let’s explore how SealedSecrets work and why we need a specific approach for multiple namespaces.

The Base Directory (Why It Doesn’t Work)

Initially, you might think of creating a single sealed secret in the base/ directory and patching it for each environment:

$ tree base
base
├── kustomization.yaml
└── service-foundry-license-keys-sealed.yaml
base/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - service-foundry-license-keys-sealed.yaml

The sealed secret would look like this:

base/service-foundry-license-keys-sealed.yaml
apiVersion: bitnami.com/v1alpha1
kind: SealedSecret
metadata:
  creationTimestamp: null
  name: service-foundry-license-keys
spec:
  encryptedData:
    private.pem: AgBJYtdv...qgHA==
    public.pem: AgBs+fTs...KcDw==
  template:
    metadata:
      creationTimestamp: null
      name: service-foundry-license-keys
      # Needs to be updated for each environment (dev, staging, or prod)

Then, you might try to patch the namespace in each environment overlay:

dev/kustomization.yaml (This approach DOES NOT work!)
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: dev

resources:
  - ../base

patches:
  - target:
      kind: SealedSecret
      name: service-foundry-license-keys
    patch: |-
      - op: add
        path: /spec/template/metadata/namespace
        value: dev

Why This Doesn’t Work: Understanding SealedSecret Encryption Scope

The shared secret approach fails because of how SealedSecrets encryption works!

By default, SealedSecrets use strict scope, which means the encryption is bound to:

  1. The secret name

  2. The target namespace

This is a security feature that prevents secrets from being accidentally or maliciously moved between namespaces. A SealedSecret encrypted for the dev namespace cannot be decrypted in staging or prod namespaces—the sealed-secrets controller will reject it.

The Solution: Environment-Specific Sealed Secrets

Instead of sharing one sealed secret, we need to create three separate sealed secrets—one for each environment, each encrypted with its target namespace:

  • dev/service-foundry-license-keys-dev-sealed.yaml (encrypted for dev namespace)

  • staging/service-foundry-license-keys-staging-sealed.yaml (encrypted for staging namespace)

  • prod/service-foundry-license-keys-prod-sealed.yaml (encrypted for prod namespace)

This ensures each secret can only be decrypted in its intended namespace.

Configuring the Development Environment

Now let’s look at how the dev/ environment overlay is structured. The same pattern applies to staging/ and prod/.

Development Directory Structure

$ tree dev
dev
├── kustomization.yaml
├── service-foundry-license-keys-dev-sealed.yaml
└── values-dev.yaml

Each environment contains:

  • kustomization.yaml: Kustomize configuration that references the Helm chart

  • service-foundry-license-keys-dev-sealed.yaml: Environment-specific sealed secret

  • values-dev.yaml: Environment-specific Helm values

The Kustomization File

Here’s the kustomization.yaml for the dev environment:

dev/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: dev  (1)

resources:
  - service-foundry-license-keys-dev-sealed.yaml  (2)

helmGlobals:  (3)
  chartHome: ../chart-home

helmCharts:  (4)
  - name: service-foundry-community
    releaseName: service-foundry-community
    namespace: dev
    valuesFile: values-dev.yaml

Let’s break this down:

1 namespace: All resources will be deployed to the dev namespace
2 resources: Include the dev-specific sealed secret
3 helmGlobals.chartHome: Points to the directory containing our extracted Helm chart
4 helmCharts: Configure which chart to render and which values file to use
You might notice the commented-out repo: lines. Those are alternative ways to reference charts (OCI registry, tgz file), but we’re using the local chart approach via chartHome.

Environment-Specific Values

The values-dev.yaml file contains dev environment overrides:

dev/values-dev.yaml
global:
  version: 0.2.0  (1)

host: community-dev.servicefoundry.org  (2)

frontend:
  config:
    enabled: true
    content: |  (3)
      {
        "backendServer": "https://community-dev.servicefoundry.org/api",
        "appVersion": "0.14.0",
        "builderVersion": "0.14.0"
      }
1 version: Specifies which version of the backend and frontend images to deploy
2 host: The hostname for this environment (used in the IngressRoute)
3 frontend.config.content: Runtime configuration for the React app, including the backend API endpoint
The staging and prod directories follow the exact same structure—just with different values in their respective values-staging.yaml and values-prod.yaml files.

ArgoCD Application Manifests

Now that we’ve set up our environment overlays, we need to tell ArgoCD what to deploy. We have two approaches: individual Applications or an ApplicationSet.

Directory Structure

$ tree argocd
argocd
├── service-foundry-community-applicationset.yaml
├── service-foundry-community-dev-application.yaml
├── service-foundry-community-prod-application.yaml
└── service-foundry-community-staging-application.yaml

You can choose either approach:

  • Individual Applications: Use the separate *-application.yaml files if you want fine-grained control over each environment

  • ApplicationSet: Use the *-applicationset.yaml file to manage all three environments with a single manifest (DRY principle)

Let’s explore both approaches.

Approach 1: Individual ArgoCD Application (Development Example)

Here’s the ArgoCD Application manifest for the development environment:

argocd/service-foundry-community-dev-application.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: service-foundry-community-dev
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io  (1)
spec:
  project: default

source:
    repoURL: git@github.com:nsalexamy/service-foundry-argocd.git  (2)
    targetRevision: main
    path: sf-apps/service-foundry-community/dev  (3)

  destination:
    server: https://kubernetes.default.svc  (4)
    namespace: dev

  syncPolicy:
    automated:  (5)
      prune: true  (6)
      selfHeal: true  (7)
      allowEmpty: false

    syncOptions:
      - CreateNamespace=true  (8)

    retry:
      limit: 5
      backoff:
        duration: 5s
        factor: 2
        maxDuration: 3m

Key configuration points:

1 finalizers: Ensures ArgoCD cleans up resources when the Application is deleted
2 repoURL: Your GitOps repository (update this to your own repo)
3 path: Points to the dev/ directory in your repo
4 server: The Kubernetes cluster (default means the cluster where ArgoCD is running)
5 automated: Enables automatic synchronization from Git
6 prune: Deletes resources removed from Git
7 selfHeal: Reverts manual changes to match Git state
8 CreateNamespace: Automatically creates the target namespace
You would create similar manifests for staging and prod, just changing the name, path, and target namespace.

Approach 2: ApplicationSet for All Environments

Instead of managing three separate Application manifests, you can use an ApplicationSet to generate them dynamically:

argocd/service-foundry-community-applicationset.yaml
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: service-foundry-community-environments
  namespace: argocd
spec:
  generators:
  - list:  (1)
      elements:
      - env: dev
        namespace: dev
      - env: staging
        namespace: staging
      - env: prod
        namespace: prod

  template:  (2)
    metadata:
      name: 'service-foundry-community-{{env}}'  (3)
      finalizers:
        - resources-finalizer.argocd.argoproj.io
    spec:
      project: default

      source:
        repoURL: git@github.com:nsalexamy/service-foundry-argocd.git
        targetRevision: main
        path: 'sf-apps/service-foundry-community/{{env}}'  (4)

      destination:
        server: https://kubernetes.default.svc
        namespace: '{{namespace}}'  (5)

      syncPolicy:
        automated:
          prune: true
          selfHeal: true
          allowEmpty: false

        syncOptions:
          - CreateNamespace=true

        retry:
          limit: 5
          backoff:
            duration: 5s
            factor: 2
            maxDuration: 3m

How this works:

1 generators.list: Defines a list of environments with their parameters
2 template: A template that’s rendered once for each list element
3 {site}: Template variable that gets replaced with dev, staging, or prod
4 path: Dynamically points to the correct environment directory
5 namespace: Dynamically sets the target namespace

The ApplicationSet will create three Applications automatically:

  • service-foundry-community-dev → deploys dev/ to dev namespace

  • service-foundry-community-staging → deploys staging/ to staging namespace

  • service-foundry-community-prod → deploys prod/ to prod namespace

ApplicationSets are great for reducing duplication and ensuring consistency across environments. They’re especially useful when you have many similar environments. == Deploying to Kubernetes

Now that we’ve configured everything, let’s deploy! You can choose to deploy a single environment first, or deploy all three at once.

Option 1: Deploy a Single Environment (Dev)

Let’s start with the development environment to test the setup:

$ kubectl apply -f argocd/service-foundry-community-dev-application.yaml
application.argoproj.io/service-foundry-community-dev created

ArgoCD will now:

  1. Clone your Git repository

  2. Run Kustomize to render the dev/ overlay

  3. Execute Helm template rendering using values-dev.yaml

  4. Create the sealed secret in the dev namespace

  5. Deploy all resources to the dev namespace

Viewing in ArgoCD UI

After a few moments, you can view the application in the ArgoCD UI:

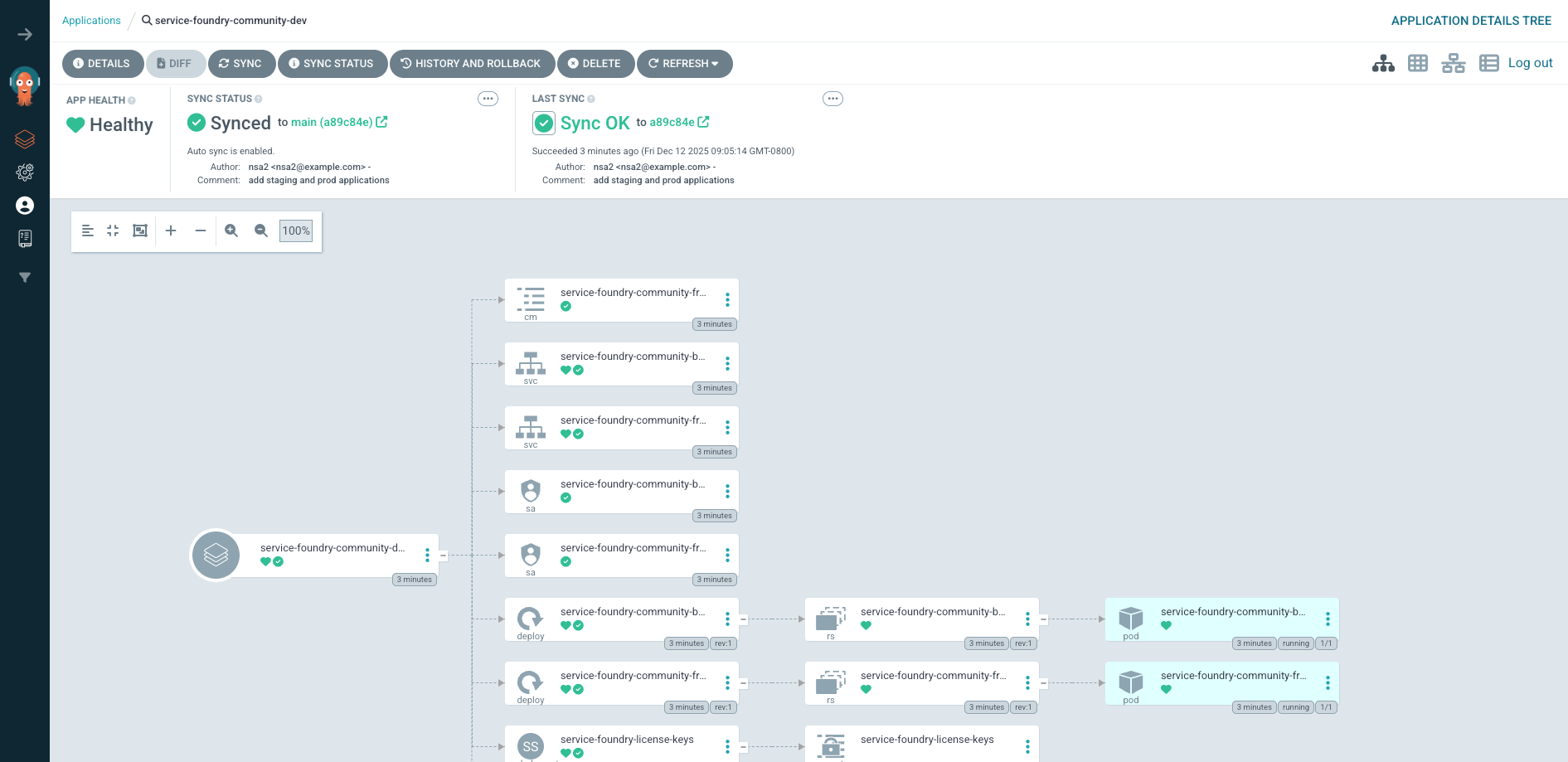

argocd sf dev app
Figure 1. ArgoCD UI: service-foundry-community-dev

The UI shows:

  • The application sync status (Synced/OutOfSync)

  • Health status of all resources

  • The complete resource tree (Deployments, Services, IngressRoutes, etc.)

Accessing the Application

Once the application is healthy, you can access it at:

https://community-dev.servicefoundry.org

community dev web
Figure 2. Service Foundry Community - Development Environment
You can deploy staging and prod environments the same way by applying their respective Application manifests.

Option 2: Deploy All Environments with ApplicationSet

If you want to deploy all three environments at once, use the ApplicationSet:

$ kubectl apply -f argocd/service-foundry-community-applicationset.yaml
applicationset.argoproj.io/service-foundry-community-environments created

The ApplicationSet will automatically create three ArgoCD Applications, one for each environment.

Viewing All Applications in ArgoCD

You’ll see all three applications in the ArgoCD UI:

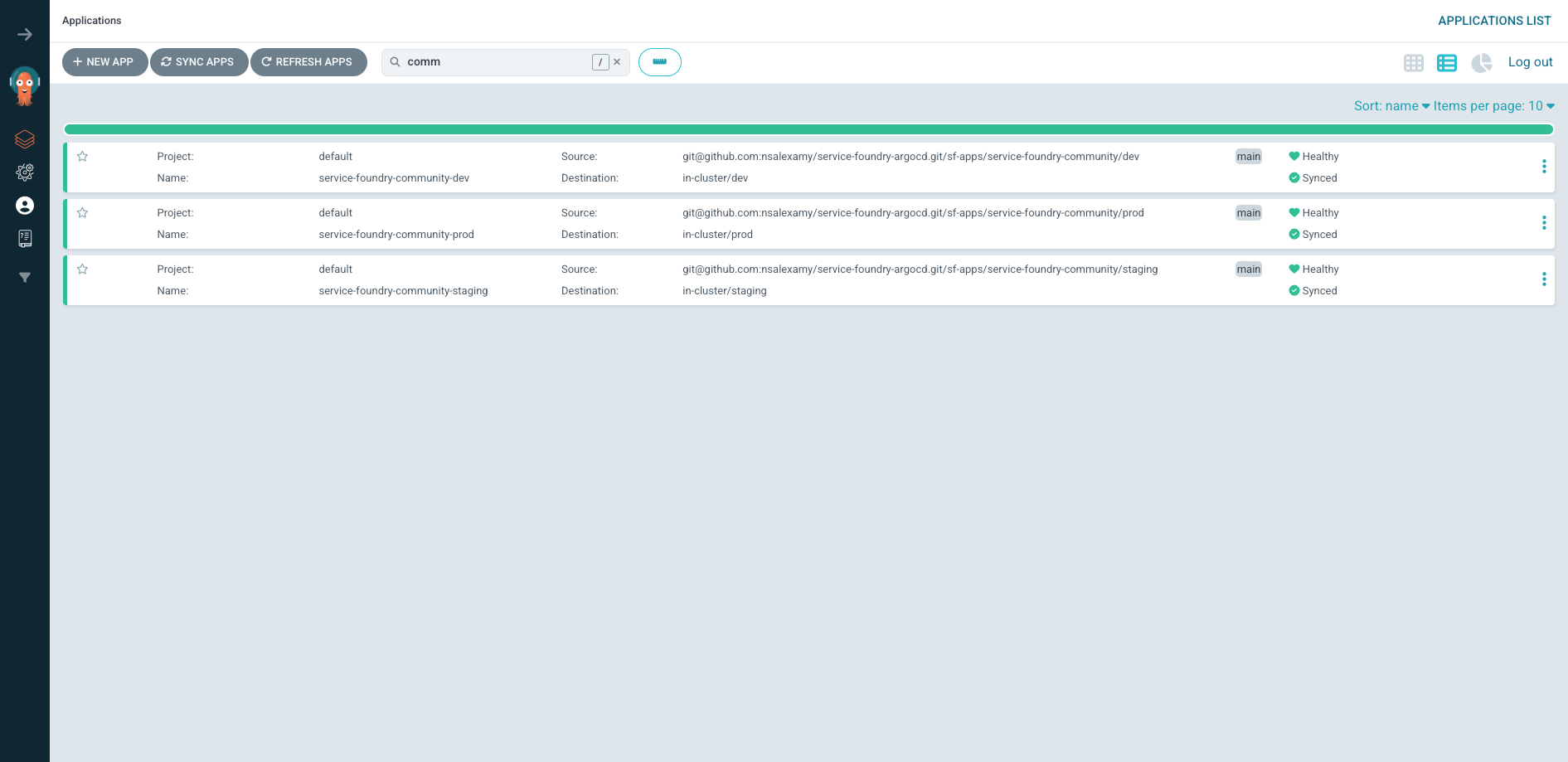

argocd all community apps
Figure 3. ArgoCD UI: All Service Foundry Community Environments

ArgoCD manages three separate applications:

Production is Live!

Here’s the production environment running:

community prod web
Figure 4. Service Foundry Community - Production Environment

Each environment is completely isolated with its own:

  • Namespace (dev, staging, prod)

  • Sealed secrets (encrypted for the specific namespace)

  • Helm values (different hostnames, versions, configurations)

  • Resources (Deployments, Services, IngressRoutes)

Conclusion

In this guide, we’ve built a complete multi-environment deployment system for the Service Foundry Community application using Kustomize, Helm, and ArgoCD.

What We Accomplished

  • Pulled a custom Helm chart from AWS ECR and made it usable with Kustomize by extracting it locally

  • Created environment-specific overlays (dev, staging, prod) with different hostnames, versions, and configurations

  • Managed secrets securely using SealedSecrets with proper namespace scoping

  • Set up ArgoCD Applications to automatically deploy and sync from Git

  • Used ArgoCD ApplicationSets to manage multiple environments with a single manifest

Key Takeaways

  1. Kustomize cannot access private OCI registries: Pull charts locally and commit them to Git for Kustomize to use

  2. SealedSecrets are namespace-scoped: Create separate sealed secrets for each namespace—they cannot be shared

  3. ApplicationSets reduce duplication: Use them to manage similar applications across multiple environments

  4. GitOps in action: All configuration is versioned in Git, and ArgoCD ensures the cluster matches the desired state

Next Steps

Here are some ways to extend this setup:

  • Add more environments: Create qa/ or staging-2/ directories following the same pattern

  • Implement promotion workflows: Use Git tags or branches to promote releases between environments

  • Add Helm hooks: Include pre-install or post-install jobs for database migrations

  • Configure notifications: Set up ArgoCD to notify Slack or email on sync failures

  • Implement progressive rollouts: Use ArgoCD’s sync waves and hooks for controlled deployments

Resources

Happy deploying! 🚀
