How Service Foundry Works

Introduction

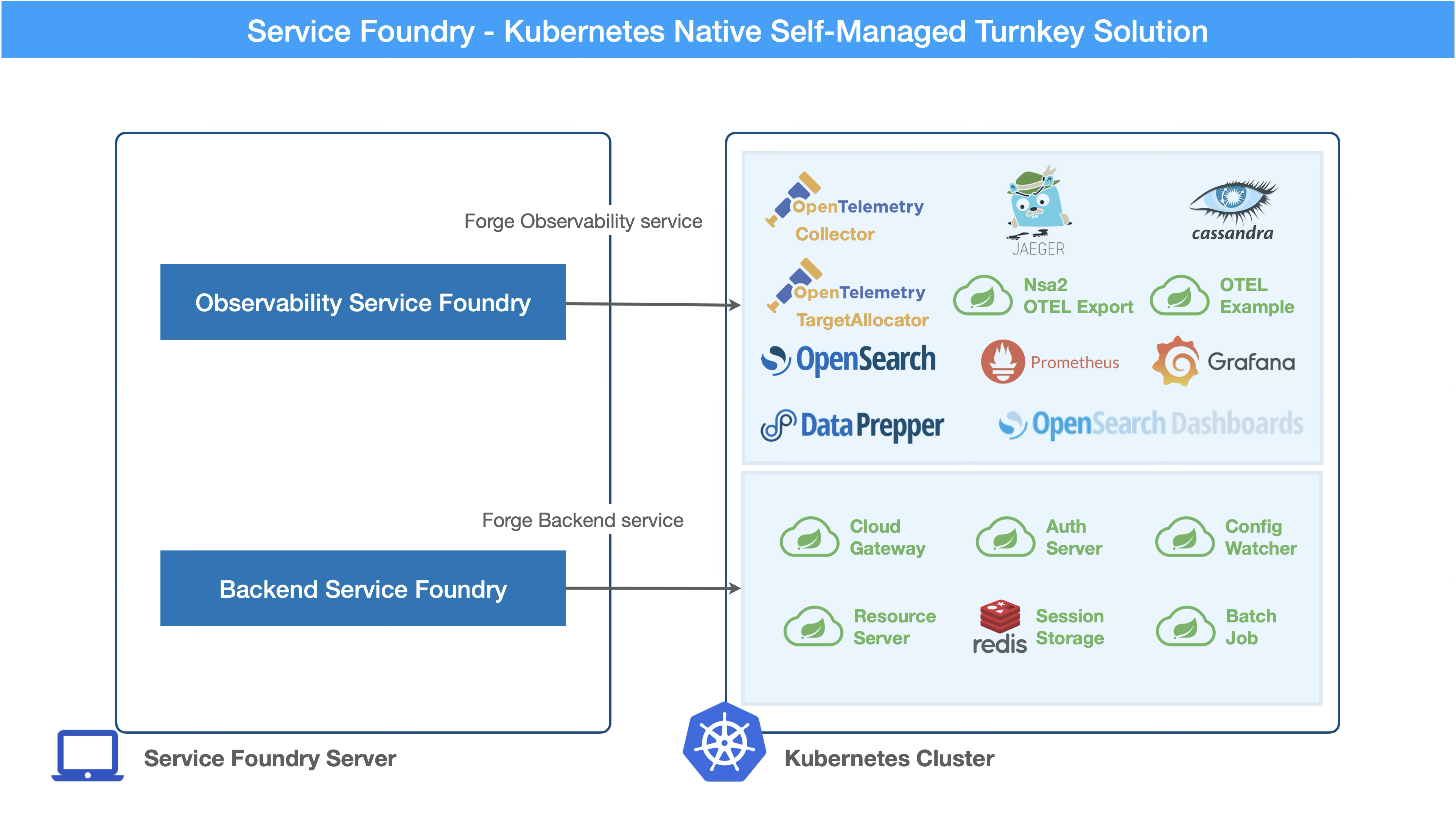

Service Foundry is a Kubernetes-native, self-managed turnkey solution. Built on top of Kubernetes and Helm, it provides robust support for OAuth2-based security and comprehensive observability features.

Each component described in this document is explained in greater detail in separate guides, which you can access through the links below:

My LinkedIn Article Library

Key Characteristics of Service Foundry

Here are some key characteristics of Service Foundry:

Pre-configured with best practices for microservices architecture
Ready to use with minimal configuration
Simplified deployment and management
Built on top of Kubernetes and Helm
Supports OAuth2-based Spring Backend Runtime features
Supports observability features
Supports data pipeline features
Open-source and self-managed

Benefits of Self-Managed Turnkey Solution

Here are some benefits of using Service Foundry:

No need to build from scratch
On demand deployment
No subscription fees
No vendor lock-in
Utilize all logs and metrics on your own cloud
Keep sensitive data in your own cloud

Common steps to deploy using Service Foundry

For each sub-framework, the common steps to deploy are:

initialize each sub-framework using the generator
- edit the configuration files if needed
generate the sub-framework using the generator
- edit source code if needed in case of backend foundry
build the sub-framework locally using the generated script files
deploy the sub-framework using the generated script files

Sub-Frameworks

There are three sub-frameworks in the Service Foundry:

Observability Foundry
Backend Foundry
Data Pipeline Foundry

Observability Foundry

The Observability Foundry comprises multiple observability tools designed to support a robust microservices architecture on Kubernetes.

Initialize Observability Foundry

To initialize the Observability Foundry, follow these steps:

Create a new directory for the Observability Foundry
- directory name matters because it will be used as the namespace
Run 'yo nsa2:o11y-foundry init' in the new directory
- This generates nsa2-o11y-foundry-build-config.yaml file
- Edit the nsa2-o11y-foundry-build-config.yaml file if needed
Run 'yo nsa2:o11y-foundry gen (or generate)' in the new directory
- This generates all the necessary files for the Observability Foundry based on the nsa2-o11y-foundry-build-config.yaml file
Run './build-o11y-foundry.sh' in the new directory
- This builds some components locally
Run './deploy-o11y-foundry.sh' in the new directory
- This deploys the Observability Foundry on Kubernetes

How to use Observability Foundry

To use the Observability Foundry, follow these steps:

# create working directory
$ mkdir o11y
$ cd o11y

# initialize Observability Foundry
$ yo nsa2:o11y-foundry init

(1)
? Kubernetes namespace: o11y
? Azure Container Registry Name: your-acr-name


# generate Observability Foundry
# edit nsa2-o11y-foundry-build-config.yaml if needed
$ yo nsa2:o11y-foundry generate

# build Observability Foundry
# Nothing to build locally for Observability Foundry. You can skip this step.
$ ./build-o11y-foundry.sh

# deploy Observability Foundry
$ ./deploy-o11y-foundry.sh

1	Enter the Kubernetes namespace and Azure Container Registry Name. This will be used in the generated files.

Initial Configuration

When you run 'yo nsa2:o11y-foundry init', the generator creates the following files:

nsa2-o11y-foundry-build-config.yaml

common:
  namespace: o11y
  azure:
    enabled: true
    acr-name: your-acr-name
  node-selector:
    agent-pool: your-agent-pool-for-observability
cassandra:
  enabled: true
  username: cassandra
  password: changeme
  replica-count: 1
  jaeger-keyspace: jaeger_tracing
  jaeger-replication-factor: 1

# depends on cassandra
jaeger:
  enabled: true

# prometheus-operator is required for the following to work
prometheus:
  enabled: true

grafana:
  enabled: true
  admin-user: "admin"
  admin-password: "admin"

opensearch:
  enabled: true
  replicas: 1
  initial-admin-password: "your-password"
  node-selector:
    agent-pool: "your-agent-pool-for-opensearch"

nsa2-otel-exporter:
  enabled: true

otel-spring-example:
  enabled: true
  group-id: com.alexamy.nsa2.examples
  java-package: com.alexamy.nsa2.examples.otel

otel-collector:
  enabled: true

You can change usernames, passwords, replica count, and other configurations in the nsa2-o11y-foundry-build-config.yaml file. This build configuration file is used to generate the necessary files for the Observability Foundry.

Created Files by the Generator

When you run 'yo nsa2:o11y-foundry generate', the generator creates the following files:

files created by the generator

$ yo nsa2:o11y-foundry gen

   create helm-charts/cassandra/cassandra-values.yaml
   create helm-charts/cassandra/cassandra-initdb-configmap.yaml
   create helm-charts/cassandra/cassandra-credentials.yaml
   create helm-charts/jaeger/jaeger-values.yaml
   create helm-charts/opensearch/esnode-certs.yaml
   create helm-charts/opensearch/opensearch-values.yaml
   create helm-charts/opensearch/opensearch-dashboards-values.yaml
   create helm-charts/opensearch/opensearch-data-prepper-values.yaml
   create helm-charts/grafana/grafana-values.yaml
   create helm-charts/grafana/grafana-admin-credentials.yaml
   create k8s/common/kustomization.yaml
   create k8s/common/observability-configmap.yaml
   create k8s/prometheus/kustomization.yaml
   create k8s/prometheus/prometheus.yaml
   create k8s/prometheus/prometheus-rbac.yaml
   create k8s/prometheus/prometheus-service.yaml
   create k8s/otel-collector/kustomization.yaml
   create k8s/otel-collector/otel-collector.yaml
   create k8s/otel-collector/otel-collector-rbac.yaml
   create k8s/otel-collector/otel-targetallocator-role.yaml
   create k8s/otel-collector/otel-targetallocator-cr-role.yaml
   create nsa2-otel-exporter/bin/helm-deploy.sh
   create nsa2-otel-exporter/bin/helm-undeploy.sh
   create nsa2-otel-exporter/bin/push-docker-image.sh
   create nsa2-otel-exporter/build/libs/nsa2-otel-exporter-0.0.1-SNAPSHOT.jar
   create nsa2-otel-exporter/src/main/k8s/Dockerfile
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/.helmignore
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/Chart.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/values.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/tests/test-connection.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/_helpers.tpl
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/deployment.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/hpa.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/ingress.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/NOTES.txt
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/role.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/rolebinding.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/service.yaml
   create nsa2-otel-exporter/src/main/k8s/helm-chart/nsa2-otel-exporter/templates/serviceaccount.yaml
   create build-o11y-foundry.sh
   create deploy-o11y-foundry.sh
   create undeploy-o11y-foundry.sh
   create uninstall-databases.sh
    force o11y-otel-spring-example/.yo-rc.json

Shell Scripts

The generator creates the following shell scripts:

build-o11y-foundry.sh: This script builds some components locally.
deploy-o11y-foundry.sh: This script deploys the Observability Foundry on Kubernetes.
undeploy-o11y-foundry.sh: This script undeploys the Observability Foundry on Kubernetes.
uninstall-databases.sh: This script uninstalls the databases with PVCs.

In the later sections, we will see how to use these shell scripts.

Build Components

When you run './build-o11y-foundry.sh', the following components are built locally:

$ ./build-o11y-foundry.sh

This generates a Spring Boot Application named o11y-otel-spring-example that can be used to test the observability features.

In the testing phase, you can use the otel-spring-example to generate traces and metrics.

Deploy Components

Run the following command to deploy the Observability Foundry on Kubernetes:

$ ./deploy-o11y-foundry.sh

It takes a couple of minutes to deploy all the components.

After you run './deploy-o11y-foundry.sh', the following components are deployed in the namespace of o11y in this example:

$ kubectl -n o11y get all -o name


pod/cassandra-0
pod/grafana-85bc877866-wzqfr
pod/jaeger-collector-68cd858fcb-q4j9v
pod/jaeger-query-7fbdd8bc86-5f6r7
pod/nsa2-otel-exporter-d54757c45-nvdnq
pod/o11y-otel-spring-example-794867977d-4lvbk
pod/opensearch-cluster-master-0
pod/opensearch-dashboards-7bfd998cf8-kv49r
pod/opensearch-data-prepper-6b4895d8b6-nsgg6
pod/otel-collector-0
pod/otel-targetallocator-77f6b86946-45bb6
pod/prometheus-prometheus-0
service/cassandra
service/cassandra-headless
service/grafana
service/jaeger-collector
service/jaeger-query
service/nsa2-otel-exporter
service/o11y-otel-spring-example
service/opensearch-cluster-master
service/opensearch-cluster-master-headless
service/opensearch-dashboards
service/opensearch-data-prepper
service/otel-collector
service/otel-collector-headless
service/otel-collector-monitoring
service/otel-targetallocator
service/prometheus
service/prometheus-operated
deployment.apps/grafana
deployment.apps/jaeger-collector
deployment.apps/jaeger-query
deployment.apps/nsa2-otel-exporter
deployment.apps/o11y-otel-spring-example
deployment.apps/opensearch-dashboards
deployment.apps/opensearch-data-prepper
deployment.apps/otel-targetallocator
replicaset.apps/grafana-85bc877866
replicaset.apps/jaeger-collector-68cd858fcb
replicaset.apps/jaeger-query-7fbdd8bc86
replicaset.apps/nsa2-otel-exporter-d54757c45
replicaset.apps/o11y-otel-spring-example-794867977d
replicaset.apps/opensearch-dashboards-7bfd998cf8
replicaset.apps/opensearch-data-prepper-6b4895d8b6
replicaset.apps/otel-targetallocator-77f6b86946
statefulset.apps/cassandra
statefulset.apps/opensearch-cluster-master
statefulset.apps/otel-collector
statefulset.apps/prometheus-prometheus
job.batch/jaeger-cassandra-schema

In addition to the above components, the following components are also deployed:

ConfigMaps
Secrets
Service Accounts
Cluster Roles and Role Bindings
Persistent Volumes
Persistent Volume Claims

During the deployment, the Observability Foundry will create the following components:

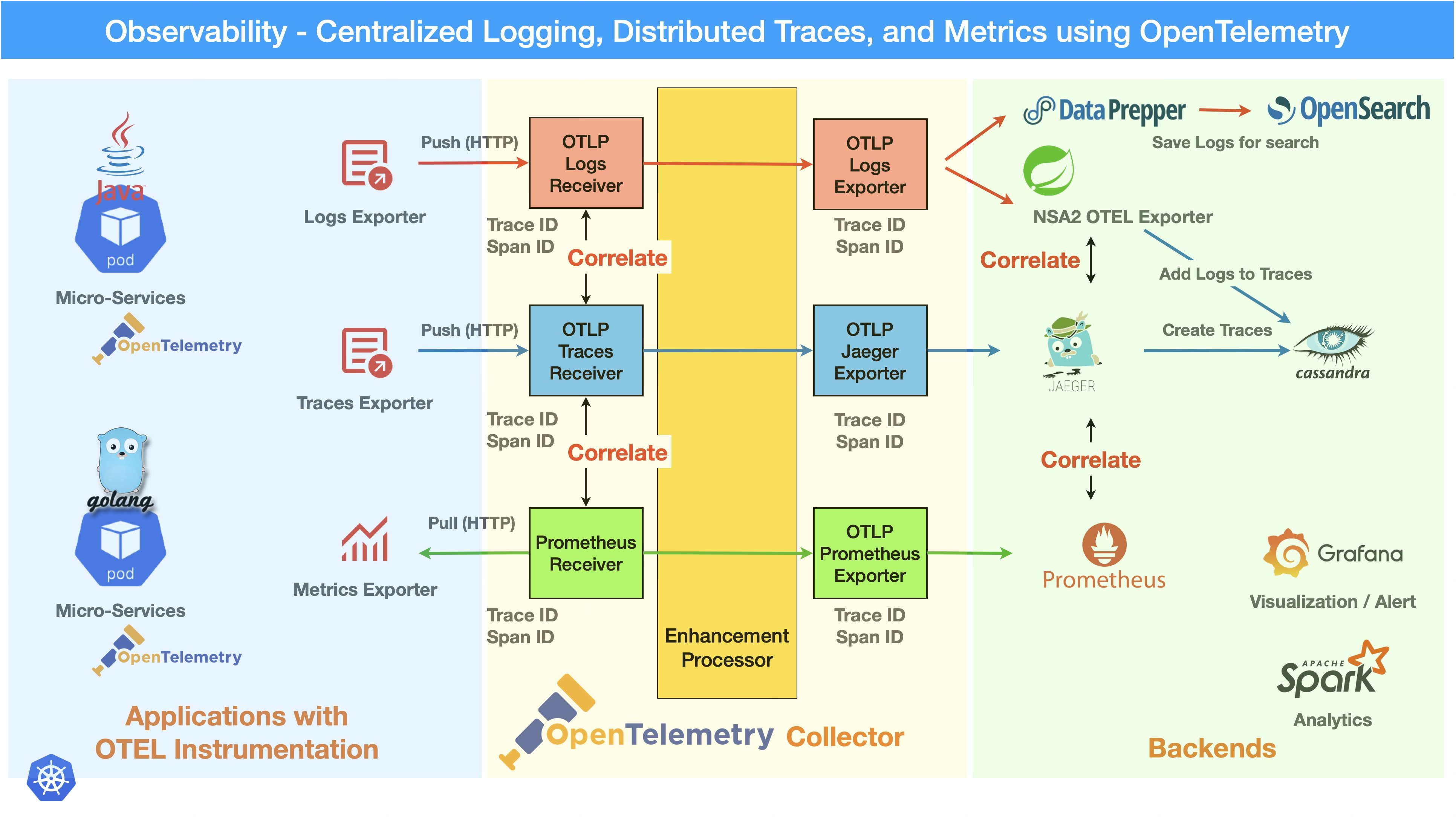

Figure 1. Observability Components created by the Observability Foundry

Testing Observability Foundry

To test the Observability Foundry, follow these steps:

Run o11y-otel-spring-example to generate traces, logs and metrics

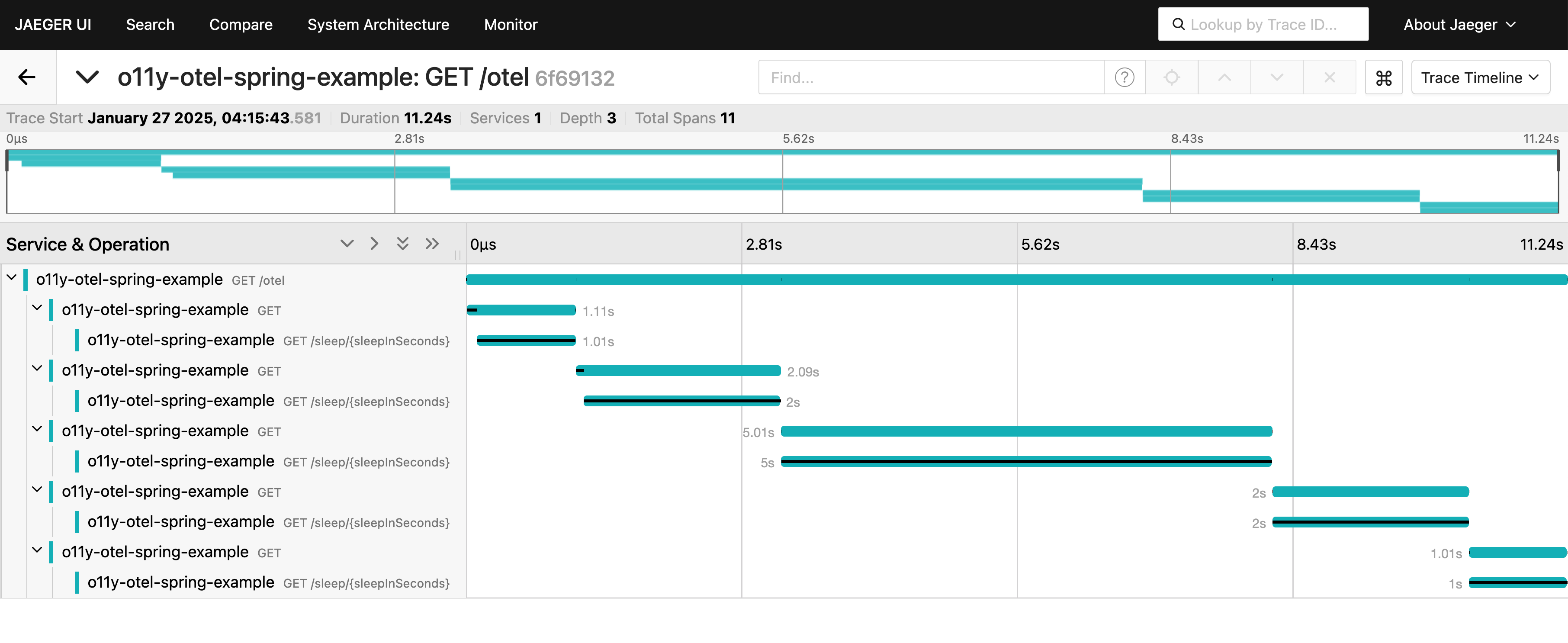

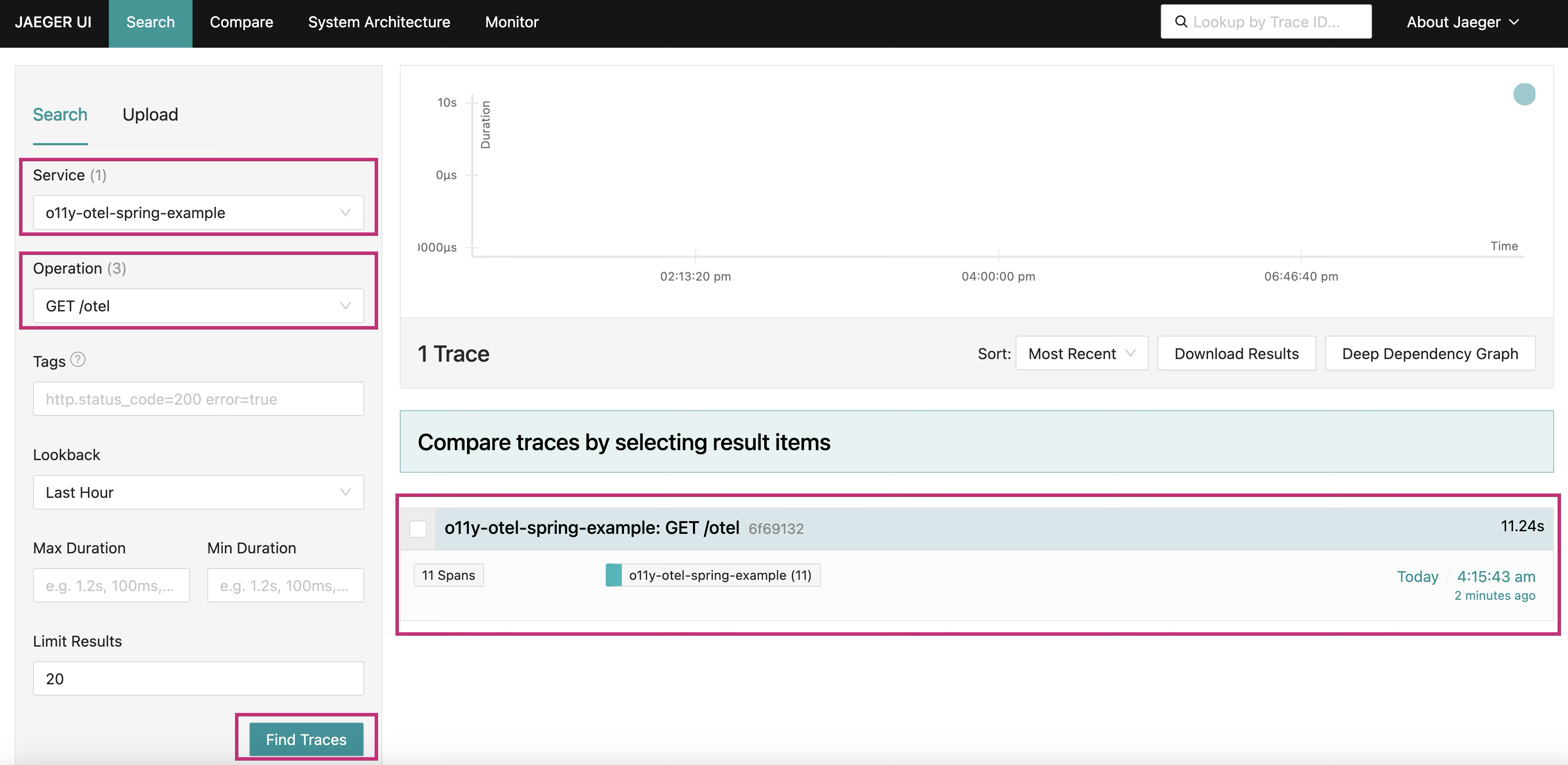

Access Jaeger UI to view traces and logs

Run o11y-otel-spring-example

In the Spring Boot application, there are controllers that generate traces and logs. The following is an example of a controller that generates traces:

OtelController.java

@RestController
@RequestMapping("/otel")
@Slf4j
@RequiredArgsConstructor
public class OtelController {

    private final RestTemplate restTemplate;

    @Value("${app.sleep-service-uri}")
    String sleepServiceUri;

    @GetMapping
    @PostMapping
    public Map<String, Object> index() {

        // random count : 3 to 5
        int count = (int) (Math.random() * 3) + 3;
        List<Map<String, Object>> results = new ArrayList<>();
        for (int i = 0; i < count; i++) {
            // random sleep time : 1 to 5 seconds
            int sleepInSeconds = (int) (Math.random() * 5) + 1;
            log.info("Calling sleep controller with {} seconds", sleepInSeconds);
            results.add(callSleepController(sleepInSeconds));
        }

        return Map.of("status", "success", "results", results);
    }

    // call sleep controller using rest template
    Map<String, Object> callSleepController(int sleepInSeconds) {
        final String url = sleepServiceUri.endsWith("/") ? sleepServiceUri + sleepInSeconds :
                sleepServiceUri + "/" + sleepInSeconds;
        return restTemplate.getForObject(url, Map.class);
    }
}

OtelController will call the SleepController to generate traces and logs. The following is an example of a controller that generates traces:

SleepController.java

@RestController
@RequestMapping("/sleep")
@Slf4j
public class SleepController {

    @GetMapping("/{sleepInSeconds}")
    @PostMapping("/{sleepInSeconds}")
    public Map<String, Object> sleep(@PathVariable long sleepInSeconds) {
        log.info("Sleeping for {} seconds", sleepInSeconds);
        try {
            Thread.sleep(sleepInSeconds * 1000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        return Map.of("status", "success", "message", "Slept for " + sleepInSeconds + " seconds");
    }
}

SleepController will sleep for a specified number of seconds, and we can see the traces in Jaeger UI.

Make test calls to o11y-otel-spring-example

Let’s port forward the o11y-otel-spring-example service to access it locally:

port-forward otel-spring-example

$ kubectl -n o11y port-forward svc/o11y-otel-spring-example 8080:8080

In a new terminal, run the following curl command to generate traces:

curl command to generate traces

$ curl -X GET http://localhost:8080/otel | jq

{
  "results": [
    {
      "message": "Slept for 1 seconds",
      "status": "success"
    },
    {
      "message": "Slept for 2 seconds",
      "status": "success"
    },
    {
      "message": "Slept for 5 seconds",
      "status": "success"
    },
    {
      "message": "Slept for 2 seconds",
      "status": "success"
    },
    {
      "message": "Slept for 1 seconds",
      "status": "success"
    }
  ],
  "status": "success"
}

Access Jaeger UI

To access the Jaeger UI, run the following command:

port-forward Jaeger UI

$ kubectl -n o11y port-forward svc/jaeger-query 16686:80

Open a browser and go to http://localhost:16686 to access the Jaeger UI.

Figure 2. Jaeger UI - Find Traces

Select the nsa2-otel-spring-example service and click on the Find Traces button to see the traces.

And then click on the trace to see the details of the trace.

Figure 3. Jaeger UI - Traces

We can see all spans in the trace. We can see the duration of each span and the tags associated with each span.

Figure 4. Jaeger UI - Trace with Logs

We can see the details of each span by clicking on the span. We can also see the applications logs in the Jaeger UI.

Undeploy Observability Foundry

If you don’t need the Observability tools, you can undeploy the Observability Foundry.

To undeploy the Observability Foundry, run the following command:

$ ./undeploy-o11y-foundry.sh

This will delete all the components deployed in the namespace of o11y. However, the PVCs will not be deleted.

Unistall Databases and PVCs

To uninstall the databases and PVCs, run the following command:

$ ./uninstall-databases.sh

Delete the namespace

To delete the namespace, run the following command:

$ kubectl delete namespace o11y

Conclusion

In this article, we have seen how to deploy the Observability Tools on Kubernetes using Observability Foundry within a few minutes. We have also seen traces and logs generated by the Spring Boot application in the Jaeger UI. All metrics are collected by Prometheus and visualized in Grafana.

Internal Reference: nsa2/docs/service-foundry/index.adoc
