Building a Helm Chart for Multi-App Deployments

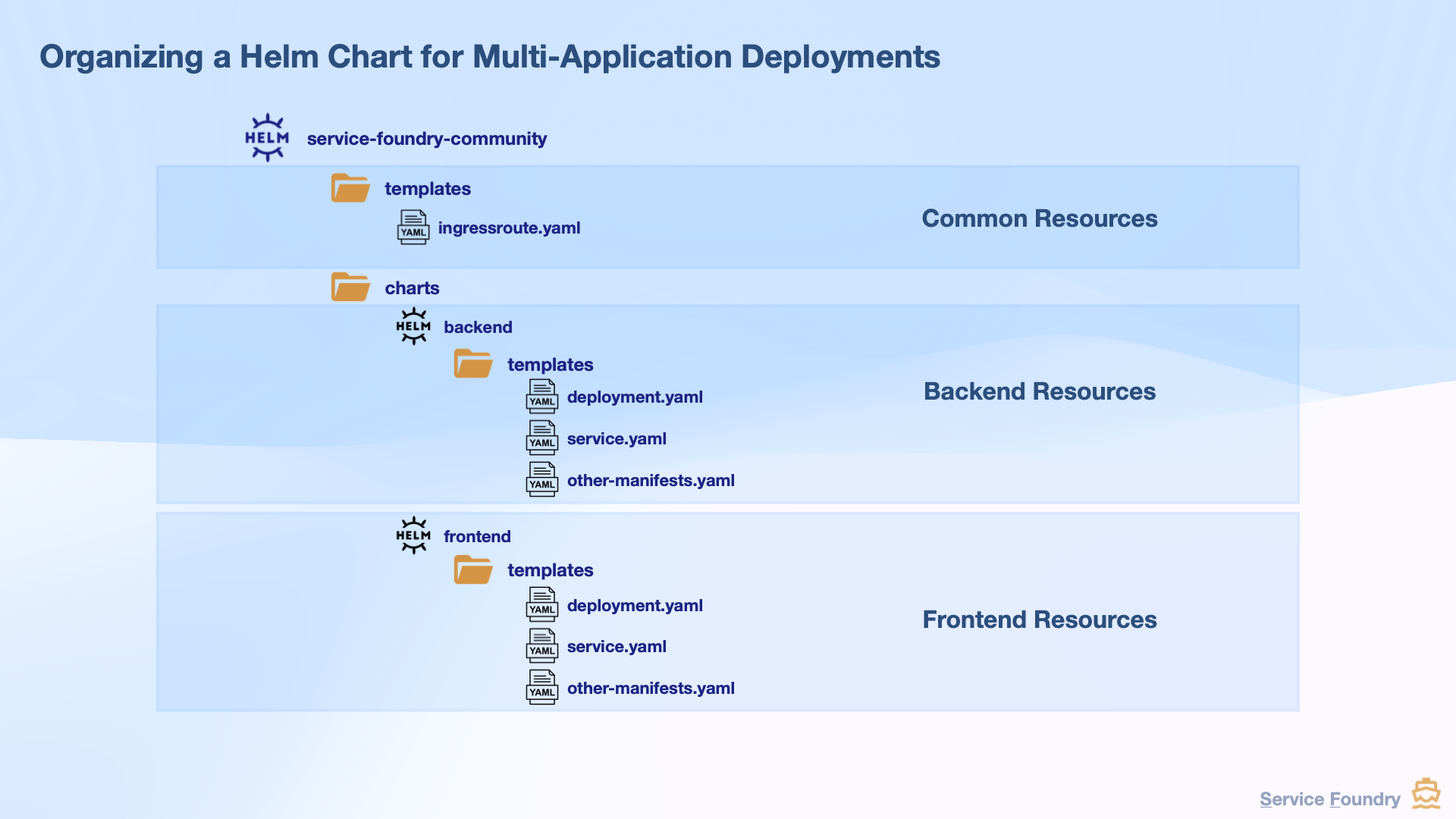

organizing helm chart

Overview

YouTube Video Tutorial: How to Build a Helm Chart with Multiple Applications (Frontend + Backend with Sub‑Charts)


Modern applications often consist of multiple services such as a frontend web interface and a backend API. When these services are tightly coupled, it makes sense to deploy and manage them together. Helm, Kubernetes’ package manager, provides a powerful feature called sub-charts, which allows you to organize and manage multiple related applications within a single parent chart.

In this guide, we will walk through the process of creating a Helm chart that includes two applications—a React-based frontend and a Go-based backend—as sub-charts under a common parent chart named service-foundry-community.

Why Use Sub-Charts?

Sub-charts help:

  • Organize components cleanly in modular Helm packages

  • Manage shared configuration centrally in the parent chart

  • Deploy related services together using a single Helm install

  • Reuse components across different deployments

File Structure Overview

This is the final directory layout for the parent chart with two sub-charts:

Service Foundry Community Helm Chart File Structure
$ tree service-foundry-community

service-foundry-community
├── charts
│   ├── backend
│   │   ├── charts
│   │   ├── templates
│   │   │   ├── tests
│   │   │   │   └── test-connection.yaml
│   │   │   ├── NOTES.txt
│   │   │   ├── _helpers.tpl
│   │   │   ├── deployment.yaml
│   │   │   ├── hpa.yaml
│   │   │   ├── ingress.yaml
│   │   │   ├── secret.yaml
│   │   │   ├── service.yaml
│   │   │   └── serviceaccount.yaml
│   │   ├── Chart.yaml
│   │   └── values.yaml
│   └── frontend
│       ├── charts
│       ├── templates
│       │   ├── tests
│       │   │   └── test-connection.yaml
│       │   ├── NOTES.txt
│       │   ├── _helpers.tpl
│       │   ├── configmap.yaml
│       │   ├── deployment.yaml
│       │   ├── hpa.yaml
│       │   ├── ingress.yaml
│       │   ├── service.yaml
│       │   └── serviceaccount.yaml
│       ├── Chart.yaml
│       └── values.yaml
├── templates
│   ├── _helpers.tpl
│   └── ingressroute.yaml
├── Chart.yaml
└── values.yaml

The charts/ folder automatically includes Helm sub-charts. You do not need to manually reference them in Chart.yaml.

Creating the Helm Charts

1. Create Parent Chart

Create main Helm Chart directory
$ mkdir helm-chart
$ cd helm-chart
Create the parent Helm Chart
$ helm create service-foundry-community
$ cd service-foundry-community
Remove unneeded default files from the parent chart:
$ rm -rf \
  templates/tests \
  templates/deployment.yaml \
  templates/hpa.yaml \
  templates/ingress.yaml \
  templates/NOTES.txt \
    templates/service.yaml \
  templates/serviceaccount.yaml

Then add only the shared templates (like ingress routing) that apply to both backend and frontend.

Resulting structure:

service-foundry-community
├── Chart.yaml
├── charts
├── templates
│   ├── _helpers.tpl
│   └── ingressroute.yaml
└── values.yaml

Creating the Sub-Charts

From within the parent chart directory:

$ cd charts

$ helm create backend
$ helm create frontend

Each sub-chart is a fully independent Helm chart. Customize the following as needed:

Chart.yaml (Parent Chart)

service-foundry-community/Chart.yaml
apiVersion: v2
name: service-foundry-community
description: A Helm chart for Kubernetes

type: application
version: 0.1.0
#appVersion: "0.1.0"

appVersion is not set here because we will manage versions in sub-charts.

3. Parent Chart: values.yaml

This file contains shared/global values and references for both sub-charts.

service-foundry-community/values.yaml
global:
  version: "0.1.0"

# The host under which the Service Foundry Community app will be accessible
host: community.servicefoundry.org

frontend:
  enabled: true
  image:
    repository: credemol/service-foundry-community-frontend
    pullPolicy: IfNotPresent
    # tag left empty to use global.version by default
    tag: ""
  service:
    port: 80
  config:
    enabled: true
    # Default config.json content for the React app (will be put into a ConfigMap)
    content: |
      {
        "backendServer": "https://community.servicefoundry.org/api"
      }

backend:
  enabled: true
  image:
    repository: credemol/service-foundry-community-backend
    pullPolicy: IfNotPresent
    tag: ""
  service:
    port: 8080

This values.yaml enables coordinated deployment by:

  • Setting a shared version for all images

  • Defining routing domain

  • Providing config for the frontend app (via ConfigMap)

4. Parent Chart: _helpers.tpl

This template file defines reusable functions for generating unique names:

service-foundry-community/templates/_helpers.tpl
{{- define "service-foundry-community.backendFullname" -}}
{{ printf "%s-backend" .Release.Name }}
{{- end }}

{{- define "service-foundry-community.frontendFullname" -}}
{{ printf "%s-frontend" .Release.Name }}
{{- end }}

These helpers ensure consistency in service names.

5. Parent Chart: ingressroute.yaml

This file defines routing rules for Traefik based on the host and path prefixes.

service-foundry-community/templates/ingressroute.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: {{ include "service-foundry-community.fullname" . }}-ingress-route
  namespace: {{ .Release.Namespace }}
spec:
  entryPoints:
    - web
    - websecure

  routes:

    - match: Host(`{{ .Values.host }}`) && PathPrefix(`/api`)
      kind: Rule
      services:
        - name: {{ include "service-foundry-community.backendFullname" . }}
          port: http
      middlewares:
        - name: cors-headers
        #- name: forward-auth
        - name: api-stripprefix

    - match: Host(`{{ .Values.host }}`) && PathPrefix(`/`)
      kind: Rule
      services:
        - name: {{ include "service-foundry-community.frontendFullname" . }}
          port: http
      middlewares:
        - name: cors-headers
        #- name: forward-auth

We intentionally omit forward-auth middleware so users can access the site without login.

Sub Charts

Backend Helm Chart

Tree structure:

$ tree backend

backend
├── Chart.yaml
├── charts
├── templates
│   ├── NOTES.txt
│   ├── _helpers.tpl
│   ├── deployment.yaml
│   ├── hpa.yaml
│   ├── ingress.yaml
│   ├── secret.yaml
│   ├── service.yaml
│   ├── serviceaccount.yaml
│   └── tests
│       └── test-connection.yaml
└── values.yaml

You can define secrets, configure autoscaling, and more.

Frontend Helm Chart

Tree structure:

$ tree frontend

frontend
├── Chart.yaml
├── charts
├── templates
│   ├── NOTES.txt
│   ├── _helpers.tpl
│   ├── configmap.yaml
│   ├── deployment.yaml
│   ├── hpa.yaml
│   ├── ingress.yaml
│   ├── service.yaml
│   ├── serviceaccount.yaml
│   └── tests
│       └── test-connection.yaml
└── values.yaml

The configmap.yaml will use .Values.config.content to mount JSON into the container.




Helm Commands

Install:
$ helm install service-foundry-community ./service-foundry-community \
  -n service-foundry --create-namespace
Upgrade:
$ helm upgrade --install service-foundry-community ./service-foundry-community \
  -n service-foundry
Uninstall:
$ helm uninstall service-foundry-community \
  -n service-foundry






Publishing the Chart to a Private Repository

You can push the chart to AWS ECR as a Helm OCI repository.

Enable OCI Support (Helm 3.8+ has it by default)

$ export HELM_EXPERIMENTAL_OCI=1

Authenticate with AWS ECR

$ aws ecr get-login-password --region $AWS_REGION \
  | helm registry login --username AWS --password-stdin $AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com

Create Helm Repository in ECR

$ aws ecr create-repository \
  --repository-name helm-charts/service-foundry-community --region $AWS_REGION

Package and Push

$ helm package service-foundry-community
$ helm push service-foundry-community-0.1.0.tgz oci://$AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com/helm-charts

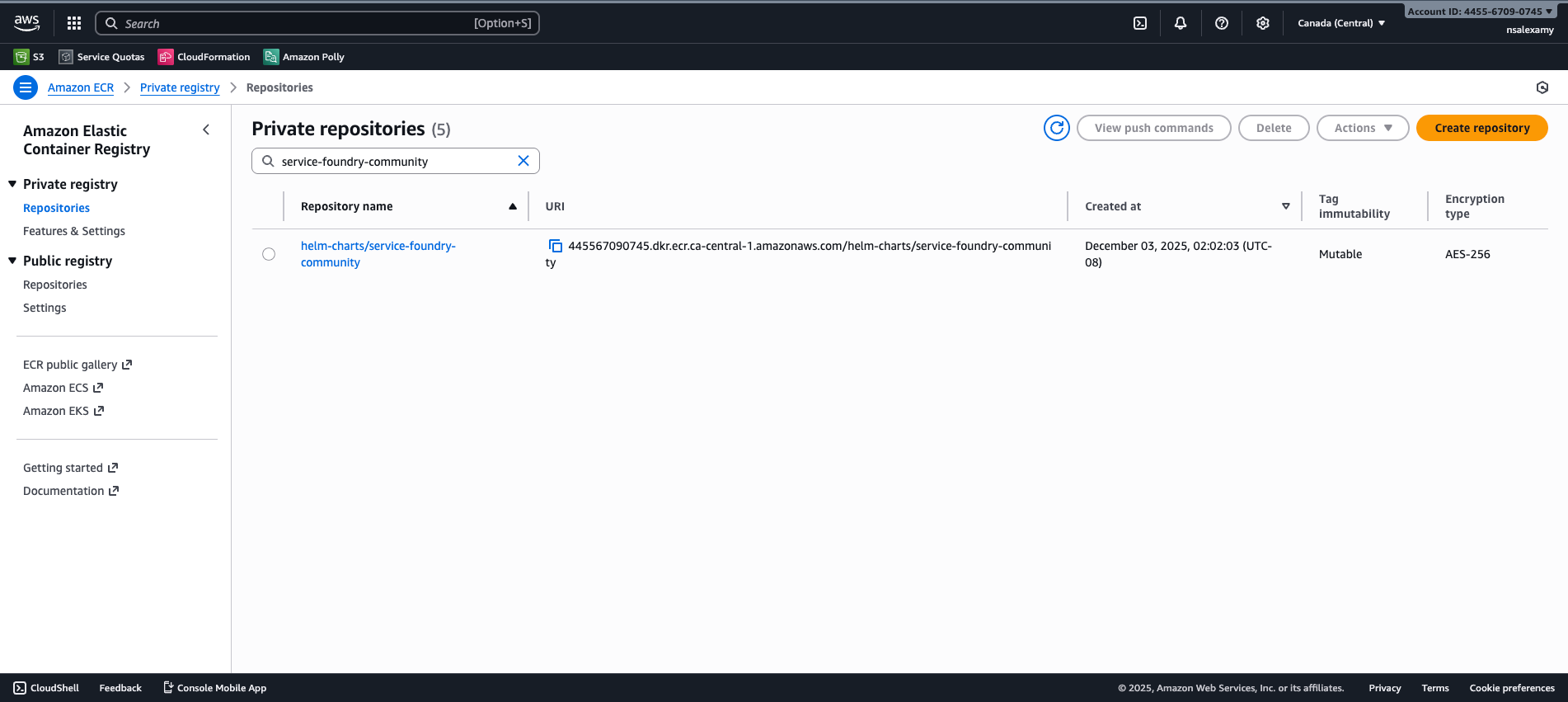

aws ecr helm charts
Figure 1. Pushed Chart in AWS ECR

6. Pull or Install from ECR

Pull the Helm chart from ECR:
$ helm pull oci://$AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com/helm-charts/service-foundry-community --version 0.1.0
Install the Helm chart from ECR:
$ helm install service-foundry-community oci://$AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com/helm-charts/service-foundry-community -n service-foundry --create-namespace

Final Thoughts

Using sub-charts with Helm is a powerful way to group related applications together. You get modularity, flexibility, and clean separation of logic, while still being able to deploy and manage the full stack from a single entry point.

This structure is ideal for Kubernetes-native platforms like Service Foundry, where frontend, backend, and shared infrastructure (like IngressRoutes) need to work in harmony.

Let us know if you’d like a follow-up on GitOps integration or advanced templating for these charts!
