Installing Apache Airflow 3 on Kubernetes

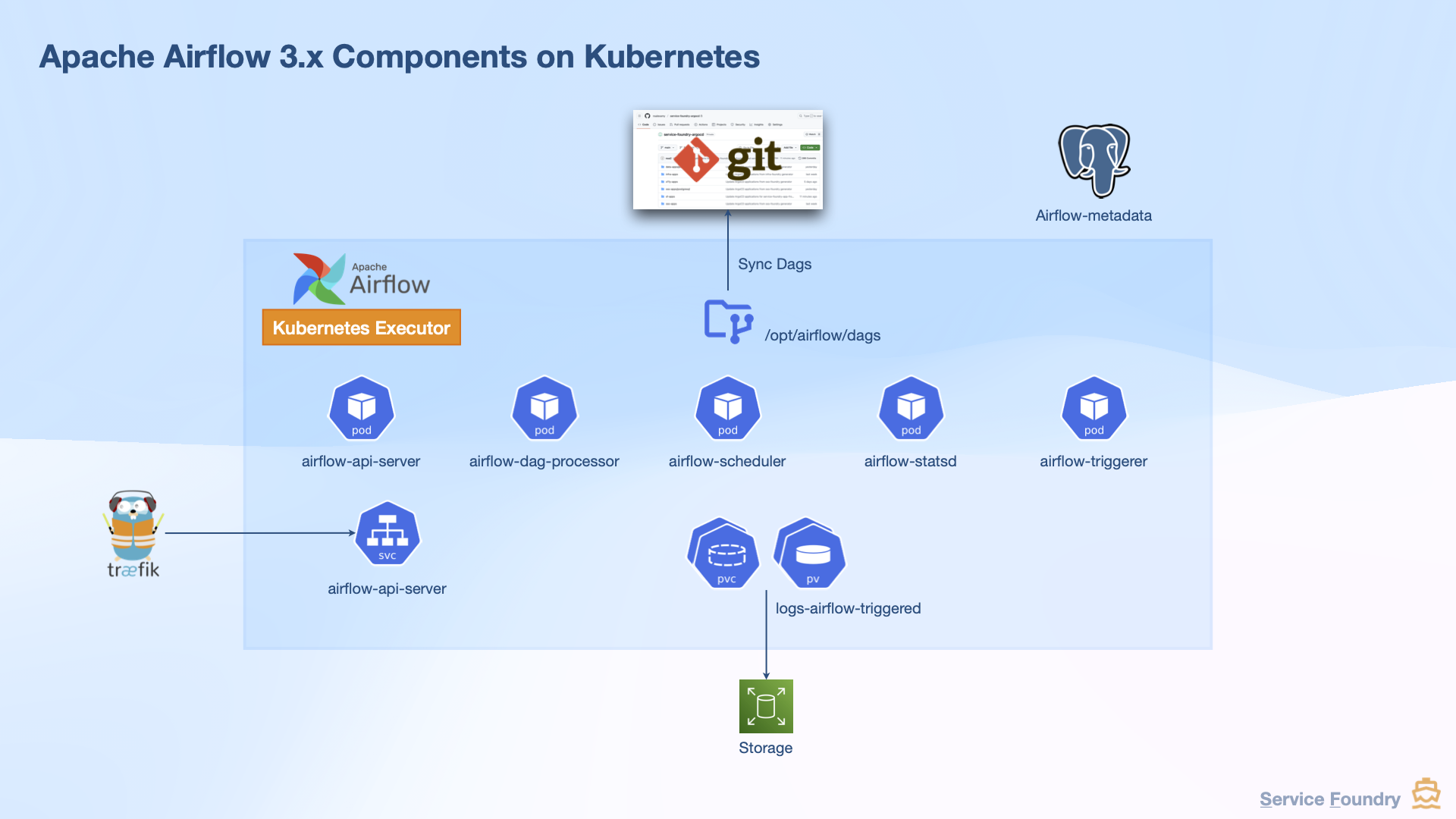

airflow3 components

Introduction

This guide walks you through the manual installation of Apache Airflow 3 on a Kubernetes cluster.

It covers:

  • Creating necessary Kubernetes secrets for Git access and PostgreSQL credentials.

  • Configuring Airflow to use the KubernetesExecutor for scalable task execution.

  • Setting up Git synchronization for DAGs.

  • Configuring Ingress to expose the Airflow web UI.

  • Disabling unnecessary components like Redis when using the KubernetesExecutor.

  • Deploying Airflow components using Helm.

YouTube Video Tutorial

▶️ Install Apache Airflow 3 on Kubernetes | GitSync, KubernetesExecutor, and PostgreSQL Setup

▶️ Installing Apache Airflow on Kubernetes with GitOps using Service Foundry

What’s New in Airflow 3

Apache Airflow 3 introduces a number of important enhancements over version 2:

  • Improved Security: Stronger encryption for sensitive data and enhanced authentication features.

  • Performance Improvements: Faster task scheduling and better resource utilization.

  • New Operators and Hooks: Support for a wider range of systems and integration scenarios.

  • Enhanced UI: A redesigned user interface for better usability.

  • Better Kubernetes Integration: More robust support for Kubernetes-native deployments.

For the full list of features and changes, see the official Airflow 3 release notes.

Step 1: Create SSH Key Secret for Git Access

To allow Airflow to sync DAGs from a private Git repository, generate an SSH key pair:

$ ssh-keygen -t rsa -b 4096 -C "bmaxpunch@gmail.com" -f ./airflow_gitsync_id_rsa

Then, create a Kubernetes secret from the private key:

kubectl create secret generic airflow-git-ssh-key-secret \
  --from-file=gitSshKey=./airflow_gitsync_id_rsa \
  --namespace airflow \
  --dry-run=client -o yaml > airflow-git-ssh-key-secret.yaml

Apply the secret to the Kubernetes cluster:

$ kubectl apply -f airflow-git-ssh-key-secret.yaml

Step 2: Add Deploy Key to Git Repository

Copy the contents of airflow_gitsync_id_rsa.pub and add it as a Deploy Key with read-only access in your Git repository.

GitHub Deploy Key Docs

Step 3: Configure Airflow Settings (custom-values.yaml)

Executor Selection

To take advantage of Kubernetes-native scaling, we will use the KubernetesExecutor instead of the default CeleryExecutor:

custom-values.yaml
executor: "KubernetesExecutor"
NOTE

When using the KubernetesExecutor, Redis is not needed.

CeleryExecutor vs KubernetesExecutor:

  • CeleryExecutor: Requires external services like Redis and a result backend.

  • KubernetesExecutor: Dynamically creates a Kubernetes pod for each task, reducing dependencies and improving scalability.

DAG Synchronization from Git

To sync DAGs from a Git repository:

custom-values.yaml
dags:
  persistence:
    enabled: false # (1)

  gitSync:
    enabled: true
    repo: "git@github.com:nsalexamy/airflow-dags-example.git" # (2)
    branch: "main"
    rev: HEAD
    depth: 1
    wait: 60  # Sync every 60 seconds
    subPath: "dags" # (3)
    containerName: "git-sync"

    sshKeySecret: "airflow-git-ssh-key-secret" # (4)
    #(5)
    knownHosts: |
      github.com ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIOMqqnkVzrm0SdG6UOoqKLsabgH5C9okWi0dh2l9GKJl
      github.com ecdsa-sha2-nistp256 AAAAE2VjZHNhL...++Tpockg=
      github.com ssh-rsa AAAAB3NzaC1yc2...+p1vN1/wsjk=

  1. Disable persistent storage for DAGs as Git synchronization will handle DAG updates.

  2. Specify the SSH URL of your Git repository containing the Airflow DAGs.

  3. Define the subdirectory within the repository where the DAGs are located.

  4. Reference the Kubernetes secret containing the SSH private key for Git access.

  5. Add GitHub’s SSH key fingerprints to the known hosts to ensure secure connections.

GitHub’s SSH Key Fingerprints

For more information on GitHub’s SSH key fingerprints, refer to: https://docs.github.com/en/authentication/keeping-your-account-and-data-secure/githubs-ssh-key-fingerprints

Redis Configuration

Since we’re using the KubernetesExecutor, Redis can be safely disabled:

custom-values.yaml
redis:
  enabled: false  # Celery backend not needed for KubernetesExecutor

PostgreSQL Configuration

Use the legacy Bitnami image (publicly available as of now):

custom-values.yaml
postgresql:
  enabled: true

  image:
    #registry:
    repository: bitnamilegacy/postgresql
    tag: 16.1.0-debian-11-r15 # 16.1.0-debian-11-r15 is default. 17.6.0-debian-12-r4

  auth:
    enablePostgresUser: true
    username: "airflowuser"
    existingSecret: airflow-postgresql-credentials

Bitname PostgreSQL Image Issue

WARNING

Bitnami images are moving behind a paywall. The bitnamilegacy repository is a temporary workaround but may not be maintained in the future.

Create Secret for PostgreSQL Credentials

airflow-postgresql-credentials-secret.yaml
apiVersion: v1
data:
  password: base64-encoded-database-password
  postgres-password: base64-encoded-postgres-password
  replication-password: base64-encoded-replication-password
kind: Secret
metadata:
  name: airflow-postgresql-credentials
  namespace: airflow

Apply the secret:

$ kubectl apply -f airflow-postgresql-credentials-secret.yaml

Ingress Setup

Expose the Airflow web UI using Traefik Ingress:

custom-values.yaml
ingress:
  enabled: true
  web:
    enabled: true
    host: "airflow.nsa2.com"
    ingressClassName: "traefik"

Triggerer Configuration

Reduce default disk usage by tuning the triggerer settings:

custom-values.yaml
triggerer:
  replicas: 2
  persistence:
    size: 5Gi

Step 4: Deploy Airflow

Make sure you have already applied the following secrets:

  • airflow-git-ssh-key-secret

  • airflow-postgresql-credentials

Then deploy Airflow using Helm:

$ helm -n airflow upgrade --install airflow apache-airflow/airflow -f custom-values.yaml --create-namespace

Step 5: Sample DAG from Git

Here’s a sample DAG file synced from Git:

dags/hello_world_dag.py
from airflow import DAG
from airflow.operators.bash import BashOperator
from airflow.operators.python import PythonOperator
from datetime import datetime
from airflow.decorators import dag, task
from kubernetes.client import models as k8s


default_executor_config = {
    "pod_override": k8s.V1Pod(
        spec=k8s.V1PodSpec(
            containers=[
                k8s.V1Container(
                    name="base",
                    resources=k8s.V1ResourceRequirements(
                        requests={"cpu": "100m", "memory": "128Mi"},
                        limits={"cpu": "200m", "memory": "256Mi"}
                    )
                )
            ]
        )
    )
} # end of default_executor_config

with DAG(dag_id="hello_world_dag",
         start_date=datetime(2024,3,27),
         schedule="@hourly",
         catchup=False) as dag:

    @task(
        task_id="hello_world",
        executor_config=default_executor_config
    )
    def hello_world():
        print('Hello World - From Github Repository')



    @task.bash(
        task_id="sleep",
    )
    def sleep_task() -> str:
        return "sleep 10"


    @task(
        task_id="done",
        #executor_config=default_executor_config
    )
    def done():
        print('Done')


    @task(
        task_id="goodbye_world",
    )
    def goodbye_world():
        print('Goodbye World - From Github Repository')


    hello_world_task = hello_world()
    sleep_task = sleep_task()
    goodbye_world_task = goodbye_world()
    done_task = done()


    hello_world_task >> sleep_task >> goodbye_world_task >> done_task

Step 6: Access the Airflow UI

Once deployed, visit the Airflow web interface at:

http://airflow.nsa2.com

Login using default credentials:

  • Username: admin

  • Password: admin

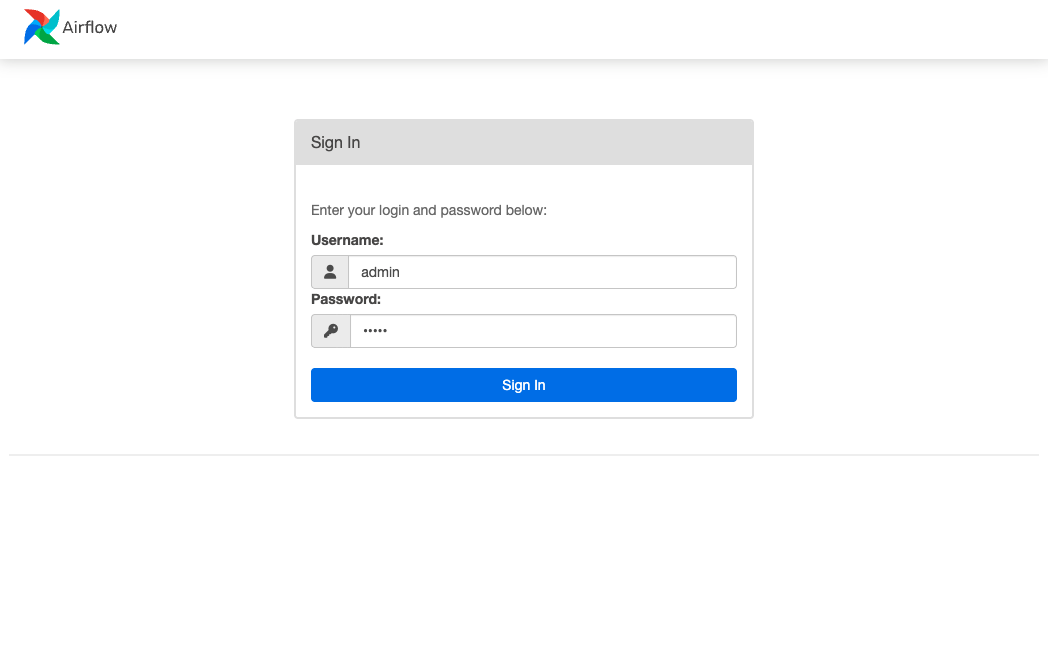

airflow web login
Figure 1. Airflow Web Login Page

You should now see your synced DAGs:

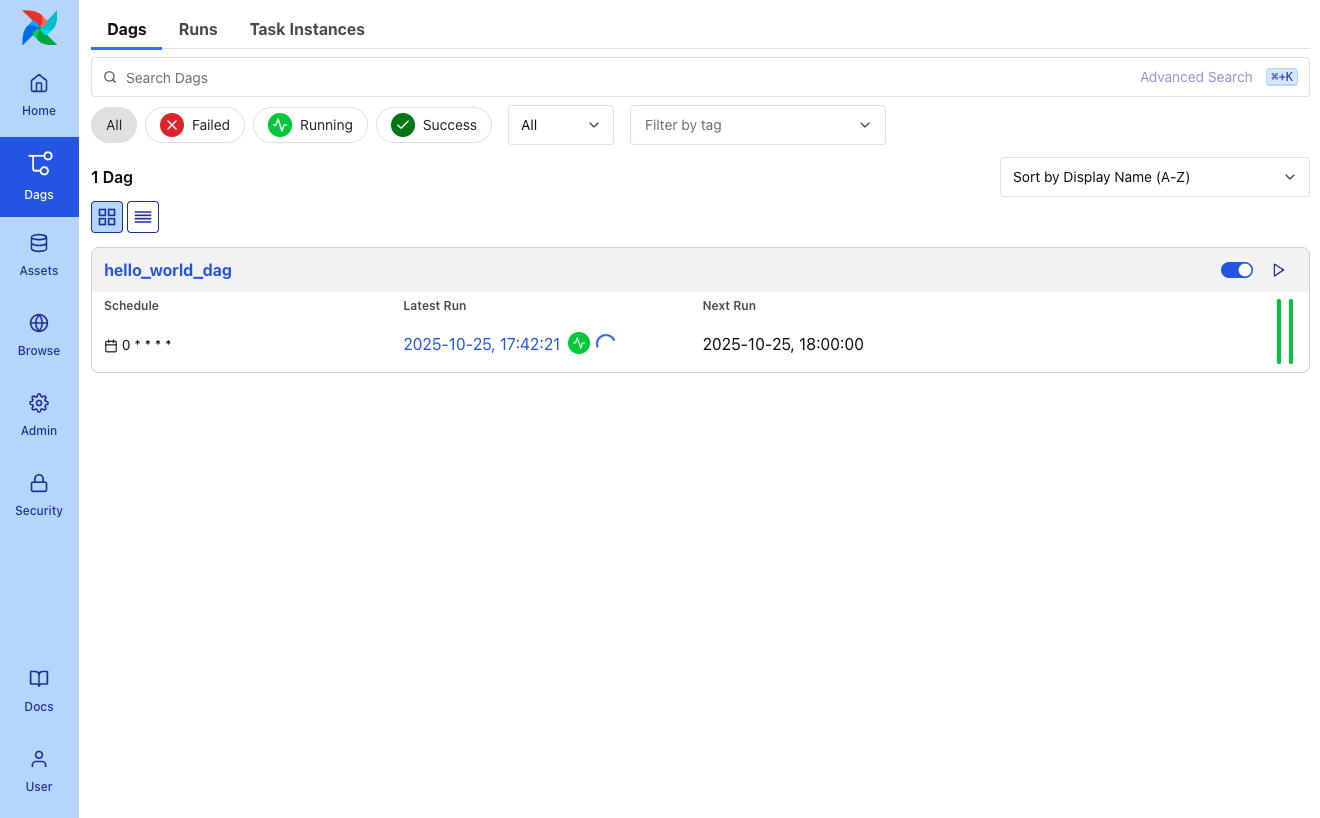

airflow web dags
Figure 2. Airflow Web - DAGs View

And you can inspect each DAG’s detail page:

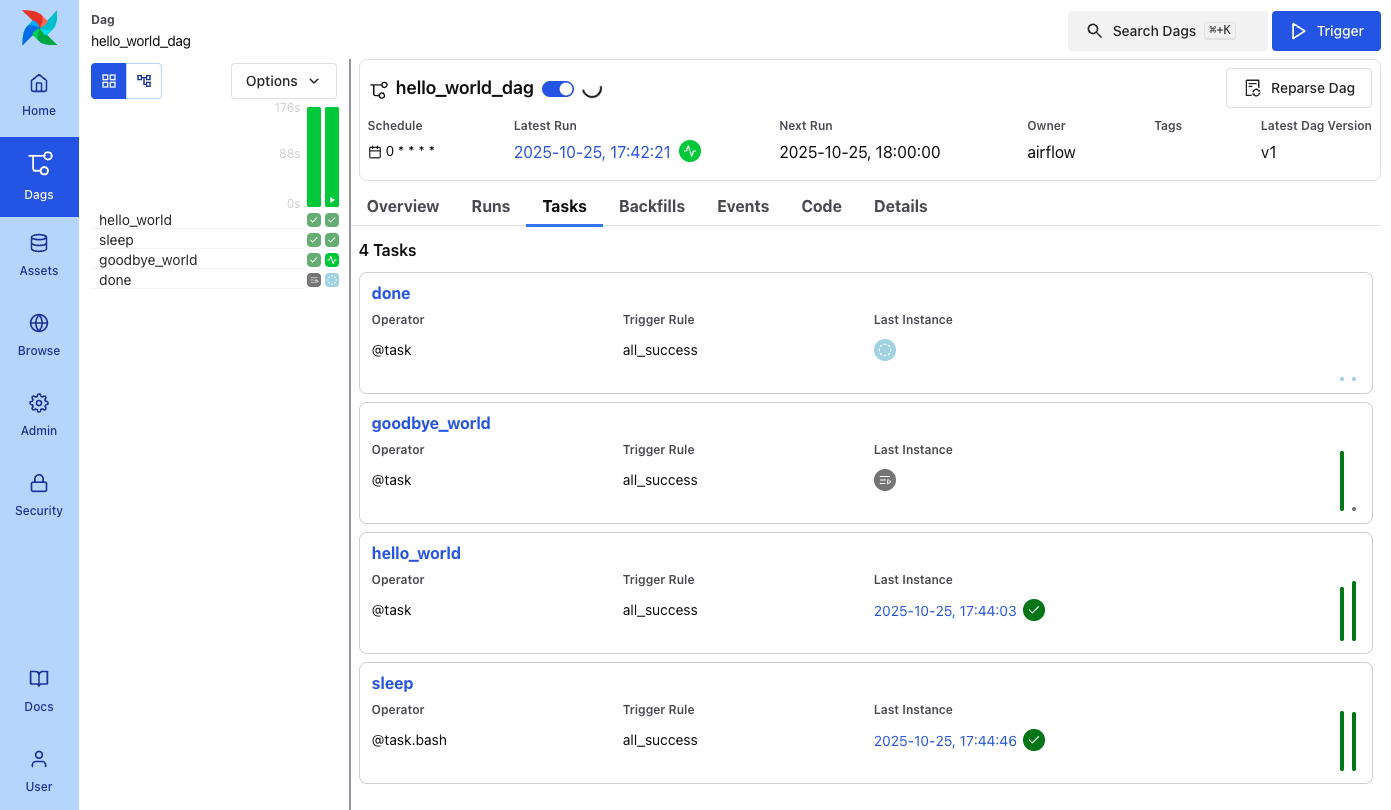

airflow web hello world dag
Figure 3. Airflow Web - DAG Details

Conclusion

You’ve successfully installed Apache Airflow 3 on Kubernetes using a manual and modular approach. With Git-based DAG synchronization, KubernetesExecutor for scalability, and secure PostgreSQL integration, you’re ready to start orchestrating your workflows in a production-grade setup.
