Apache Airflow - Kubernetes Executor

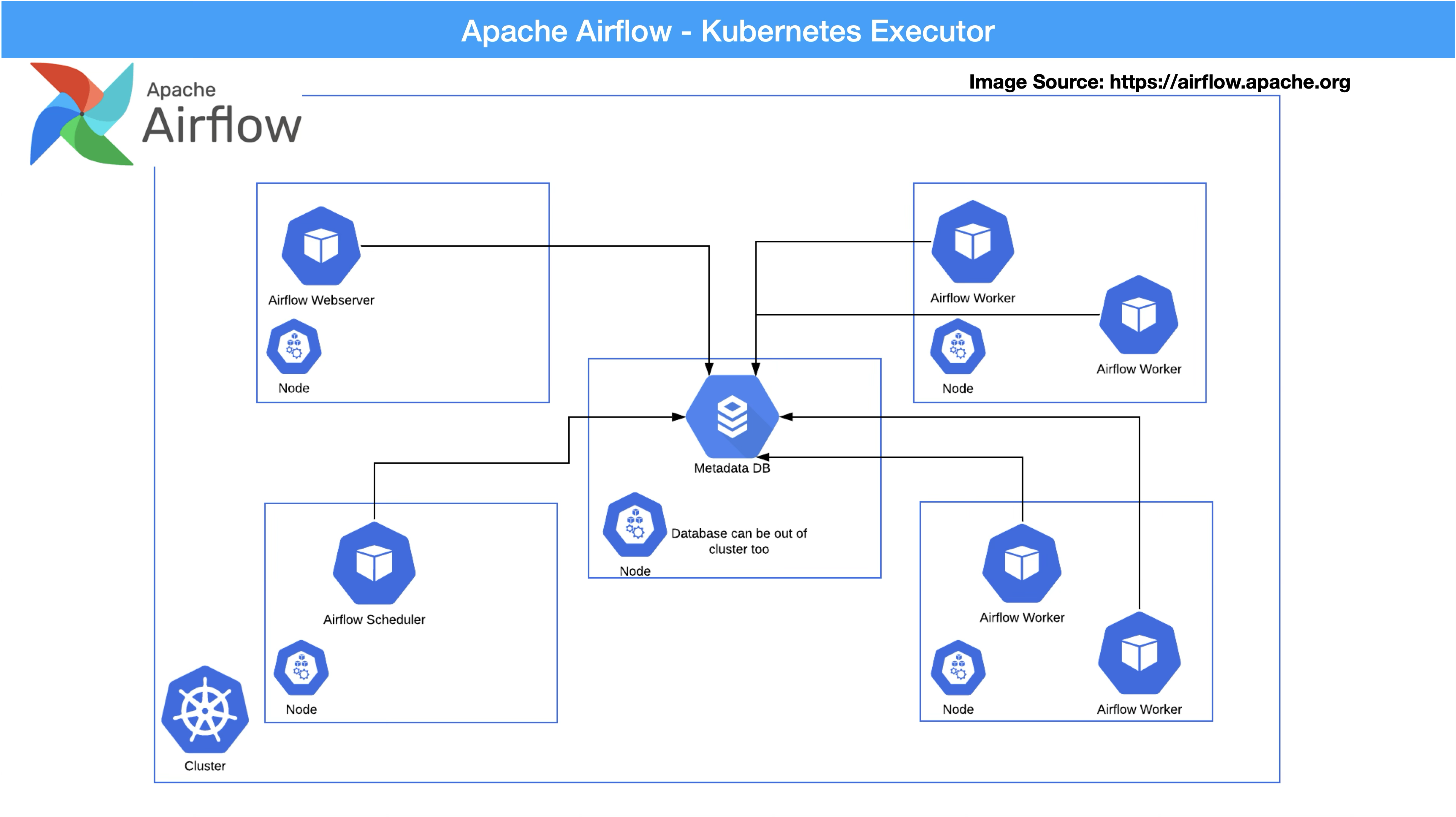

Introduction

This article is part of the series on Airflow on Kubernetes. In this series, we will cover the following topics:

This is the first article in the series.

This guide will show you how to install Airflow on Kubernetes.

What is Airflow®?

Apache Airflow® is an open-source platform for developing, scheduling, and monitoring batch-oriented workflows. Airflow’s extensible Python framework enables you to build workflows connecting with virtually any technology. A web interface helps manage the state of your workflows. Airflow is deployable in many ways, varying from a single process on your laptop to a distributed setup to support even the biggest workflows.

— Apache Airflow
https://airflow.apache.org/docs/

Workflow as code

The main characteristic of Airflow workflows is that all workflows are defined in Python code. “Workflows as code” serves several purposes:

Dynamic	Airflow pipelines are configured as Python code, allowing for dynamic pipeline generation.
Extensible	The Airflow® framework contains operators to connect with numerous technologies. All Airflow components are extensible to easily adjust to your environment.
Flexible	Workflow parameterization is built-in leveraging the Jinja templating engine.

For more information, refer to the link below:

https://airflow.apache.org/docs/apache-airflow/stable/index.html

Deploying Airflow on Kubernetes

In this section, we will see how to deploy Airflow on Kubernetes using the Helm chart.

Overall Steps

Here are the overall steps to deploy Airflow on Kubernetes:

Create a Namespace
Add the Helm Repository
Create a PVC for dags and logs
Create PVCs for pod template files and application data
Create a public IP for the webserver
Create a custom Docker image(Not Required)
Create a secret for the webserver
Create a secret for the Fernet key
Install Airflow using Helm chart

Create a Namespace

We will create a namespace called 'airflow' to deploy Airflow.

$ kubectl create namespace airflow

Add the Helm Repository

Add the Apache Airflow Helm repository to Helm. This repository contains the Airflow Helm chart.

$ helm repo add apache-airflow https://airflow.apache.org
$ helm repo update
$ helm repo list

Download values.yaml

To understand the values that can be set in the values.yaml file, download the values.yaml file using the following command:

$ helm show values apache-airflow/airflow > values.yaml

This file contains all the values that can be set in the values.yaml file. We will use cncf-k8s-values.yaml to set the values for the Airflow Helm chart.

Create a Secret for Azure Storage Account

Let’s create a secret to save the storage account name and key.

create secret for storage account

# aksdepstoage -> k8sdepstorage

$ STORAGE_ACCOUNT_NAME={your-storage-account-name}
$ STORAGE_ACCOUNT_KEY=$(az storage account keys list --resource-group $MC_RG --account-name $STORAGE_ACCOUNT_NAME --query "[0].value" -o tsv)

$ kubectl create secret generic -n airflow ${STORAGE_ACCOUNT_NAME}-secret \
--from-literal=azurestorageaccountname=$STORAGE_ACCOUNT_NAME \
--from-literal=azurestorageaccountkey=$STORAGE_ACCOUNT_KEY

This secret can be used when creating the PVCs

Create a PVC for dags and logs

data-airflow-storage PVC has subPaths for dags, logs, pod-templates, and app directories.

pvc-airflow-storage.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-airflow-storage
  labels:
    environment: airflow
    app: airflow

spec:
  capacity:
    storage: 300Gi
  accessModes:
    - ReadWriteMany
  storageClassName: azurefile
  azureFile:
    secretNamespace: 'airflow'
    secretName: your-storage-account-secret
    shareName: airflow-storage
    readOnly: false
  mountOptions:

    # use the same uid and gid as the airflow container
    - uid=50000
    - gid=0
    - mfsymlinks
    - cache=strict
    - nosharesock
    - nobrl
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-airflow-storage
  namespace: airflow
  labels:
    environment: airflow
    app: airflow
spec:
  accessModes:

    - ReadWriteMany
  storageClassName: azurefile

  volumeName: pv-airflow-storage
  resources:
    requests:
      storage: 300Gi

To create the PVC, run the following command:

$ kubectl apply -f pvc-airflow-storage.yaml

persistentvolume/pv-airflow-storage created
persistentvolumeclaim/data-airflow-storage created

custom-values.yaml -subPath for dags, logs, pod-templates

volumes:
  - name: data-airflow-storage
    persistentVolumeClaim:
      claimName: data-airflow-storage

volumeMounts:
  - mountPath: /opt/airflow/custom-pod-templates
    name: airflow-pod-templates
    subPath: airflow-pod-templates

# omit for brevity

dags:
  persistence:
    enabled: true
    existingClaim: data-airflow-storage
    subPath: airflow-dags

Create PVC for logs

Because the persistence object of logs does not have subPath in the values.yaml file, we can not use data-airflow-storage for logs. We need to create a separate PVC for logs.

I am going to create a Azure Disk for logs.

For more information on How to use Azure Disk with Kubernetes, refer to the link below:

Using Azure Disk with Kubernetes

create Azure disk for logs

$ RG=your-resource-group; \
DISK_NAME=airflow-logs-data; \
DISK_SIZE_GB=100; \
LOCATION=canadacentral; \
OS_TYPE=Linux; \
SKU=StandardSSD_LRS; \
MAX_SHARES=3; \
az disk create --resource-group $RG --name $DISK_NAME --size-gb $DISK_SIZE_GB --location $LOCATION --os-type $OS_TYPE --sku $SKU --max-shares $MAX_SHARES

get azure disk id

$ RG=your-resource-group
$ DISK_NAME=airflow-logs-data

$ DISK_ID=$(az disk show --resource-group $RG --name $DISK_NAME --query id -o tsv)

$ echo $DISK_ID

pv-airflow-logs-disk.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  annotations:
    pv.kubernetes.io/provisioned-by: disk.csi.azure.com
  name: pv-airflow-logs-disk
spec:
  capacity:
    storage: 100Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  storageClassName: managed-csi
  csi:
    driver: disk.csi.azure.com
    volumeHandle: your-disk-id
    volumeAttributes:
      fsType: ext4

pvc-airflow-logs-disk.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: airflow-logs-disk
  namespace: airflow
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 100Gi
  volumeName: pv-airflow-logs-disk
  storageClassName: managed-csi

To create the PVC for logs, run the following command:

$ kubectl apply -f pv-airflow-logs-disk.yaml

persistentvolume/pv-airflow-logs-disk created

$ kubectl apply -f pvc-airflow-logs-disk.yaml

persistentvolumeclaim/airflow-logs-disk created

custom-values.yaml - logs

logs:
  persistence:
    enabled: true
    existingClaim: airflow-logs-disk
    storageClassName: managed-csi

Create PVCs for dags and logs (Deprecated)

WARNING::This step is deprecated. Use PVC for dags and logs instead.

We will create PVCs for dags and logs to store the dags and logs in the storage account. In this example, we will use Azure File Share to store the dags and logs. To add dag files to the Airflow webserver, we need to upload the dag files to the Azure File Share manually.

Here is the manifest file for the PV and PVC of dags:

pvc-dags.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-airflow-dags-storage
  labels:
    environment: airflow
    app: airflow

spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteMany
  storageClassName: azurefile
  azureFile:
    secretNamespace: 'airflow'
    secretName: your-storage-account-secret
    shareName: airflow-dags
    readOnly: false
  mountOptions:

    - dir_mode=0750
    - file_mode=0750


    # use the same uid and gid as the airflow container
    - uid=50000
    - gid=0
    - mfsymlinks
    - cache=strict
    - nosharesock
    - nobrl
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-airflow-dags
  namespace: airflow
  labels:
    environment: airflow
    app: airflow
spec:
  accessModes:
    # code = InvalidArgument desc = Volume capability not supported, default does not support ReadWriteMany
    #    - ReadWriteMany
    - ReadWriteMany
  storageClassName: azurefile
  volumeName: pv-airflow-dags-storage
  resources:
    requests:
      storage: 1Gi

Set uid and gid to 50000 and 0 respectively which is the default value for the airflow user in the image.

Here is the manifest file for the PV and PVC of logs:

pvc-logs.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-airflow-logs-storage
  labels:
    environment: airflow
    app: airflow

spec:
  capacity:
    storage: 100Gi
  accessModes:
    - ReadWriteMany
  storageClassName: azurefile
  azureFile:
    secretNamespace: 'airflow'
    # This secret contains iclinicaksstorage and key
    secretName: k8sdepstorage-secret
    # QC2 will use the same IDOC storage as COLO.
    shareName: airflow-logs
    readOnly: false
  mountOptions:
    # data directory "/var/lib/postgresql/data" has invalid permissions
    # Permissions should be u=rwx (0700) or u=rwx,g=rx (0750).
    #    - dir_mode=0777
    #    - file_mode=0777
    - dir_mode=0750
    - file_mode=0750
    # uid and gid used to be 1000, and then 65534, now its value is 0
    # the value came from values-3.5.0-debian-11-r0.yaml, and cache and nosharesock are added recently.
    # see https://docs.microsoft.com/en-us/azure/aks/azure-files-volume#mount-file-share-as-a-persistent-volume

    # use the same uid and gid as the airflow container
    - uid=50000
    - gid=0
    - mfsymlinks
    - cache=strict
    - nosharesock
    - nobrl
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-airflow-logs
  namespace: airflow
  labels:
    environment: airflow
    app: airflow
spec:
  accessModes:
    # code = InvalidArgument desc = Volume capability not supported, default does not support ReadWriteMany
    #    - ReadWriteMany
    - ReadWriteMany
  storageClassName: azurefile
  # PostgreSQL does not work with Azure file. This is because PostgreSQL requires hard links in the Azure File directory,
  # and since Azure File does not support hard links the pod fails to start.
  #  storageClassName: azurefile
  volumeName: pv-airflow-logs-storage
  resources:
    requests:
      storage: 100Gi

To create the PVCs, run the following command:

create PVC for dags and logs

$ kubectl apply -f pvc-dags.yaml -f pvc-logs.yaml

These PVCs can be used in the customized values.yaml file to set the dags.persistence.existingClaim and logs.persistence.existingClaim.

cncf-k8s-values.yaml - dags and logs

dags:
  persistence:
    enabled: true
    existingClaim: data-airflow-dags

logs:
  persistence:
    enabled: true
    existingClaim: data-airflow-logs

Create PVCs for pod template files and application data

pvc-pod-templates.yaml
pvc-app.yaml

To create the PVCs, run the following command:

$ kubectl apply -f pvc-pod-templates.yaml -f pvc-app.yaml

These PVCs can be used in the customized values.yaml file to set the volumes and volumeMounts.

custom-values.yaml - volumes and volumeMounts

volumes:
  - name: airflow-pod-templates
    persistentVolumeClaim:
      claimName: data-airflow-pod-templates
  - name: airflow-app
    persistentVolumeClaim:
      claimName: data-airflow-app

volumeMounts:
  - name: airflow-pod-templates
    mountPath: /opt/airflow/custom-pod-templates
  - name: airflow-app
    mountPath: /opt/airflow/app

Create public IP for webserver

Following command will create a public IP for the webserver service using Azure CLI.

$ az network public-ip create --resource-group $MC_RG --name airflow-webserver-public-ip --sku Standard --allocation-method Static --query publicIp.ipAddress -o tsv

# get the public IP
$ PUBLIC_IP_ADDRESS=$(az network public-ip show --resource-group $MC_RG --name airflow-webserver-public-ip --query ipAddress -o tsv)

This ip address can be used in the values.yaml file to set the webserver.service.loadBalancerIP.

cncf-k8s-values.yaml - webserver service

webserver:
  service:
    type: LoadBalancer
    loadBalancerIP: xxx.xxx.xxx.xxx

Custom Docker Image

This step is not required.

We can use the default image provided by the Airflow Helm chart. This step is to show how to create a custom Docker image and use it in the Airflow Helm chart. The default image has all the required dependencies to run the tasks in the Kubernetes cluster.

cncf.kubernetes provider

We need to add the cncf.kubernetes provider to the Airflow image.

Refer to the link below:

https://airflow.apache.org/docs/apache-airflow-providers-cncf-kubernetes/stable/index.html

Dockerfile

This dockerfile is to add the cncf.kubernetes provider to the Airflow image.

docker/Dockerfile

FROM apache/airflow:2.9.3

RUN pip install --no-cache-dir --upgrade pip && \
    pip install --no-cache-dir apache-airflow-providers-cncf-kubernetes

Push Docker Image

To push the docker image to the Azure Container Registry, run the following command:

# login to ACR
$ az acr login --name $ACR_NAME

# push docker image to ACR

$ az acr build --image airflow-cncf-kubernetes:2.9.3 --registry $ACR_NAME ./docker

# airflor-custom:2.10.3
$ az acr build --image airflow-custom:2.10.3 --registry $ACR_NAME ./docker/custom

This docker image is used in the values.yaml file to set the image.repository and image.tag.

cncf-k8s-values.yaml - image

images:
  airflow:
    repository: iclinicacr.azurecr.io/airflow-cncf-kubernetes
    tag: 2.9.3
    pullPolicy: IfNotPresent

Create Secret for webserver secret key

As for the webserver secret key, it is recommended to set a static webserver secret key in case of re-installation. For more information on Airflow webserver secret key, refer to the link below:

https://airflow.apache.org/docs/helm-chart/stable/production-guide.html#webserver-secret-key

$ python3 -c 'import secrets; print(secrets.token_hex(16))'

# create secret - airflow-webserver-secret
$ kubectl create secret generic -n airflow airflow-webserver-secret --from-literal="webserver-secret-key=$(python3 -c 'import secrets; print(secrets.token_hex(16))')" --dry-run=client -o yaml | yq eval 'del(.metadata.cr
eationTimestamp)' > airflow-webserver-secret.yaml

$ kubectl apply -f airflow-webserver-secret.yaml

This secret can be used in the values.yaml file to set the webserver.secretKey.

cncf-k8s-values.yaml - webserver secret key

webserverSecretKeySecretName: "airflow-webserver-secret"

Create Secret for Fernet Key

Fernet key is used for encryption and decryption of passwords in the database. In case of re-installation, the Fernet key is regenerated and the passwords stored in the database will not be decrypted. To avoid this, the Fernet key is stored in a secret and used during re-installation.

airflow-fernet-key-secret.yaml

apiVersion: v1
data:
  fernet-key: your-fernet-key
kind: Secret
metadata:
  annotations:
    helm.sh/hook: pre-install
    helm.sh/hook-delete-policy: before-hook-creation
    helm.sh/hook-weight: "0"
  labels:
    chart: airflow
    heritage: Helm
    release: airflow
    tier: airflow
  name: airflow-fernet-key-secret
  namespace: airflow
type: Opaque

To create the secret, run the following command:

$ kubectl apply -f airflow-fernet-key-secret.yaml

This secret can be used in the values.yaml file to set the fernetKeySecretName.

cncf-k8s-values.yaml - fernet key

fernetKeySecretName: "airflow-fernet-key-secret"

pod_template_file.yaml

NOTE::This section is in progress WARNING:: This section is no longer valid. We are using PVC for pod template files.

pod_template_file.yaml is created for scheduler and webserver pods in the directory /opt/airflow/pod_templates

create configmap for pod_template_file.yaml

$ kubectl -n airflow create configmap pod-template-files --from-file=pod_template_file.yaml=./templates/basic_template.yaml --dry-run=client -o yaml  | yq eval 'del(.metadata.creationTimestamp)'  > pod-template-files-configmap.yaml

pod-template-files-configmap.yaml

apiVersion: v1
data:
  pod_template_file.yaml: |-
    apiVersion: v1
    kind: Pod
    metadata:
      name: placeholder-name
    spec:
      containers:
        - env:
            - name: AIRFLOW__CORE__EXECUTOR
              value: KubernetesExecutor
            # Hard Coded Airflow Envs
            - name: AIRFLOW__CORE__FERNET_KEY
              valueFrom:
                secretKeyRef:
                  name: airflow-fernet-key
                  key: fernet-key
            - name: AIRFLOW__DATABASE__SQL_ALCHEMY_CONN
              valueFrom:
                secretKeyRef:
                  name: airflow-metadata
                  key: connection
            - name: AIRFLOW_CONN_AIRFLOW_DB
              valueFrom:
                secretKeyRef:
                  name: airflow-metadata
                  key: connection
          image: apache/airflow:2.9.3
          imagePullPolicy: IfNotPresent
          name: base
          volumeMounts:
            - mountPath: /opt/airflow/logs
              name: airflow-logs
            - mountPath: /opt/airflow/dags
              name: airflow-dags
              readOnly: true
            - mountPath: /opt/airflow/custom-pod-templates
              name: airflow-pod-templates
              readOnly: true
            - mountPath: /opt/airflow/airflow.cfg
              name: airflow-config
              readOnly: true
              subPath: airflow.cfg
      restartPolicy: Never
      securityContext:
        runAsUser: 50000
        fsGroup: 50000
      serviceAccountName: "airflow-worker"
      volumes:
        - name: airflow-dags
          persistentVolumeClaim:
            claimName: data-airflow-dags
        - name: airflow-logs
          persistentVolumeClaim:
            claimName: data-airflow-logs
        - name: airflow-pod-templates
          persistentVolumeClaim:
            claimName: data-airflow-pod-templates
        - configMap:
            name: airflow-config
          name: airflow-config
kind: ConfigMap
metadata:
  name: pod-template-files
  namespace: airflow

$ kubectl apply -f pod-template-files-configmap.yaml

Customize values.yaml

Now we have all the required files to customize the values.yaml file.

custom-values.yaml

# Airflow version (Used to make some decisions based on Airflow Version being deployed)
#airflowVersion: "2.9.3"
airflowVersion: "2.10.3"

# Images
images:
  airflow:
    repository: iclinicacr.azurecr.io/airflow-custom
    #    tag: 2.9.3
    tag: 2.10.3
#    pullPolicy: IfNotPresent

# When installing airflow multiple times,
# fernet key and webserver secret key should be different
# which can cause issues
fernetKeySecretName: "airflow-fernet-key-secret"
webserverSecretKeySecretName: "airflow-webserver-secret"

executor: KubernetesExecutor


# see ./connections/index-elaborated.adoc

secret:
  - envName: AIRFLOW_CONN_POSTGRES_DEP_DATALAKE
    secretName: airflow-connections-secret
    secretKey: AIRFLOW_CONN_POSTGRES_DEP_DATALAKE
  - envName: AIRFLOW_CONN_KUBERNETES_DEFAULT
    secretName: airflow-connections-secret
    secretKey: AIRFLOW_CONN_KUBERNETES_DEFAULT
  - envName: AIRFLOW_CONN_K8S_CONN
    secretName: airflow-connections-secret
    secretKey: AIRFLOW_CONN_KUBERNETES_DEFAULT

nodeSelector:
  agentpool: depnodes

workers:
  persistence:
    enabled: false


webserver:
#  replicas: 2 # Seems to need session storage for more than 1 replica
  replicas: 1
  service:
    type: LoadBalancer
    loadBalancerIP: 4.205.236.238

  resources:
    limits:
      cpu: 600m
      memory: 2048Mi
    requests:
      cpu: 100m
      memory: 128Mi

  nodeSelector:
    agentpool: depnodes

triggerer:
  replicas: 2
  persistence:
    enabled: false

  resources:
    limits:
      cpu: 400m
      memory: 1024Mi
    requests:
      cpu: 100m
      memory: 128Mi

  nodeSelector:
    agentpool: depnodes

scheduler:
  replicas: 2

  resources:
    limits:
      cpu: 400m
      memory: 1024Mi
    requests:
      cpu: 100m
      memory: 128Mi

  nodeSelector:
    agentpool: depnodes

statsd:
  resources:
    limits:
      cpu: 400m
      memory: 1024Mi
    requests:
      cpu: 100m
      memory: 128Mi

  nodeSelector:
    agentpool: depnodes

redis:
  enabled: false





dags:
  persistence:
    enabled: true
    existingClaim: pvc-blob-airflow-storage
    subPath: airflow-dags


logs:
  persistence:
    enabled: true
    existingClaim: pvc-blob-airflow-logs

For Redis, we don’t need it in this example, so we set the redis.enabled to false.

Install Airflow using Helm chart

Using custom-values.yaml

$ helm install airflow ~/Dev/helm/charts/apache-airflow/airflow-1.15.0.tgz -f custom-values.yaml --namespace airflow
#$ helm install airflow apache-airflow/airflow -f custom-values.yaml --namespace airflow

verify the installation

$ kubectl -n airflow get pods

# Output
NAME                                 READY   STATUS    RESTARTS   AGE
airflow-postgresql-0                 1/1     Running   0          3h50m
airflow-scheduler-744d89ff99-7tfbj   2/2     Running   0          3h50m
airflow-statsd-86d5c76fcd-f8pbm      1/1     Running   0          3h50m
airflow-triggerer-6c894b7777-7t666   2/2     Running   0          3h50m
airflow-webserver-6444986b76-jlcdh   1/1     Running   0          3h50m

Uninstall Airflow

In case you want to uninstall Airflow, run the following command:

$ helm uninstall airflow --namespace airflow

Hello World DAG

Here is a sample Hello World DAG that can be used in Airflow:

dags/hello_world_dag.py

from airflow import DAG
from airflow.operators.bash import BashOperator
from airflow.operators.python import PythonOperator
from datetime import datetime


def helloWorld():
    print('Hello World')

def done():
    print('Done')

with DAG(dag_id="hello_world_dag",
         start_date=datetime(2024,3,27),
         schedule_interval="@hourly",
         catchup=False) as dag:

    task1 = PythonOperator(
        task_id="hello_world",
        python_callable=helloWorld
    )

    sleepTask = BashOperator(
        task_id='sleep',
        bash_command='sleep 10s'
    )

    task2 = PythonOperator(
        task_id="done",
        python_callable=done
    )


task1 >> sleepTask >> task2

There are 3 tasks in this DAG:

task1: print 'Hello World'
sleepTask: sleep for 10 seconds
task2: print 'Done'

If you want to inspect the PODs, increase the sleep time in the sleepTask task and use 'kubectl exec' command to inspect the PODs.

This DAG is scheduled to run every hour.

I saved this file in the dags directory, and it will be mounted to the /opt/airflow/dags directory in the Airflow webserver pod.

hello_world_dag - Graph View

We can see the graph view of the DAG in the Airflow UI.

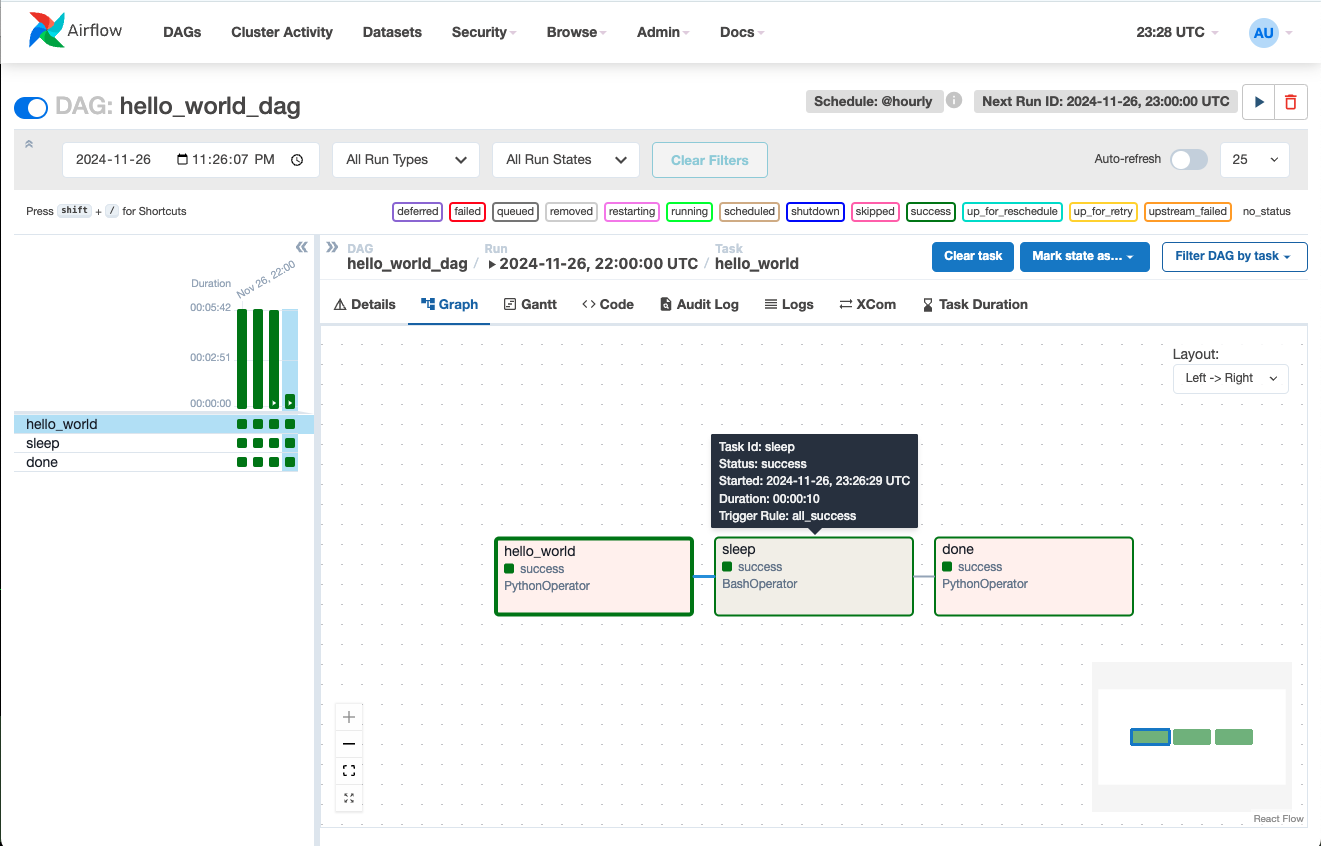

Figure 1. hello_world_dag - Graph View

To run this DAG manually, just click on the 'Trigger DAG' button in the Airflow UI.

Use -w option to watch the logs of the tasks.

$ kubectl -n airflow get pods -airflow

# Output

NAME                                 READY   STATUS    RESTARTS   AGE
airflow-postgresql-0                 1/1     Running   0          4h7m
airflow-scheduler-744d89ff99-7tfbj   2/2     Running   0          4h7m
airflow-statsd-86d5c76fcd-f8pbm      1/1     Running   0          4h7m
airflow-triggerer-6c894b7777-7t666   2/2     Running   0          4h7m
airflow-webserver-6444986b76-jlcdh   1/1     Running   0          4h7m
hello-world-dag-hello-world-st86d1gh   0/1     Pending   0          0s
hello-world-dag-hello-world-st86d1gh   0/1     Pending   0          0s
hello-world-dag-hello-world-st86d1gh   0/1     ContainerCreating   0          0s
hello-world-dag-hello-world-st86d1gh   1/1     Running             0          1s
hello-world-dag-sleep-x10pcggl         0/1     Pending             0          0s
hello-world-dag-sleep-x10pcggl         0/1     ContainerCreating   0          0s
hello-world-dag-hello-world-st86d1gh   0/1     Completed           0          12s
hello-world-dag-sleep-x10pcggl         1/1     Running             0          1s
hello-world-dag-hello-world-st86d1gh   0/1     Terminating         0          13s
hello-world-dag-done-6nw3izng          0/1     Pending             0          0s
hello-world-dag-done-6nw3izng          0/1     ContainerCreating   0          0s
hello-world-dag-sleep-x10pcggl         0/1     Completed           0          22s
hello-world-dag-done-6nw3izng          1/1     Running             0          1s
hello-world-dag-sleep-x10pcggl         0/1     Terminating         0          24s
hello-world-dag-done-6nw3izng          0/1     Completed           0          17s
hello-world-dag-done-6nw3izng          0/1     Terminating         0          17s

From the above output, you can see that the tasks are running in the PODs. And all the tasks are using the same image that we created earlier which is 'airflow-cncf-kubernetes:2.9.3'.

hello_world_dag - Logs

We can see the logs of the tasks in the Airflow UI.

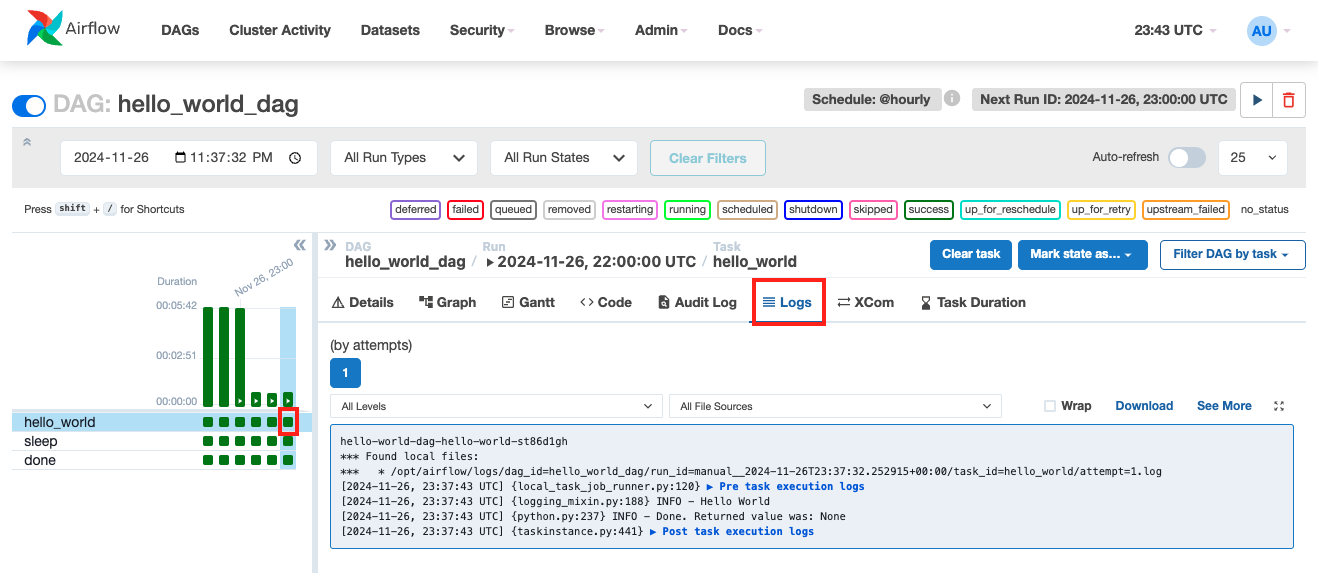

Figure 2. hello_world_dag - Logs

Click on the task to see the logs first, then 'Logs' tab appears. Click on the 'Logs' tab to see the logs of the task.

Conclusion

In this guide, we saw how to install Airflow on Kubernetes. We also saw how to create a custom Docker image and use it in the Airflow Helm chart. We also saw how to create a Hello World DAG and run it in the Airflow webserver.

Since the Kubernetes Executor uses the same image for all tasks, managing complex tasks becomes challenging.

In the next article, we will see how to use custom images for the tasks and how to use the KubernetesPodOperator to run the tasks in the Kubernetes cluster.
