Apache Airflow - Managing DAGs with a Git Repository

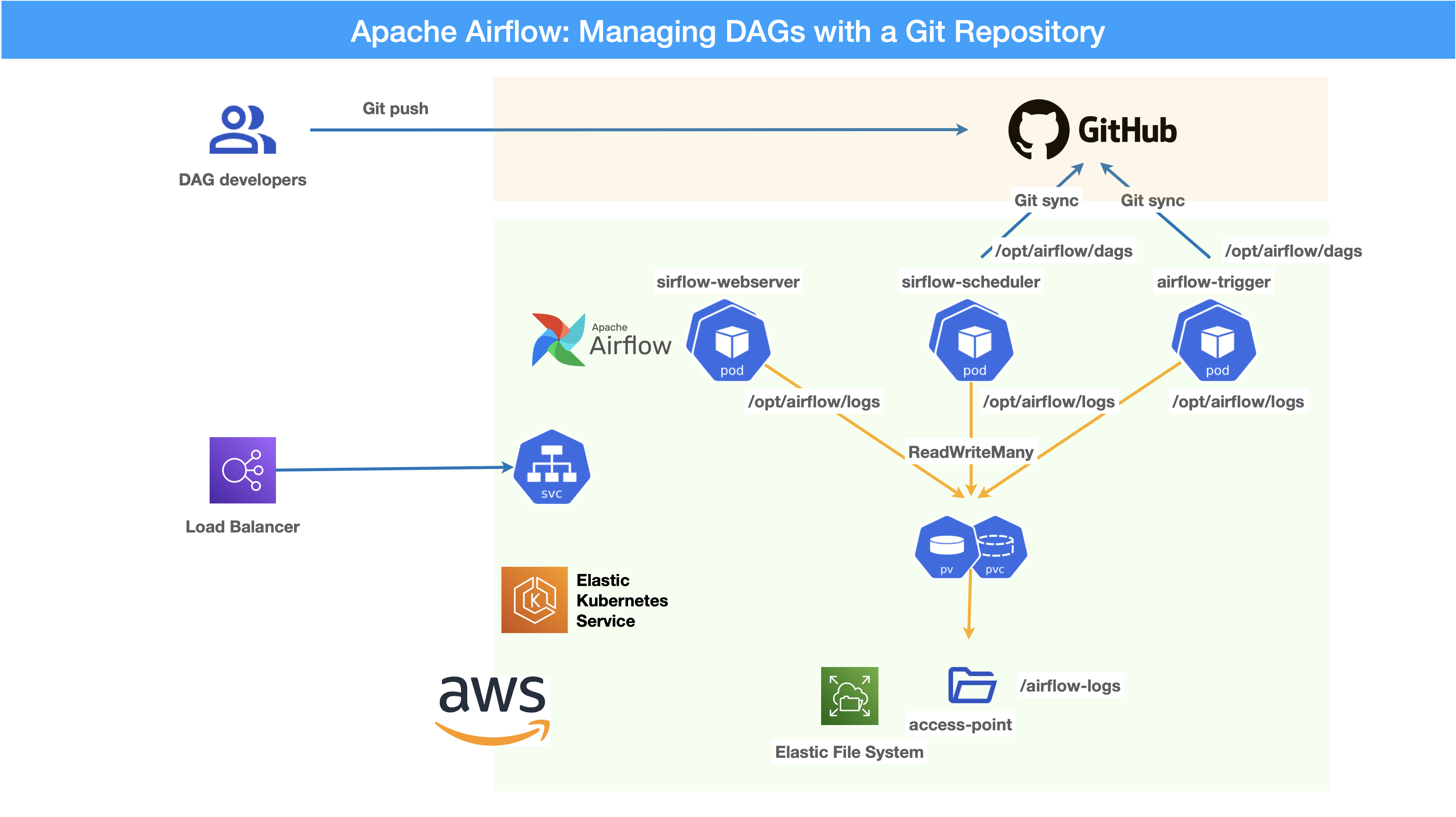

intro

Introduction

In this guide, we explore how to use a Git repository to store and manage Apache Airflow DAGs instead of relying on Persistent Volumes (PVs) with ReadWriteMany (RWX) mode.

By integrating Git Sync with Airflow, DAGs are automatically updated, allowing for seamless collaboration, version control, and CI/CD integration.

Benefits of Using a Git Repository for DAGs

Compared to using a Persistent Volume (EFS) for DAG storage, a Git-based approach offers several advantages:

Version Control

  • Git enables tracking of changes, allowing you to revert to previous versions when needed.

Collaboration

  • Multiple developers can work on DAGs simultaneously, committing and pushing updates to the repository.

  • Airflow automatically syncs the changes from Git.

No Persistent Storage Required

  • No need to maintain PVCs or EFS volumes for DAG storage.

  • DAGs are stored in Git and automatically pulled by Airflow.

CI/CD Integration

  • Git can be integrated with CI/CD pipelines to automatically test and deploy DAGs.

Setting Up a Private Git Repository for Airflow DAGs

This section is based on the official documentation of Airflow below:

Step 1: Create a Git Repository

  1. Create a new private repository on GitHub (e.g., airflow-dags-example).

  2. Clone the repository to your local machine:

$ git clone git@github.com:your-org/airflow-dags-example.git
$ cd airflow-dags-example

  1. Create a sample DAG file (e.g., hello_world_dag.py) and push the changes:

$ git add dags/hello_world_dag.py
$ git commit -m "Add hello_world DAG"
$ git push origin main

Here is an example of Python project structure:

airflow dags project

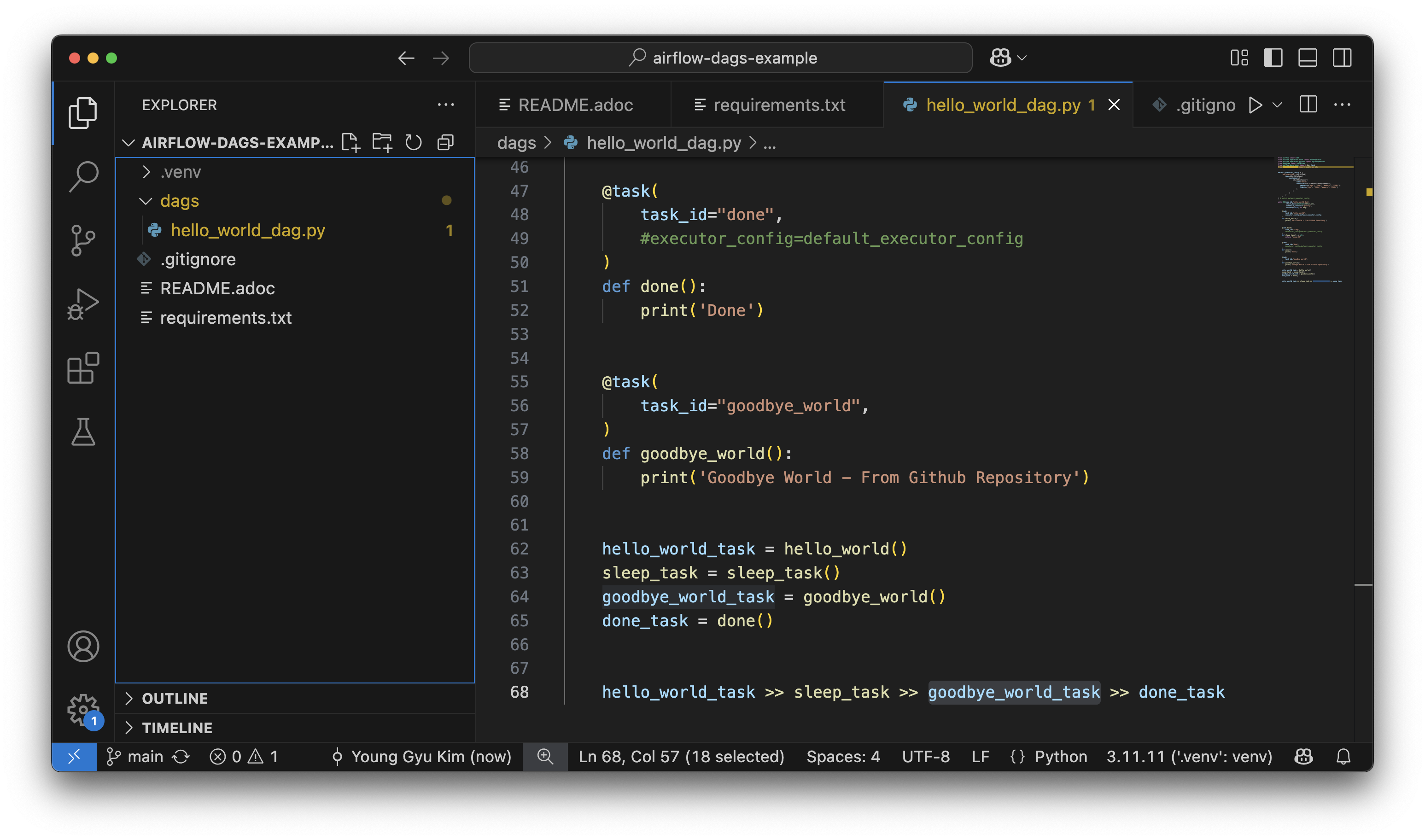

Figure 1. VS Code - airflow-dags-example project

Mounting DAGs from a Private Git Repository Using Git Sync

To allow Git Sync to fetch DAGs from a private Git repository, we need to configure SSH authentication.

Step 2: Generate SSH Keys for Git Access

Run the following command to generate an SSH key pair:

$ ssh-keygen -t rsa -b 4096 -C "your_email@example.com"

  • Add the public key (.pub file) to your GitHub repository under: Settings → Deploy Keys → Add Key

  • Save the private key as a Kubernetes secret in Airflow.

Configuring Airflow to Use Git Sync

Step 3: Update the Airflow Helm Values (custom-values.yaml)

Modify your custom-values.yaml file to enable Git Sync:

custom-values.yaml - changes for Git Sync
dags:
  persistence:
    enabled: false (1)

  gitSync:
    enabled: true
    repo: "git@github.com:your-org/airflow-dags-example.git" (2)
    branch: "main"
    rev: HEAD
    depth: 1
    wait: 60  # Sync every 60 seconds
    subPath: "dags" (3)
    containerName: "git-sync"
    sshKeySecret: "airflow-git-ssh-key-secret" (4)
    (5)
    knownHosts: |
      github.com ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIOMqqnkVzrm0SdG6UOoqKLsabgH5C9okWi0dh2l9GKJl
      github.com ecdsa-sha2-nistp256 AAAAE2Vj...2YB/++Tpockg=
      github.com ssh-rsa AAAAB3NzaC1y...+p1vN1/wsjk=

    emptyDirConfig:
      sizeLimit: 1Gi
      medium: Memory
    resources:
      limits:
        cpu: 400m
        memory: 1024Mi
      requests:
        cpu: 100m
        memory: 128Mi
1 Disable the persistence for the DAGs.
2 Provide the Git repository URL.
3 Provide the subpath where the DAGs are stored.
4 Provide the secret name that contains the SSH key.
5 Provide the known hosts for the Git repository.

For more information on GitHub’s SSH Key fingerprints, see GitHub’s SSH Key fingerprints.

Step 4: Create the SSH Key Kubernetes Secret

Run the following command to create a Kubernetes secret for the SSH key:

#$ kubectl create secret generic airflow-git-ssh-key-secret \
#  --from-file=ssh-privatekey=$HOME/.ssh/github-credemol \
#  --namespace airflow

$ kubectl create secret generic airflow-git-ssh-key-secret \
  --from-file=gitSshKey={my-private-ssh-key-file} \
  --namespace airflow

$ kubectl create secret generic airflow-git-ssh-key-secret \
  --from-file=gitSshKey=$HOME/.ssh/github-credemol \
  --namespace airflow

secret/airflow-git-ssh-key-secret created

Deploying Airflow with Git Sync

Step 5: Create secrets for fernet key and webserver password

Like the previous installation, we need to create secrets for the Fernet key and webserver password.

$ kubectl apply -f airflow-fernet-key-secret.yaml -f airflow-webserver-secret.yaml

Add Label to node group on EKS

To use nodeSelector in the Airflow deployment, we need to add a label to the node group.

label: agentpool=depnodes

Step 6: Install or Upgrade Airflow

Now, install or update Airflow using Helm:

#$ helm upgrade --install airflow apache-airflow/airflow -f custom-values.yaml --namespace airflow
$ helm upgrade --install airflow $HOME/Dev/helm/charts/apache-airflow/airflow-1.15.0.tgz -f custom-values.yaml --namespace airflow

Testing Git Sync in Airflow

hello_world_dag.py is the same as the previous example. It has three tasks: hello_world, sleep, and done.

git sync 1

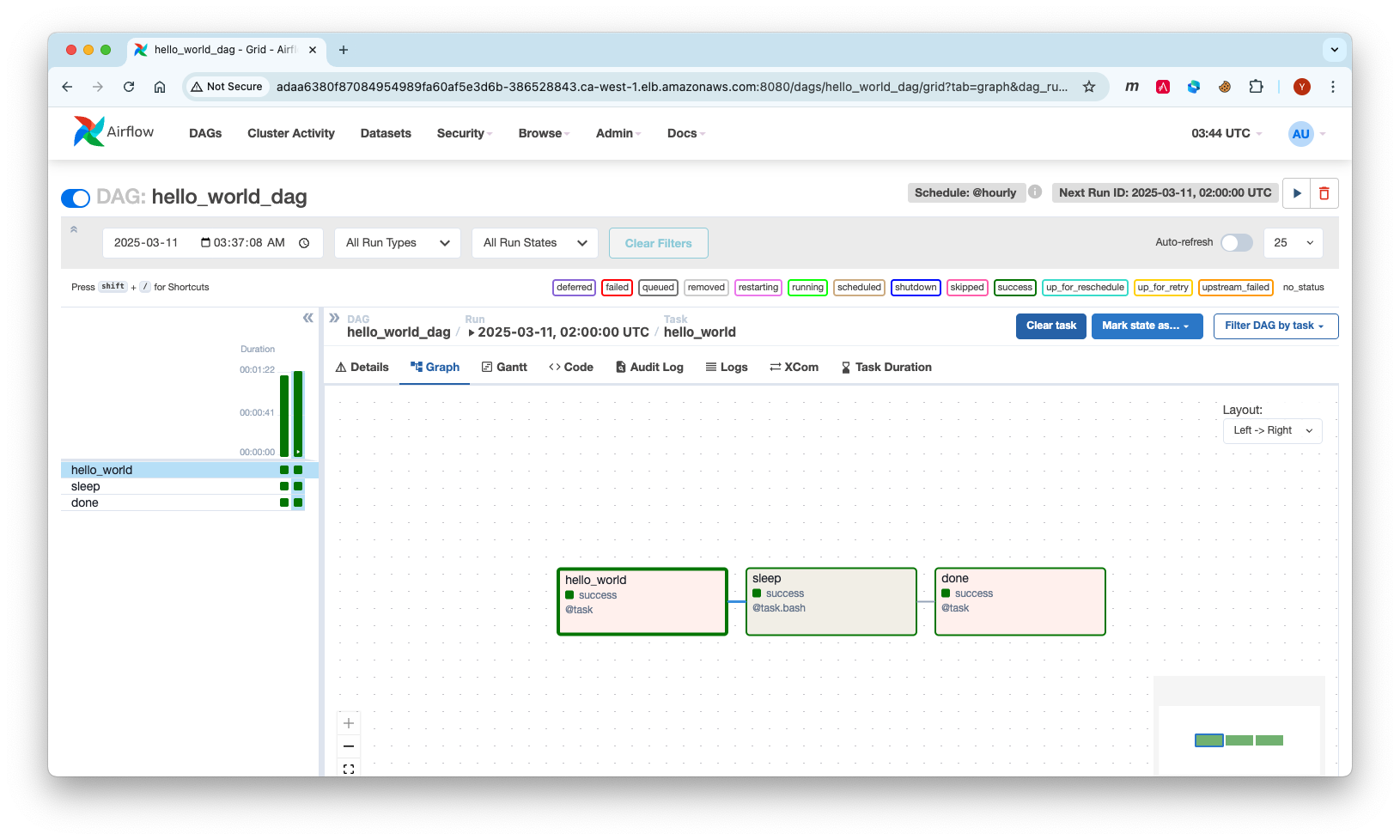

Figure 2. Before Git Sync

We are going to add a new task goodbye_world between the sleep and done tasks.

hello_world_dag.py
    (1)
    @task(
        task_id="goodbye_world",
    )
    def goodbye_world():
        print('Goodbye World - From Github Repository')


    hello_world_task = hello_world()
    sleep_task = sleep_task()
    goodbye_world_task = goodbye_world()    (2)
    done_task = done()

    hello_world_task >> sleep_task >> goodbye_world_task >> done_task (3)
1 Define a new task goodbye_world that prints Goodbye World - From Github Repository.
2 Create a new task instance goodbye_world_task.
3 Define the task dependencies.

And then commit and push the changes to the Github repository.

push the changes to the Github repository
$ git commit -a -m "Add goodbye_world task"
$ git push

Once the changes are pushed to the repository, the Airflow will automatically sync the changes.

Since Git Sync runs every 60 seconds, after a minute, the changes will be automatically reflected in the Airflow UI.

git sync 2

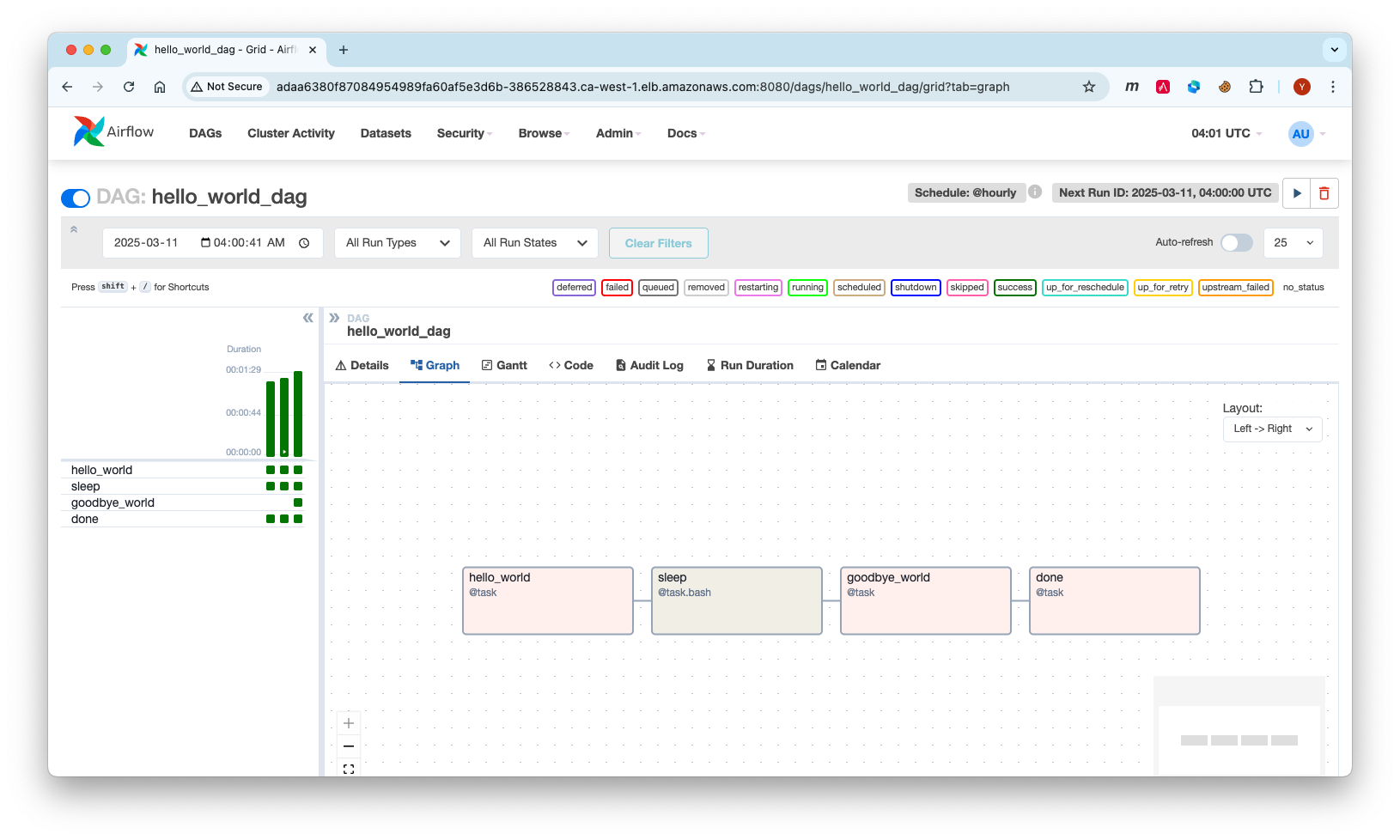

Figure 3. After Git Sync

We can see the new task 'goodbye_world' between sleep and done tasks.

Conclusion

In this guide, we:

  • Created a private Git repository for DAGs.

  • Configured Apache Airflow to sync DAGs using Git Sync.

  • Used SSH keys for authentication.

  • Verified that Git Sync automatically updates DAGs in Airflow.

With Git-based DAG management, development teams can work collaboratively, streamline deployments, and avoid storage dependencies like EFS or PVCs.

Now, Airflow DAGs are managed efficiently through Git!
