Deploying Apache Airflow on Amazon EKS with Amazon EFS

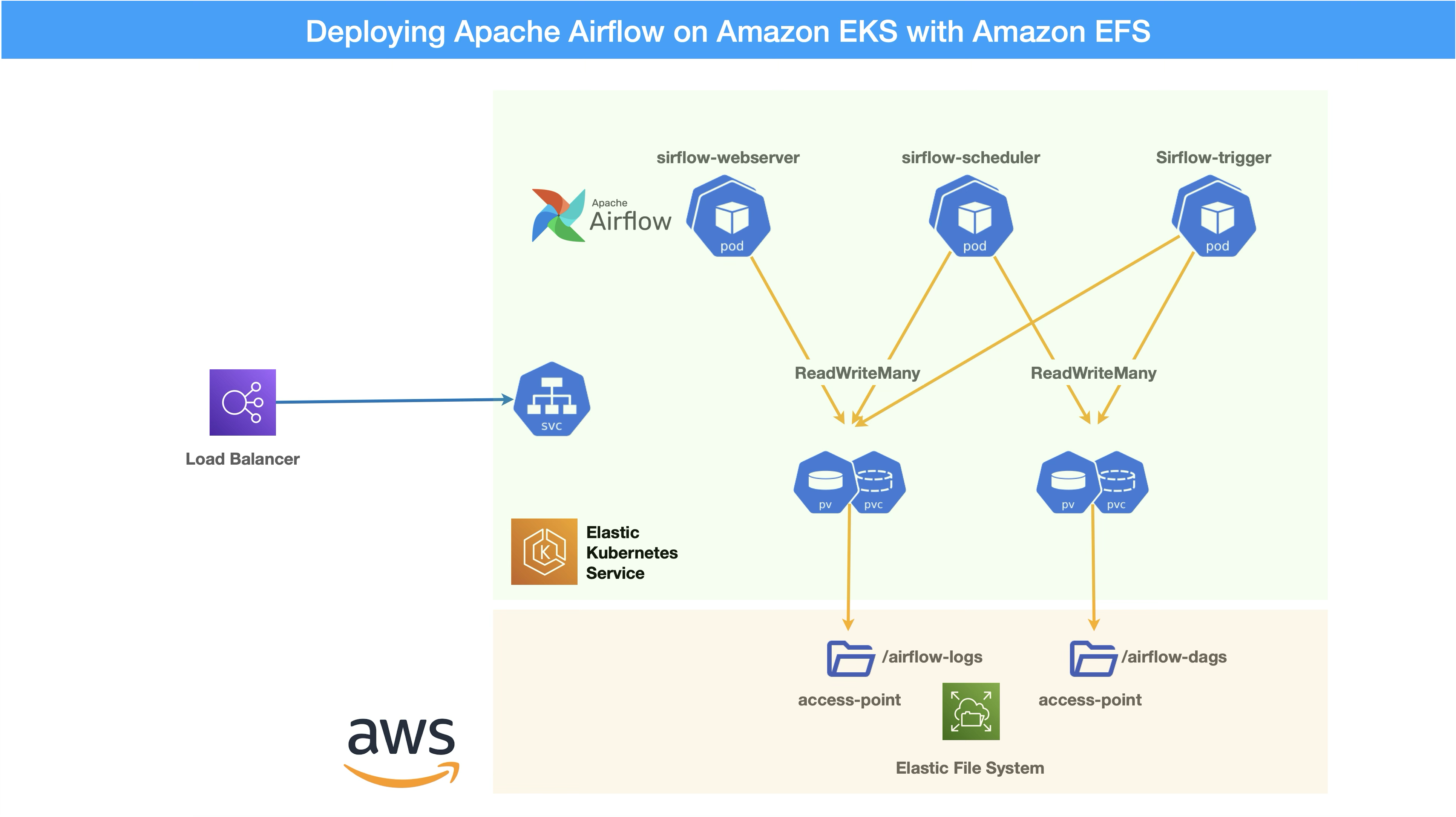

airflow in eks

Introduction

This guide provides step-by-step instructions on how to install Apache Airflow on Amazon Elastic Kubernetes Service (EKS), leveraging Amazon Elastic File System (EFS) for persistent storage and configuring essential networking components.

Topics Covered

In this guide, you will learn how to:

  • Configure EFS as a persistent storage solution for Airflow logs and DAGs, using the ReadWriteMany (RWX) access mode to enable multiple pods to access the same storage.

  • Utilize EFS Access Points to streamline permissions and enhance security.

  • Set up an Airflow web server with a public IP address for external accessibility.

Why Use Persistent Volume Claims (PVCs) with ReadWriteMany?

Apache Airflow is an excellent use case for Persistent Volume Claims (PVCs) with ReadWriteMany (RWX) mode, allowing multiple Airflow components—including the web server, trigger, and scheduler—to share access to the same logs and DAGs.

However, it is important to note that:

  • The Airflow web server stores logs on PVCs but does not use PVCs for DAGs.

  • Instead, DAGs are handled differently in Airflow 2, and they no longer need to be mounted in the web server pod.

  • The Airflow web server relies on Kubernetes Secrets for managing the Fernet key and web server authentication credentials.

For additional details on DAG mounting behavior in Airflow 2, refer to the official documentation:

Prerequisites

To follow this guide, you need to have the following tools installed:

  • kubectl

  • helm

  • AWS CLI

  • eksctl

  • Elastic Kubernetes Service (EKS) cluster

  • Elastic File System (EFS)

Limitations

This guide is based on Apache Airflow 2.9.3 and Helm chart version 1.15.0. If you are using a different version, you may need to modify the configurations in the custom-values.yaml file accordingly.

For compatibility details and configuration changes, refer to the official Apache Airflow Helm Chart documentation.

Elastic File System (EFS) Configuration for Persistent Volume Claims (PVCs)

This section covers how to configure Amazon Elastic File System (EFS) as persistent storage for Apache Airflow in an Amazon EKS cluster.

In this document, following topics are not covered:

  • How to create IAM roles for EFS CSI driver.

  • How to install and configure the EFS CSI driver.

  • How to create a storage class for EFS.

  • How to create Mount Targets for EFS.

These topics are all required to use EFS with Amazon EKS. However, in this document, we assume that you have already completed these steps.

For more information, see Amazon EFS CSI driver for Kubernetes.

Step 1: Create a Namespace for Airflow

Before deploying Airflow, create a dedicated Kubernetes namespace:

$ kubectl create namespace airflow

Step 2: Set Up Amazon EFS

Check if an EFS File System Exists

Run the following command to verify if you already have an Amazon EFS file system:

$ airflow-on-eks % aws efs describe-file-systems | yq '.FileSystems[].FileSystemArn'

Example Output

arn:aws:elasticfilesystem:ca-central-1:{your-aws-account-id}:file-system/{your-efs-id}

Create an EFS File System (If Not Available)

If no EFS file system exists, create one using:

$ aws efs create-file-system --creation-token airflow-efs --tags Key=Name,Value=airflow-efs

Store the EFS ID for Later Use

Assign the EFS ID to a variable:

$ EFS_ID=$(aws efs describe-file-systems | yq '.FileSystems[] | select(.Tags[].Value == "airflow-efs") | .FileSystemId')

Step 3: Configure EFS Access Points

What is EFS Access Point?

An EFS Access Point provides a controlled entry point into an Amazon EFS file system, making it easier to manage application-specific access to shared storage. It:

  • Defines subdirectories for different applications.

  • Assigns user and group ownership for proper access control.

  • Works with IAM policies to enhance security.

For example:

  • The Airflow image uses UID 50000 and GID 0 (root).

  • The Spark image uses UID 185 and GID 185.

To prevent permission conflicts, create separate access points for each application.

Create Access Points for Airflow

Create Access Point for DAGs
aws efs create-access-point --file-system-id $EFS_ID \
  --region $AWS_REGION \
  --root-directory "Path=/airflow-dags,CreationInfo={OwnerUid=50000,OwnerGid=0,Permissions=0750}" \
  --tags Key=Name,Value=airflow-dags
Create Access Point for Logs
aws efs create-access-point --file-system-id $EFS_ID \
  --region $AWS_REGION \
  --root-directory "Path=/airflow-logs,CreationInfo={OwnerUid=50000,OwnerGid=0,Permissions=0770}" \
  --tags Key=Name,Value=airflow-logs

Step 4: Create Persistent Volumes (PVs) and Persistent Volume Claims (PVCs)

Understanding Volume Handles for EFS Storage

When using EFS access points in a Persistent Volume (PV), specify the access point ID in the volumeHandle field:

Persistent Volume (PV) with EFS (Without Access Point)
spec:
  csi:
    volumeHandle: {efs-id}
Persistent Volume (PV) with EFS and Access Point
spec:
  csi:
    volumeHandle: {efs-id}::{access-point-id}

Create PV and PVC for Airflow DAGs and logs

Persistent Volume and PVC for Airflow DAGs (pvc-dags.yaml)
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-efs-airflow-dags
spec:
  capacity:
    storage: 5Gi
  volumeMode: Filesystem
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  storageClassName: efs-sc
  csi:
    driver: efs.csi.aws.com
    volumeHandle: efs-id::access-point-id (1)
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-efs-airflow-dags
  namespace: airflow
spec:
  accessModes:
    - ReadWriteMany
  storageClassName: efs-sc
  volumeName: pv-efs-airflow-dags  (2)
  resources:
    requests:
      storage: 5Gi
1 Replace {efs-id} and {access-point-id} with the EFS ID and access point ID.
2 volumeName can be explicitly set to the PV name.

Persistent Volume and PVC for Airflow Logs

Create another manifest file similar to pvc-dags.yaml, but with different PV and PVC names, and reference the logs access point ID.

Step 5: Apply PVCs to the Kubernetes Cluster

Deploy the PV and PVC manifests for Airflow DAGs and Logs:

kubectl apply -f pvc-dags.yaml -f pvc-logs.yaml

Step 6: Verify the PVCs

Check the status of the Persistent Volume Claims (PVCs):

$ kubectl -n airflow get pvc

Example Output

NAME                   STATUS   VOLUME                CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
pvc-efs-airflow-dags   Bound    pv-efs-airflow-dags   5Gi        RWX            efs-sc         <unset>                 4m43s
pvc-efs-airflow-logs   Bound    pv-efs-airflow-logs   5Gi        RWX            efs-sc         <unset>                 2m46s

Installing Apache Airflow on Amazon EKS Using Helm

This section explains how to install Apache Airflow on an Amazon EKS cluster using Helm, configure EFS for persistent storage, and expose the Airflow web server.

For more details on installing Apache Airflow with Helm, refer to:

Step 1: Create Secrets for Airflow

Apache Airflow requires a Fernet key and a web server password to encrypt and decrypt connections and variables. Apply the required secrets using:

These files can be found from the link above.

$ kubectl apply -f airflow-fernet-key-secret.yaml -f airflow-webserver-secret.yaml

Step 2: Define Custom Helm Values

To override the default Helm chart values, create a custom-values.yaml file.

Example: custom-values.yaml

fernetKeySecretName: "airflow-fernet-key-secret"
webserverSecretKeySecretName: "airflow-webserver-secret"

executor: KubernetesExecutor

workers:
  persistence:
    enabled: false

webserver:
  replicas: 1

triggerer:
  replicas: 2
  persistence:
    enabled: false

scheduler:
  replicas: 2

redis:
  enabled: false

(1)
dags:
  persistence:
    enabled: true
    existingClaim: pvc-efs-airflow-dags
    accessMode: ReadWriteMany
    storageClassName: efs-sc

(2)
logs:
  persistence:
    enabled: true
    existingClaim: pvc-efs-airflow-logs

Key Configurations

  1. DAGs Storage (dags.persistence):

    • Uses a Persistent Volume Claim (PVC) for storing DAG files.

    • Mounted to EFS using pvc-efs-airflow-dags.

  2. Logs Storage (logs.persistence):

    • Uses PVC for storing logs.

    • Mounted to EFS using pvc-efs-airflow-logs.

  3. Customizing Resources (Optional) You can allocate CPU, memory, and node selectors for specific components:

scheduler:
  replicas: 2

  resources:
    limits:
      cpu: 400m
      memory: 1024Mi
    requests:
      cpu: 100m
      memory: 128Mi

  nodeSelector:
    nodegroup-label-key: nodegroup-label-value

Step 3: Deploy Apache Airflow Using Helm

Install Apache Airflow using Helm with the customized values:

#$ helm install airflow ~/Dev/helm/charts/apache-airflow/airflow-1.15.0.tgz -f custom-values.yaml --namespace airflow

$ helm upgrade --install airflow apache-airflow/airflow -f custom-values.yaml --namespace airflow

Step 4: Access the Airflow Web Server

By default, the Airflow web server is not exposed publicly. To access it locally, use port forwarding:

$ kubectl port-forward svc/airflow-webserver 8080:8080 -n airflow

Now, open your browser and go to:

http://localhost:8080.

Login Credentials:

  • Username: admin

  • Password: admin

Upload DAGs to Amazon EFS

Unlike Azure Files or Blob Storage, Amazon EFS does not provide a direct UI or CLI tool to upload DAGs. Instead, you can:

  • Mount EFS using AWS efs-utils (only on Linux or macOS running on an EC2 instance).

  • Use kubectl cp to copy DAGs into the EFS-mounted Airflow pod.

Copy DAGs Using kubectl cp

Since EFS is mounted to the Airflow scheduler and triggerer pods, use the following command to copy DAGs:

$ kubectl -n airflow get pods | grep airflow-scheduler | head -n 1 | awk '{print $1}' | xargs -I {} kubectl -n airflow cp dags/hello_world_dag.py {}:dags/hello_world_dag.py

Verify DAGs Were Uploaded

$ kubectl -n airflow get pods | grep airflow-scheduler | head -n 1 | awk '{print $1}' | xargs -I {} kubectl -n airflow exec -it {} -- ls -l dags/

Step 6: Example Hello World DAG

dags/hello_world_dag.py
from airflow import DAG
from airflow.operators.bash import BashOperator
from airflow.operators.python import PythonOperator
from datetime import datetime
from airflow.decorators import dag, task
from kubernetes.client import models as k8s


default_executor_config = {
    "pod_override": k8s.V1Pod(
        spec=k8s.V1PodSpec(
            containers=[
                k8s.V1Container(
                    name="base",
                    resources=k8s.V1ResourceRequirements(
                        requests={"cpu": "100m", "memory": "128Mi"},
                        limits={"cpu": "200m", "memory": "256Mi"}
                    )
                )
            ]
        )
    )
} # end of default_executor_config

with DAG(dag_id="hello_world_dag",
         start_date=datetime(2024,3,27),
         schedule_interval="@hourly",
         catchup=False) as dag:

    @task(
        task_id="hello_world",
        executor_config=default_executor_config
    )
    def hello_world():
        print('Hello World')



    @task.bash(
        task_id="sleep",
        #executor_config=default_executor_config
    )
    def sleep_task() -> str:
        return "sleep 10"



    @task(
        task_id="done",
        #executor_config=default_executor_config
    )
    def done():
        print('Done')


    hello_world_task = hello_world()
    sleep_task = sleep_task()
    done_task = done()


    hello_world_task >> sleep_task >> done_task

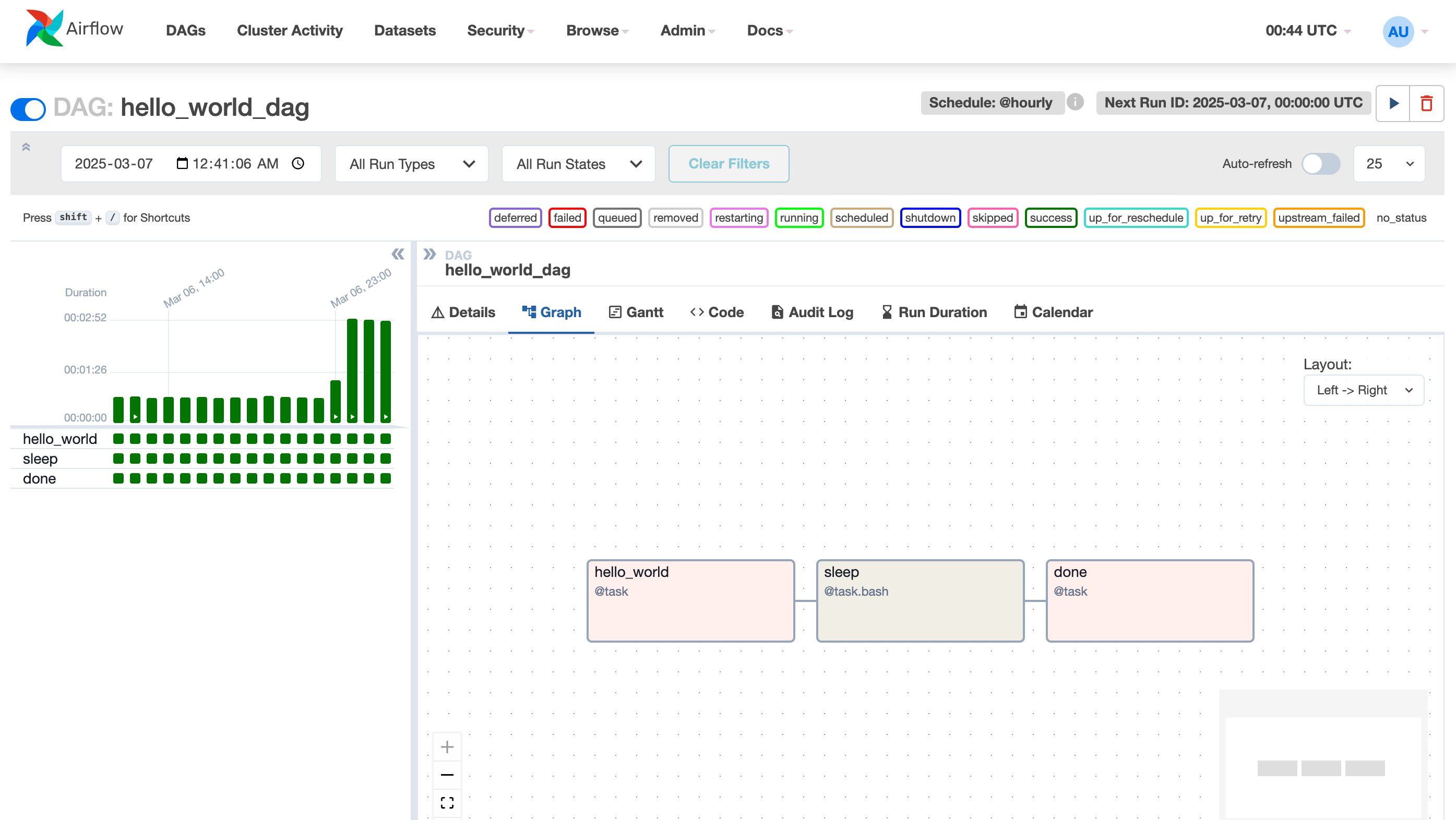

hello world dag
Figure 1. Hello World DAG

Step 7: Exposing the Airflow Web Server via a Load Balancer

For more information about Load balancing, see Load balancing for Amazon EKS.

To expose Apache Airflow Web Server to the public, use the AWS Load Balancer Controller.

Modify custom-values.yaml

webserver:
  replicas: 1

  service:
    type: LoadBalancer  (1)
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip (2)
    # loadBalancerIP: "xx.xx.xx.xx"  (3)

Key Configurations

1 Set Service Type to LoadBalancer (service.type: LoadBalancer)
2 Use AWS Load Balancer Controller Annotation (aws-load-balancer-nlb-target-type: ip)
3 Do NOT specify loadBalancerIP (Setting loadBalancerIP results in an error).

Step 8: Apply Load Balancer Changes

Run the following command to update the Airflow web server service:

$ helm upgrade --install airflow apache-airflow/airflow -f custom-values.yaml --namespace airflow

Step 9: Get the External IP

To access the public Airflow web server, retrieve the EXTERNAL-IP:

$ kubectl -n airflow get service airflow-webserver

NAME                TYPE           CLUSTER-IP      EXTERNAL-IP                                                                  PORT(S)          AGE
airflow-webserver   LoadBalancer   10.100.22.247   a3b0729c2f6af4ce39exxxxxxxxxx-111111111.ca-central-1.elb.amazonaws.com   8080:30796/TCP   20m

Now, access Apache Airflow at: http://a3b0729c2f6af4ce39xxxxxxx-111111111.ca-central-1.elb.amazonaws.com:8080

Conclusion

In this guide, we covered the complete process of installing Apache Airflow on Amazon EKS using Helm, ensuring a scalable and efficient deployment.

Key Takeaways

  1. Installing Apache Airflow on EKS

    • We deployed Apache Airflow using Helm, leveraging the Kubernetes Executor for distributed task execution.

  2. Configuring Amazon EFS for Persistent Storage

    • We integrated Amazon Elastic File System (EFS) to store Airflow logs and DAGs, enabling multiple pods (scheduler, web server, and triggerer) to share the same storage using the ReadWriteMany (RWX) access mode.

  3. Utilizing EFS Access Points

    • We created EFS Access Points to simplify permissions management and avoid conflicts when multiple applications access the same storage.

  4. Exposing the Airflow Web Server

    • We explored different access methods, including port forwarding for local access and using an AWS Load Balancer to expose the Airflow web server via a public IP address.

By following this guide, you now have a fully functional Apache Airflow setup on Amazon EKS, equipped with scalable storage and networking configurations.

For further optimizations, consider:

  • Enabling autoscaling for different Airflow components.

  • Integrating monitoring and logging tools like Amazon CloudWatch or Grafana.

  • Using secrets management (e.g., AWS Secrets Manager) for secure credential handling.

With this setup, you are well-equipped to orchestrate workflows efficiently while leveraging the scalability and resilience of Amazon EKS.

All my LinkedIn articles can be found here:

Internal Link: docs/airflow/airflow-on-eks/index.adoc
