Spring Cloud Gateway with ConfigWatcher

Introduction

This article is part of a series on Spring Cloud Gateway. The other articles in the series are:

Part 1: Spring Cloud Gateway with Virtual Threads
Part 2: Spring Cloud Gateway with Spring Authorization Server
Part 3: Spring Cloud Gateway with Spring Authorization Server using Database
Part 4: Spring Cloud Gateway & Spring Authorization Server with Roles
Part 5: Spring Cloud Gateway with ConfigWatcher

This is the fifth article in the series, which focuses on applying ConfigWatcher to Spring Cloud Gateway.

In this article, we are going to learn how to add routes to Spring Cloud Gateway dynamically using ConfigWatcher.

Scenario

The gateway routes are defined in the application.yaml file.
The nsa2-gateway-kubernetes.yaml file is stored in a ConfigMap in Kubernetes.
Mount the ConfigMap to the /etc/configs directory in the pod.
bootstrap.yaml file contains the ConfigWatcher configuration to reload configuration files saved in the ConfigMap.
ConfigWatcher watches the ConfigMap and updates the routes in the Spring Cloud Gateway when the file is changed.
- Add a new route to the nsa2-gateway-kubernetes.yaml file in the ConfigMap.
- Update the existing route in the nsa2-gateway-kubernetes.yaml file in the ConfigMap.

Sprig Cloud Kubernetes ConfigWatcher

ConfigWatcher is a tool that watches the configuration files and updates the application when the configuration files are changed. For example, if you have a configuration file that contains routes for Spring Cloud Gateway, you can use ConfigWatcher to watch the file and update the routes when the file is changed to add or remove routes when needed.

For more information about ConfigWatcher, please refer to the link:

Spring Cloud Kubernetes ConfigWatcher

New Backend Service named nsa2-security-admin

To demonstrate how ConfigWatcher works, we are going to create a new backend service named nsa2-security-admin. The service will be used to demonstrate how to add a new route to the Spring Cloud Gateway dynamically using ConfigWatcher.

The nsa2-security-admin service is a Spring Boot applications that provides REST APIs for managing users, roles, and OAuth2 clients. The service is secured with Spring Security and OAuth2.

Here is the UserController class in the nsa2-security-admin service. In this article, we are going to add a new route to the Spring Cloud Gateway to access the nsa2-security-admin service.

UserController.java

@RestController
@RequestMapping("/users")
@RequiredArgsConstructor
@Slf4j
public class UserController implements UserApi {

    private final UserService userService;

    @PreAuthorize("hasRole('NSA2_ADMIN')")
    @GetMapping
    @Override
    public List<User> getAllUsers() {
        return userService.getAllUsers();
    }
}

Please note that the UserController class is secured with the NSA2_ADMIN role which means only users with the NSA2_ADMIN role can access the /users endpoint.

Configure ConfigWatcher to Spring Cloud Gateway

For more information about ConfigWatcher, please refer to my article on Auto Reload Config Properties in Spring Cloud with K8s Config Watcher.

Simply put, Spring ConfigWatcher is a tool that watches the ConfigMaps or Secrets in Kubernetes and updates the application when the configuration files are changed. For example, if you have a configuration file that contains routes for Spring Cloud Gateway, you can use ConfigWatcher to watch the file and update the routes when the file is changed to add or remove routes when needed.

To implement ConfigWatcher in Spring Cloud Gateway, we need to add the following tasks:

Add dependencies to the build.gradle file
Create a ConfigMap in Kubernetes that contains the configuration file named nsa2-gateway-kubernetes.yaml. nsa2-gateway is the application name and kubernetes is the profile name.
Add ConfigWatcher configuration to the bootstrap.yaml file.
Mount the ConfigMap to the /etc/configs directory in the pod.
Create a ServiceAccount and RoleBinding for the Spring Cloud Gateway pod to access the ConfigMap.

Add dependencies

To add ConfigWatcher to Spring Cloud Gateway, we need to add the following dependencies to the build.gradle file.

build.gradle.kts

    implementation("org.springframework.cloud:spring-cloud-starter")
    implementation("org.springframework.cloud:spring-cloud-starter-kubernetes-client")
    implementation("org.springframework.cloud:spring-cloud-starter-kubernetes-client-config")

ConfigMap for application.yaml file

Here is the ConfigMap for the application.yaml file.

nsa2-gateway-config.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: nsa2-gateway
  labels:
    spring.cloud.kubernetes.config: "true"
  annotations:
    spring.cloud.kubernetes.configmap.apps: "nsa2-gateway"
data:
  #NSA2_OAUTH_ISSUER_URI: http://nsa2-auth-server:9000
  #NSA2_RESOURCE_SERVER_URI: http://nsa2-resource-server-example:8080


  nsa2-gateway-kubernetes.yml: |-
    spring.application.name: nsa2-gateway

    server:
      tomcat.threads.max: ${TOMCAT_THREADS_MAX:10}
      servlet.session.cookie:
        name: ${SESSION_COOKIE_NAME:NSA2SESSION}

    spring:
      cloud:
        gateway:
          mvc:
            routes:
              - id: resource-server
                uri: ${NSA2_RESOURCE_SERVER_URI:http://nsa2-resource-server-example:8080}
                predicates:
                  - Path=/resource-server/**
                filters:
                  - StripPrefix=1
    #              - AddRequestHeader=Origin, http://nsa2-gateway.canadacentral.cloudapp.azure.com:8080
                  - AddRequestHeader=Origin, http://nsa2-gateway:8080
                  - TokenRelay=

              - id: security-admin
                uri: ${NSA2_SECURITY_ADMIN:http://nsa2-security-admin:8080}
                predicates:
    #              - Path=/security-admin/**
                  - Path=/admin/**
                filters:
                  - StripPrefix=1
    #              - AddRequestHeader=Origin, http://nsa2-gateway.canadacentral.cloudapp.azure.com:8080
                  - AddRequestHeader=Origin, http://nsa2-gateway:8080
                  - TokenRelay=

    spring.threads.virtual.enabled: true
    logging:
      level:
        org.springframework: INFO

    spring.security.oauth2.client:
      registration:
        nsa2:
          provider: ${NSA2_OAUTH_PROVIDER:spring}
          client-id: ${NSA2_OAUTH_CLIENT_ID:nsa2}
          client-secret: ${NSA2_OAUTH_CLIENT_SECRET:secret}
          authorization-grant-type: ${NSA2_OAUTH_GRANT_TYPE:authorization_code}
          scope: ${NSA2_OAUTH_SCOPE:openid,profile}
          #      scope: openid,profile,nsa2.user.all,nsa2.user.read,nsa2.user.write,nsa2.admin
          #      redirect-uri: "http://127.0.0.1:8080/authorized"
          redirect-uri: ${NSA2_OAUTH_REDIRECT_URI:http://nsa2-gateway:8080/login/oauth2/code/{registrationId}}
          #client-name: nsa2-oidc
          #client-authentication-method: ${NSA2_OAUTH_CLIENT_AUTH_METHOD:client_secret_basic}
          client-name: ${NSA2_OAUTH_CLIENT_NAME:"NSA2 OAuth 2.0 Client"}


      provider:
        spring:
          issuer-uri: ${NSA2_OAUTH_ISSUER_URI:http://nsa2-auth-server:9000}


    management:
      endpoint.health.probes.enabled: true
      health:
        livenessstate.enabled: true
        readinessstate.enabled: true

      endpoints.web.exposure.include: #info,health,metrics,prometheus
        - info
        - health

Please note that the ConfigMap must contain the label and annotation below in metadata section for ConfigWatcher to work.

  labels:
    spring.cloud.kubernetes.config: "true"
  annotations:
    spring.cloud.kubernetes.configmap.apps: "nsa2-gateway"

nsa2-gateway is the application name here.

If you want to add routes dynamically, you can add the routes to the application.yaml file in the ConfigMap and Apply the ConfigMap to the Kubernetes cluster. ConfigWatcher will watch the ConfigMap and update the routes in the Spring Cloud Gateway when the file is changed.

To apply the ConfigMap to the Kubernetes cluster, run the following command:

$ kubectl -n nsa2 apply -f nsa2-gateway-config.yaml

Please note that lines for security-admin route are commented out in the application.yaml file in the ConfigMap. We are going to use this route to demonstrate how ConfigWatcher works later in this article.

bootstrap.yaml

To configure ConfigWatcher, we need to add the following configuration to the bootstrap.yaml file.

bootstrap.yaml

(1)
spring.application.name: nsa2-gateway

---
(2)
spring.config.activate.on-profile: kubernetes

(3)
spring:
  config:
    import:
      - /etc/configs/nsa2-gateway-kubernetes.yml

(4)
spring.cloud.kubernetes:
  reload:
    enabled: true
    monitoring-config-maps: true
    monitoring-secrets: true
    mode: event

  (5)
  config:
    enabled: true
    name: default-config
    namespace: nsa2
    sources:
      - name: nsa2-gateway

1	Set the application name to `nsa2-gateway` in the `bootstrap.yaml` file.
2	The configuration will be activated when the profile is `kubernetes`.
3	Import the configuration file `nsa2-gateway-kubernetes.yml` from the `/etc/configs` directory. We need to mount the ConfigMap to the `/etc/configs` directory in the pod.
4	Enable the ConfigWatcher with the monitoring of ConfigMaps and Secrets. The mode is set to `event`.
5	Set the ConfigWatcher configuration in the sources section. The name is the ConfigMap name `nsa2-gateway` and the namespace is `nsa2`.

Mount ConfigMap to the pod

For Helm chart

Here is an example of how to mount the ConfigMap to the pod in the values.yaml file for the Spring Cloud Gateway Helm chart.

values.yaml

volumes:
  - name: config-volume
    configMap:
      name: nsa2-gateway

volumeMounts:
  - name: config-volume
    mountPath: "/etc/configs"
    readOnly: true

For Kubernetes deployment

Here is an example of how to mount the ConfigMap to the pod in the Kubernetes deployment file.

spec:
  template:
    spec:
      volumes:
        - name: config-volume
          configMap:
            name: nsa2-gateway

      containers:
        - name: nsa2-gateway
          volumeMounts:
            - name: config-volume
              mountPath: /etc/configs
              readOnly: true

Create ServiceAccount, Role, and RoleBinding

To access the ConfigMap, we need to create a ServiceAccount and RoleBinding for the Spring Cloud Gateway pod.

I have been using Yeoman to generate the Helm chart for Spring Cloud Gateway. The generator creates the ServiceAccount, Role, and RoleBinding in the `src/main/k8s/helm-chart/nsa2-gateway' directory using the templates below.

templates/service-account.yaml
templates/role.yaml
templates/role-binding.yaml

Here are the templates for the ServiceAccount, Role, and RoleBinding.

templates/service-account.yaml

apiVersion: v1
kind: Service
metadata:
  name: {{ include "nsa2-gateway.fullname" . }}
  labels:
    {{- include "nsa2-gateway.labels" . | nindent 4 }}
  {{- with .Values.service.annotations }}
  annotations:
    {{- toYaml . | nindent 4 }}
  {{- end }}
spec:
  type: {{ .Values.service.type }}
  ports:
    - port: {{ .Values.service.port }}
      targetPort: http
      protocol: TCP
      name: http
  selector:
    {{- include "nsa2-gateway.selectorLabels" . | nindent 4 }}

templates/role.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name:  {{ include "nsa2-gateway.fullname" . }}-config-reader
rules:
  - apiGroups: ["", "extensions", "apps"]
    resources: ["configmaps", "secrets", "pods", "services", "namespaces", "endpoints"]
    verbs: ["get", "list", "watch"]

templates/role-binding.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    {{- include "nsa2-gateway.labels" . | nindent 4 }}
  name:  {{ include "nsa2-gateway.fullname" . }}:view
roleRef:
  kind: Role
  apiGroup: rbac.authorization.k8s.io
  name:  {{ include "nsa2-gateway.fullname" . }}-config-reader
subjects:
  - kind: ServiceAccount
    name: {{ include "nsa2-gateway.serviceAccountName" . }}

The template files will create the ServiceAccount, Role, and RoleBinding for the Spring Cloud Gateway pod.

nsa2-gateway (ServiceAccount)
nsa2-gateway-config-reader (Role)
nsa2-gateway:view (RoleBinding)

How to test ConfigWatcher

Port forward to the pods

In order to test Cloud Gateway with Auth Server, we need to port-forward to the pods. The urls have to be accessible from the browser.

port-forward to nsa2-gateway service

$ kubectl -n nsa2 port-forward svc/nsa2-gateway 8080:8080

$ kubectl -n nsa2 port-forward svc/nsa2-auth-server 9000:9000

We do not need to port-forward to Oauth2 resource server as it is accessed by the Spring Cloud Gateway internally.

/etc/hosts

127.0.0.1    nsa2-gateway
127.0.0.1    nsa2-auth-server

How to add routes dynamically

Before adding a route dynamically, let’s test the existing routes.
- expected: 404 error
Add routes dynamically and test the new route.
- expected: 200 OK and returns the response.
Update routes dynamically.
- expected: 200 OK and returns the response for the new route and 404 error for the old route.

Test existing routes before adding new routes

Before adding a route dynamically, let’s test the existing routes.

Go to the browser and access the following routes:

http://nsa2-gateway:8080/security-admin/users

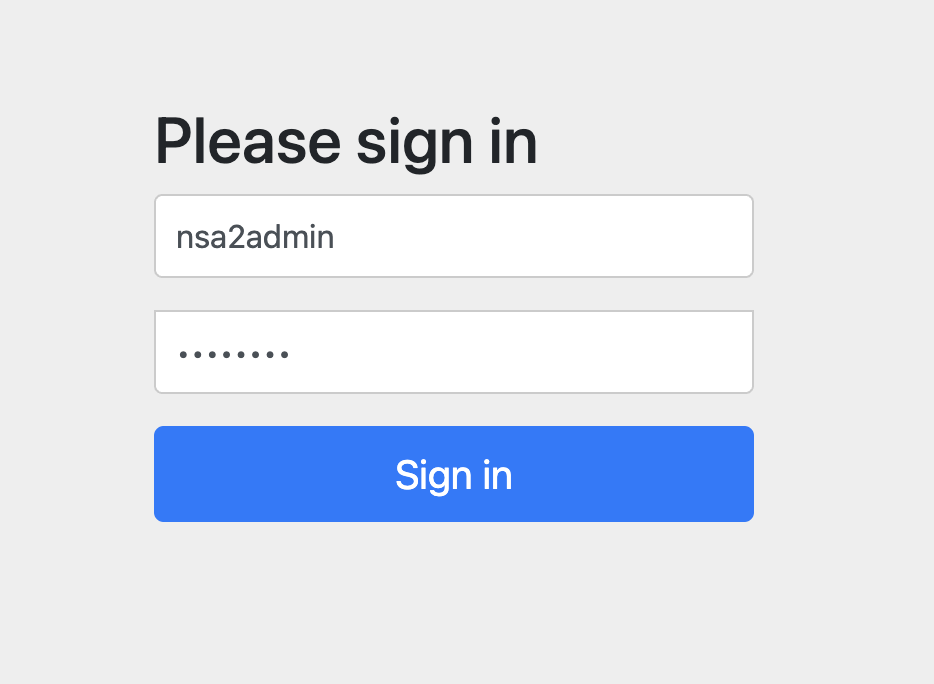

Figure 1. Login

The page will ask you to login. Enter the username and password and click on the Sign in button.

You should see the following response:

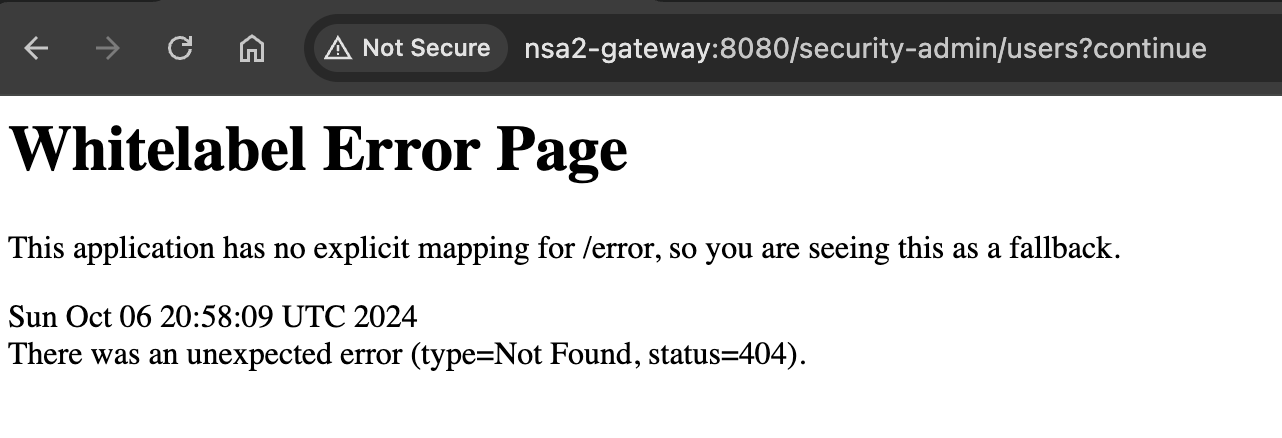

Figure 2. Security Admin - Not Found

Since the route for the security-admin is not defined in the nsa2-gateway-kubernetes.yaml file in the ConfigMap, you will see the 404 error.

Add routes dynamically

To add routes dynamically, you can add the routes to the nsa2-gateway-kubernetes.yaml file in the ConfigMap. In this example, just uncomment the lines for the security-admin route in the application.yaml file in the ConfigMap and Apply the ConfigMap to the Kubernetes cluster.

nsa2-gateway-config.yaml

              - id: security-admin
                uri: ${NSA2_SECURITY_ADMIN:http://nsa2-security-admin:8080}
                predicates:
                  - Path=/security-admin/**
                filters:
                  - StripPrefix=1
                  - AddRequestHeader=Origin, http://nsa2-gateway:8080
                  - TokenRelay=

To apply the ConfigMap to the Kubernetes cluster, run the following command:

$ kubectl -n nsa2 apply -f nsa2-gateway-config.yaml

Then Spring Cloud Gateway will reload the routes dynamically, and you can access the new route in the browser.

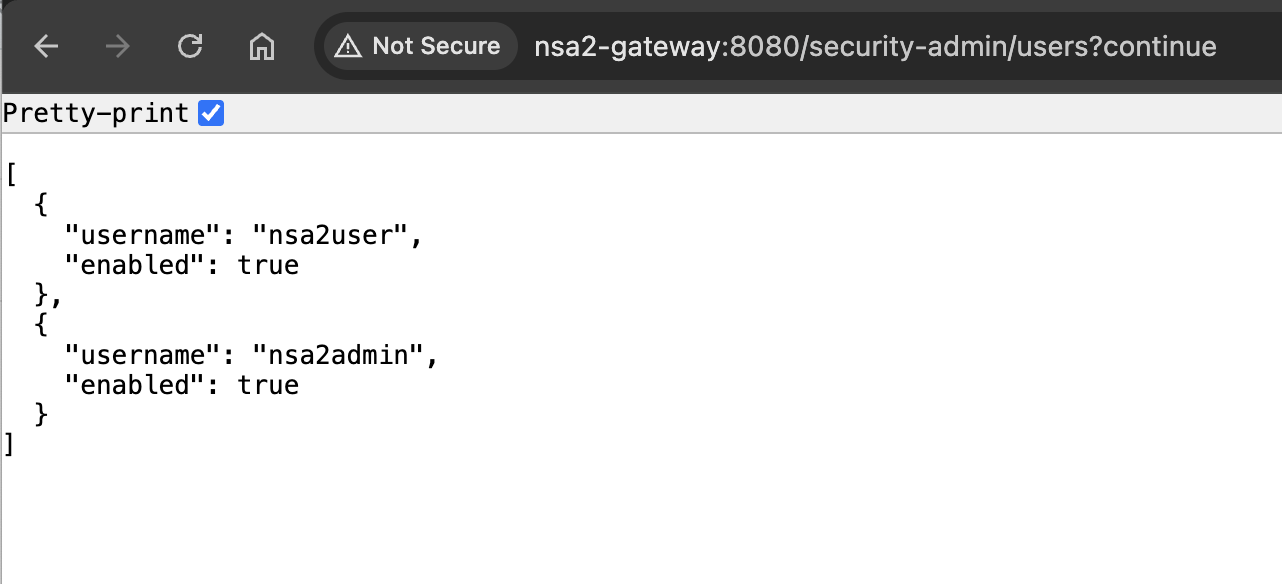

Figure 3. Security Admin - OK

Now we can access the new route security-admin and get the response.

We can get some insights from the traces in the Jaeger UI on how the request is processed. Both nsa2-gateway and nsa2-security-admin services call nsa2-auth-server service to authenticate the user and validate the token.

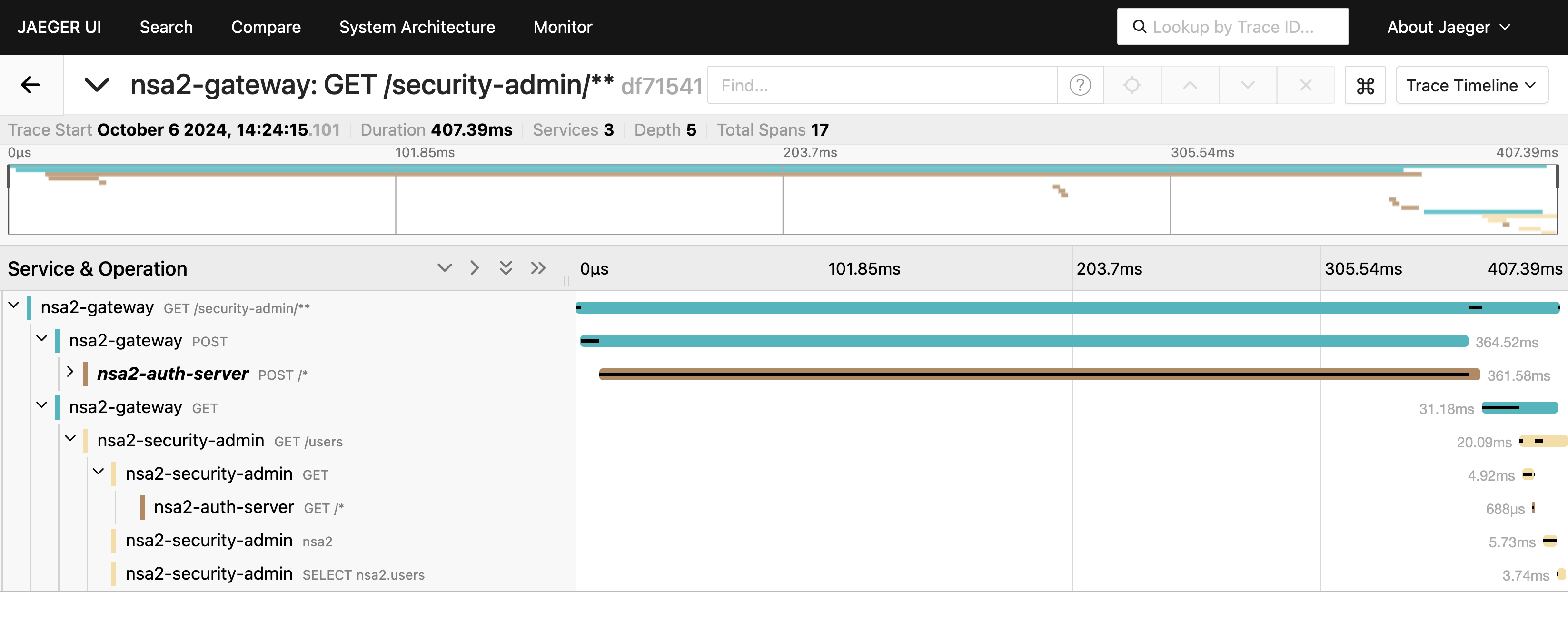

Figure 4. Jaeger UI

How to update routes dynamically

Let’s update the existing route /security-admin/users to /admin/users.

Set the predicates of security-admin route to /admin/** in the application.yaml file in the ConfigMap and Apply the ConfigMap to the Kubernetes cluster.

                predicates:
                  - Path=/admin/**

To apply the ConfigMap to the Kubernetes cluster, run the following command:

$ kubectl -n nsa2 apply -f nsa2-gateway-config.yaml

Now you can access the new route in the browser.

http://nsa2-gateway:8080/admin/users

And you should see the following response:

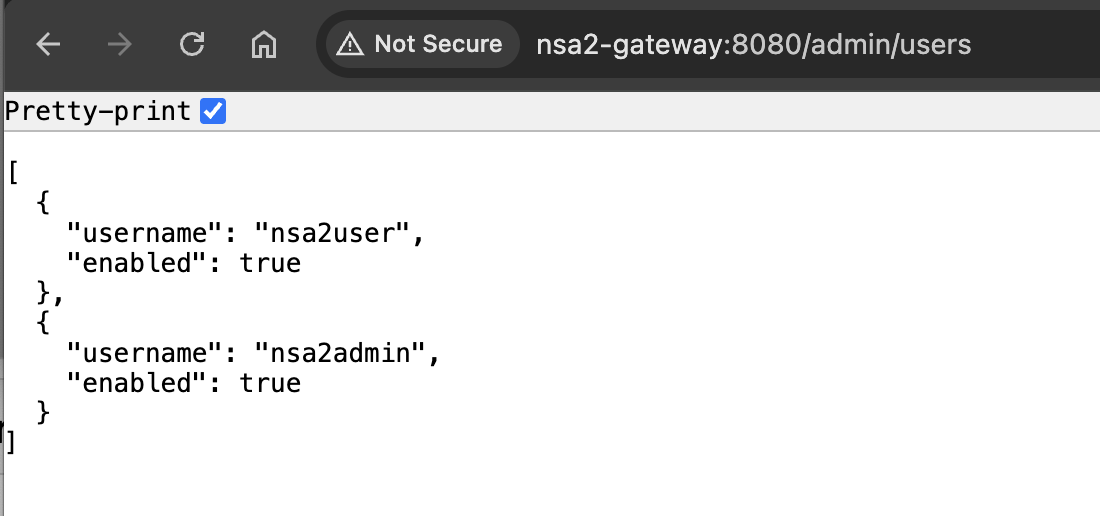

Figure 5. Security Admin - OK

and the old route will return 404.

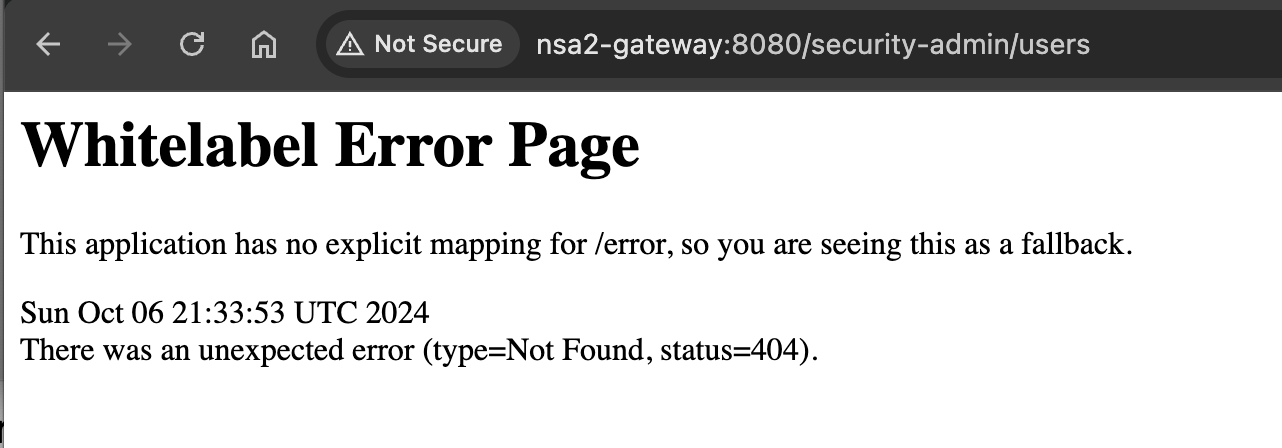

Figure 6. Security Admin - Not Found

403 Forbidden

When user does not have the required role, the response will be 403 Forbidden.

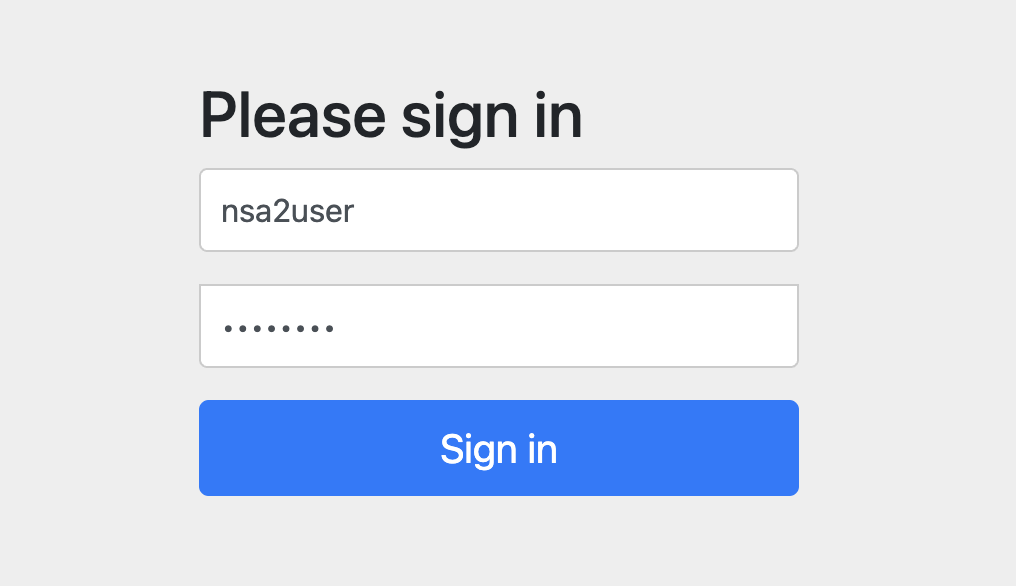

Figure 7. Login

When user logs in with the user role, the response will be 403 Forbidden.

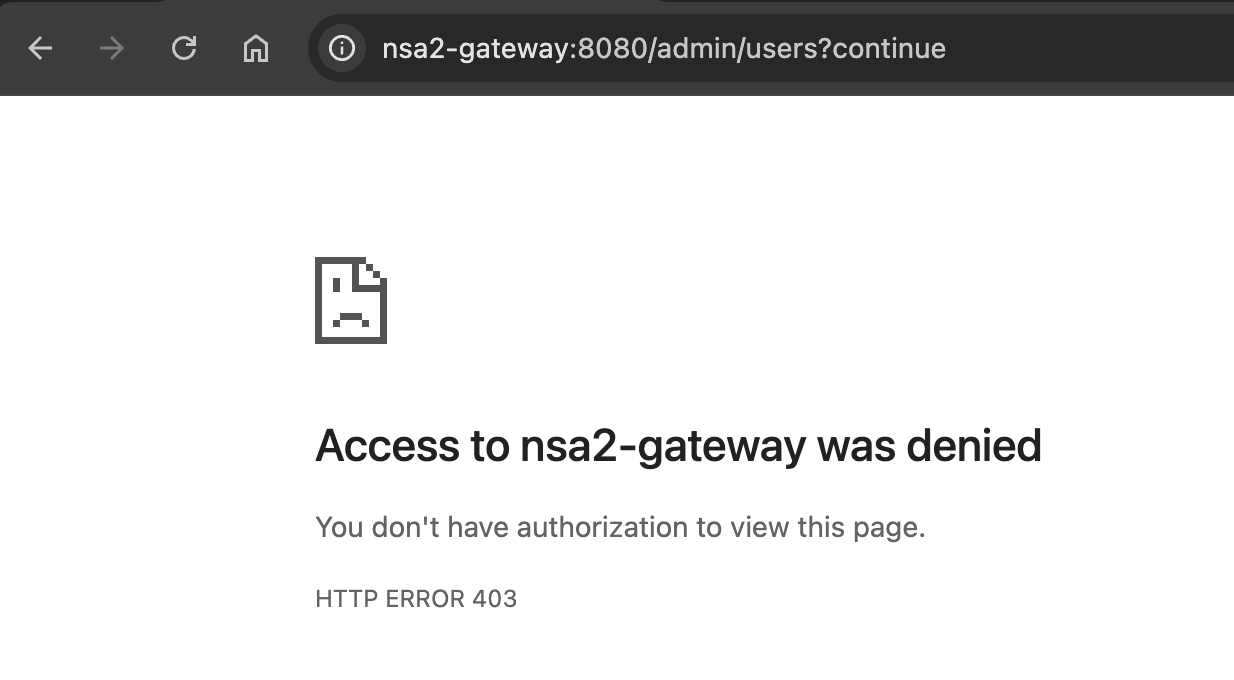

Figure 8. Security Admin - Forbidden

Conclusion

In this article, we have learned how to add routes to Spring Cloud Gateway dynamically using ConfigWatcher. We have created a ConfigMap in Kubernetes that contains the configuration file for Spring Cloud Gateway. We have added the ConfigWatcher configuration to the bootstrap.yaml file to reload the routes dynamically. We have mounted the ConfigMap to the /etc/configs directory in the pod. We have created a ServiceAccount and RoleBinding for the Spring Cloud Gateway pod to access the ConfigMap. We have tested the existing routes before adding new routes. We have added routes dynamically and tested the new route. We have updated the existing route and tested the new route.

References

Spring Cloud Gateway Dynamic Route Configuration and Loading from the Datastore
