Spring Cloud Gateway with OAuth 2.0 (Spring Authorization Server)

Introduction

This article is part of a series on Spring Cloud Gateway. The other articles in the series are:

Part 1: Spring Cloud Gateway with Virtual Threads
Part 2: Spring Cloud Gateway with Spring Authorization Server
Part 3: Spring Cloud Gateway with Spring Authorization Server using Database

This is the second article in the series, which focuses on using Spring Cloud Gateway with Virtual Threads.

Spring Cloud Gateway plays a key role in managing cross-cutting concerns like security, monitoring, and resilience. In this article, we’ll explore how to configure Spring Cloud Gateway as an OAuth2 client to interact with an OAuth2 server. We’ll also dive into setting up Spring Authorization Server as the OAuth2 server. Building on the resource server from the previous article, we’ll demonstrate how Spring Cloud Gateway interacts with the OAuth2 server to access protected resources.

Spring Bot and OAuth2

In the previous article, we learned how to implement Spring Cloud Gateway using Virtual Threads. In this article, we will discuss how Spring Cloud Gateway handles security using OAuth2. Spring Cloud Gateway can be used as an OAuth2 client to an OAuth2 server. The OAuth2 server is responsible for issuing access tokens to the client. The client can then use the access token to access protected resources.

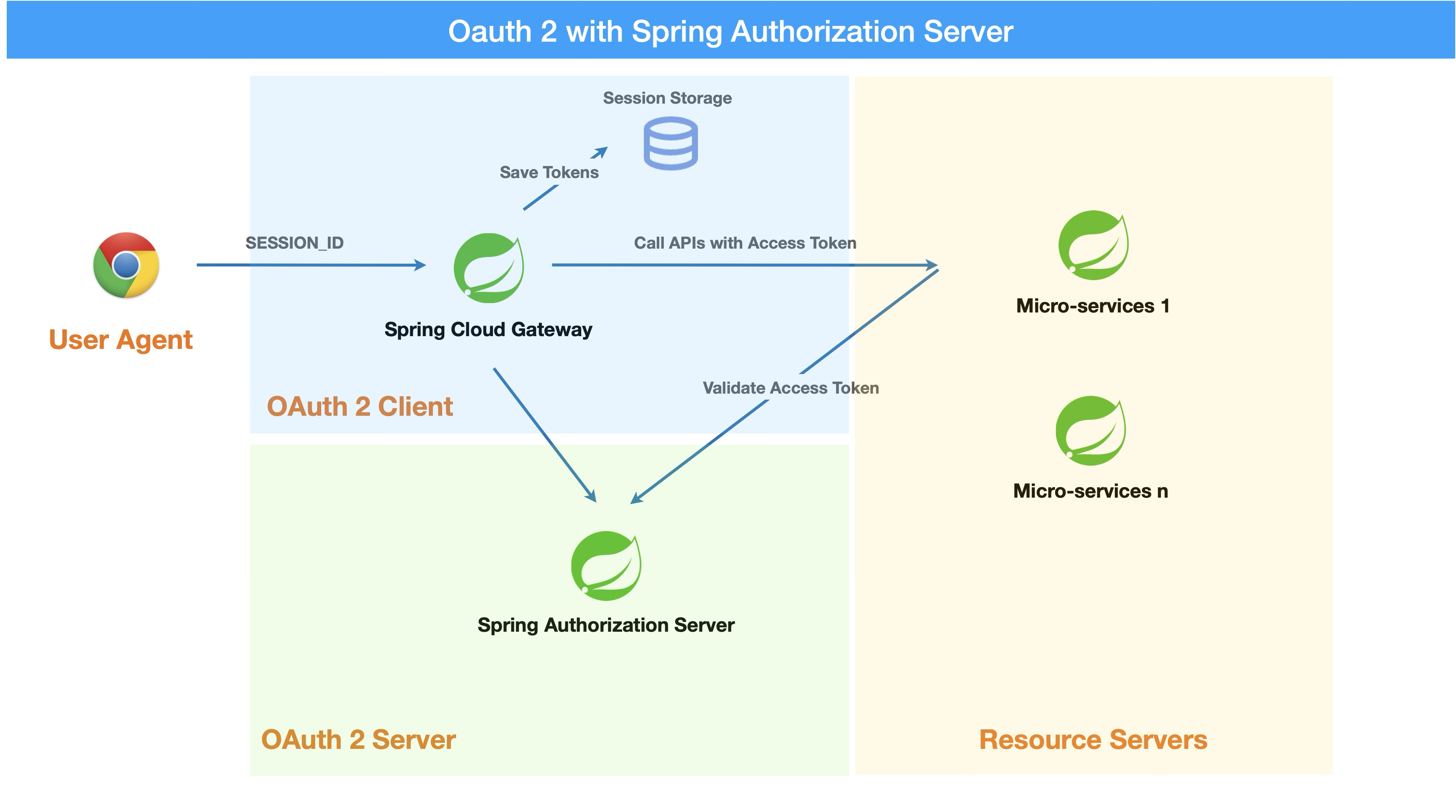

Figure 1. Oauth2 with Spring Authorization Server

There are 3 microservices in this example:

Spring Cloud Gateway (OAuth2 client, Port 8080)
Spring Authorization Server (OAuth2 server, Port 8081)
Resource Server example (Port 8082)

Spring Boot provides the following dependencies to enable OAuth2 support for OAuth2 client, OAuth2 authorization server, and OAuth2 resource server.

Here are the dependencies respectively:

org.springframework.boot:spring-boot-starter-oauth2-client
org.springframework.boot:spring-boot-starter-oauth2-authorization-server
org.springframework.boot:spring-boot-starter-oauth2-resource-server

Prerequisites

Java 21 or later
Spring Boot 3.2.0 or later
Spring Cloud Gateway
Basic knowledge of OAuth2

Limitations

In this article, I am not going to cover how OAuth2 works. I assume you have a basic understanding of OAuth2. If you are new to OAuth2, I recommend reading the following documentation:

OAuth 2.0

To focus on the main topic, in this article, I will not use a database to store the client details. Instead, I will use an in-memory client registration. We will discuss how to use a database to store client details in a future article.

Spring Authorization Server as OAuth2 Server

Spring Authorization Server is a framework that provides implementations of the OAuth 2.1 and OpenID Connect 1.0 specifications and other related specifications. It is built on top of Spring Security to provide a secure, light-weight, and customizable foundation for building OpenID Connect 1.0 Identity Providers and OAuth2 Authorization Server products.

— Introducing Spring Authorization Server
https://docs.spring.io/spring-authorization-server/reference/overview.html

For more information about Spring Authorization Server, visit the Spring Authorization Server.

Let’s start by creating a new Spring Boot project using Spring Initializr. Add the following dependencies:

Add Dependencies

build.gradle.kts

dependencies {
//         implementation("org.springframework.boot:spring-boot-starter-jdbc")
	implementation("org.springframework.boot:spring-boot-starter-security")
	implementation("org.springframework.boot:spring-boot-starter-web")
	implementation("org.springframework.boot:spring-boot-starter-oauth2-authorization-server")
	compileOnly("org.projectlombok:lombok")
// 	runtimeOnly("org.postgresql:postgresql")
	annotationProcessor("org.projectlombok:lombok")
	testImplementation("org.springframework.boot:spring-boot-starter-test")
	testImplementation("org.springframework.security:spring-security-test")
	testRuntimeOnly("org.junit.platform:junit-platform-launcher")

}

Notice that we have added the spring-boot-starter-oauth2-authorization-server dependency to enable OAuth2 authorization server support in the application. And I commented out the spring-boot-starter-jdbc and postgresql dependencies because we are not going to use a database to store the client details in this article.

application.yaml

application.yml

spring.application.name: nsa2-auth-server

server.port: 8081

spring.security.oauth2.authorizationserver:
  client:
    nsa2-client:
      registration:
        client-id: "nsa2"
        client-secret: "{noop}secret"
        client-authentication-methods:
          - "client_secret_basic"
        authorization-grant-types:
          - "authorization_code"
          - "refresh_token"
          - "client_credentials"
        redirect-uris:
          - "http://127.0.0.1:8080/login/oauth2/code/nsa2"
        post-logout-redirect-uris:
          - "http://127.0.0.1:8080/logged-out"
        scopes:
            - "openid"
            - "profile"
            - "nsa2.user.all"
            - "nsa2.user.read"
            - "nsa2.user.write"
            - "nsa2.admin"

      require-authorization-consent: true

In the application.yml file, we have configured the OAuth2 client details. We have defined the client-id, client-secret, authorization-grant-types, redirect-uris, post-logout-redirect-uris, and scopes.

Security Configuration

SecurityConfig.java

@Configuration(proxyBeanMethods = false)
@Slf4j
public class SecurityConfig {

    @Bean
    UserDetailsService inMemoryUserDetailsManager() {
        return new InMemoryUserDetailsManager(
                User.withUsername("nsa2user")
                        .password("{noop}password")
                        .roles("NSA2_USER")
                        .build(),
                User.withUsername("nsa2admin")
                        .password("{noop}password")
                        .roles("NSA2_ADMIN", "NSA2_USER")
                        .build()

        );
    }
}

In the SecurityConfig.java file, we have defined the inMemoryUserDetailsManager bean to create in-memory users. We have created two users: nsa2user and nsa2admin. The nsa2user user has the NSA2_USER role, and the nsa2admin user has the NSA2_ADMIN and NSA2_USER roles. The password for both users is password.

Authorization Server Configuration

AuthorizationServerConfig.java

@Configuration(proxyBeanMethods = false)
@Slf4j
@RequiredArgsConstructor
public class AuthorizationServerConfig {

    // @formatter:off
    @Order(Ordered.HIGHEST_PRECEDENCE)
    @Bean
    SecurityFilterChain authorizationSecurityFilterChain(HttpSecurity http) throws Exception {

        applyDefaultSecurity(http);
        http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
                .oidc(Customizer.withDefaults());

        return http
                .oauth2ResourceServer(oauth2 -> oauth2.jwt(Customizer.withDefaults()))

                .exceptionHandling(c ->
                        c.defaultAuthenticationEntryPointFor(
                                new LoginUrlAuthenticationEntryPoint("/login"),
                                new MediaTypeRequestMatcher(MediaType.TEXT_HTML)))

                .formLogin(Customizer.withDefaults())
                .build();
    }
    // @formatter:on
}

In the AuthorizationServerConfig.java file, we have defined the authorizationSecurityFilterChain bean to configure the security filter chain for the authorization server. We have applied the default security settings and configured the OAuth2 authorization server and OAuth2 resource server.

Run the Application

Now, run the application using the following command:

$ ./gradlew bootRun

OpenID Configuration

If Authorization Server is running, you can access the OpenID Configuration endpoint using the following URL:

http://localhost:8081/.well-known/openid-configuration

The OpenID Configuration endpoint provides information about the OAuth2 server.

Here is an example of the response from the OpenID Configuration endpoint:

{
  "issuer": "http://127.0.0.1:8081",
  "authorization_endpoint": "http://127.0.0.1:8081/oauth2/authorize",
  "device_authorization_endpoint": "http://127.0.0.1:8081/oauth2/device_authorization",
  "token_endpoint": "http://127.0.0.1:8081/oauth2/token",
  "token_endpoint_auth_methods_supported": [
    "client_secret_basic",
    "client_secret_post",
    "client_secret_jwt",
    "private_key_jwt",
    "tls_client_auth",
    "self_signed_tls_client_auth"
  ],
  "jwks_uri": "http://127.0.0.1:8081/oauth2/jwks",
  "userinfo_endpoint": "http://127.0.0.1:8081/userinfo",
  "end_session_endpoint": "http://127.0.0.1:8081/connect/logout",
  "response_types_supported": [
    "code"
  ],
  "grant_types_supported": [
    "authorization_code",
    "client_credentials",
    "refresh_token",
    "urn:ietf:params:oauth:grant-type:device_code",
    "urn:ietf:params:oauth:grant-type:token-exchange"
  ],
  "revocation_endpoint": "http://127.0.0.1:8081/oauth2/revoke",
  "revocation_endpoint_auth_methods_supported": [
    "client_secret_basic",
    "client_secret_post",
    "client_secret_jwt",
    "private_key_jwt",
    "tls_client_auth",
    "self_signed_tls_client_auth"
  ],
  "introspection_endpoint": "http://127.0.0.1:8081/oauth2/introspect",
  "introspection_endpoint_auth_methods_supported": [
    "client_secret_basic",
    "client_secret_post",
    "client_secret_jwt",
    "private_key_jwt",
    "tls_client_auth",
    "self_signed_tls_client_auth"
  ],
  "code_challenge_methods_supported": [
    "S256"
  ],
  "tls_client_certificate_bound_access_tokens": true,
  "subject_types_supported": [
    "public"
  ],
  "id_token_signing_alg_values_supported": [
    "RS256"
  ],
  "scopes_supported": [
    "openid"
  ]
}

Spring Cloud Gateway as OAuth2 Client

We are going to use the same Spring Cloud Gateway project that we created in the previous article. We will add the OAuth2 client configuration to the Spring Cloud Gateway project.

Add Dependencies

build.gradle.kts

dependencies {
    implementation("org.springframework.cloud:spring-cloud-starter-gateway-mvc")
    implementation("org.springframework.boot:spring-boot-starter-web")
    implementation("org.springframework.boot:spring-boot-starter-oauth2-client") (1)

    compileOnly("org.projectlombok:lombok")
    annotationProcessor("org.projectlombok:lombok")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
    testRuntimeOnly("org.junit.platform:junit-platform-launcher")
}

1	In the `build.gradle.kts` file, we have added the `spring-boot-starter-oauth2-client` dependency to enable OAuth2 client support in the application.

Configure OAuth2 Client

application.yml

spring.application.name:
  nsa2-gateway


server:
  tomcat.threads.max: 10
  (1)
  servlet.session.cookie:
    name: NSA2SESSION

(2)
spring:
  cloud:
    gateway:
      mvc:
        routes:
          - id: resource-server
            uri: ${NSA2_RESOURCE_SERVER_URI:http://127.0.0.1:8082}
            predicates:
              - Path=/resource-server/**
            filters:
              - StripPrefix=1
              - AddRequestHeader=Origin, http://nsa2-gateway:8080
              (3)
              - TokenRelay=

(4)
spring.threads.virtual.enabled: true

(5)
spring.security.oauth2.client:
  registration:
    nsa2:
      provider: spring
      client-id: nsa2
      client-secret: secret
      authorization-grant-type: authorization_code
      scope: openid,profile,nsa2.user.all,nsa2.user.read,nsa2.user.write,nsa2.admin
      redirect-uri: "http://127.0.0.1:8080/login/oauth2/code/{registrationId}"

  (6)
  provider:
    spring:
      issuer-uri: http://127.0.0.1:8081

1	Cookie name for the session
2	Gateway routes configuration
3	TokenRelay filter to relay the access token to the downstream service
4	Enable Virtual Threads
5	OAuth2 client configuration
6	OAuth2 provider configuration

Please make sure that client-id and client-secret are the same as the client-id and client-secret defined in the application.yml file of the Spring Authorization Server.

Run the Application

Now, run the application using the following command:

$ ./gradlew bootRun

Resource Server example

We are going to use the same Resource Server project that we created in the previous article. We will add the OAuth2 resource server configuration to the Resource Server project.

Add Dependencies

build.gradle.kts

dependencies {
    implementation("org.springframework.boot:spring-boot-starter-web")
    (1)
    implementation("org.springframework.boot:spring-boot-starter-oauth2-resource-server")
    compileOnly("org.projectlombok:lombok")
    annotationProcessor("org.projectlombok:lombok")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
    testRuntimeOnly("org.junit.platform:junit-platform-launcher")
}

1	In the `build.gradle.kts` file, we have added the `spring-boot-starter-oauth2-resource-server` dependency to enable OAuth2 resource server support in the application.

Configure OAuth2 Resource Server

application.yml

spring.application.name: nsa2-resource-server-example


server:
  (1)
  port: 8082
  (2)
  tomcat.threads.max: 10

(3)
spring.threads.virtual.enabled: false

(4)
spring:
  security:
    oauth2:
      resourceserver:
        jwt:
          issuer-uri: ${NSA2_JWT_ISSUER_URI:http://localhost:8081}

1	Server port configuration
2	Tomcat threads configuration
3	Disable Virtual Threads
4	OAuth2 resource server configuration

Please make sure that the issuer-uri is the same as the issuer-uri defined in the application.yml file of the Spring Authorization Server.

Secure Controller

SecureController.java

@RestController
@Slf4j
public class SecureController {
    (1)
    @GetMapping("/access_token")
    public Map<String, String> accessToken(JwtAuthenticationToken jwtToken) {
        Map<String, Object> tokenAttributes = jwtToken.getTokenAttributes();
        log.debug("principal class: {}", jwtToken.getPrincipal().getClass());

        var authorities = jwtToken.getAuthorities();
        log.debug("authorities: {}", authorities);
        return Map.of(
                "principal", jwtToken.getName(),
                "access_token", jwtToken.getToken().getTokenValue(),
                "authorities", authorities.toString(),
                "scope",tokenAttributes.containsKey("scope") ? tokenAttributes.get("scope").toString() : ""
        );
    }

    (2)
    @PreAuthorize("hasAuthority('SCOPE_nsa2.user.all') or hasAuthority('SCOPE_nsa2.user.read') or hasAuthority('SCOPE_nsa2.user.write')")
    @GetMapping("/hello")
    public Map<String, String> hello(Principal principal, JwtAuthenticationToken jwtToken) {
        log.info("principal: {}", principal);
        log.info("name: {}", jwtToken.getName());
        log.info("principal class: {}", principal.getClass());
        log.info("jwtToken class: {}", jwtToken.getClass());
        log.info("authorities: {}", jwtToken.getAuthorities());
        return Map.of("message", "ResourceServer - Hello, " + principal.getName());
    }

    (3)
    @PreAuthorize("hasAuthority('SCOPE_nsa2.admin')")
    @GetMapping("/admin/hello")
    public Map<String, String> adminHello(Principal principal) {
        return Map.of("message", "ResourceServer - Admin Hello, " + principal.getName());
    }


}

1	The `accessToken` method returns the access token information.
2	The `hello` method is secured with the `SCOPE_nsa2.user.all`, `SCOPE_nsa2.user.read`, and `SCOPE_nsa2.user.write` scopes.
3	The `adminHello` method is secured with the `SCOPE_nsa2.admin` scope.

For demonstration purposes, we have added the accessToken method to display the access token information. But on production, you should not expose the access token information. Normally access tokens are managed by the OAuth2 client and are not exposed to the browser. Only Session ID is exposed to the browser for security reasons.

Run the Application

Now, run the application using the following command:

$ ./gradlew bootRun

Test Resource Server without Access Token

Now this application is running as a resource server. So an access token is required to access the protected resources.

Let’s test the resource server without an access token. Open the browser and access the following URL or using curl command:

$ curl http://127.0.0.1:8082/access_token -I

HTTP/1.1 401
WWW-Authenticate: Bearer
X-Content-Type-Options: nosniff
X-XSS-Protection: 0
Cache-Control: no-cache, no-store, max-age=0, must-revalidate
Pragma: no-cache
Expires: 0
X-Frame-Options: DENY
Content-Length: 0
Date: Thu, 26 Sep 2024 15:19:22 GMT

It will return the HTTP status code 401 Unauthorized with the WWW-Authenticate: Bearer header. This means that the access token is required to access the protected resources.

Test Gateway and Resource Server all together

Now, open the browser and access the following URL:

http://127.0.0.1:8080/resource-server/access_token

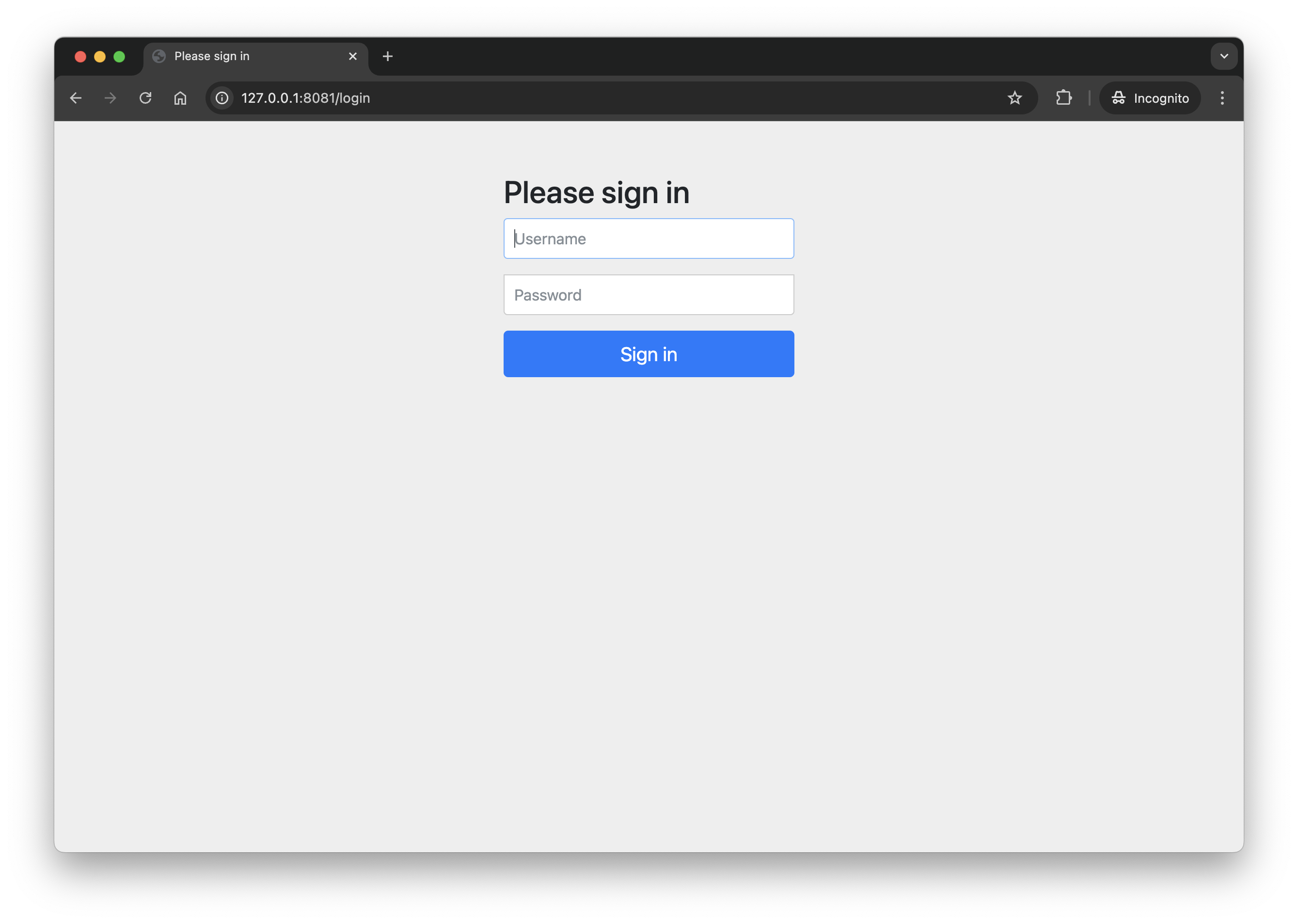

Figure 2. Login Screen

Login screen will appear that is provided by the Authorization Server. Please notice that the port is 8081, which is the port of the Authorization Server.

Enter the username and password. The default username is nsa2user and the password is password.

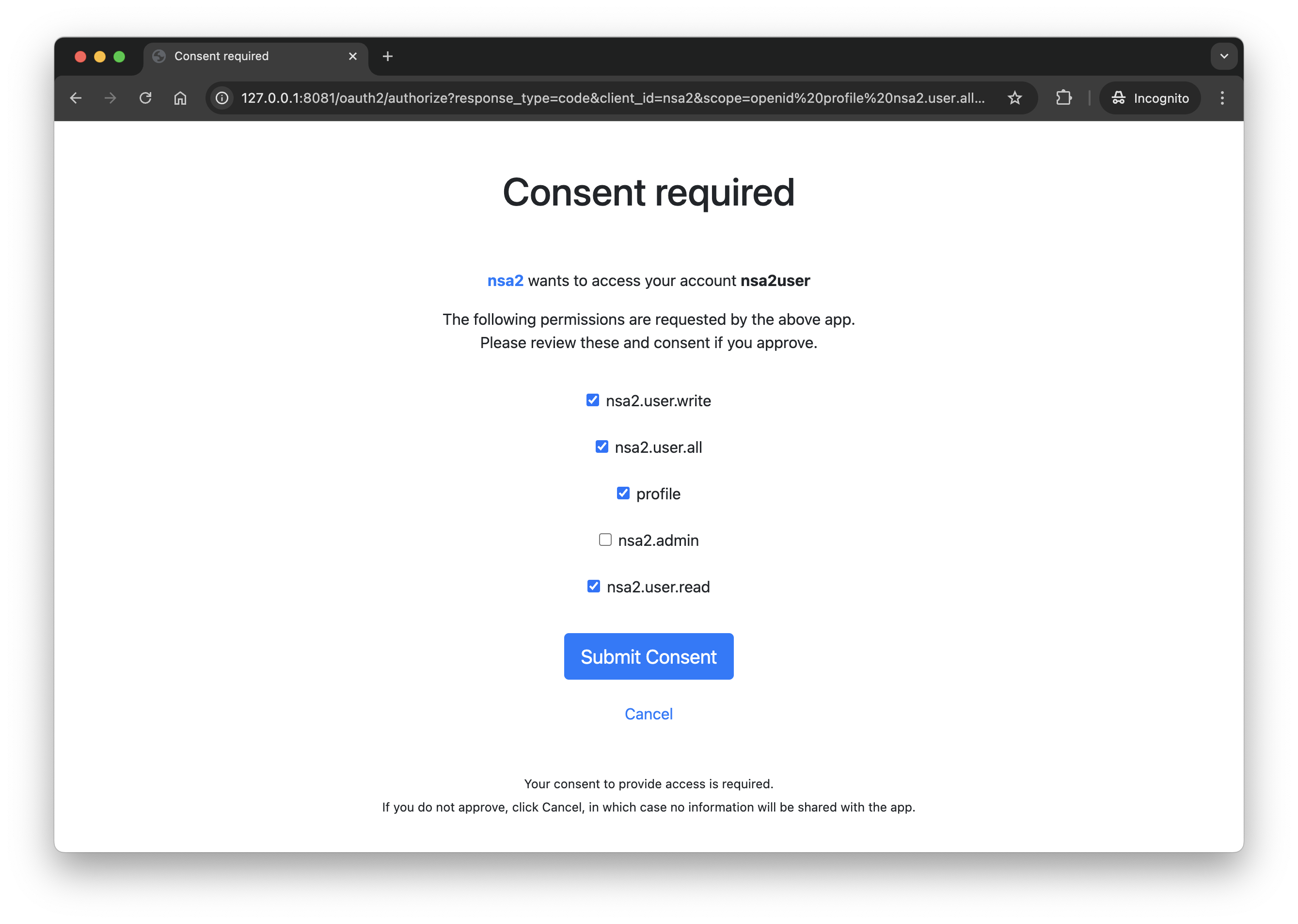

Figure 3. Consent Screen

Select all scopes except nsa2.admin and click the Authorize button.

The response will be as follows:

{
  "authorities": "[SCOPE_nsa2.user.write, SCOPE_nsa2.user.all, SCOPE_openid, SCOPE_profile, SCOPE_nsa2.user.read]",
  "principal": "nsa2user",
  "scope": "[nsa2.user.write, nsa2.user.all, openid, profile, nsa2.user.read]",
  "access_token": "eyJraWQiOiJiMTc5YjU0MC0yMTkxLTQ5ZmItYTExYS0yYzJiNmMzNDQ5MzgiLCJhbGciOiJSUzI1NiJ9.eyJzdWIiOiJuc2EydXNlciIsImF1ZCI6Im5zYTIiLCJuYmYiOjE3MjczNDk4OTUsInNjb3BlIjpbIm5zYTIudXNlci53cml0ZSIsIm5zYTIudXNlci5hbGwiLCJvcGVuaWQiLCJwcm9maWxlIiwibnNhMi51c2VyLnJlYWQiXSwiaXNzIjoiaHR0cDovLzEyNy4wLjAuMTo4MDgxIiwiZXhwIjoxNzI3MzUwMTk1LCJpYXQiOjE3MjczNDk4OTUsImp0aSI6ImYyMjMxZWU5LTEwNTAtNDc2Yy1hOTQ5LTMxZWNjYmQwZWNhMiJ9.AxwYP891nlmFF2Z43fFDCRNsSbynC47oi0FsQRn6EurO0OGG7MOT3reJv7I843hiCIaIp6IdxCRRG-1U-gjmTci_WndnUnPS2VxWKWRVLetXGaRl0zLV7oaCDa5YYAaZIPFVa2Qne0A7dmLQu1V7hTii_r1qr-XJsbk33QJSD5S72IJ6P7JqESCt3zTQi9fNTXZBZleS7dwGwi4QGb4DOAq-ysnn2pB30qqms0fZD860LhBGnkydBymJgTLV_jf8rjsUvmNxkA5udcymrh7RUiTlGo3jXv62EXscSQ5XHtVAAITzQ06hiuvudTKwWl3FTgp73G7ONZFdKfGcleG7lA"
}

The authorities are SCOPE_nsa2.user.write, SCOPE_nsa2.user.all, SCOPE_openid, SCOPE_profile, and SCOPE_nsa2.user.read which is the format of 'SCOPE_{scope}'.

Now, access the following URL:

http://127.0.0.1:8080/resource-server/hello

    @PreAuthorize("hasAuthority('SCOPE_nsa2.user.all') or hasAuthority('SCOPE_nsa2.user.read') or hasAuthority('SCOPE_nsa2.user.write')")
    @GetMapping("/hello")
    public Map<String, String> hello(Principal principal, JwtAuthenticationToken jwtToken) {
    }

Because nsa2user has the SCOPE_nsa2.user.all, SCOPE_nsa2.user.read, and SCOPE_nsa2.user.write scopes, the hello method will be accessible.

The response will be as follows:

{
  "message": "ResourceServer - Hello, nsa2user"
}

Now, access the following URL:

http://127.0.0.1:8080/resource-server/admin/hello

    @PreAuthorize("hasAuthority('SCOPE_nsa2.admin')")
    @GetMapping("/admin/hello")
    public Map<String, String> adminHello(Principal principal) {
    }

Because nsa2user does not have the SCOPE_nsa2.admin scope, the adminHello method will not be accessible.

The response will be as follows:

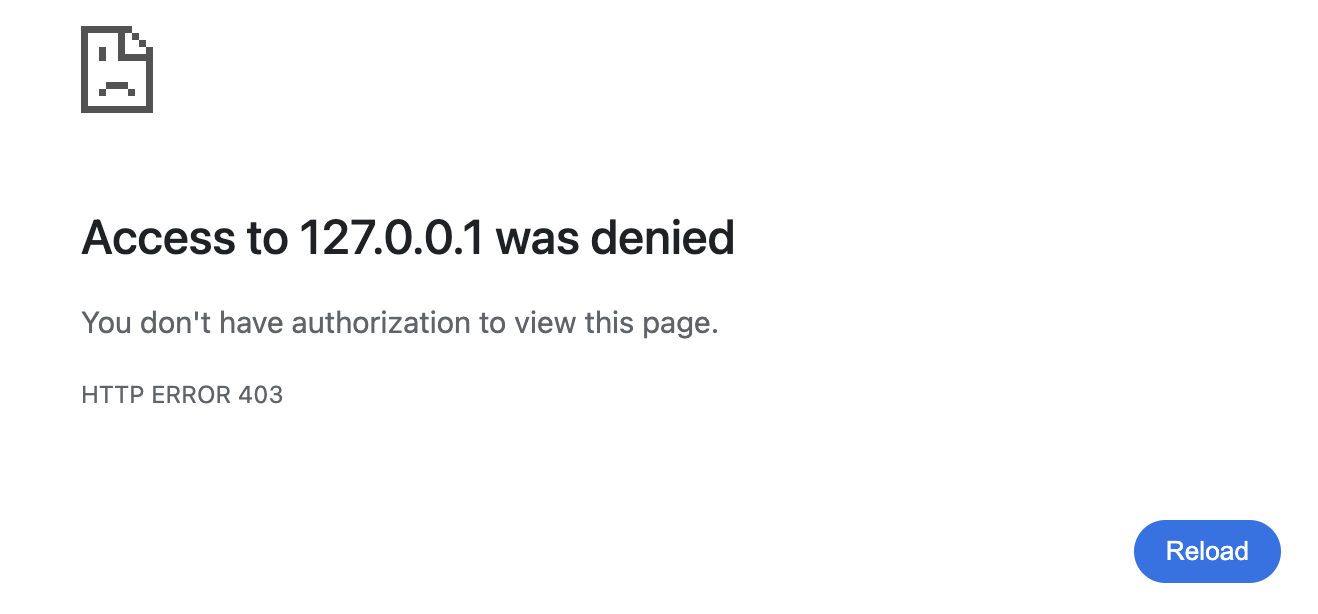

Figure 4. 403 Forbidden Error

The HTTP status code is 403 Forbidden.

Use Session ID to Access Resource Server through Gateway

Tokens are managed by the OAuth2 client and are not exposed to the browser. Only the Session ID is exposed to the browser for security reasons. The Session ID can be used to access the protected resources through the Gateway.

How to get the Session ID?

You can get the Session ID from the browser’s developer tools. Open the browser’s developer tools and go to the Application tab. You will see the Cookies section. The Session ID is stored in the NSA2SESSION cookie.

Figure 5. Session Cookie

To access the URL using the Session ID, you can use the curl command with the -b or --cookie option. Here is how you can do it:

$ curl http://127.0.0.1:8080/resource-server/hello -I --cookie NSA2SESSION=7599A59CD27ED74582B9EFAEE82A2CD0

HTTP/1.1 200
cache-control: no-cache, no-store, max-age=0, must-revalidate
date: Thu, 26 Sep 2024 15:42:14 GMT
expires: 0
pragma: no-cache
x-content-type-options: nosniff
x-frame-options: DENY
x-xss-protection: 0
Content-Type: application/json
Transfer-Encoding: chunked

Now, you can see that the HTTP status code is 200 OK. This means that the protected resource is accessible using the Session ID.

JWT Token Decoding

You can decode the JWT token using the following URL:

https://jwt.io/

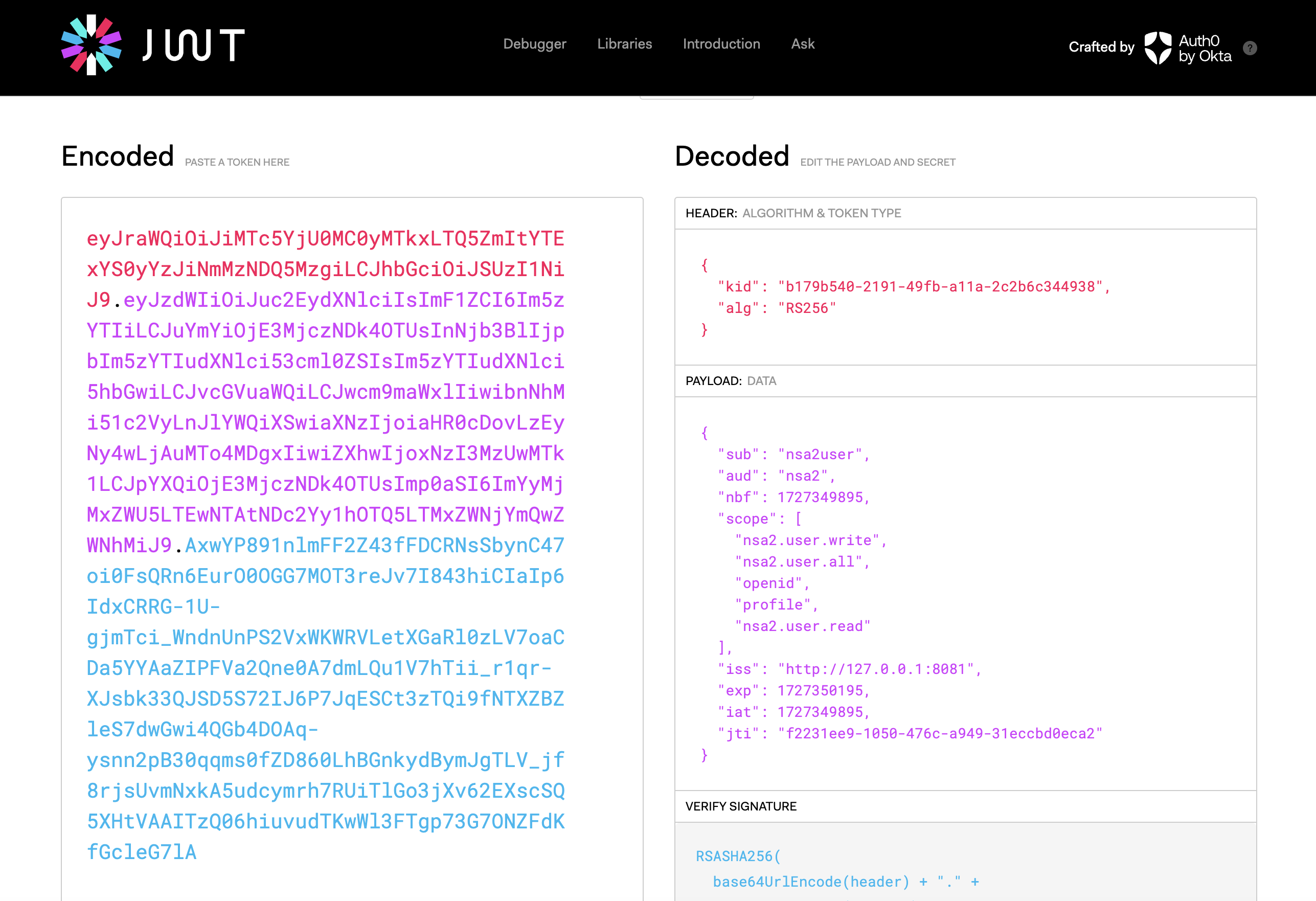

Figure 6. JWT decoding

Conclusion

In this article, we discussed how to use Spring Cloud Gateway as an OAuth2 client to an OAuth2 server. We also discussed how to use Spring Authorization Server as an OAuth2 server. We created a Spring Authorization Server project, a Spring Cloud Gateway project, and a Resource Server project. We configured the OAuth2 client, OAuth2 resource server, and secured the controller using the @PreAuthorize annotation.

References

Articles

https://dev.to/relive27/spring-cloud-gateway-combined-with-the-security-practice-of-oauth20-protocol-1m3b

https://medium.com/@alperkrtglu/spring-oauth2-with-keycloak-moving-from-scope-to-roles-34247f3ff78e
